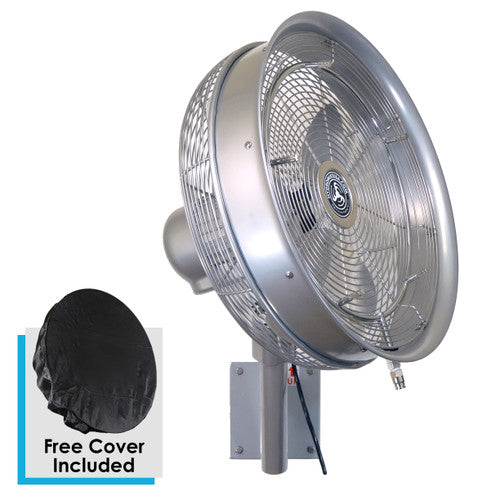

18 " Misting Oscillating Professional Outdoor Waterproof Fan

F10-01-015

Ideal for residential or light commercial use. Wall mounting bracket and motor 3-speed control included. UL 507 rated for outdoor use. Fan has 18" blades and built-in, flush-fitting 5-nozzle misting ring. Oscillation covers 30 degrees right/left from center or can be put into a fixed position. If fan Is mounted in the corner of the space,  it can be pivoted and secured on the bracket to change the oscillation span more to the left or right.

REQUIRES HIGH PRESSURE MISTING PUMP ( NOT INCLUDED ).

See Misting Fan Kits for packages with pumps

Features

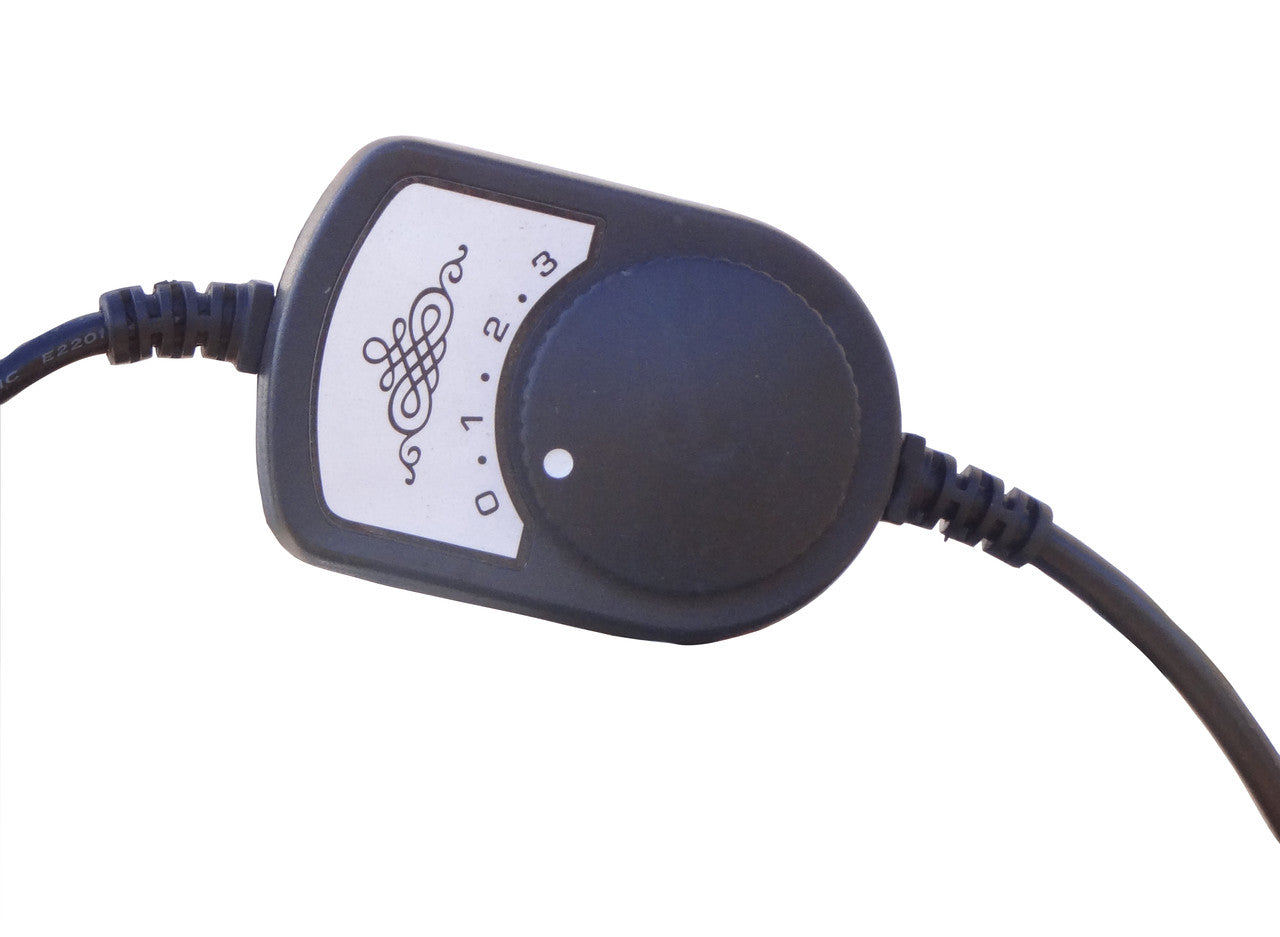

  • 3 Speed Control on motor: The 3 fan speeds are 3500 CFM, 4200 CFM, and 5100 CFM.
  • Power Cord Length 92 inches.
  • The fan comes fully assembled and can easily be self-installed. Suggested Fan Install Height 8-10 Feet
  • Very Quiet Running: Quieter than most outdoor fans. The fan shroud creates a white noise which is more soothing then annoying. Db Sound Level Speed 1 62 Db, Speed 2 64 Db, Speed 3 70 Db
  • Easy Tilt Ratchet System: Adjust tilt tool-free by simply pushing the fan head up or pulling it down. As the fan clicks vertically, it will lock in position.
  • Outdoor Rated: Fan head comes fully assembled w/ sealed motor to protect from rain. Fan cage has premium-quality electrolysis nickel plating. Finish is weather resistant which prevents unsightly weathering. Built in electrical fuse in plug protects motor from power surges (2 extra fuses included)
  • Fan Blade: The fan blade is  constructed of durable, hard mold resistant resin and spins 3 airspeeds -3500 CFM, 4200 CFM, and 5100 CFM.

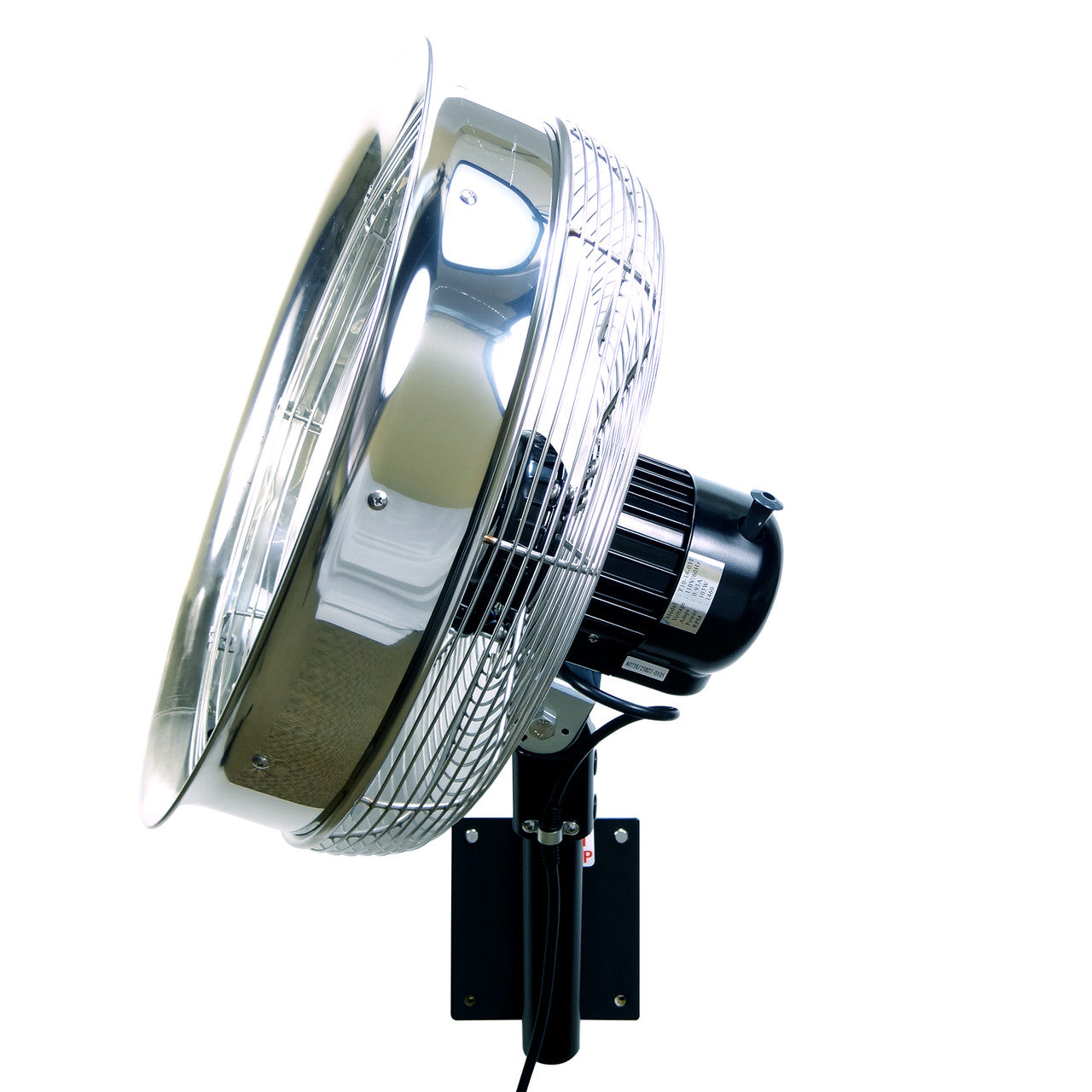

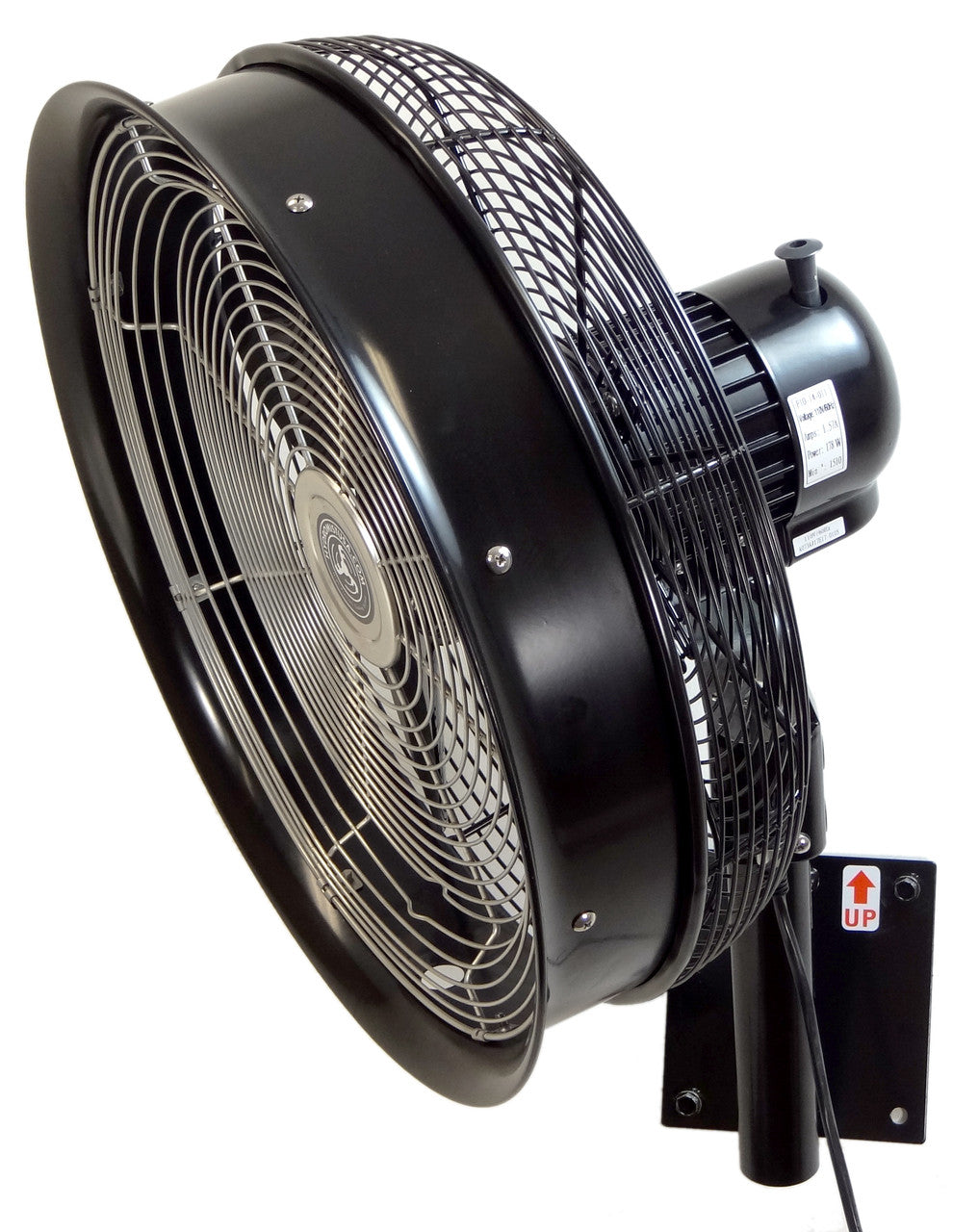

  • Mounting Bracket Included: A wall mount bracket and anchors for both wood or concrete are included for multiple installation options. Ceiling Mount or floor base  also available.


    Includes
    • 18 " Misting Oscillating Professional Outdoor Waterproof Fan
    • Integrated flush mount stainless steel misting ring with 5 premium misting nozzles.

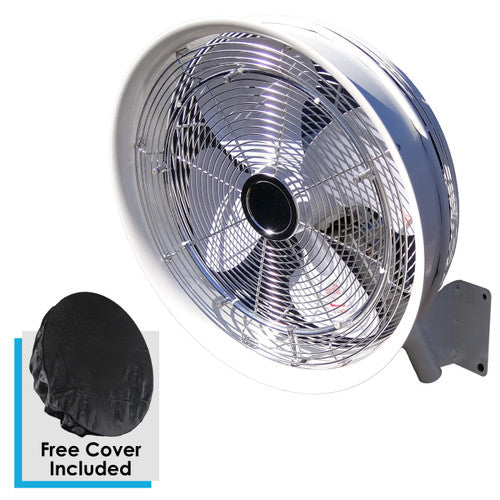

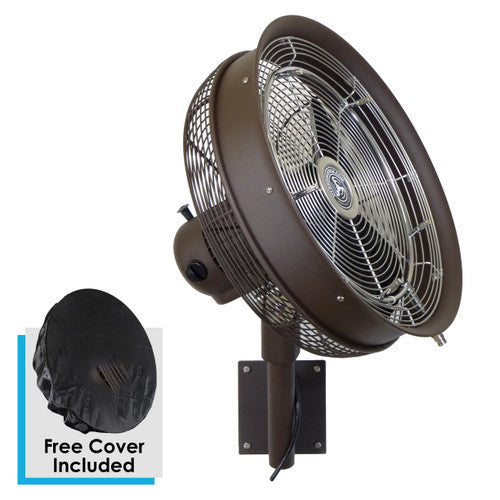

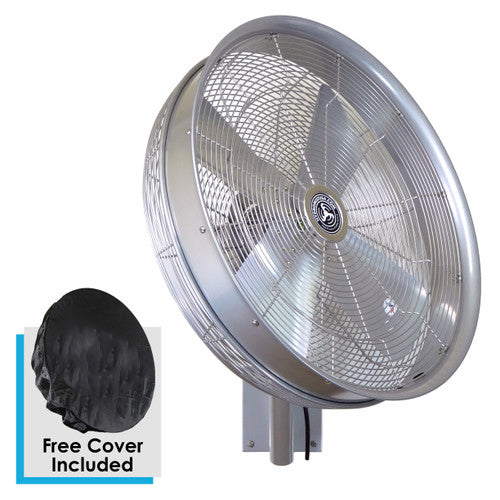

    • Weather protective black vinyl cover to protect from dust, sun, bugs etc.
    • NOTE: Input fitting is 3/8".. If you have a 1/4" system, you will need to purchase an adaptor
    • TUBING AND OTHER FITTINGS ARE NOT INCLUDED
    What Size Fan Do I Need?

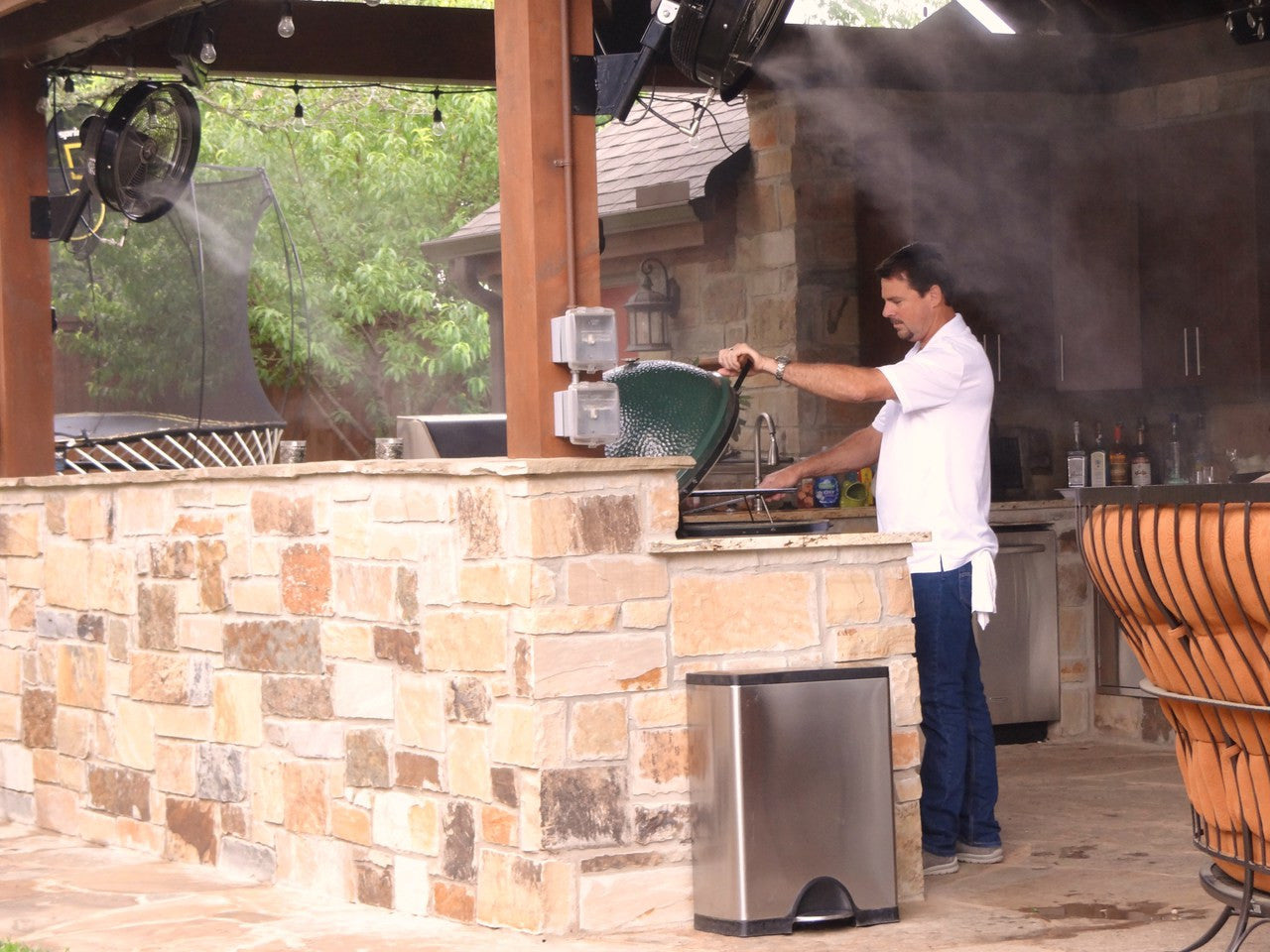

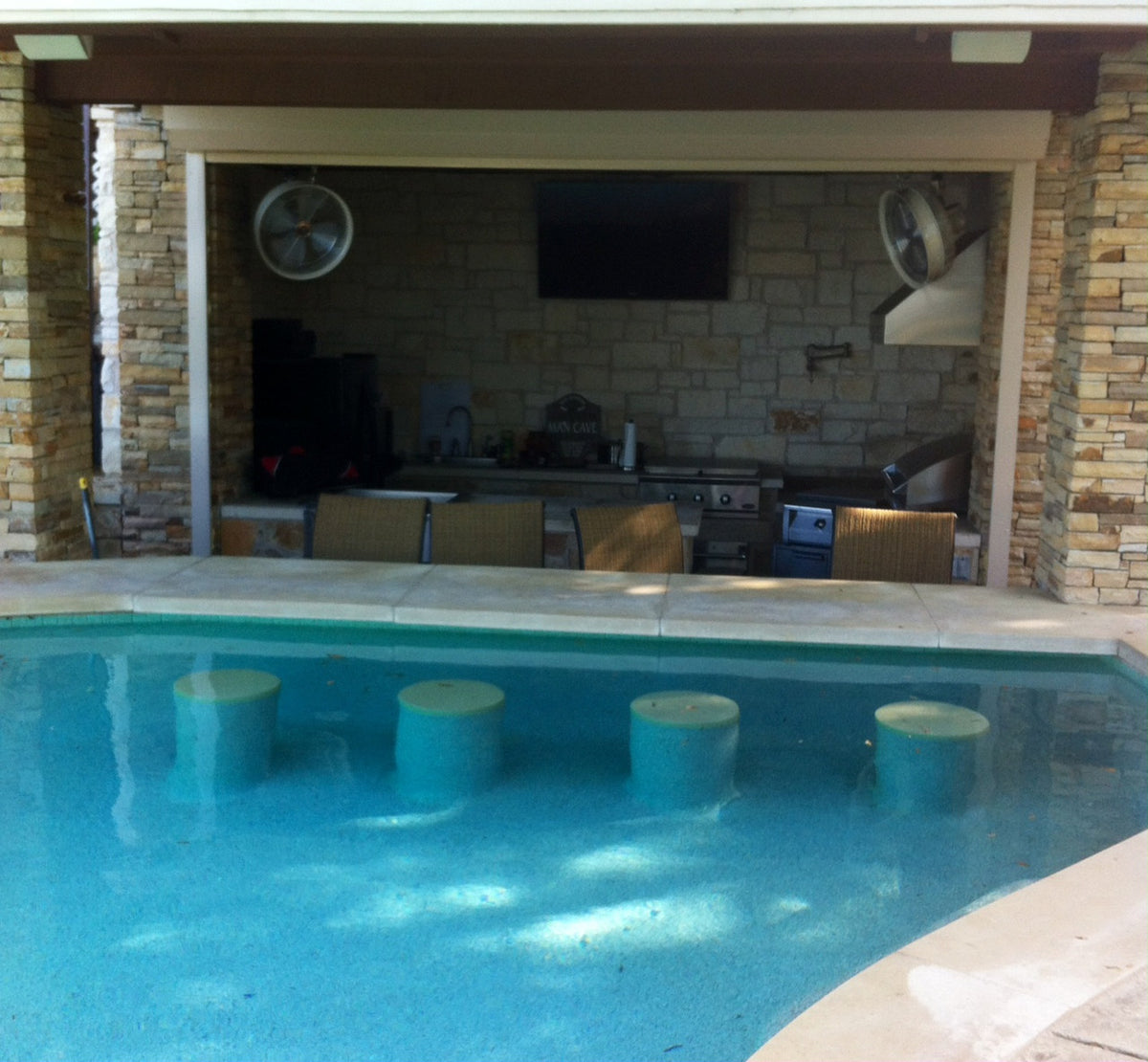

    What size fans do I need and how many? A good rule of thumb is that if you are mounting fans above 10 feet with no cover, go with 24inch fans. Anything below 10 feet, 18inch fans are more than sufficient for air flow/mist coverage and also better visually. Our fans run quieter than most but our 24- inch fan mounted at 8 ft may be too much noise for smaller outdoor living spaces. Quantity of fans is usually determined by first knowing if there is any wall protection from sun/wind and also if the space is covered. If so, sometimes you can get away with less fans. Spacing fans typically around 15 to 20 ft from each other is recommended in larger open environments. Your fan placement also is considered by power location, mounting locations (pole, wall or ceiling) and again aesthetics.
