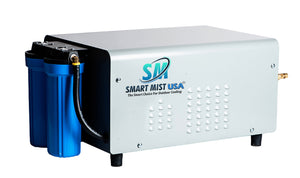

Our Pulley Drive Enclosed Misting Pump is perfect for commercial applications where a premium quality pump and a quiet operating environment is desired. . This pump is exceptionally quiet. The pulley allows the pump to turn at slower rpms, thereby reducing noise and extending the pump life. Equipped with a superior quality Cat Pump, it comes in both 120V and 220V versions. Features include automatic motor overload protection, an inlet solenoid valve to prevent drips, and a liquid-filled pressure gauge.
The dual filtration ensures pristine mist, while its powder coated, outdoor-rated and weather-resistant enclosure can handle the elements. Pulley drive pumps are considerably quieter than direct drive pumps so consider the importance of sound level in your environment.
NEW THIS YEAR ! : Previously optional features are now all standard including:
- Low pressure safety shut off valve, ( Protects pump in case of water loss )
- Dual filtration with Scale X filtration for maximum protection from calcium and sediment
- Thermal bypass protects the pump from overheating
- Drain valve release excess line pressure
This exceptional pump comes with a 3-year warranty,
Larger Pumps are available on request.
FEATURES
- Continuous Duty
- Low RPM/ quiet operation
- Powder coated heavy duty enclosure
- Rubber Mounted Motor
- HD CAT Pumps
- Totally enclosed fan cooled motor with overload protection
- Inlet water On/Off automatic soleniod
- Dual filtration sediment and eco-smart scale filter
- 11-gauge pump platforms with powder coat finish
- HD power switch
- 4 foot power cord
- 3 foot inlet water hose with STD 3/4″ water fitting
- Low water pressure safety switch
- Thermo relief valve for pump cooling
- Drain Valve Kit
SPECIFICATIONS
|
MODEL
|
PUMP
|
FLOW |
VOLTS |
MOTOR |
PUMP |
F.L.
|
NOZZLE |
|
NUMBER
|
DESCRIPTION
|
GPM |
PHASE |
HP
|
RPM |
AMPS |
CAP .012
|
| 50099-HDE |
Totally Enclosed Pulley Driven
|
.5 |
120-1 |
1.0 |
450 |
10.8 |
18
|
|
50100-HDE
|
Totally Enclosed Pulley Driven |
1.0 |
120-1 |
1.0 |
518 |
10.8 |
36
|
|
50101-HDE
|
Totally Enclosed Pulley Driven |
1.0 |
230-1 |
1.0 |
518 |
6.0 |
36
|
|
50150-HDE
|
Totally Enclosed Pulley Driven |
1.5 |
120-1 |
1.5 |
736 |
14.0 |
54
|
|
50151-HDE
|
Totally Enclosed Pulley Driven |
1.5 |
230-1 |
1.5 |
736 |
7.0 |
54
|
| 50200-HDE |
Totally Enclosed Pulley Driven
|
2.0 |
120-1 |
1.5 |
940 |
14.0 |
72
|
| 50201-HDE |
Totally Enclosed Pulley Driven
|
2.0 |
230-1 |
1.5 |
940 |
7.0 |
72
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
