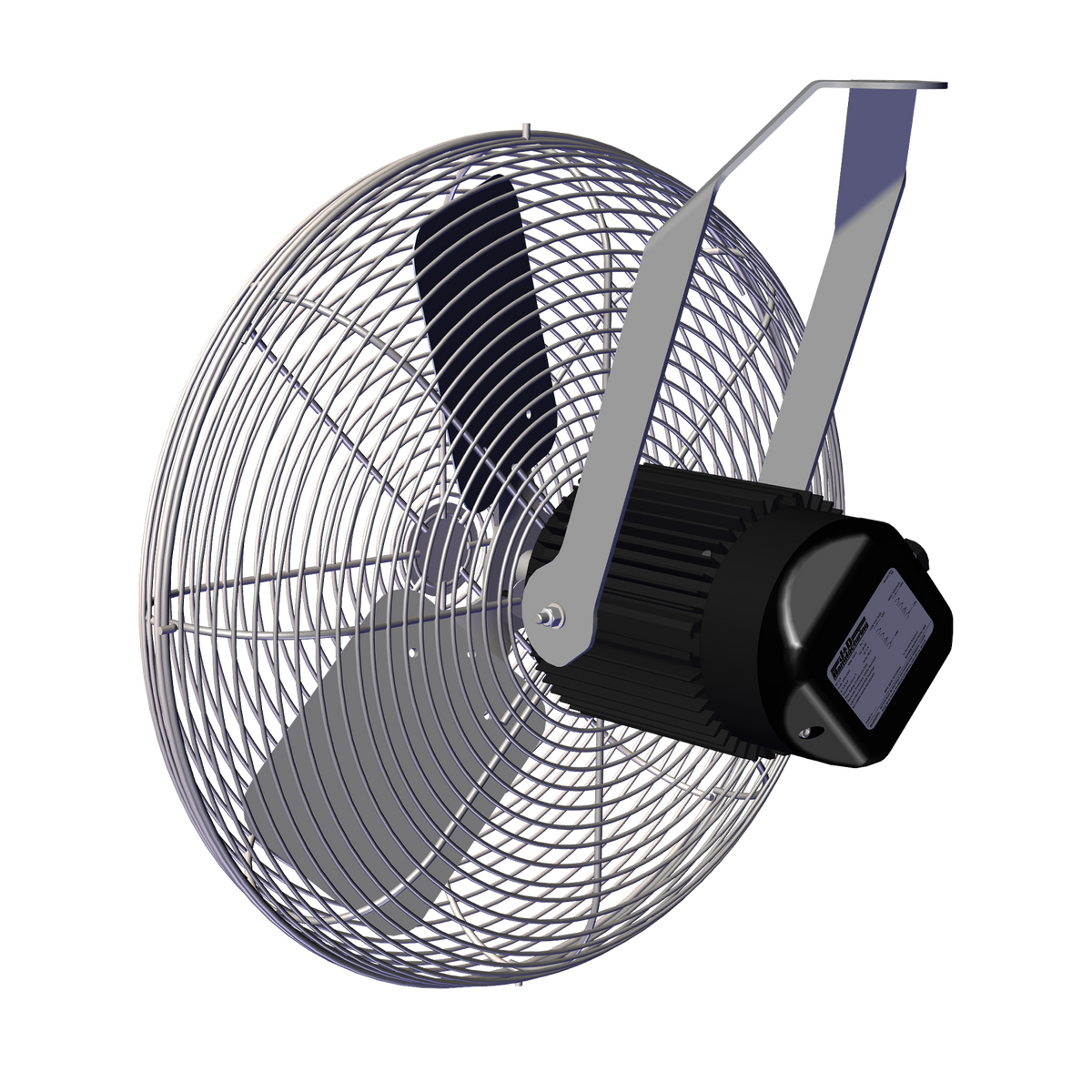

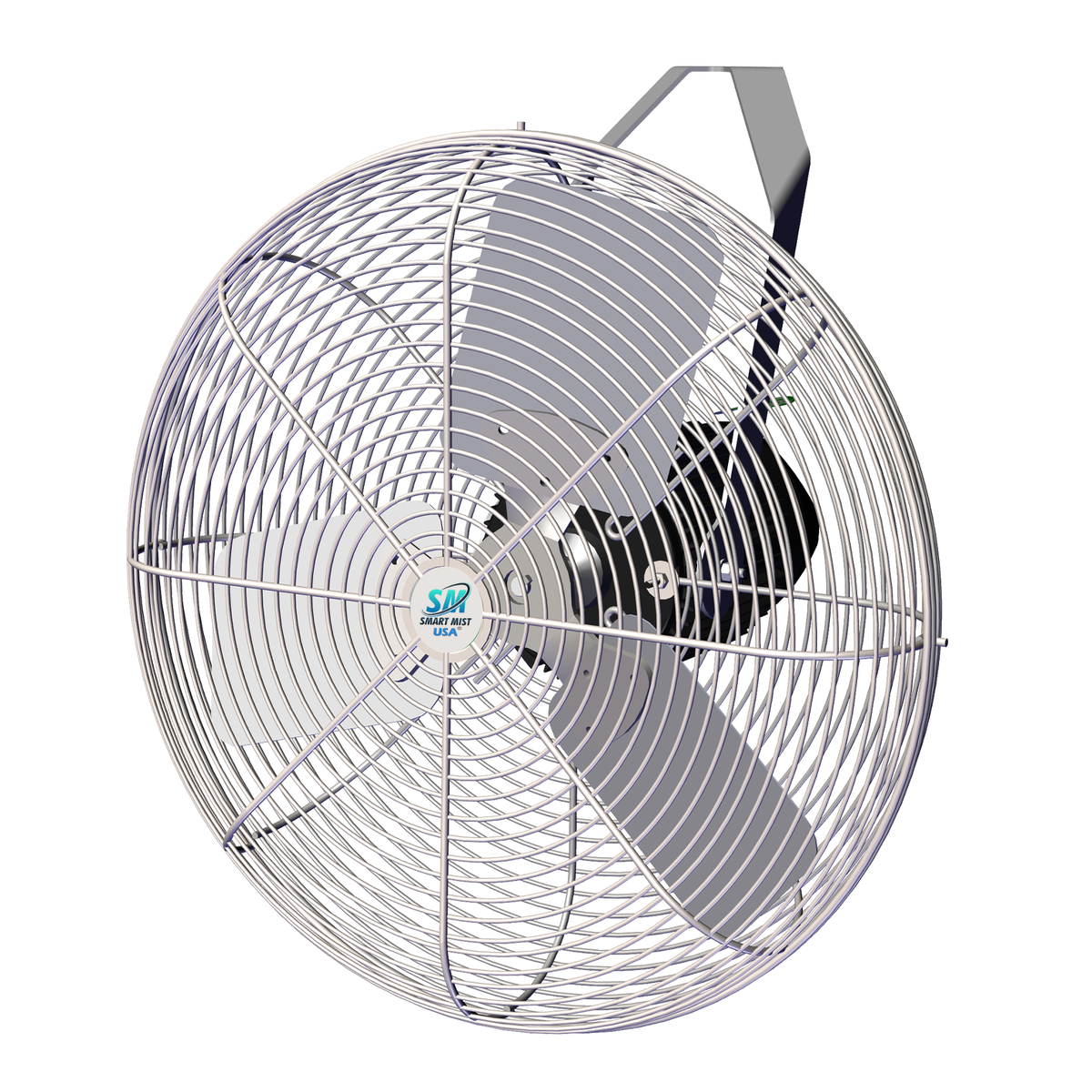

20" All Stainless Steel ( 316 Grade ) Non Oscillating Fan

VDB20SS-GS



Suitable for Outdoor Wet Locations

The Smart Mist USA Stainless-Steel Basket Fan is the perfect fan for corrosive environments.  Whether it be near the coast that experiences 'salty' air/salt spray or in a greenhouse that sees fertilizers or pesticides, the Stainless-Steel Basket Fan can handle it. This fan is built to endure harsh industrial and agricultural environments, yet aesthetically pleasing for outdoor restaurants, pools and patios. It is the only fan on the market with  316 Stainless Steel   ( rather than 304 )  and an IP 66  rating which is the highest waterproof rating ( other than submersible ).

 Engineered as a high-efficiency HAF (Horizontal Airflow Fan), this advanced air circulator delivers powerful, uniform airflow that supports optimal climate control. Whether you're cooling livestock, maintaining consistent temperatures for plant growth, or improving air movement around sensitive equipment, this fan helps reduce condensation, dry litter and bedding, and minimize temperature stratification—ultimately lowering heating costs and enhancing animal and crop health. Versatile in its use, the Stainless Steel Basket Fan is also ideal for non-agricultural settings such as patios or workspaces, providing effective personal cooling. For even greater cooling performance, pair it with a high-pressure fogging attachment to create a fine mist for temperature and humidity control.

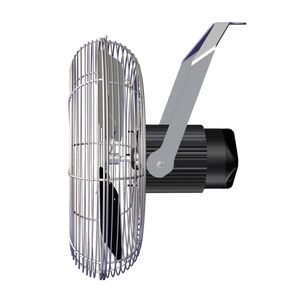

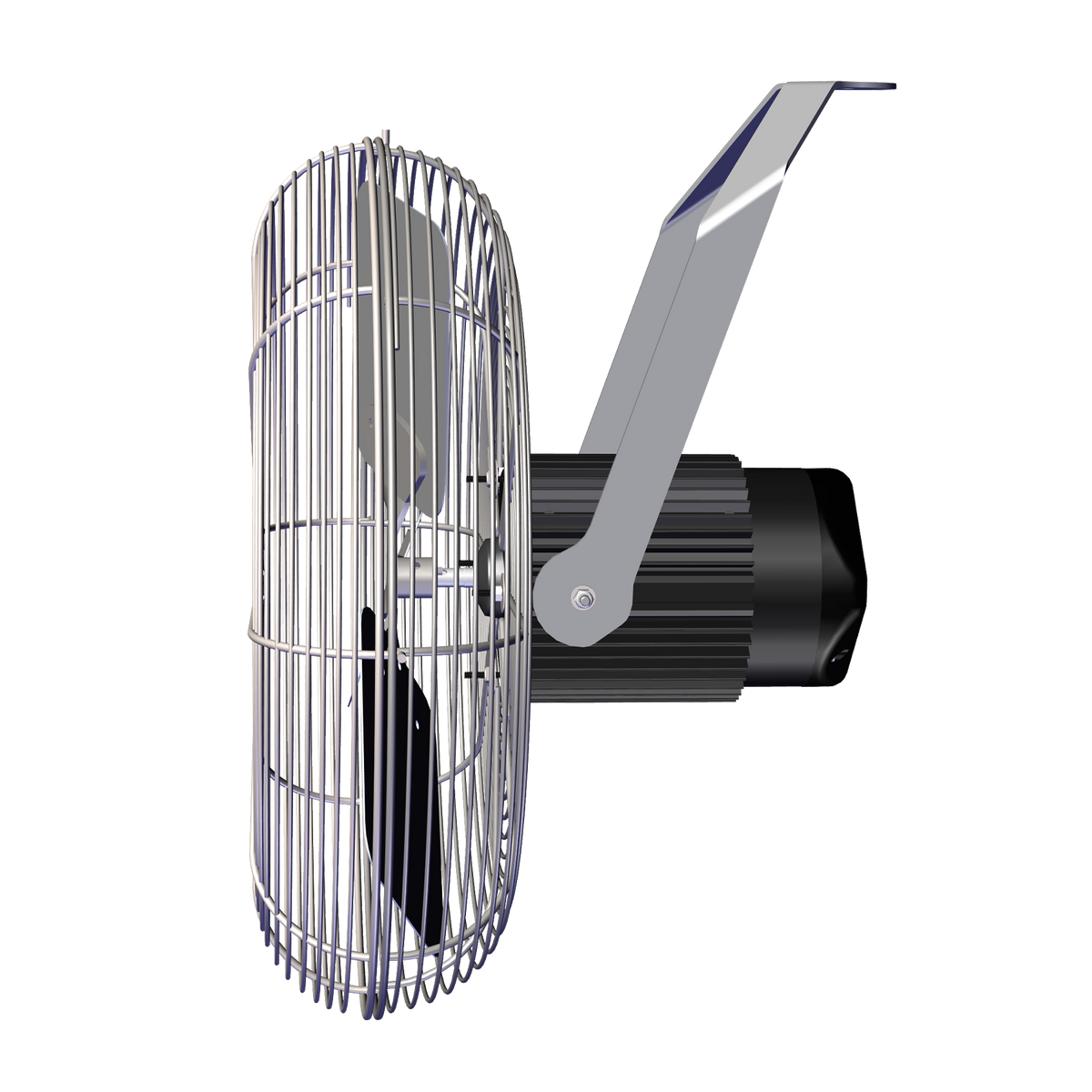

The standard mounting bracket shown is also stainless steel with an additional powder coating. This bracket is best for overhead mounting . Other brackets are available including pole mount. There is no power cord supplied as they are intended to be wired by an electrician for either 120V or 220V.  These fans are made to order. Build time is 2 weeks.

Product Details

Size: 20"

HP: 1/3

Volts: 115/230

Amps NP: 4.0/2.0

Hz: 60

Phase: 1

Speed : 1

RPM :1673

Drive : Direct

Prop : 3-SS

Test # :C22375


Fixed or Portable: Fixed

FPM : 1100

Thrust CFM : 3640

Thrust (lbf) : 3.79

Thrust Eff. Ratio : 10.4

kW : .36

Thrust CFM/ Watt : 10.0

Housing Material : Stainless Steel

Housing Color : Silver

Guard material & coating: Stainless Steel

Guard Color:: Silver

Blade Material: Stainless Steel

Blade Color: Silver


Features



  • 20″ basket fan
  • Guard, prop, motor housing, mounting bracket, and hardware are all corrosion-resistant .
  • Direct drive, IP66-rated motor with thermal overload protection
  • Motor housing has electrophoretic coating for additional corrosion resistance
  • Guard is 316 grade stainless steel electropolished  to a high shine to further increase corrosion resistance, reduce particle buildup, and for easy cleaning.
  • Guard meats OSHA 1910.212(a)(5) requirements allowing this fan to be installed at any height.
  • Compatible with our misting products
Product cut sheet

Click for product cut sheet

Applications

Corrosive environments including:

  • Restaurants
  • Industrial
  • Residential
  • Poultry
  • Dairy
  • Greenhouse
  • Swine
