24" Misting Oscillating Professional Outdoor Waterproof Fan Kit with 8 nozzles

MFKH-24B-1-050S

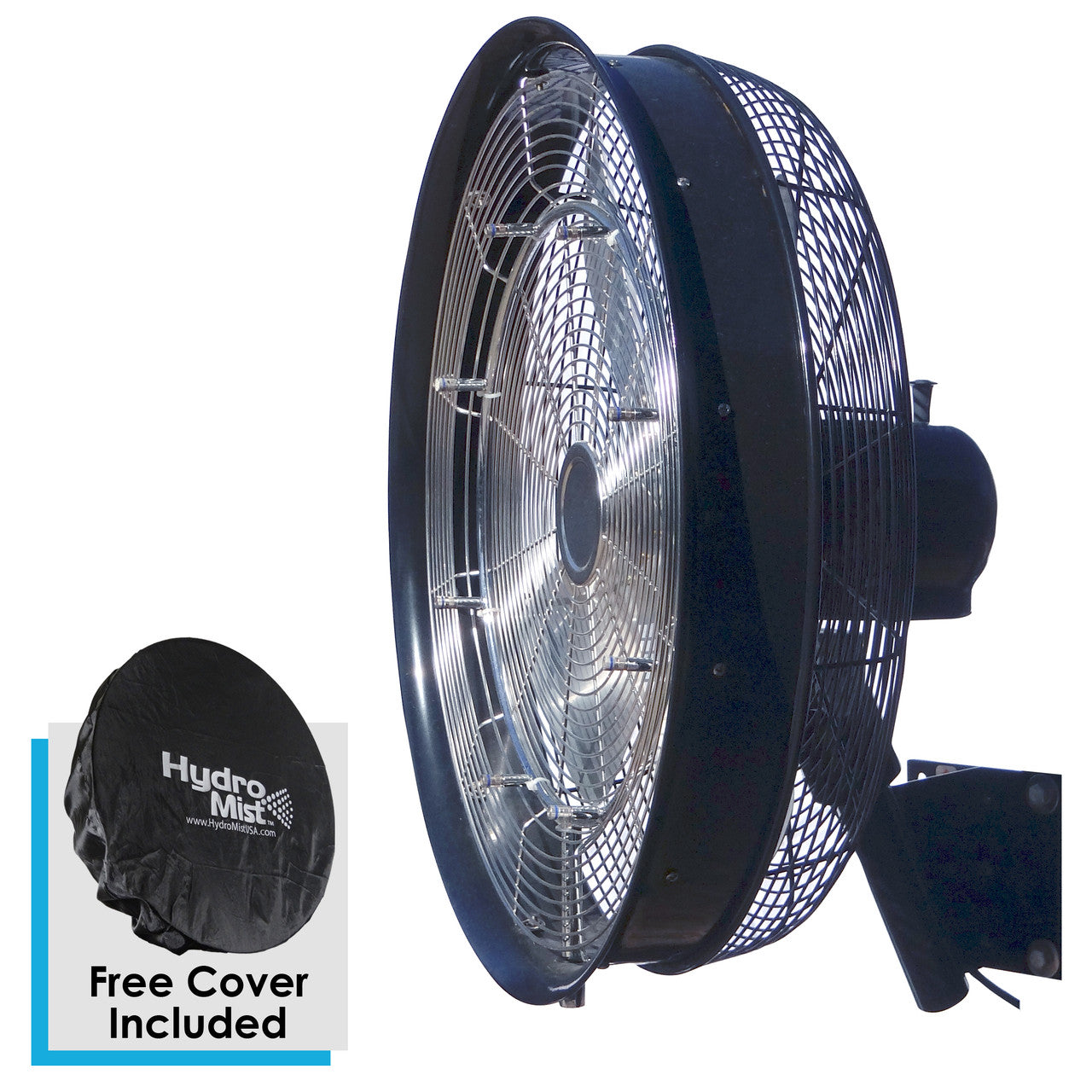

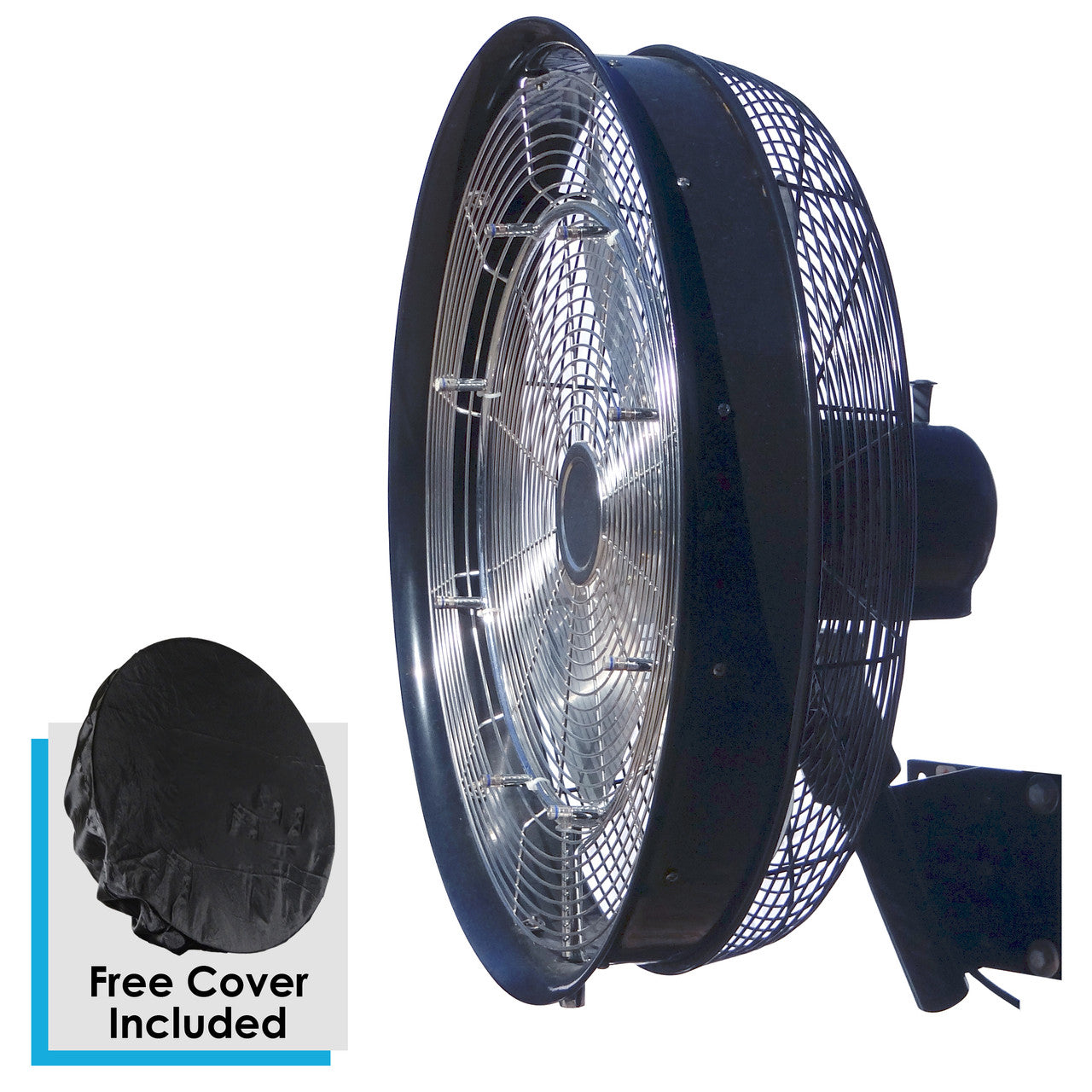

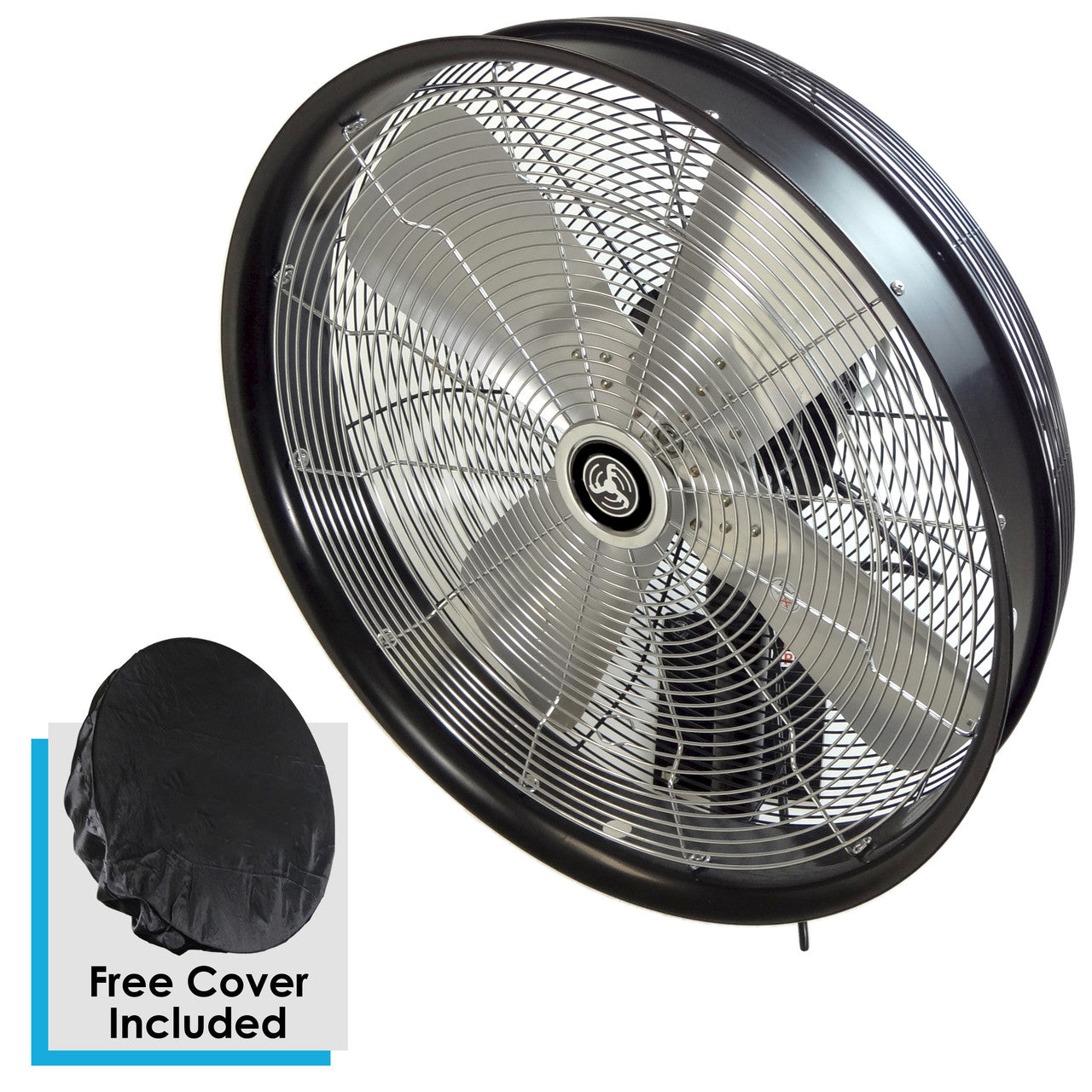

Our Professional 24" Shrouded Misting Fan  is ideal for residential or commercial use. Oscillation covers 30 degrees right/left from center or can be put in a fixed position. If the fan Is mounted in corner of the space,  it can be pivoted and secured on the bracket to change the oscillation span more to the left or right.

Corded 3 speed control. Cord length from fan to speed controller: ~ 64 inches, Cord length from speed controller to plug: ~ 96 inches. Total Length of power cord 160 inches. Fan comes fully assembled. Suggested Fan Install Height 8-12 Feet

 Very Quiet Running: Quieter than most outdoor fans. The fan shroud creates a white noise which is more soothing then annoying. Db Sound Level Speed 1: 62 Db, Speed 2: 65 Db, Speed 3: 73 Db.

 Easy Tilt Ratchet System: Adjust tilt tool-free by simply pushing the fan head up or pulling it down. As the fan clicks vertically, it will lock in position.

 Outdoor Rated: Fan head comes fully assembled w/ sealed motor to protect from rain. The fan has premium-quality electrolysis nickel plating. Finish is weather resistant which prevents unsightly weathering. Built in electrical fuse in plug protects motor from power surges (2 extra fuses included)

Fan Blade: The fan blade is rust-free aluminum and spins 3 airspeeds - 7600 CFM, 8300 CFM, and 9100 CFM.

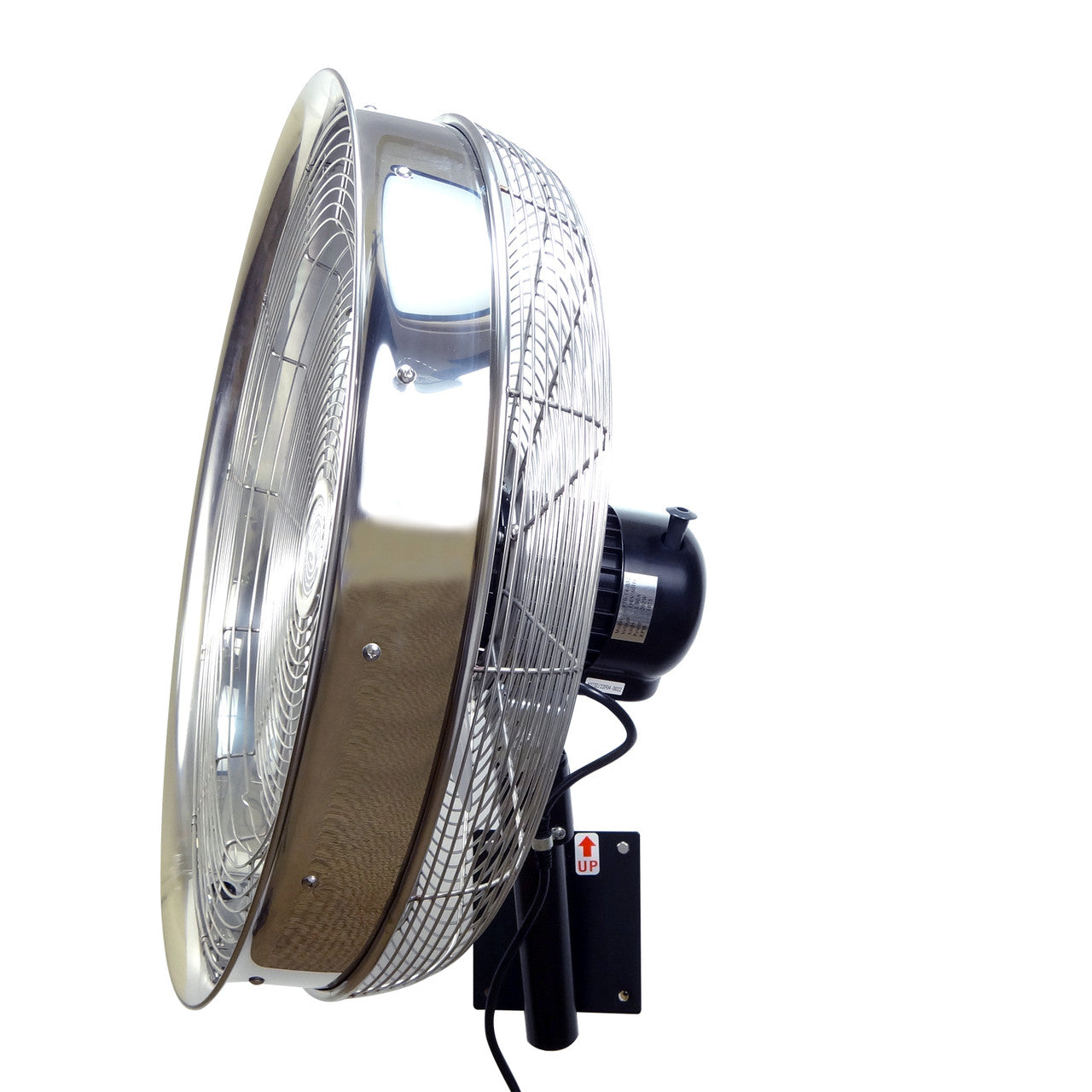

 Mounting Bracket Included: A wall mount bracket and anchors for both wood or concrete are included for multiple installation options. Ceiling Mount and floor base are available.

Cleaning: Our fans can be used in a complete open aired environment. Cleaning

is also easy; simply hose down to wash with a mild detergent and rinse

The fan also comes with a weather protective black vinyl cover to protect from dust, sun, bugs etc

 Details
  • 3 Fan Speeds (7600, 8300, 9100 CFM)
  • Integrated Chrome Fan Guard (able to be easily retrofitted for misting)
  • Flush Mount Stainless Steel Ring With 8 Nozzles included
  • Rust Free Aluminum fan Blade
  • Wall Mount Bracket and Anchors Included
  • Weather Resistant Electrolysis Nickel Plating
  • Easy Ratchet Fan Head Tilt Mechanism
  • Oscillating
  • Very quiet Running

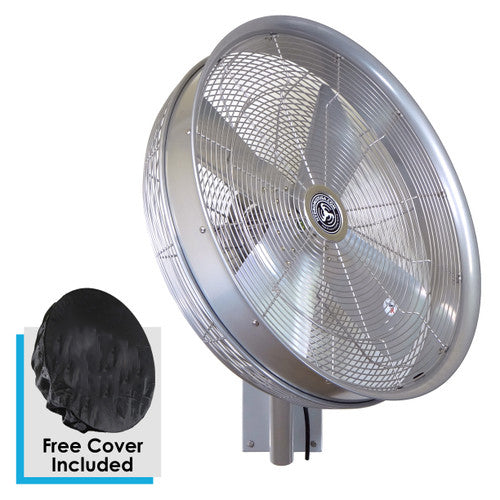

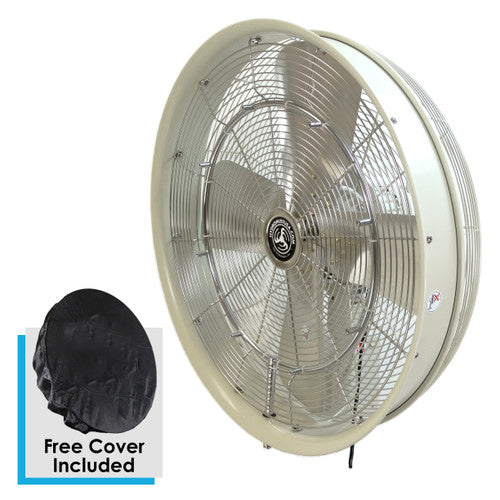

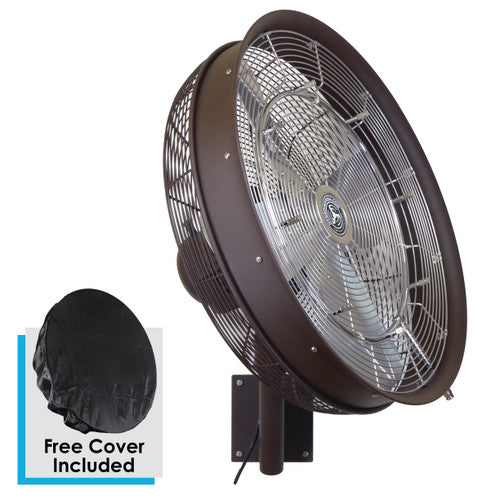

  • Available in 3 colors
  • 0.27 HP
  • 1.9 AMPS
  • 1 year warranty



 Pump

PUMP MODEL ( Depends on quantity chosen ). Read about our pumps HERE



PUMP 050S ( For 1 fan )



  • Premium quality 3 piston 1000psi pump made from aircraft grade aluminum,  fully enclosed with touch panel and remote key control
  • Built in Solenoid valve to prevent dripping
  • Various interval spraying options
  • Electrical short circuit protection
  • Automatic shut off if water supply is cut or lessened.
  • Overheat automatic shut off
  • Water cooled transmission
  • Electronic oil change alert
  • Easy DIY Installation
  • Variable Frequency pump will adjust  motor speed based on nozzle quantity. Can adjust pressure +interval spraying+ on/off from remote

PUMP: SM-100/150/200/300 ( for 2 or more fans )



  • 3 piston 1000 psi pump built from Aircraft grade aluminum and stainless steel pistons. Superior durability.
  • Automatic water shut off
  • Touch panel and App remote control. Fully programmable
  • Fully adjustable interval spraying from the app
  • Automatic maintenance alerts
  • Electrical ,low water, overheat protection
  • Low noise and long life
  • Fully enclosed system
  • Super easy push lock system to connect sections and hoses
  • 110v operation
  • Easy DIY installation
Parts
  • 50' high pressure tubing ( + 25' for each fan 2 or more quantity )
  • 10 hose clamps ( +5 for each fan 2 or more quantity )
  • 2  elbows ( + 2 elbows for each fan 2 or more quantity )
  • 1 Tee for each quantity 2 or more
  • Tube Cutter
What Size Fans Do I need ?

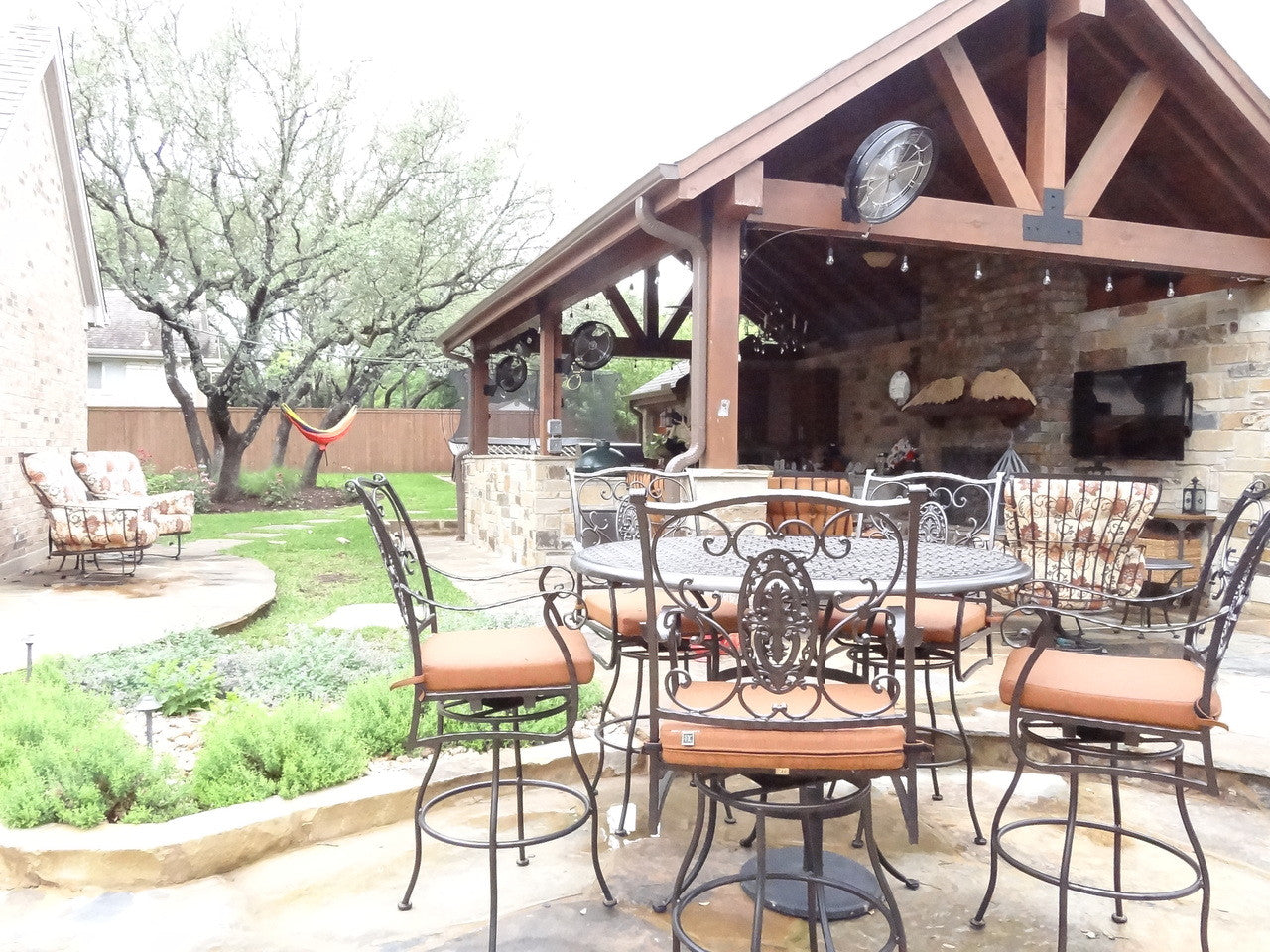

What size fans do I need and how many? A good rule of thumb is that if you are mounting fans above 10 feet with no cover, go with 24inch fans. Anything below 10 feet, 18inch fans are more than sufficient for air flow/mist coverage and also better visually. Our fans run quieter than most but our 24- inch fan mounted at 8 ft may be too much noise for smaller outdoor living spaces. Quantity of fans is usually determined by first knowing if there is any wall protection from sun/wind and also if the space is covered. If so, sometimes you can get away with less fans. Spacing fans typically around 15 to 20 ft from each other is recommended in larger open environments. Your fan placement also is considered by power location, mounting locations (pole, wall or ceiling) and again aesthetics.
