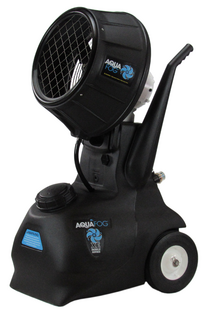

XE Fogger (mobile) XE HRSM 2000

XE-HRSM-2000

Internal Plumbing: Standard 115V 60 Hz



XE Fogger (mobile)

XE HRSM 2000

(HRSM) come standard equipped with 4-position pivoting atomizer, push-button on/off power, quarter-turn flow control, hose connect with float valve control, a rugged 18-gallon wheeled supply tank, plus more. An optional all-stainless-plumbing model (SST) is available for use with highly corrosive chemicals.

(XE) is our most powerful atomizer. Designed to endure harsh environments in a variety of commercial & industrial applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.

XE HRSMs have enormous fogging capability, producing tiny particles that evaporate quickly. HRSM gets regulated by a quarter-turn ball valve and can be operated continuously or automated using a secondary controller.

Indoor/Outdoor applications include: Humidification, Evaporative Cooling and Chemical Fogging.

Stainless-steel fabrication and UV stabilized polymers allow for harsh-environment use. HRSM has 18’ power cord.

  • Net Fogging Output Up to 13.5 GPH
  • Pivoting Fogging Head
  • 109,350 Btu/h (Evap. Cooling)
  • 18 Gallon Tank w/ Float Valve Control
  • Starting at $2,299.00

Hazardous-Duty Version w/Explosion-Proof Motor

Features

Features & Controls

HRSMs have an internal feed pump, a flow control valve, On/Off power switch and an internal float control valve.

  • Large Tank Access Lid
  • 1/4 turn Flow Control
  • In-line Strainer
  • Indoor/Outdoor (IP 55)
  • Illuminated Push Button Switch
  • Garden Hose Connect

A 1/4 turn ball valve controls the fogging output. Lower flow rates are generally used in applications requiring drier fog.

Flow Control Rate per Application:

Full Open Mid Open Slightly Open

Evap. Cooling

AG/Horticulture

Concrete Curing

Mushroom Growing

Mfg. Humidification

Horticulture

Wine/Barrel Storage

Wood/Lumber/Paper

Chemical Fumigation

Textile Humidification

Dust/Static Control


Unique Atomizer

Our exclusive (atomizing) fan-blade assembly provides performance advantages with nozzle-free reliability.

Wash-Down-Duty Motor

  • Industrial Grade (IP 55)
  • For Use Around Water Spray

SST Plumbing Option

The SST version comes with all-stainless-steel plumbing components (installed). Ideal when fogging highly corrosive chemicals.

  • Replaces Standard Brass Fittings
  • 304 (18-8) Grade Stainless Steel
  • Complete System
Specifications

Dimensions:

Width 21 in / 53 cm

Length 25.5 in / 65 cm

Height 44 in / 112 cm

Approximate Weight: 80 lbs / 36.3 kg
Approximate Shipping Weight: 129 lbs / 58.5 kg
Propulsion Distance: 30 - 35 ft / 9.1 - 10.5 m
Fogging Head Pivot Angle: 0°, 15°, 30°, 45°
Noise @ 10 ft distance:

72 dB(A) - 60Hz

70 dB(A) - 50Hz

Net Fogging Output:

up to 13.5 GPH - 60Hz

up to 41 LPH - 50Hz

Average Particle Size:

5-10 microns @ low output

20 microns @ mid output

25 microns @ high output

Tank Capacity: 18 US gal / 68 L
Main Motor:

1/2 HP - 7.8 amps @ 115V - 60Hz

1/3 HP - 4.4 amps @ 240V - 50Hz

CFM:

3,000 - 60Hz

2,800 - 50Hz

Cooling Capability:

109,000 Btu/h @ - 60Hz

87,500 Btu/h @ - 50Hz

Hardware: 300 Series stainless steel
Environment:

Endures temperatures from
33° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistant

Country of Origin:

USA

Control Packages

Control Packages

Owners Manual

Manual

Video

Video
