(HS) requires no drainage line as the (hanging sump) tank recycles its waste water.

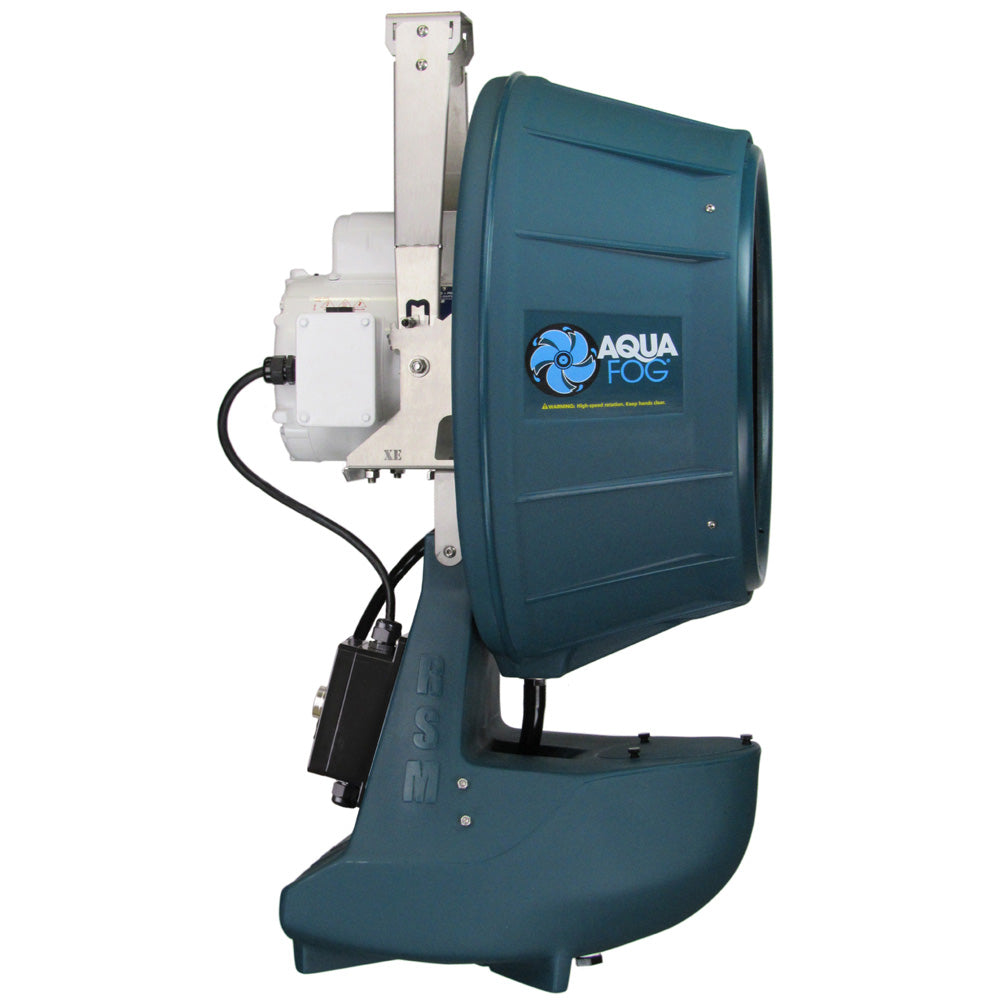

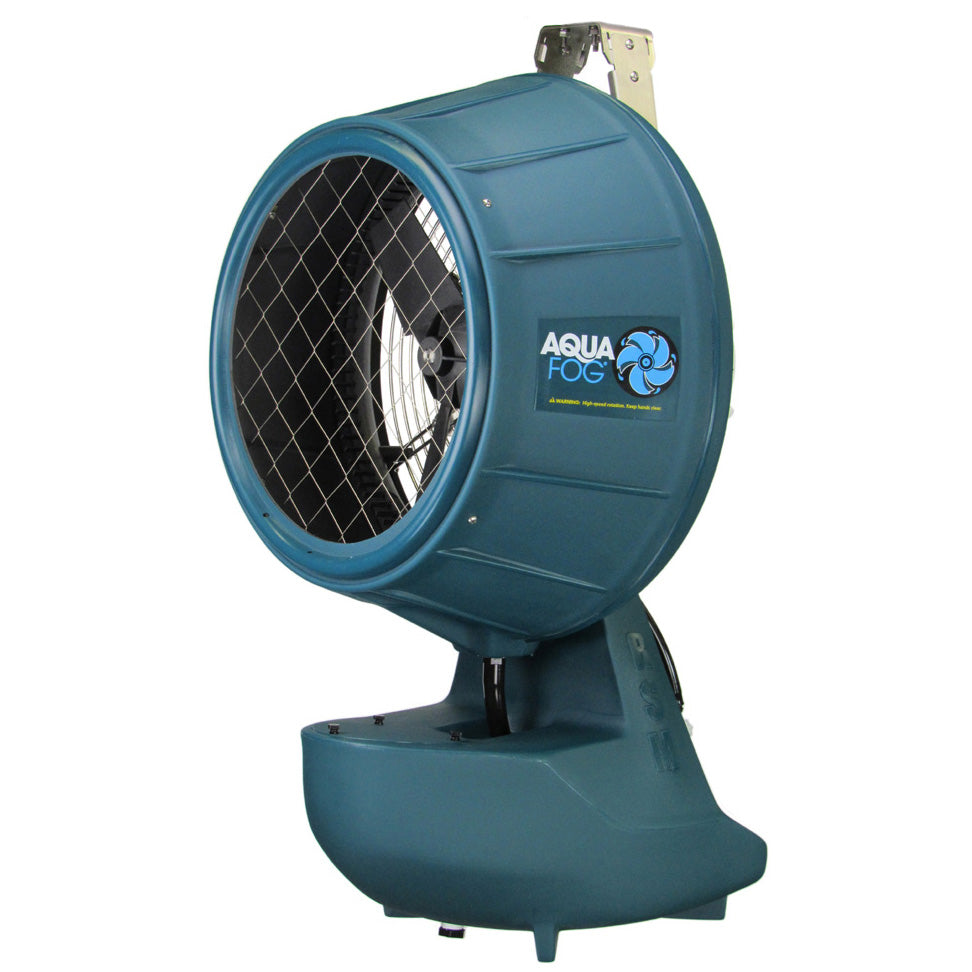

The Turbo XE Fog Fan XE 2000-HS is our most powerful atomizer. Designed to endure harsh environments in a variety of commercial & industrial applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.
XE 2000s have enormous fogging capability. With our proprietary misting technology, these fans produce tiny particles that evaporate quickly. XE (direct-feed) gets regulated by a visual flowmeter panel and can be operated continuously or automated using a secondary controller.
Indoor/Outdoor applications include: Humidification, Evaporative Cooling , Chemical Fogging and much more. See the Applications tab
Stainless-steel fabrication and UV stabilized polymers allow for greenhouse and harsh-environment use. XE comes with 20’ of water line, 12’ power and 16’ of drainage line. Lengths may be customized with selection of the flowmeter panel during the ordering process.
- Net Fogging Output Up to 16 GPH
- 127,500 Btu/h Evaporative Cooling
- Nozzle-Free Centrifugal Atomizer
- SST Flowmeter Panel
Features
Features and Controls

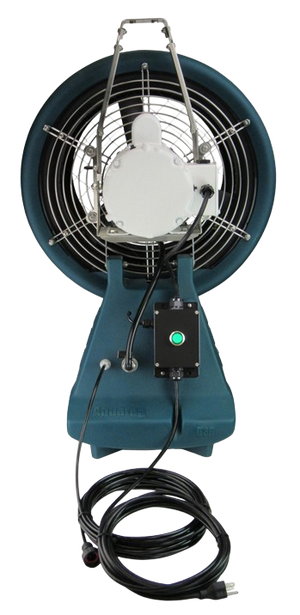

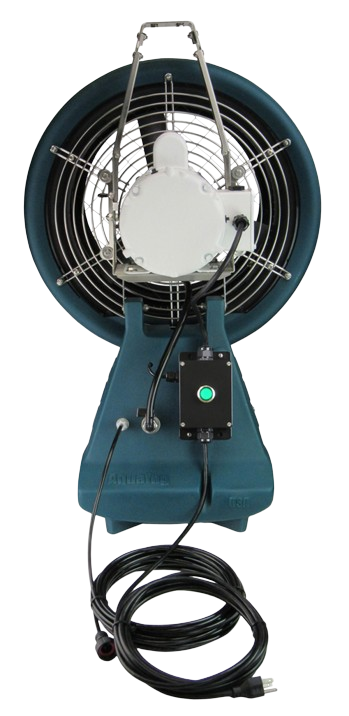

XE 2000-HS has an internal feed pump, a flow control valve, On/Off power switch and an internal float control valve.
- 14.8 GPH Max. Net Output
- Indoor/Outdoor (IP 55)
|
- 3 Gallon Sump w/ Access Lid
- Garden Hose Connect
|
A 1/4 turn ball valve controls the fogging output. Lower flow rates are generally used in applications requiring drier fog.
Flow Control Rate per Applications:
| Full Open |
Mid Open |
Slightly Open |
|
Ag/Horticulture
Concrete Curing
Evaporative Cooling
Mushrooms
|
Manufacturing Plant
Wine/Barrel Storage
Wood/Lumber/Paper
|
Mfg. Dust/Static
Textile Plant
Fumigation
|
Unique Atomizer
Our exclusive (atomizing) fan-blade assembly provides performance advantages with nozzle-free reliability.
Wash-Down-Duty Motor
- Industrial Grade (IP 55)
- For Use Around Water Spray
Stainless-Steel Fabrication
- 304 (18-8) Grade Stainless Material
- Corrosion Resistant
| Overall Dimensions: |
Width 21 in / 53.5 cm
Depth 17.5 in / 44.5 cm
Height 33.4 in / 85 cm
|
| Unit Weight: |
50 lbs / 22.7 kg
|
|
Propulsion Distance:
|
30 - 35 ft / 9.1 - 10.5 m
|
| Noise @ 10 m: |
72 dB(A) - 60Hz
70 dB(A) - 50Hz
|
| Average Particle Size: |
5-10 microns @ low volume
20 microns @ mid volume
25 microns @ high volume
|
| Net Fogging Output: |
up to 14.8 GPH - 60Hz
up to 45 LPH - 50Hz
|
| CFM: |
3,000 - 60Hz
2,500 - 50Hz
|
| Cooling Capability: |
119,800 Btu/h @ 60Hz
95,800 Btu/h @ 50Hz
|
| Tank Capacity: |
3 gallon (US) / 11.3 liter
|
| Operation: |
Continuous duty capability
|
| Energy Consumption: |
1/2 HP - 7.8 amps @ 115V
1/3 HP - 4.4 amps @ 240V 50Hz
|
| Shipping Weight: |
67 lbs / 30.4 kg
|
| Box Dimensions: |
19" x 24" x38"
48 cm x 61 cm x 97 cm
|
| Environment: |
Endures temperatures from
33° to 160° F
Indoors / outdoors
Humidity to 100% RH
UV stabilized & impact resistant
|
| Country of Origin |
USA
|
Owners Manual
Owners Manual PDF
Videos
XE 2000-HS Demo
Amazing Fog Demo
Sound Comparison
Applications
Concrete Curing
Greenhouse Propagation
Mist Cooling
Mushroom Growing
Cold Storage Humidification
Cannabis Growing
Warehouse Humidification
Pesticide Fogging
High Humidity Applications
Wine Barrel Humidification
Industrial Humidification
Greenhouse Humidification
Cure Room Humidifiers
Odor Control
Tropical Environments
Industrial Cooling
Hazardous-Duty Humidification
Static Electricity Control
Commercial Humidification
Dust Control
Shipping
These units all ship by freight. Shipping IS NOT included. Call us for a quote.
How many units do I need ?
Call us an we can calculate the number of units you will need based on the application and size of your building ( if applicable.)
