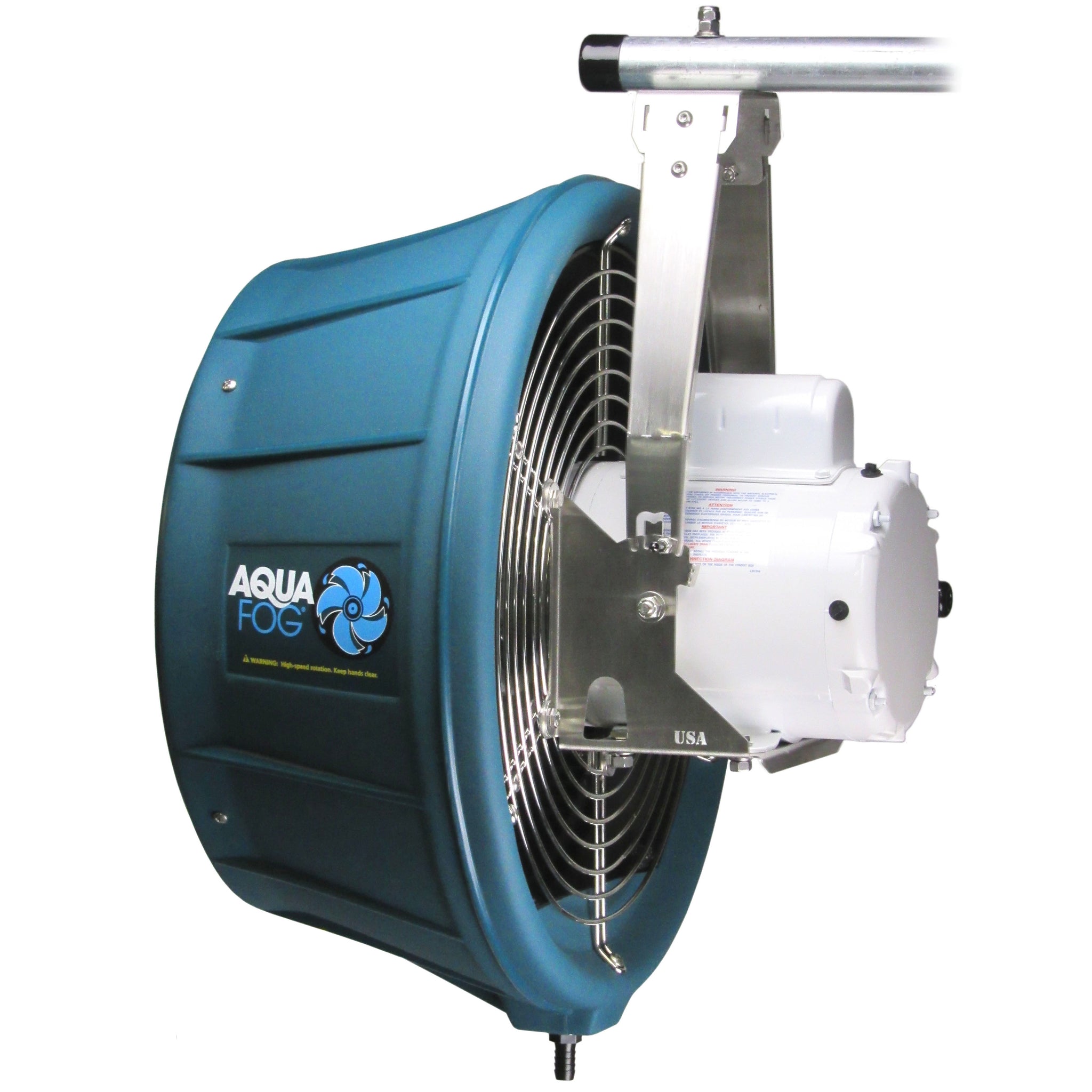

The Turbo XE Fog Fan XE 2000 is our most powerful atomizer. Designed to endure harsh environments in a variety of commercial & industrial applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.

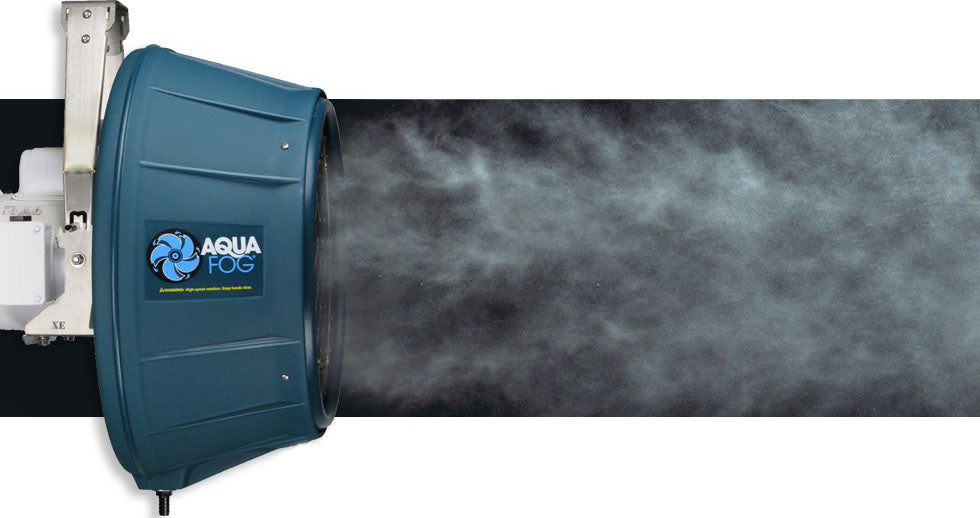

XE 2000s have enormous fogging capability. With our proprietary misting technology, these fans produce tiny particles that evaporate quickly. XE (direct-feed) gets regulated by a visual flowmeter panel and can be operated continuously or automated using a secondary controller.
Indoor/Outdoor applications include: Humidification, Evaporative Cooling , Chemical Fogging and much more. See the Applications tab
Stainless-steel fabrication and UV stabilized polymers allow for greenhouse and harsh-environment use. XE comes with 20’ of water line, 12’ power and 16’ of drainage line. Lengths may be customized with selection of the flowmeter panel during the ordering process.
- Net Fogging Output Up to 16 GPH
- 127,500 Btu/h Evaporative Cooling
- Nozzle-Free Centrifugal Atomizer
- SST Flowmeter Panel
Features
Turbo XE Fog Fan
XE 2000
(XE) is our most powerful atomizer. Designed to endure harsh environments in a variety of commercial & industrial applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.
XE 2000s have enormous fogging capability, producing tiny particles that evaporate quickly. XE (direct-feed) gets regulated by a visual flowmeter panel and can be operated continuously or automated using a secondary controller.
Indoor/Outdoor applications include: Humidification, Evaporative Cooling and Chemical Fogging.
Stainless-steel fabrication and UV stabilized polymers allow for greenhouse and harsh-environment use. XE comes with 20’ of water line, 12’ power and 16’ of drainage line. Lengths may be customized with selection of the flowmeter panel during the ordering process.
- Net Fogging Output Up to 16 GPH
- 127,500 Btu/h Evaporative Cooling
- Nozzle-Free Centrifugal Atomizer
- SST Flowmeter Panel
- Starting at $1,499.00

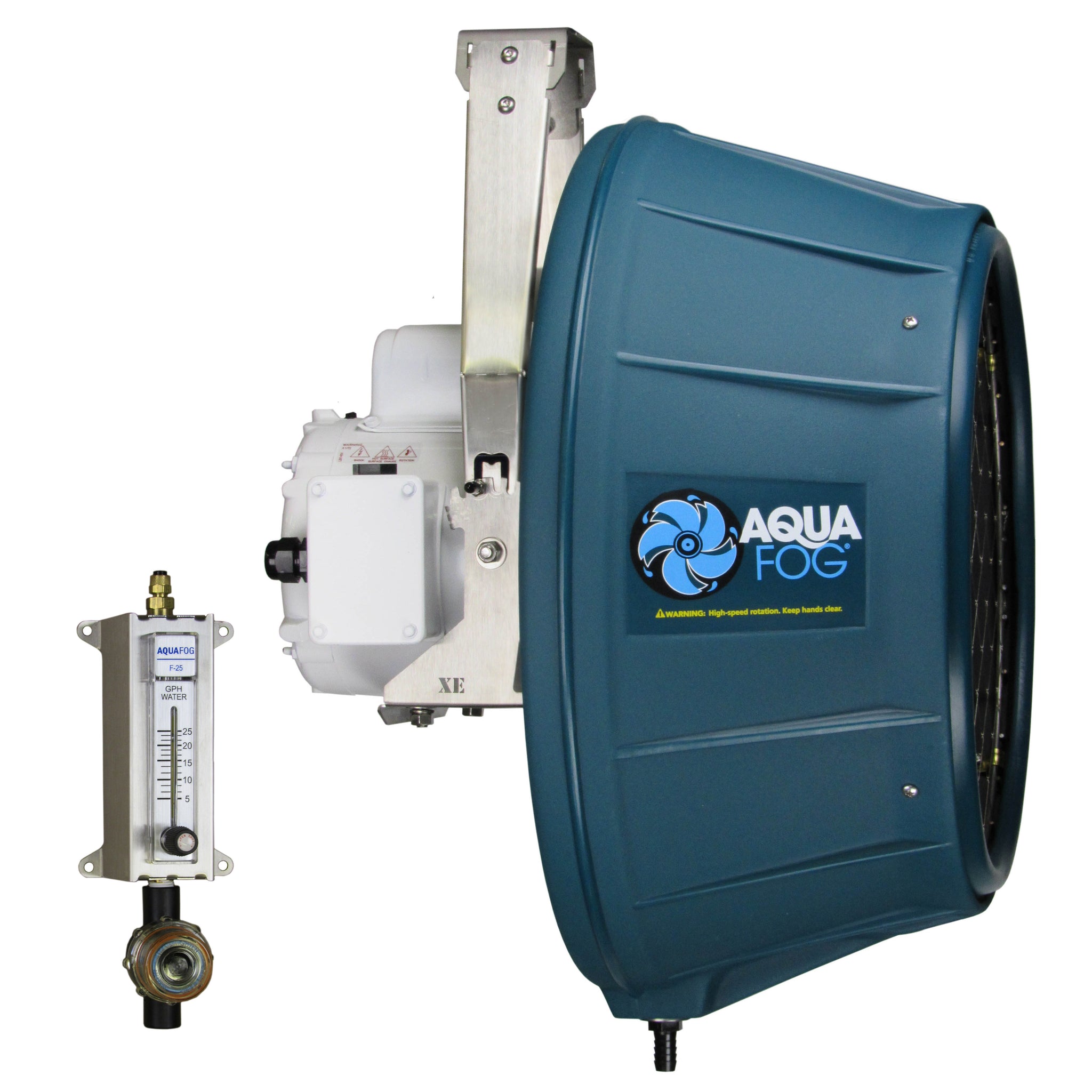

SST Flowmeter Panel
Turbo XEs come with a visual flowmeter panel of your choice.
Flowmeters connect to a pressurized water supply. A needle valve regulates flow going to the XE unit. The clear polycarbonate construction allows for visual monitoring of the flow. Requires a pressurized supply (10-100 PSI).
Flowmeters are available in different ranges. The appropriate range (based per application) can be selected during the ordering process.
Flowmeter (Feed-Rate) Ranges per Application:
|
8-32 GPH (nets 15.8 max)
|
5-25 GPH (nets 14.8 max)
*3-15 GPH (nets 10.6 max)
|
2-10 GPH (nets 7.3 max)
*1-5 GPH (nets 4.4 max)
|
|
Outdoor Evap. Cooling
Evaporative Cooling
AG/Horticulture
|
Horticulture
Indoor Evap. Cooling
*Concrete Curing
*Mushroom Growing
*Manufacturing
|
Manufacturing Humidification
Wood/Lumber/Paper Storage
Wine Barrel Storage
*Dust/Static Control
*Textile Humidification
|
Unique Atomizer
Our exclusive (atomizing) fan-blade assembly provides performance advantages with nozzle-free reliability.
Wash-Down-Duty Motor
- Industrial Grade (IP 55)
- For Use Around Water Spray
Stainless-Steel Fabrication
- 304 (18-8) Grade Stainless Material
- Corrosion Resistant
Specifications
| Overall Dimensions: |
Diameter 22 in / 55.9 cm
Depth 17.5 in / 44.5 cm
Height 25 in / 63.5 cm
|
|
Propulsion Distance:
|
30-35 ft / 10-11 m
|
| Noise @ 10 ft: |
72 dB(A)
|
| Average Particle Size: |
5-10 microns @ low output
20 microns @ mid output
25 microns @ high output
|
| Net Fogging Output: |
up to 15.8 GPH - 60Hz
up to 48 LPH - 50Hz
|
| CFM: |
1/2 HP - 3,000
1/3 HP - 2,800
|
| Cooling Capability: |
127,500 Btu/h @ 60Hz
102,000 Btu/h @ 50Hz
|
| Operation: |
Continuous duty capability
|
| Energy Consumption: |
1/2 HP - 7.4/3.7A @ 115/230V
1/2 HP - 1/2A @ 230/460V 3Ph
1/3 HP - 4.4 amps @ 240V 50Hz
|
| Shipping Weight: |
Box 1, 19 lbs/8.6 kg
Box 2 (1/2 HP), 32 lbs/14.5 kg
Box 2 (1/3 HP), 32 lbs/14.5 kg
|
| Box Dimensions: |
Box 1, 21”x21”x15” / 53x53x38 cm
Box 2, 16”x12”x12” / 41x30x30 cm
|
| Hardware: |
300 Series stainless steel
|
| Environment: |
Endures temperatures from
31° to 160° F
Indoors / outdoors
Humidity to 100% RH
UV stabilized & impact resistant
|
| Country of Origin: |
USA
|
Controllers and Accessories
Controllers and Accessories
Owners Manual
Owners Manual PDF
Videos
XE-200 Part 1
XE-200 Part 2
Amazing Fog Demo
Noise Comparison
Applications
Concrete Curing
Greenhouse Propagation
Mist Cooling
Mushroom Growing
Cold Storage Humidification
Cannabis Growing
Warehouse Humidification
Pesticide Fogging
High Humidity Applications
Wine Barrel Humidification
Industrial Humidification
Greenhouse Humidification
Cure Room Humidifiers
Odor Control
Tropical Environments
Industrial Cooling
Hazardous-Duty Humidification
Static Electricity Control
Commercial Humidification
Dust Control
Shipping
These units all ship by freight. Shipping IS NOT included. Call us for a quote.
How many units do I need ?
Call us an we can calculate the number of units you will need based on the application and size of your building ( if applicable.)
