Introduction
High output hardwired SmartWave carbon fiber radiant heater with RF remote control, three heat levels, and 4,500 W output. Ideal for outdoor patios, restaurants, commercial terraces, and any indoor or outdoor space requiring powerful directional heat.
Overview
The RKX SmartWave Carbon Fiber 3 Lamp Series delivers powerful medium wave infrared heat directly to people and objects without first warming the surrounding air. Powered by CarbonIQ carbon fiber lamp technology, RKX produces high output radiant warmth with a soft visible orange glow and less visible light than short wave infrared heaters.
Each unit includes an integrated electronic controller with three heat levels and a hand held RF remote that does not require line of sight. The RF remote can be paired with multiple heaters to create a synchronized heating zone for patios, restaurants, commercial outdoor seating areas, covered entries, work areas, and other indoor or outdoor applications.
Ideal Spaces
- Outdoor patios
- Restaurant seating areas
- Commercial terraces
- Hospitality spaces
- Covered entries
- Work areas
- Indoor and outdoor radiant heating applications
Features & Benefits
- 4,500 W hardwired model options
- 208 V and 240 V configurations
- Built in electronic controller with 3 heat levels

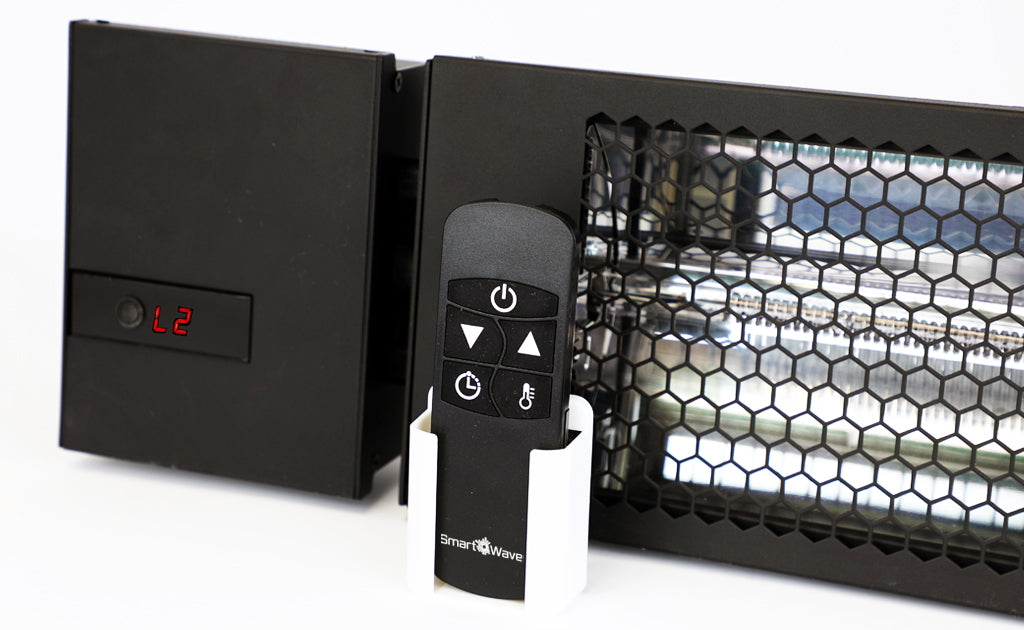

- Hand held RF remote with wall holder

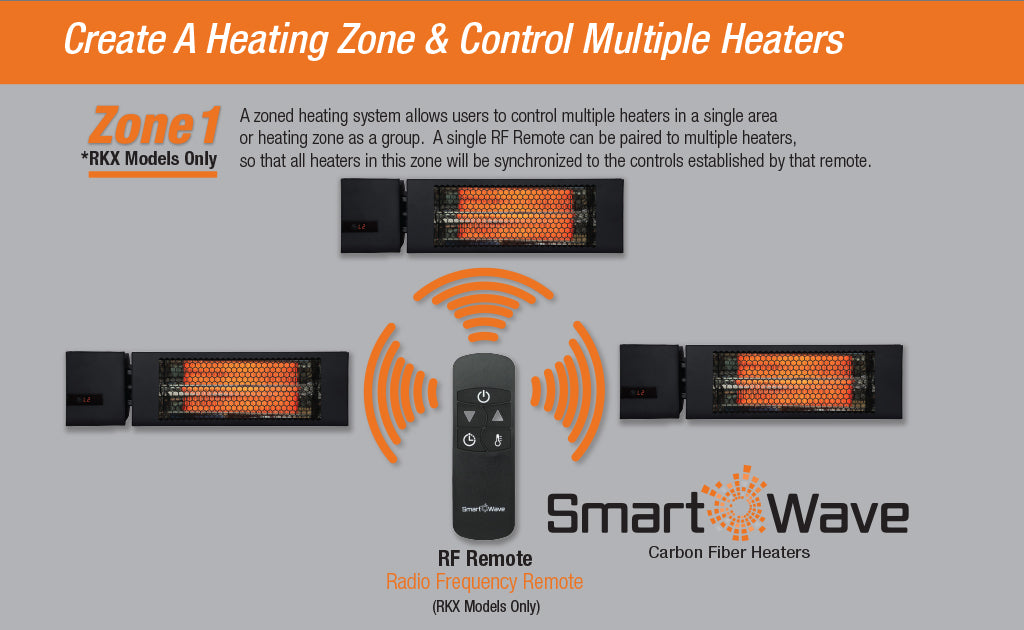

- RF remote can pair multiple heaters for zoned control

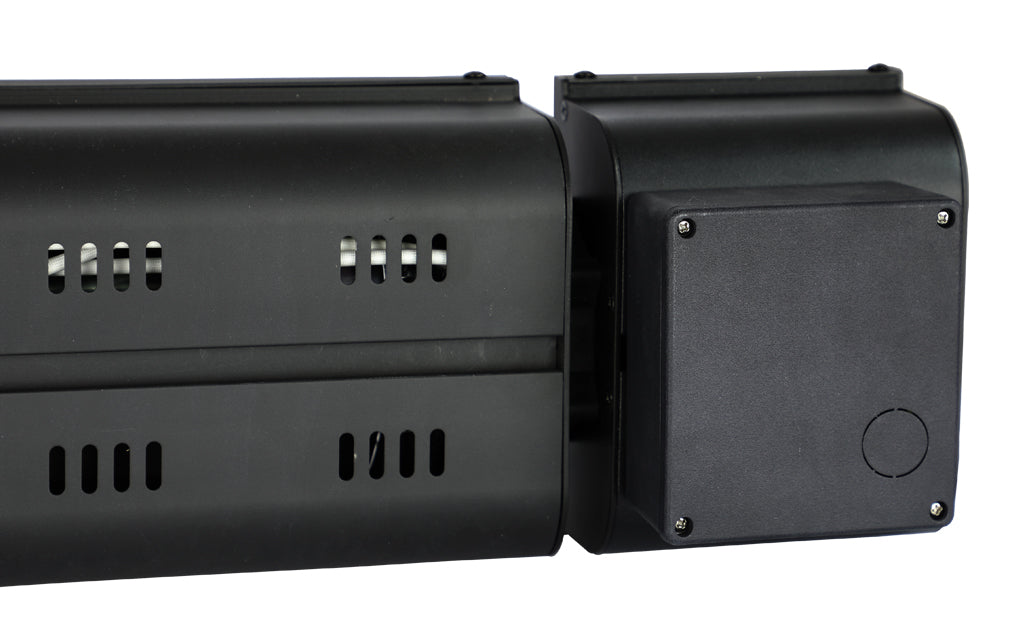

- LCD position sensor for left or right junction box mounting
- Permanent Timer mode for timer only startup operation
- 24 hour automatic safety shutoff

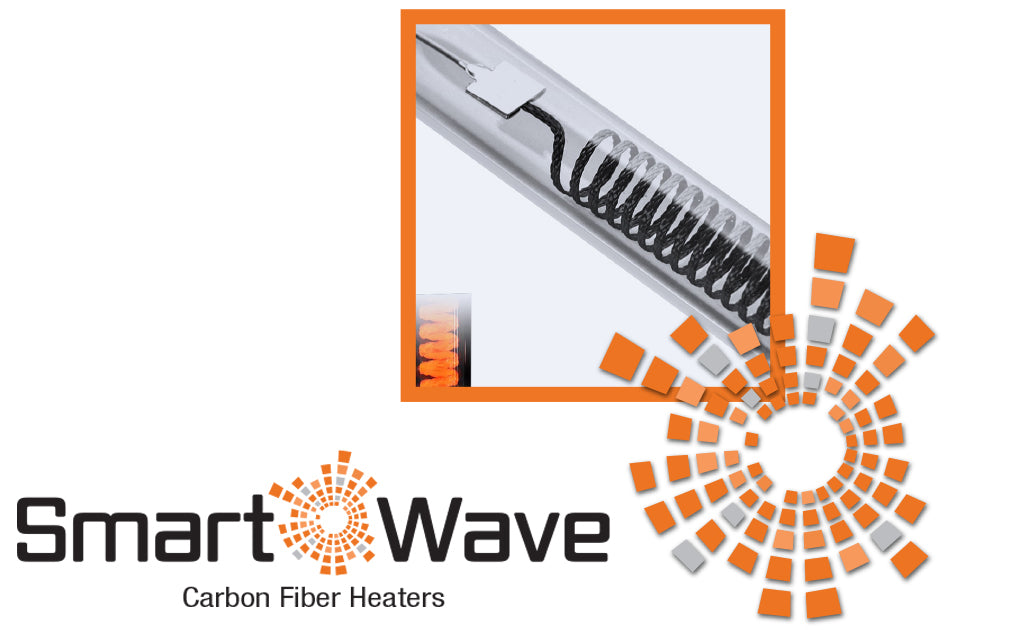

- CarbonIQ lamps rated for 10,000 hours
- IP55 water resistant and dust rated construction
- Adjustable 0° to 45° wall or ceiling brackets
- Aircraft grade aluminum and stainless steel construction
Specifications
Electrical
Voltage: 208/240V | Phase: 1Ø | Wattage: 4,500W | Connection: Hardwired | Control: Built-In Controller with RF Remote
Performance
Heating Capacity: 15,355 BTUH | Heating Method: Medium Wave Infrared | Heat Levels: 3 | Application: Indoor/Outdoor Directional Spot Heating | Timer: Built-In with 24 Hour Auto Shutoff
Mechanical
Length: 61 in. | Mounting: Wall/Ceiling 0°–45° Adjustable / Chain Mount | Construction: Aircraft Grade Aluminum & Stainless Steel | Heating Element: CarbonIQ Carbon Fiber Lamps Rated for 10,000 Hours | Finish: Black
Compliance
Environmental Rating: IP55 Water Resistant and Dust Rated | Certification: cETLus Listed for USA and Canada | Warranty: 3-Year Limited on Fixture / 1-Year Limited on Carbon Lamps
Document Library
Product Documents
Technical Documents
Easy One-Person Installation
SmartWave Carbon Fiber Radiant Heaters feature an innovative 2-part bracket mounting system that makes installation quick and simple — no measuring tape needed. Even the 3-lamp, 5-foot model can be installed by a single person. Mount on walls, ceilings, or suspend with chains for maximum flexibility.
📄 Read the Full Installation Guide →
