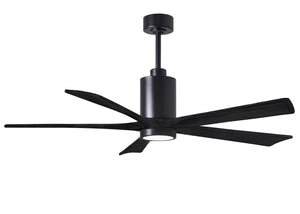

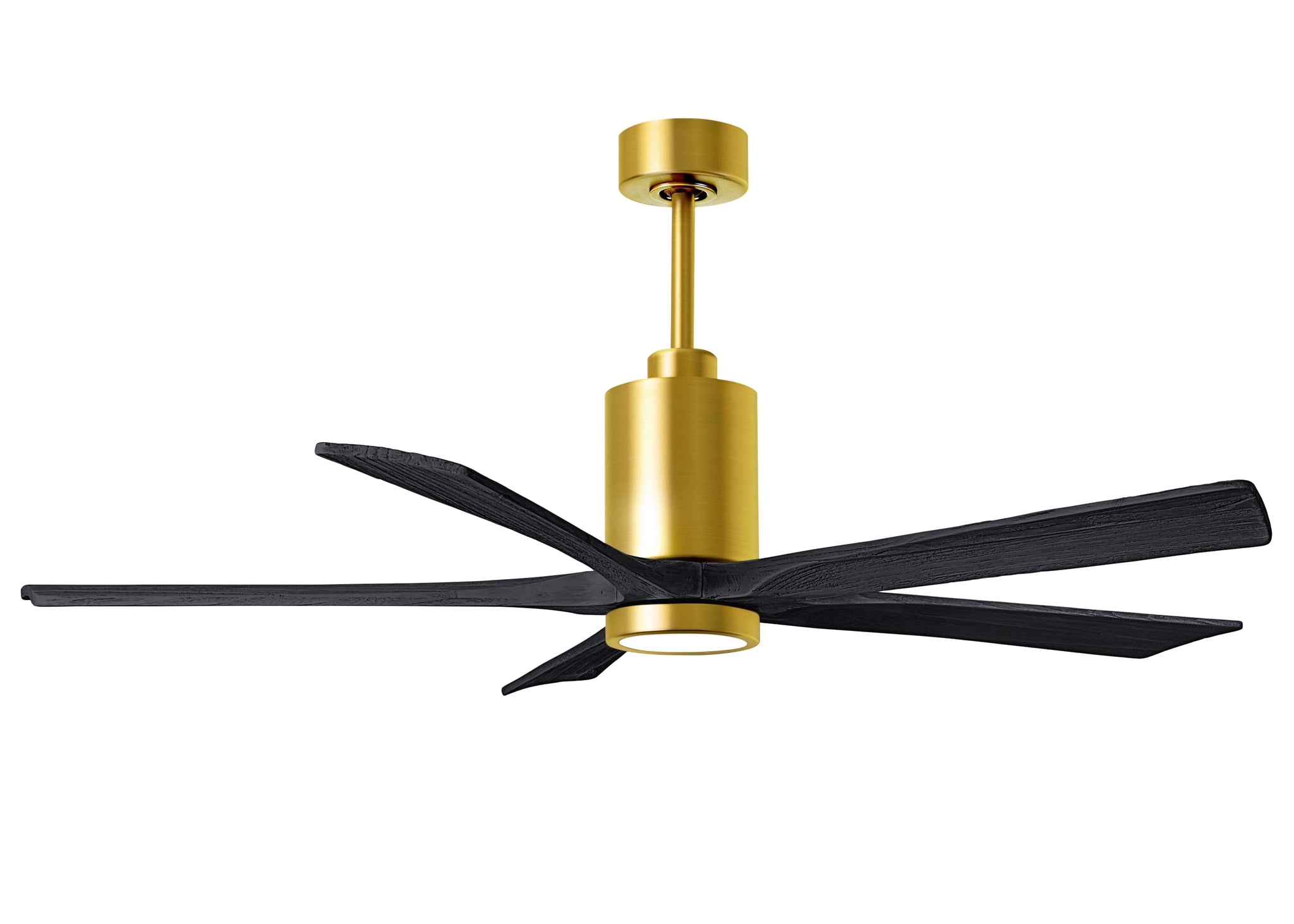

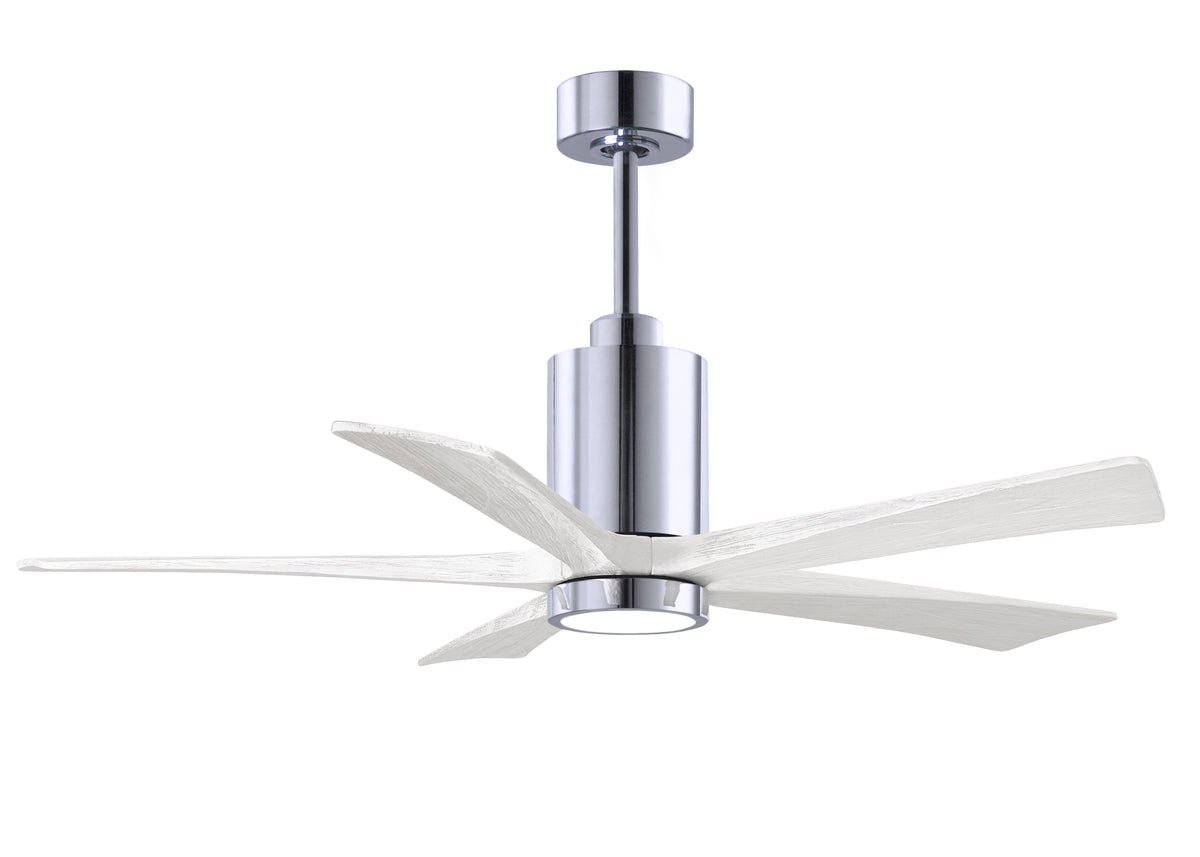

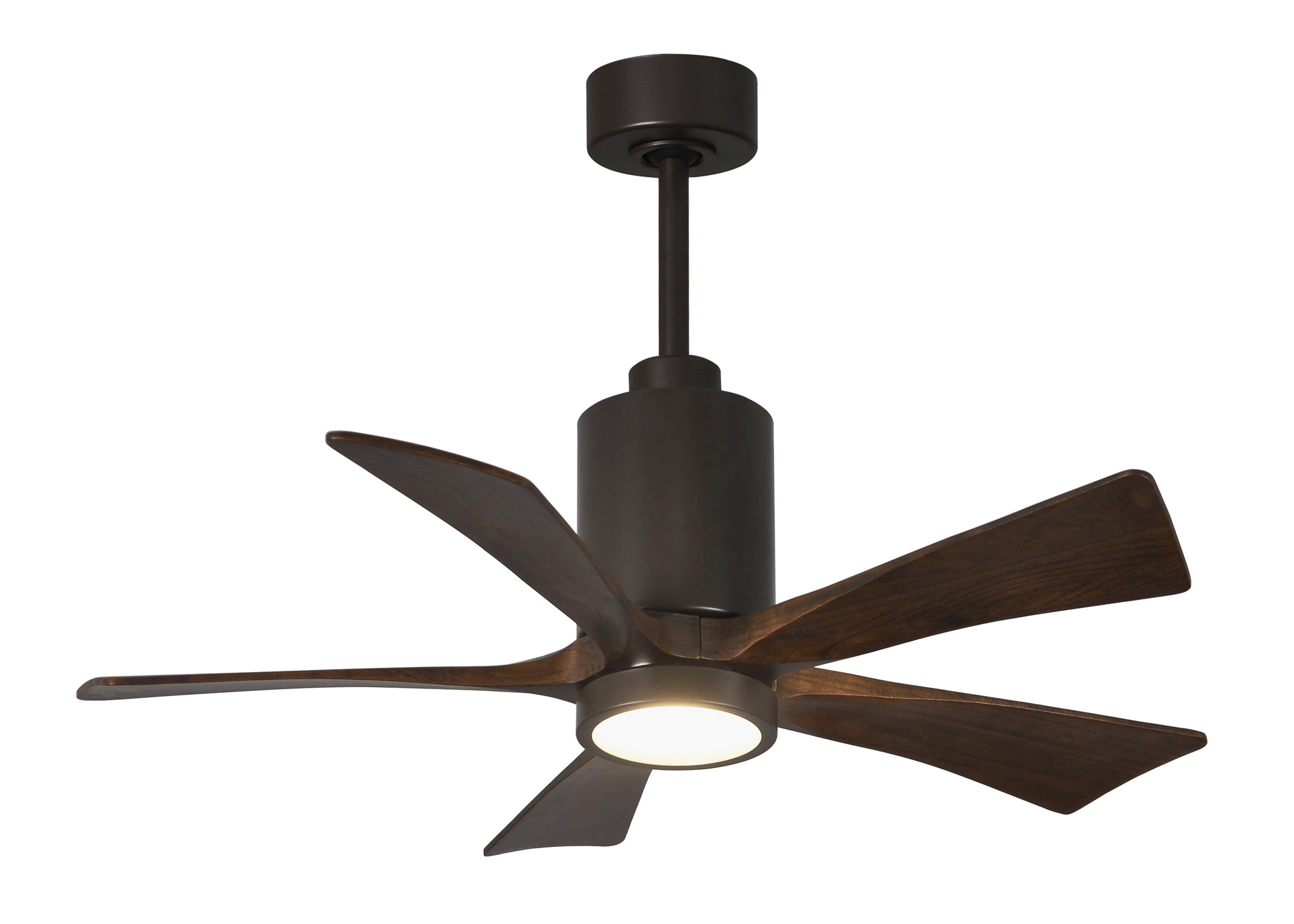

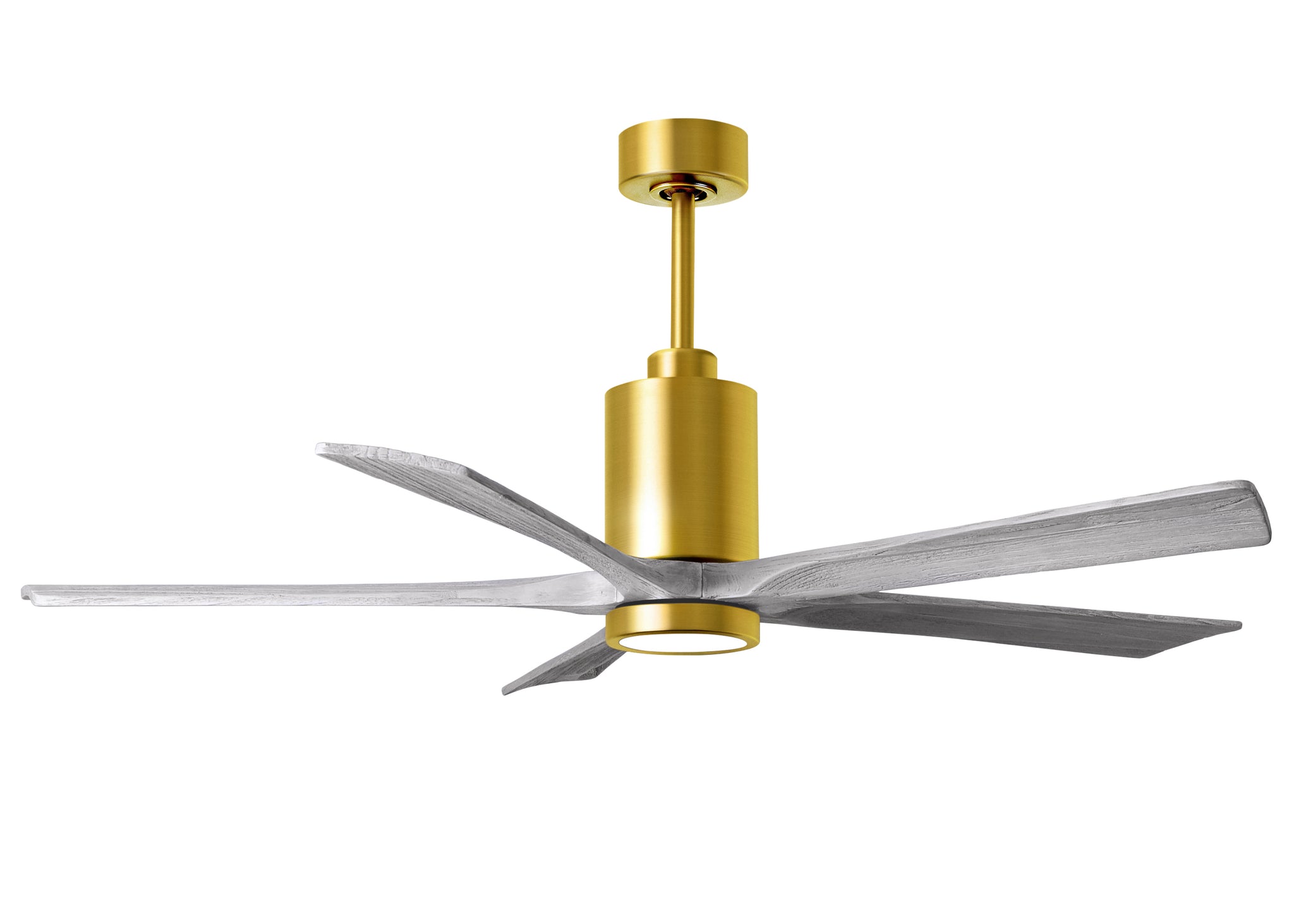

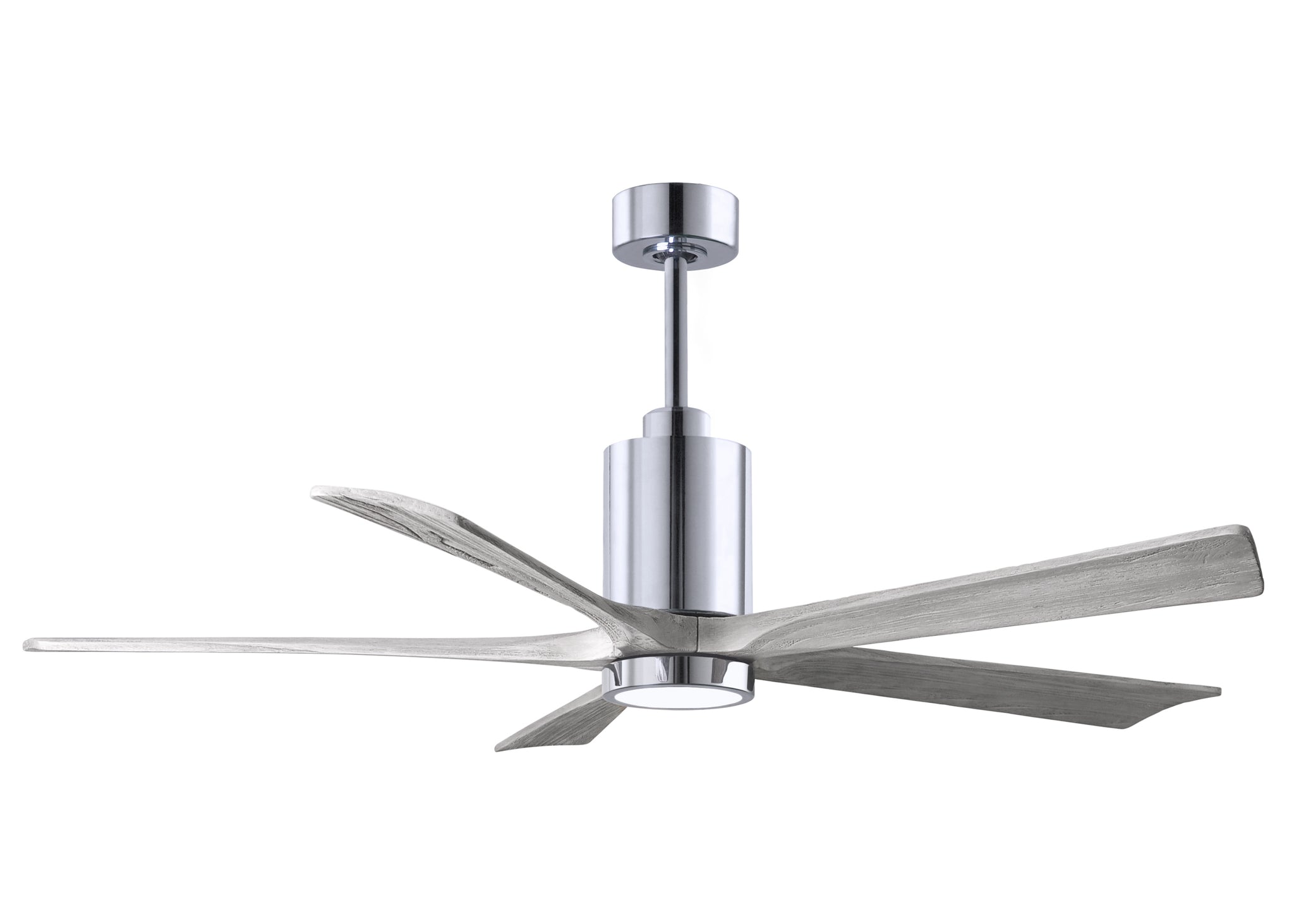

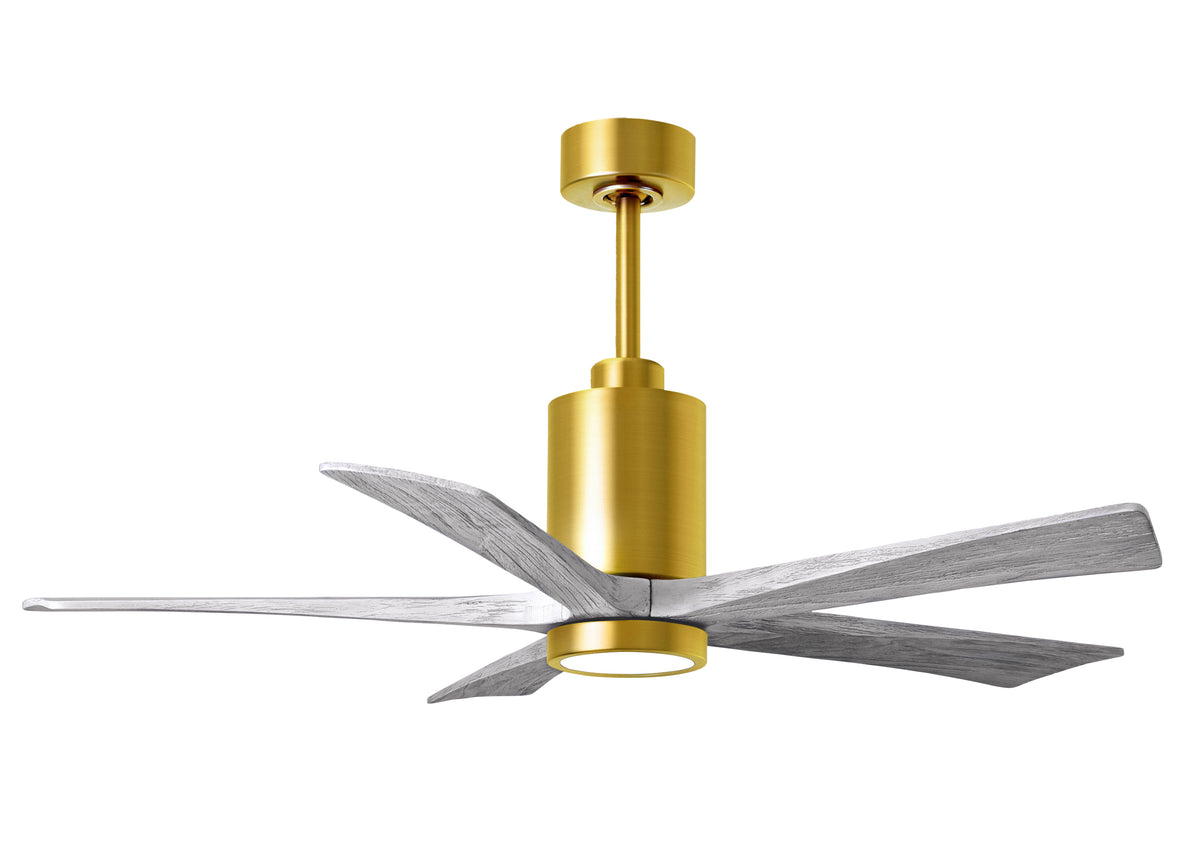

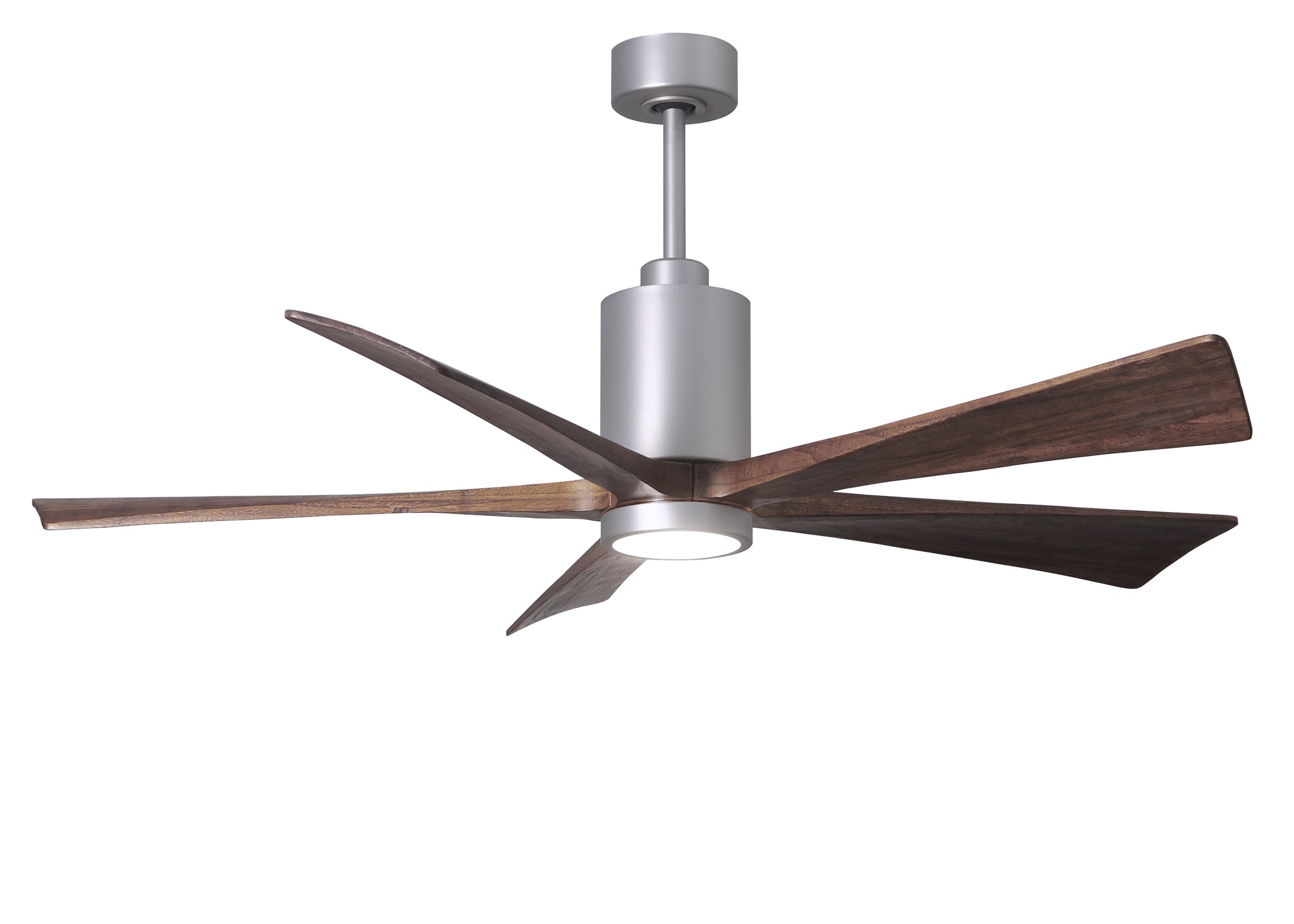

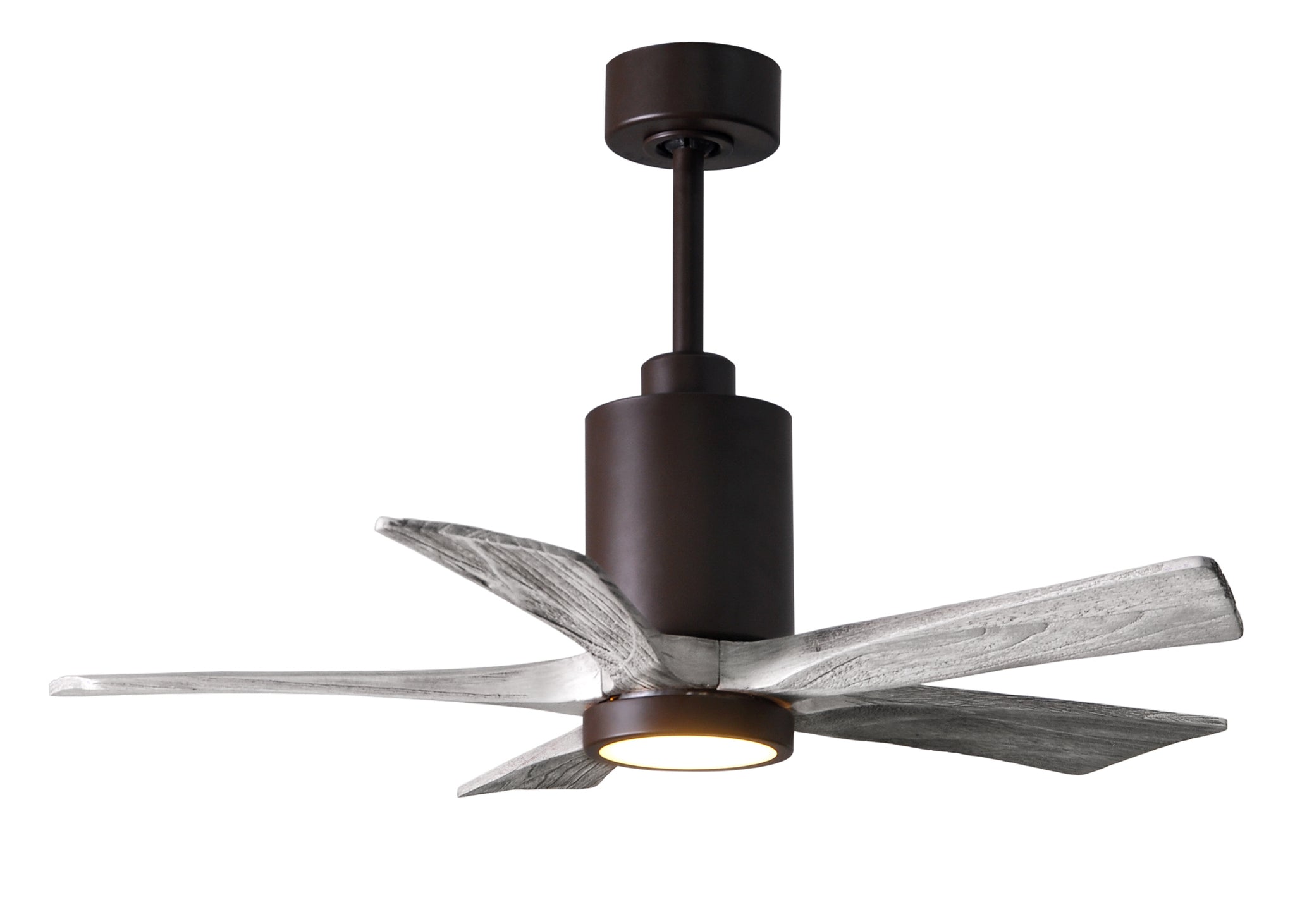

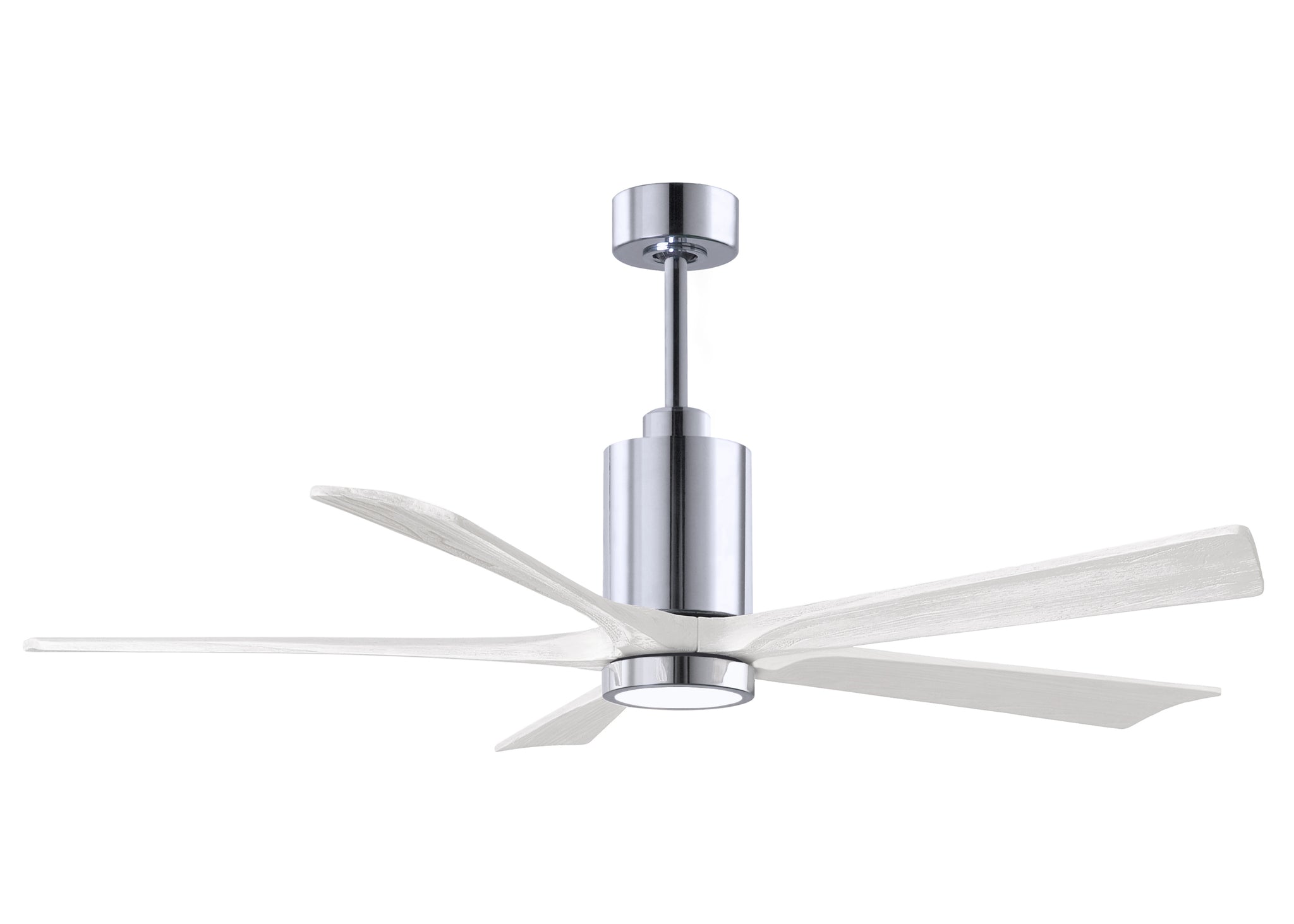

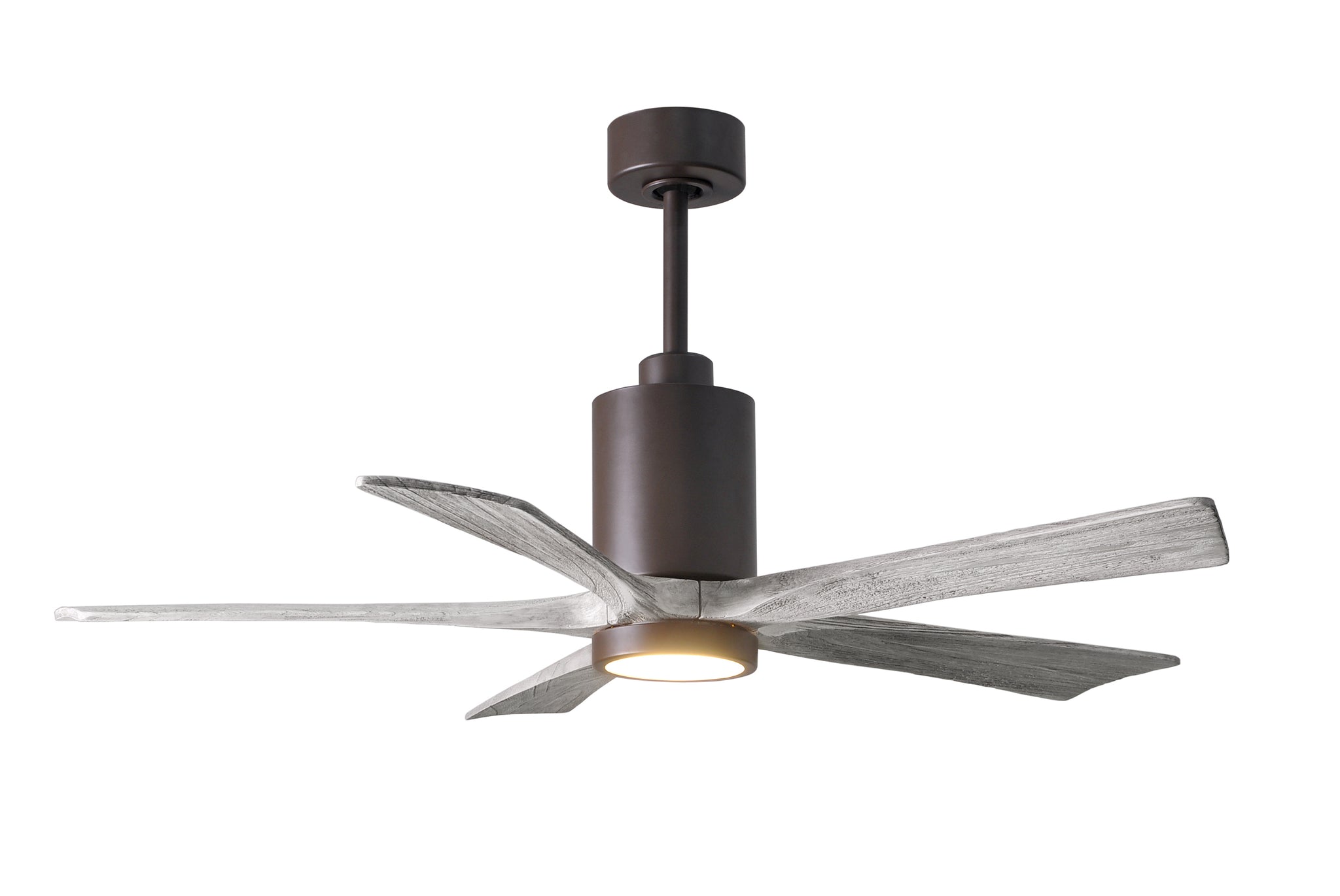

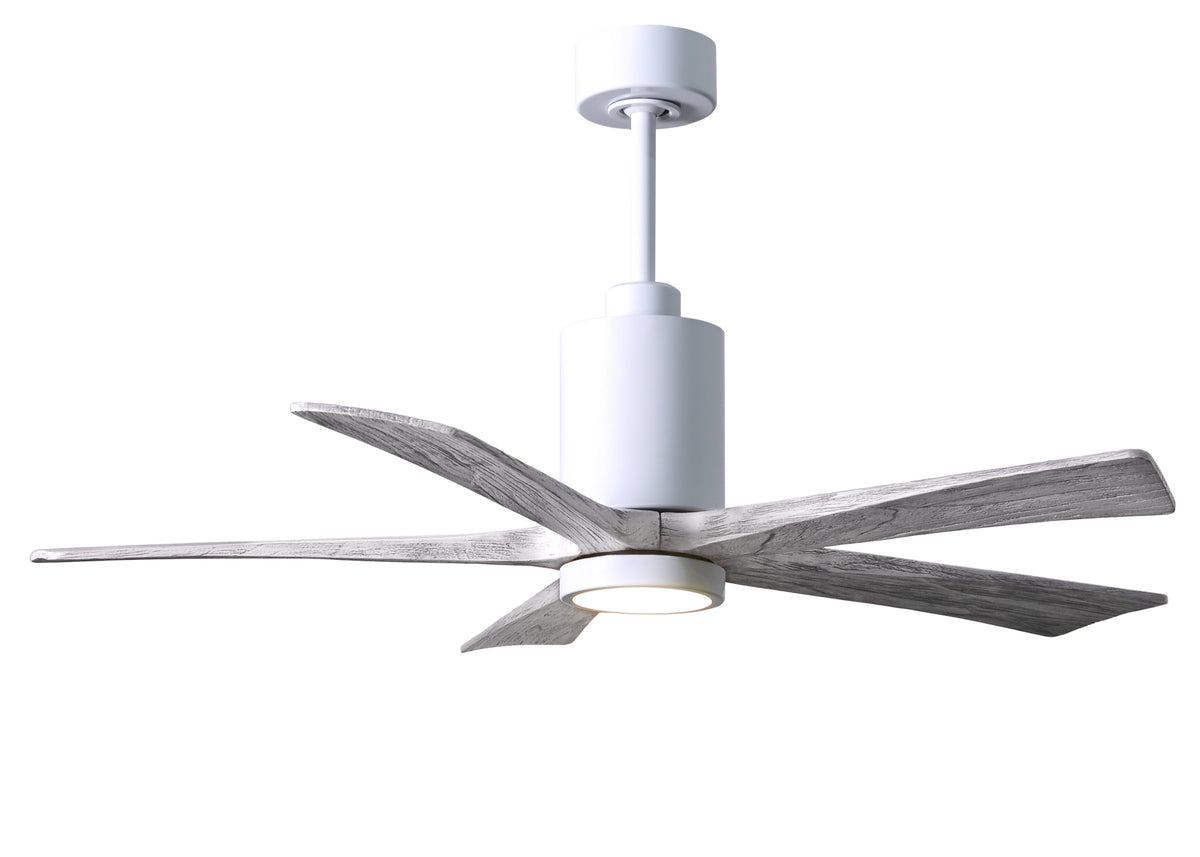

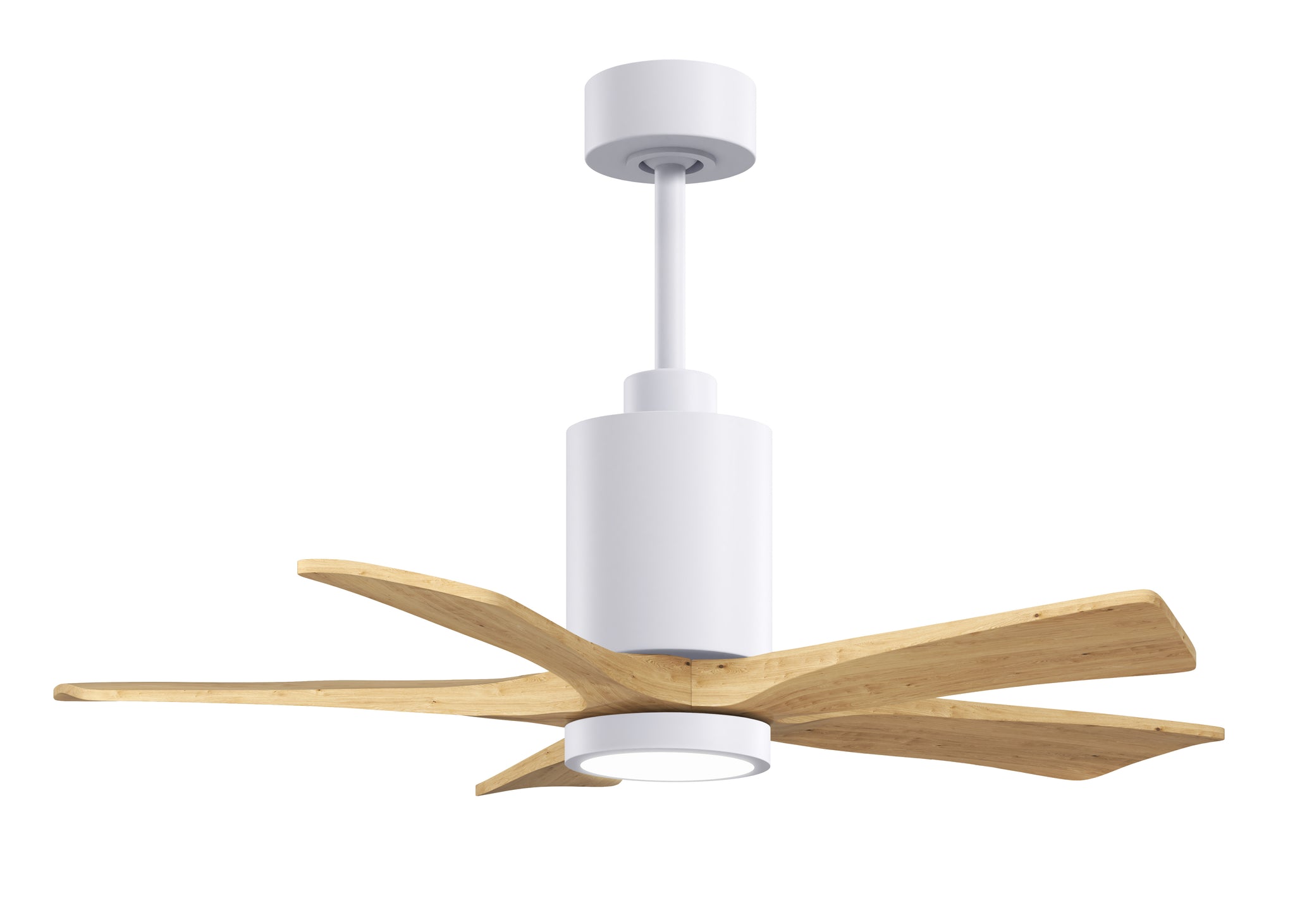

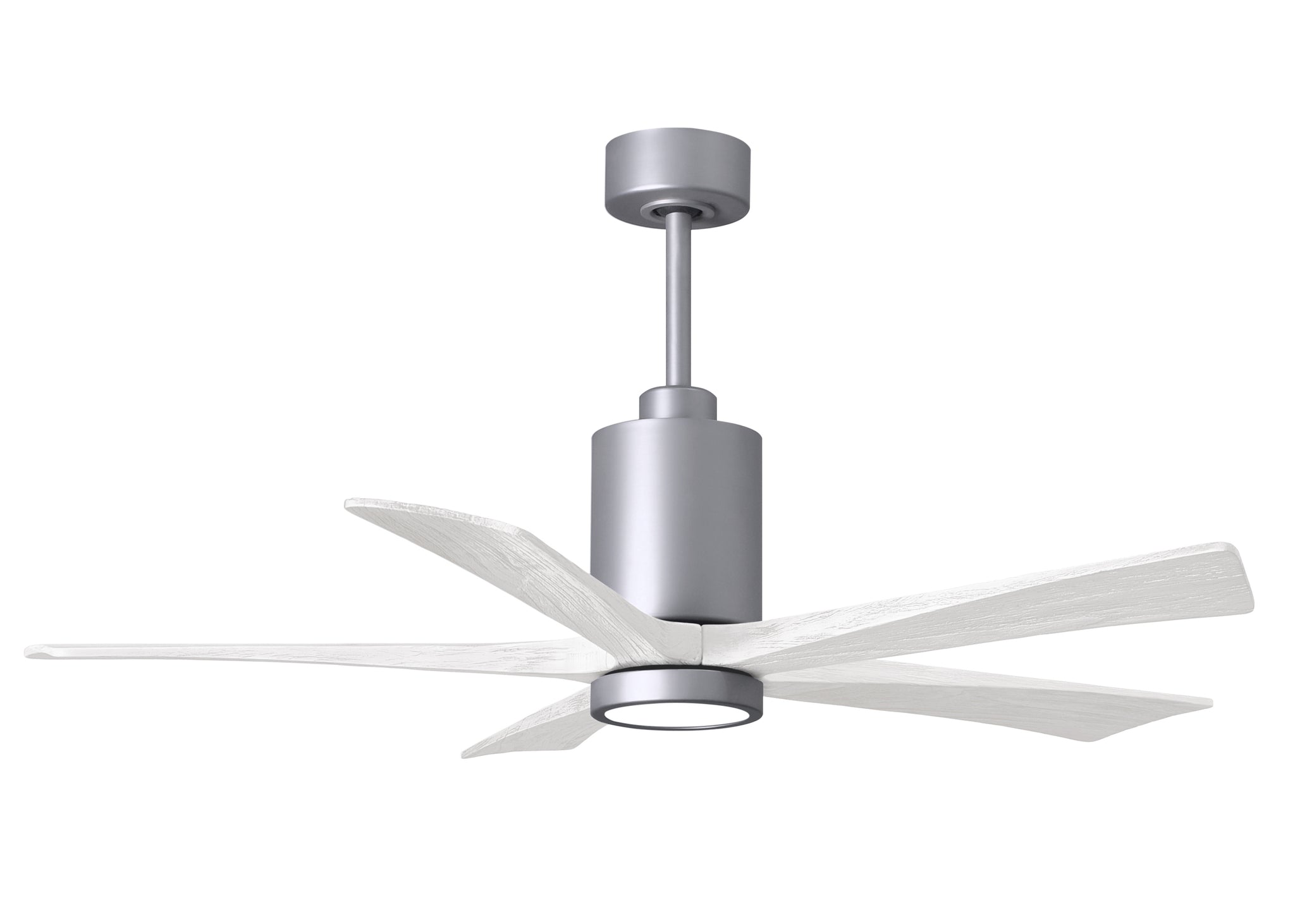

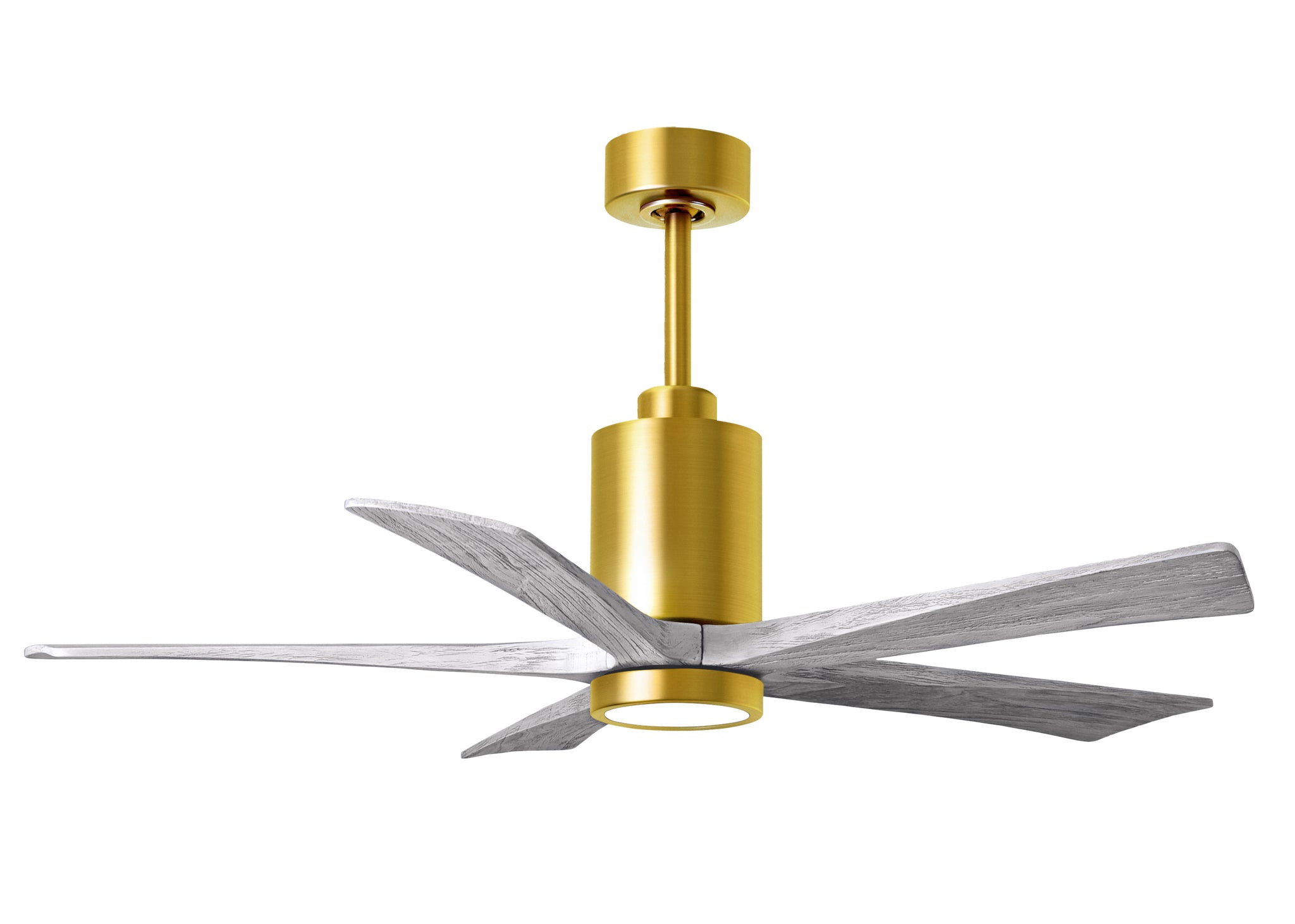

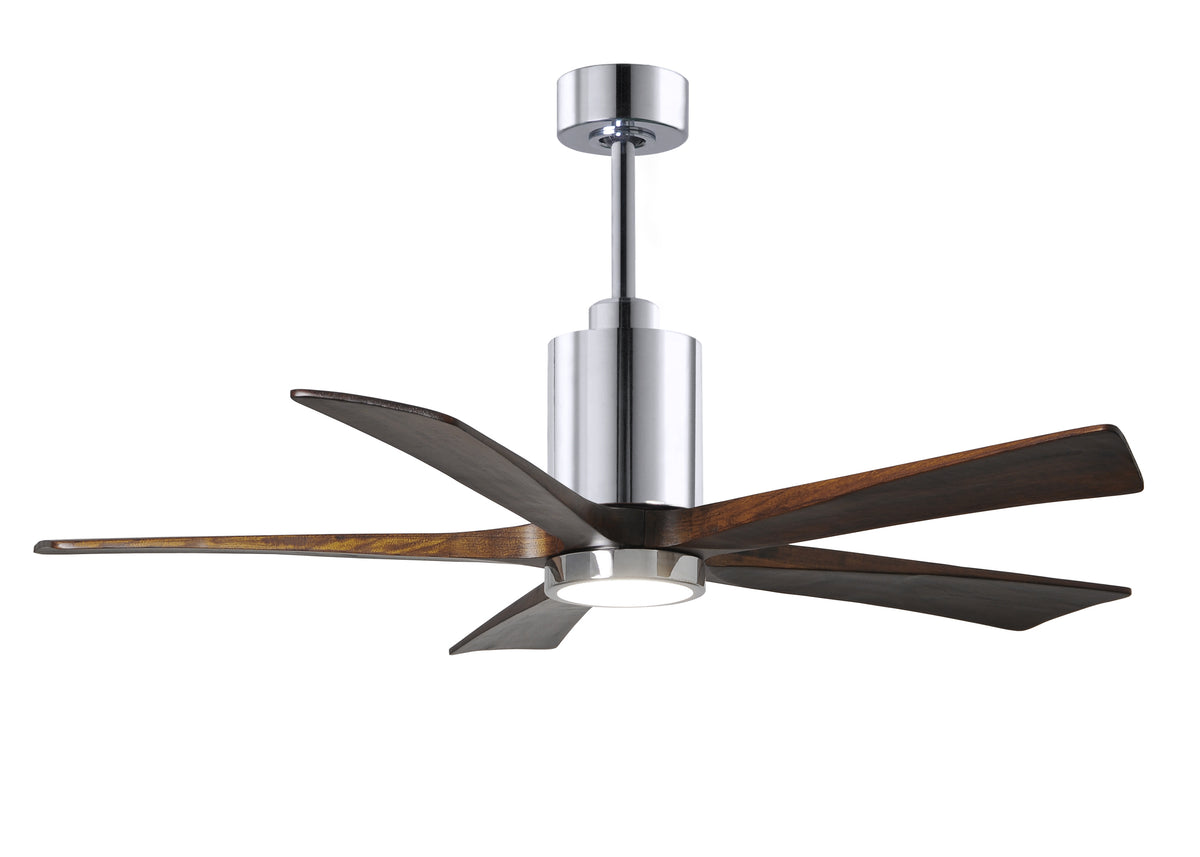

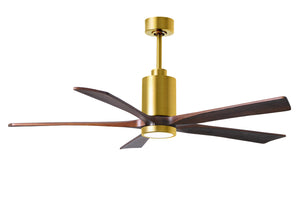

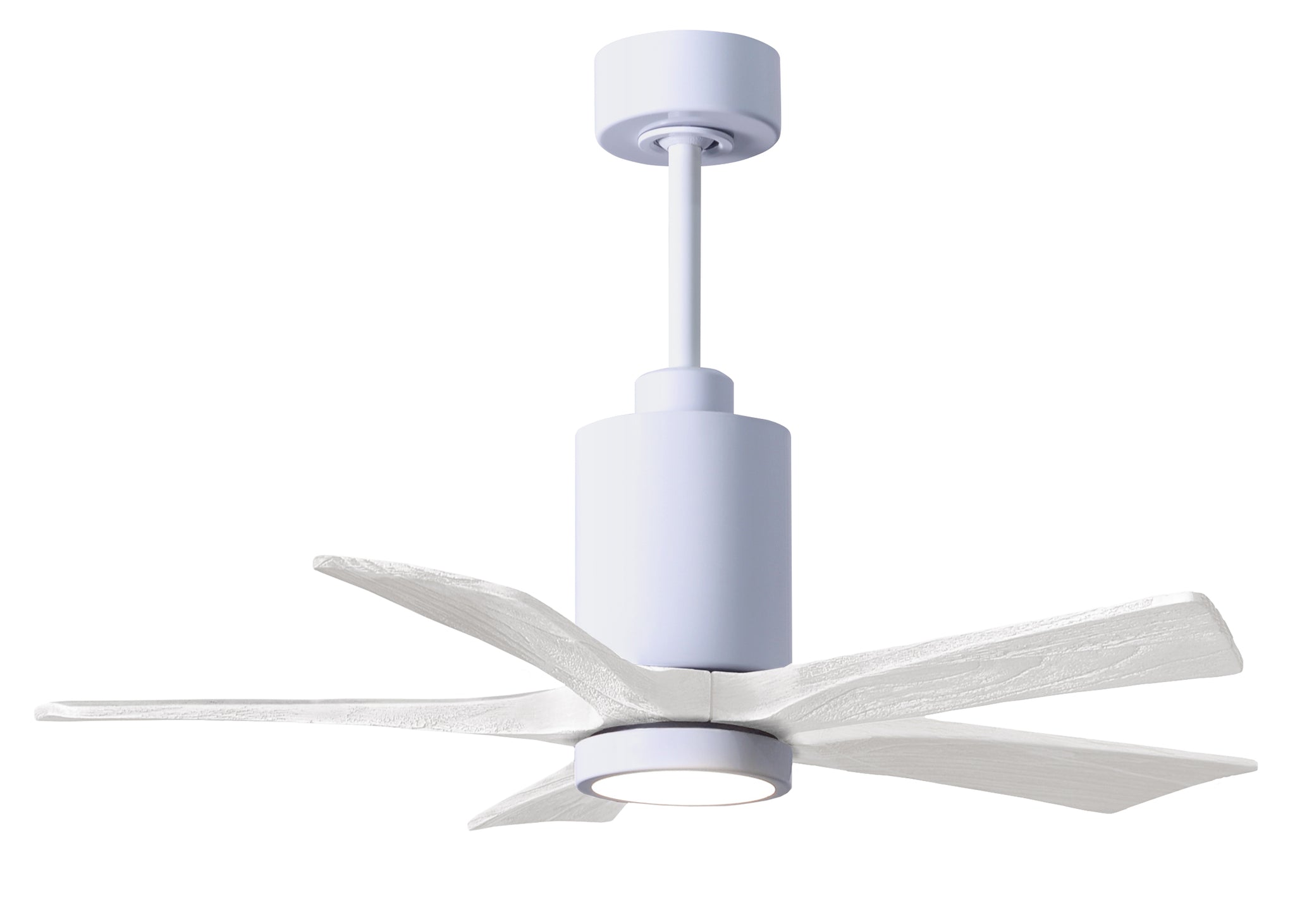

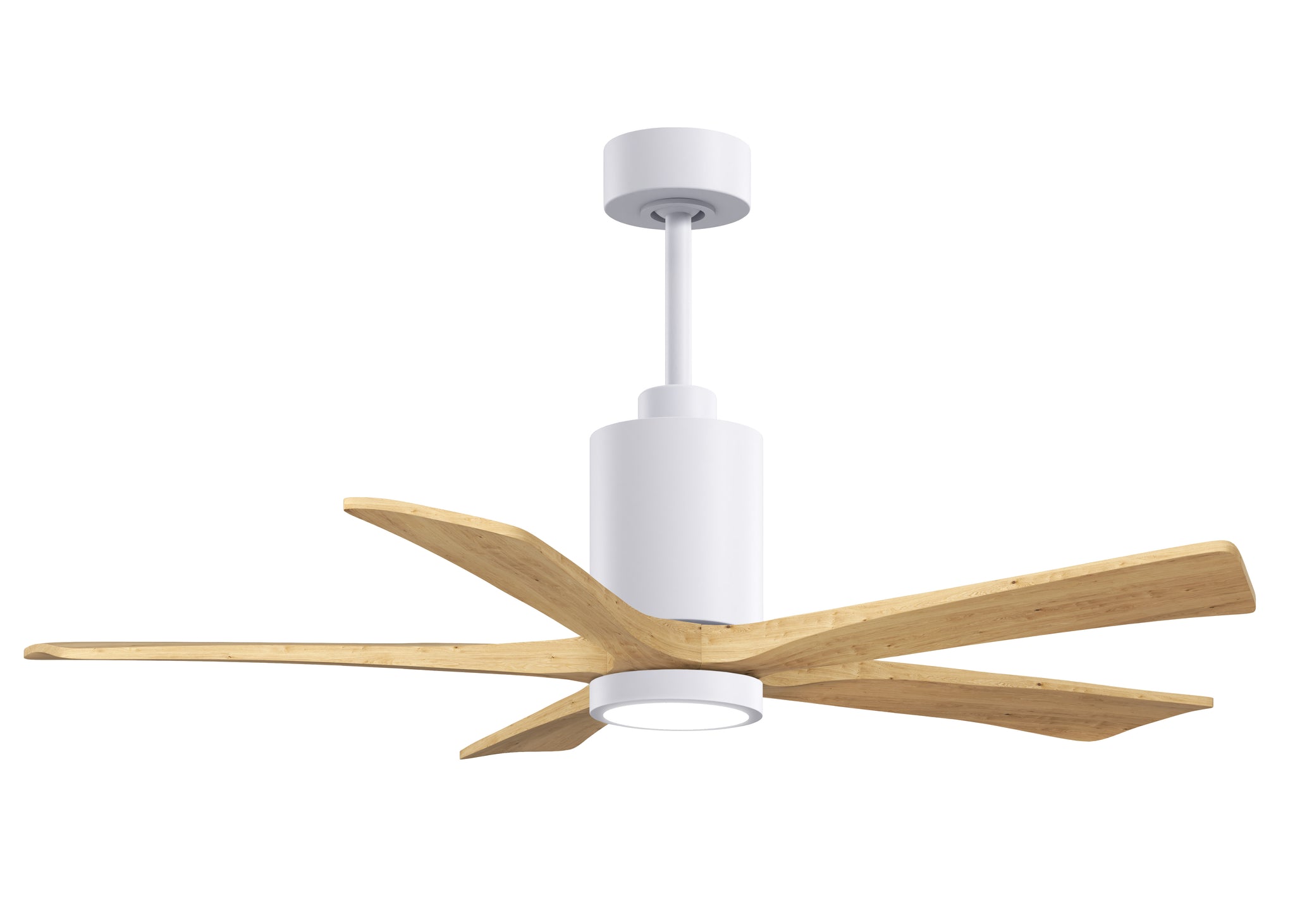

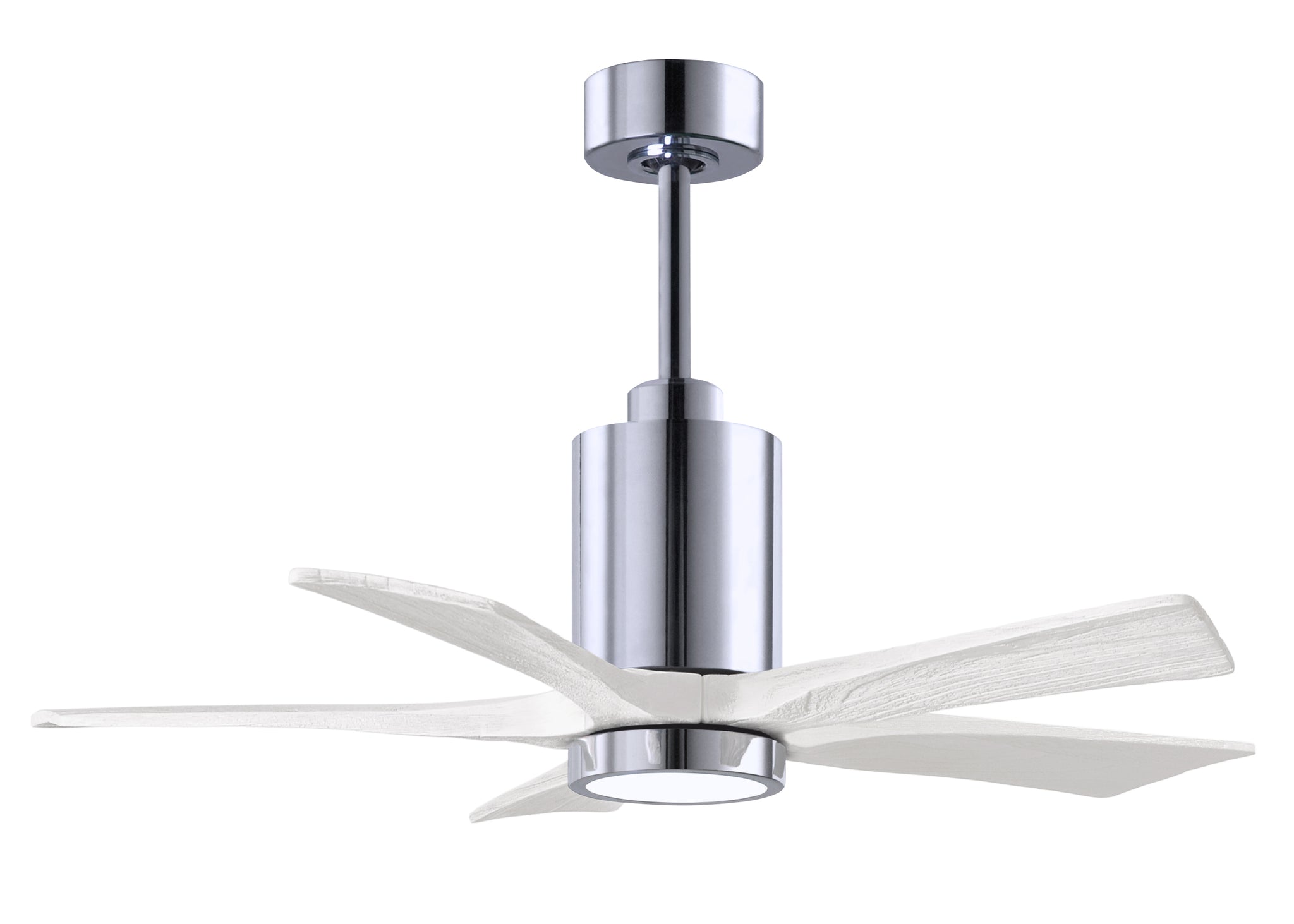

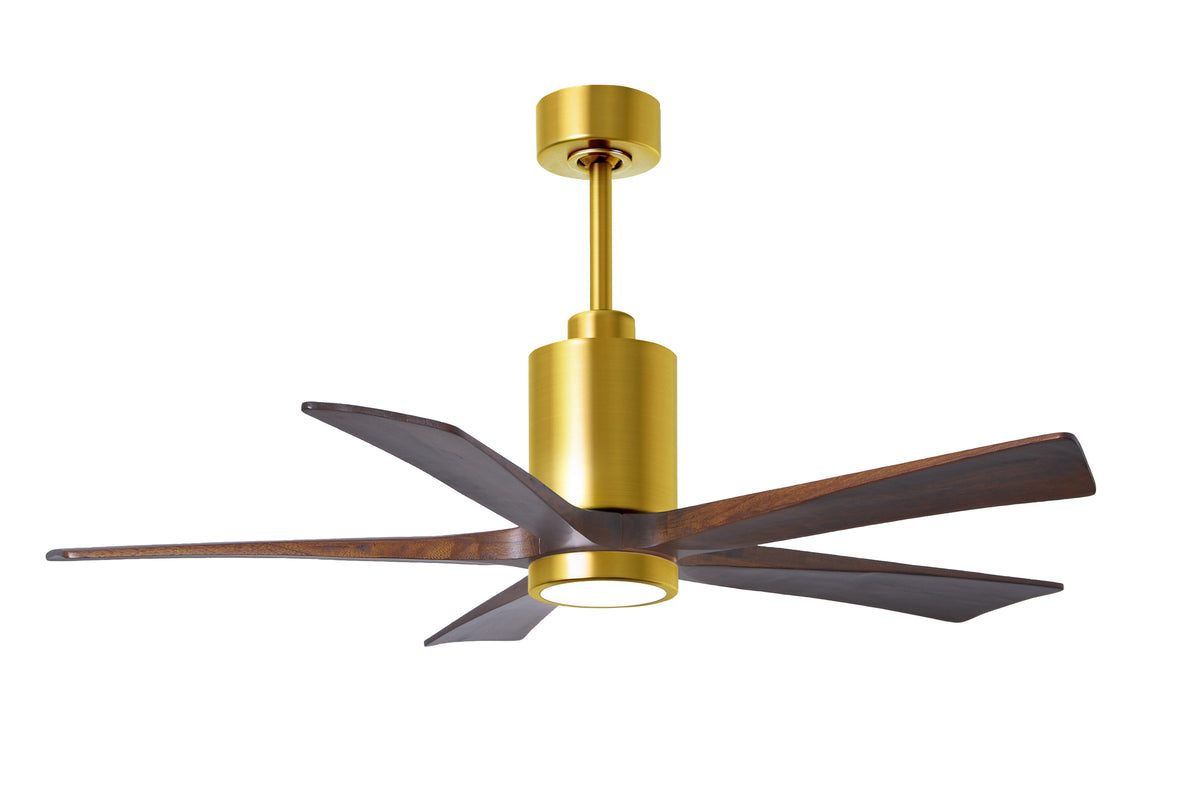

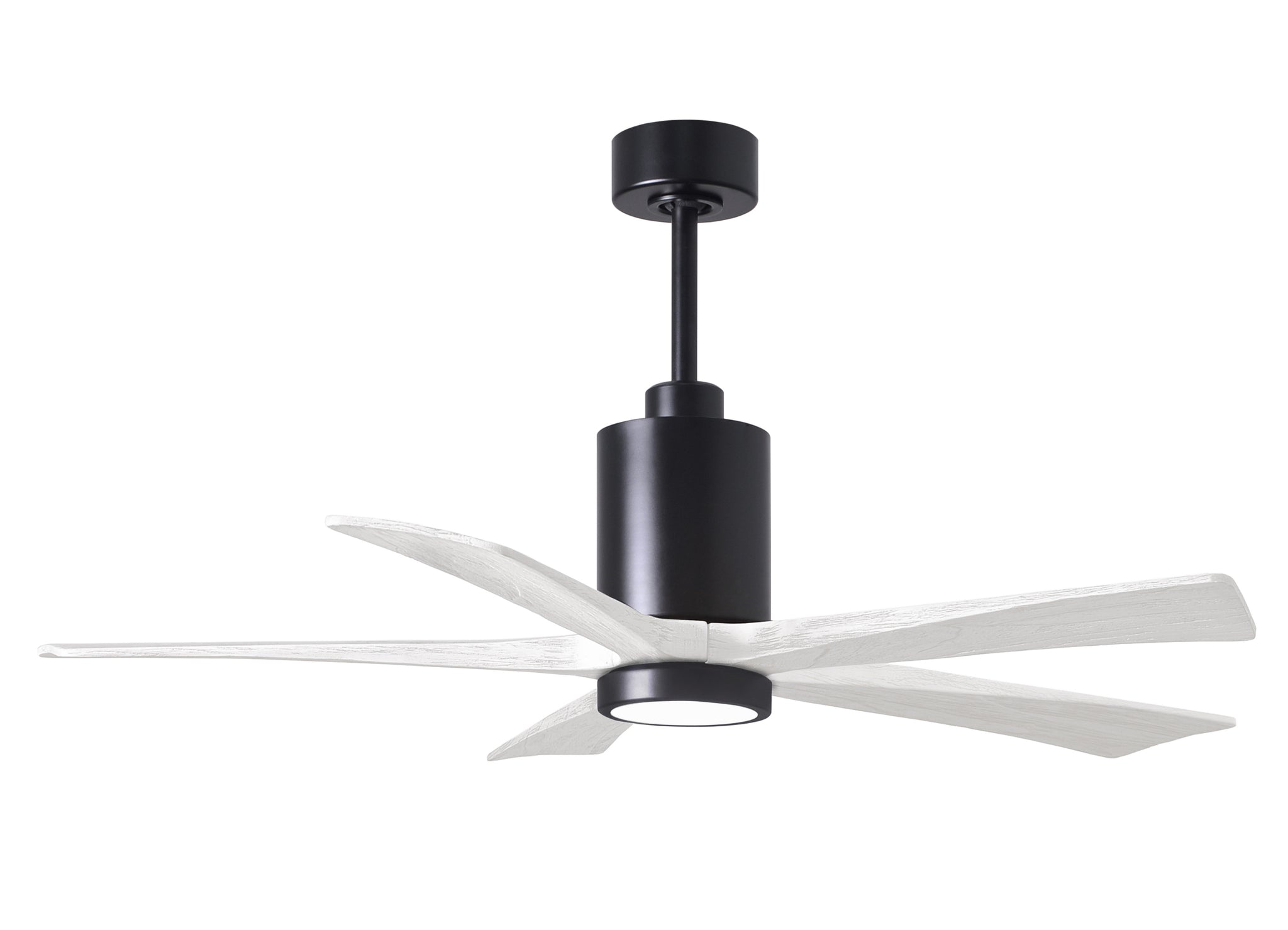

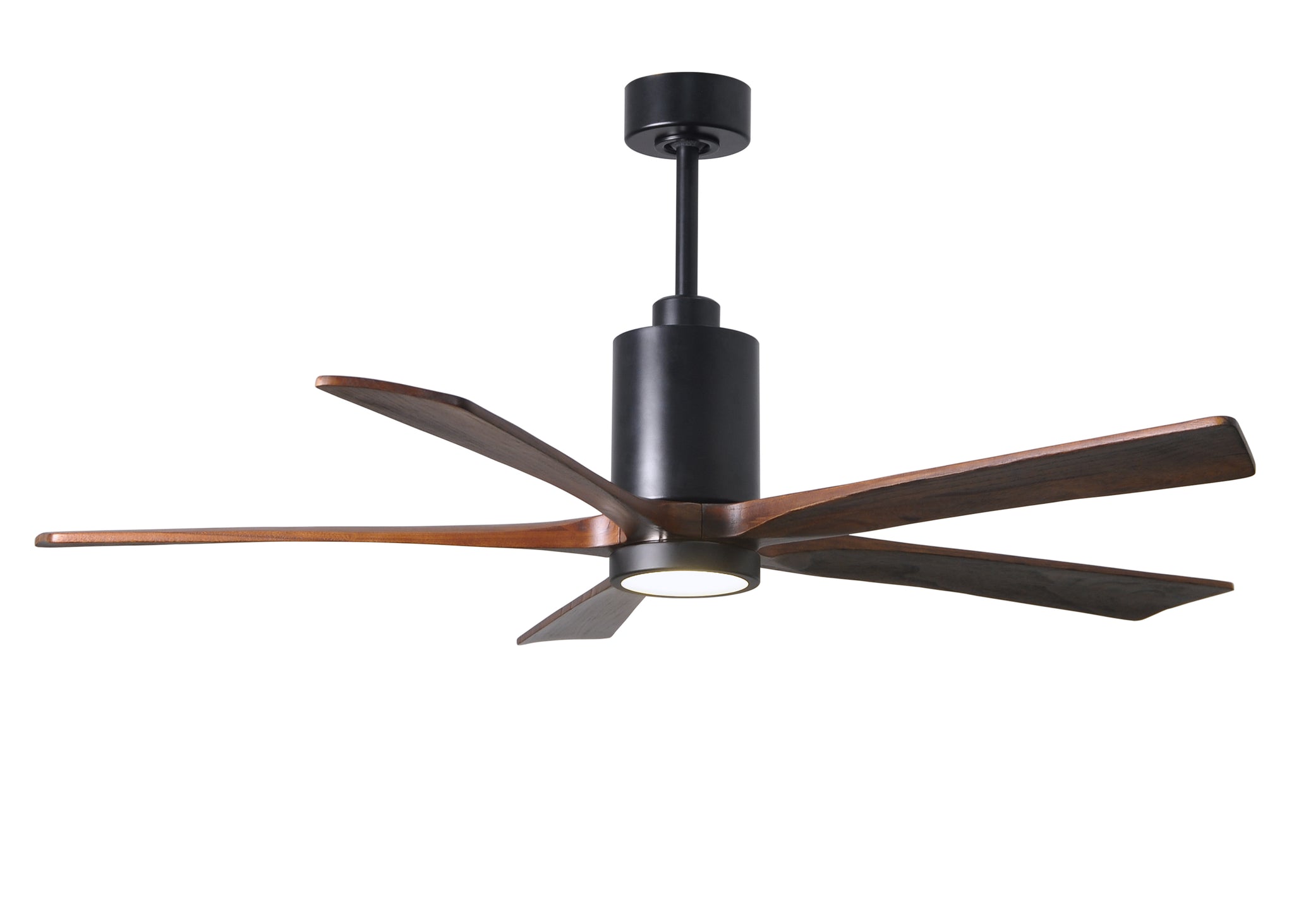

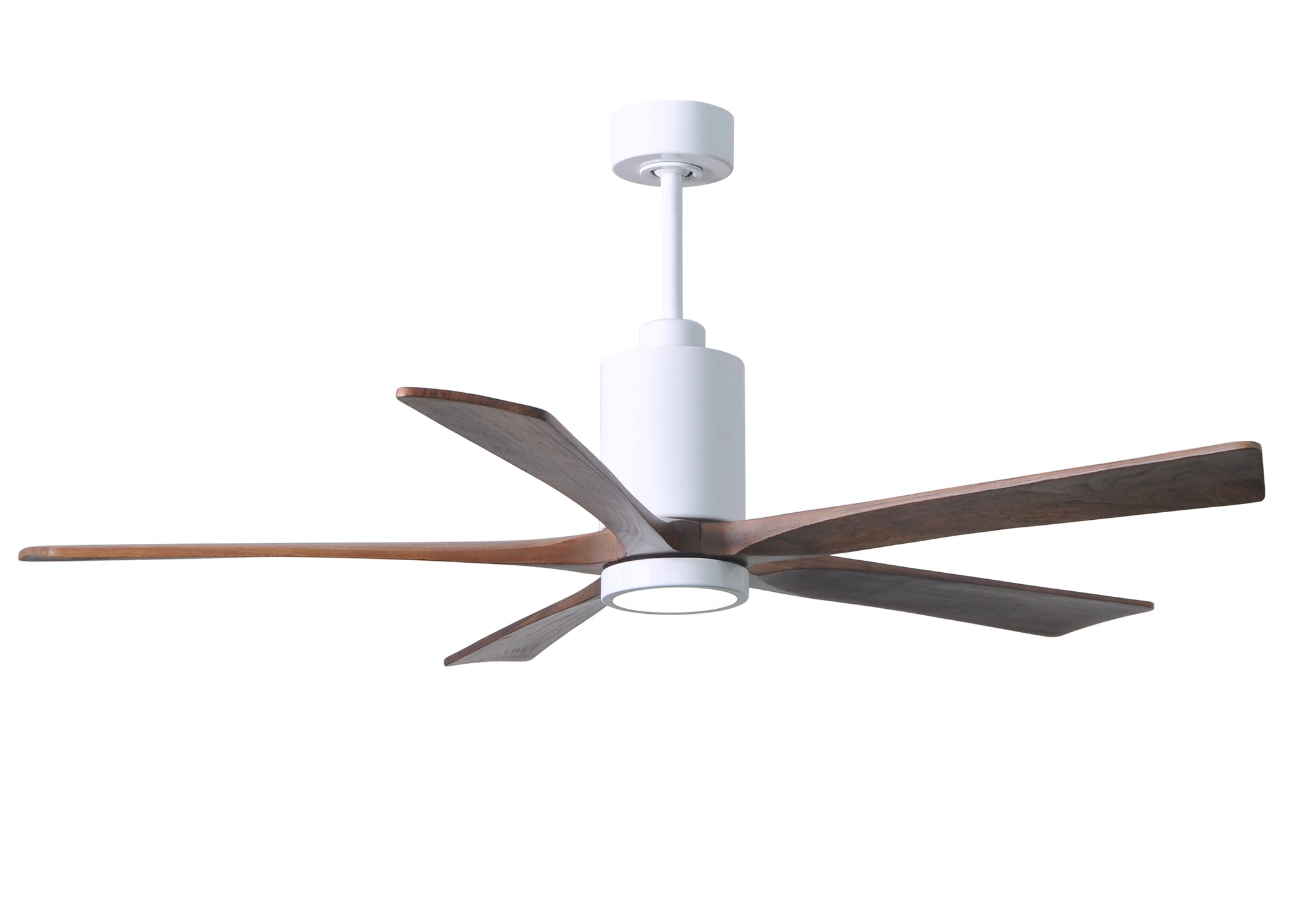

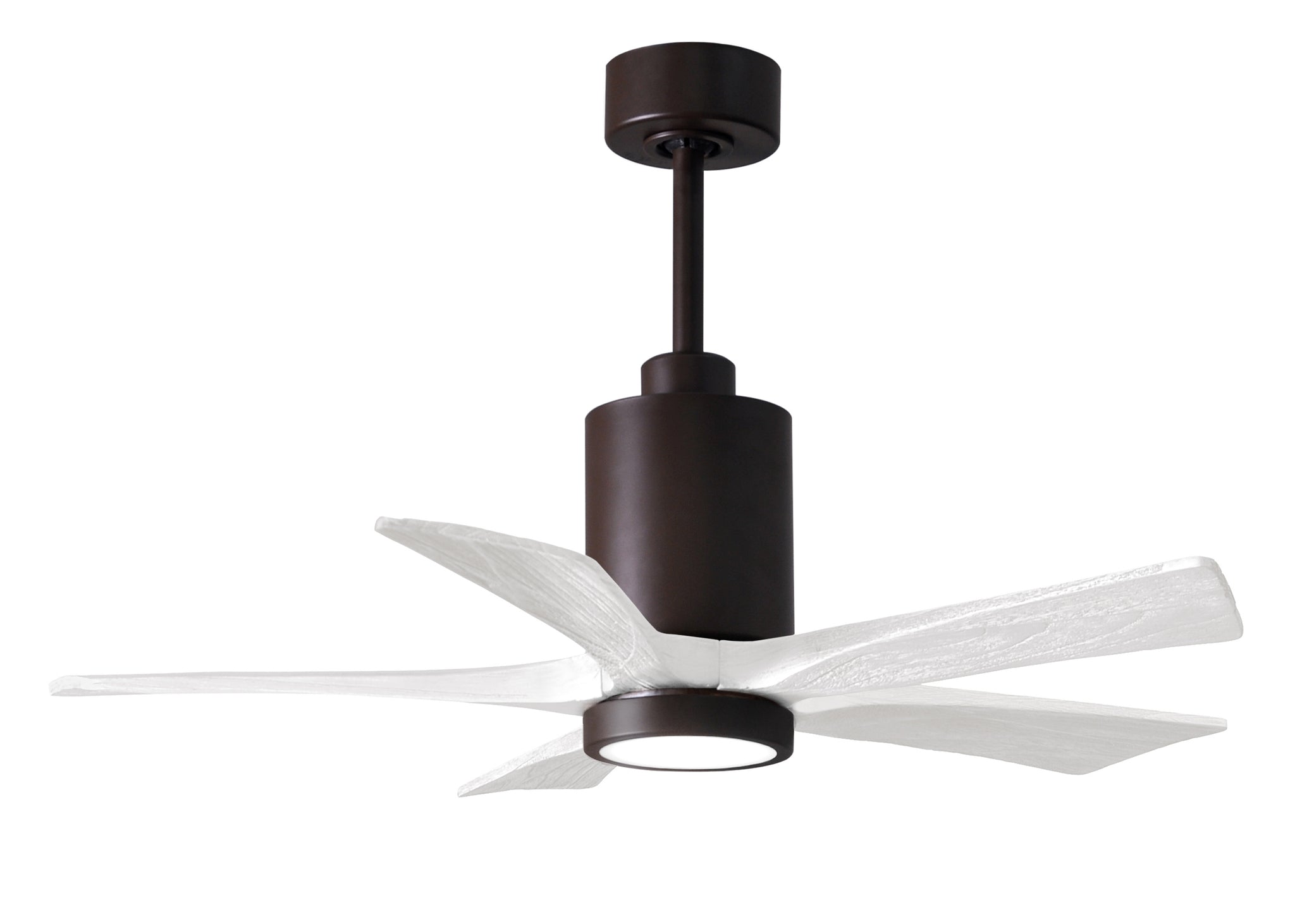

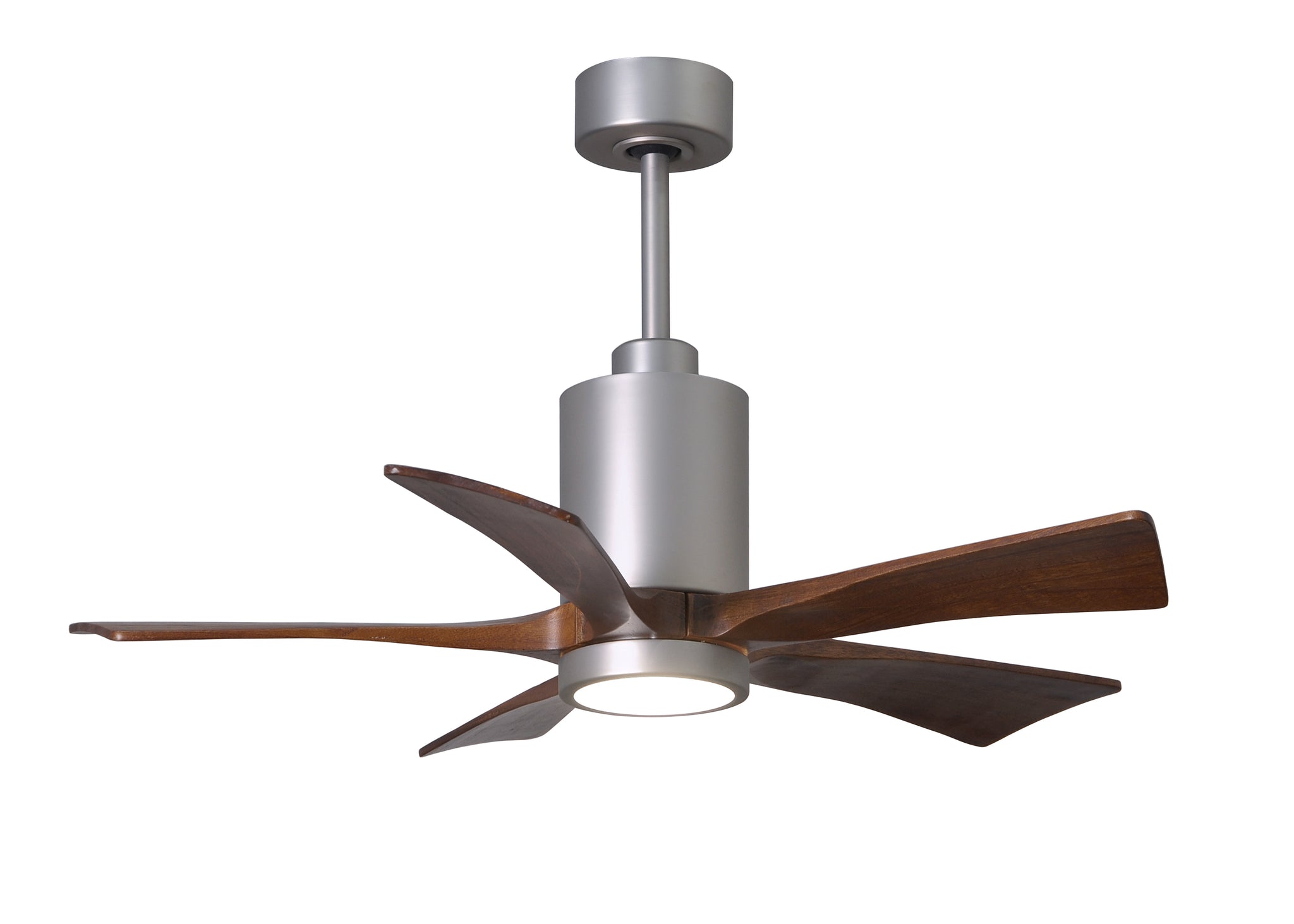

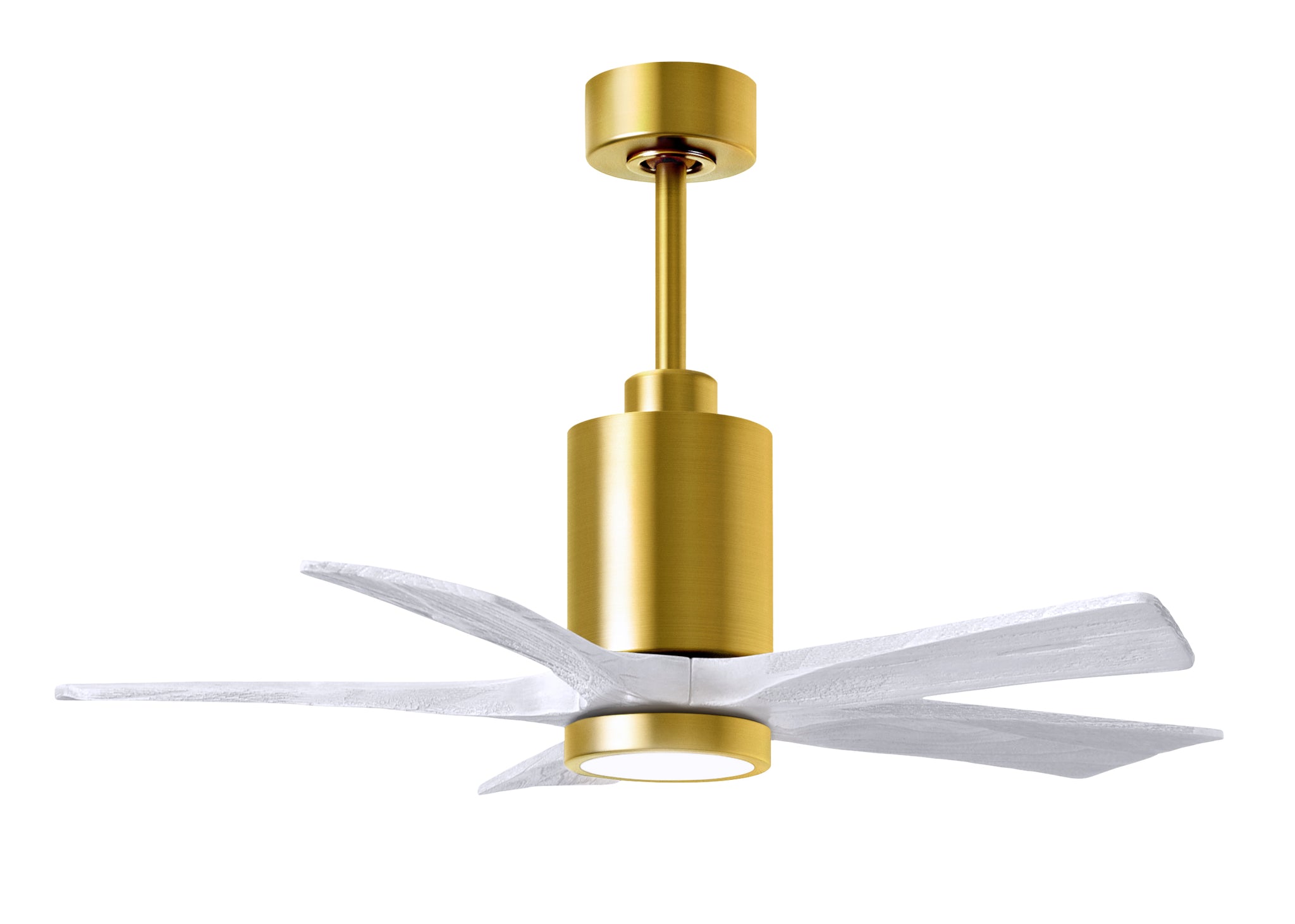

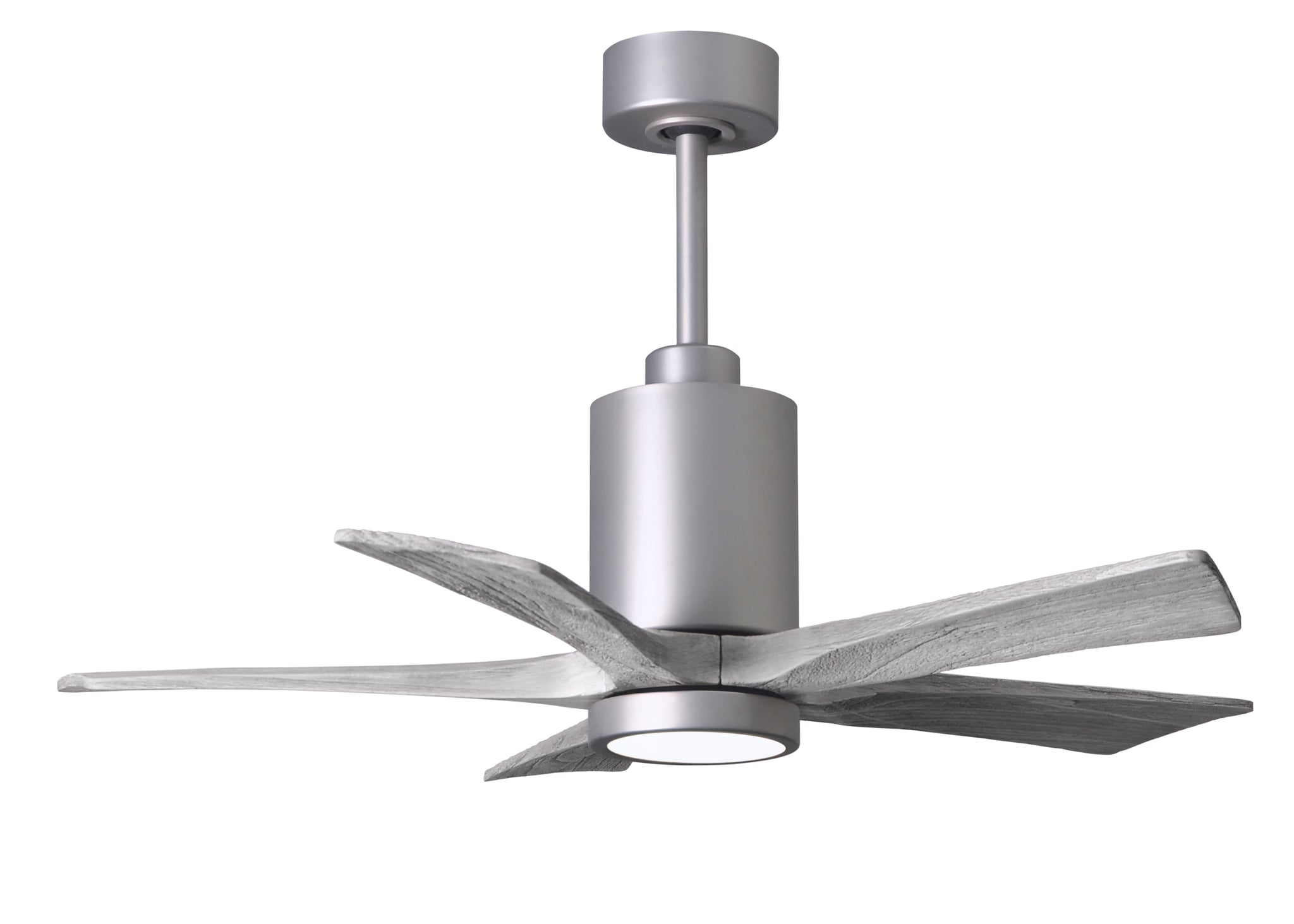

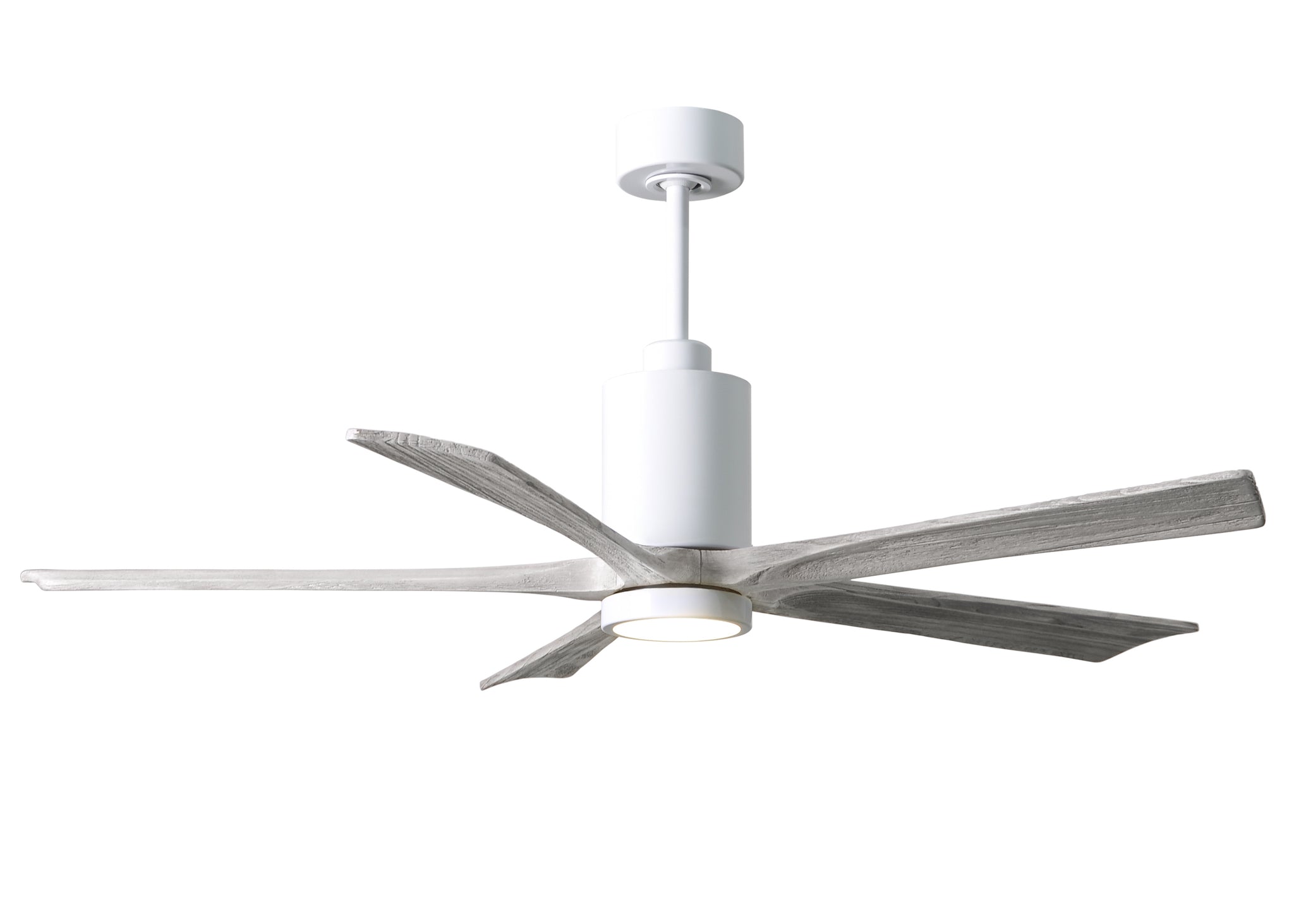

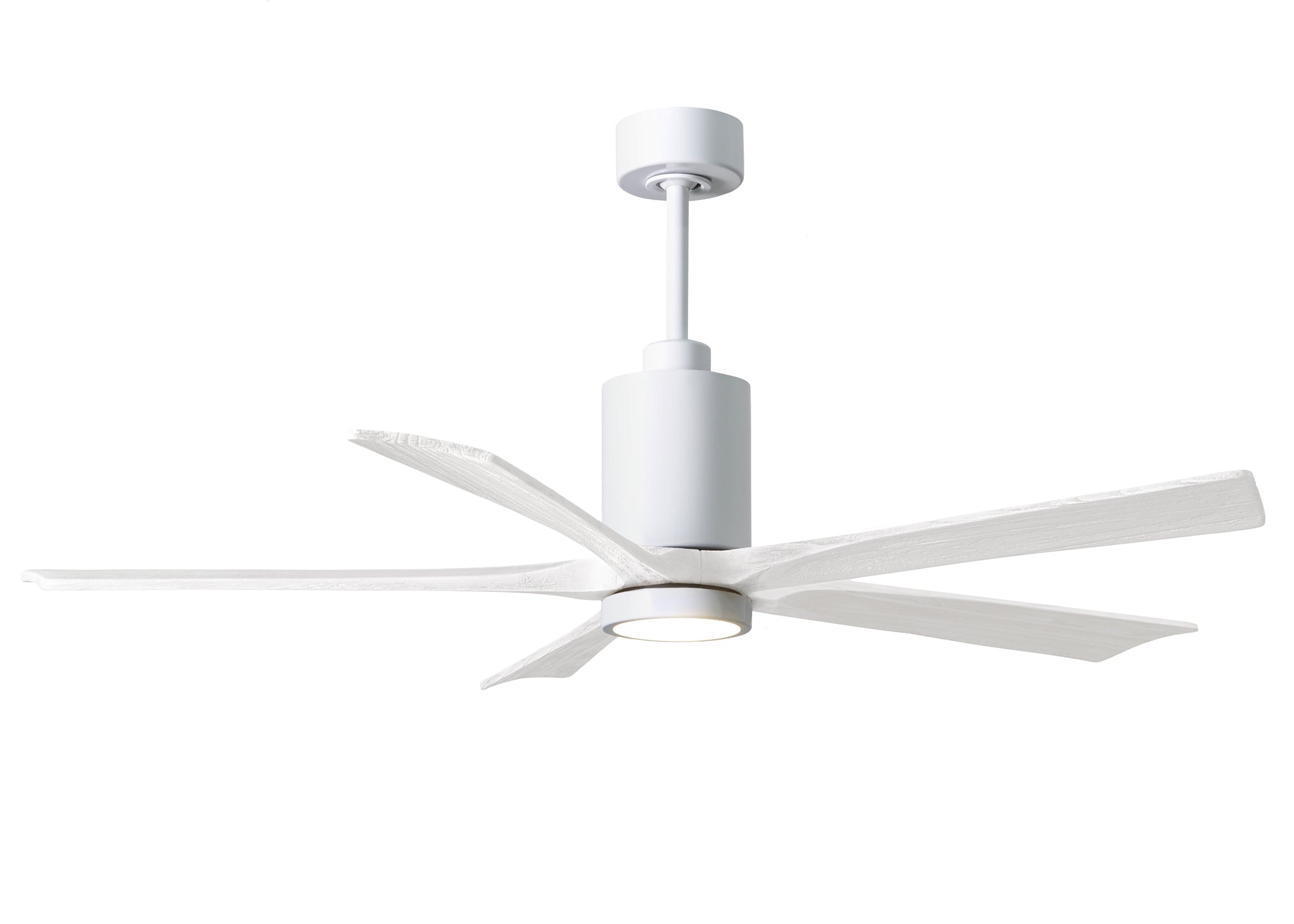

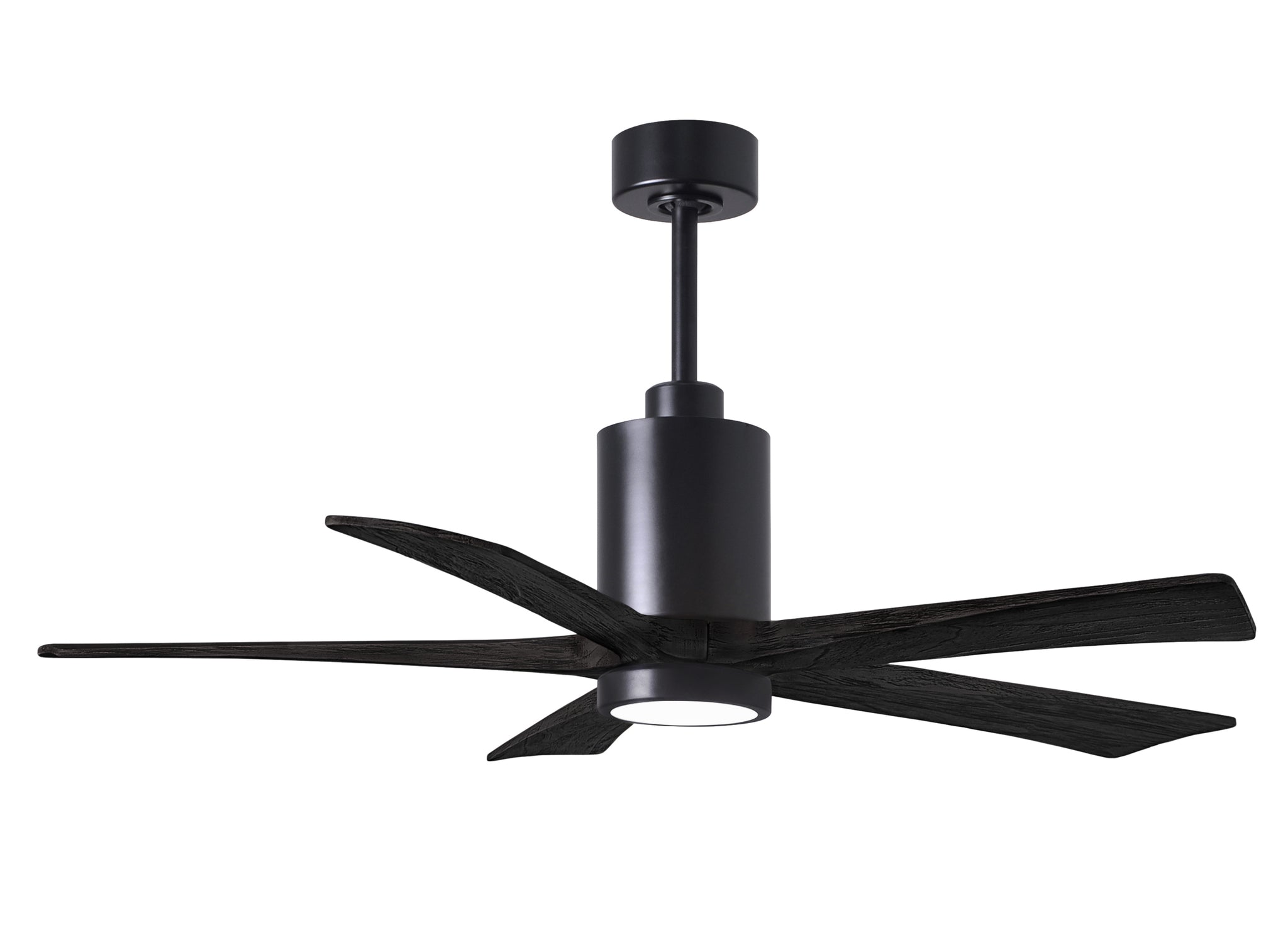

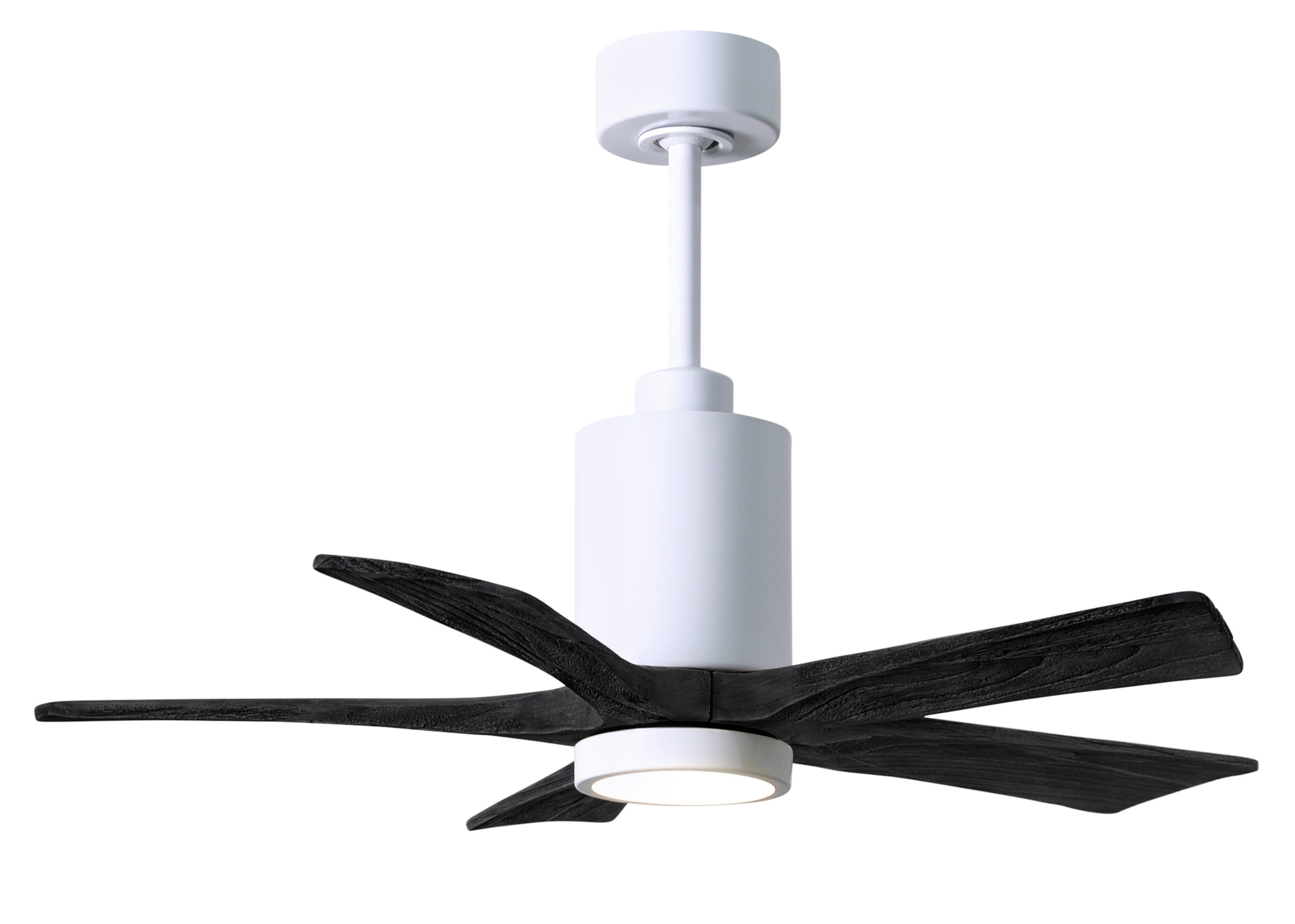

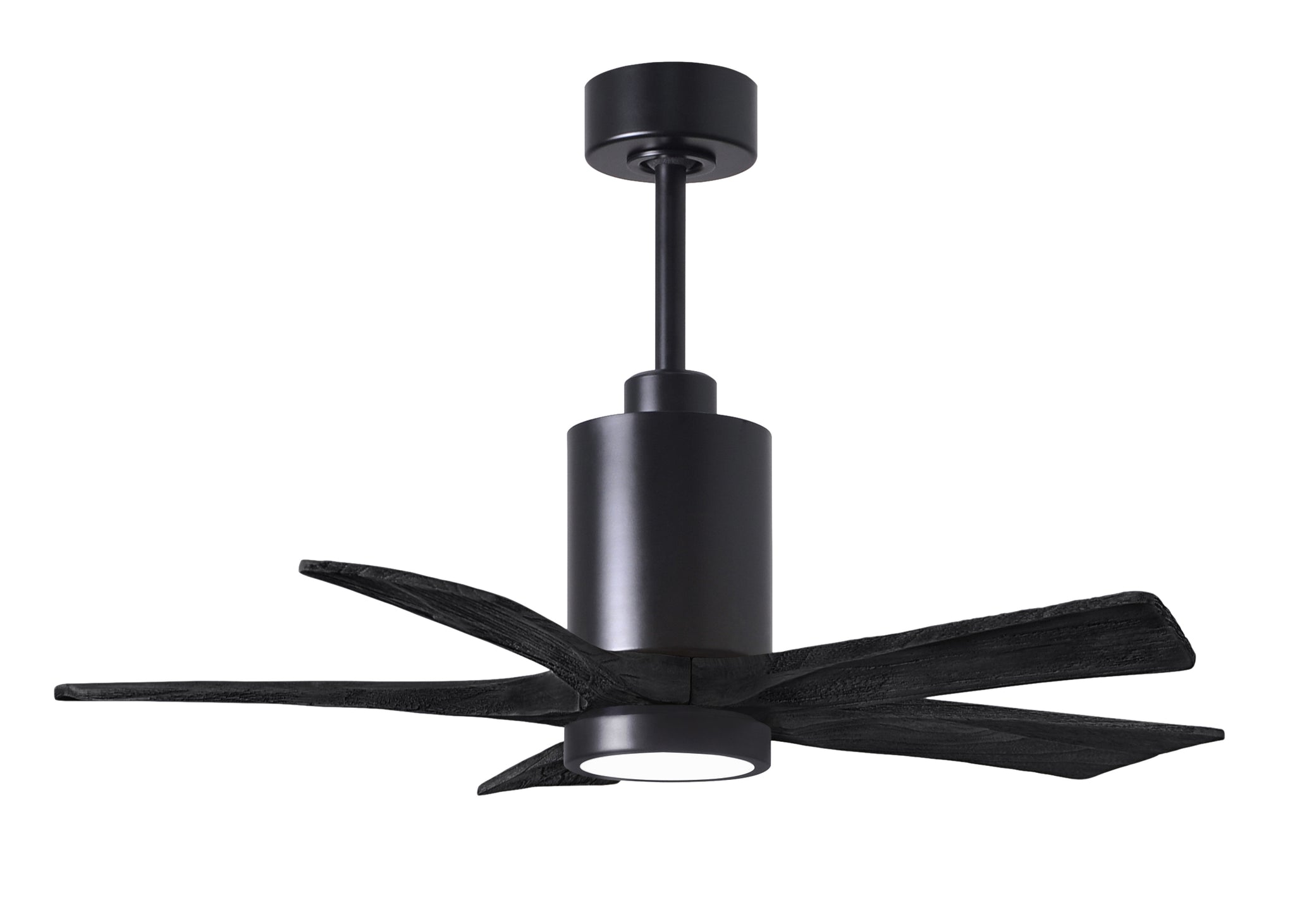

Patricia-5 - Ceiling Fan

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 42"

PA5-BK-BK-42

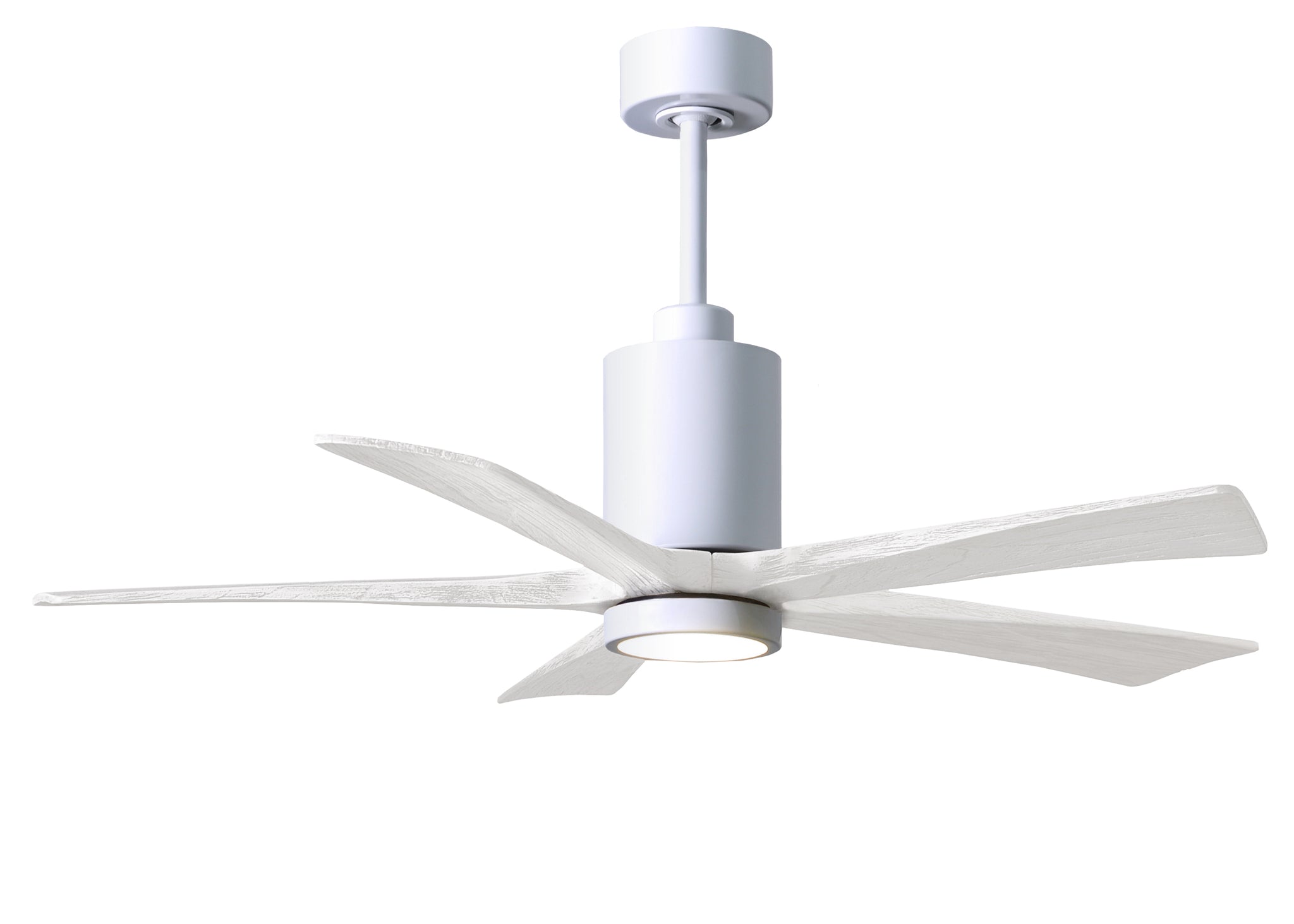

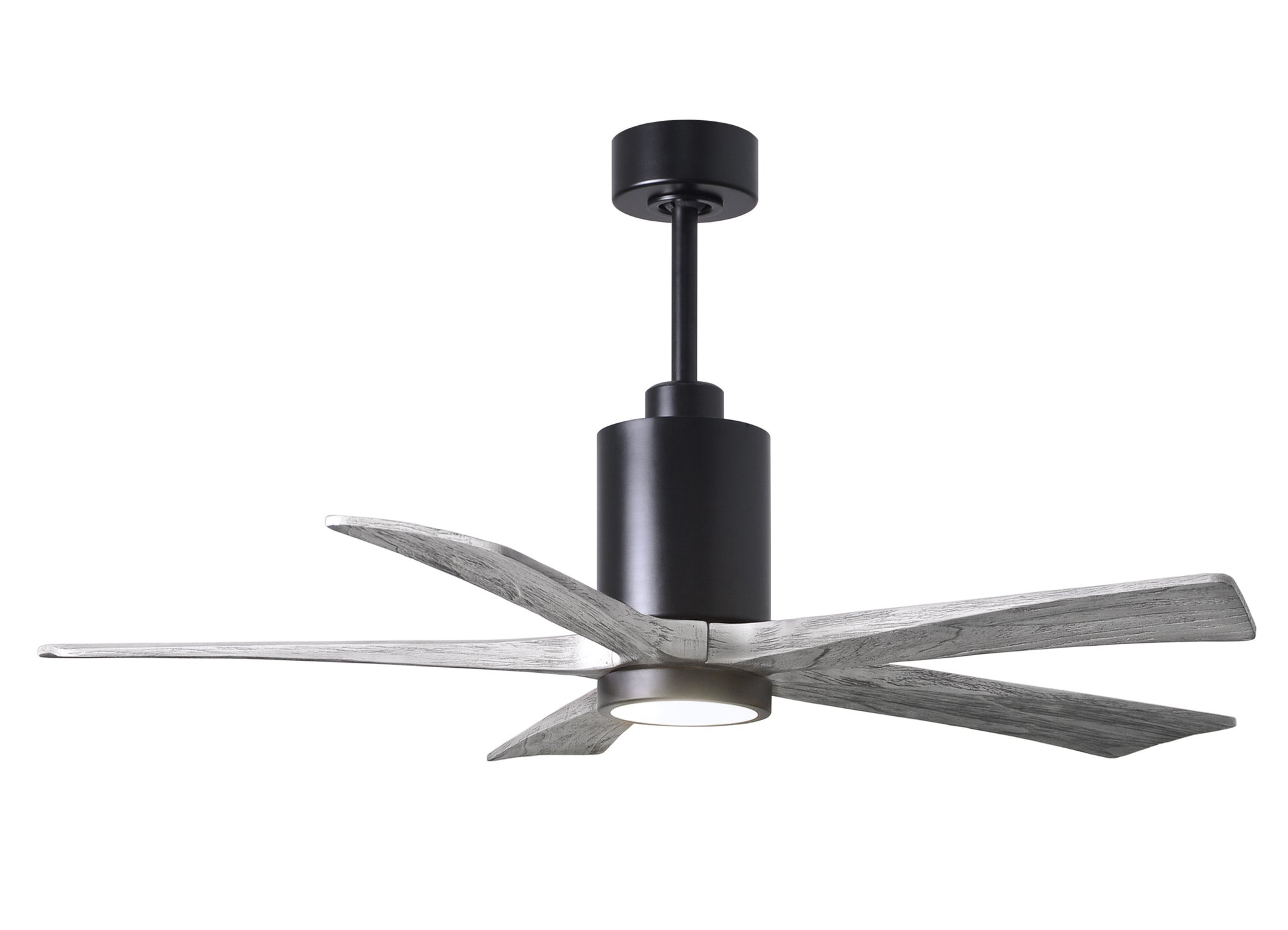

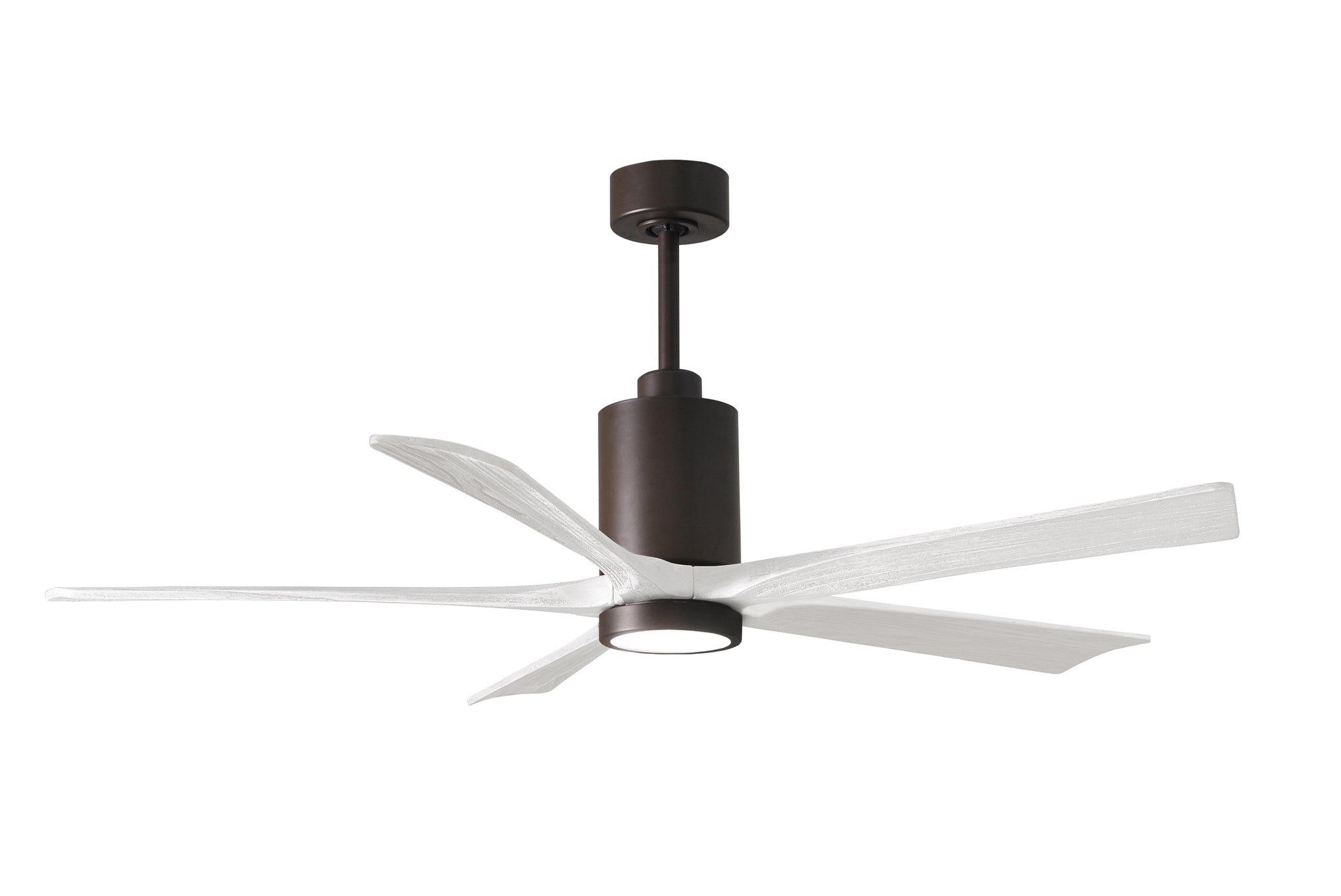

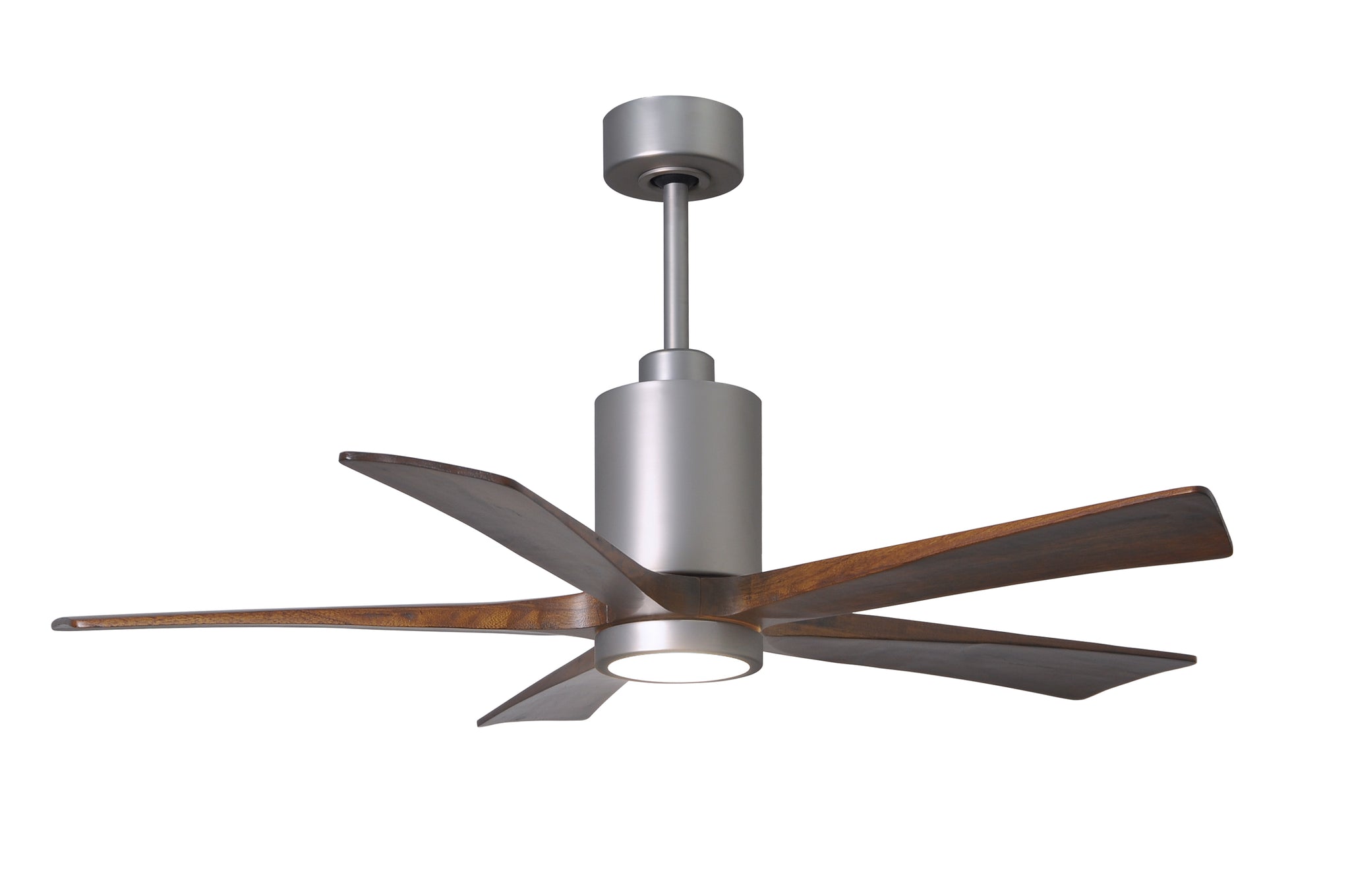

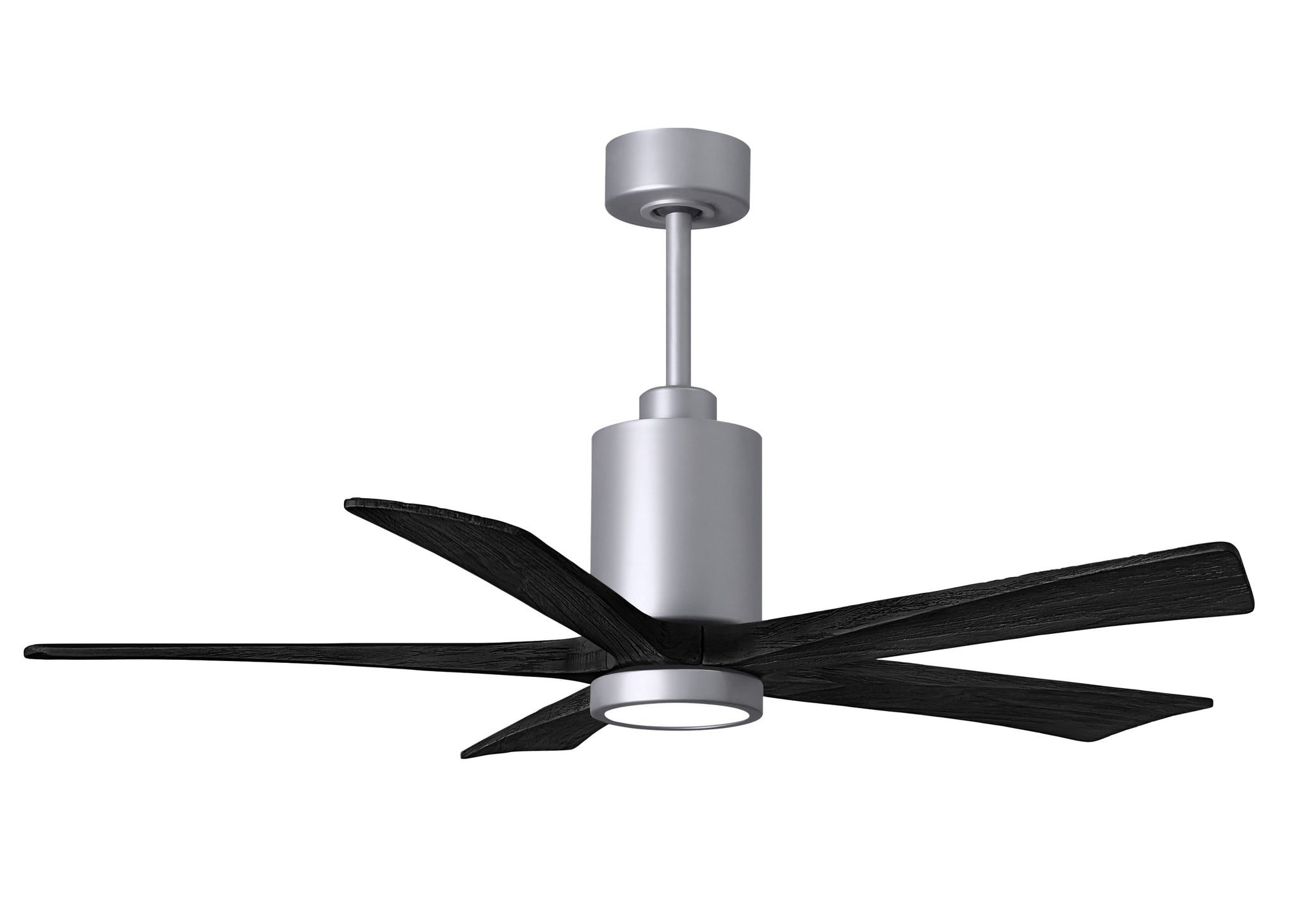

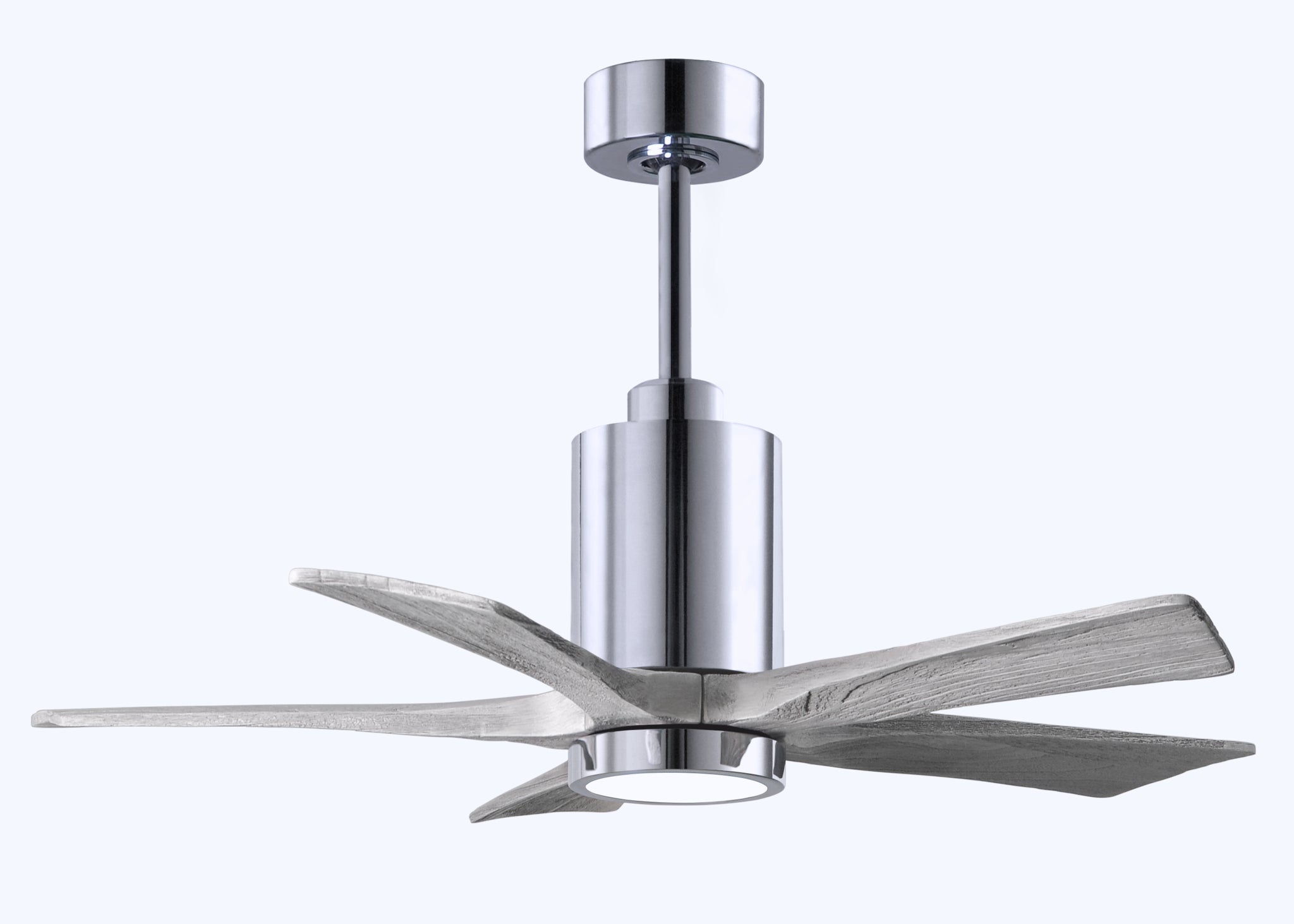

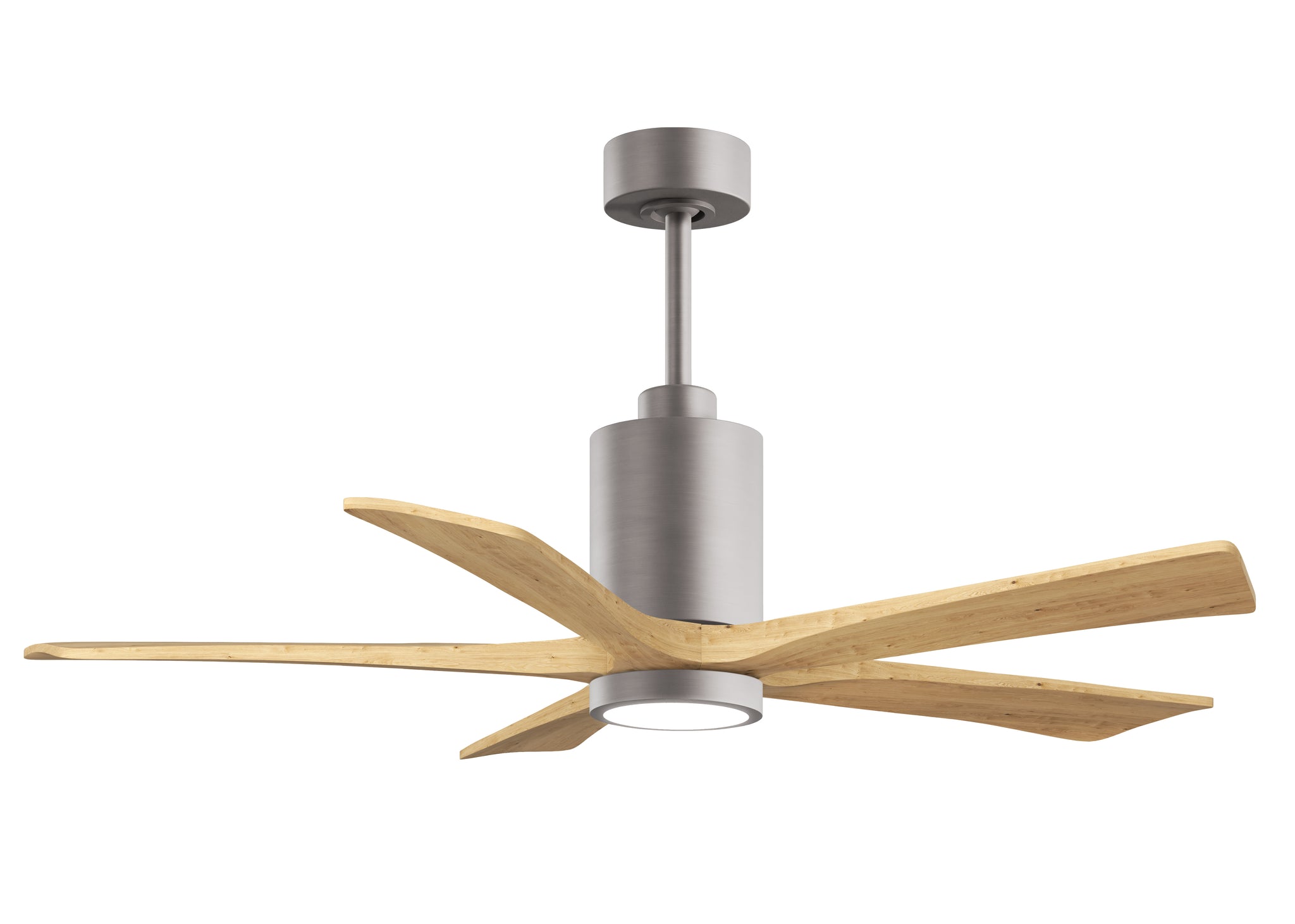

A complement to any commercial or residential space, the Patricia 5 seamlessly combines innovation with simple, refined design. Its elegant aesthetic belies its robust construction. Solid wood blades revolve around a balanced, cylindrical DC motor housing. Air is circulated efficiently with barely more than a whisper. An eco-conscious LED light kit completes the package, making Patricia 5 sophisticated, efficient and green.

  • Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
  • Integrated 5CCT Color Changing LED enhances the functionality of your space while providing long-term cost savings and environmental benefits
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Five solid wood, machine-cut blades
  • Energy efficient, ultra-quiet, 6-speed, reversible DC motor with new, reliable technology
  • Constructed of cast aluminum and heavy stamped steel
  • Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
Overview
Motor Data
Fan Diameter 42 inches / 107 cm 52 inches / 132 cm 60 inches / 152 cm
RPM (Low / High) 53 / 243 51 / 169 51 / 93
CFM (Low / High) 917 / 5256 1398 / 6499 3247 / 6437
Watt (High) 30.47 31.80 31.64
CFM/Watt (High) 170 251 224
Blade Pitch 15° 15° 15°
Light Kit Photometrics

Lamping (Replaceable)Integrated LED

Remote DimmableYes

Delivered Temperature in KVariable

Delivered Lumens

2700K1063

3000K1088

4000K1234

5000K1221

6500K1107

CRI90

Watts22

Hours30,000

Light kit longevity if used 6 Hours/Day:16.9 Years

Standard Equipment

Downrods10in - 25cm

Slant Ceiling Canopy30°

Included Remote & Wall Control

SKUAT-RC-DC-NOPM

Handheld Remote

  • AAA Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed
  • Motor Off
  • Reverse
  • Light on/off
  • 5 Temperature Color Changes
  • Dimmable Control

SKUAT-DC-WC-AK

  • A23 Battery (Included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed
  • Motor Off
  • Reverse
  • Light on/off
  • 5 Temperature Color Changes
  • Dimmable Control
Technical Diagram

Patricia 5 Spec Sheet
