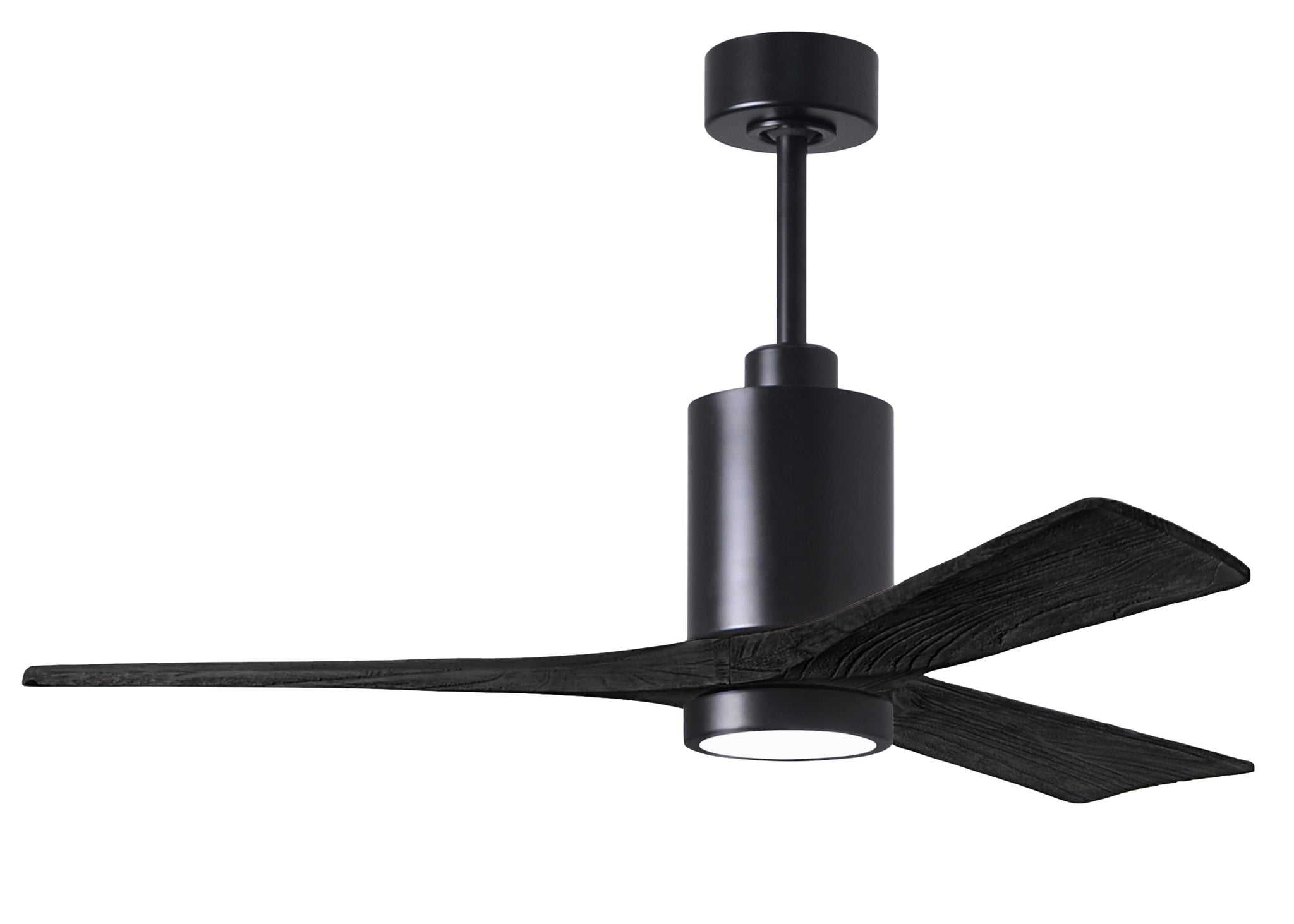

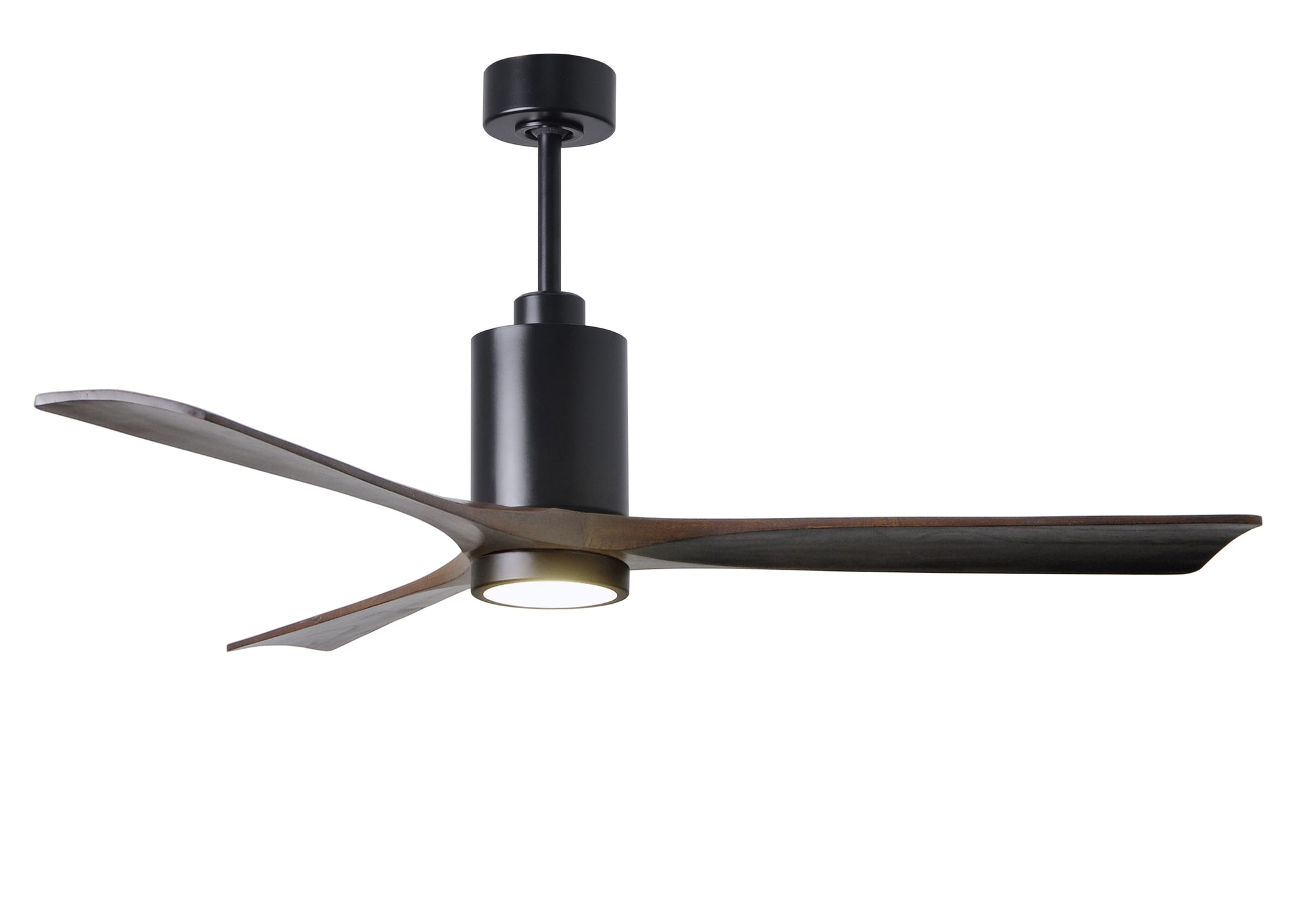

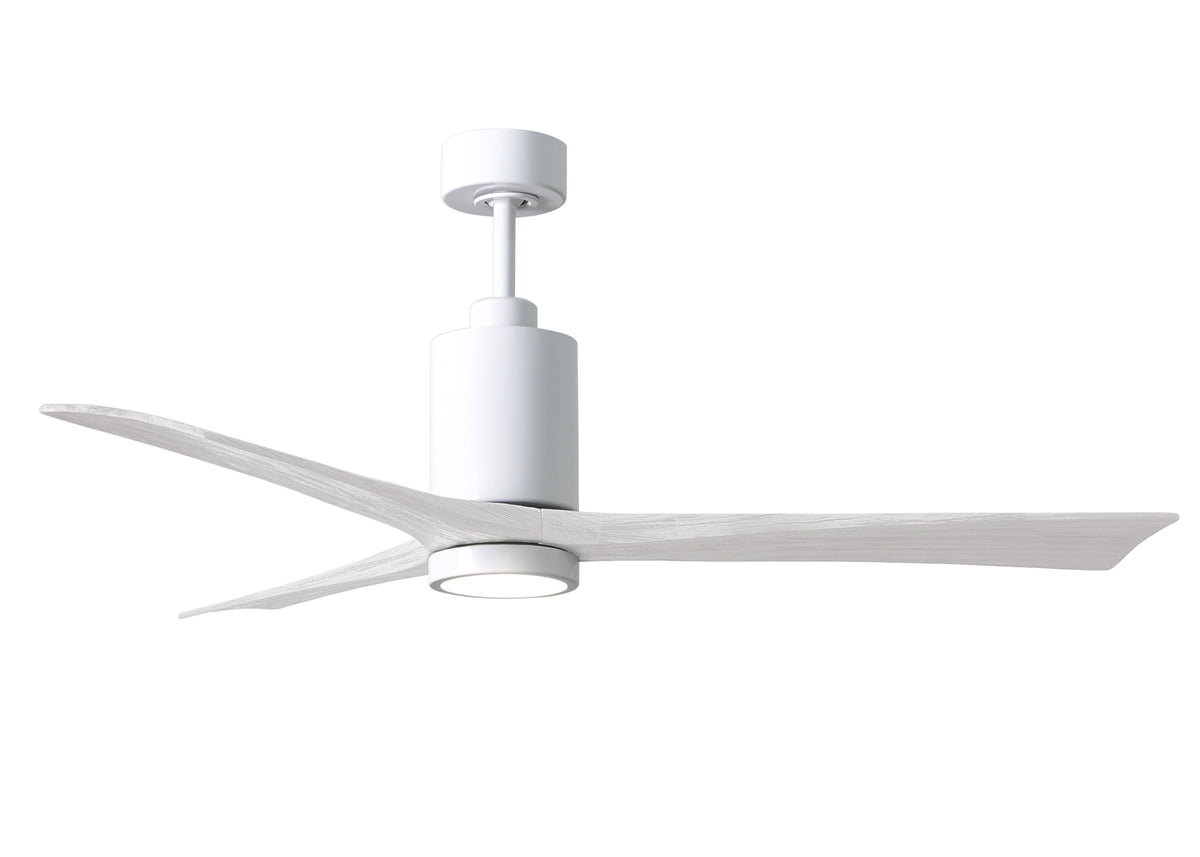

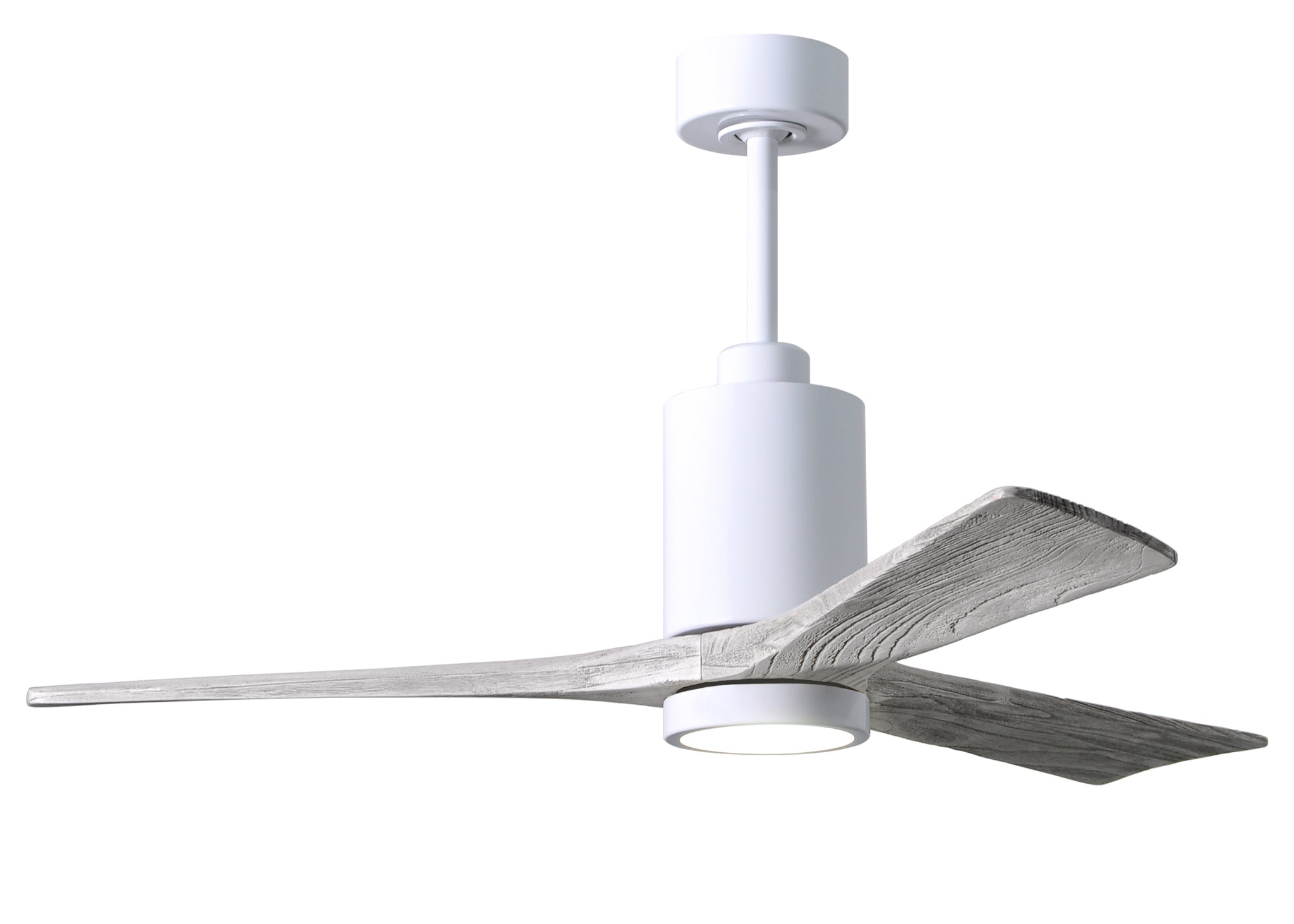

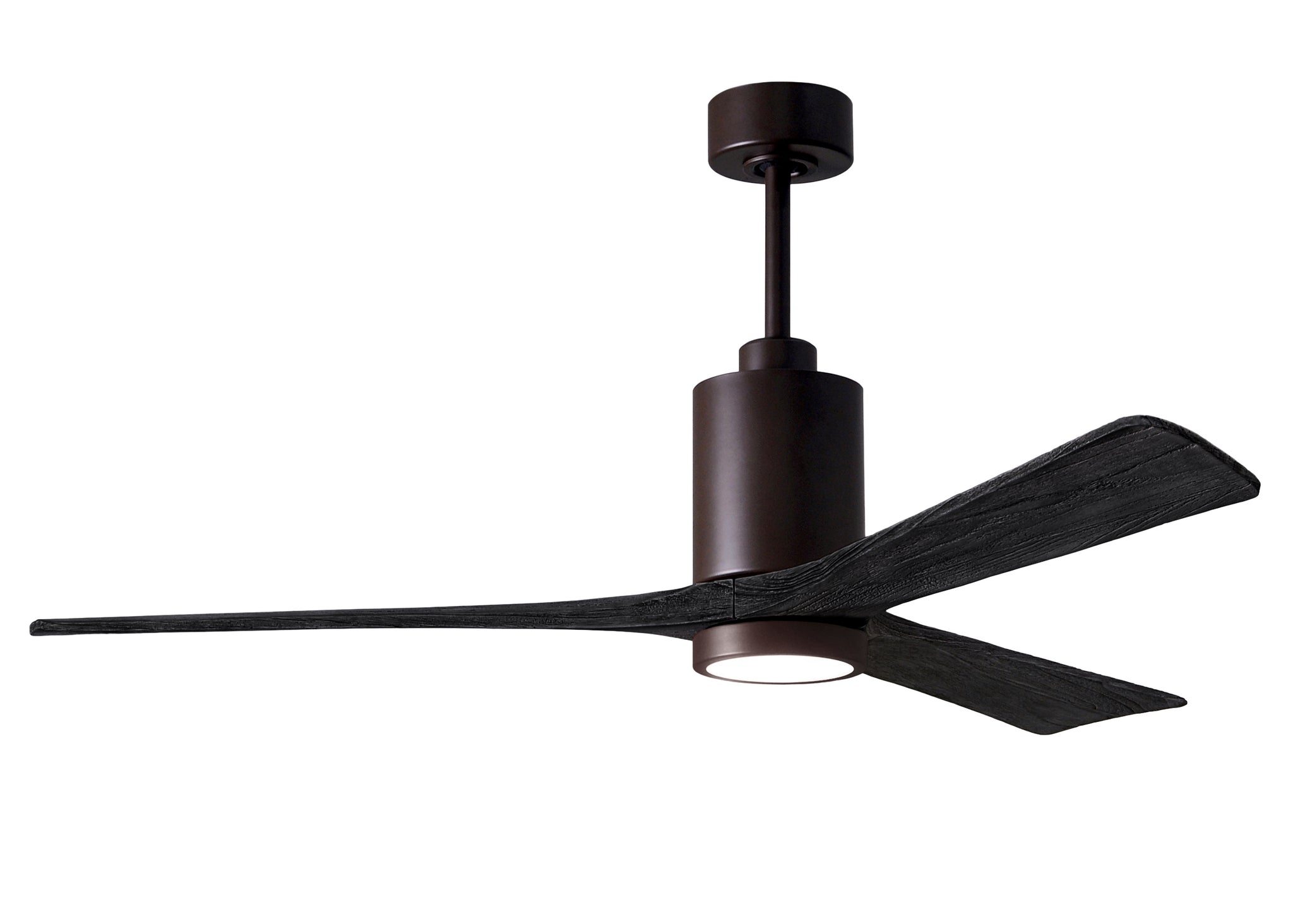

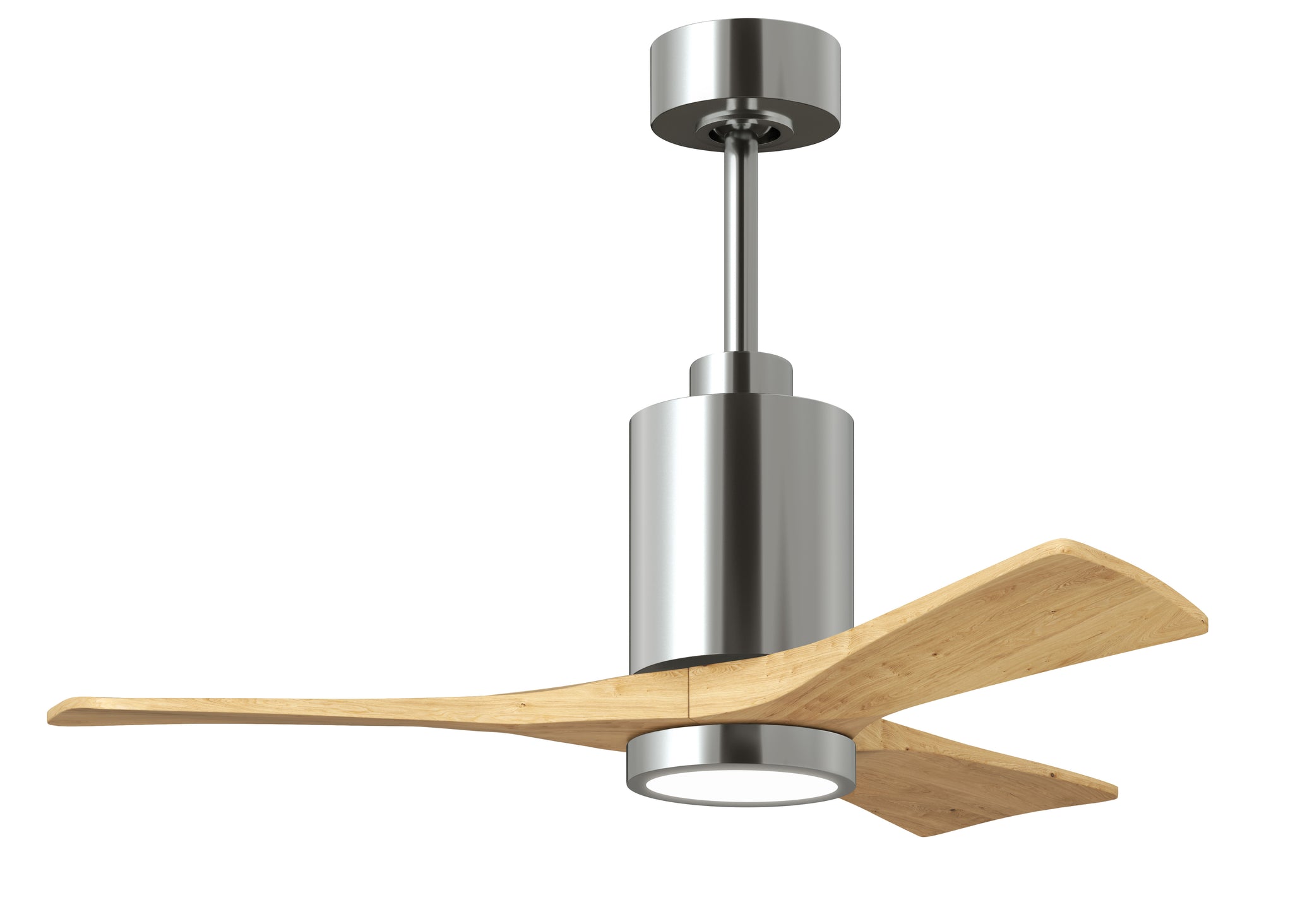

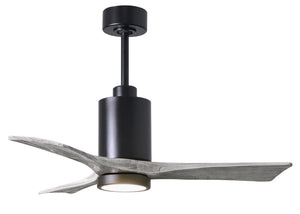

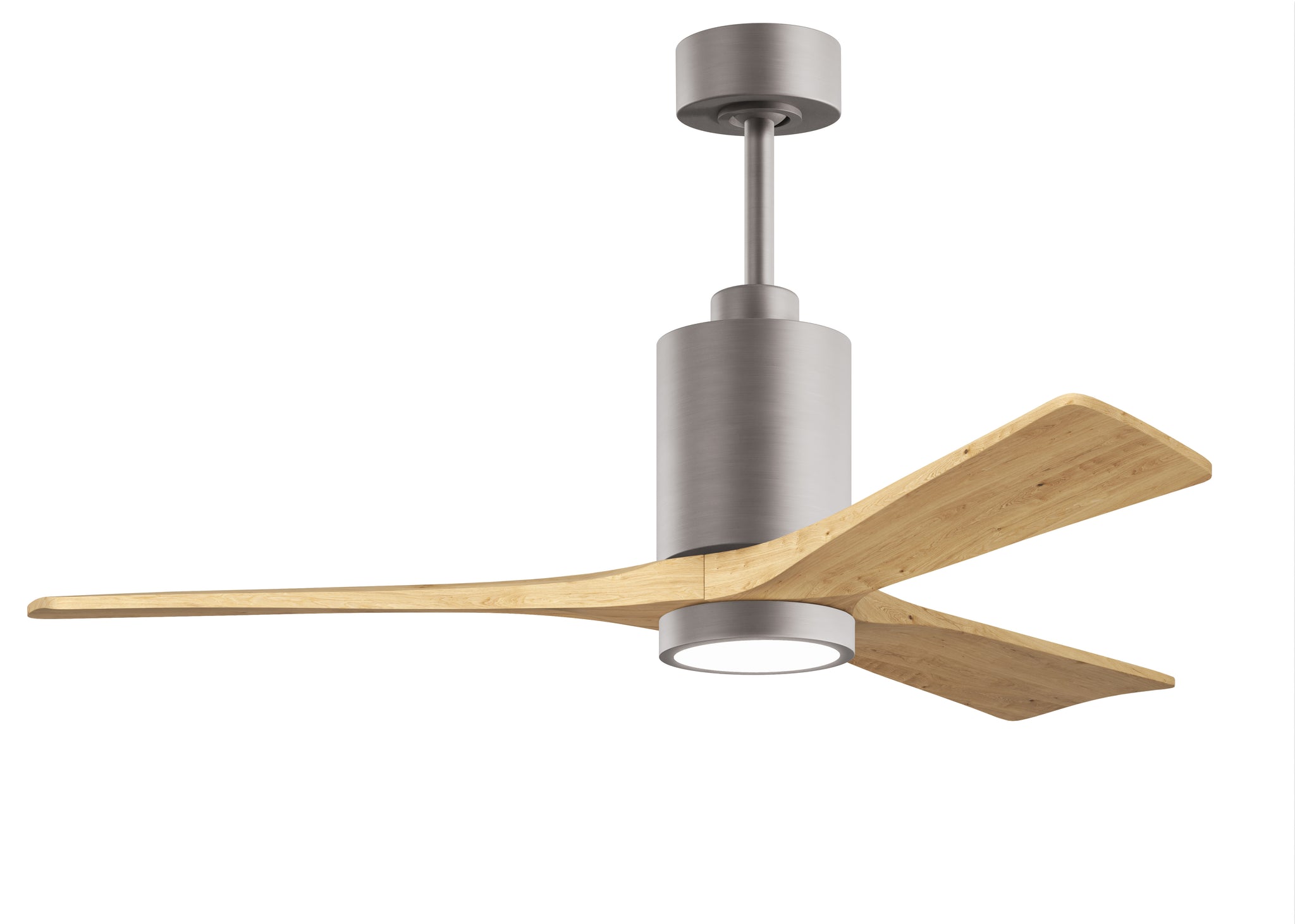

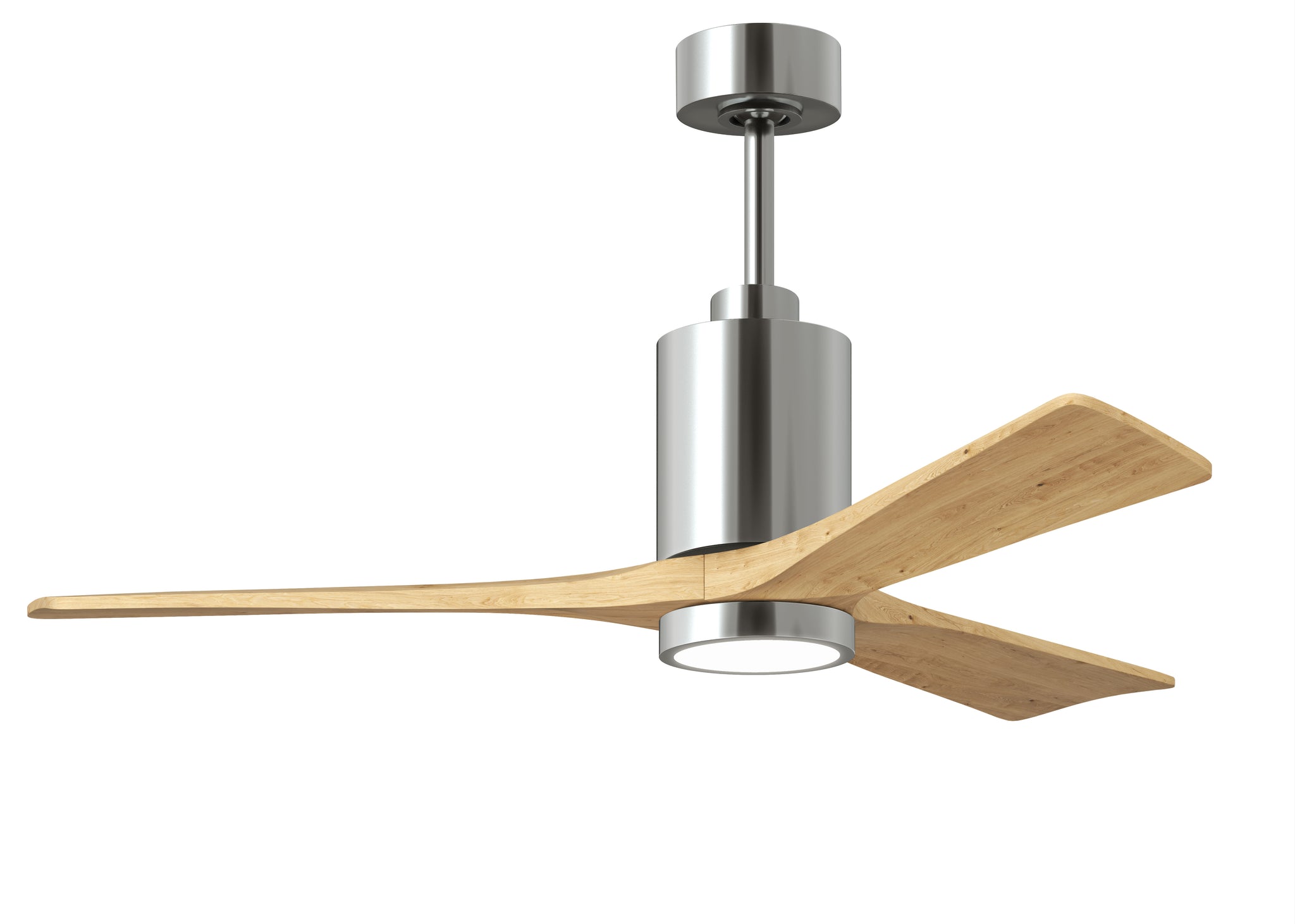

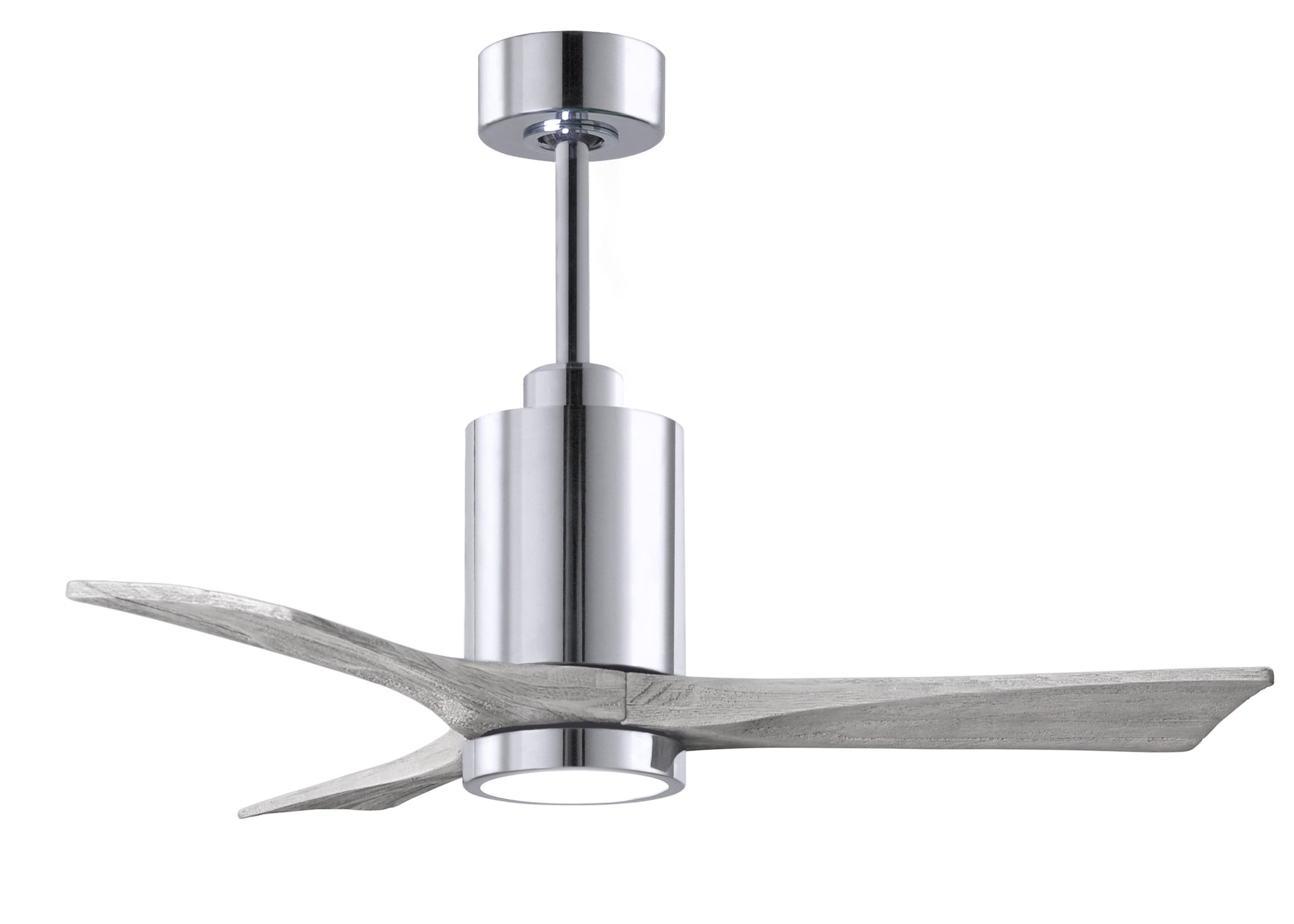

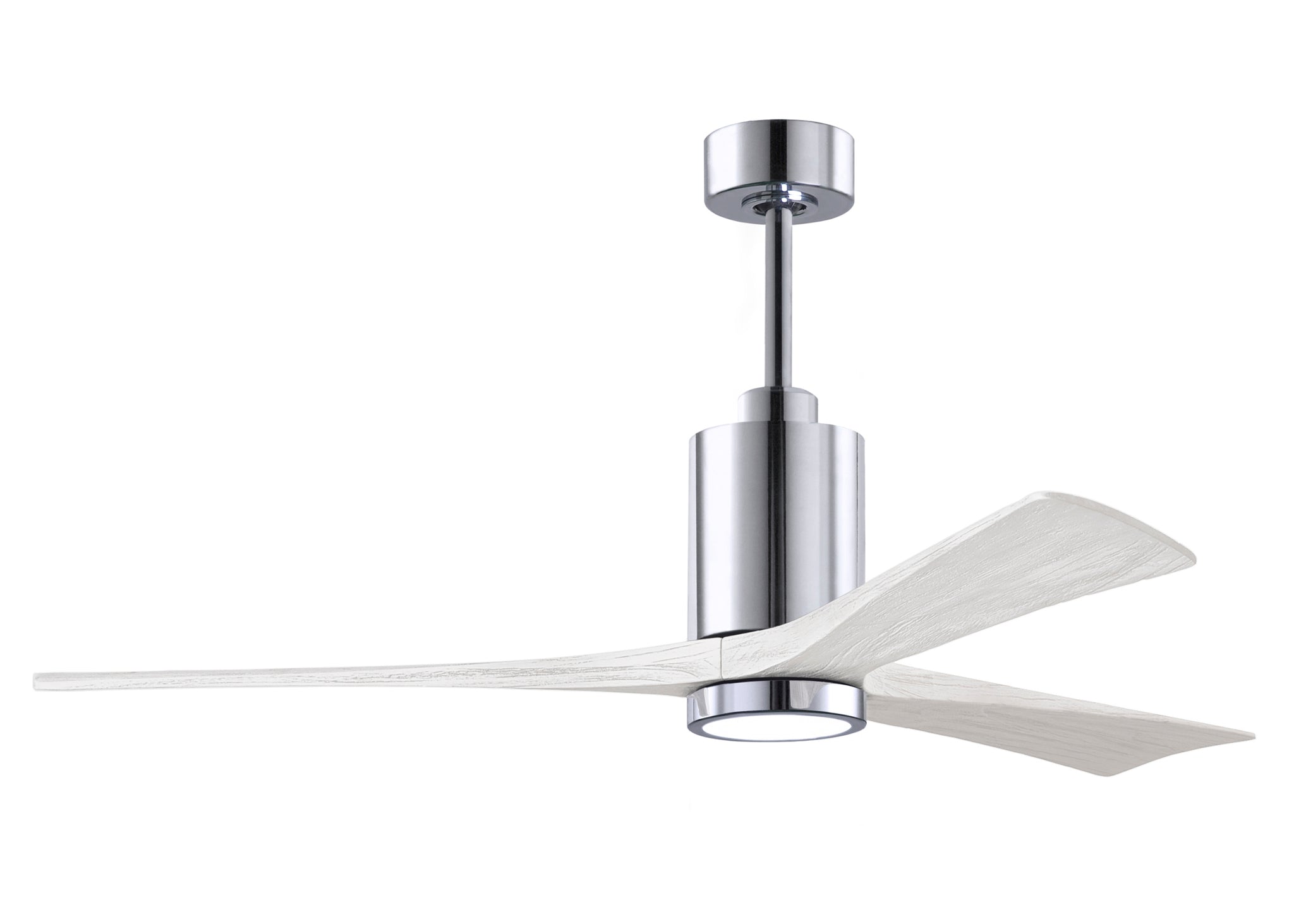

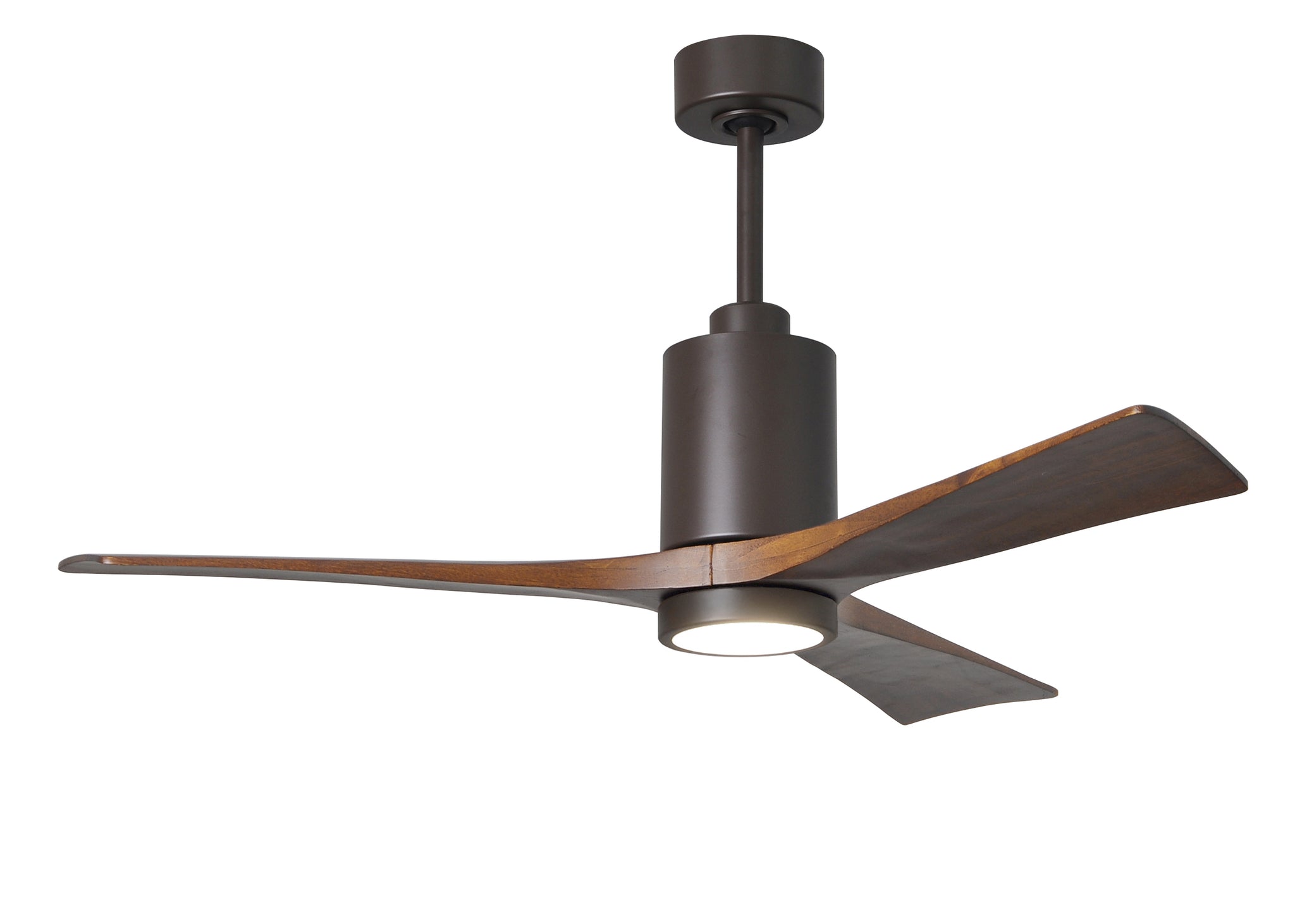

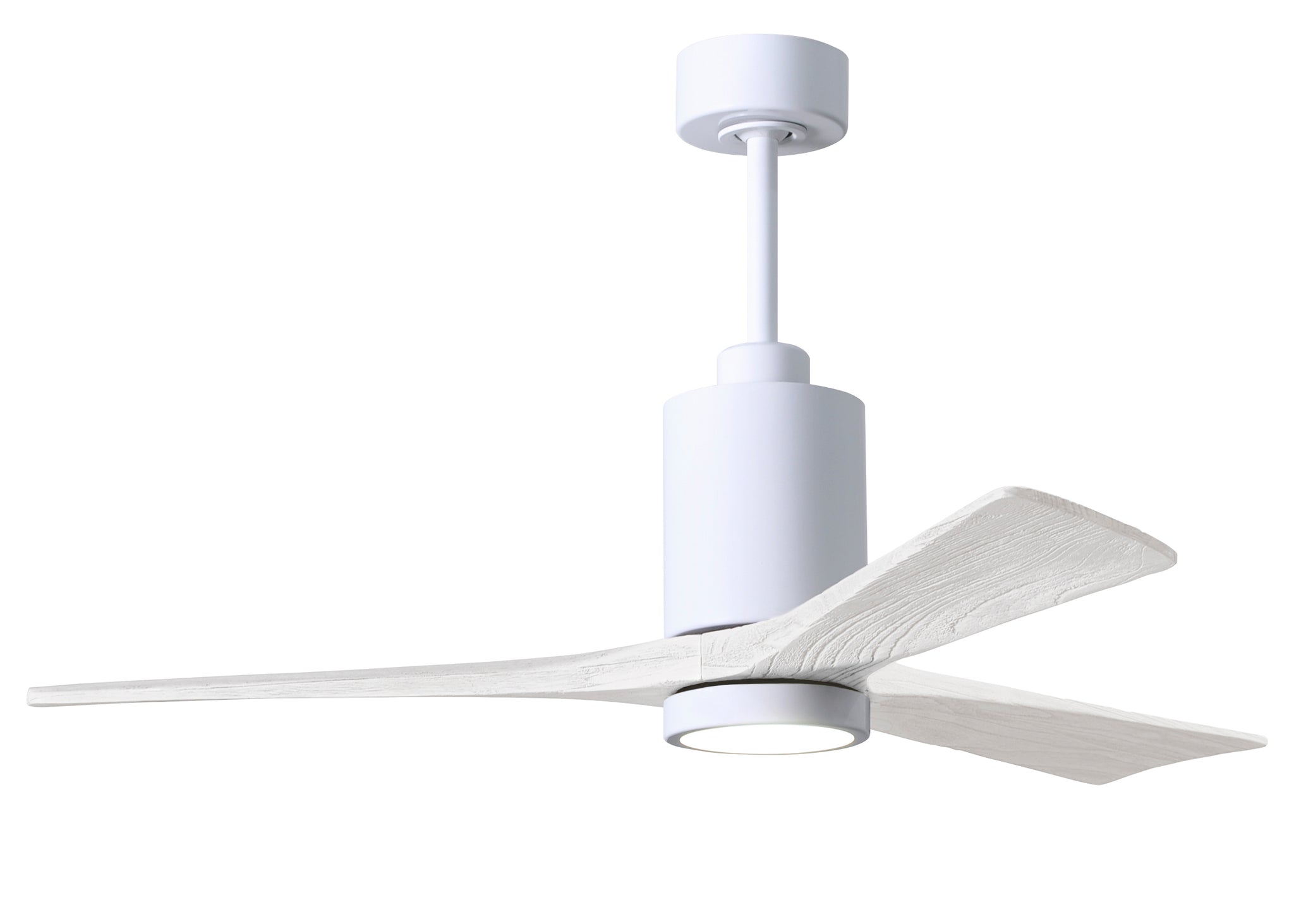

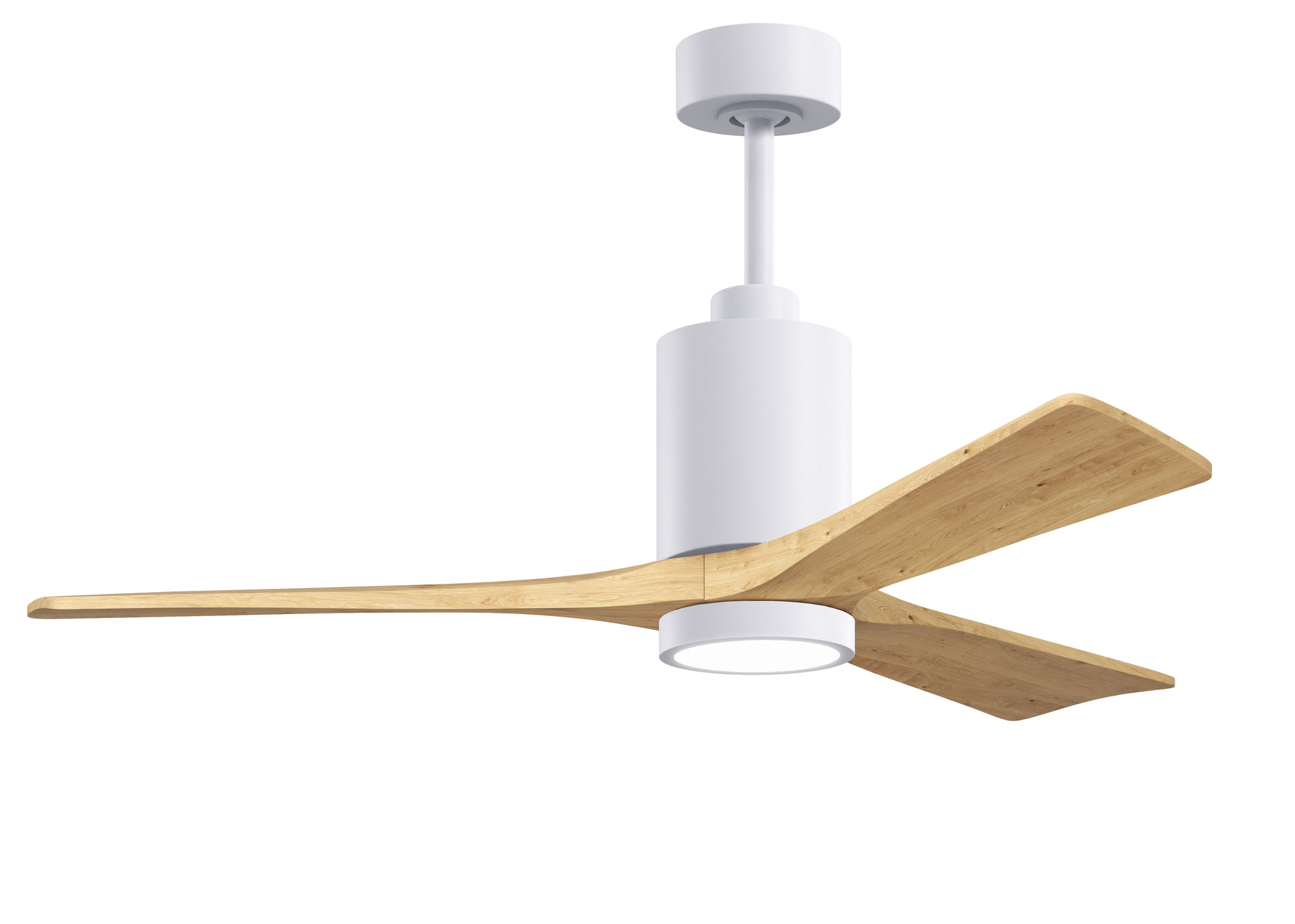

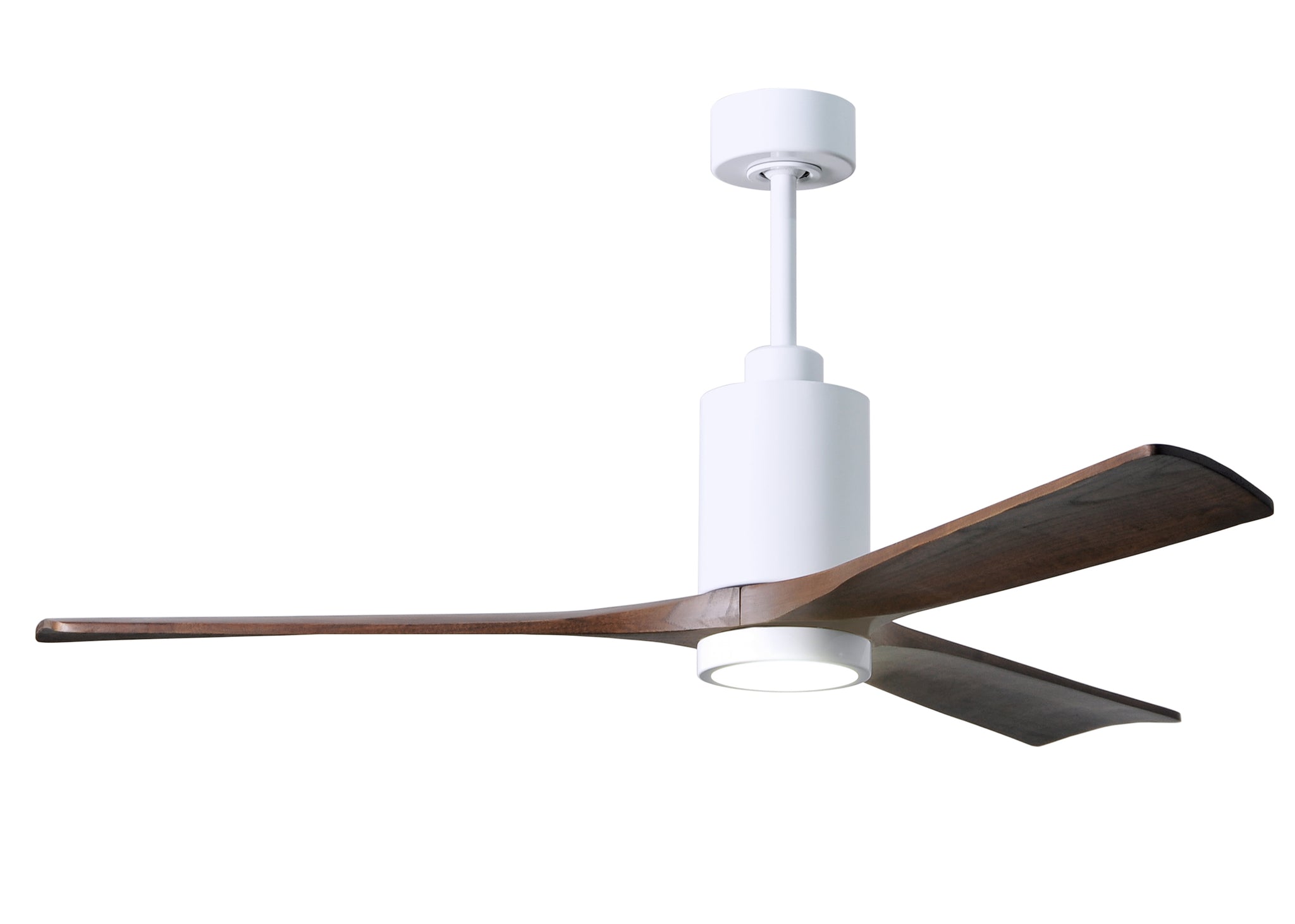

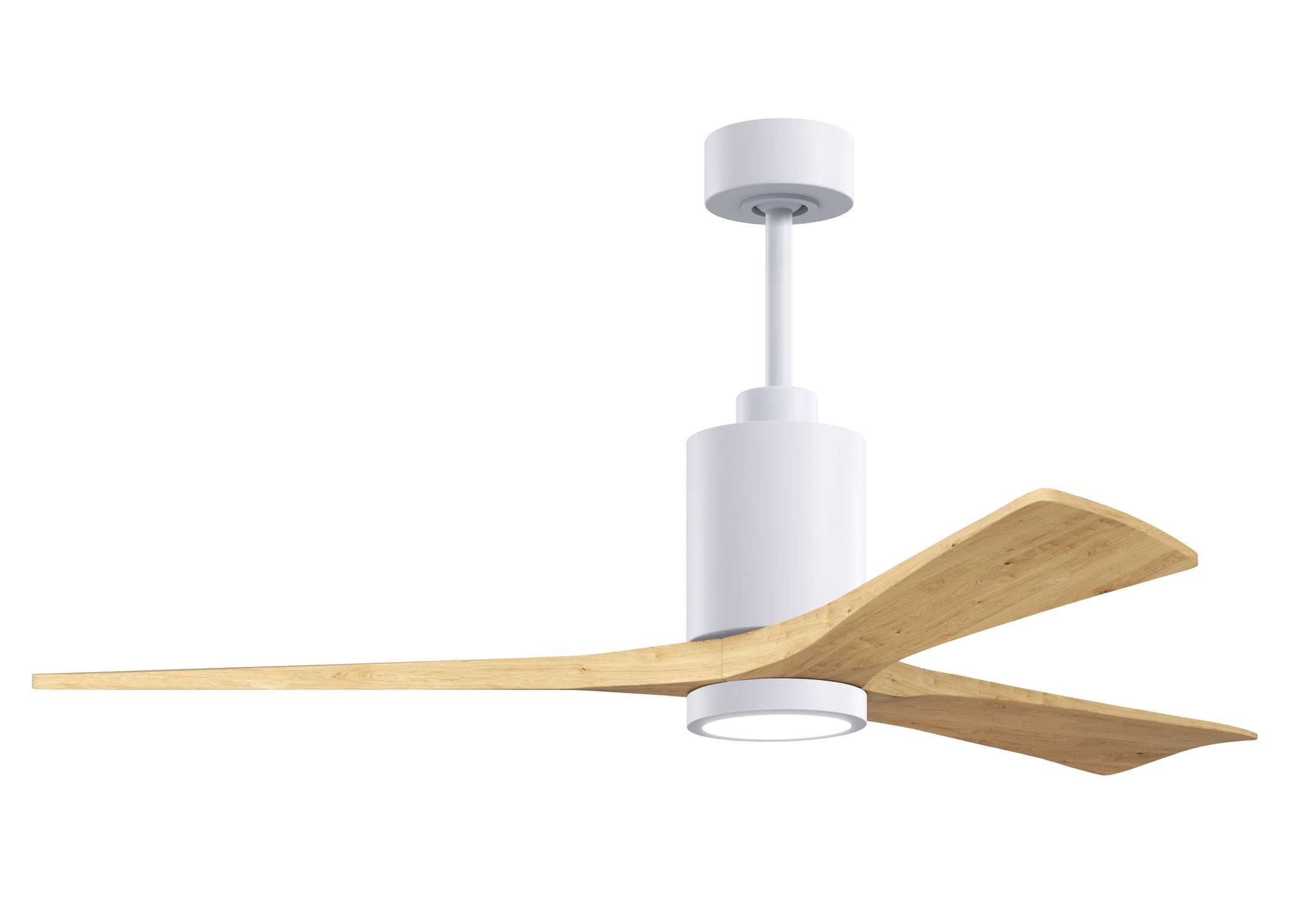

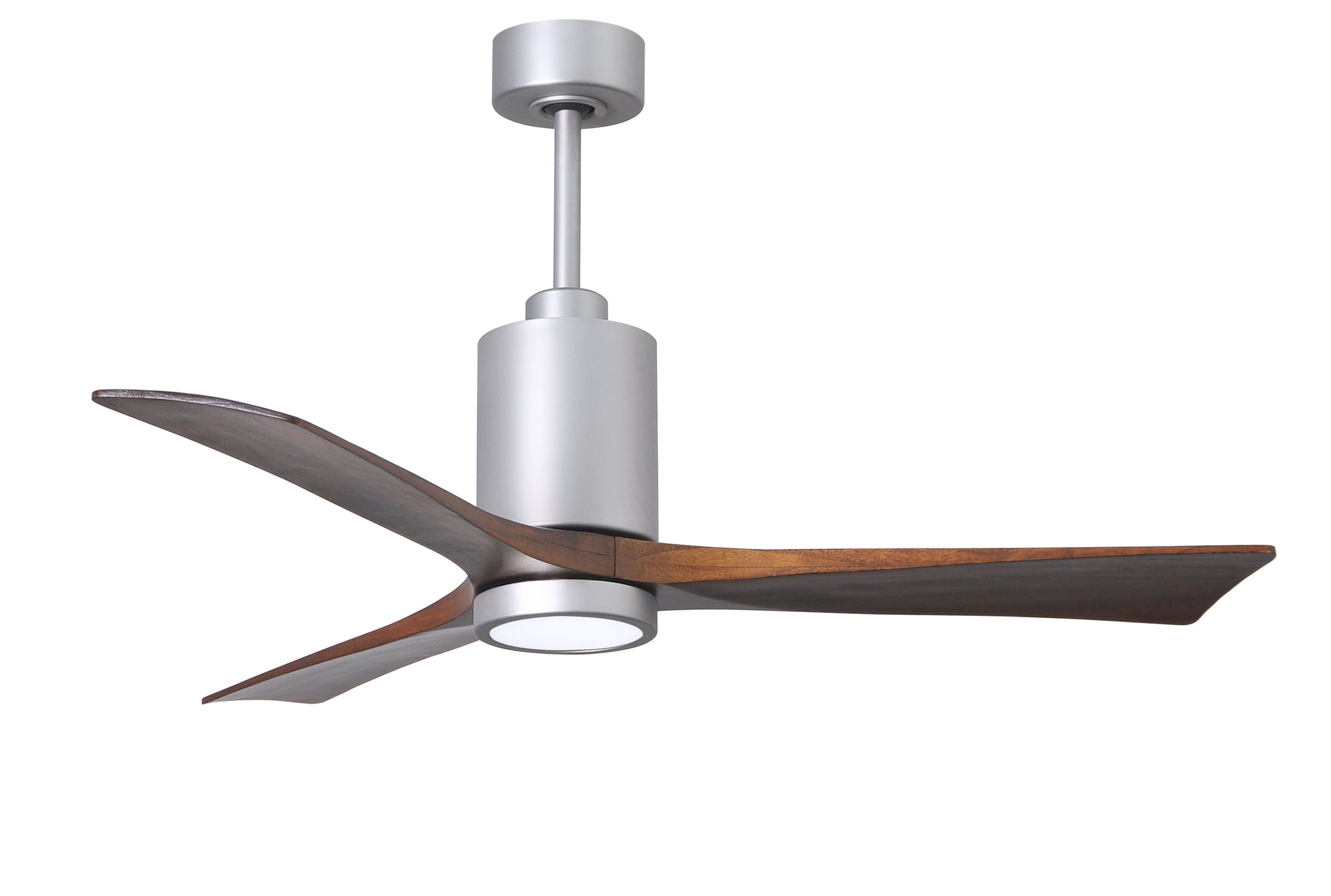

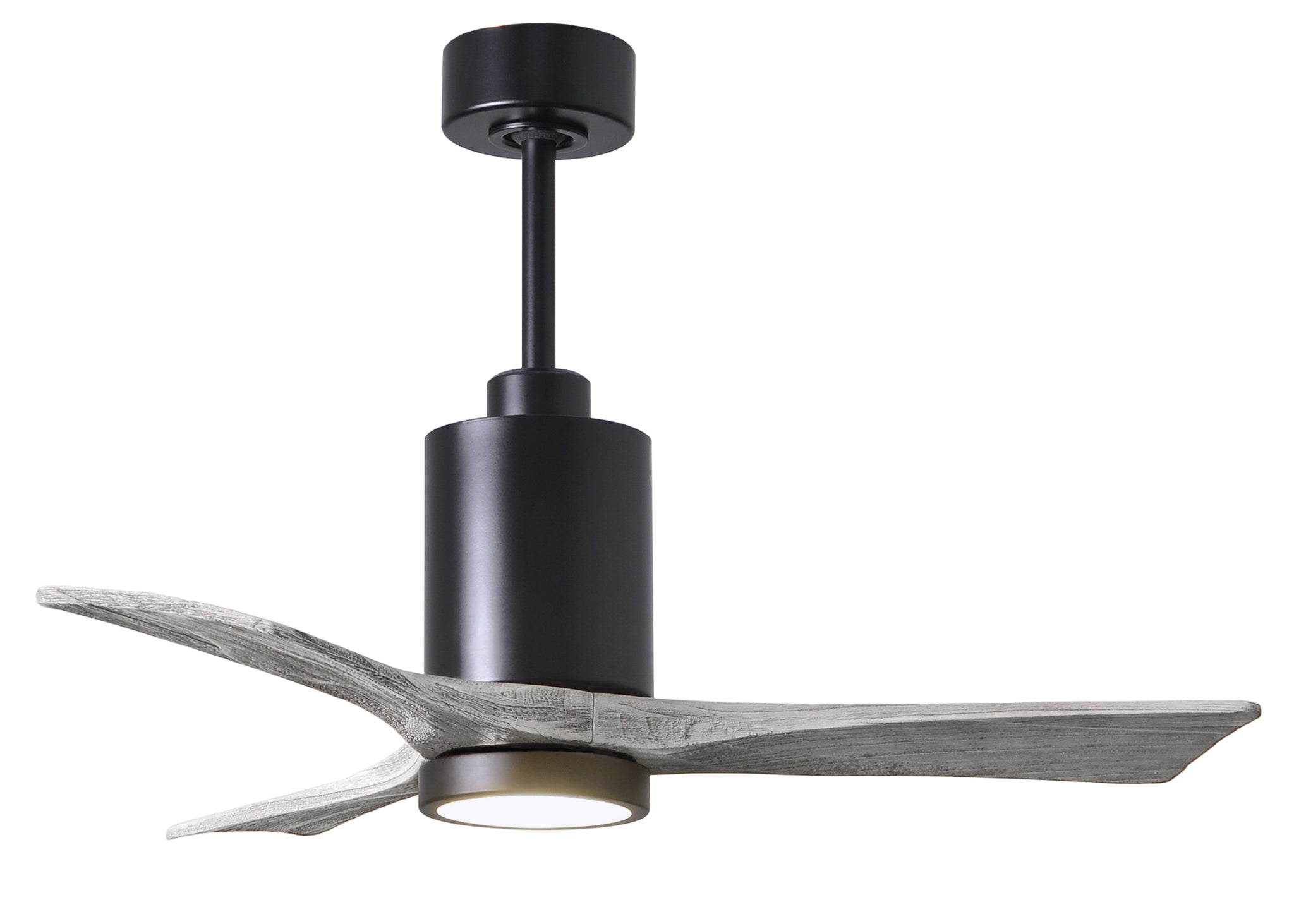

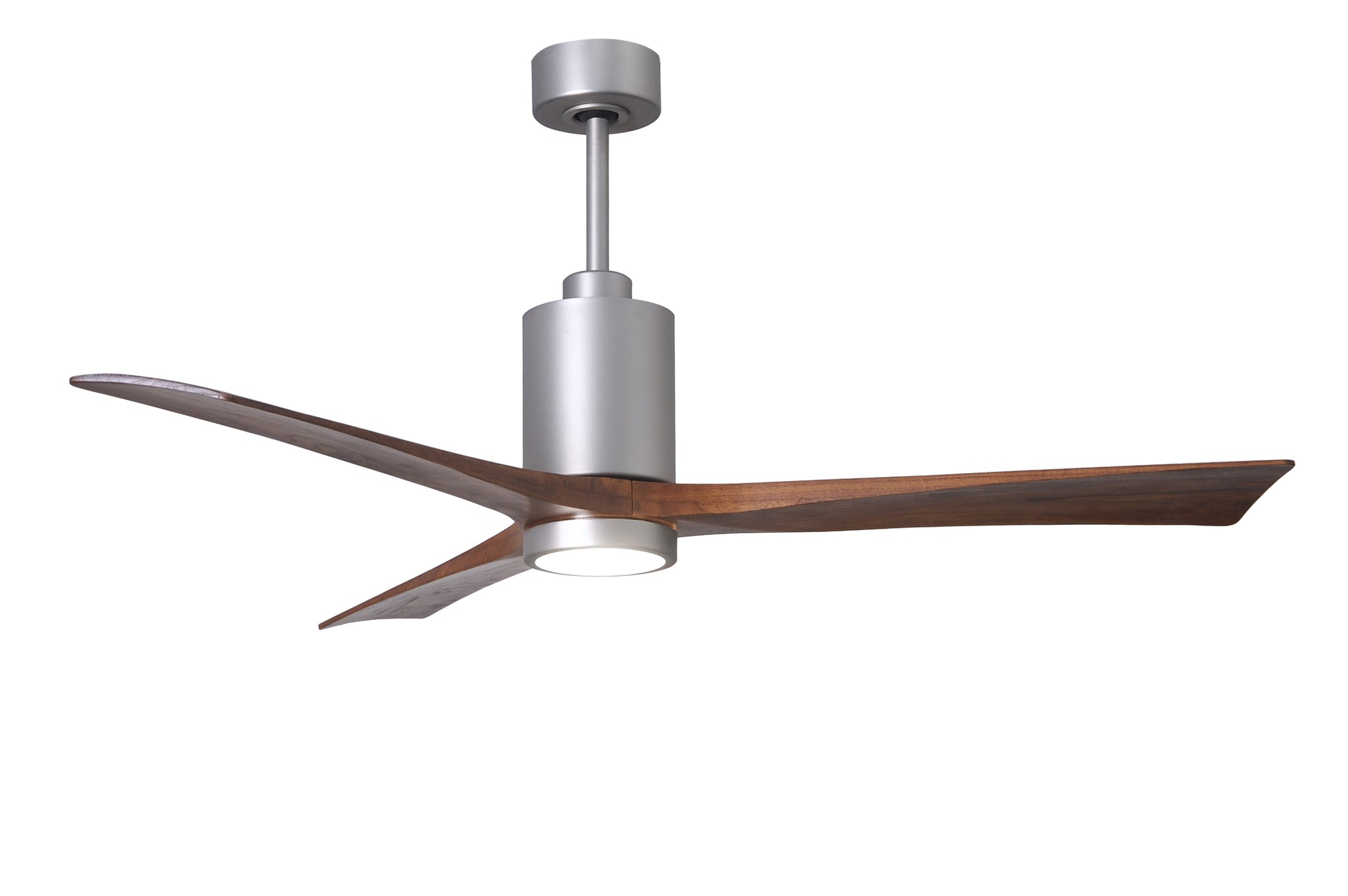

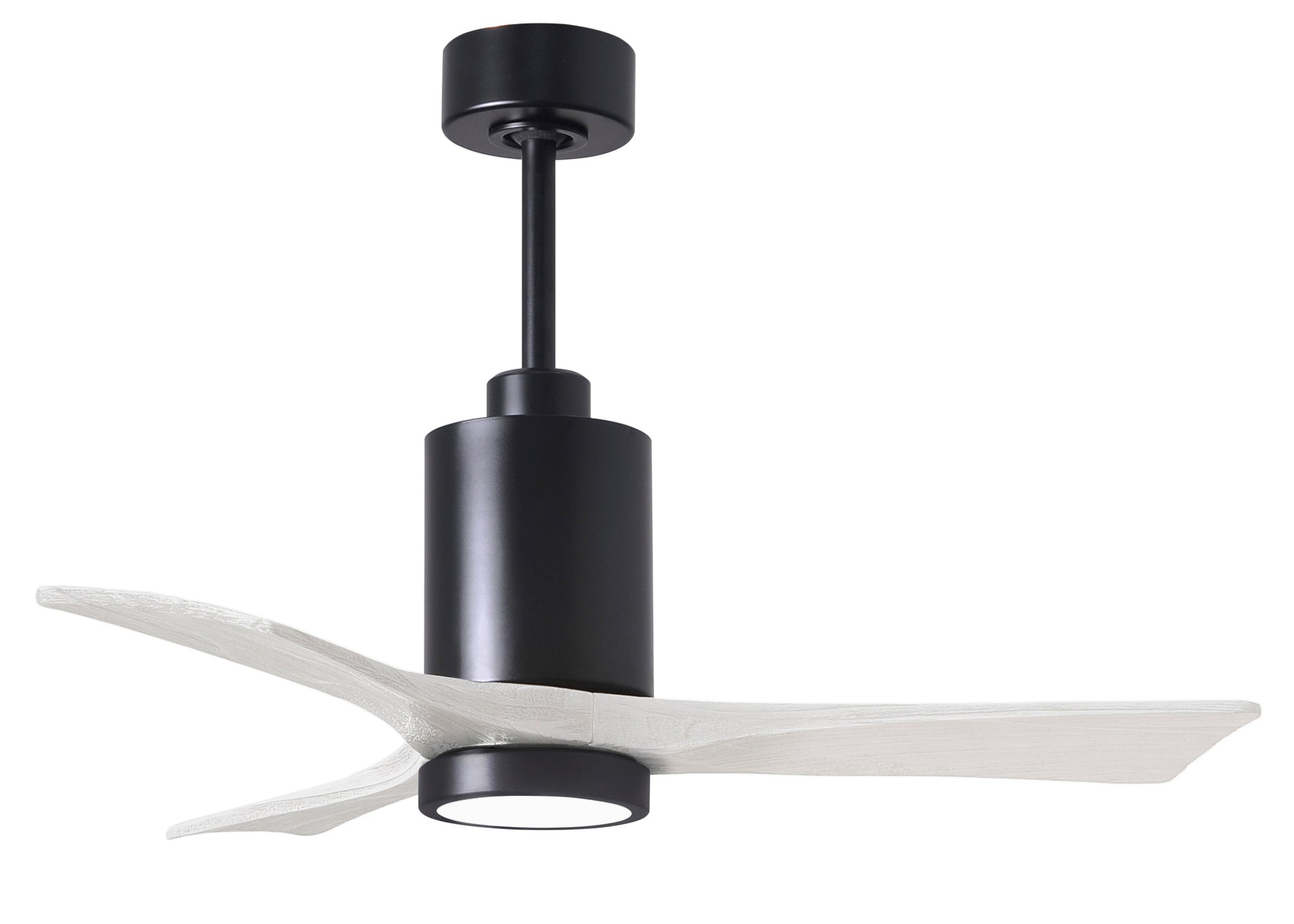

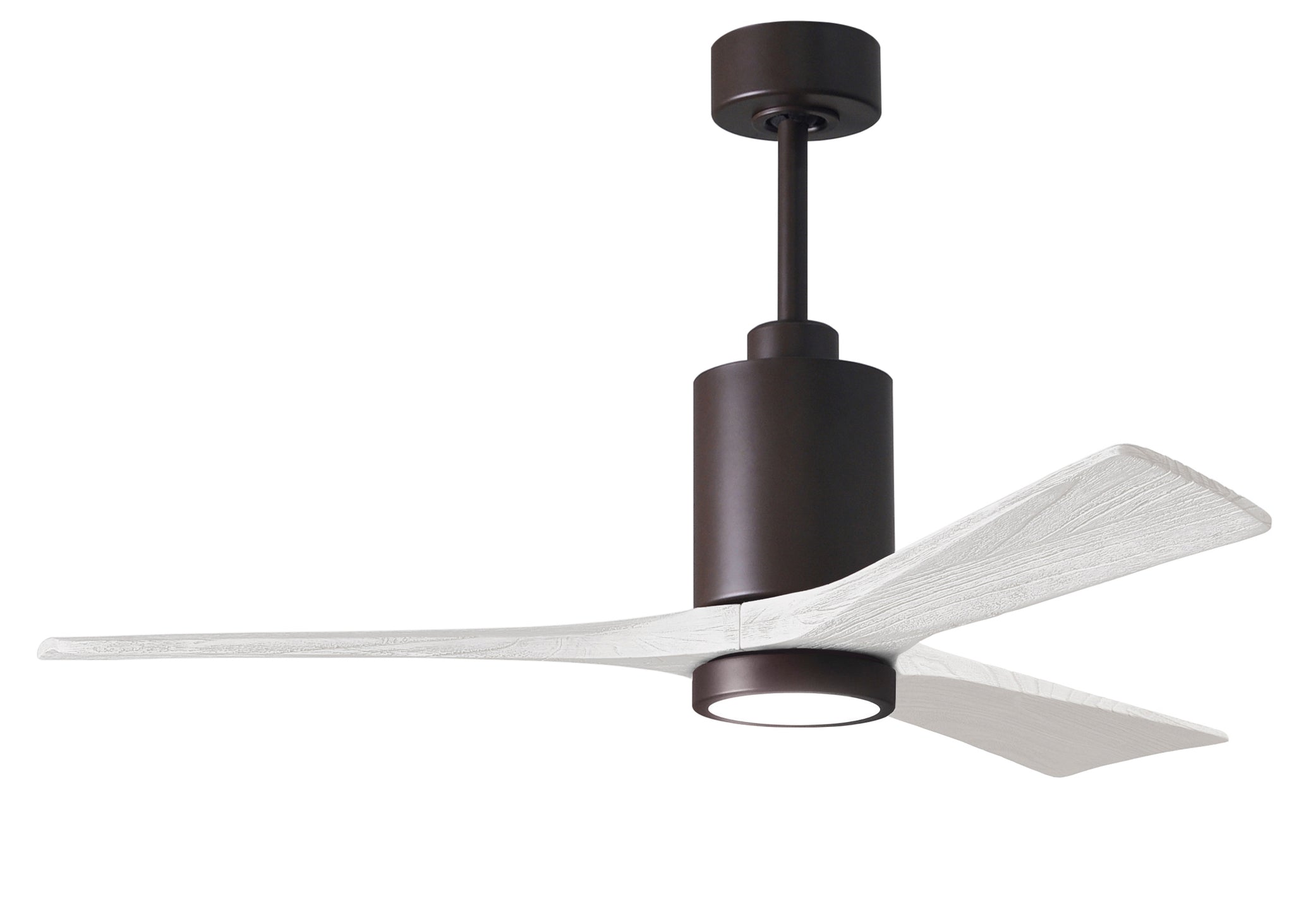

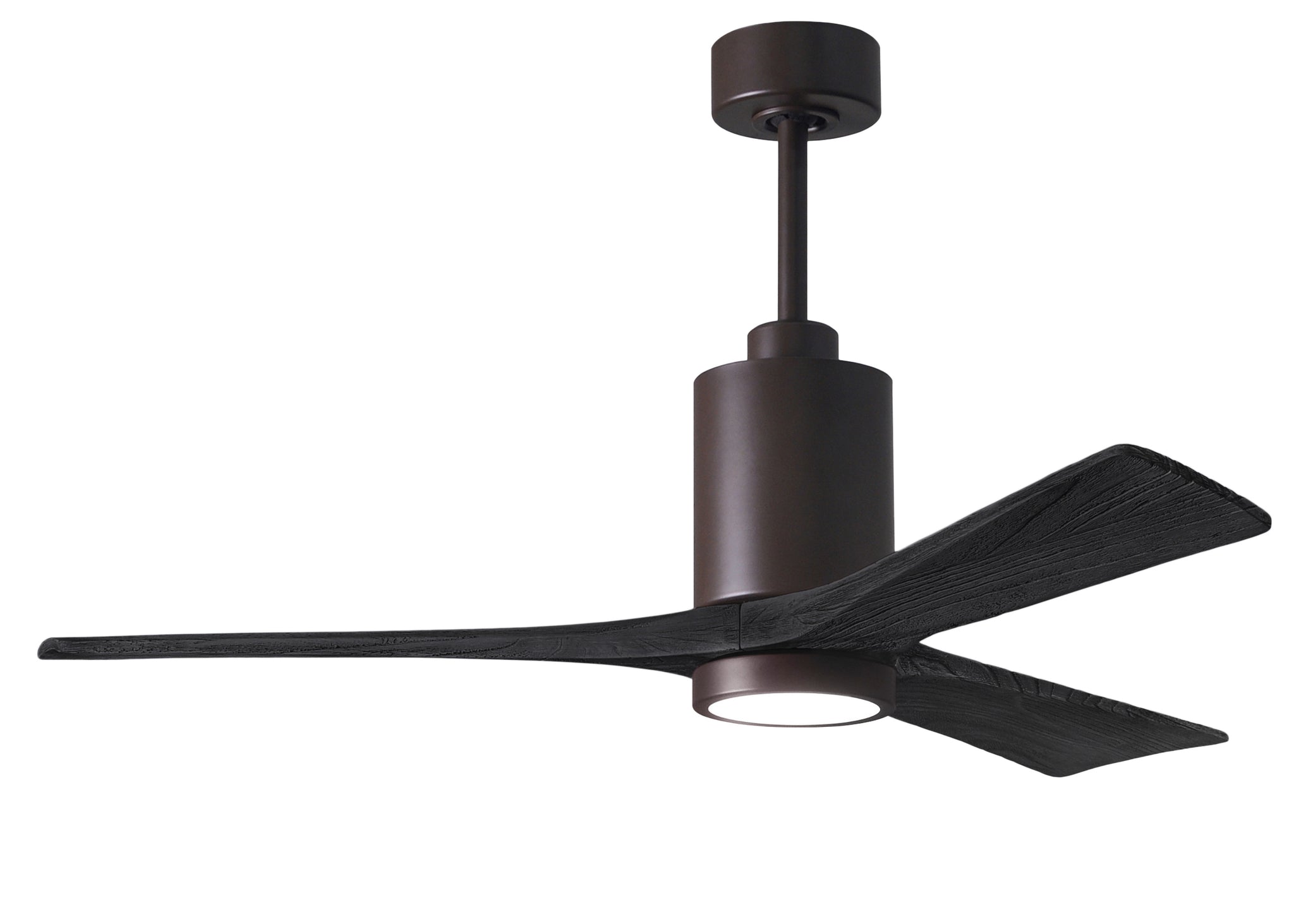

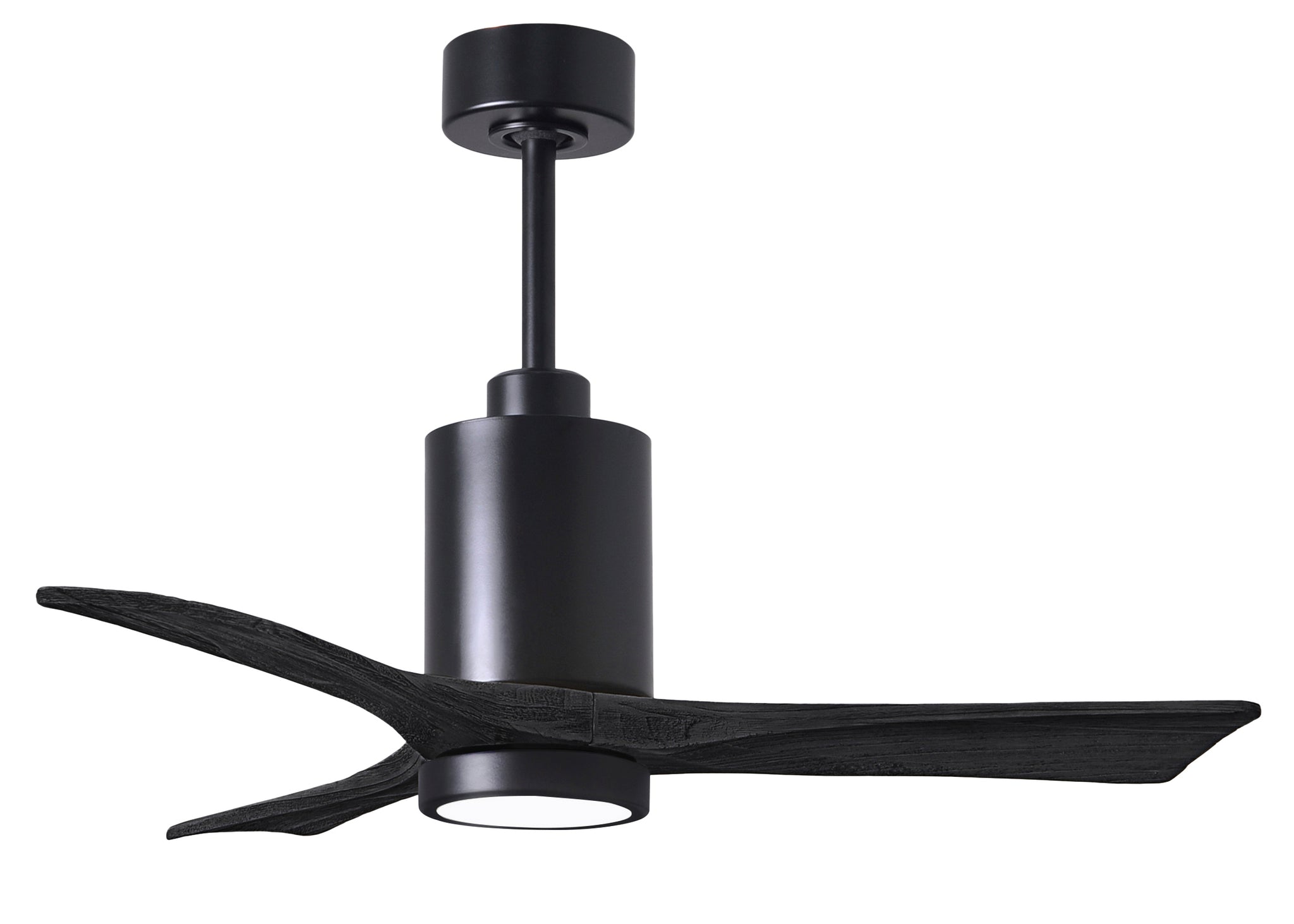

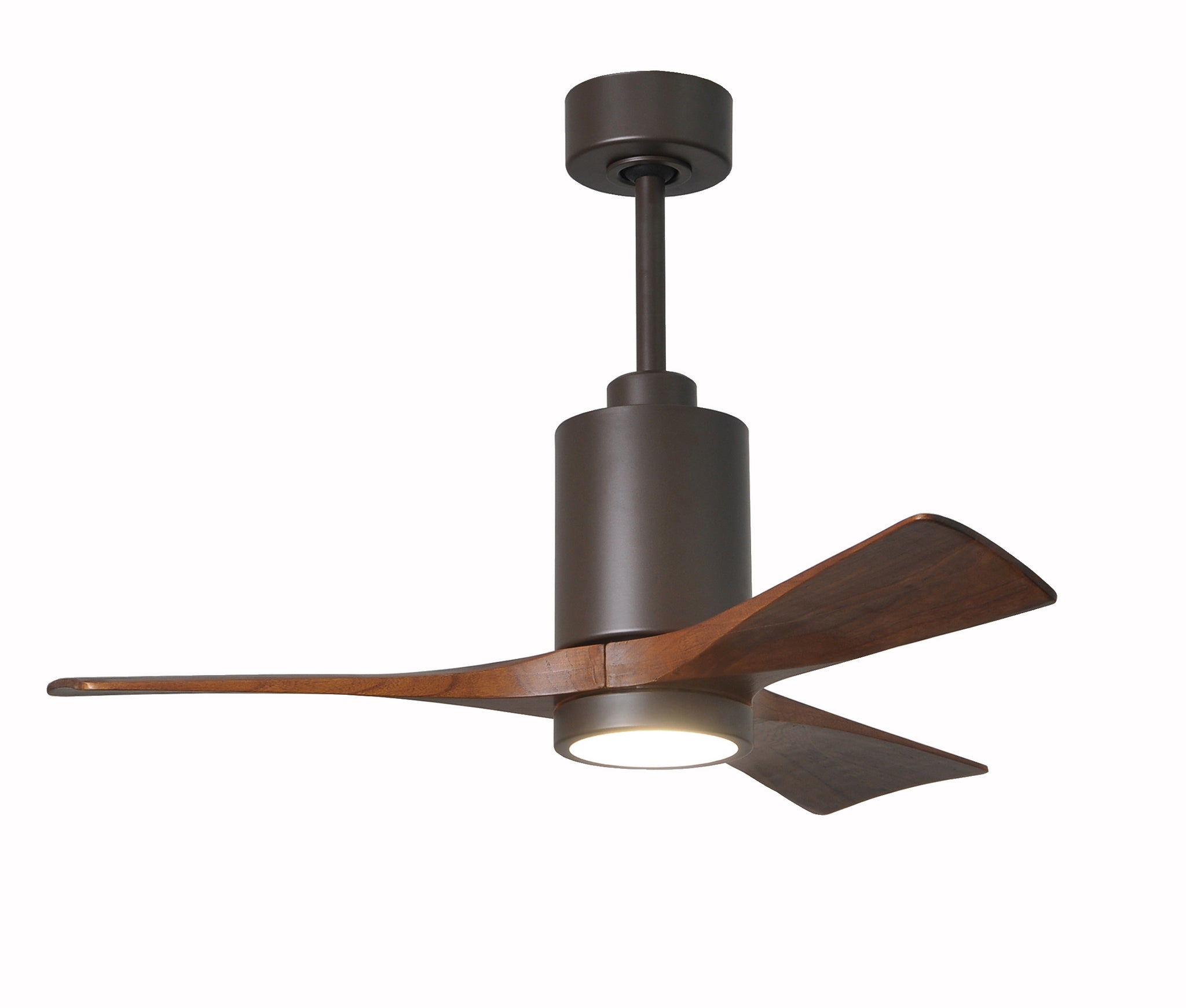

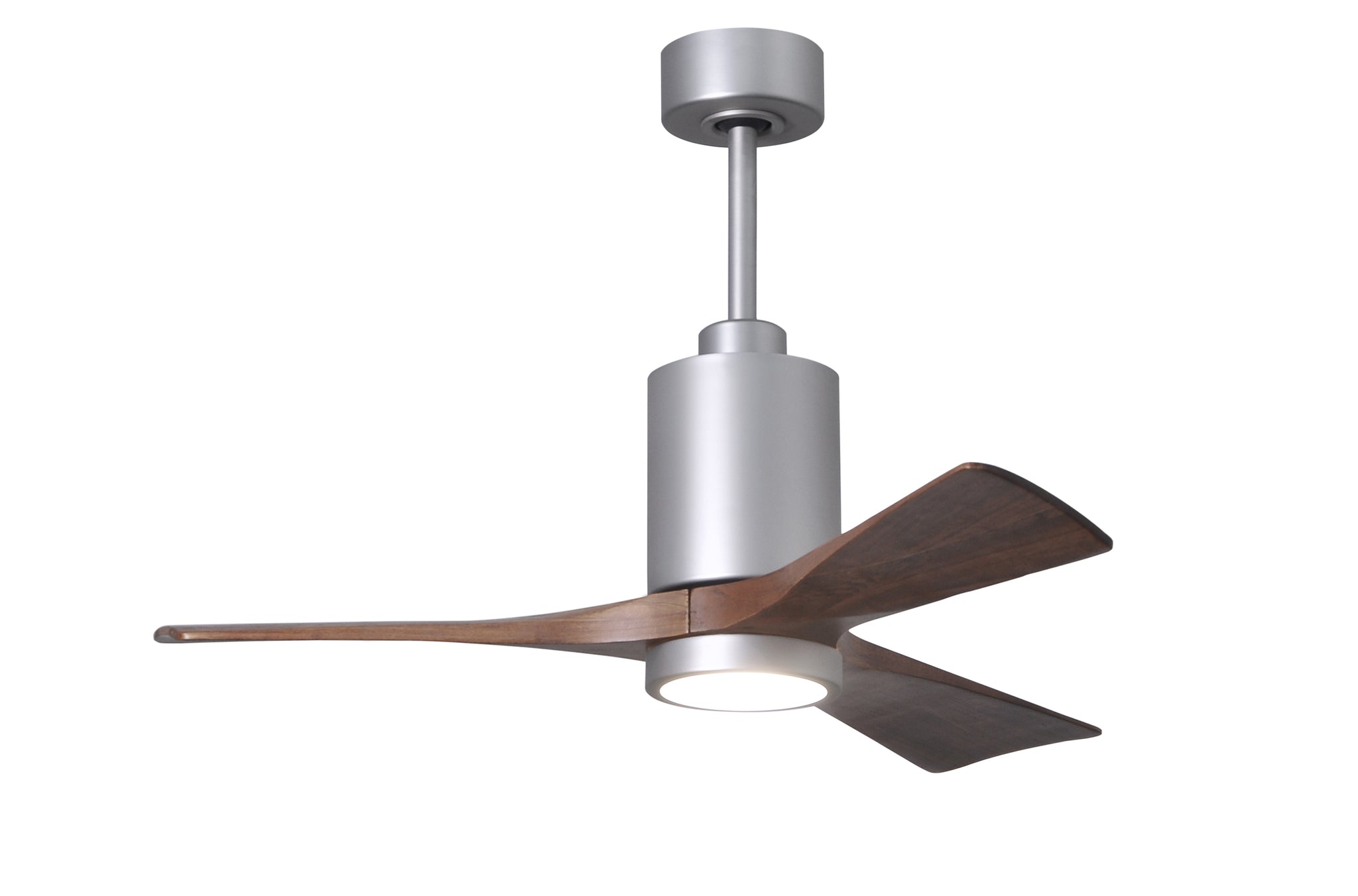

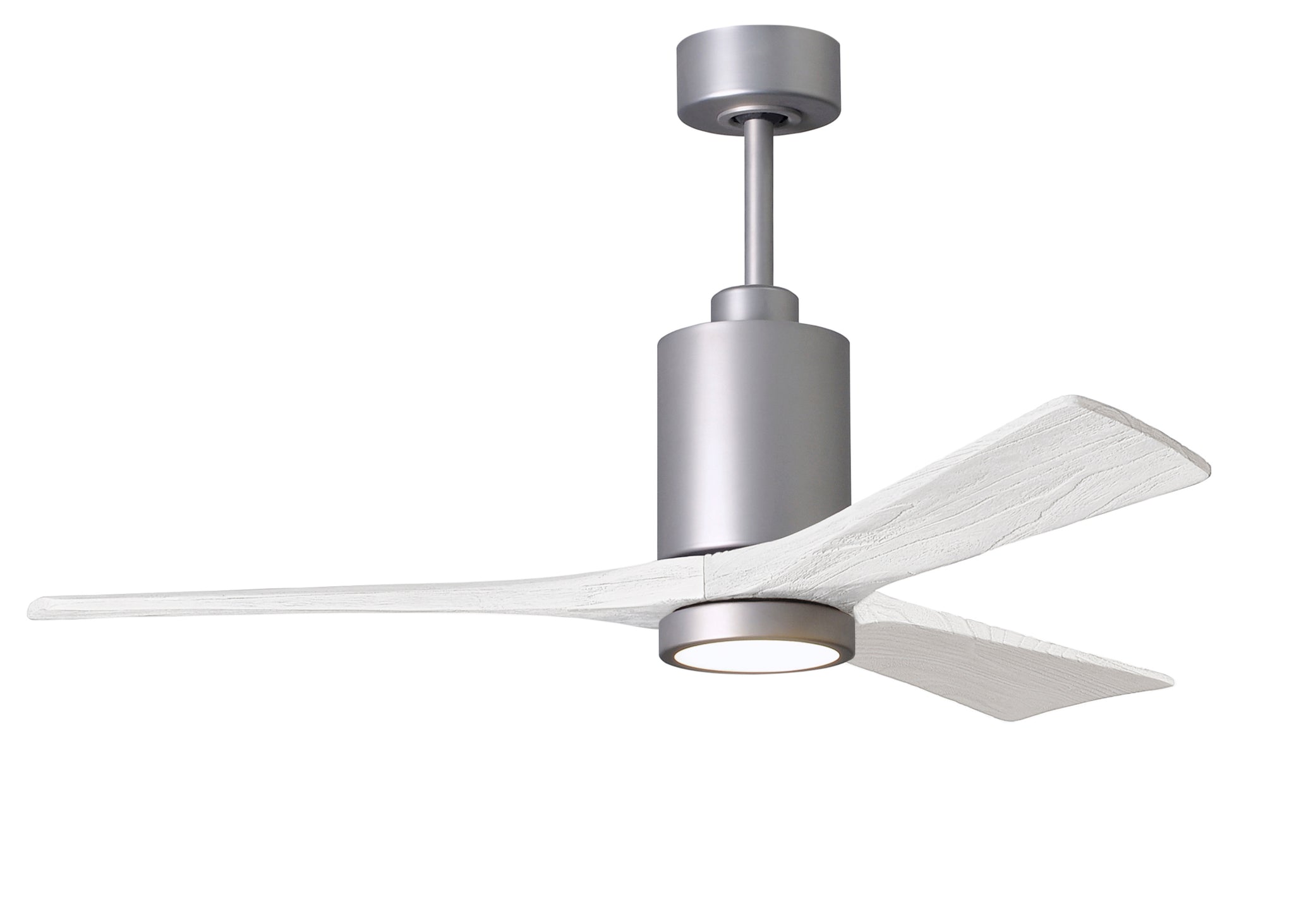

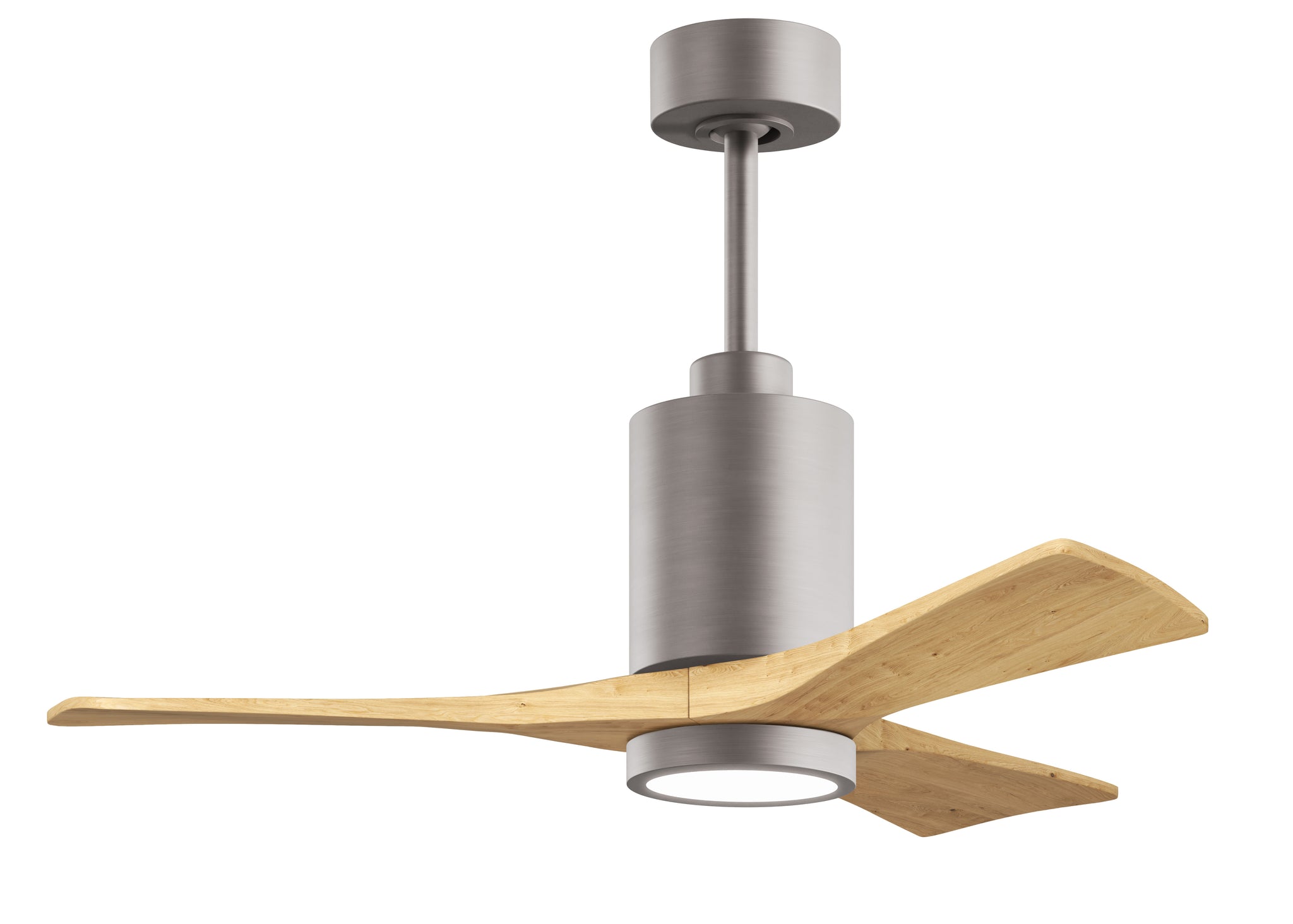

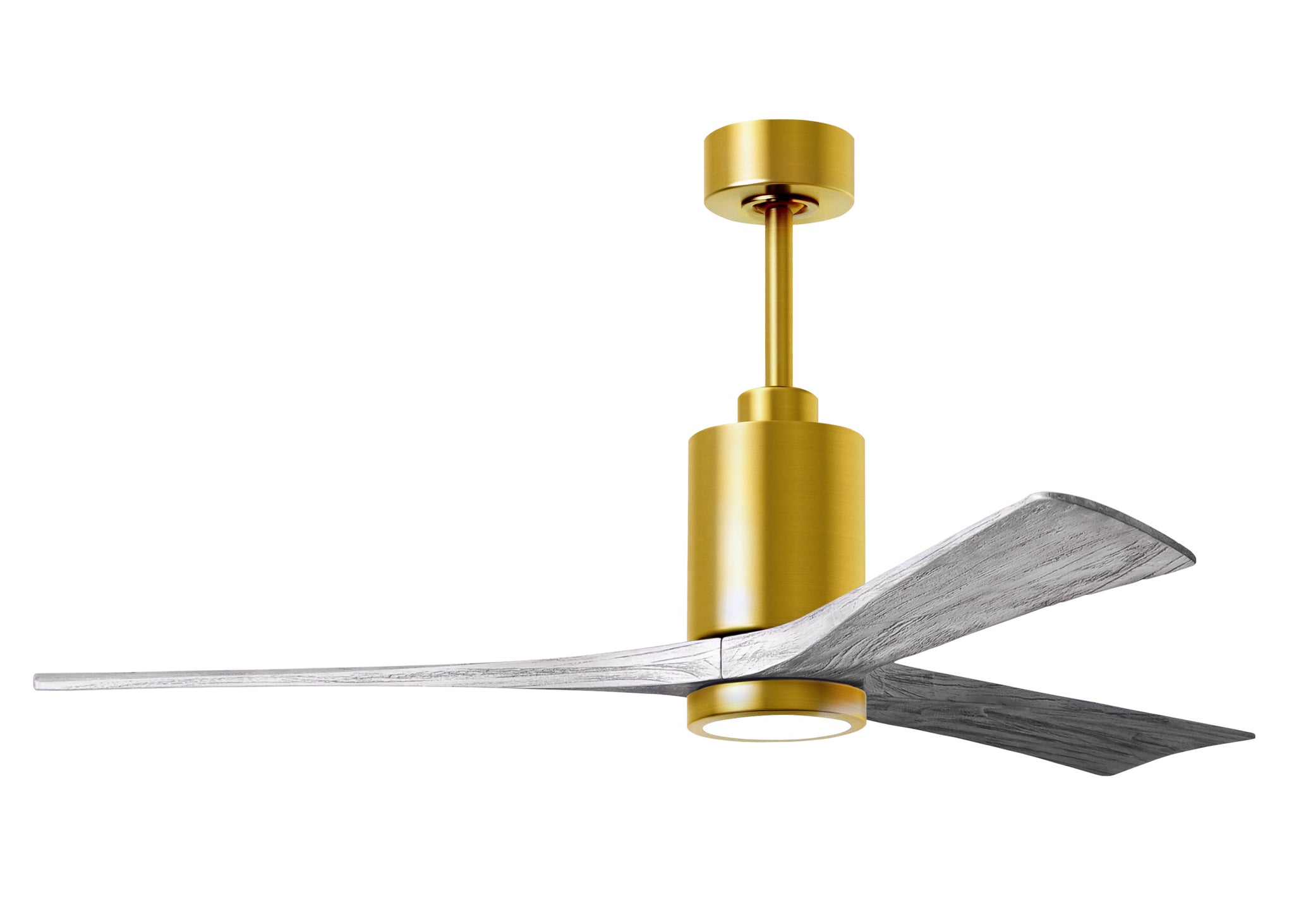

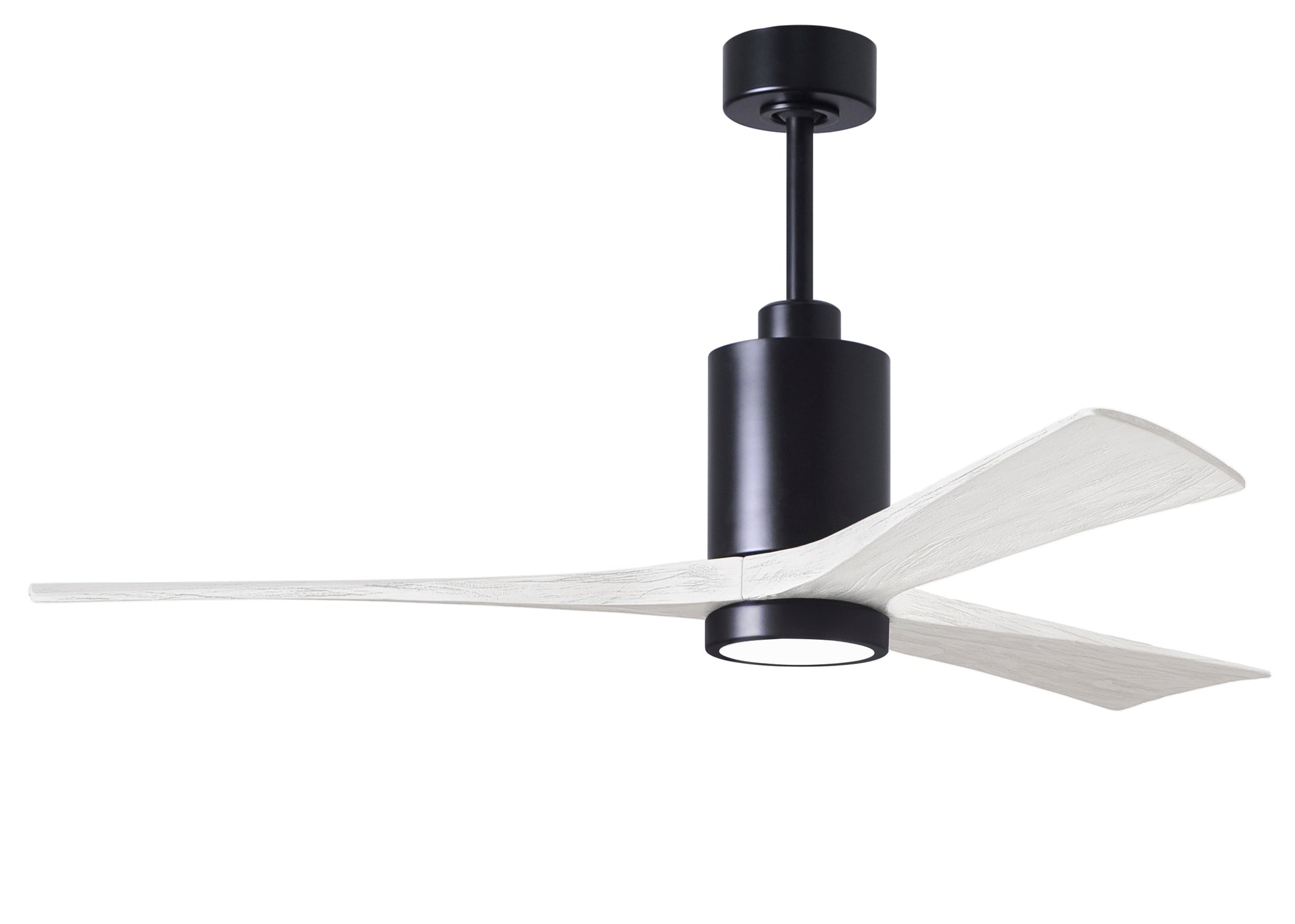

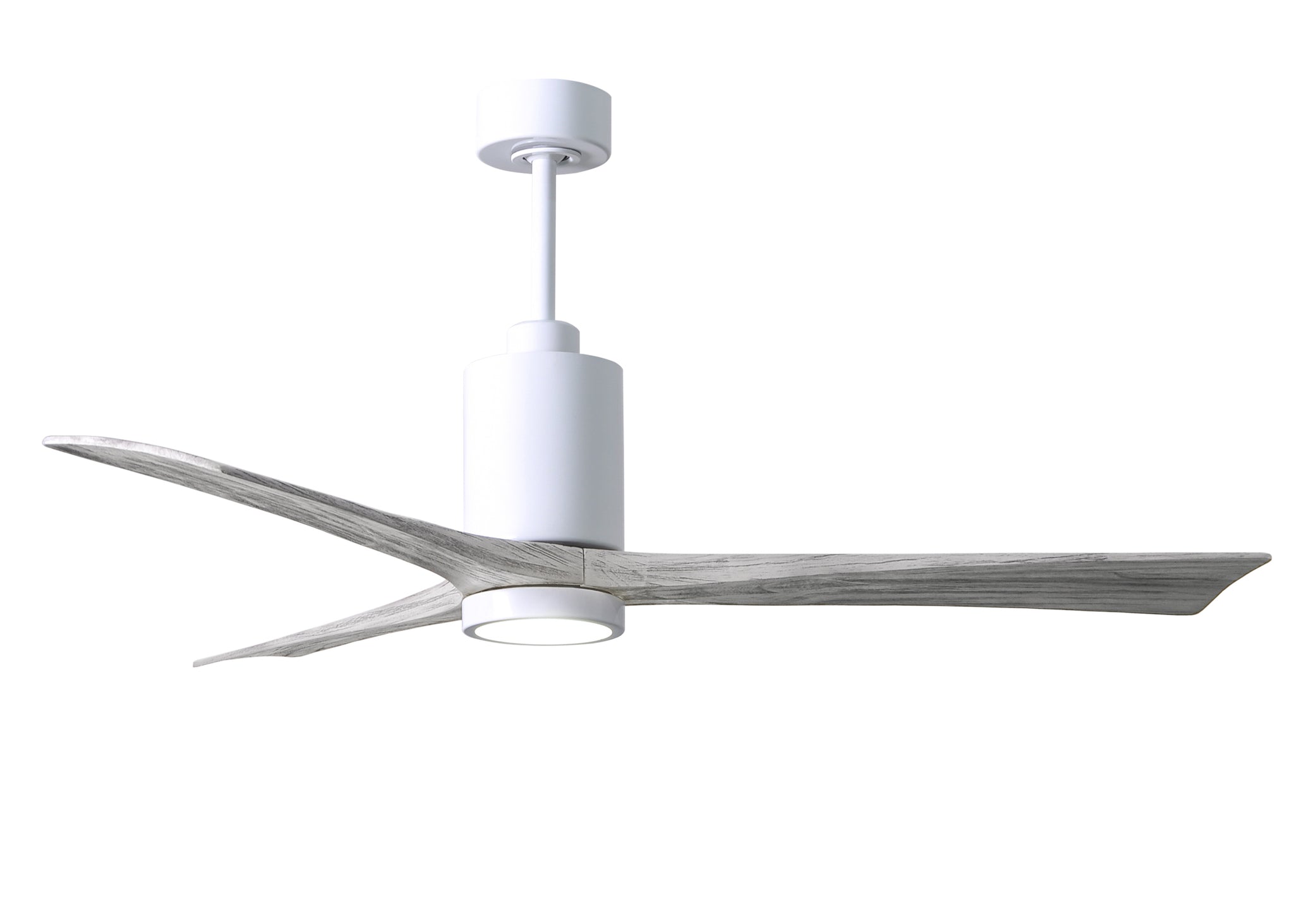

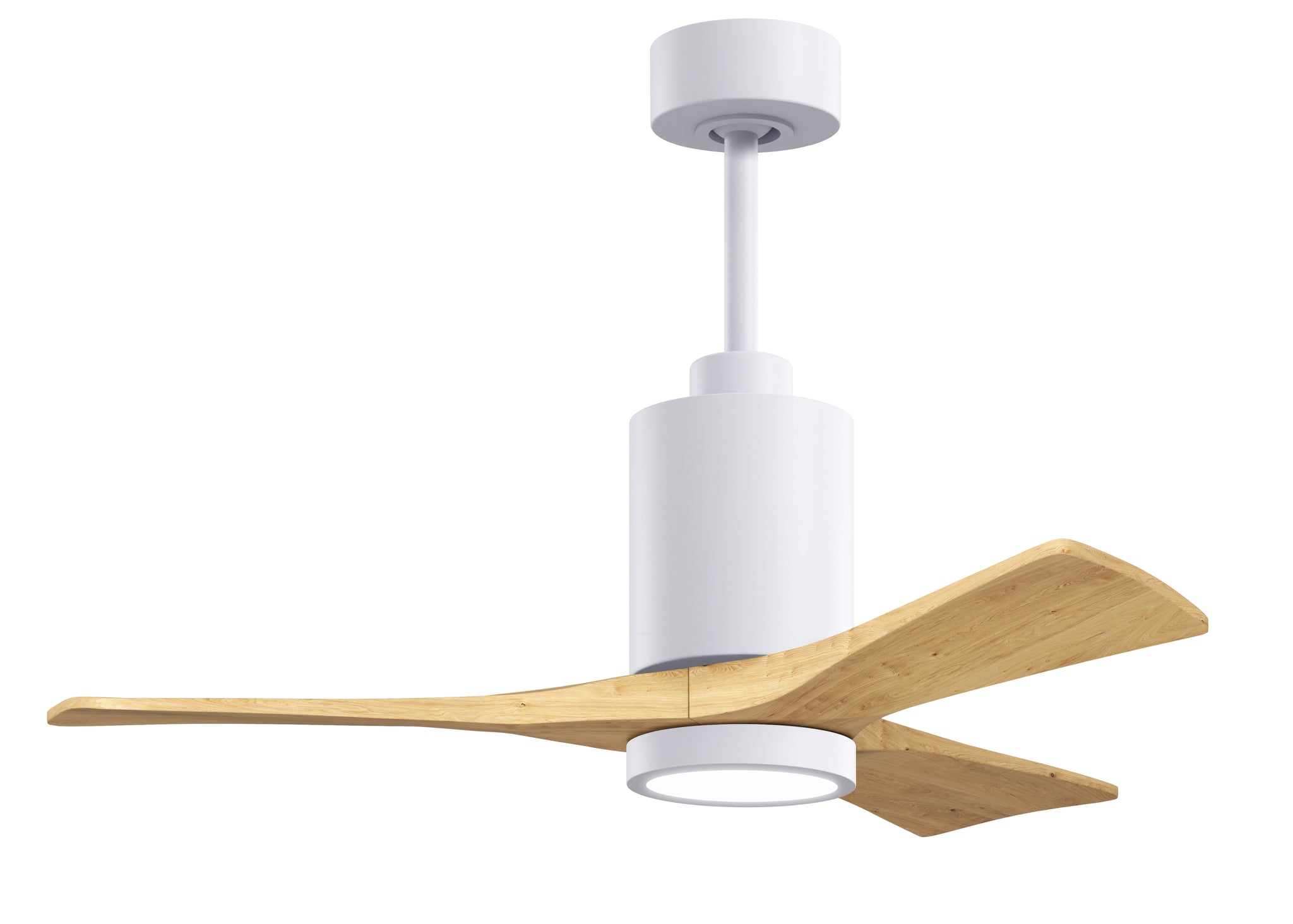

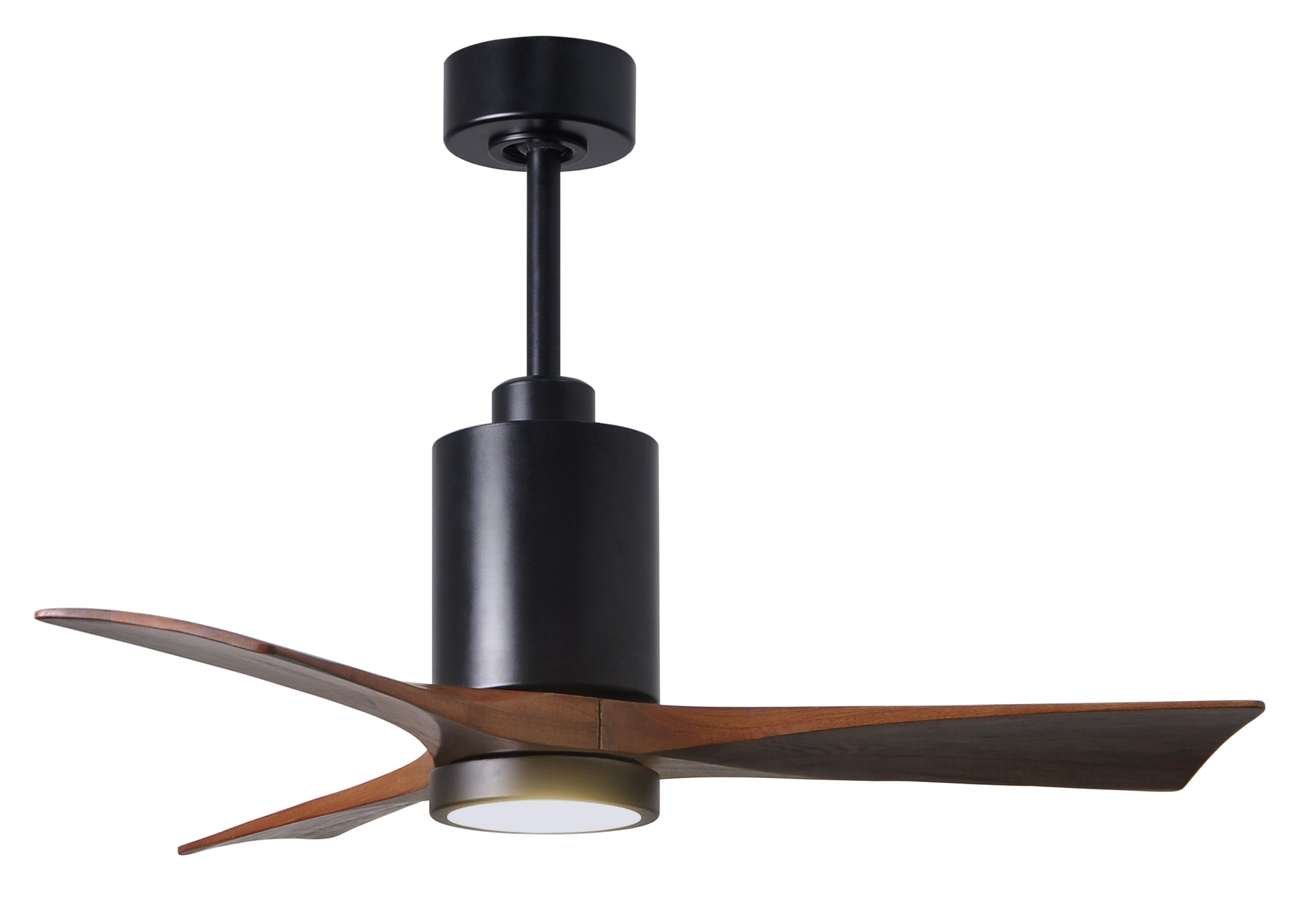

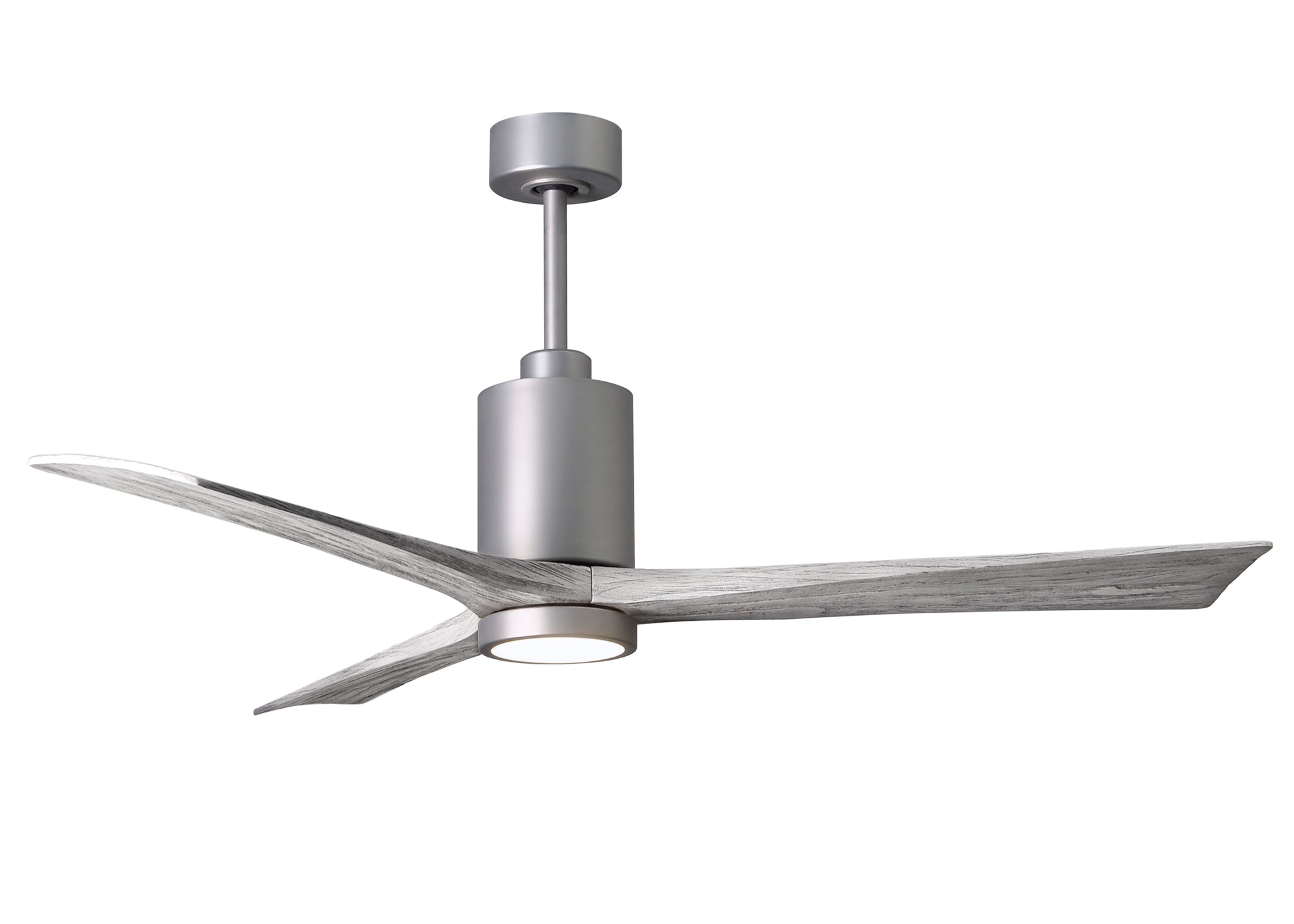

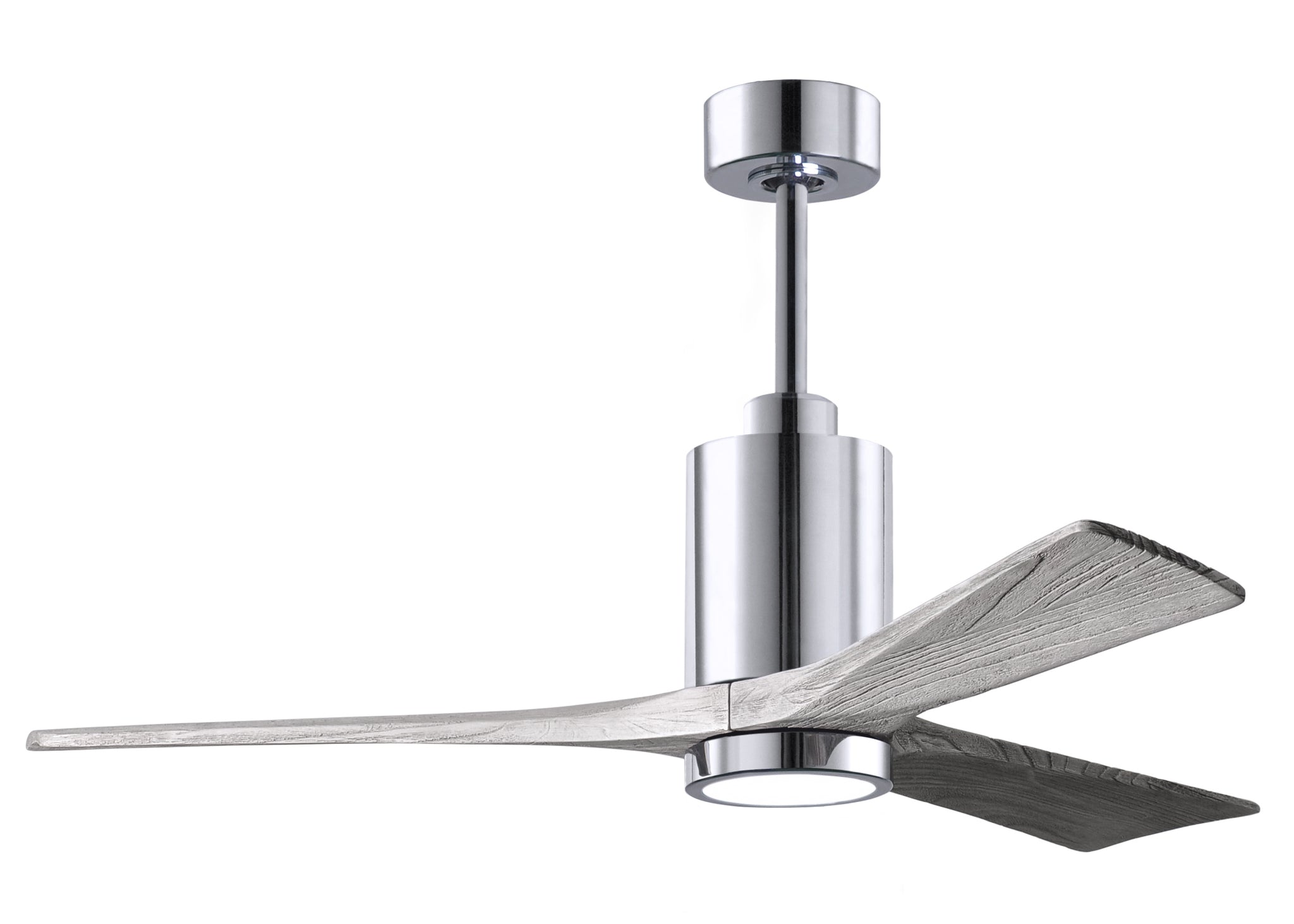

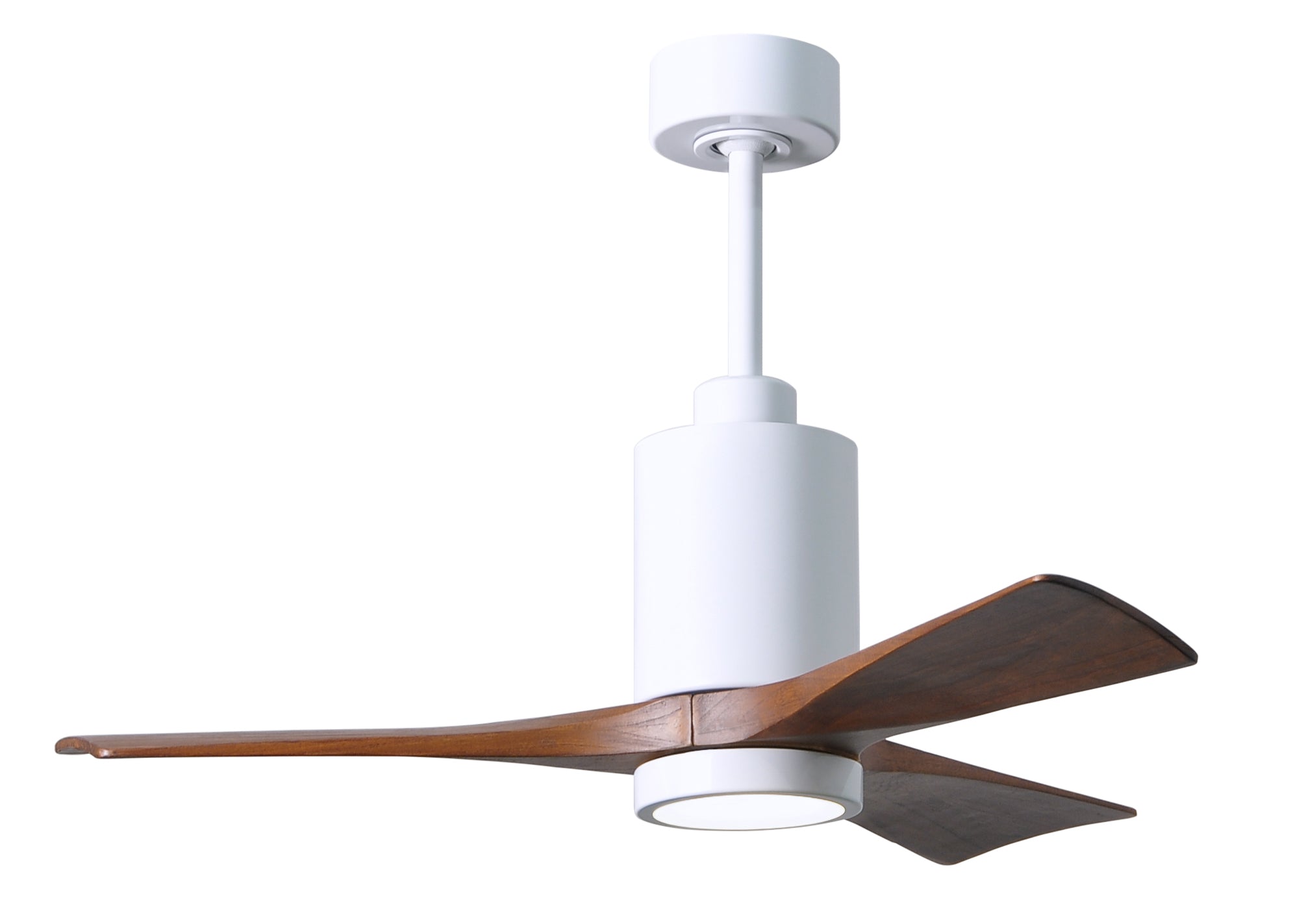

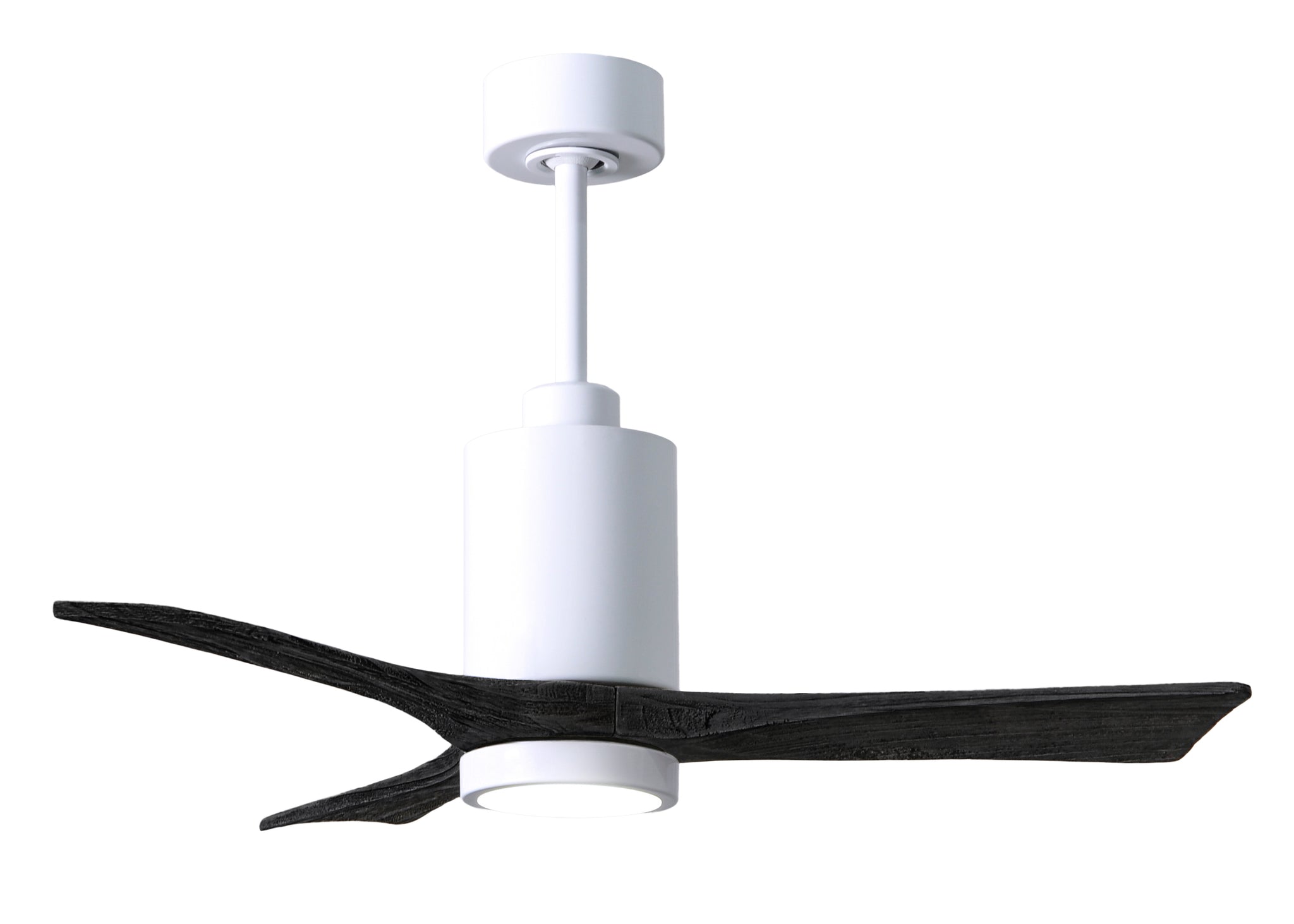

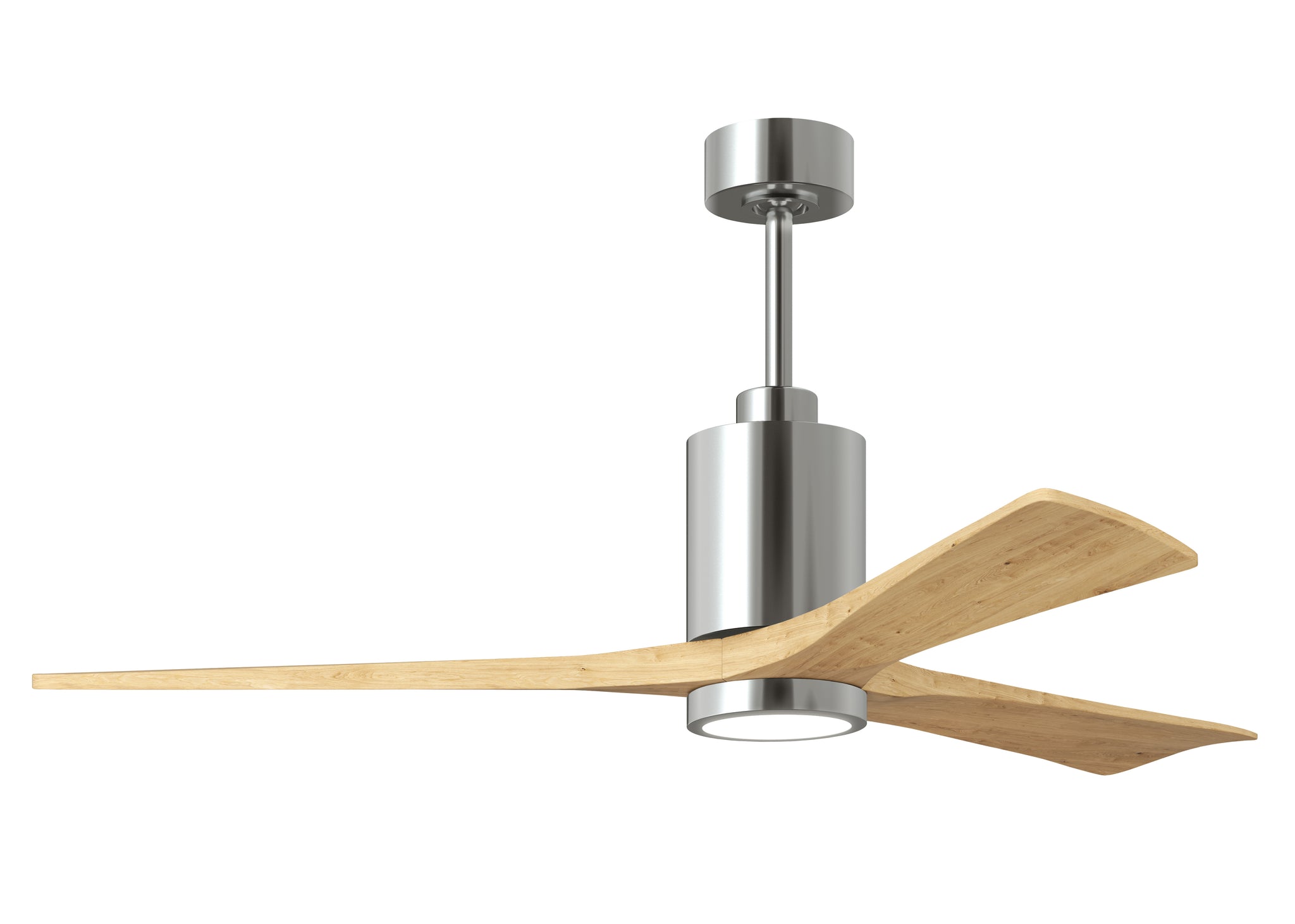

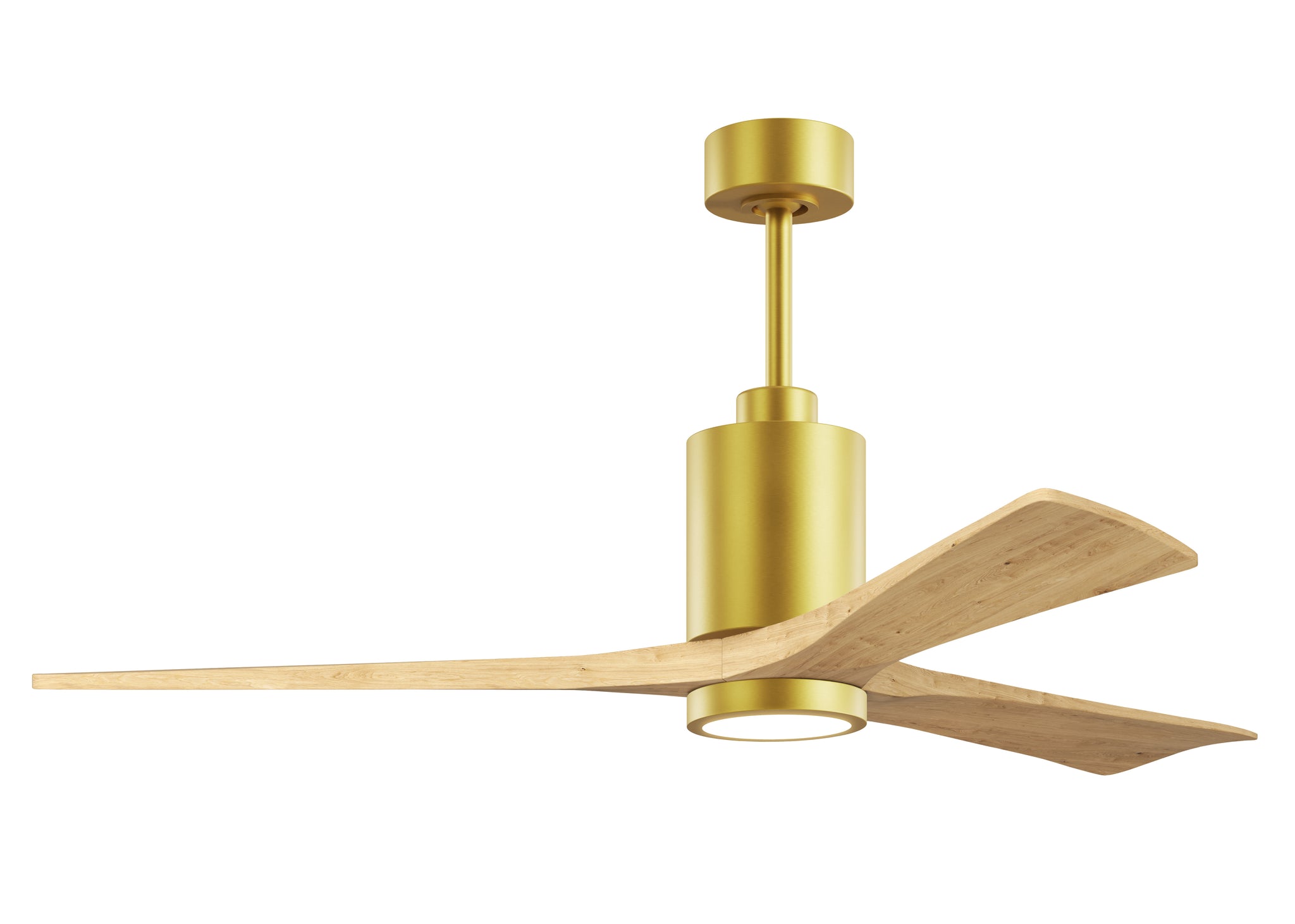

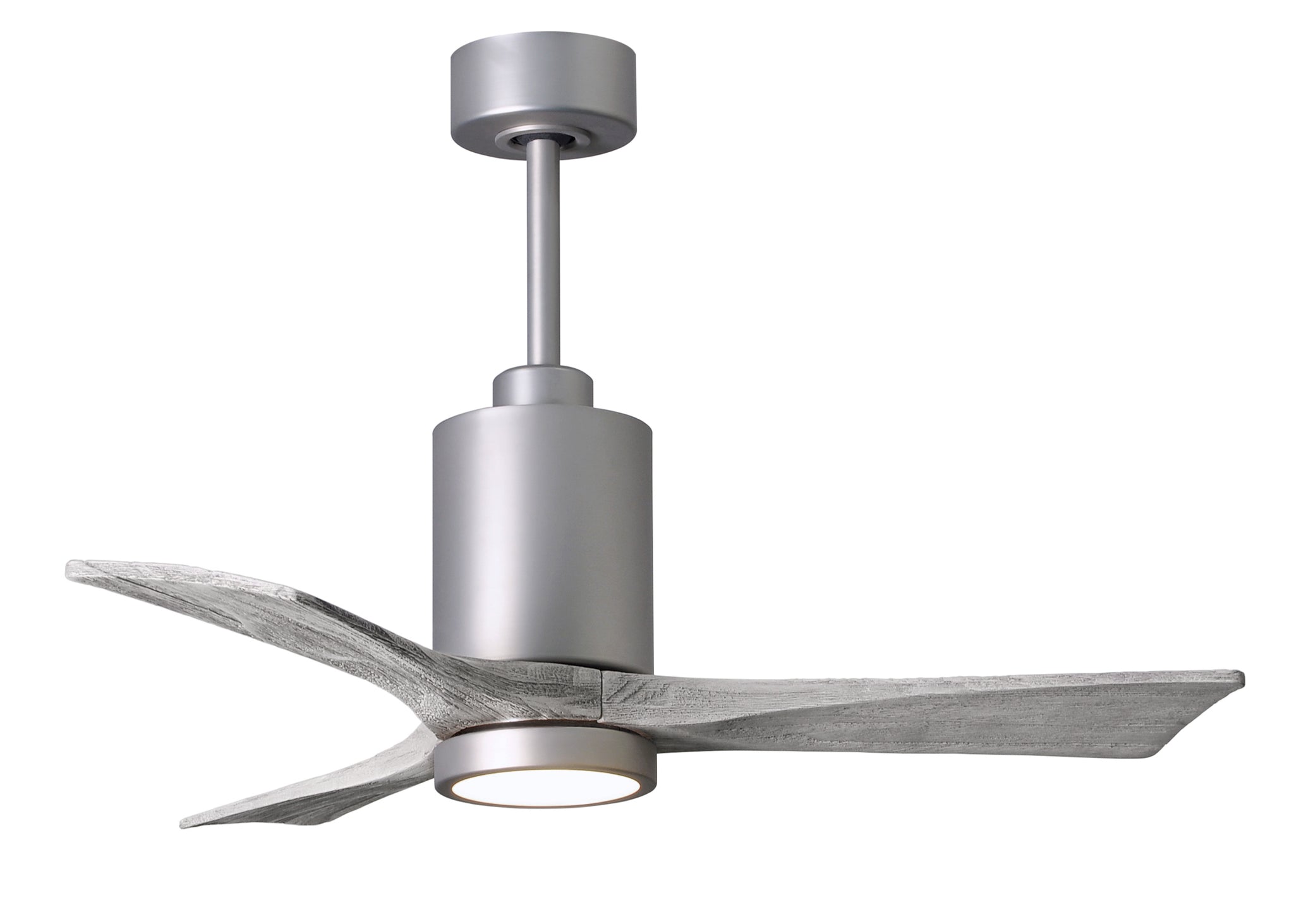

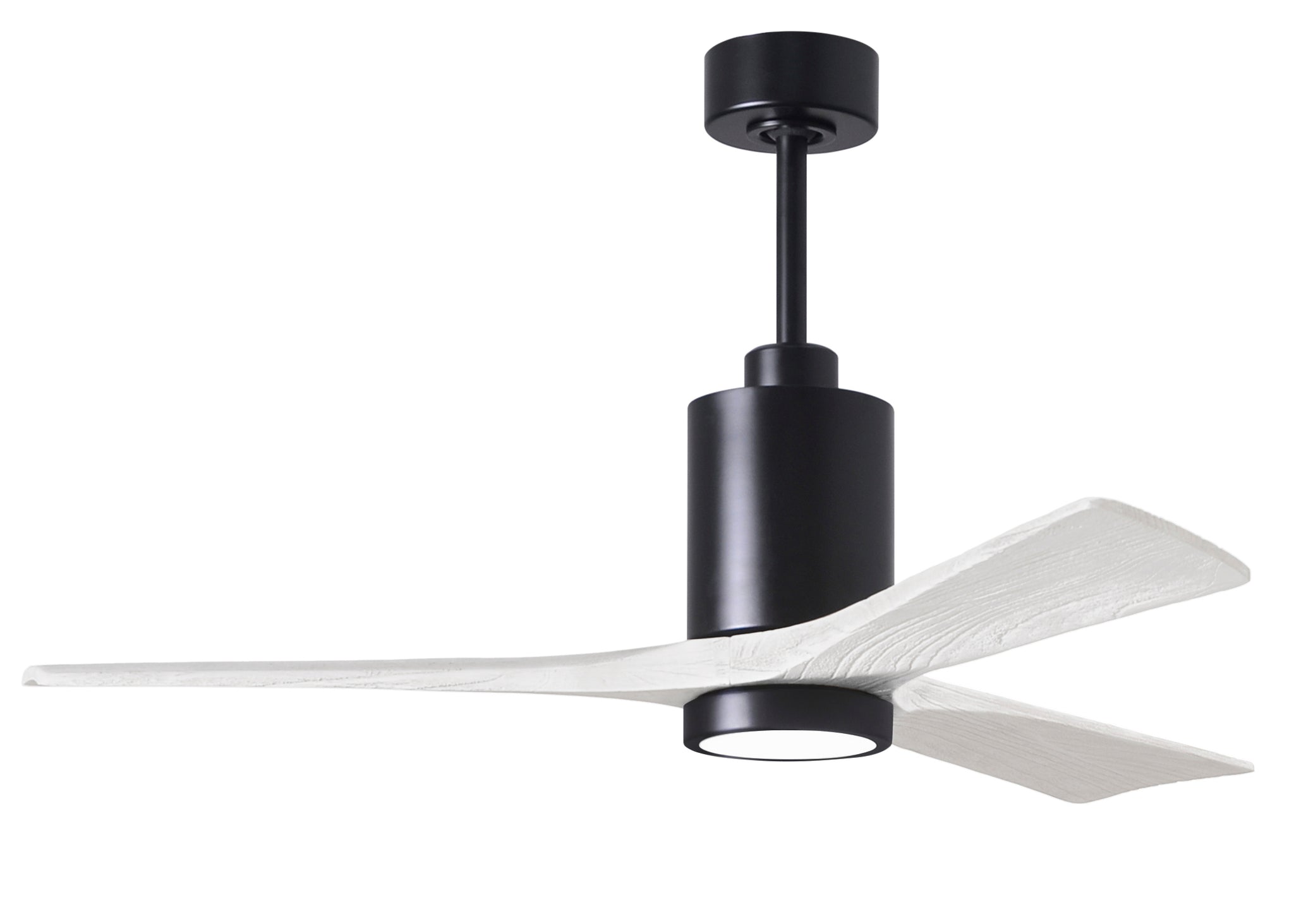

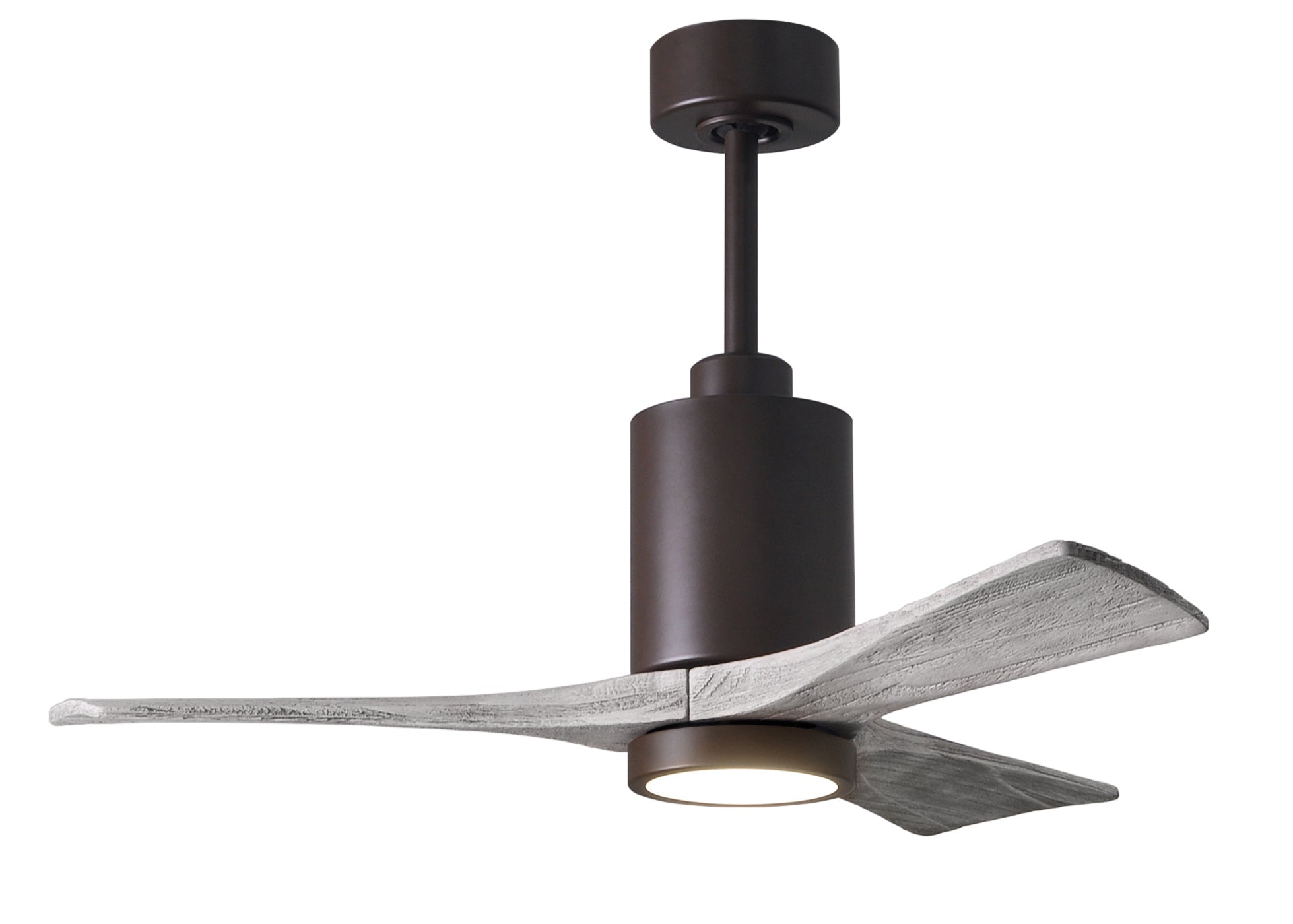

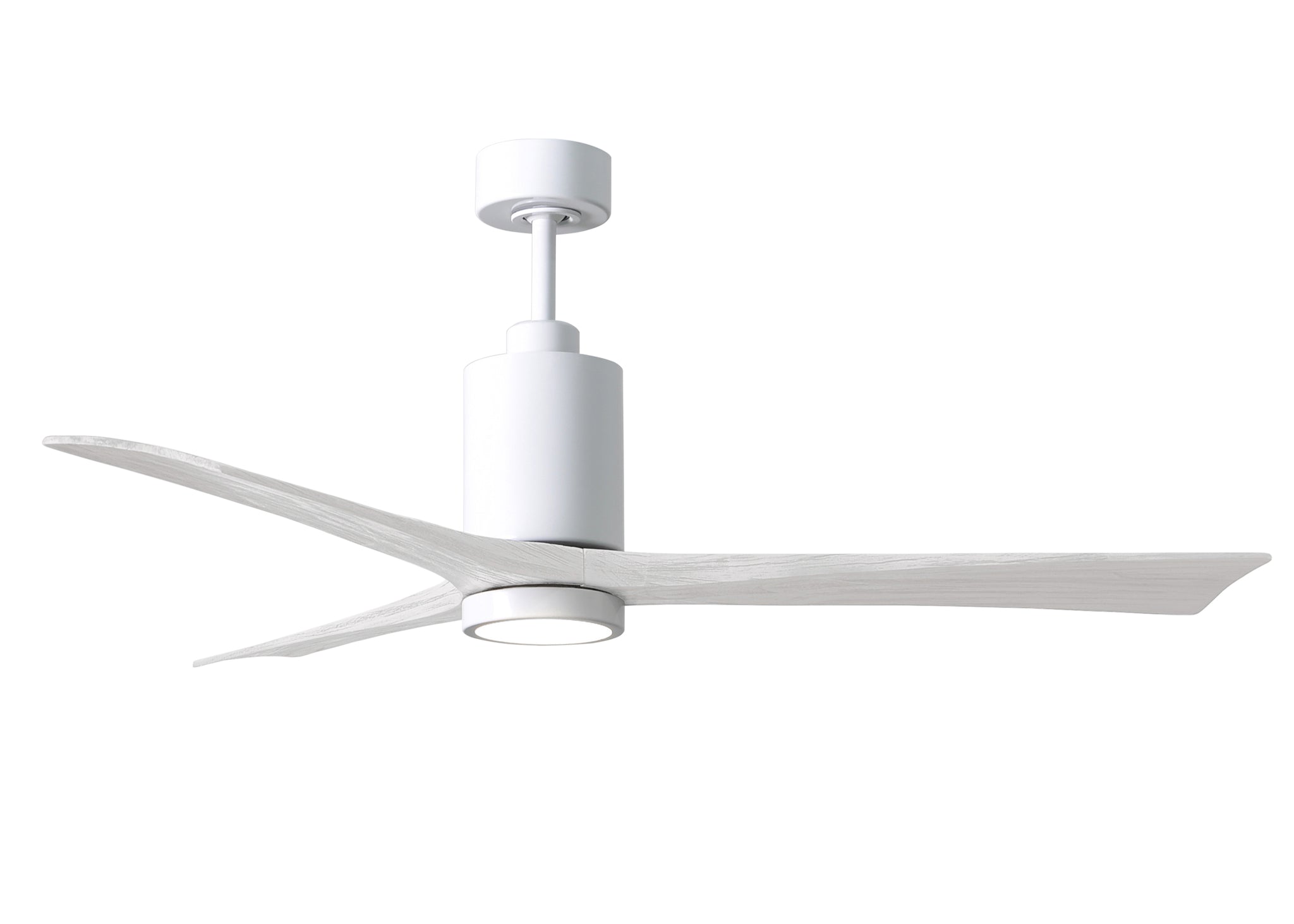

Patricia-3 - Ceiling Fan

PA3-BK-BK-42

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 42"

A complement to any commercial or residential space, the Patricia 3 seamlessly combines innovation with simple, refined design. Its elegant aesthetic belies its robust construction. Solid wood blades revolve around a balanced, cylindrical DC motor housing. Air is circulated efficiently with barely more than a whisper. An eco-conscious 5CCT LED color changing light kit completes the package, making Patricia 3 sophisticated, efficient and green.

  • Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
  • Integrated 5CCT Color Changing LED enhances the functionality of your space while providing long-term cost savings and environmental benefits
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Three solid wood, machine-cut blades
  • Energy efficient, ultra-quiet, 6-speed, reversible DC motor with new, reliable technology
  • Constructed of cast aluminum and heavy stamped steel
  • Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
Overview

Fan Diameterinches: 42, 52 or 60

centimeters: 107, 132 or 152

Blade MaterialCNC Cut Solid Wood

Overall Drop14 inches / 36 cm + downrod length

Downrod Lengths, Field cuttable, Non-threaded: inches: 5, 10, 18, 24, 36, 48, 60, 72

centimeters: 13, 25, 46, 61, 92, 122, 153, 183

Fan Weight19 lbs

Voltage110 or 220

Motor TypeDC

EnvironmentDamp Location

AmbienceSilent

Safety CertificationETL / CETL

WarrantyLimited Lifetime

Specifications
Fan Diameter 42 inches / 107 cm 52 inches / 132 cm 60 inches / 152 cm
RPM (Low / High) 52 / 261 51 / 192 51 / 154
CFM (Low / High) 860 / 5137 1283 / 6792 2113 / 7387
Watt (High) 16.60 32.03 31.72
CFM/Watt (High) 166 220 244
Blade Pitch 15° 15° 15°
Light Kit Photometrics

Lamping (Replaceable): Integrated LED

Remote Dimmable: Yes

Delivered Temperature in K: Variable

Delivered Lumens:

2700K: 1063

3000K: 1088

4000K: 1234

5000K: 1221

6500K: 1107

CRI: 90

Watts: 22

Hours: 30,000

Light kit longevity if used 6 Hours/Day: 16.9 Years

Standard Equipment

Downrods 10in - 25cm

Slant Ceiling Canopy 30°

Included Remote & Wall Control

Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

  • AAA Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed
  • Motor Off
  • Reverse
  • Light on/off
  • 5 Temperature Color Changes
  • Dimmable Control
Wall Control

SKU AT-DC-WC-AK

  • A23 Battery (Included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed
  • Motor Off
  • Reverse
  • Light on/off
  • 5 Temperature Color Changes
  • Dimmable Control
Product Info

Patricia 3 Specs Sheet

How Long of a Downrod Do I Need?

Downrod Infographic
