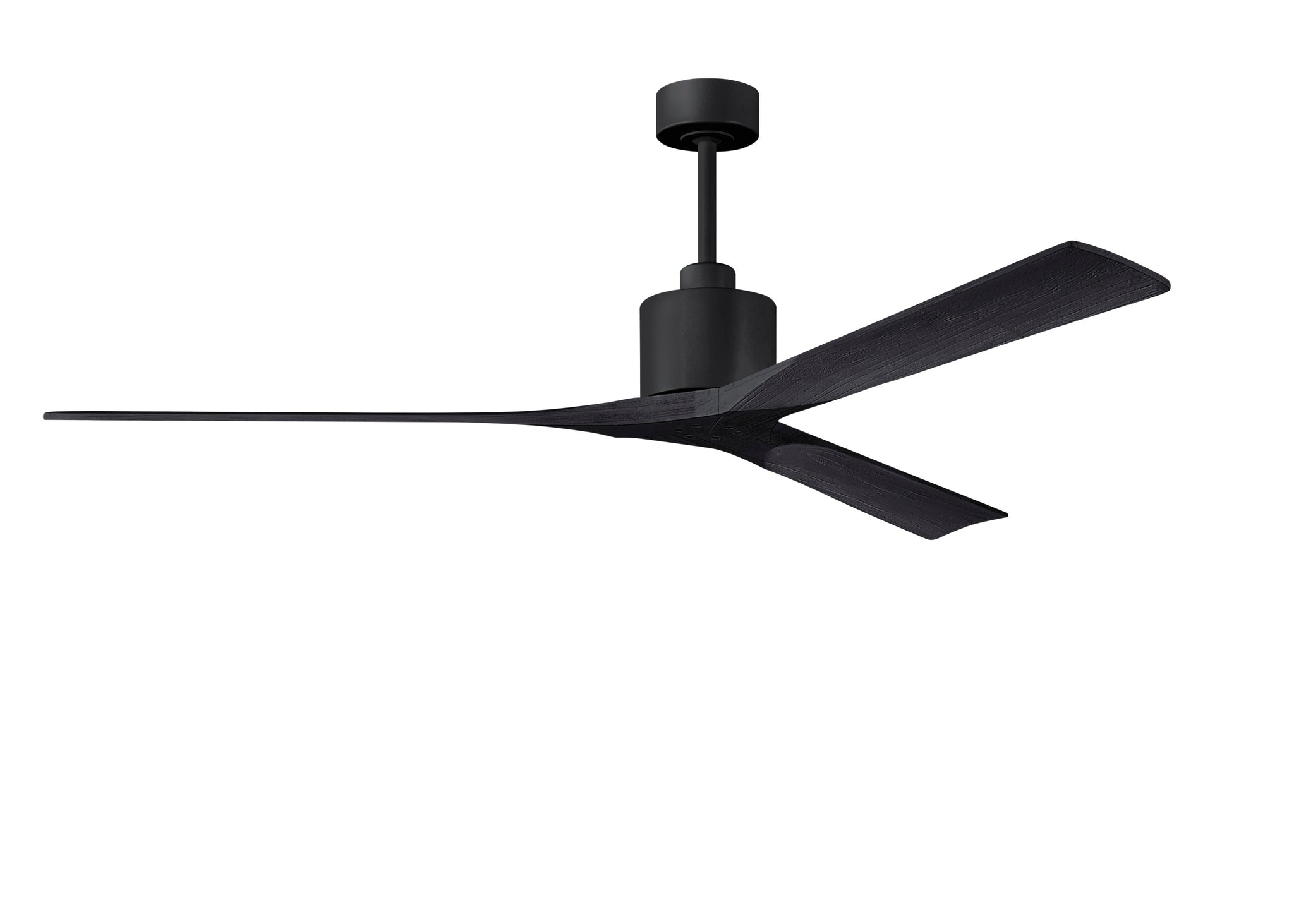

Nan XL - Ceiling Fan

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 72"

NKXL-BK-BK-72

Designed by Chicago architect Stephen Katz, the Nan ceiling fan is a contemporary take on traditional fan design with superior performance and functionality. The Nan fan feels at home in any room or setting from casual to formal and everything in between. This timeless ceiling fan works in residential environments, restaurants, hospitality or even office settings, thanks to the designer favorite neatly joined blades. The Nan fan has the perfect amount of design presence for any size room or season. The fully adjustable fan motor speeds make moving the right amount of air simple and easy. The Nan fan will feel like a natural part of the room and enhance any space with a fresh breeze.

  • Constructed of cast aluminum and heavy stamped steel
  • Includes 10" field cuttable downrod
  • Black 6-speed RF remote control with reverse function
  • Vaulted ceiling mount canopy for up to 30 degrees. Optional 60 degrees cathedral canopy mounting system available
  • IP20
  • 0.44 AMP
  • Energy efficient, ultra-quiet, 6-speed and reversible DC motor with new reliable technology
  • White wireless Decora style, 6-speed, wall control
Motor Data

Fan Diameter: inches: 72, centimeters: 183

Blade Material: CNC Cut Solid Wood

Overall Drop: 12 inches / 30 cm + downrod length

Downrods Lengths (Field cuttable, Non-threaded): inches: 5, 10, 18, 24, 36, 48, 60, 72; centimeters: 13, 25, 46, 61, 92, 122, 153, 183

Fan Weight: 19 lbs

Voltage: 110 or 220

Motor Type: DC

Environment: Damp Location

Ambience: Silent

Safety Certification: ETL / CETL

Warranty: Limited Lifetime

Standard Equipment

Downrods: 10in - 25cm

Slant Ceiling Canopy: 30°

Included Remote & Wall Control

SKU: AT-RC-DC-NOPM

Handheld Remote

  • AAA Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed Control
  • Reverse
  • Wall Cradle Included
  • Dip-less 4,500 Channels

Optional Accessory: Wall Control

SKU: AT-DC-WC-AK

  • A23 Battery (Included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed Control
  • Reverse
  • Wireless
  • 3-Way Compatible
Technical Diagram
