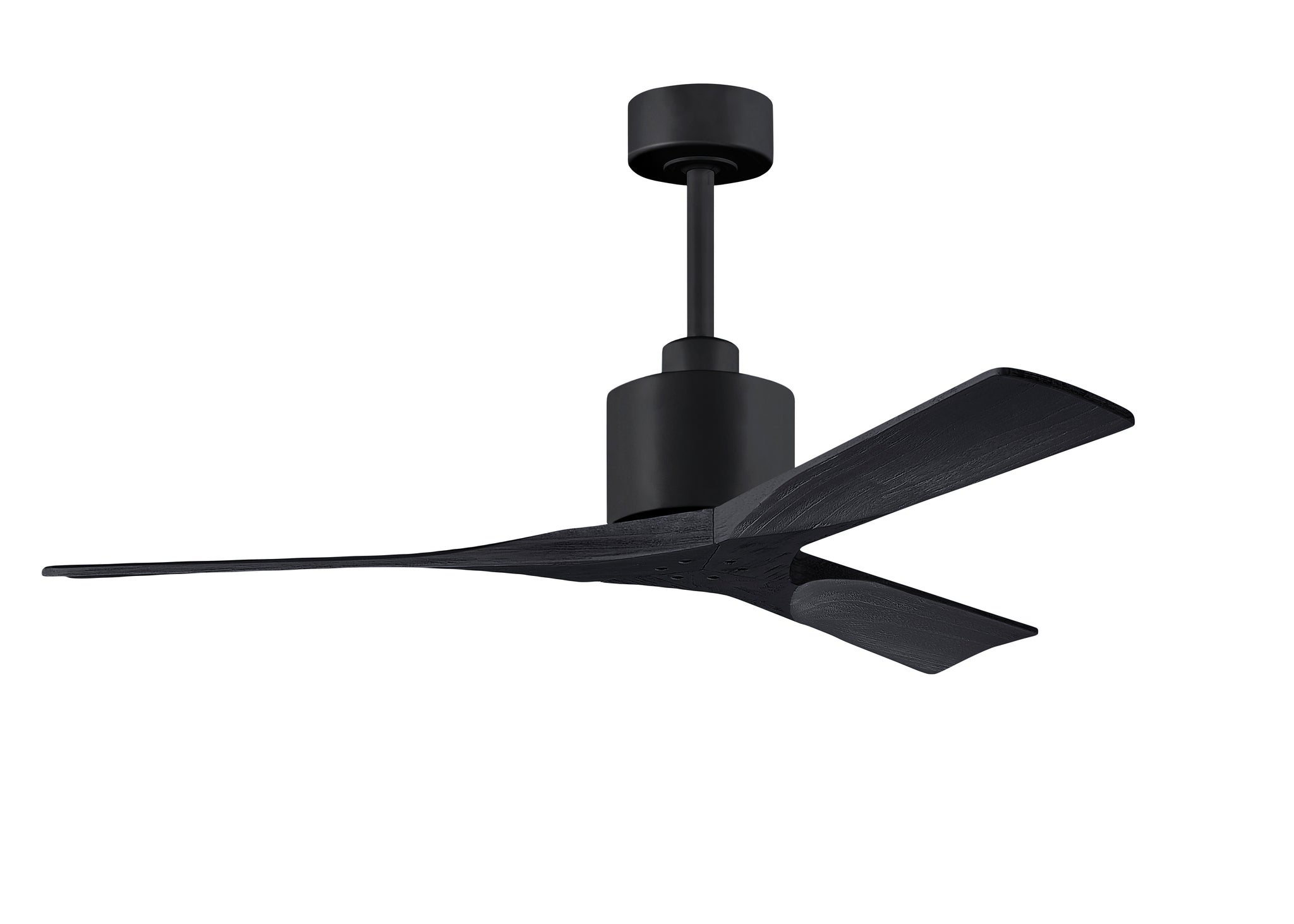

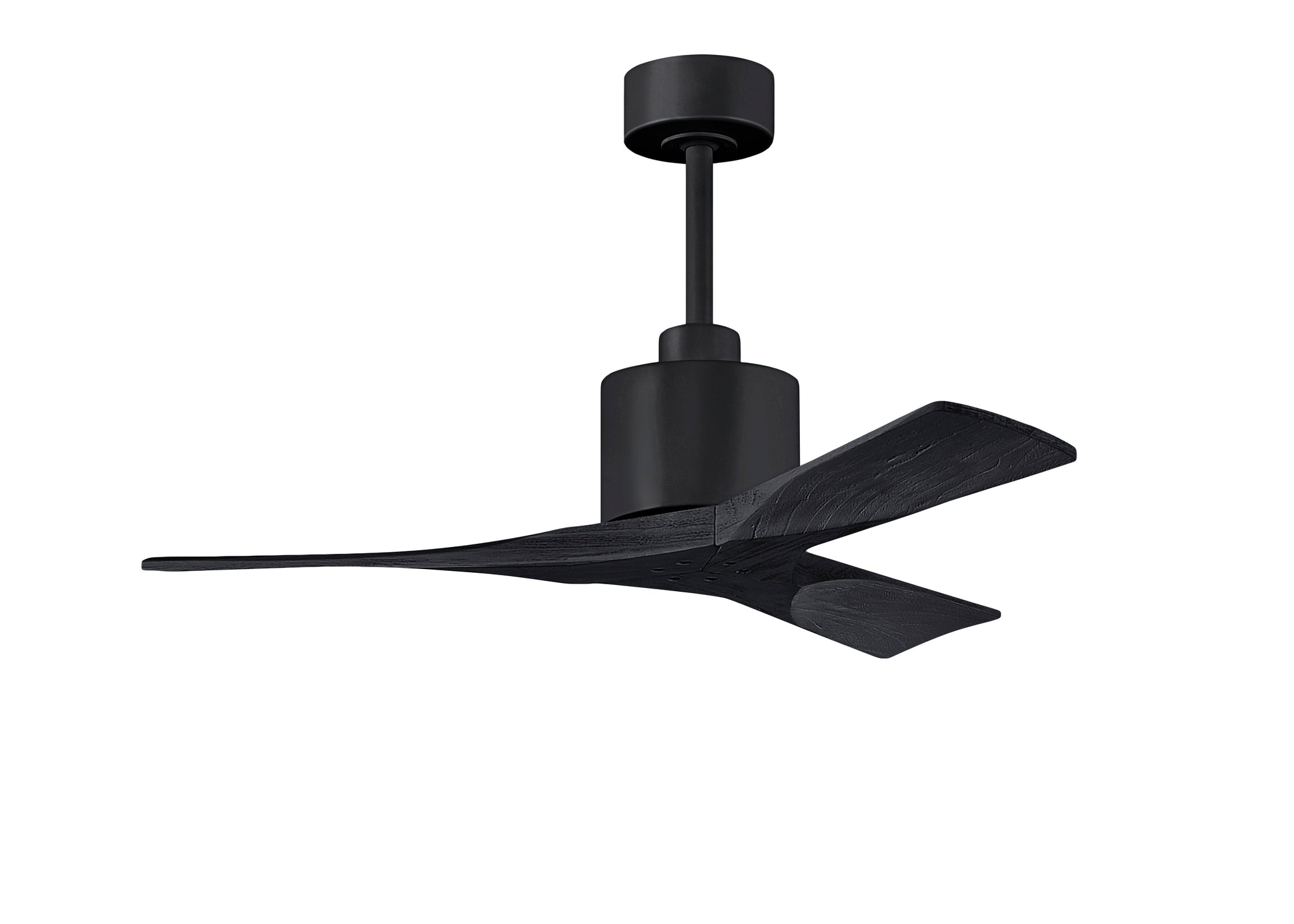

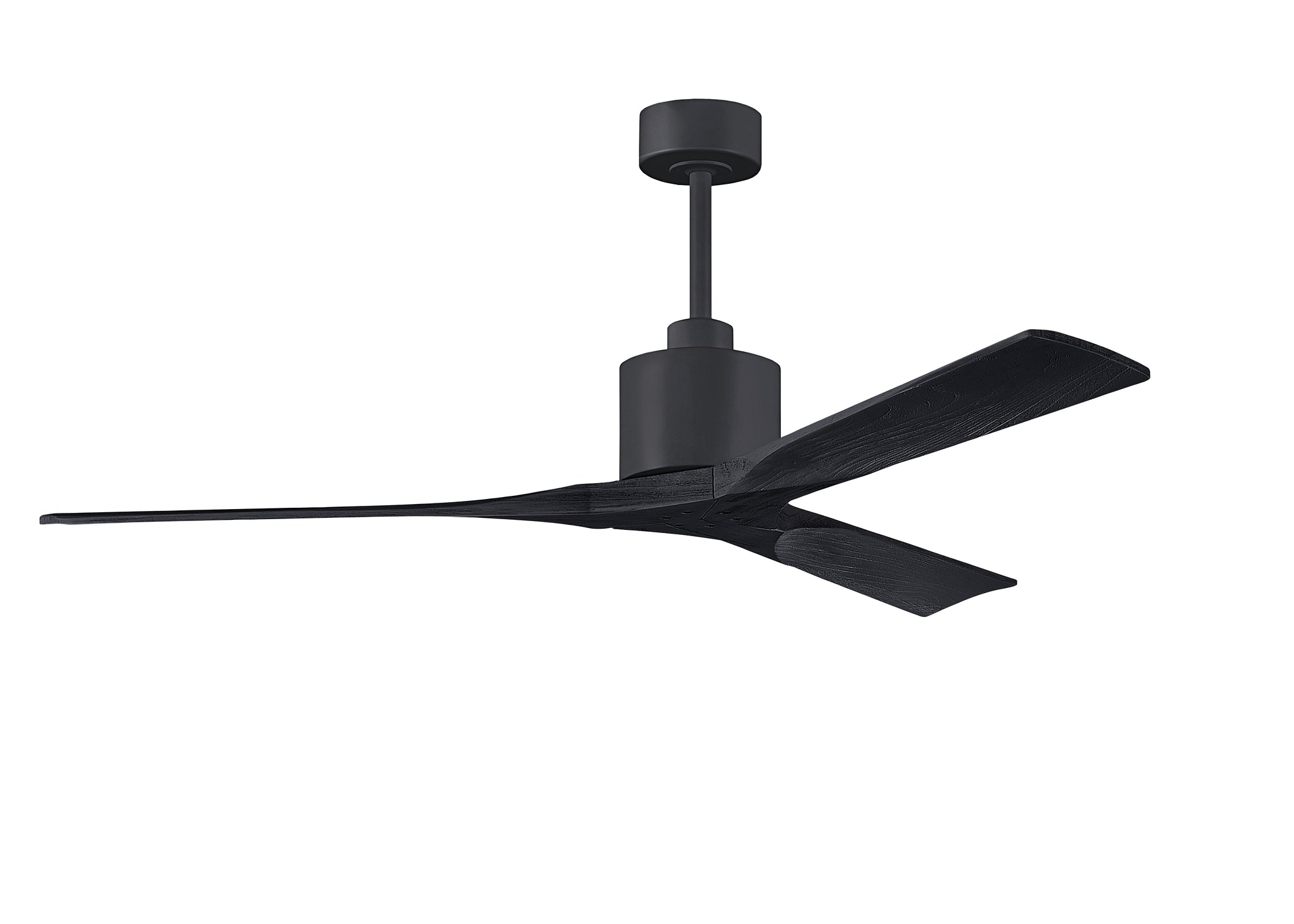

Nan - Ceiling Fan

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 42"

NK-BK-BK-42

Designed by Chicago architect Stephen Katz, the Nan ceiling fan is a contemporary take on traditional fan design with superior performance and functionality. The Nan fan feels at home in any room or setting from casual to formal and everything in between. This timeless ceiling fan works in residential environments, restaurants, hospitality or even office settings, thanks to the designer favorite neatly joined blades. The Nan fan has the perfect amount of design presence for any size room or season. The fully adjustable fan motor speeds make moving the right amount of air simple and easy. The Nan fan will feel like a natural part of the room and enhance any space with a fresh breeze.

  • Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Constructed of cast aluminum and heavy stamped steel
  • Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
  • Hand-held remote and Decora-style wall-mounted 6-speed wireless controls
  • Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
  • IP20
Overview

Fan Diameterinches: 42, 52 or 60

centimeters: 107, 132 or 152

Blade MaterialCNC Cut Solid Wood

Overall Drop12 inches /30 cm + downrod length

Downrods Lengths. Field cuttable. Non-threadedinches: 5, 10, 18, 24, 36, 48, 60, 72

centimeters: 13, 25, 46, 61, 92, 122, 153, 183

Fan Weight18 lbs

Voltage110 or 220

Motor TypeDC

EnvironmentDamp Location

AmbienceSilent

Safety CertificationETL / CETL

WarrantyLimited Lifetime

Motor Data
Fan Diameter 42 inches / 107 cm 52 inches / 132 cm 60 inches / 152 cm
RPM (Low / High) 50 / 267 50 / 181 50 / 141
CFM (Low / High) 884 / 5281 1695 / 6723 2376 / 7063
Watt (High) 28.43 29.14 30.16
Blade Pitch 45° 45° 45°
CFM/Watt (High) 175 231 248
Standard Equipment

Downrods 10in - 25cm

Slant Ceiling Canopy 30°

Included Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

  • AAA Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed Control
  • Reverse
  • Wall Cradle Included
  • Dip-less 4,500 Channels

SKU AT-DC-WC-AK

  • A23 Battery (Included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed Control
  • Reverse
  • Wireless
  • 3-Way Compatible
Technical Diagram

Nan Spec Sheet
