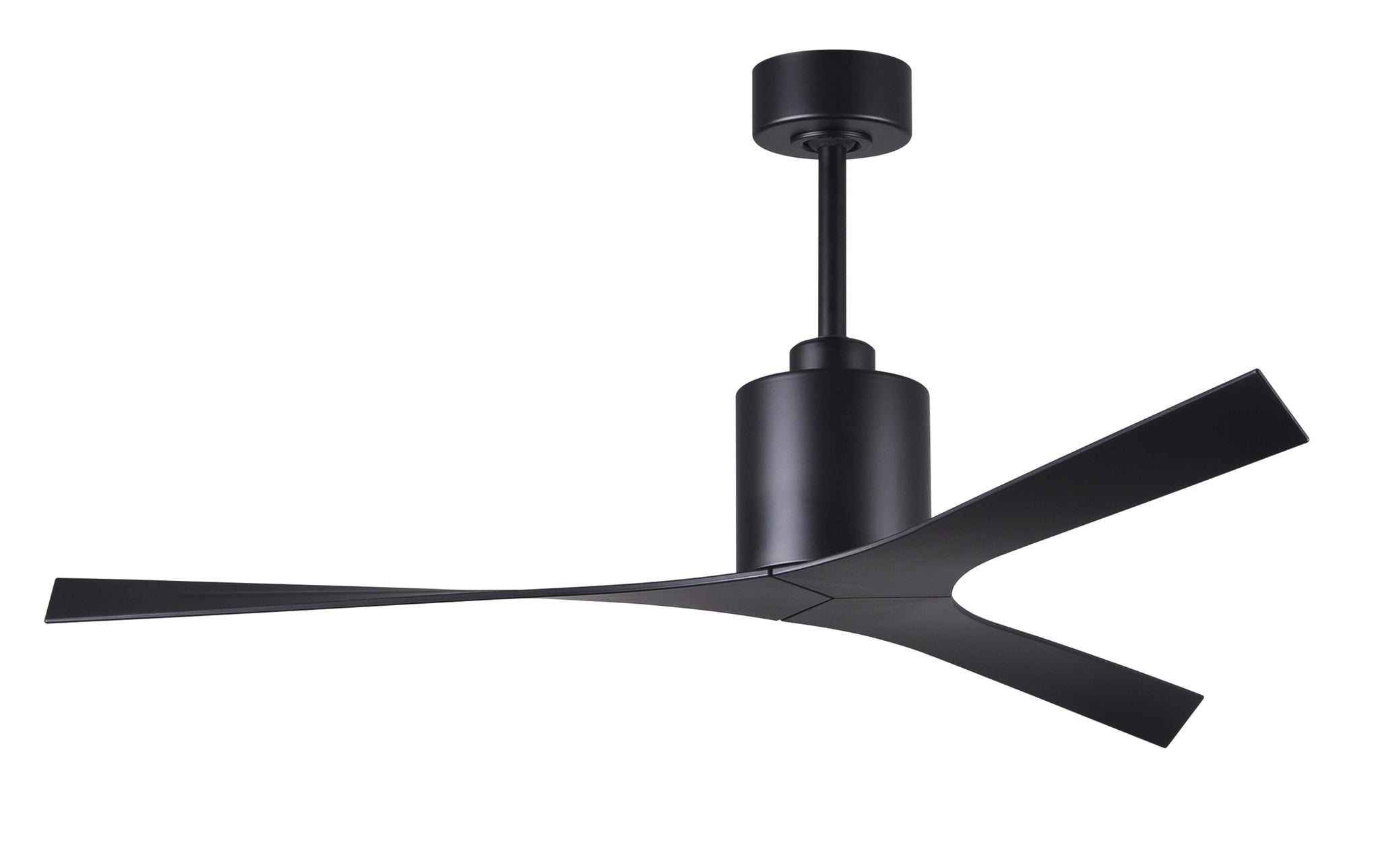

Molly - Ceiling Fan

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 56"

MK-BK-BK

Designed by Chicago architect Stephen Katz in 2018, the Molly ceiling fan combines modern organic geometry with outstanding performance and function. The blade shape was developed using advanced computer software which allowed the design to achieve complex forms. The result is a clean, natural and contemporary look perfect for any room or décor. Molly will compliment a variety of design styles while also providing a fresh and unique modern statement.

  • Suitable for fully exposed outdoor areas such as open decks, pergolas, and gazebos and designed to withstand all weather conditions
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Constructed of cast aluminum and heavy stamped steel.
  • Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
  • Hand-held remote and Decora-style wall-mounted 6-speed wireless controls included
  • Vaulted ceiling canopy for up to 30 degrees.
  • ABS All weather System protected blades.
Overview

Fan Diameter inches: 56 / centimeters: 142

Blade Material ABS

Overall Drop 12in / 30cm + downrod length

Downrod Lengths, Field cuttable, Non-threaded: inches: 5, 10, 18, 24, 36, 48, 60, 72 / centimeters: 13, 25, 46, 61, 92, 122, 153, 183

Fan Weight 17 lbs

Voltage 110 or 220

Motor Type DC

Environment Wet Location

Ambience Silent

Safety Certification ETL / CETL

Warranty Limited Lifetime

Motor Data

Fan Diameter

56 inches / 142 cm

RPM (Low / High)

49 / 113

CFM (Low / High)

1556 / 3651

Watt (High)

29.96

Blade Pitch

45°

CFM/Watt (High)

126

Standard Equipment

Downrods 10in - 25cm

Slant Ceiling Canopy 30°

Included Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

  • AAA Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • 6 Speed Control
  • Reverse
  • Wall Cradle Included
  • Dip-less 4,500 Channels

SKU AT-DC-WC-AK

  • A23 Battery (Included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • CCT Control
  • Dimmable
  • 6 Speed Control
  • Reverse
  • Wireless
  • 3-Way Compatible
