Melody - Wall Fan

ME-BK

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 13"

Suitable for Outdoor Damp Locations

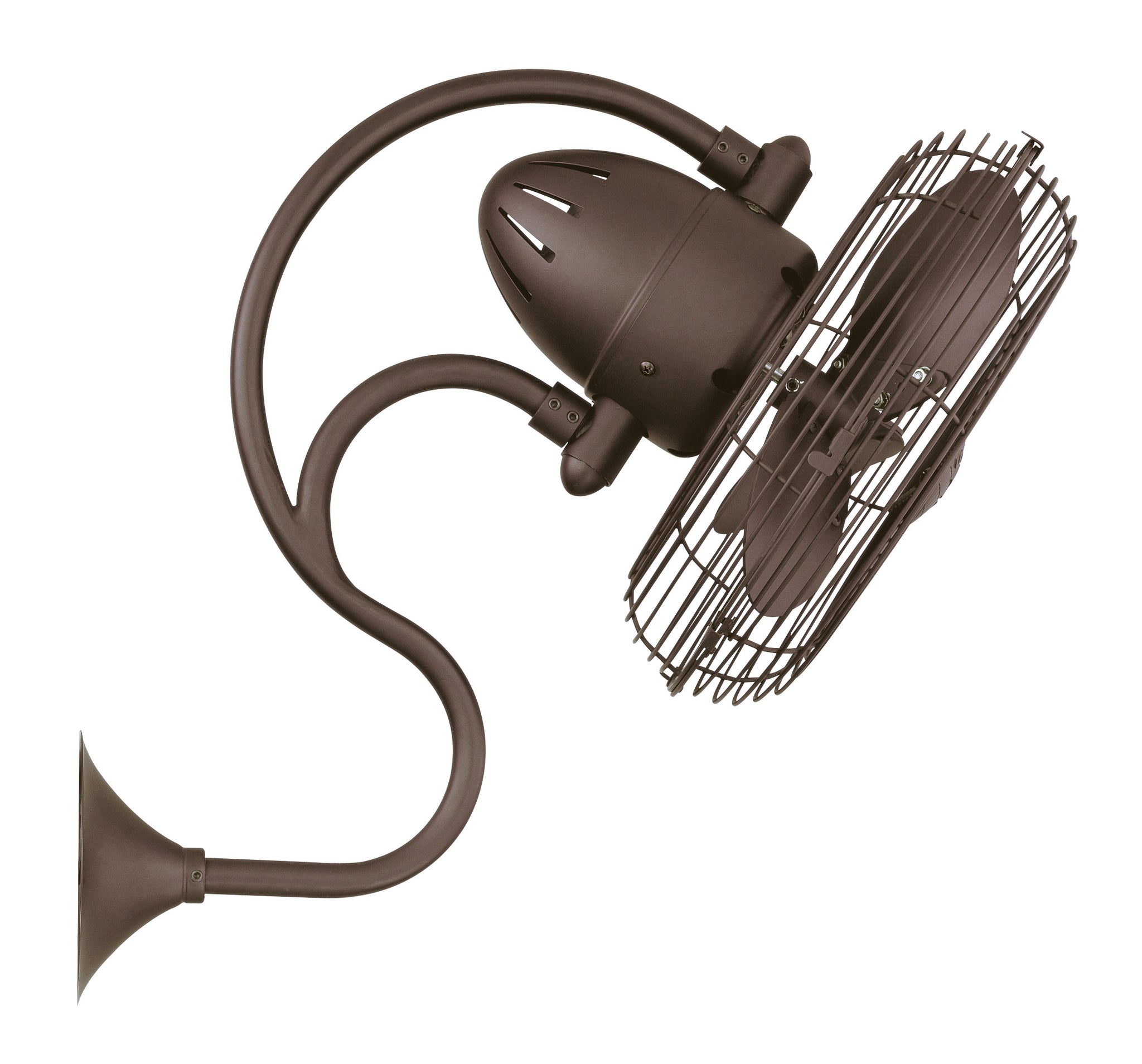

The Melody oscillating, 3-speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching gooseneck, provides maximum multi-directional airflow. Melody can be mounted in small, awkward spaces or in front of HVAC ducts to make more efficient the heating, ventilation or air conditioning of any space.

  • Blades are finished the same as the housing and component parts
  • Constructed of cast aluminum and heavy stamped steel
  • A three-wire system is needed to operate the oscillation mechanism independent of the fan blades
  • 3-speed Decora style white wall control included
  • Side-mounted wall junction box
  • IP20
  • 0.5 AMP
  • 90 degrees oscillation
Overview

Fan Diameter inches: 13, centimeters: 33

Fan Height inches: 20, centimeters: 51

Fan Projection inches: 20, centimeters: 51

Fan Weight 14 lbs

Voltage 110 or 220

Motor Type AC

Environment Damp location

Ambience Soothing White Noise

Safety Certification ETL / CETL

Warranty Limited Lifetime

Specifications
Fan Diameter 13 inches / 33 cm
RPM (Low / High) 1213 / 1495
CFM (Low / High) 868 / 1303
Watt (High) 47.68
Blade Pitch 31°
CFM/Watt (High) 48
Standard Equipment

Included Wall Control

SKU AT-AC-WC-ME

Requires three-wire system

  • 3-speed
  • Oscillation On/Off

Safety Cage

Wall Mounting Bracket

Note: 1) A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.

Optional Remote

SKU AT-RC-AC-DI

  • A23 Batteries (included)
  • Frequency 110V - 304Mhz
  • Frequency 220V - 434Mhz
  • Wall Cradle Included
  • Oscillation On/Off
