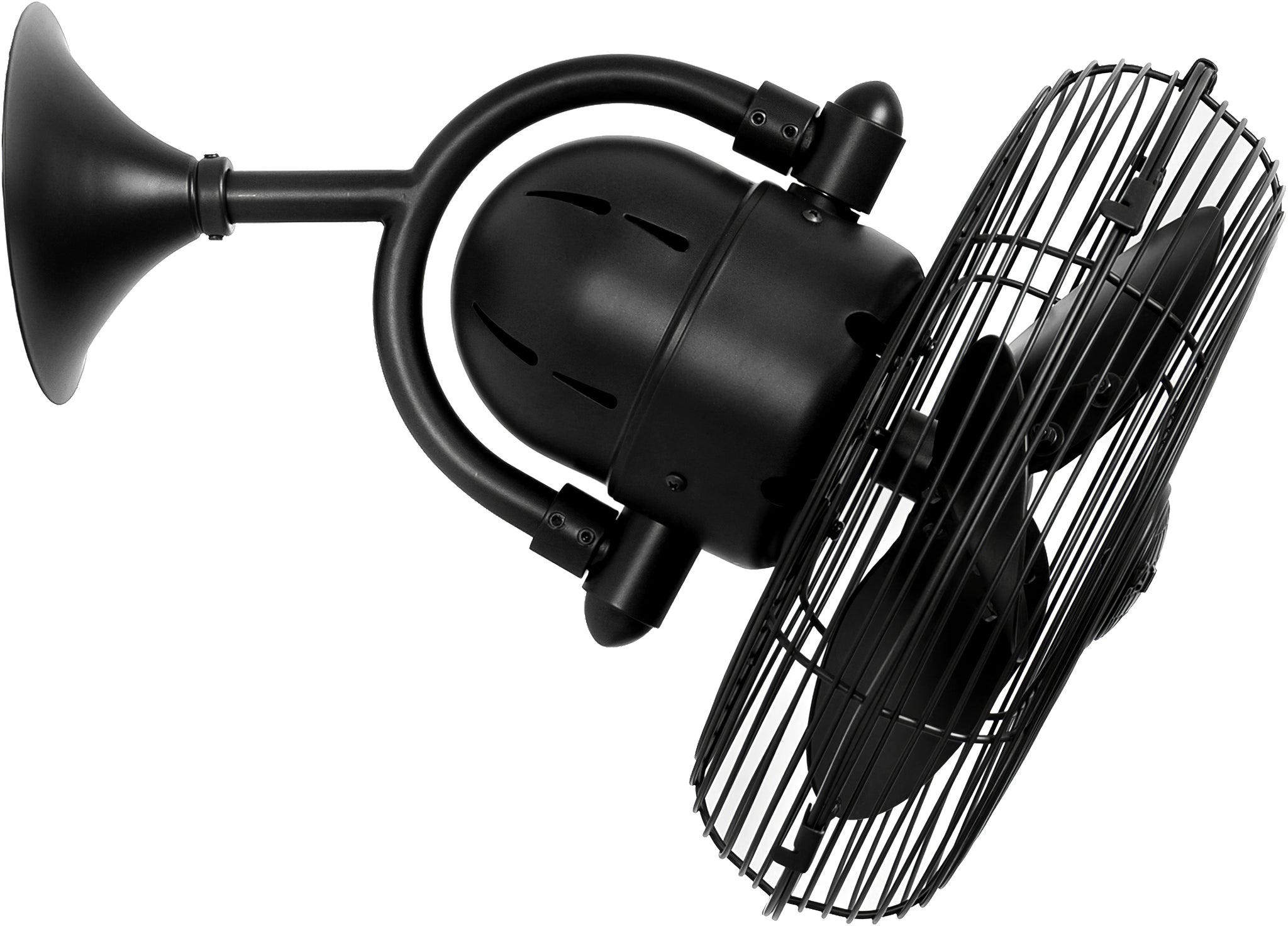

Kaye - Ceiling Fan / Wall Fan

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 13"

KC-BK

The beautiful Kaye forward and reverse oscillation, 3-speed versatile-mount, wall or ceiling fan, reminiscent of train cabin ventilators of yester-year, will cool down your favorite space with poise and determination. Kaye's profile is low, however it's strength and character define it. Kaye can be mounted in small or awkward spaces or in front of HVAC ducts to make more efficient the heating, ventilation or air conditioning of your favorite space.

  • Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
  • Quiet operation with a soothing white-noise effect
  • Blades are finished the same as the housing and component parts
  • Constructed of cast aluminum and heavy stamped steel
  • A three-wire system is needed to operate the oscillation mechanism independent of the fan blades
  • 3-speed Decora style white wall control included
  • Side-mounted wall junction box
  • IP20
Overview

Fan Diameter inches: 13 / centimeters: 33

Fan Height inches: 13 / centimeters: 33

Fan Projection inches: 17.5 / centimeters: 44

Ceiling Mount Overall Drop 17.5 inches / 44 cm

Fan Weight 10.5 lbs

Voltage 110 or 220

Motor Type AC

Environment Damp location

Ambience Soothing White Noise

Safety Certification ETL / CETL

Warranty Limited Lifetime

Motor Data
Fan Diameter 13 inches / 33 cm
RPM (Low / High) 1213 / 1495
CFM (Low / High) 868 / 1303
Watt (High) 47.68
Blade Pitch 31°
CFM/Watt (High) 29
Standard Equipment

Included Wall Control


SKU AT-AC-WC-ME

Requires three-wire system

  • 3-speed
  • Oscillation On/Off

Safety Cage

Wall / Ceiling Mounting Bracket

Note:

1) A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.

Technical Diagram

Kaye Diagram
