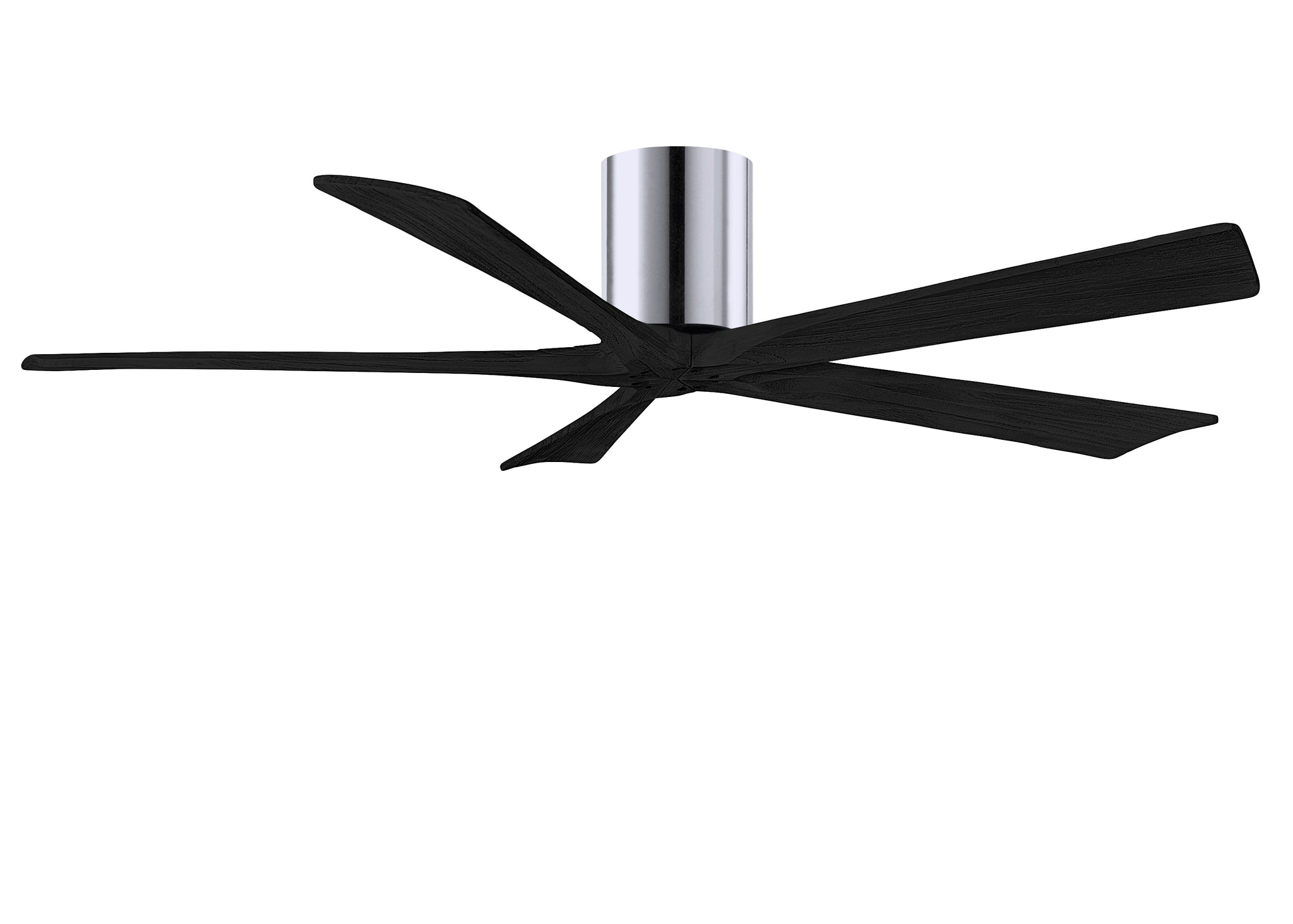

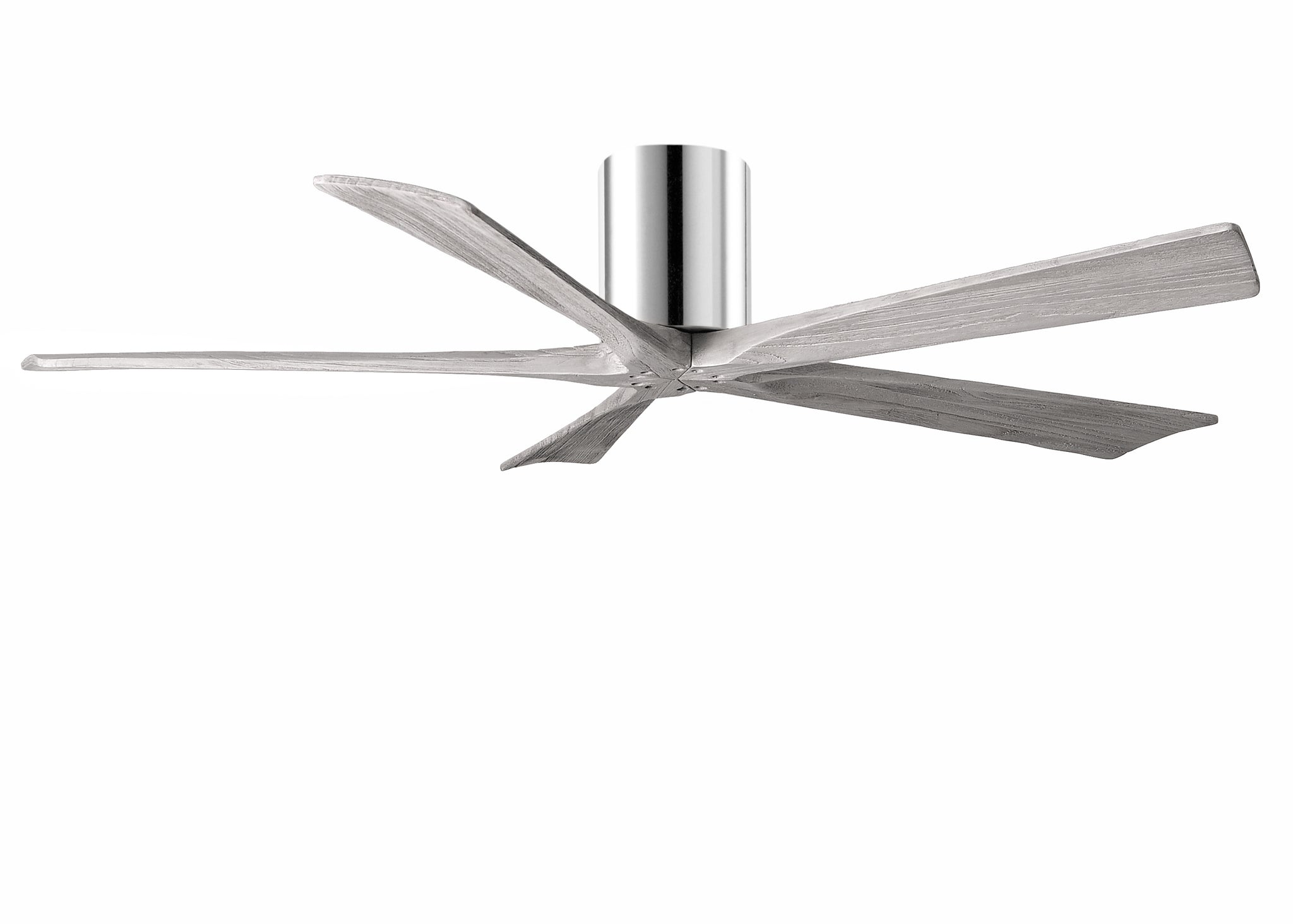

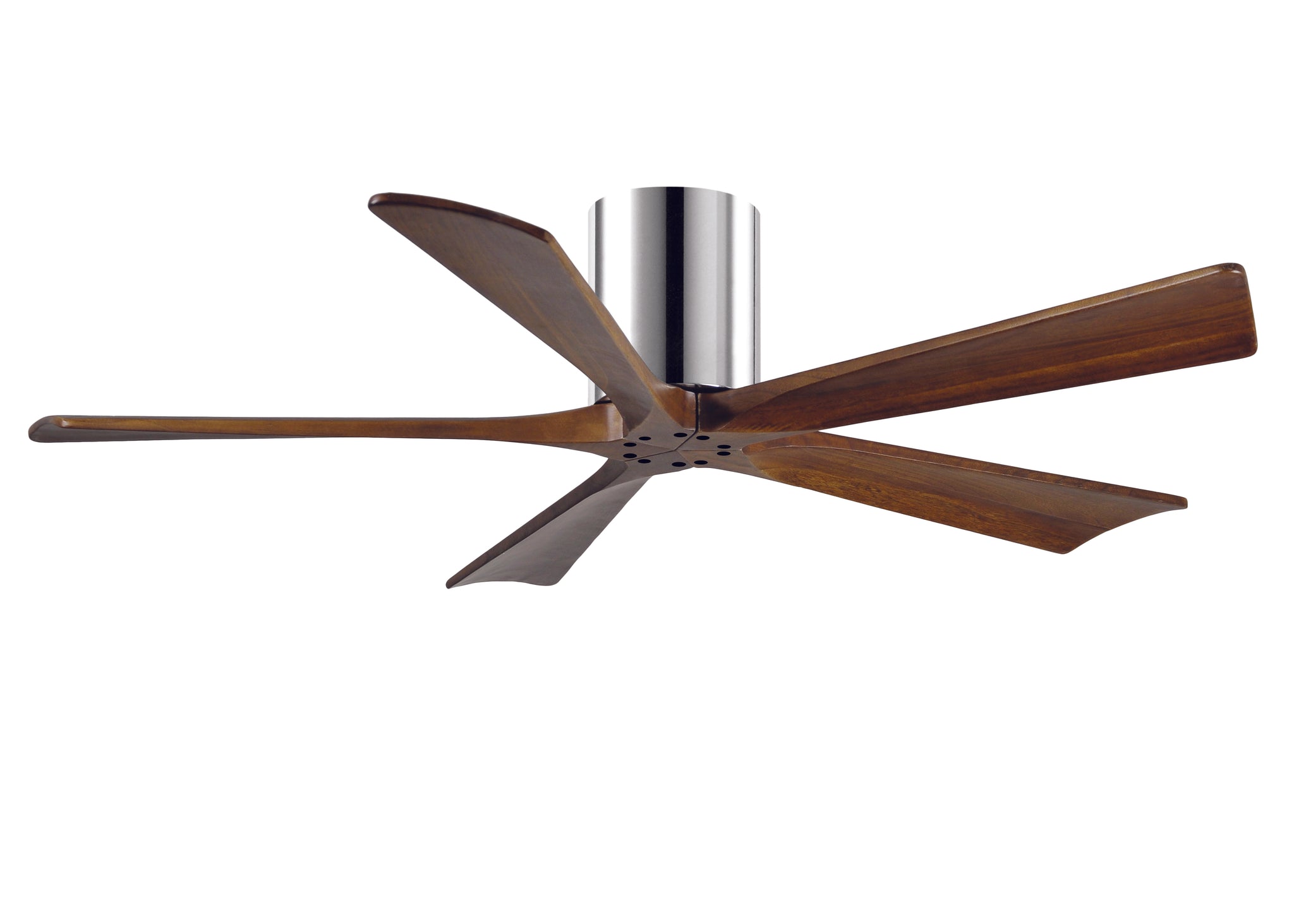

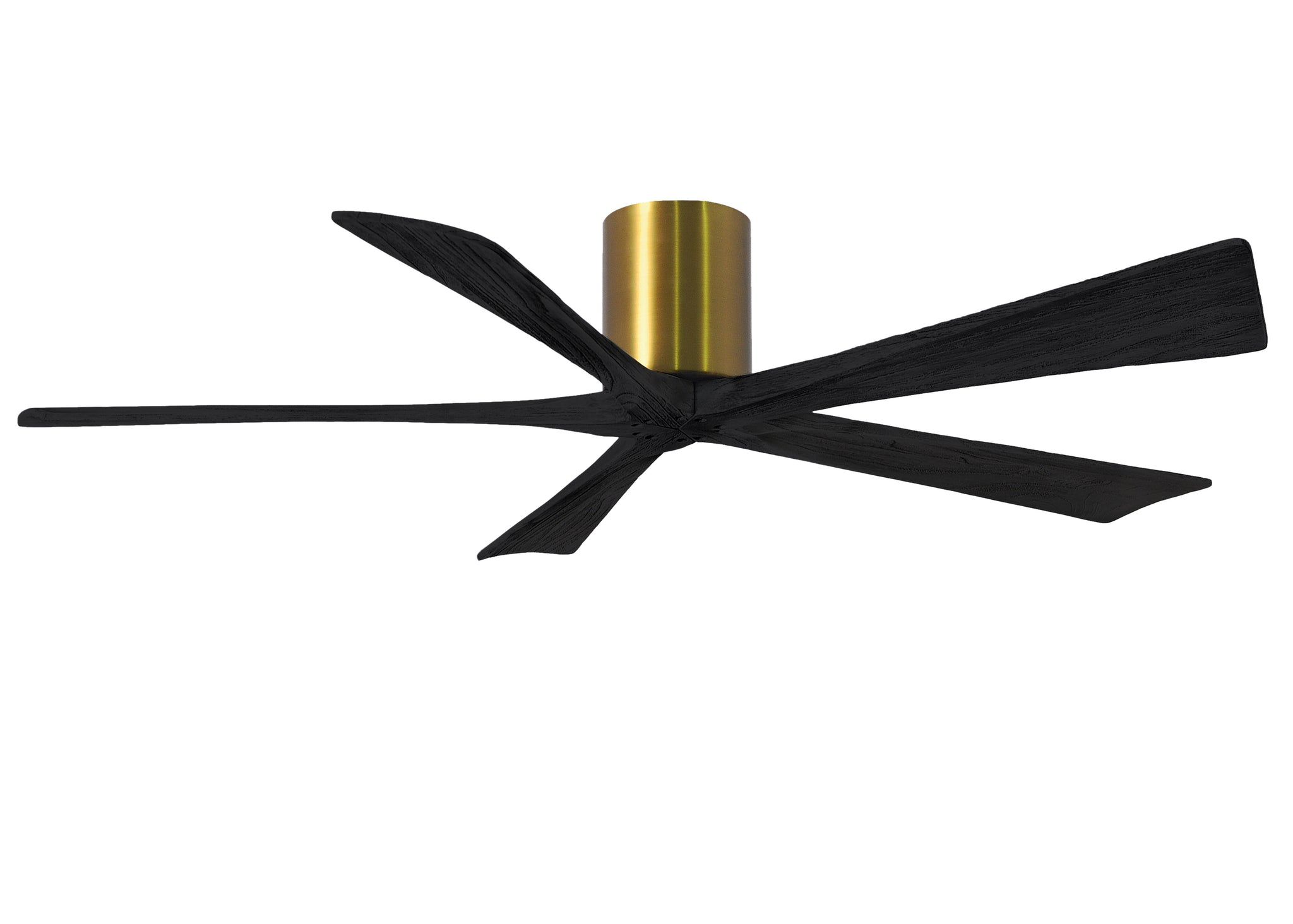

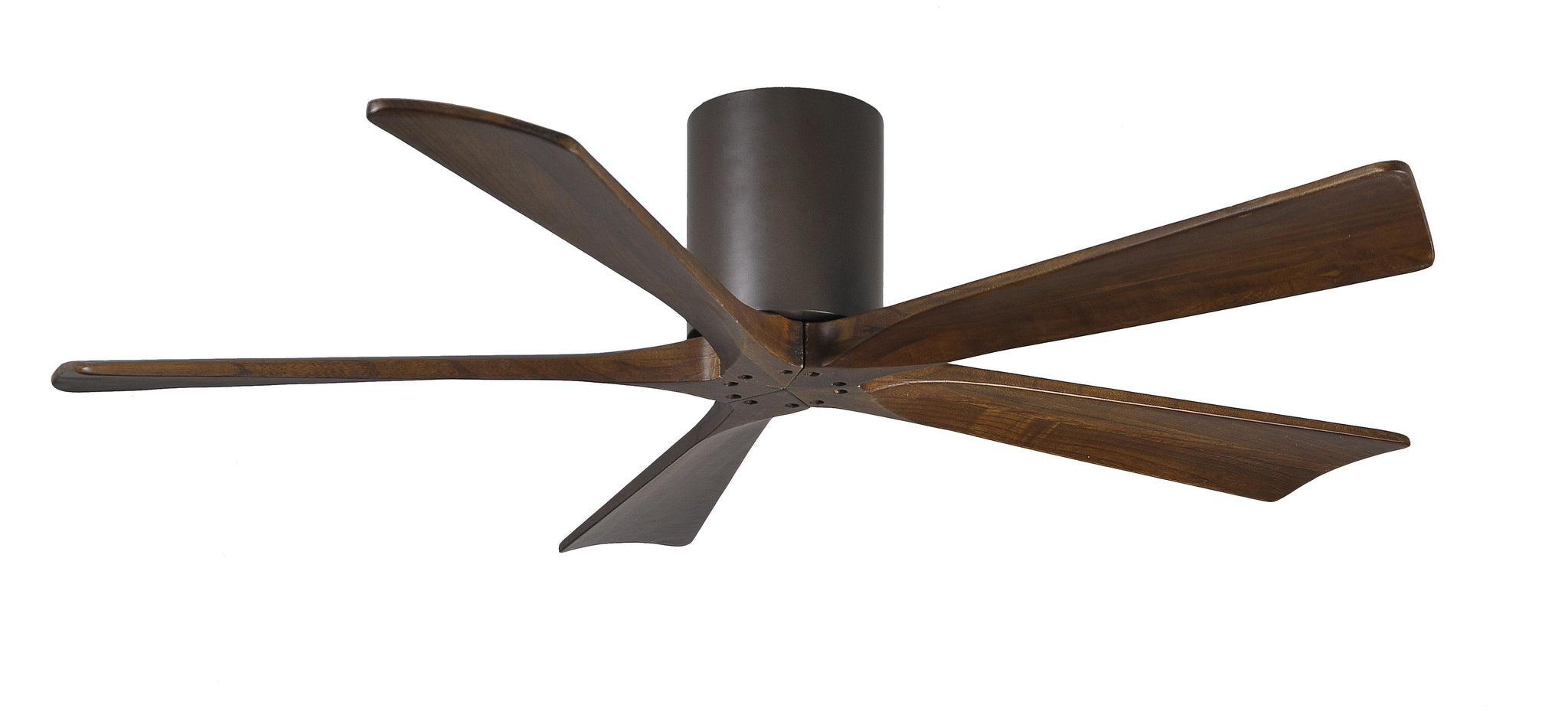

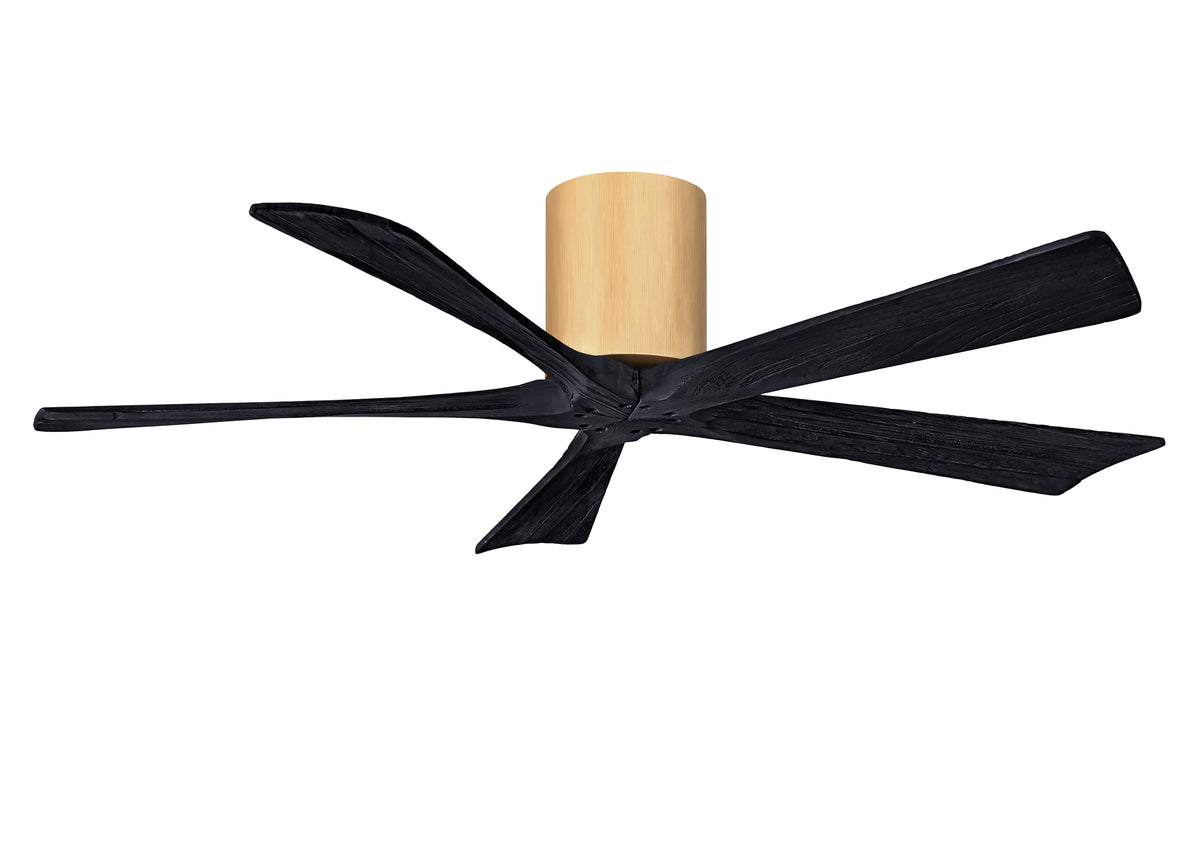

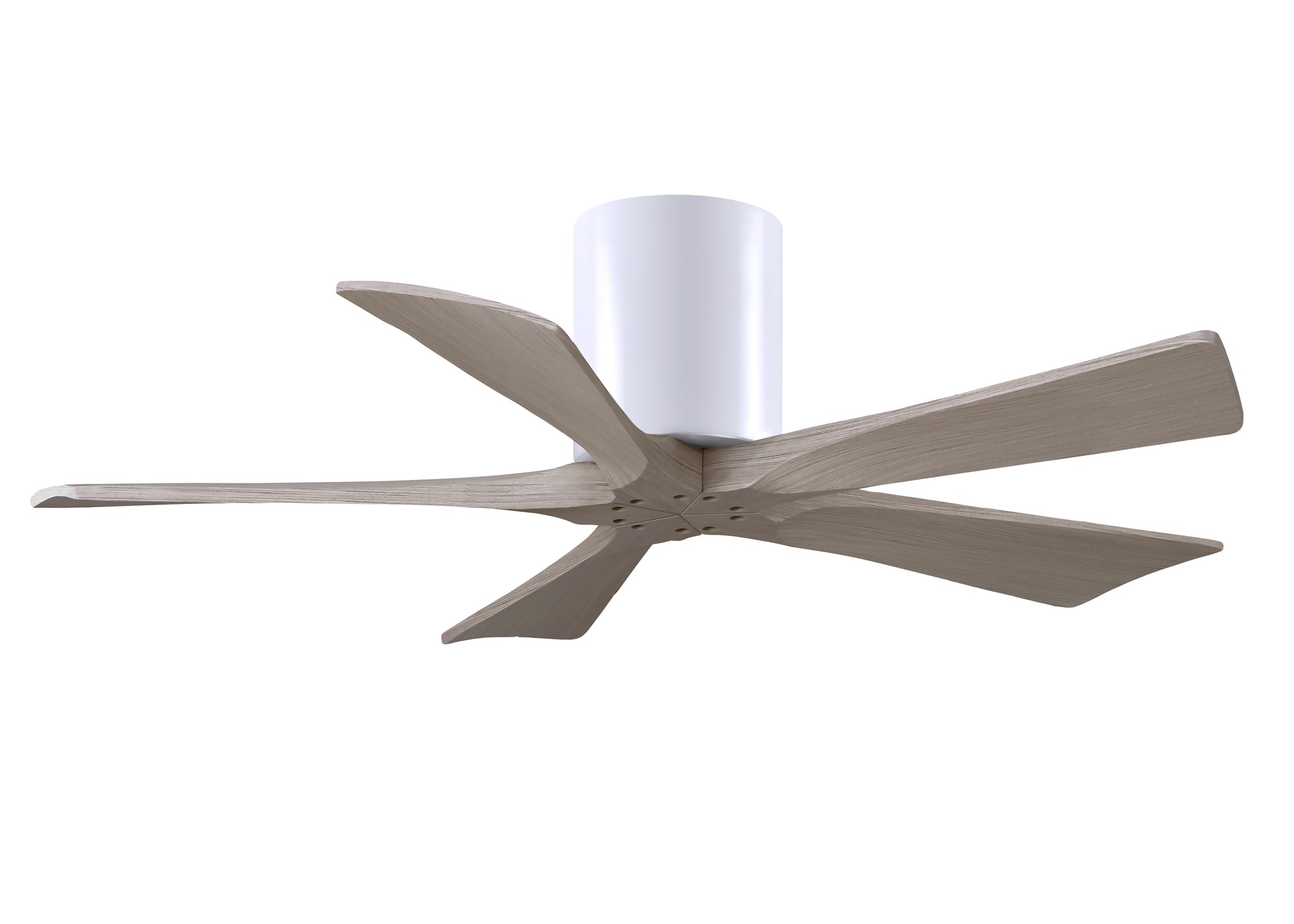

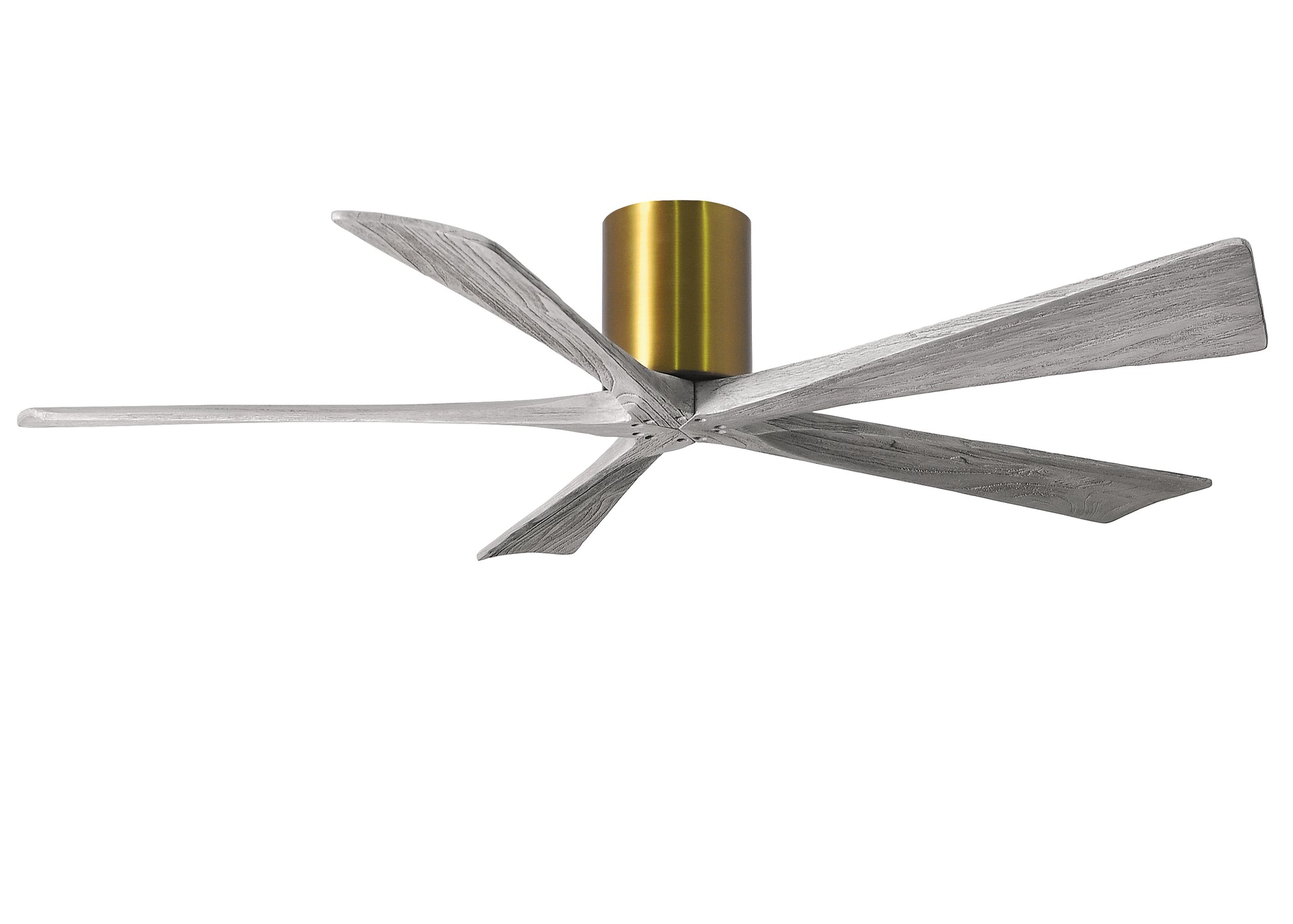

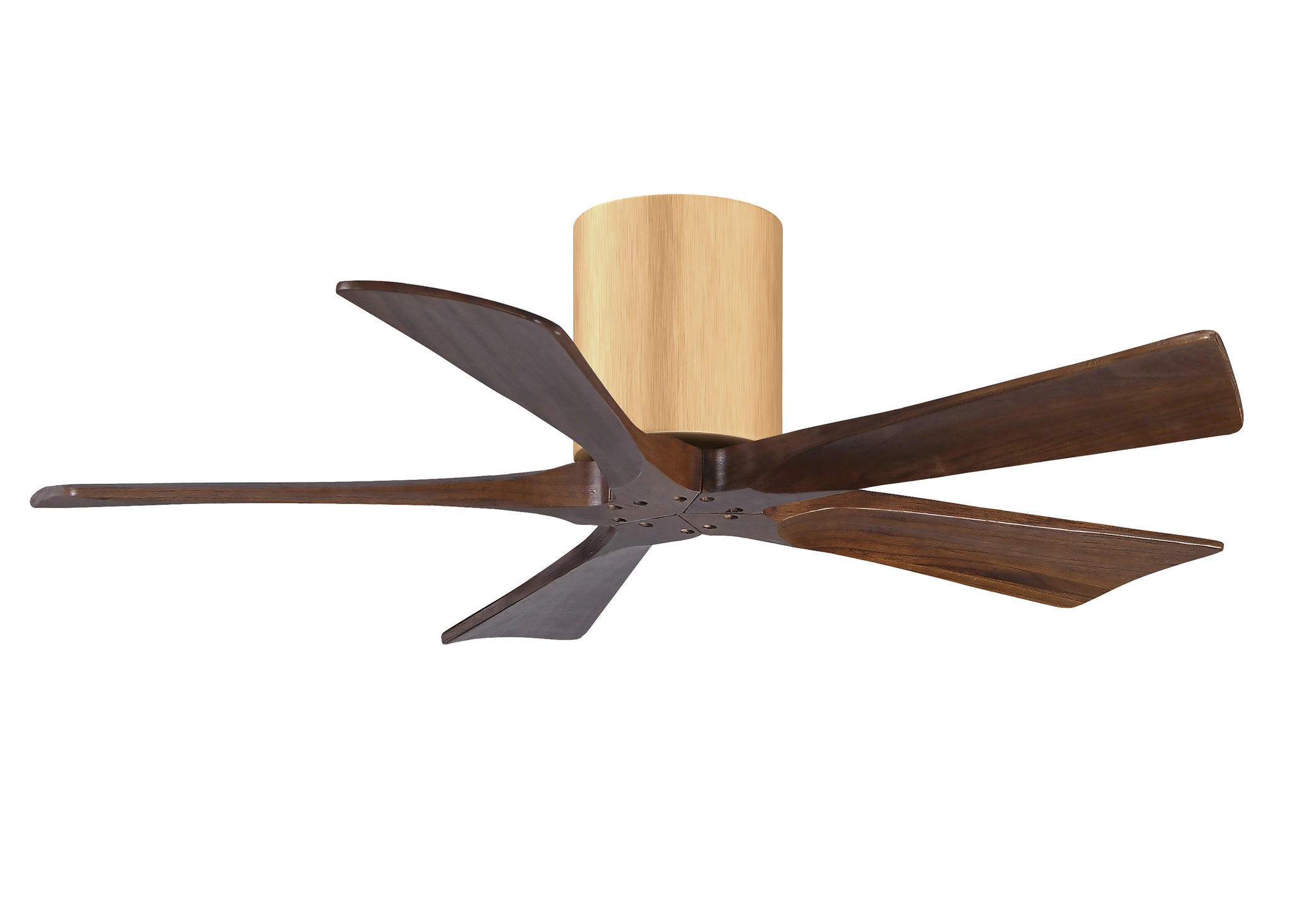

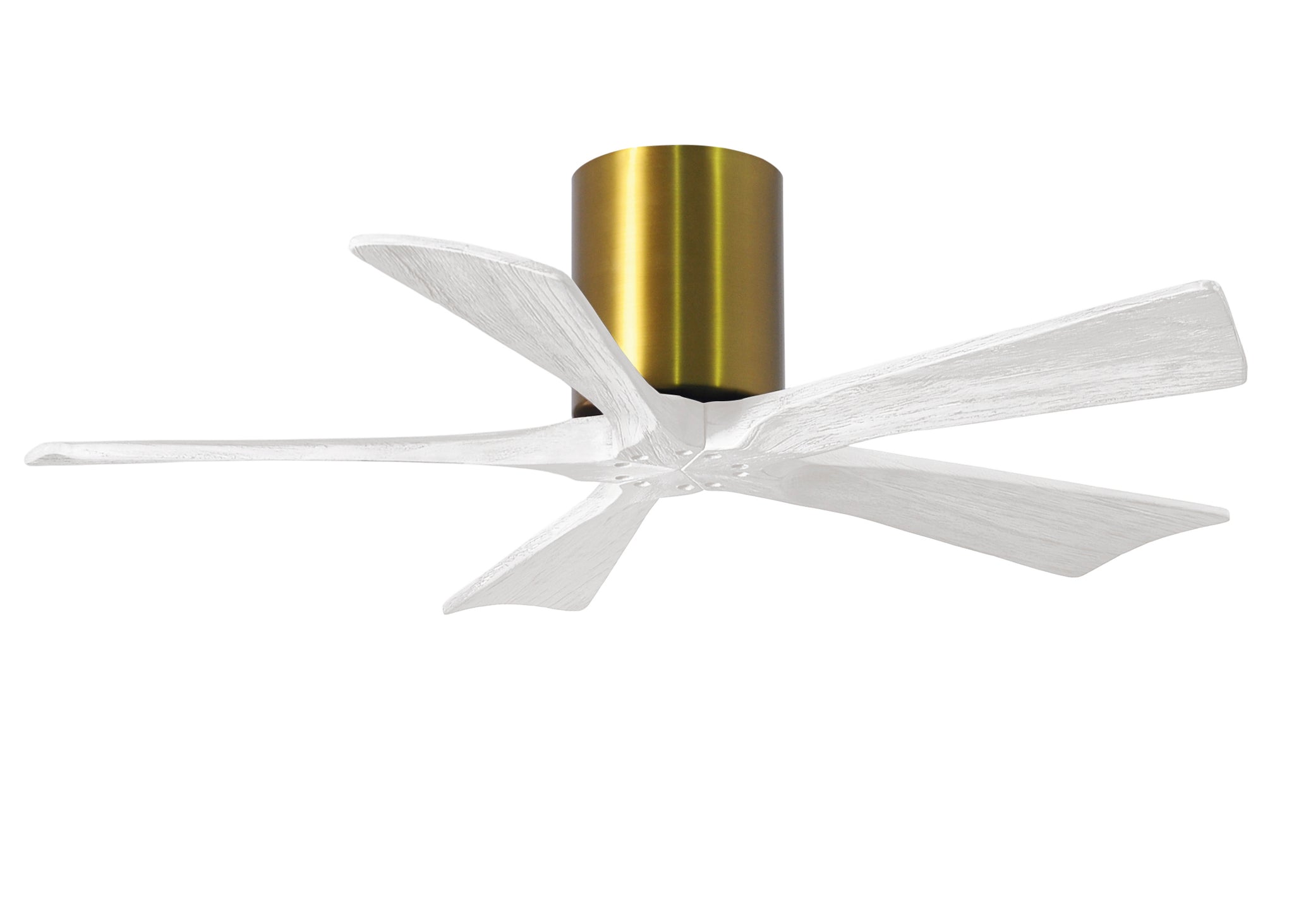

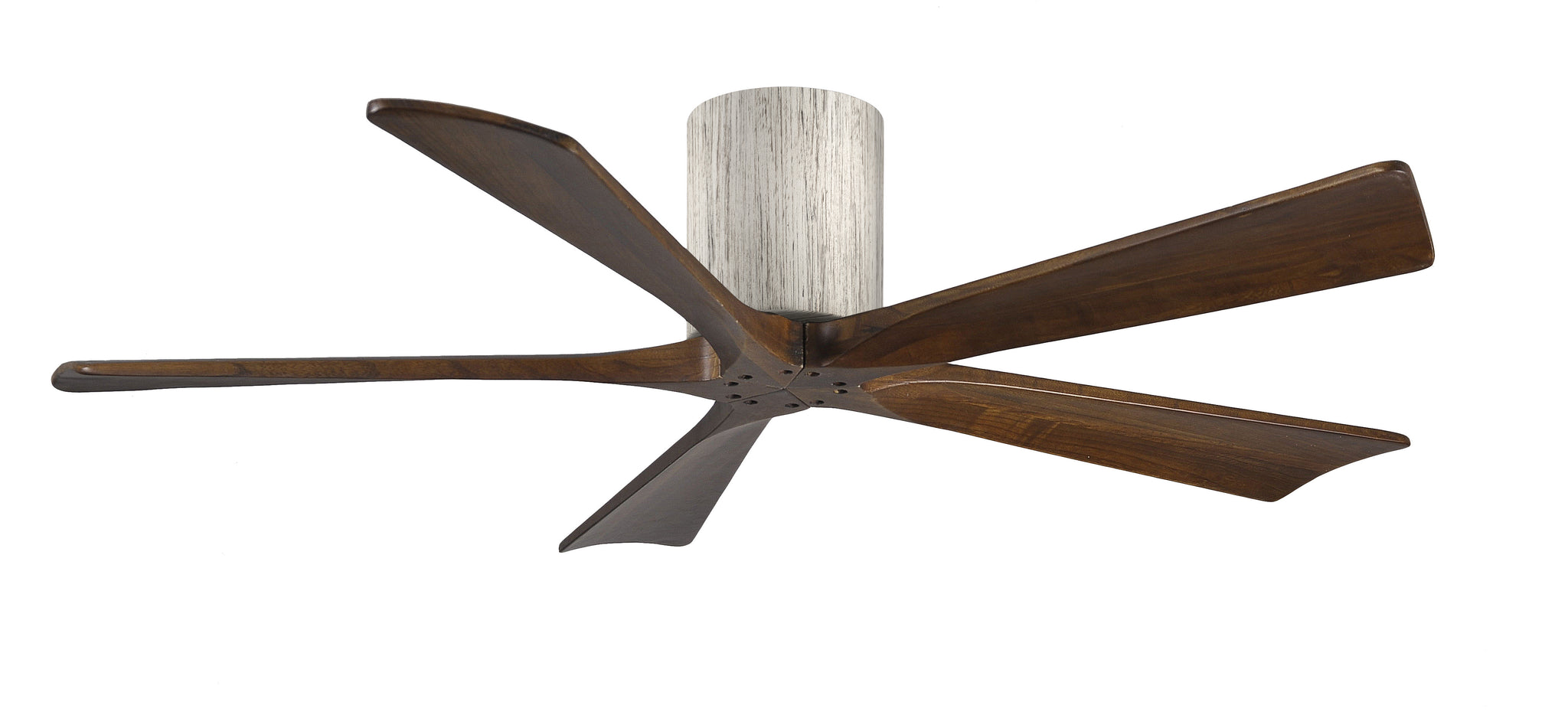

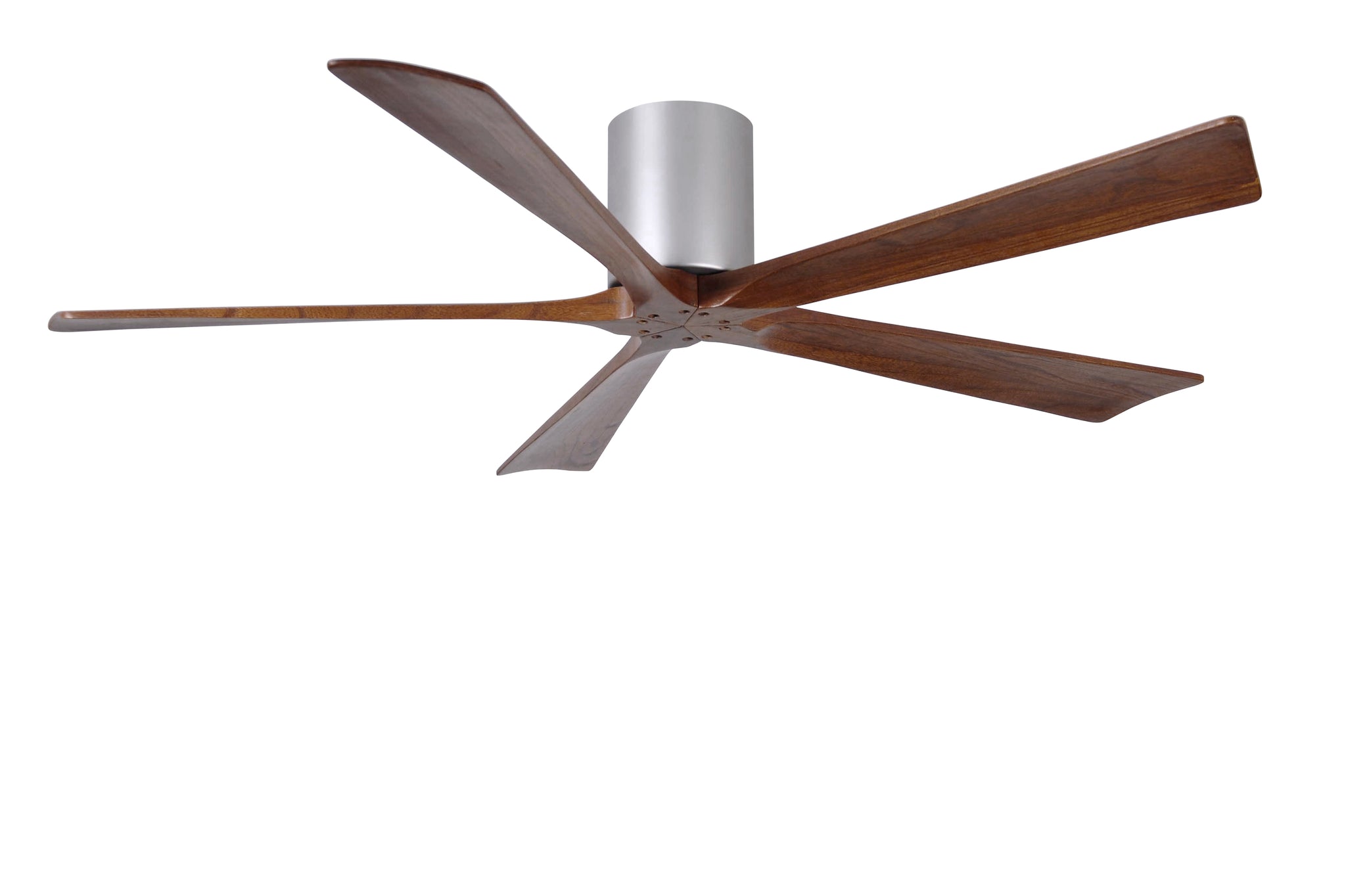

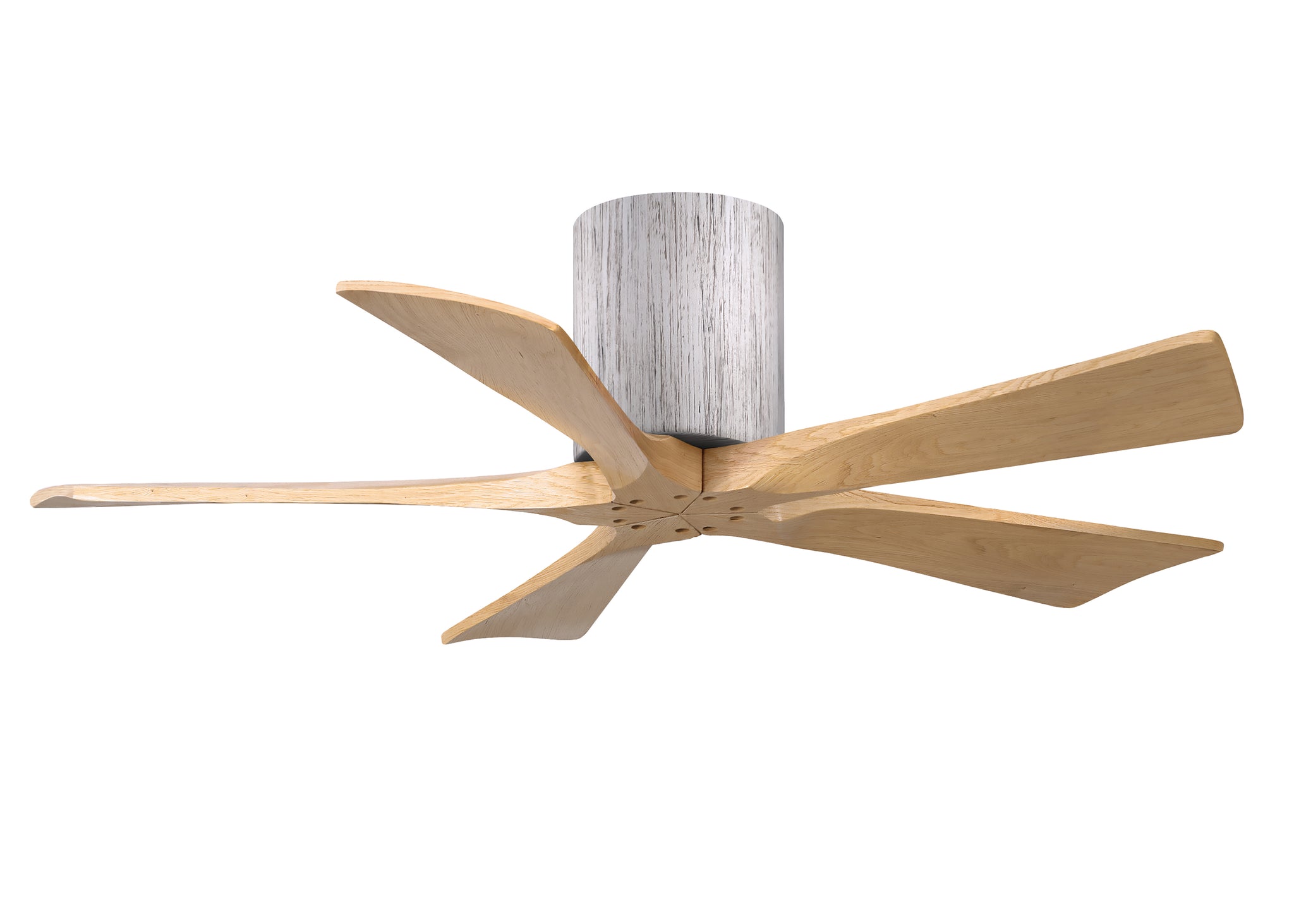

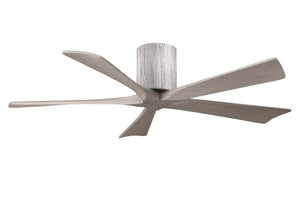

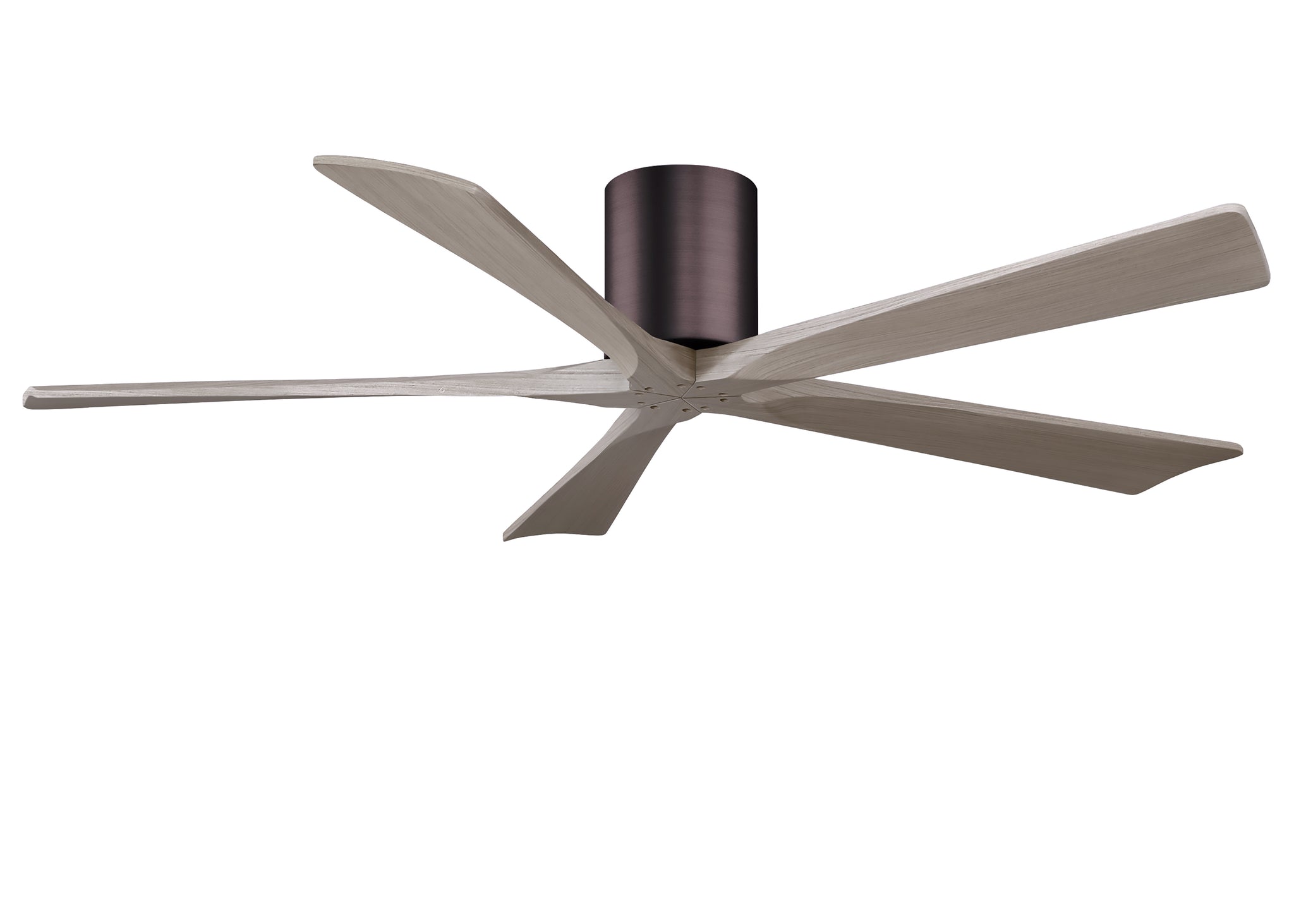

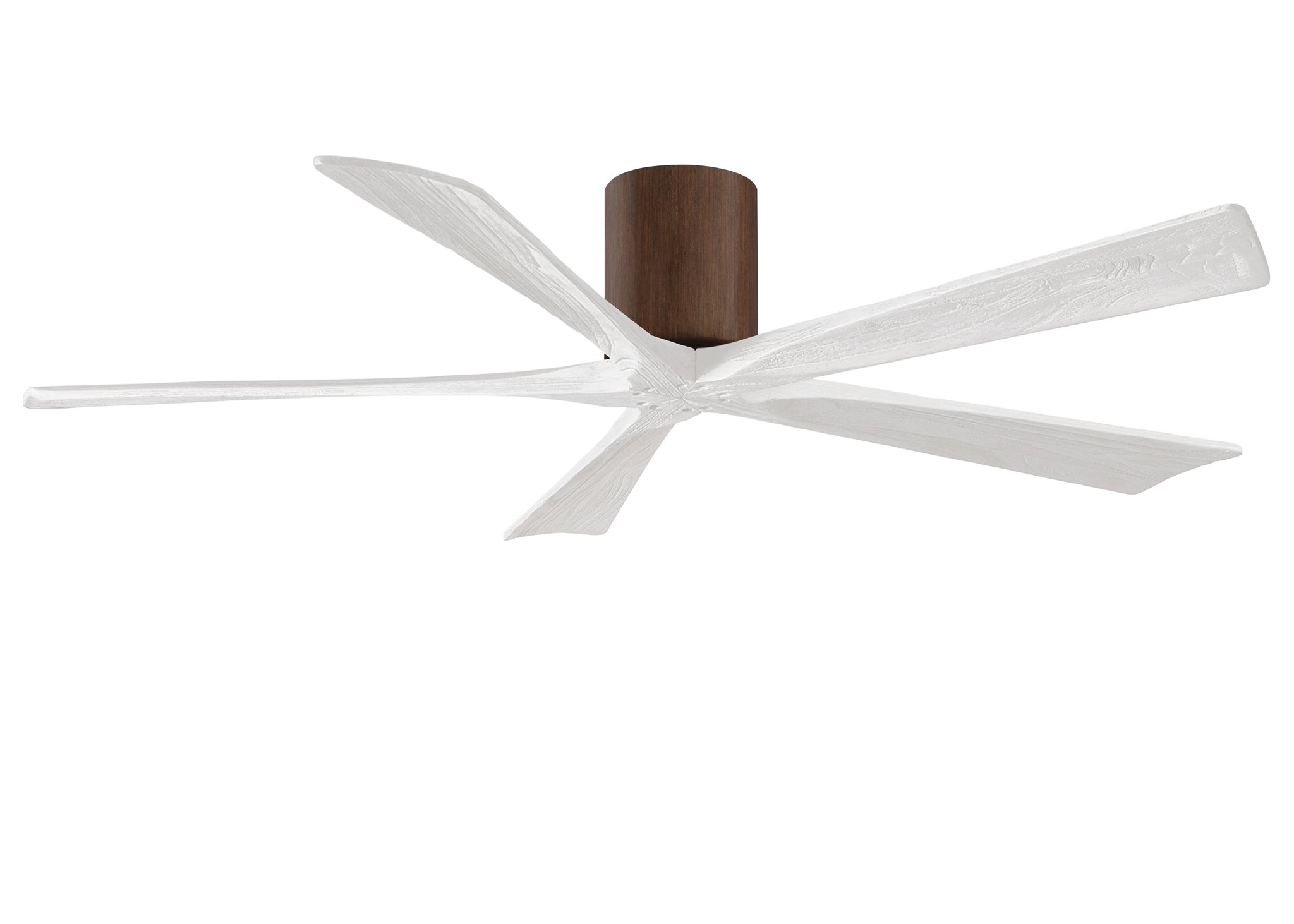

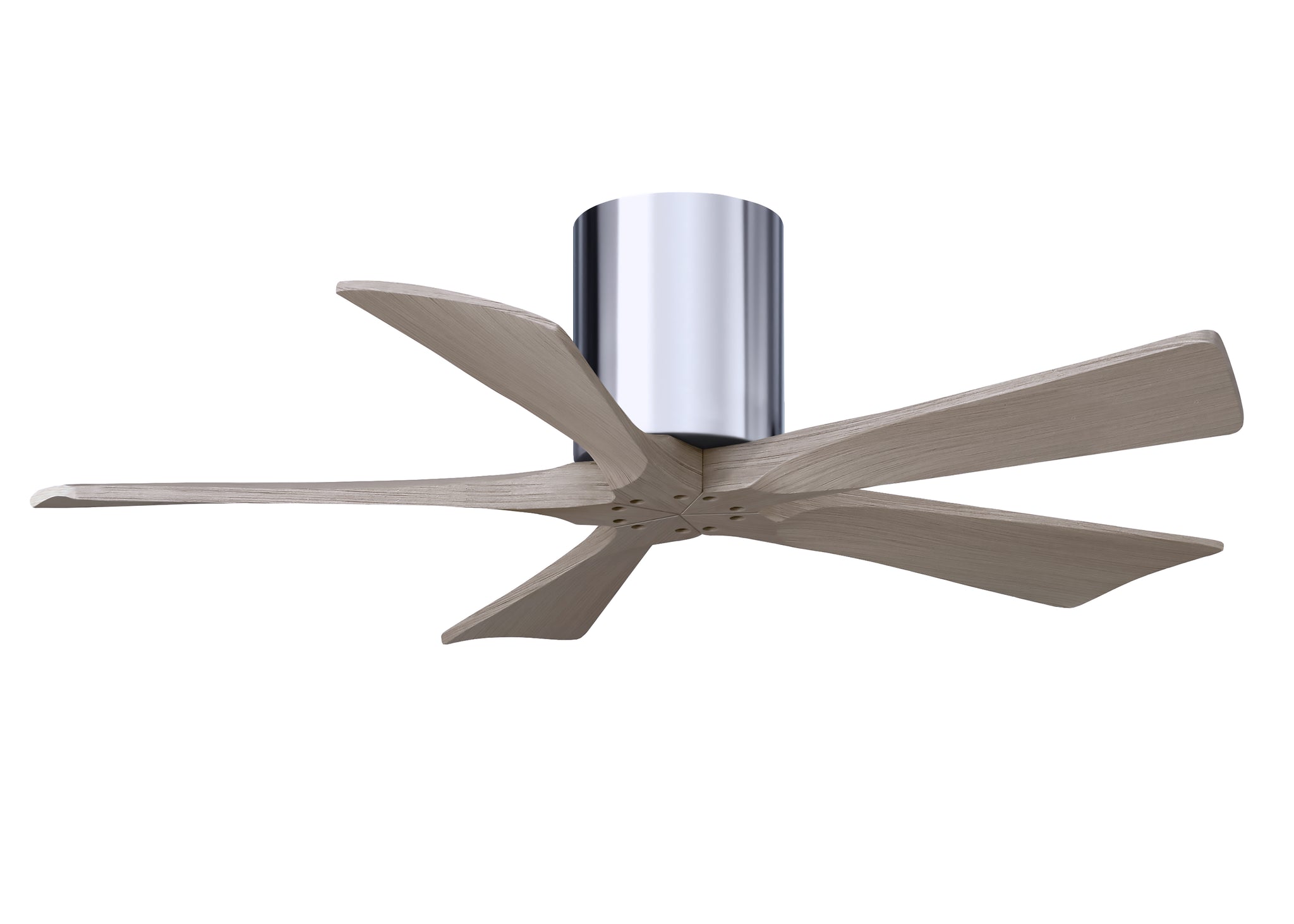

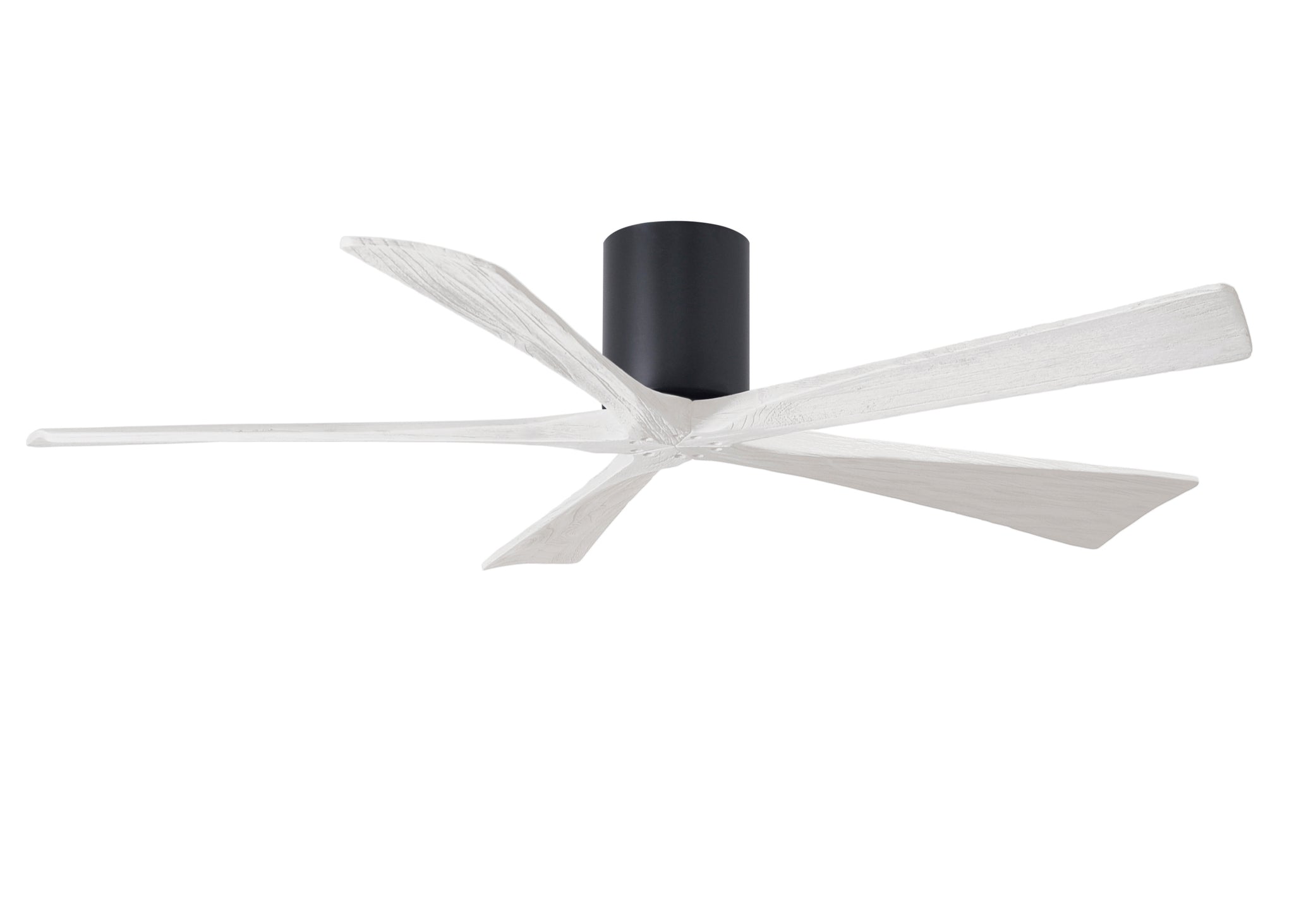

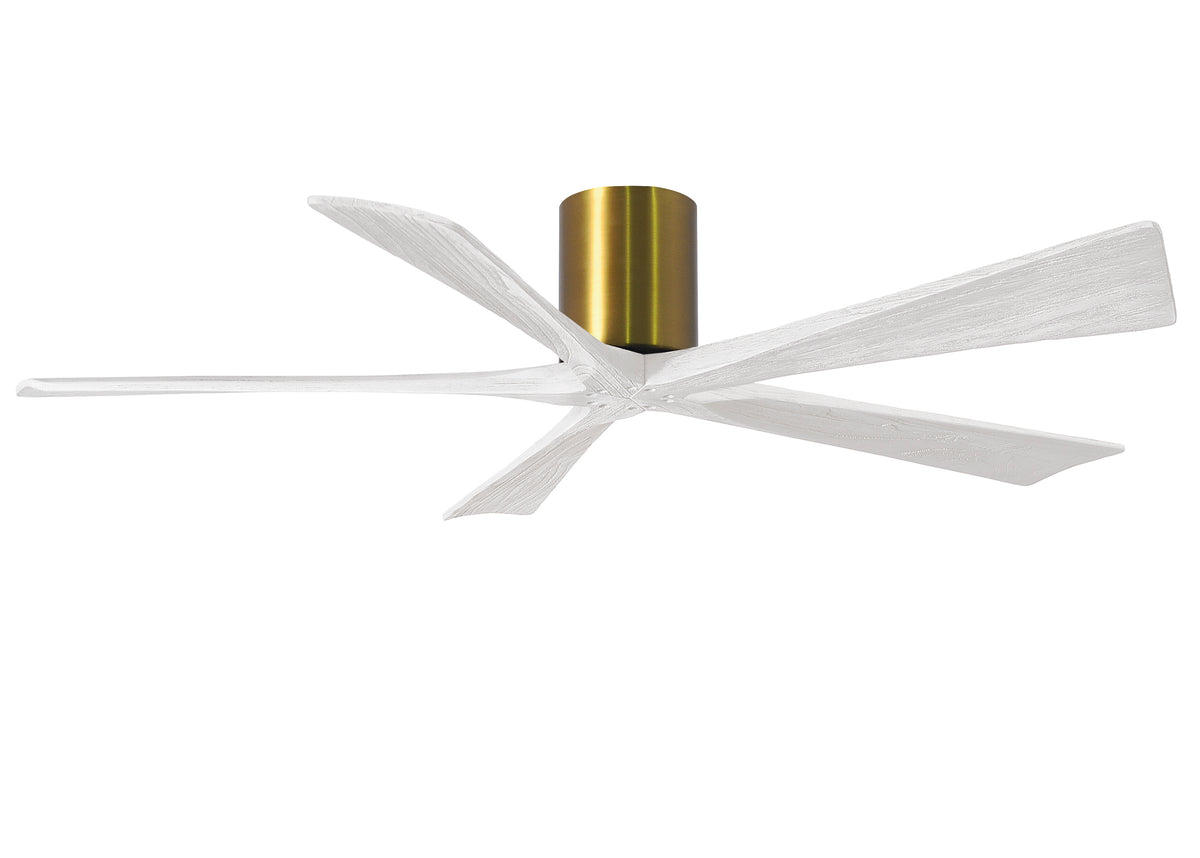

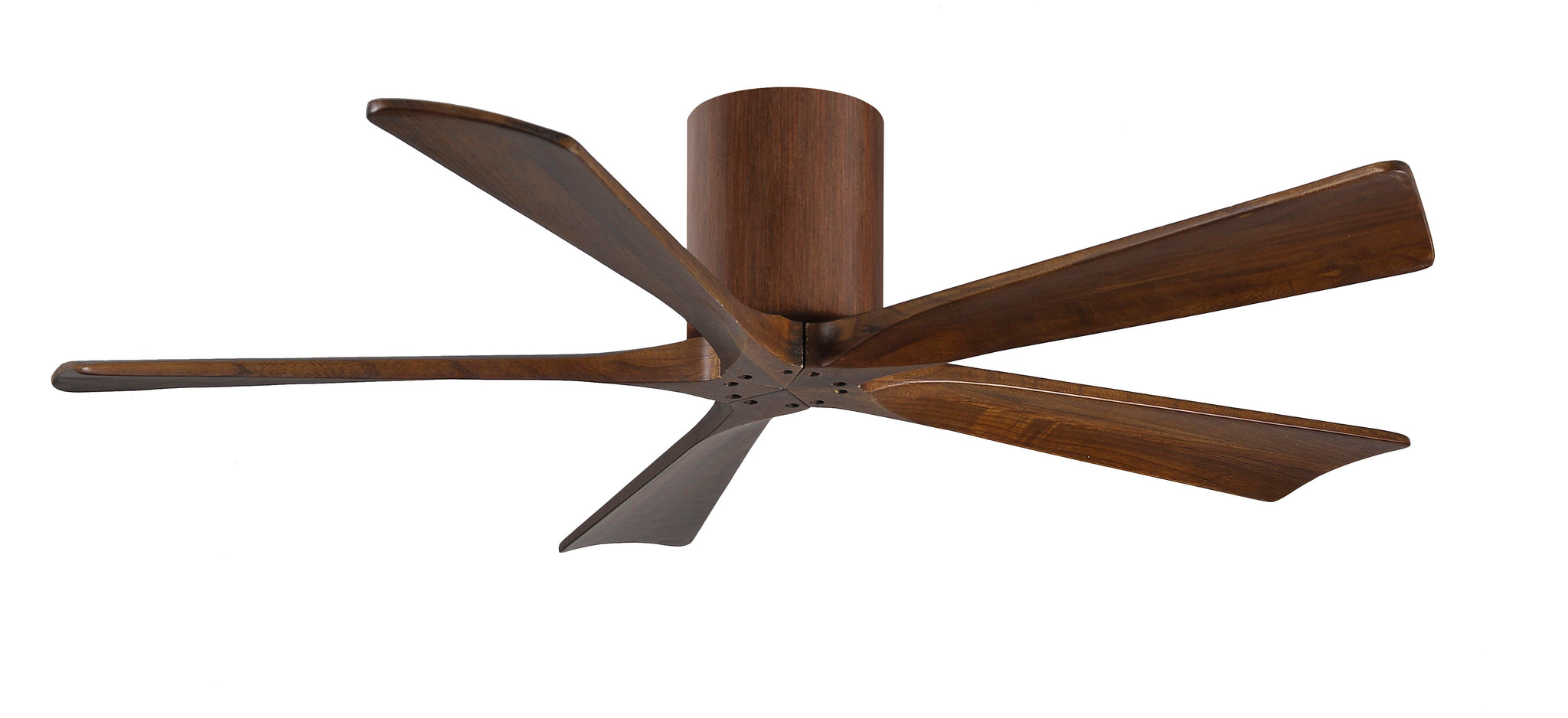

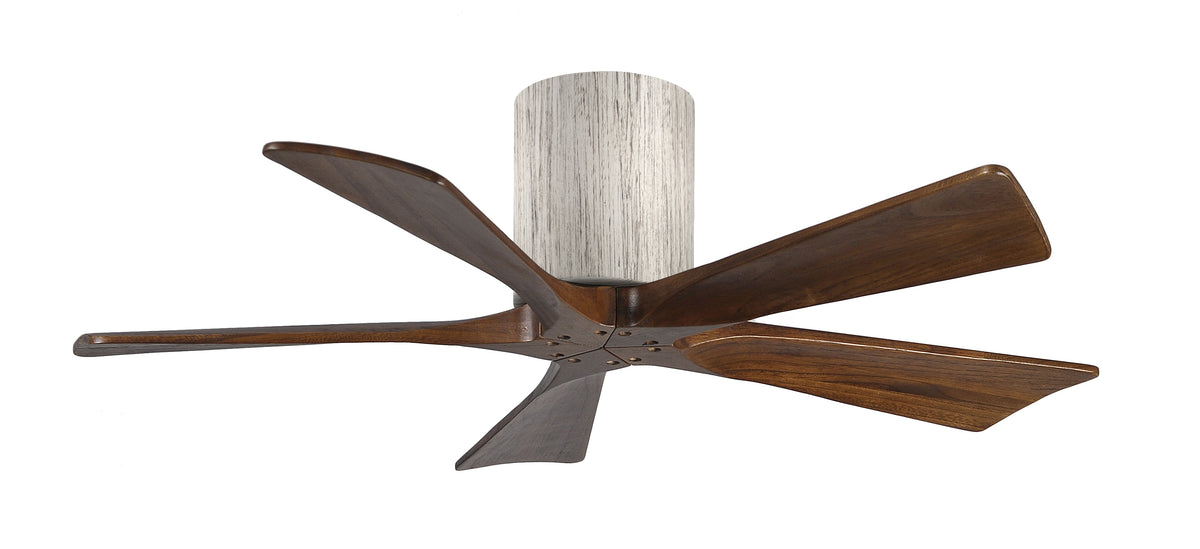

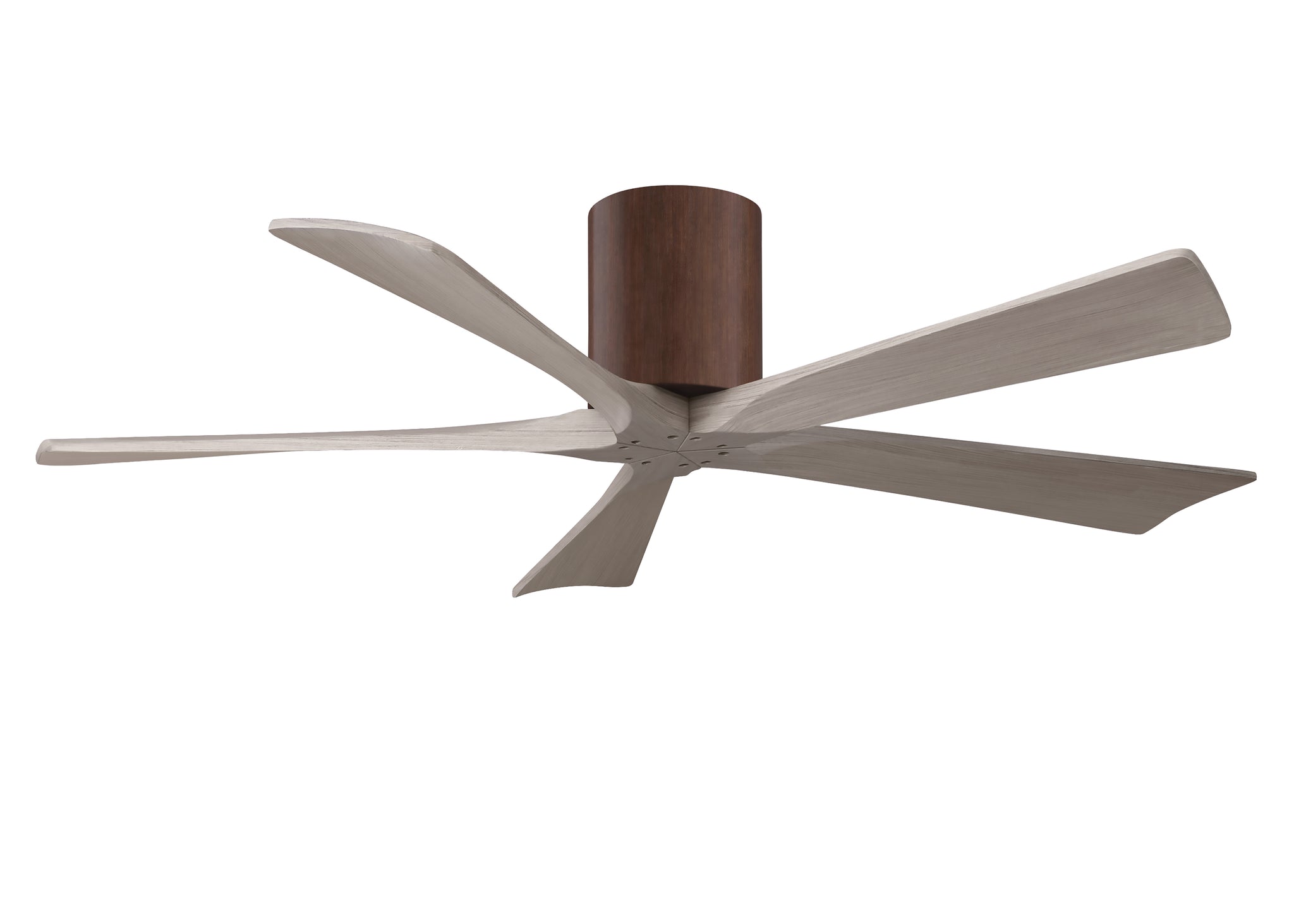

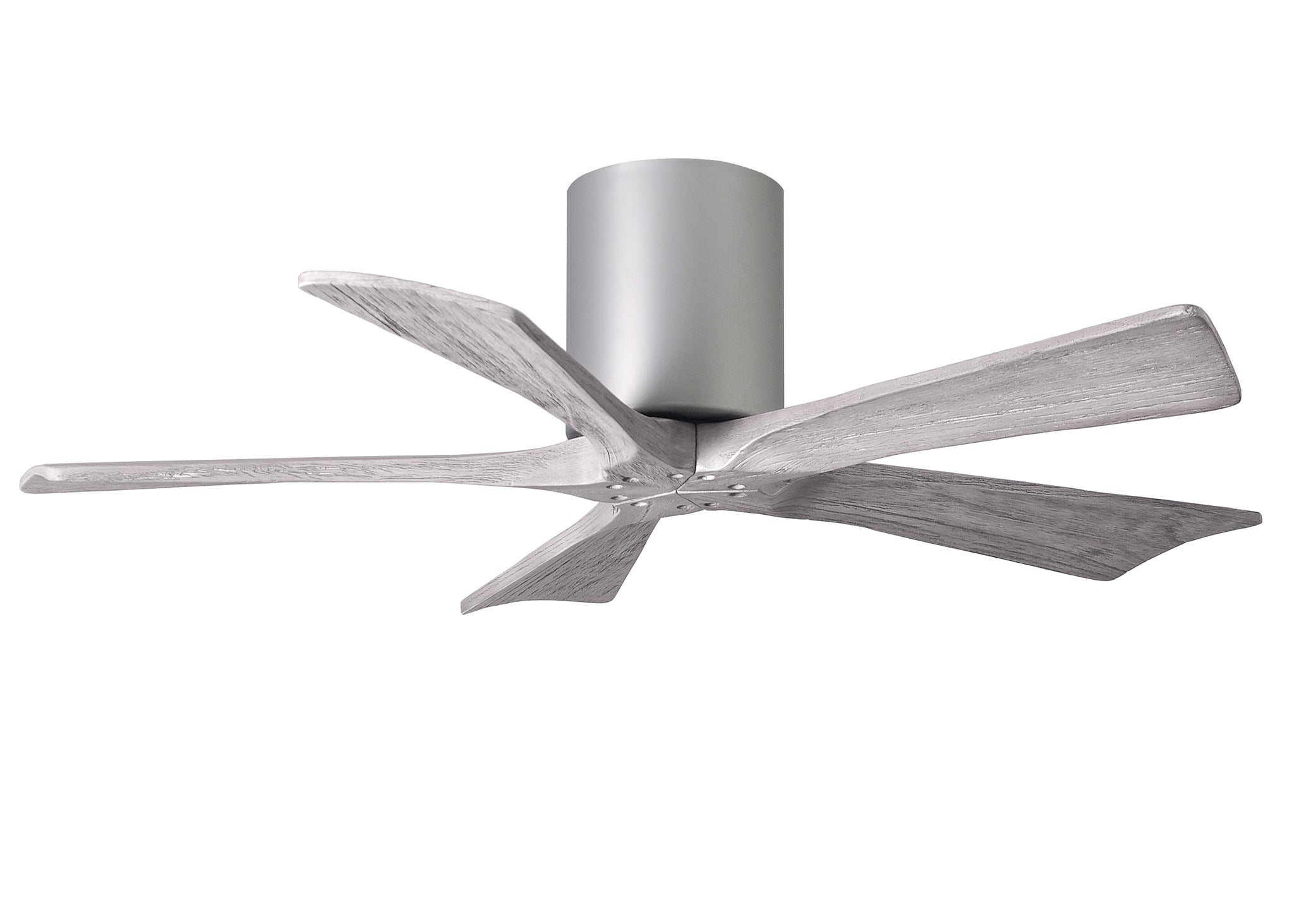

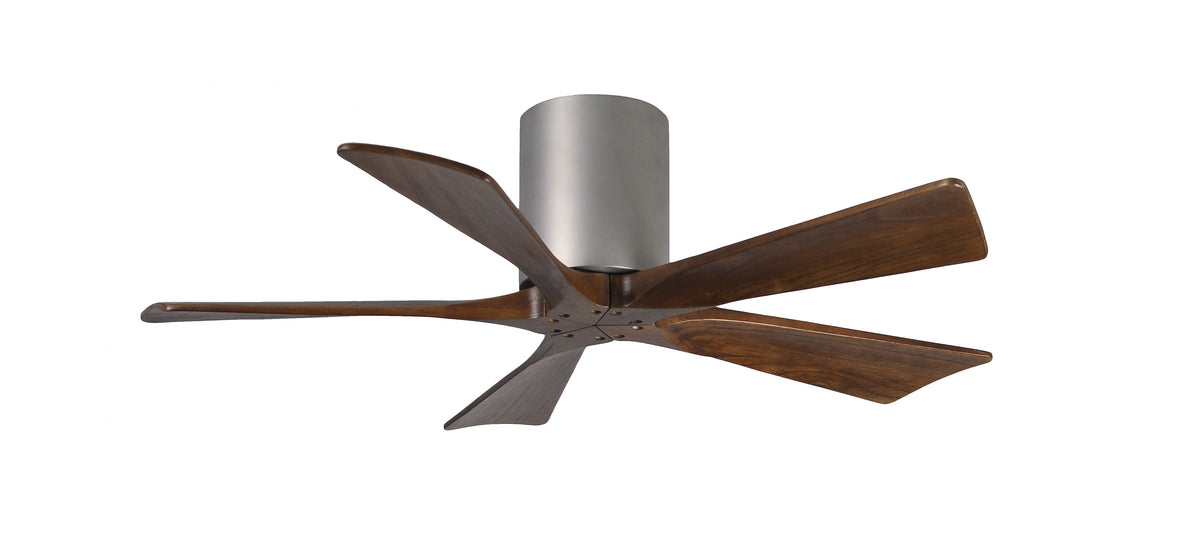

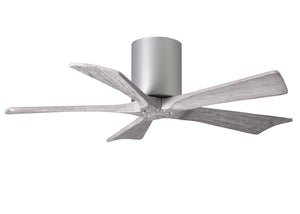

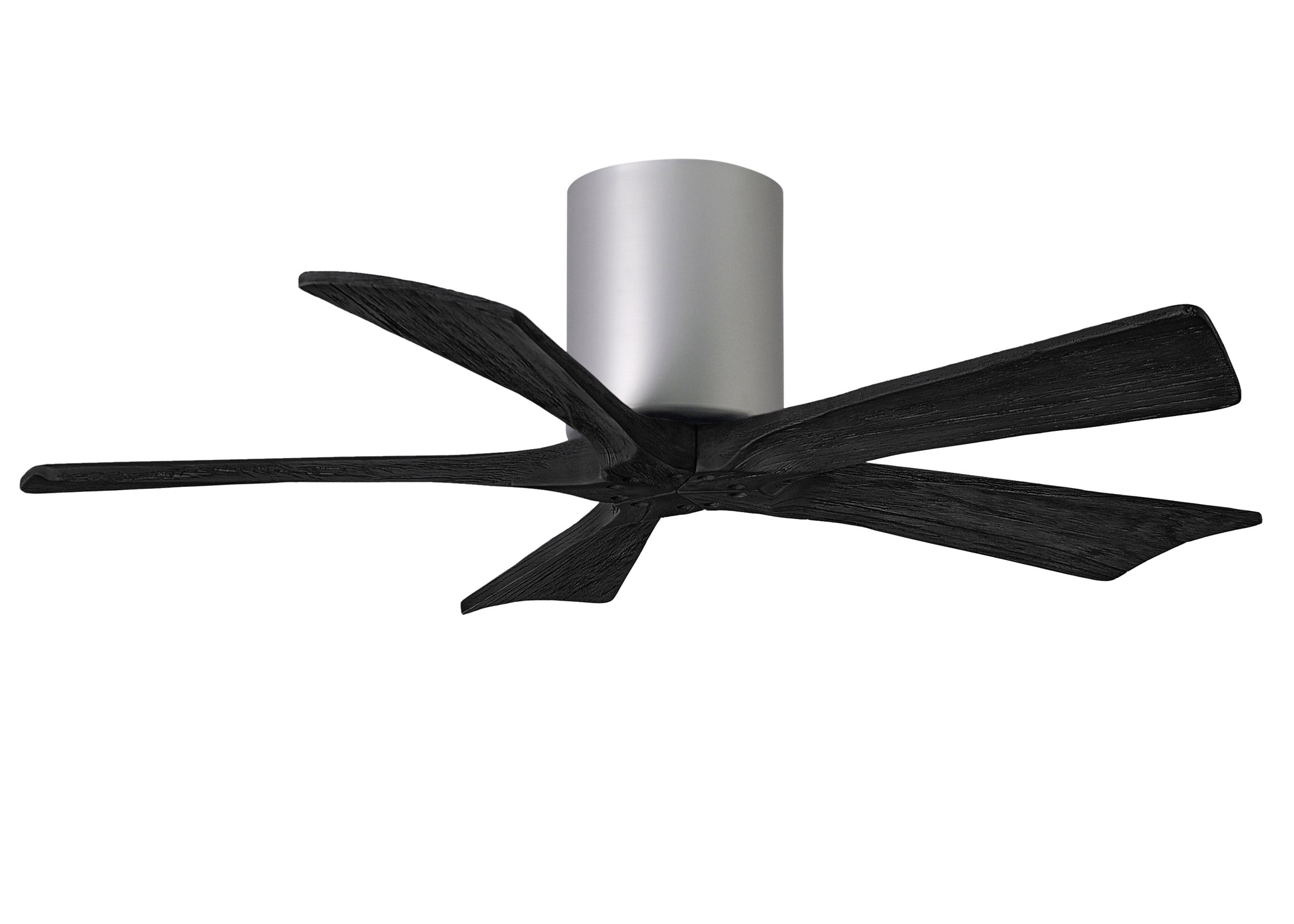

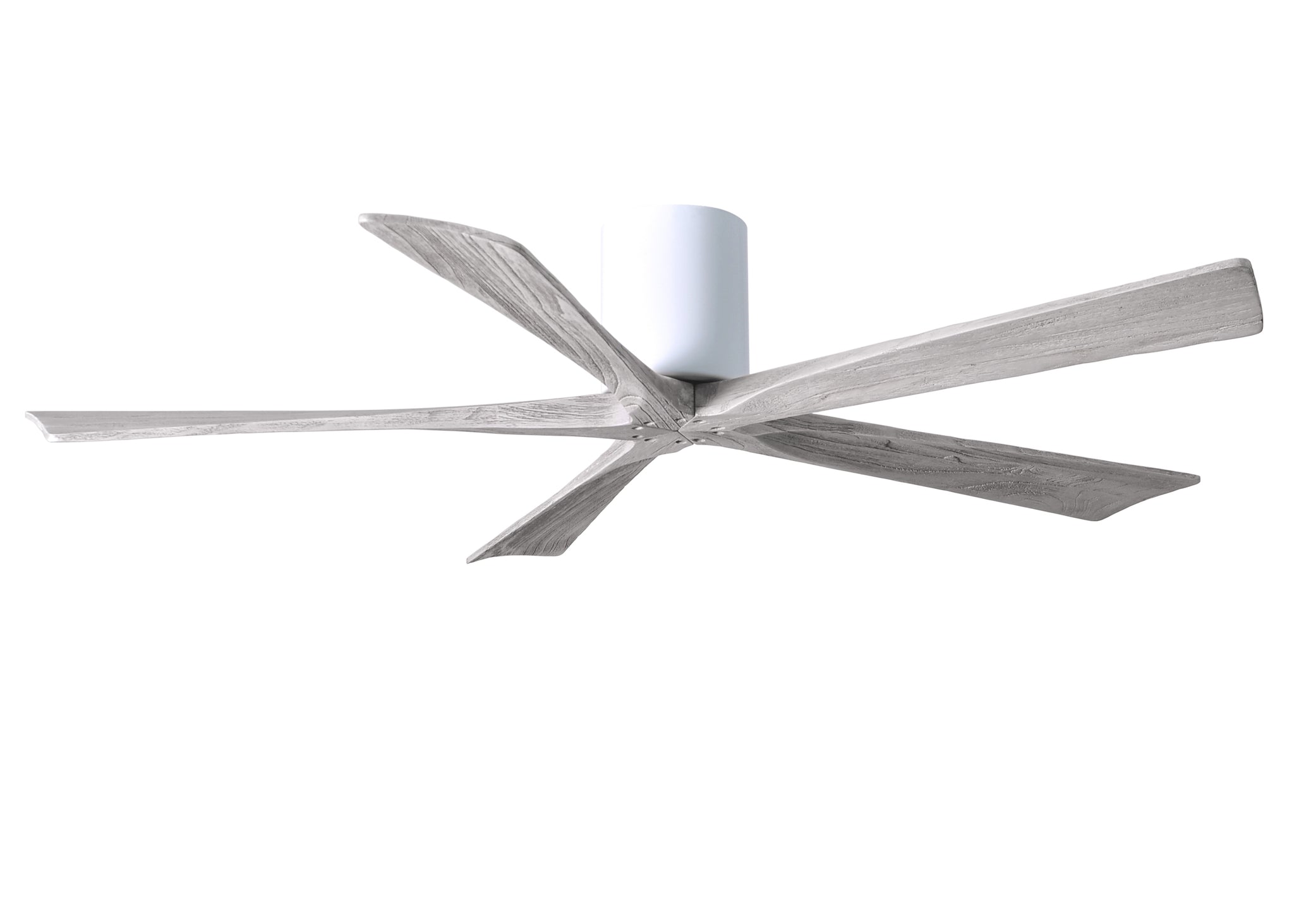

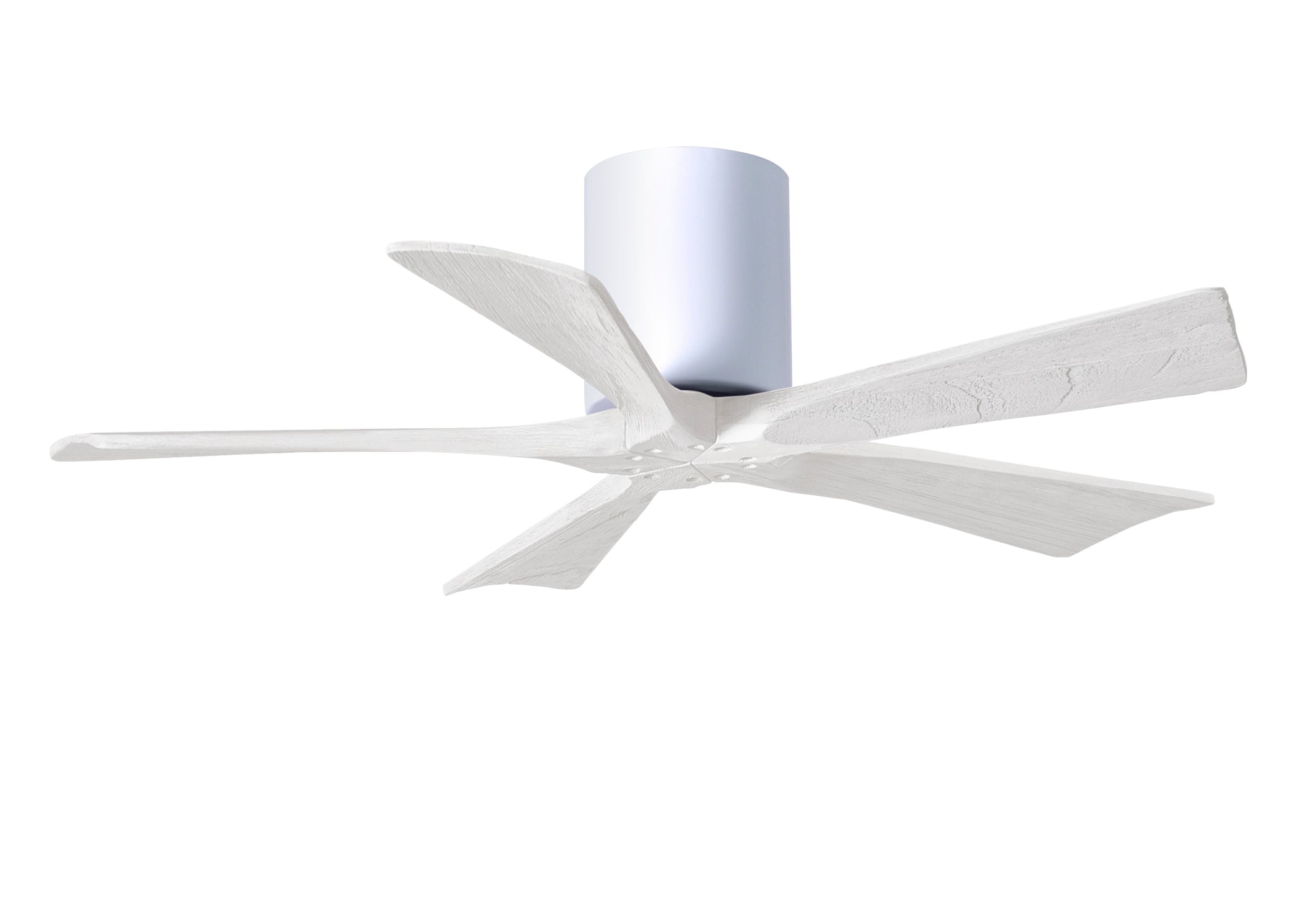

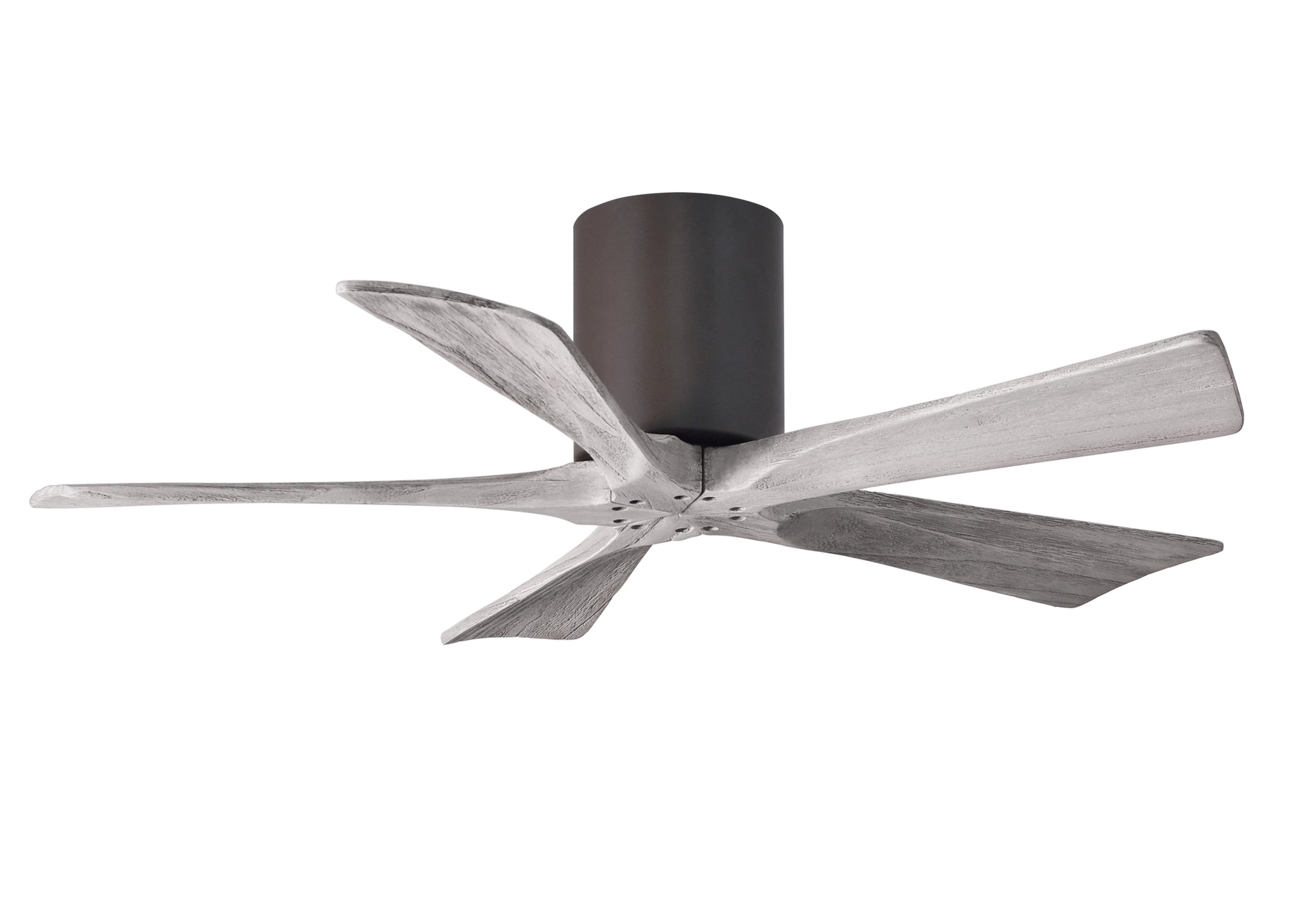

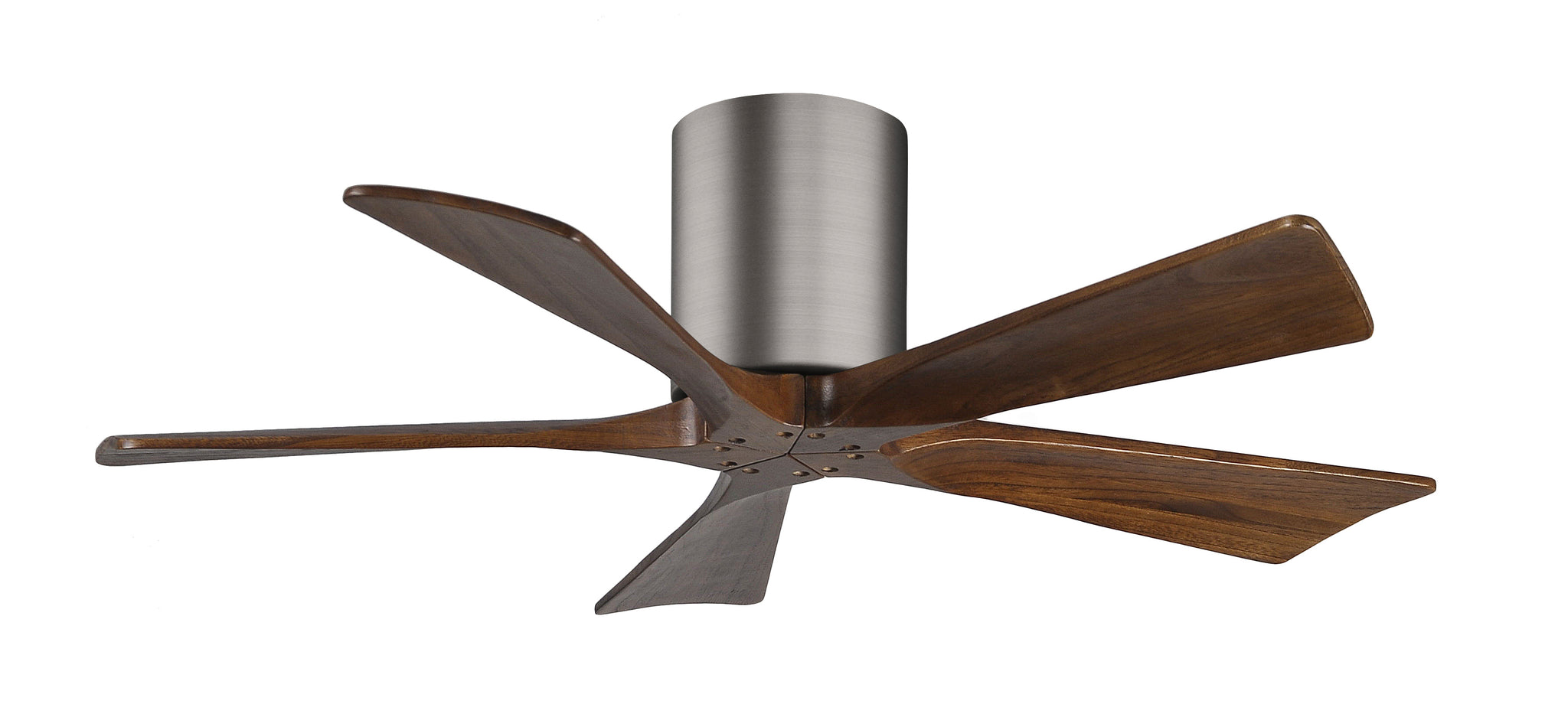

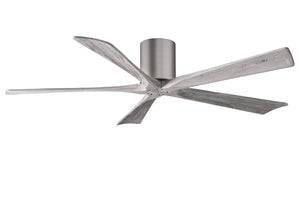

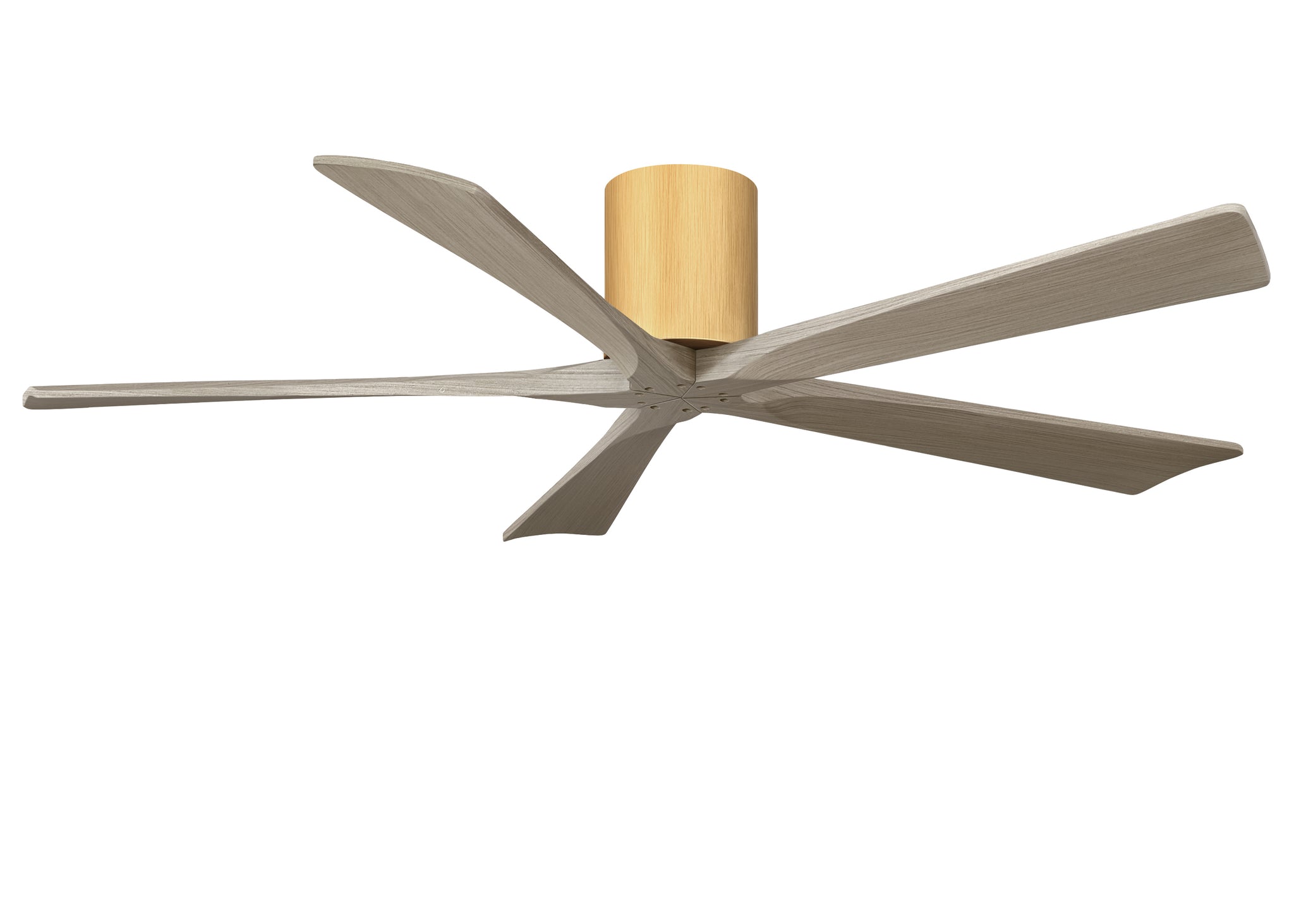

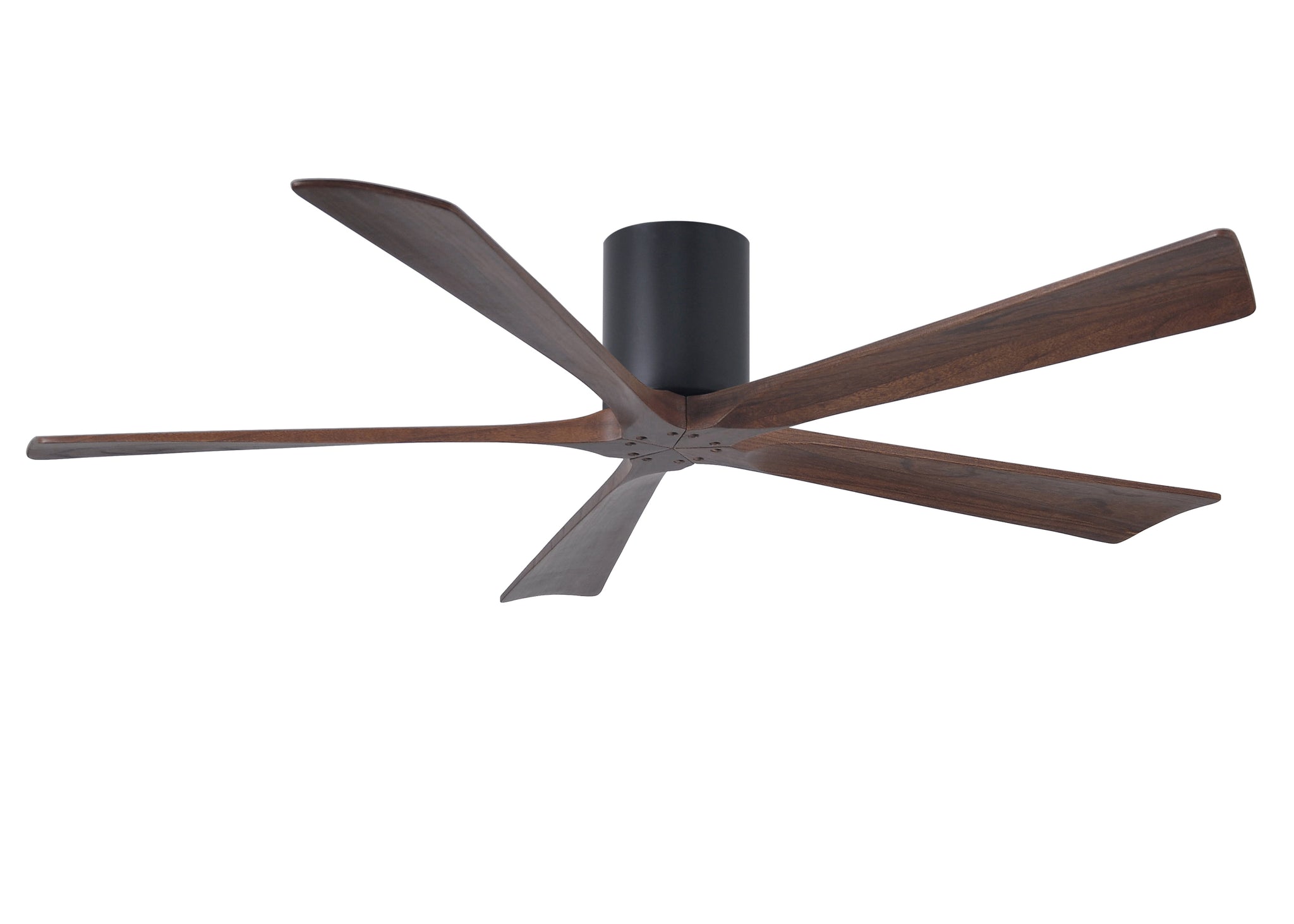

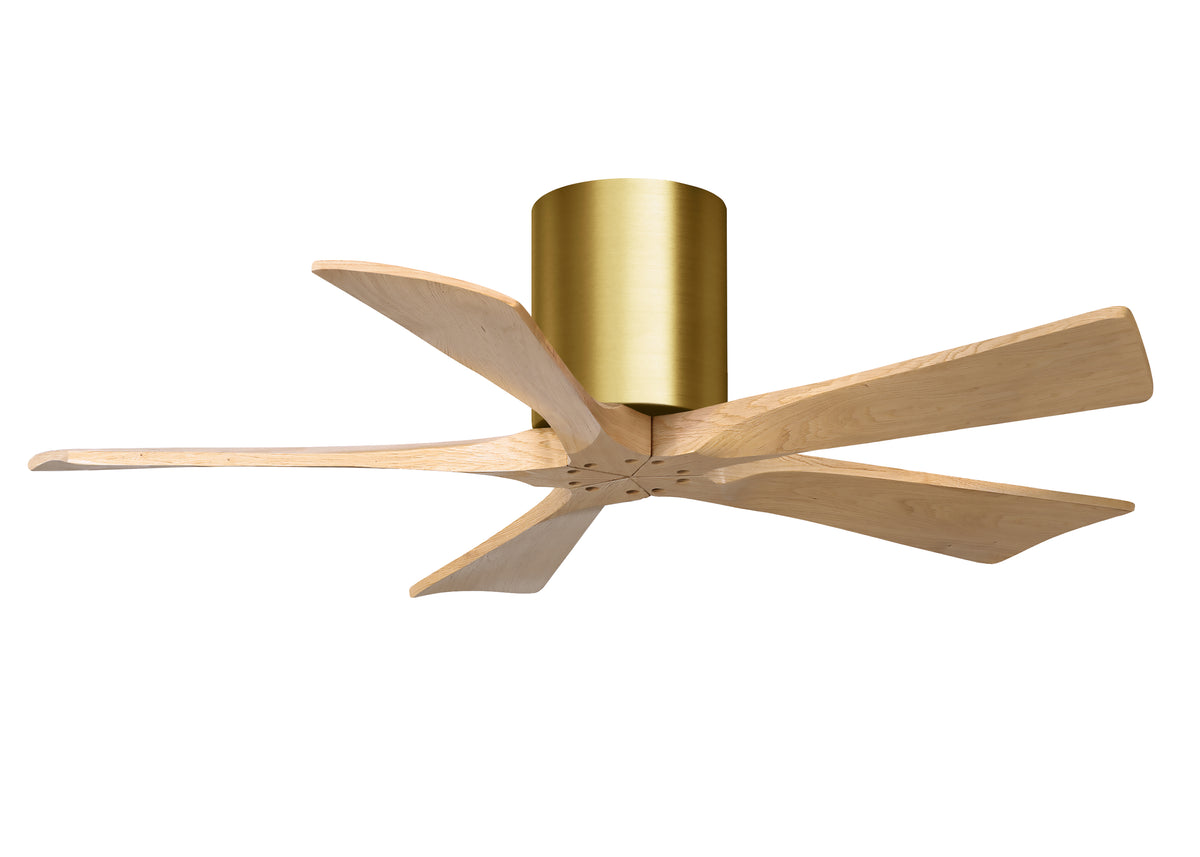

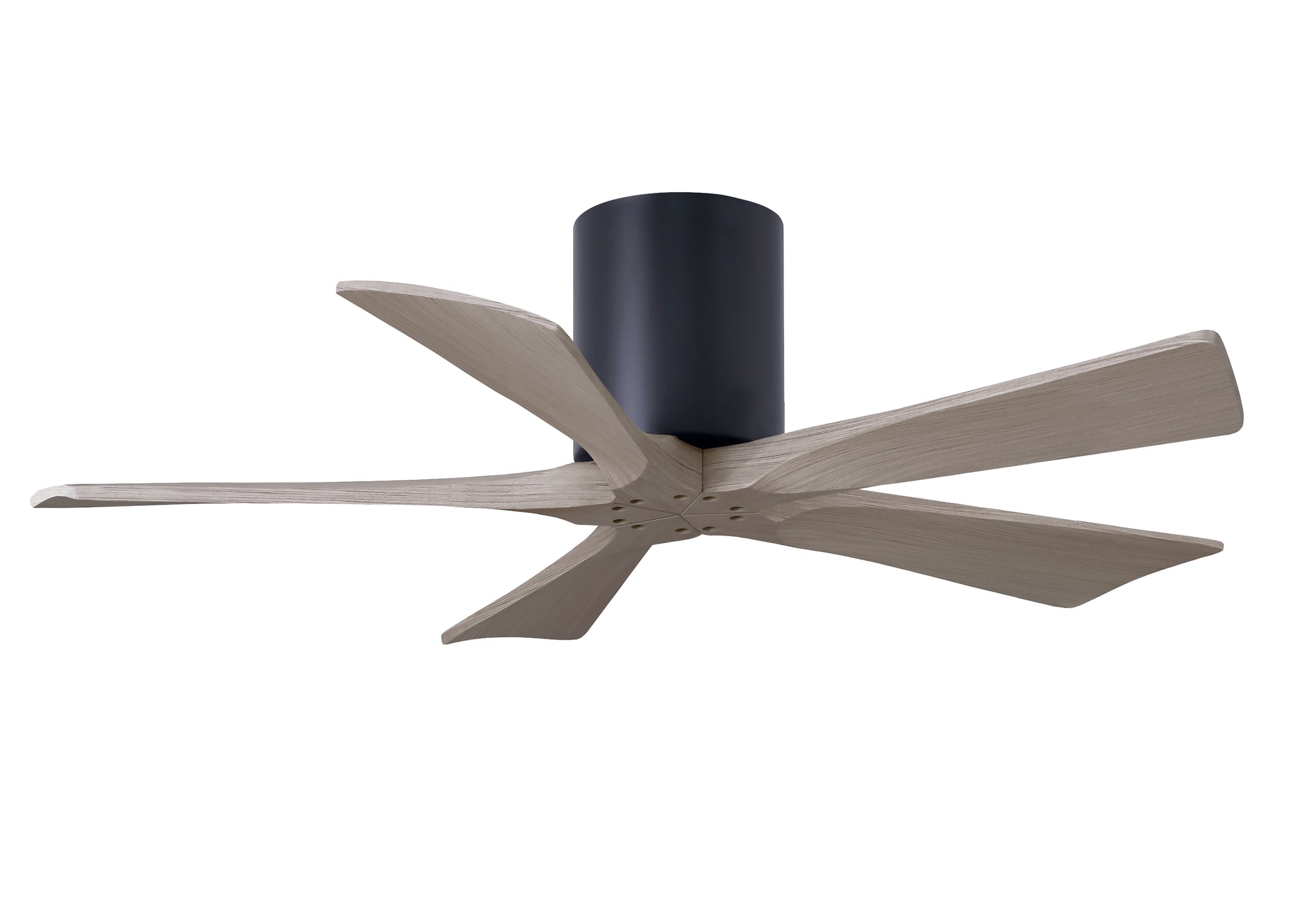

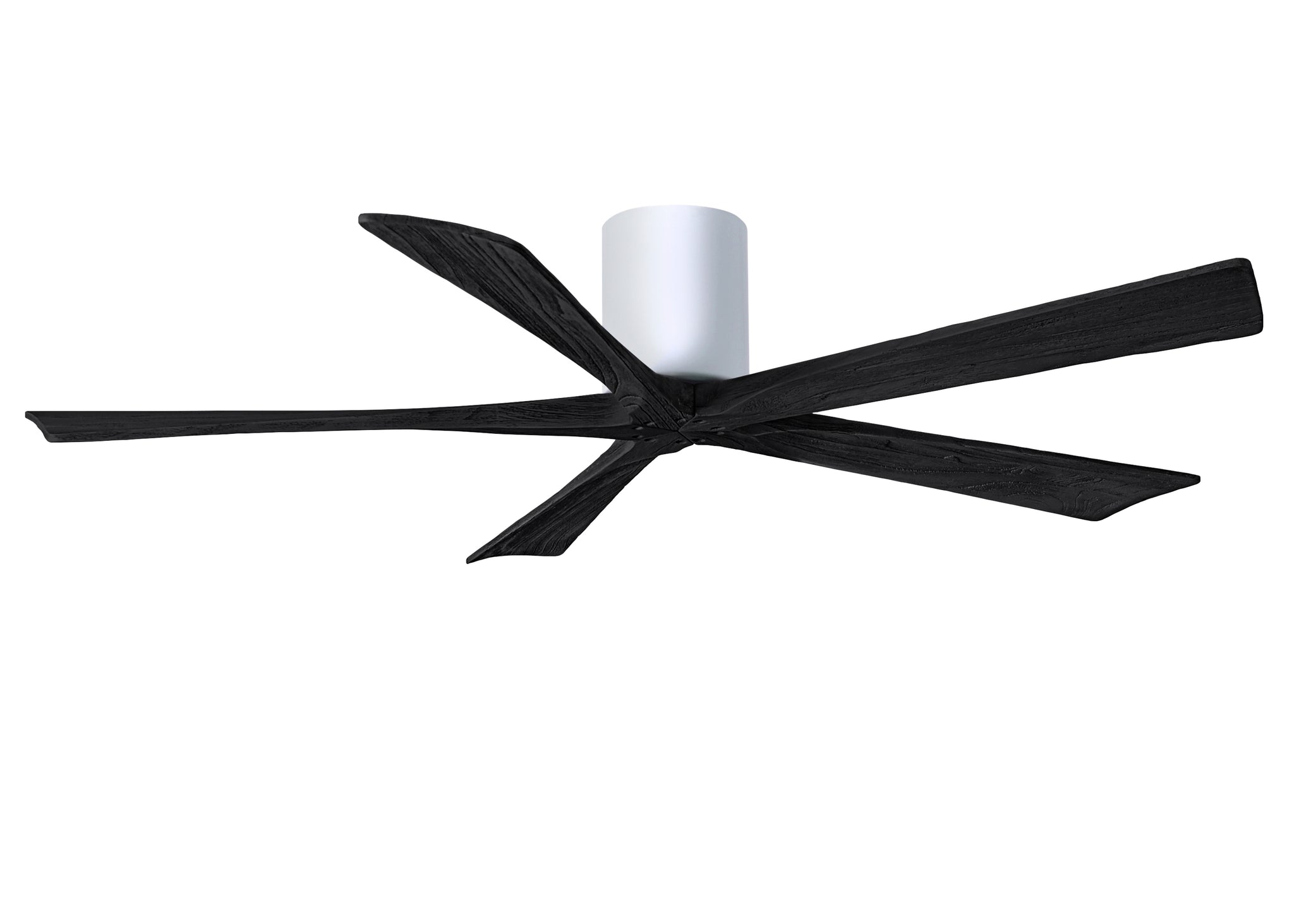

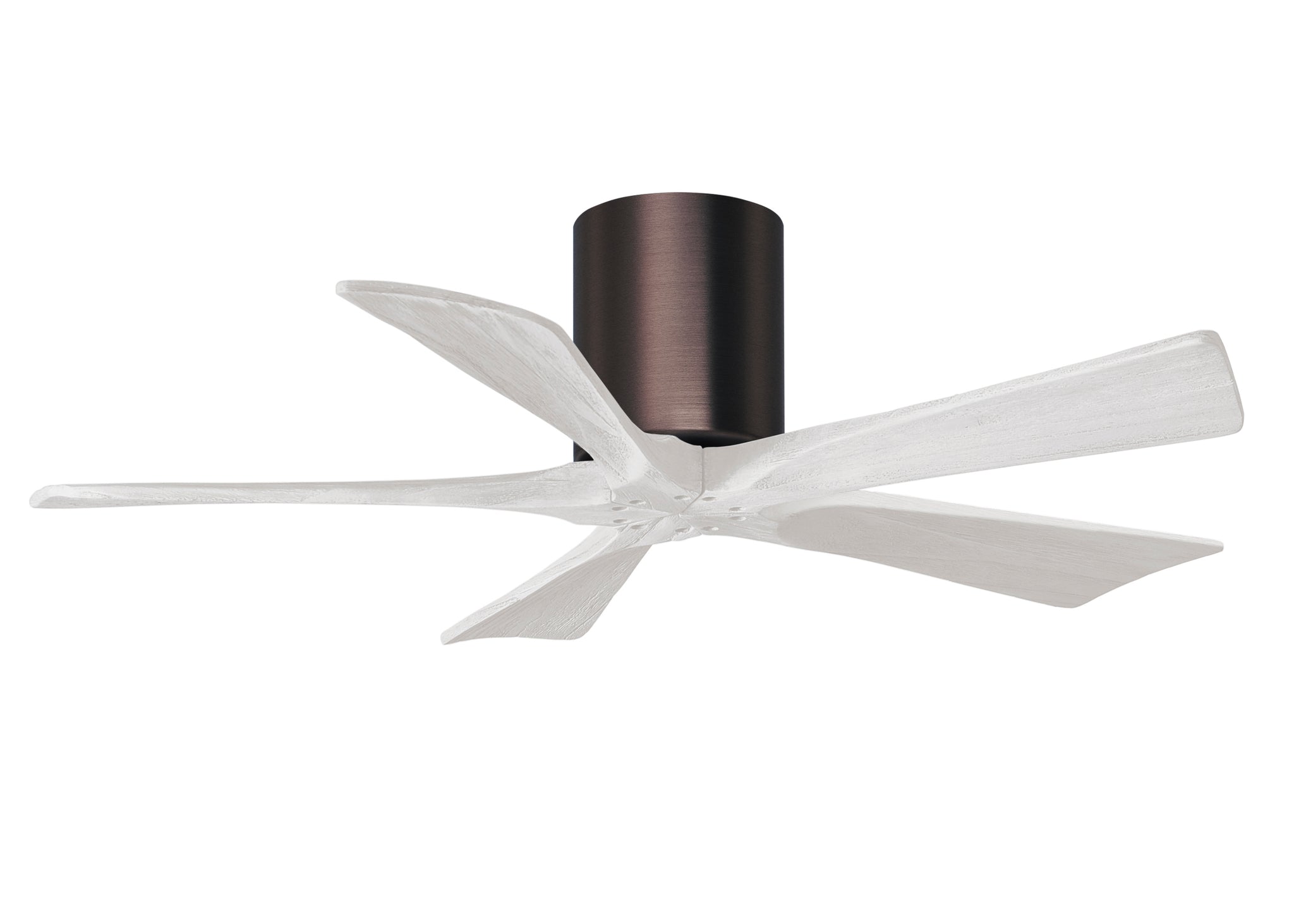

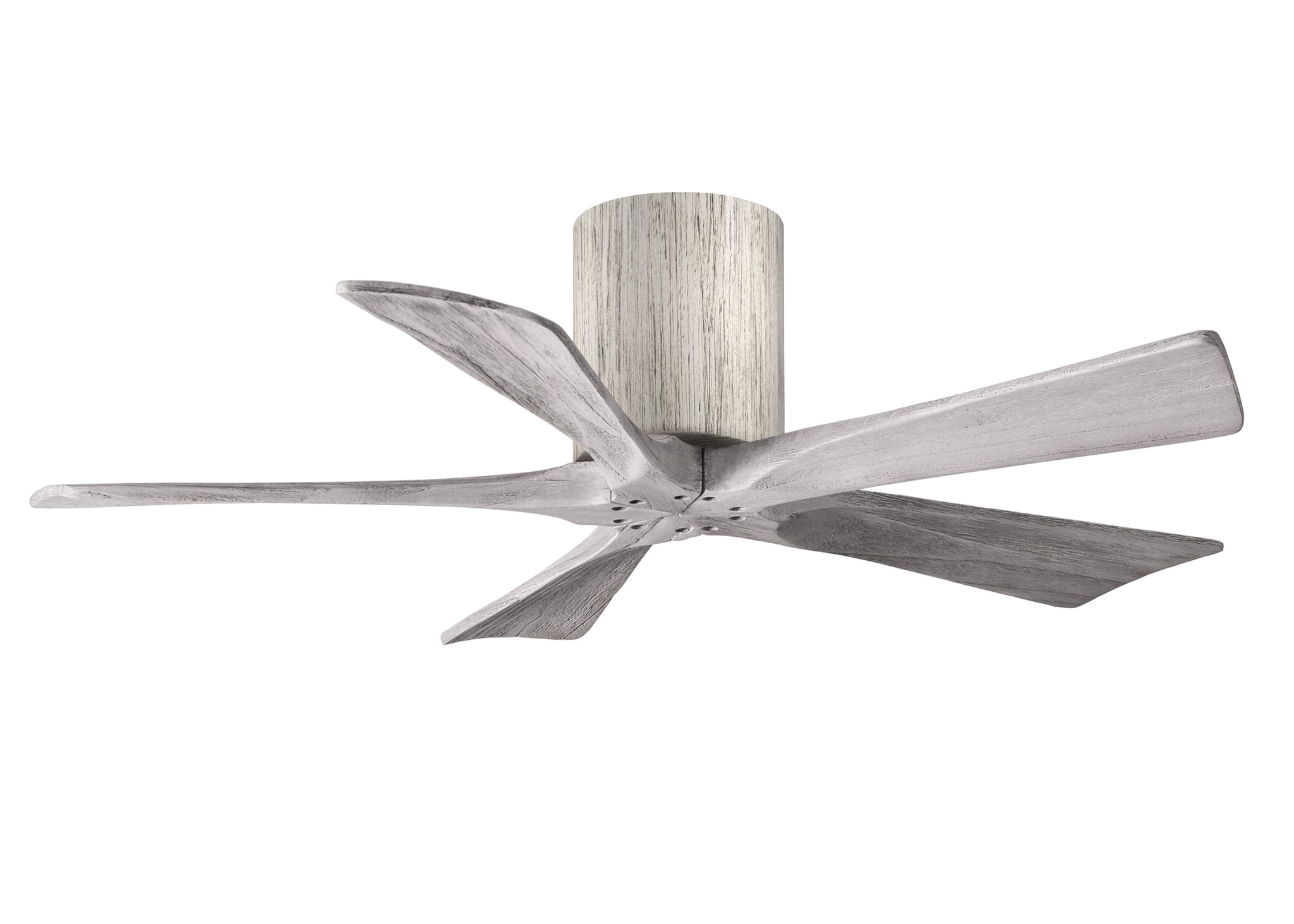

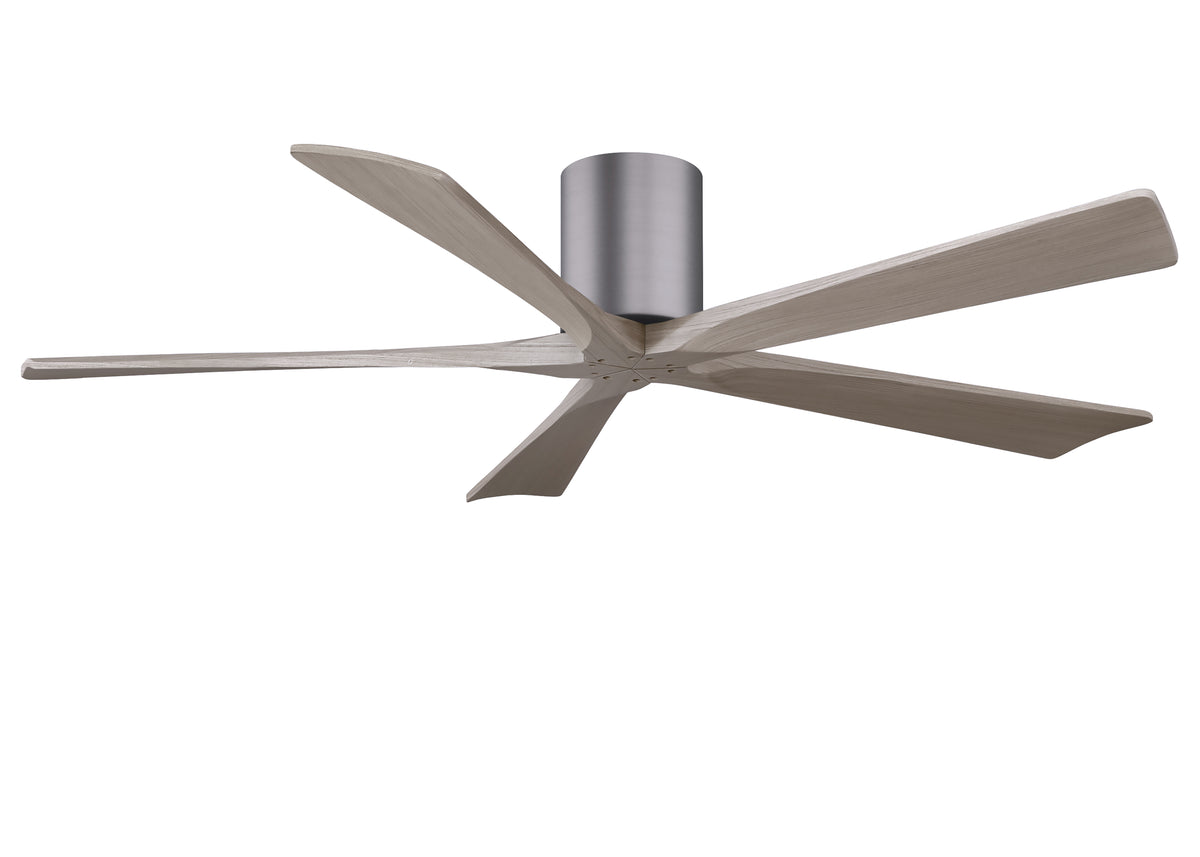

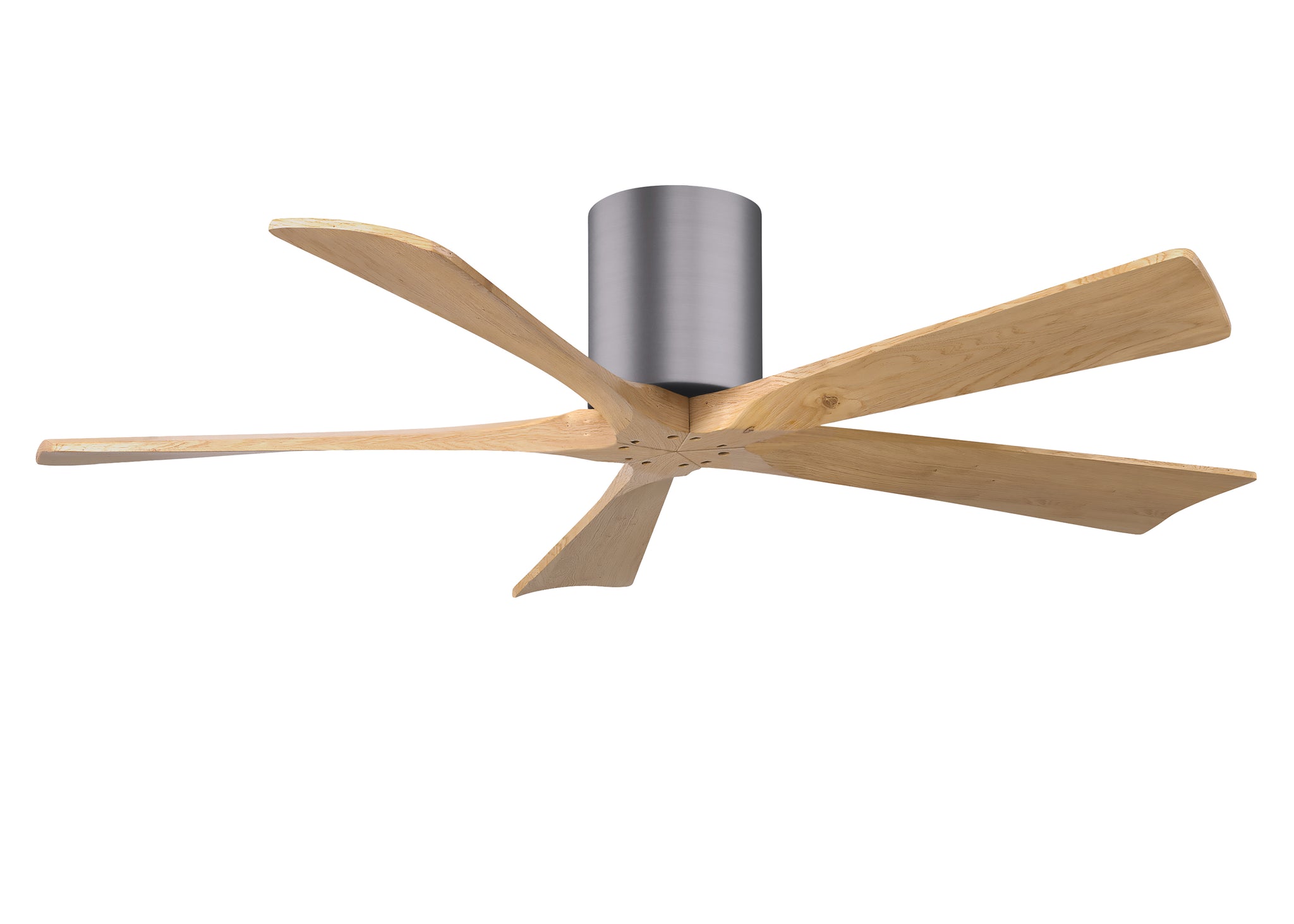

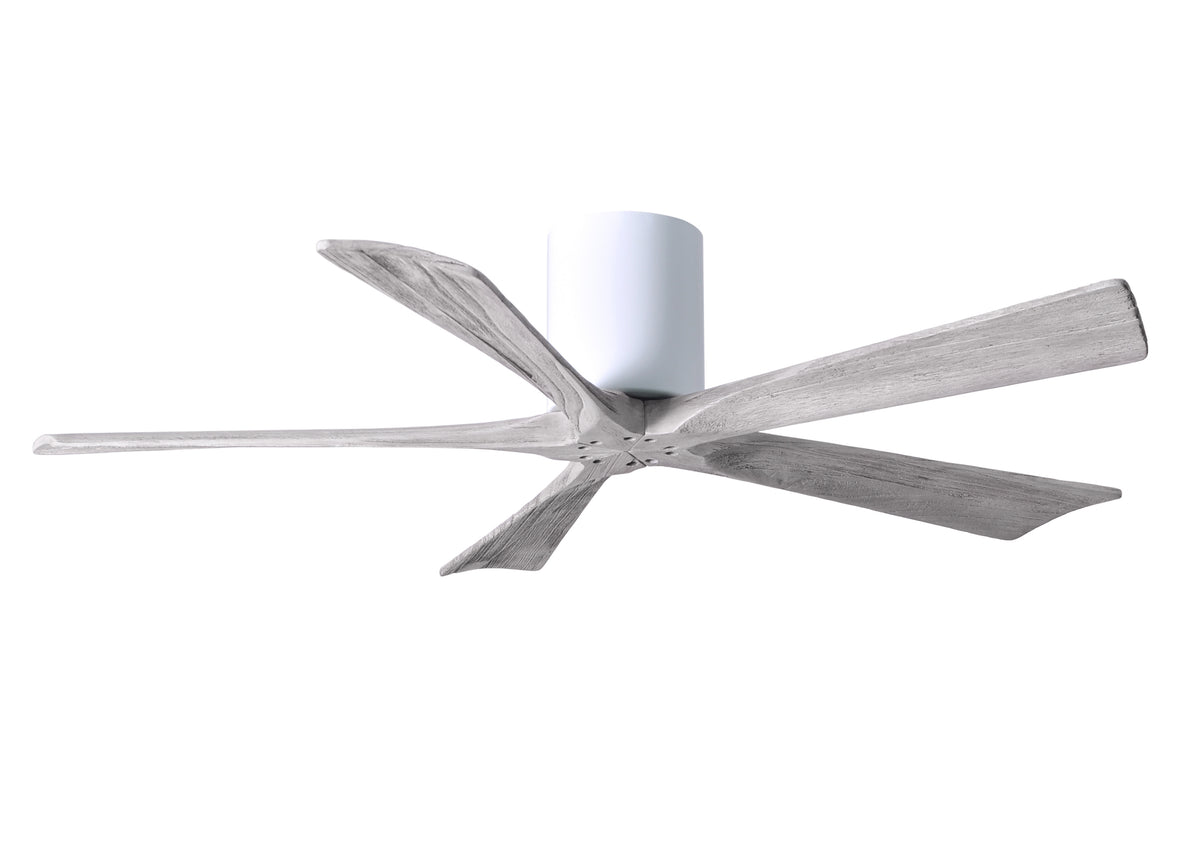

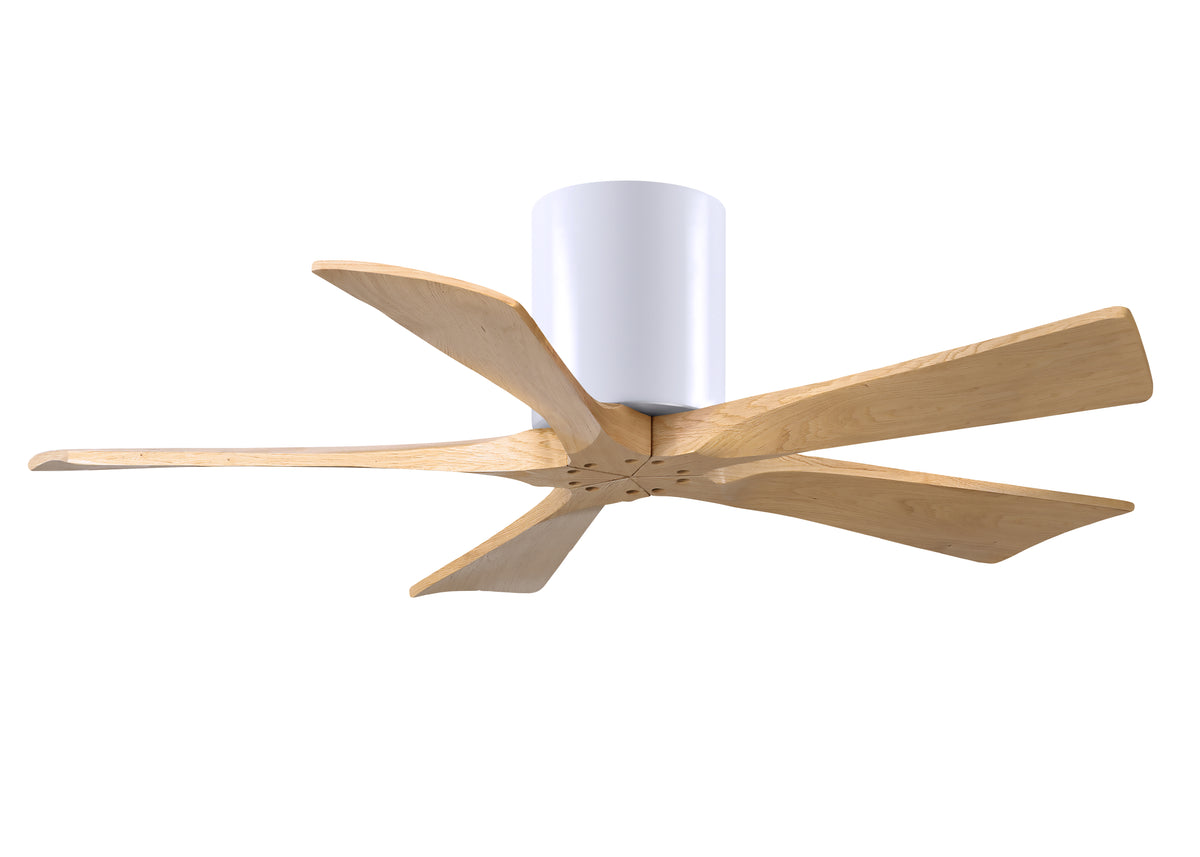

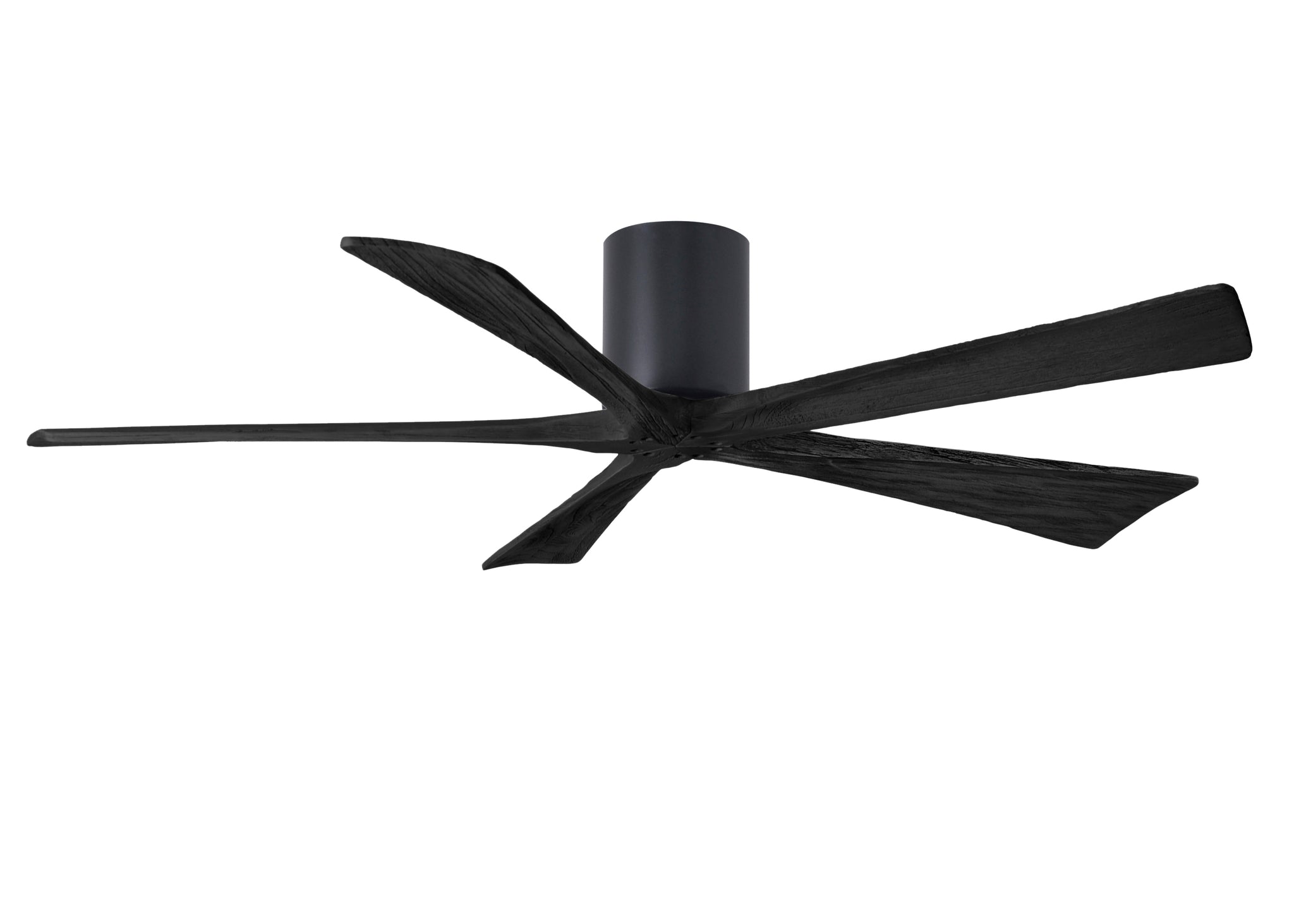

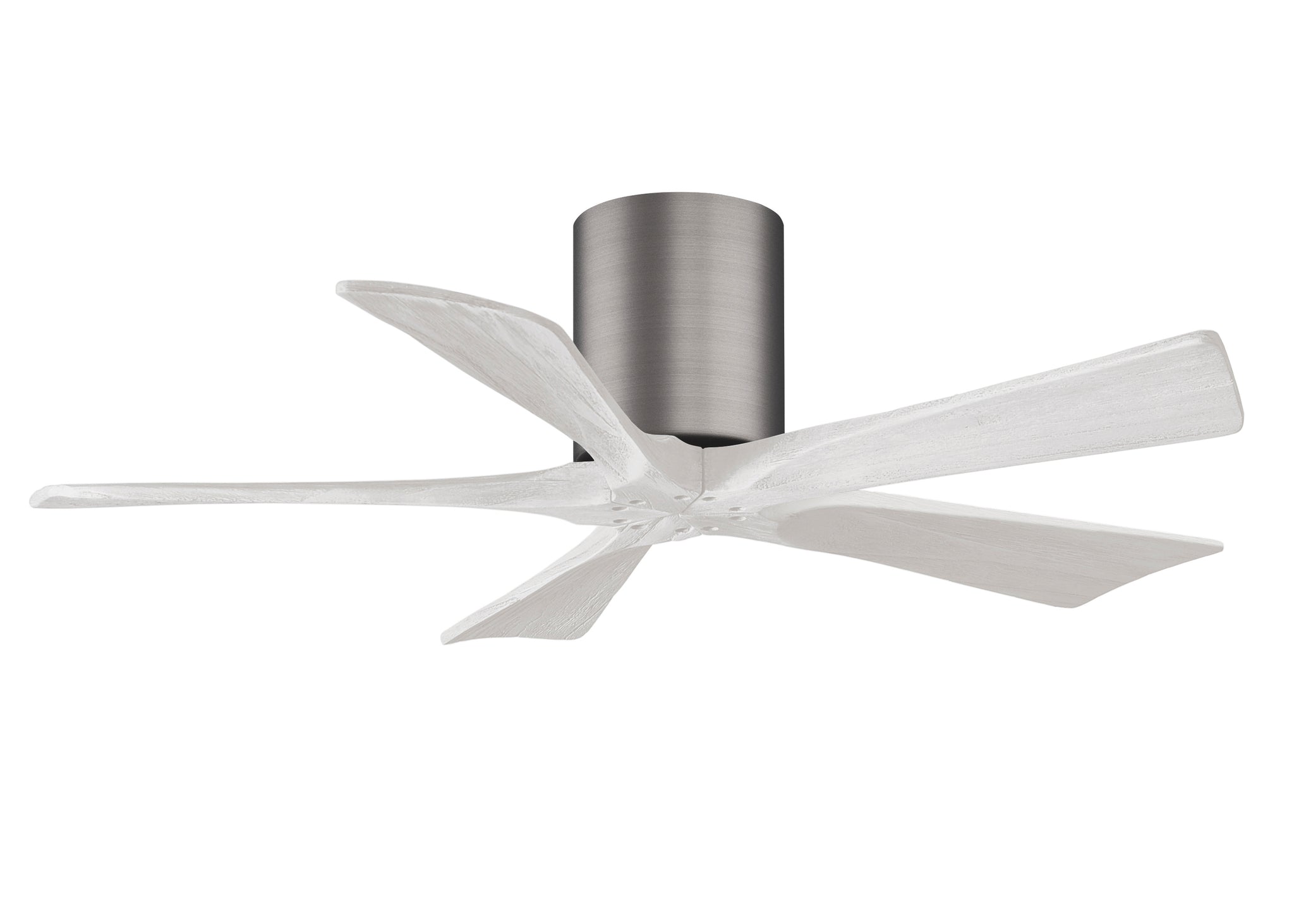

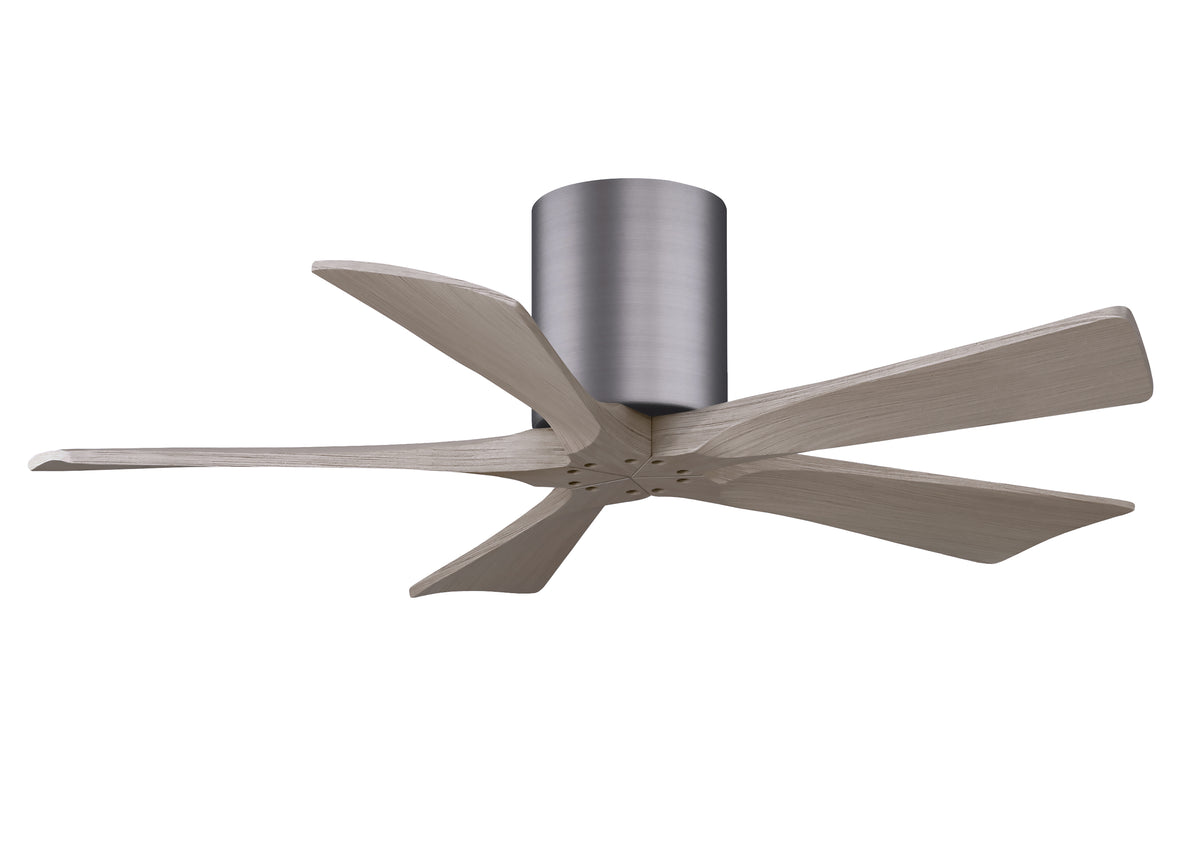

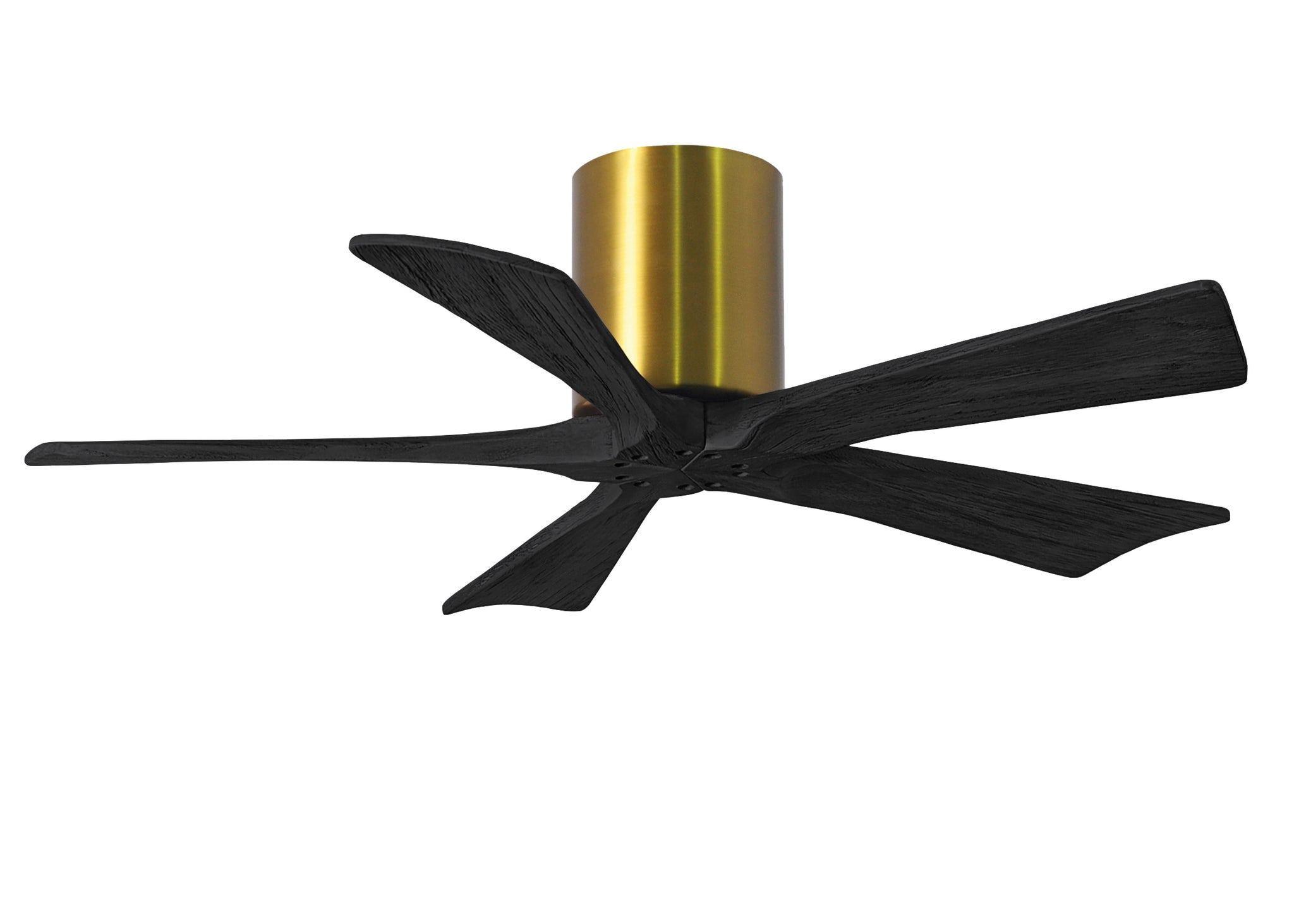

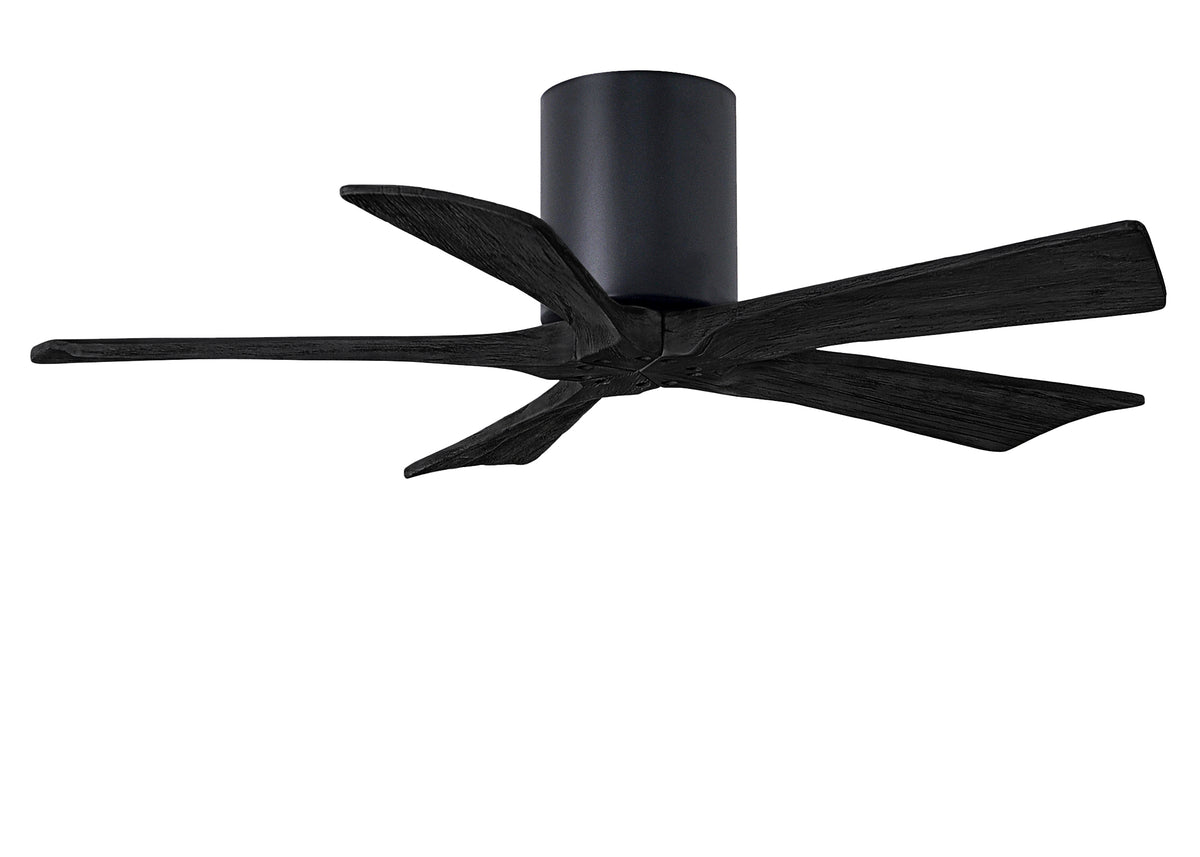

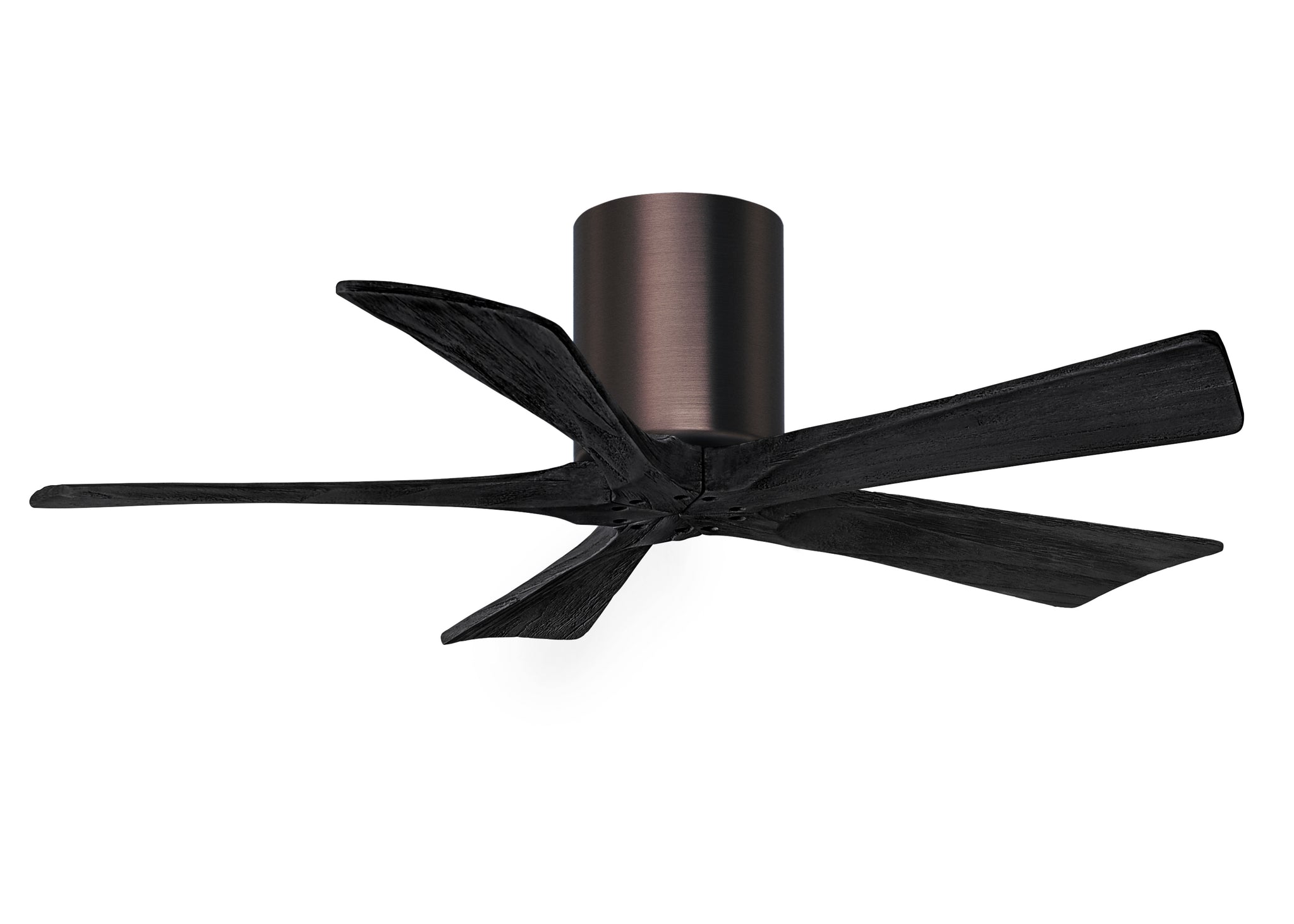

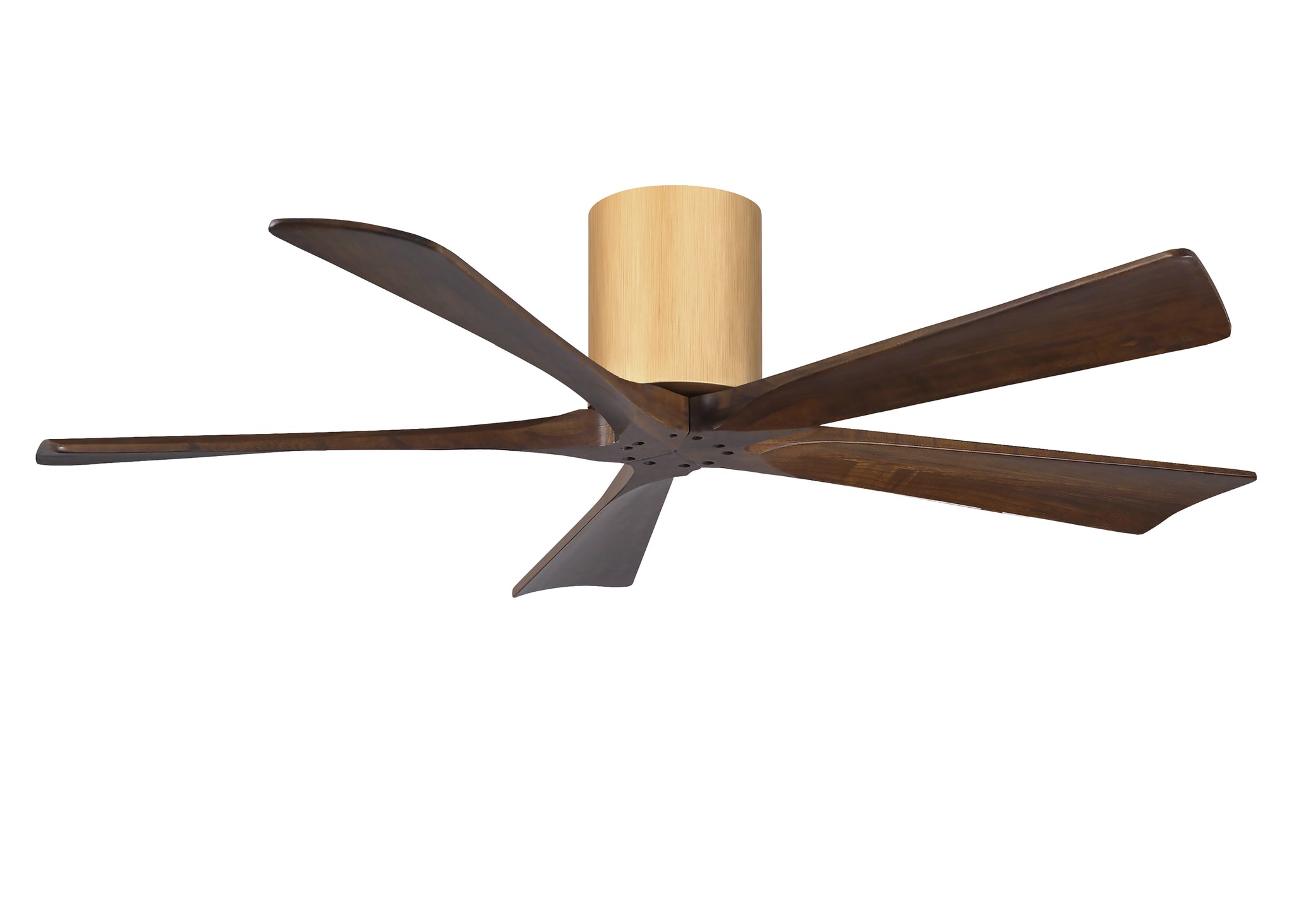

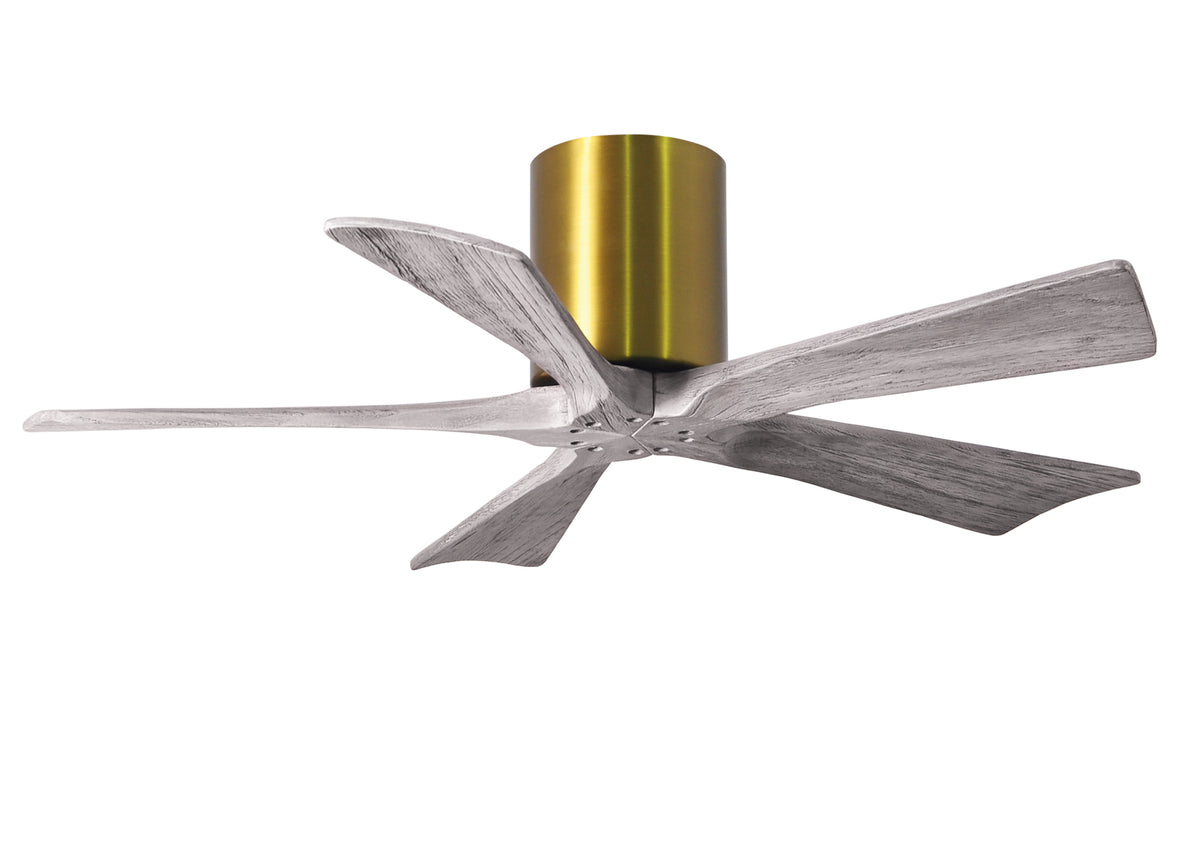

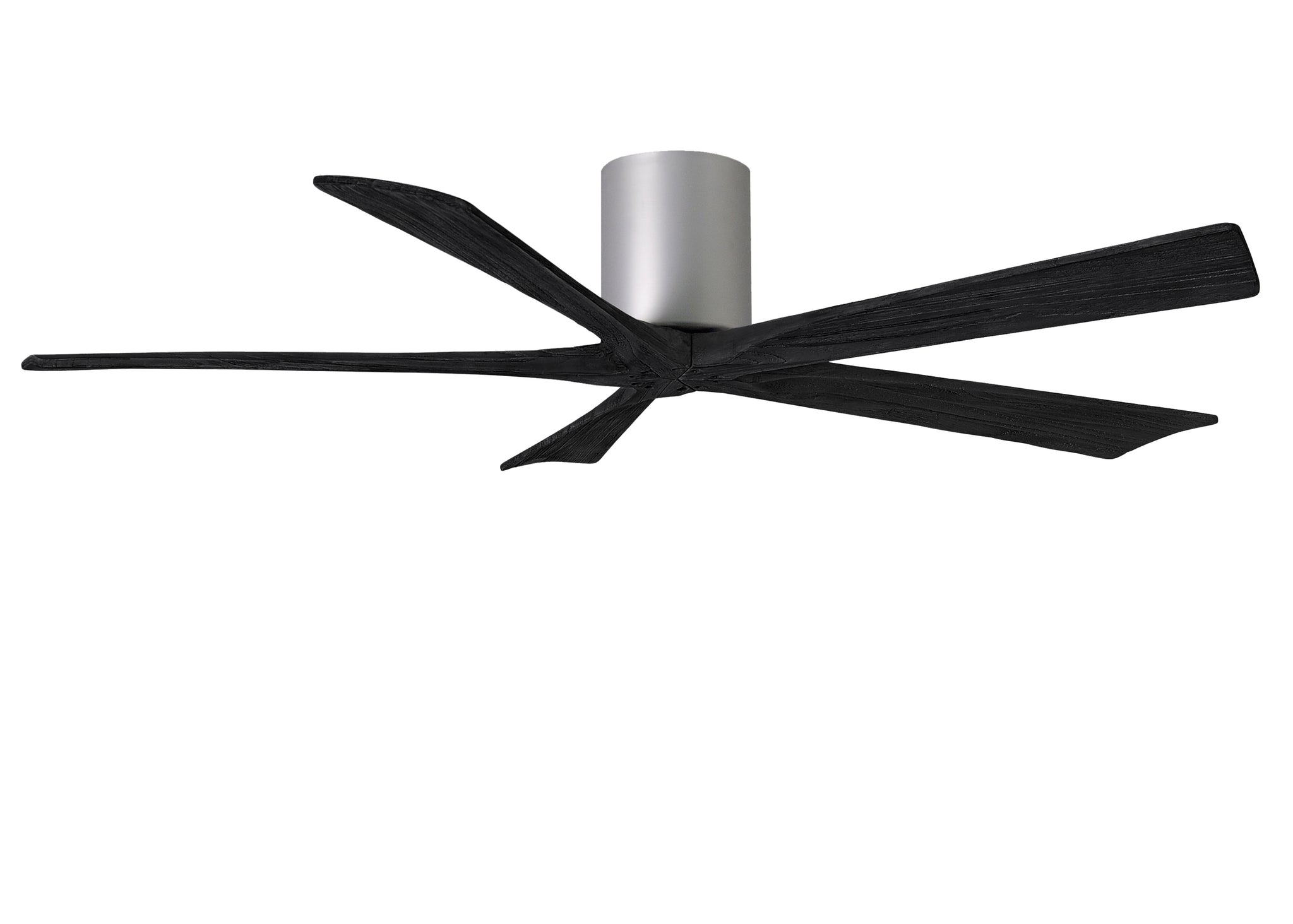

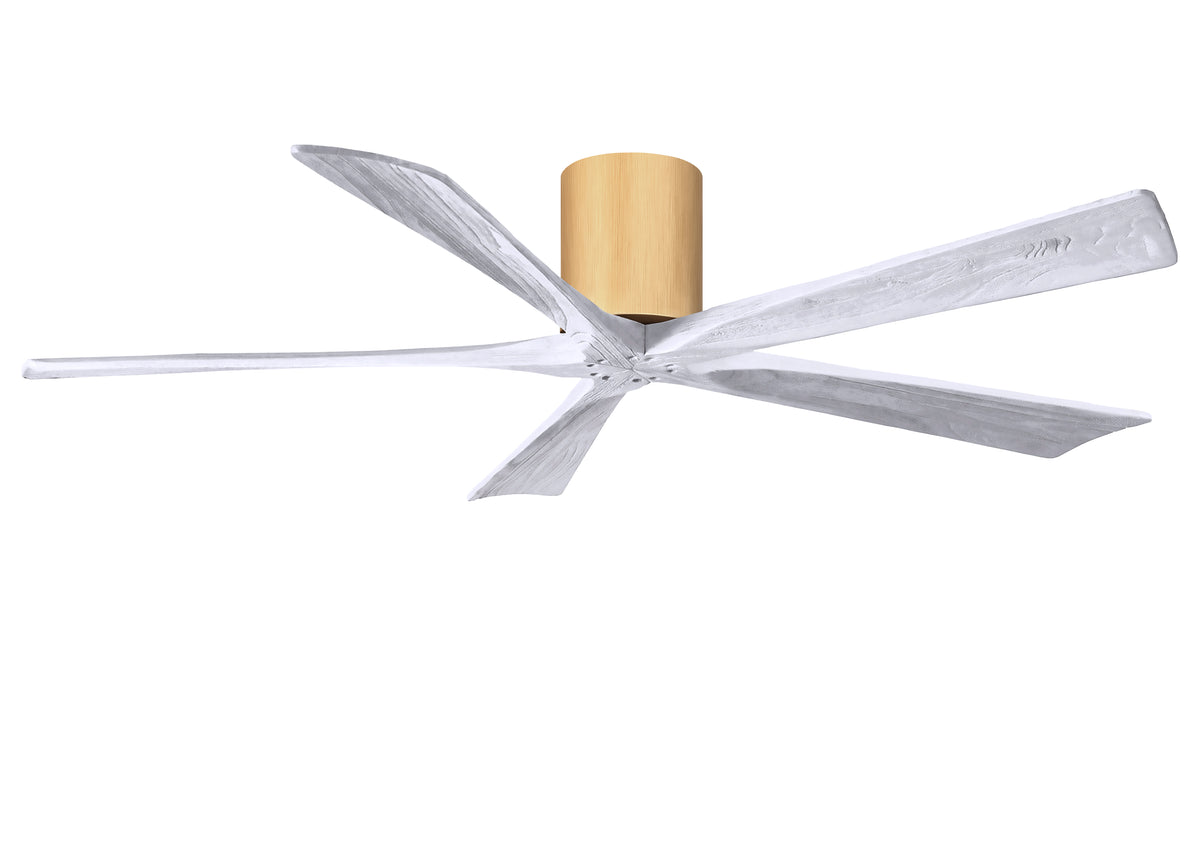

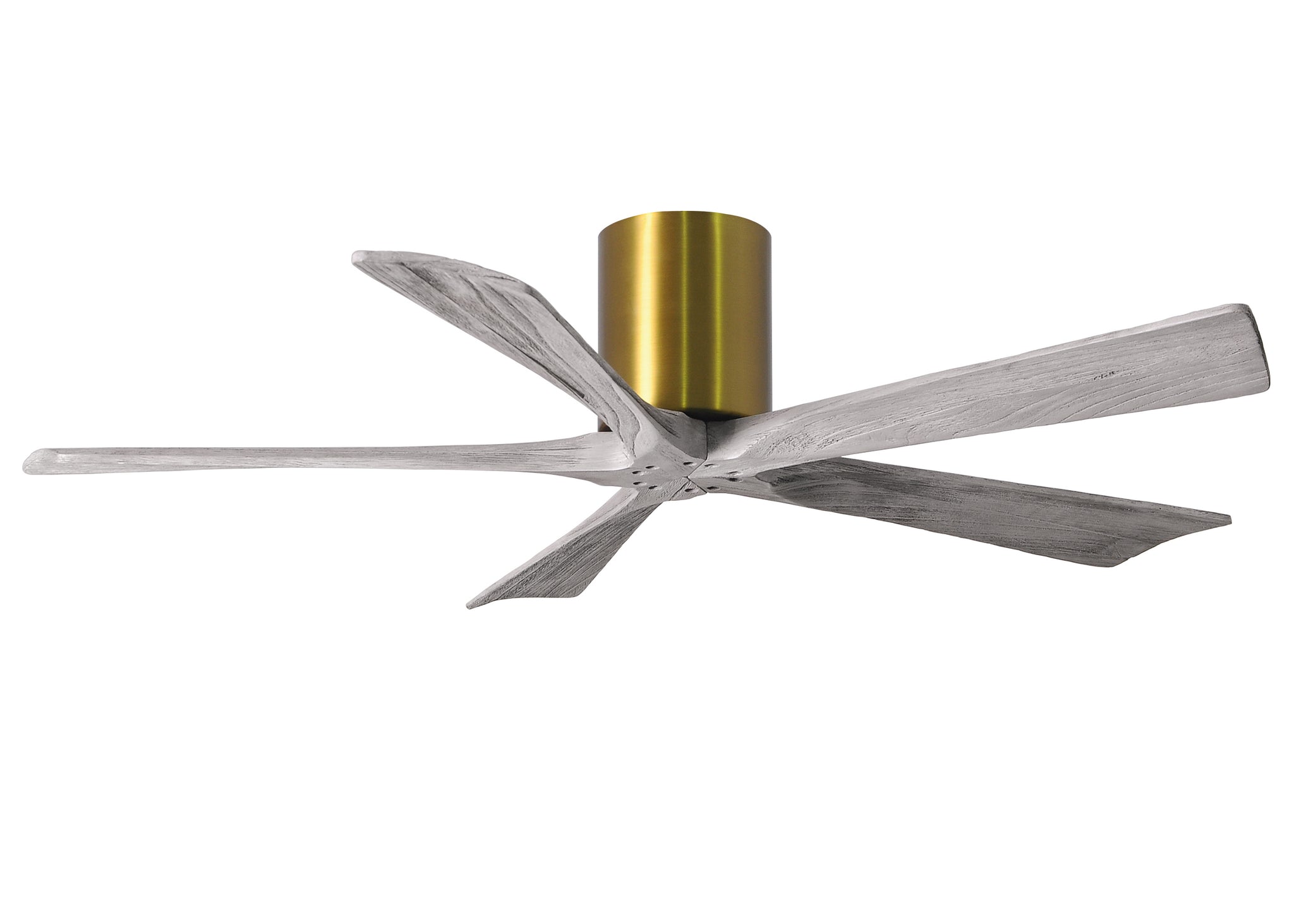

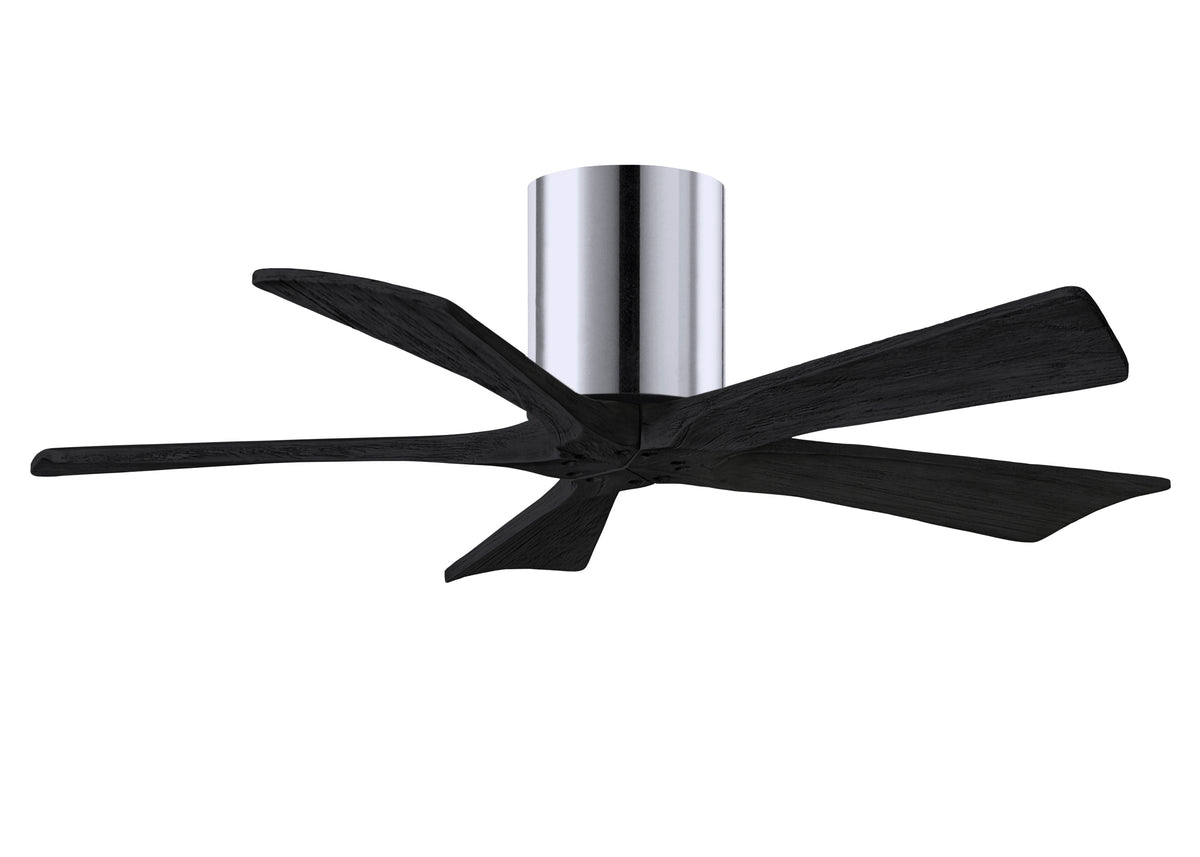

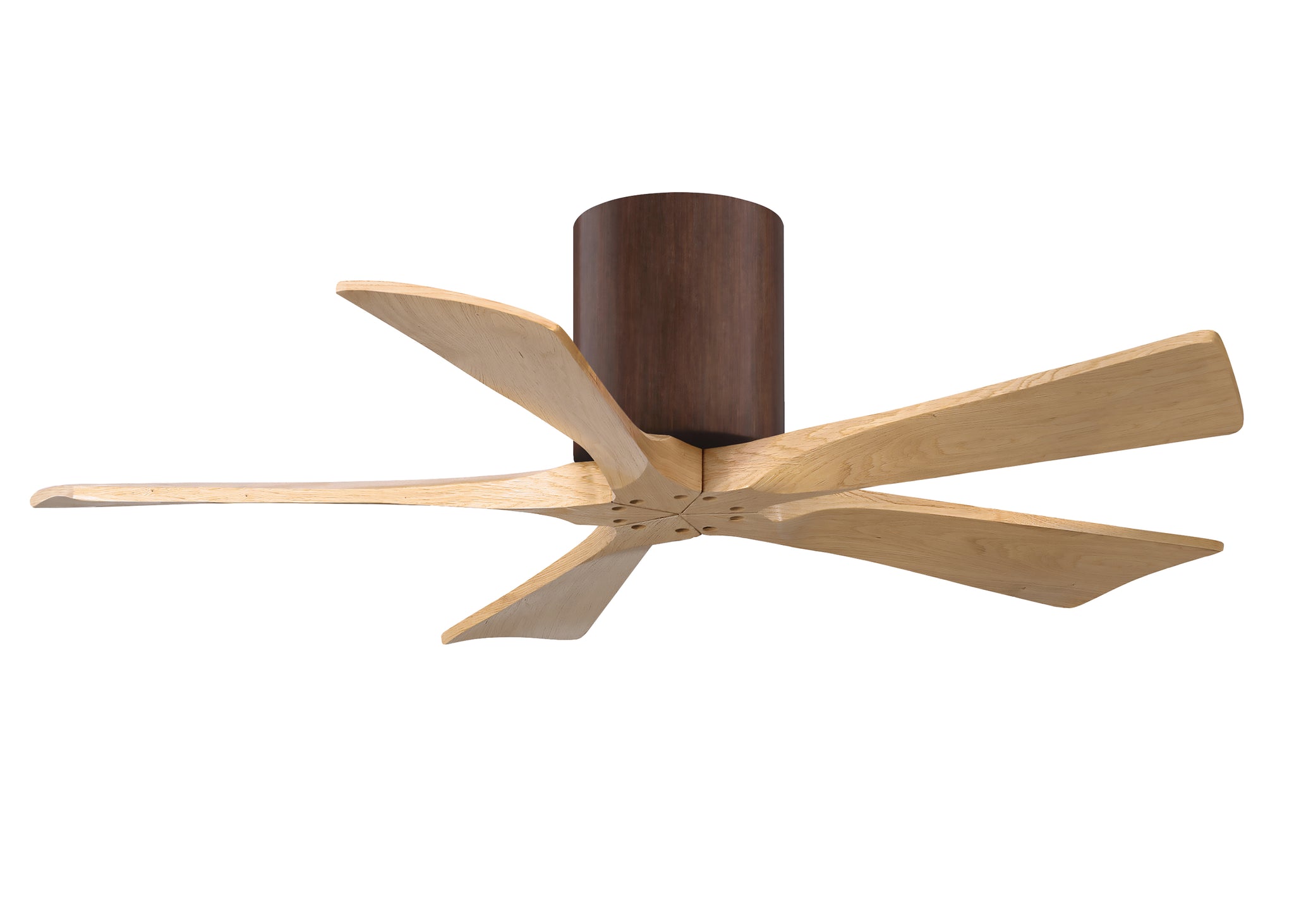

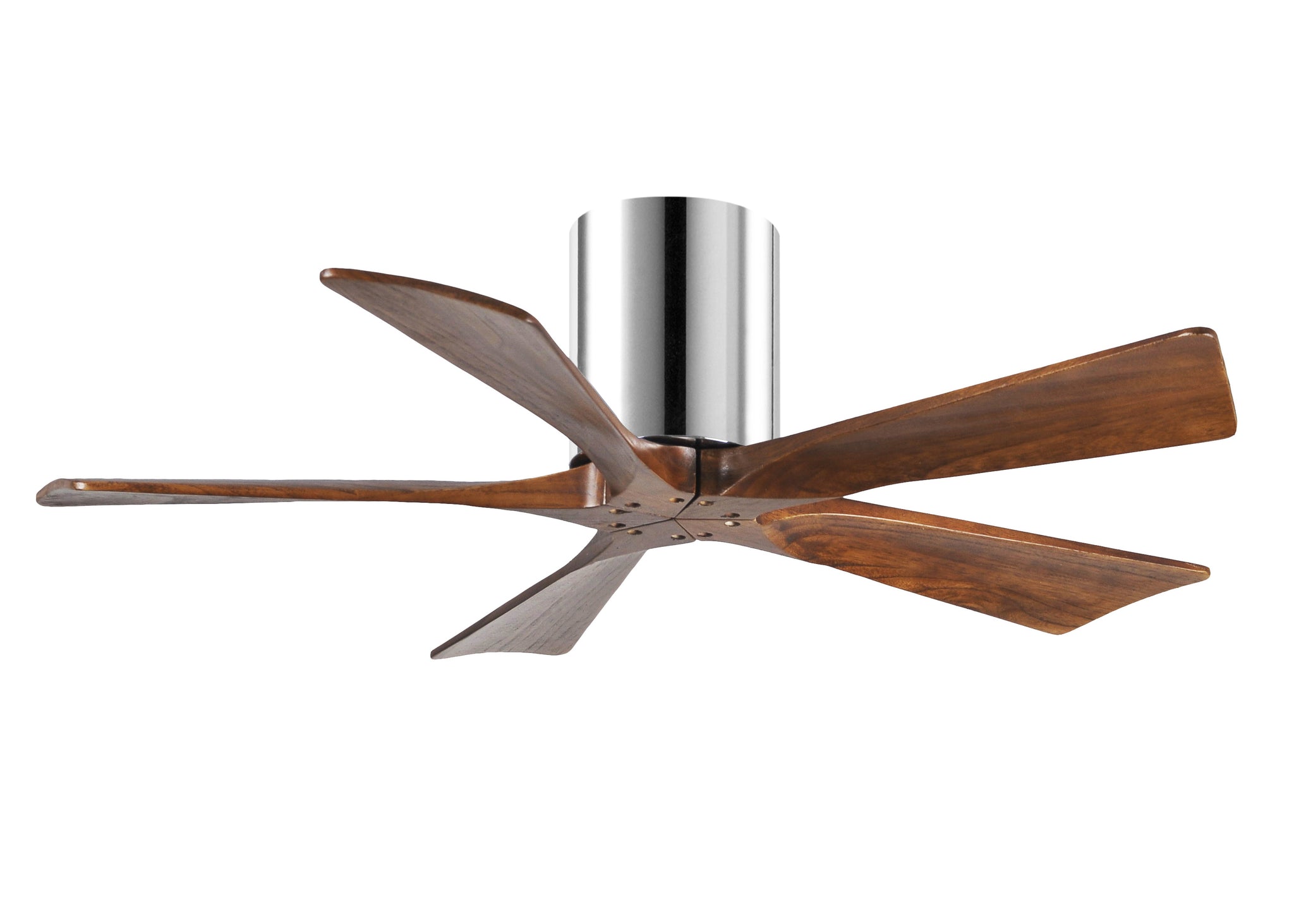

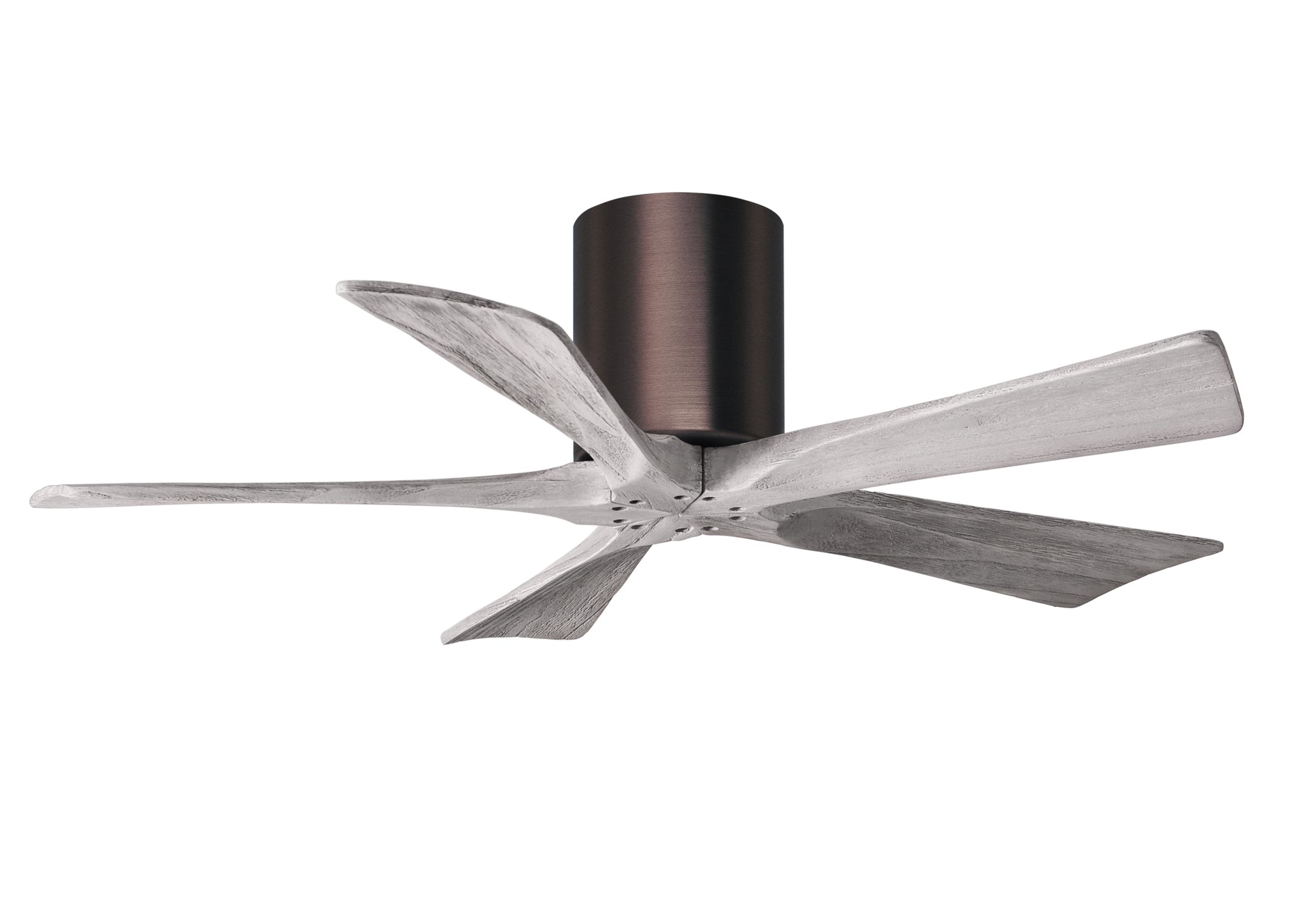

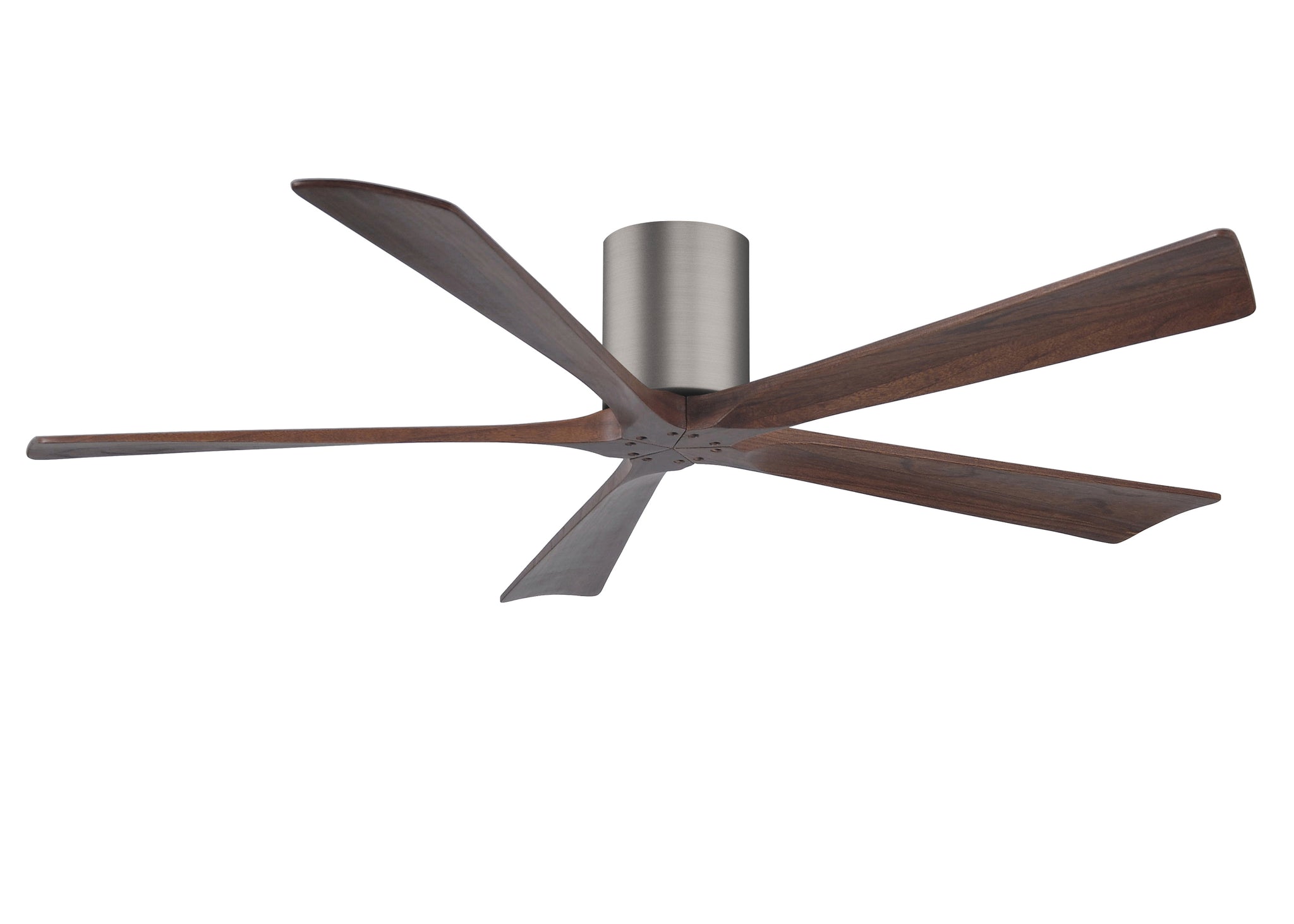

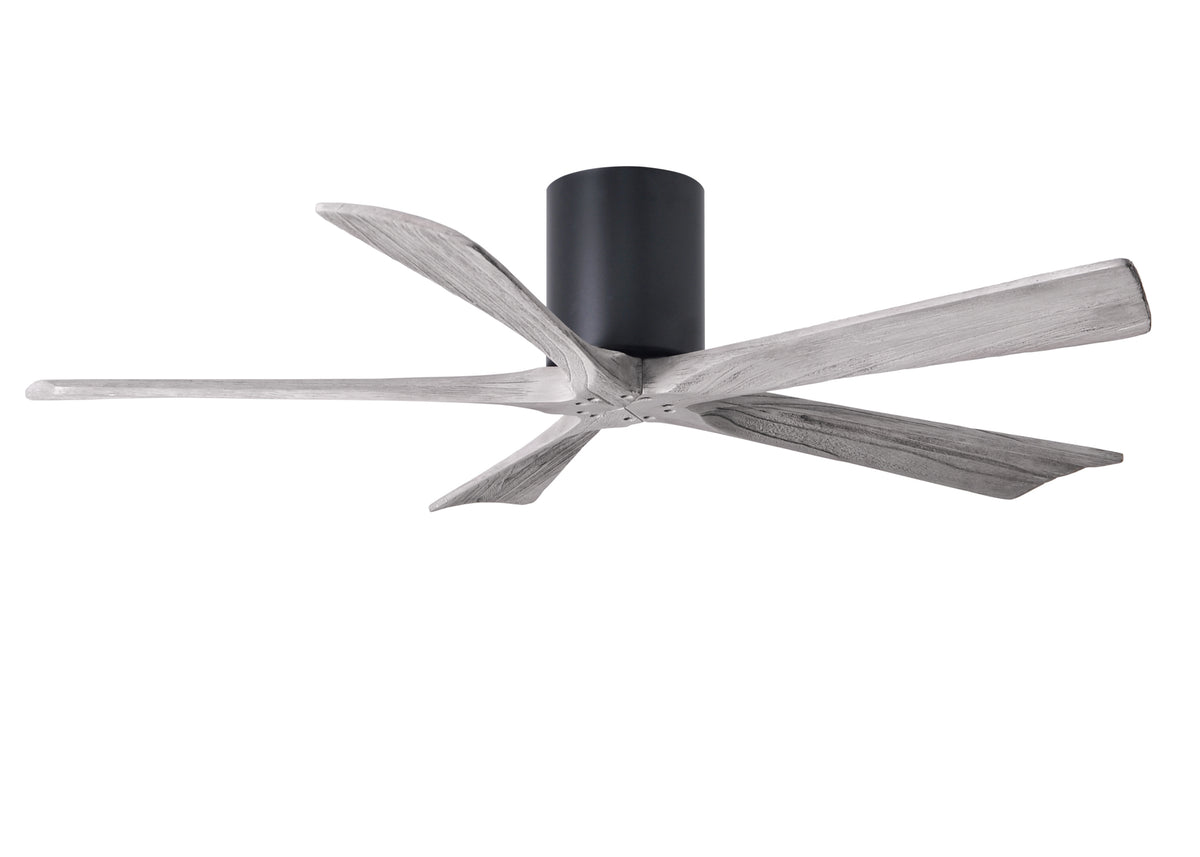

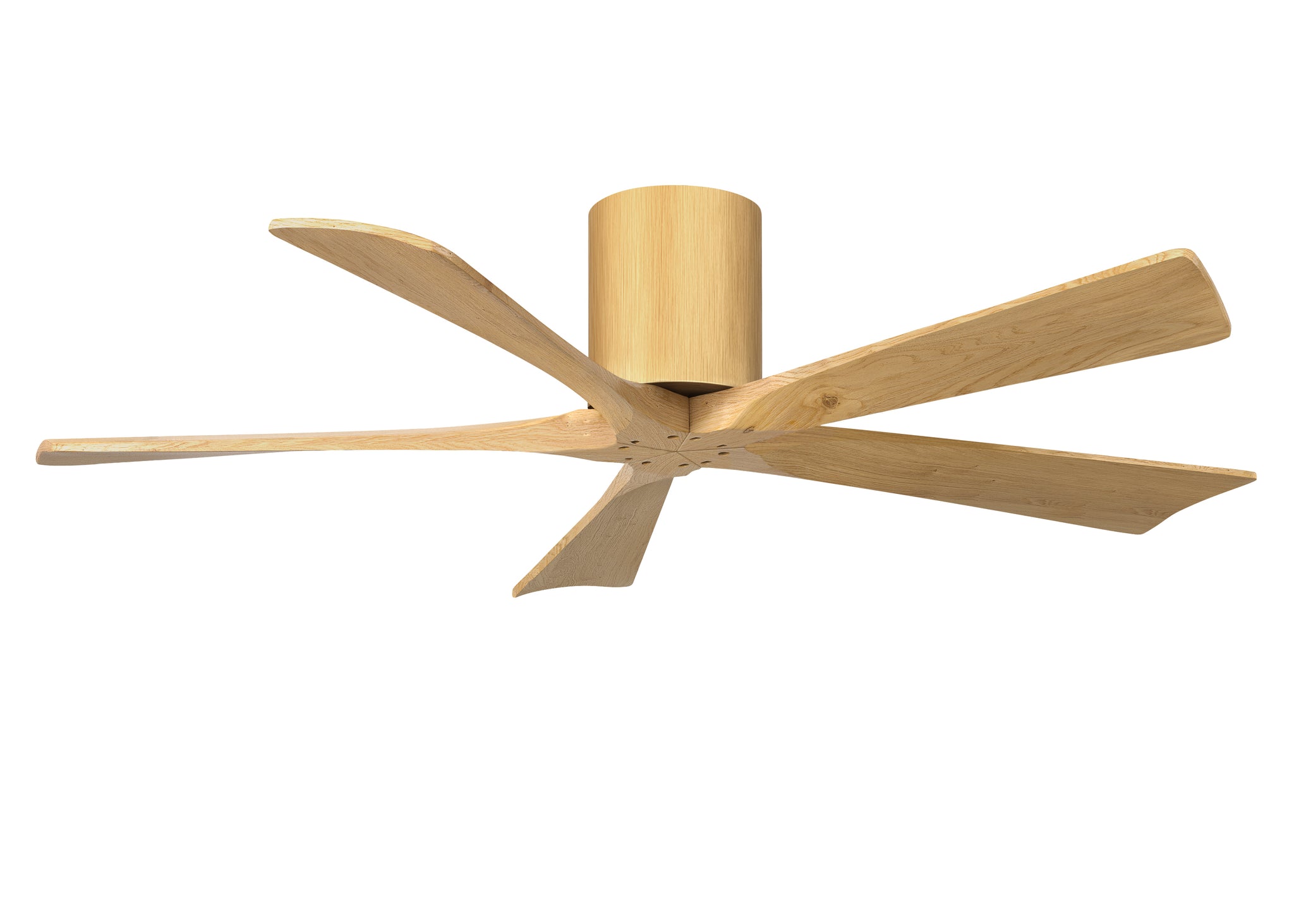

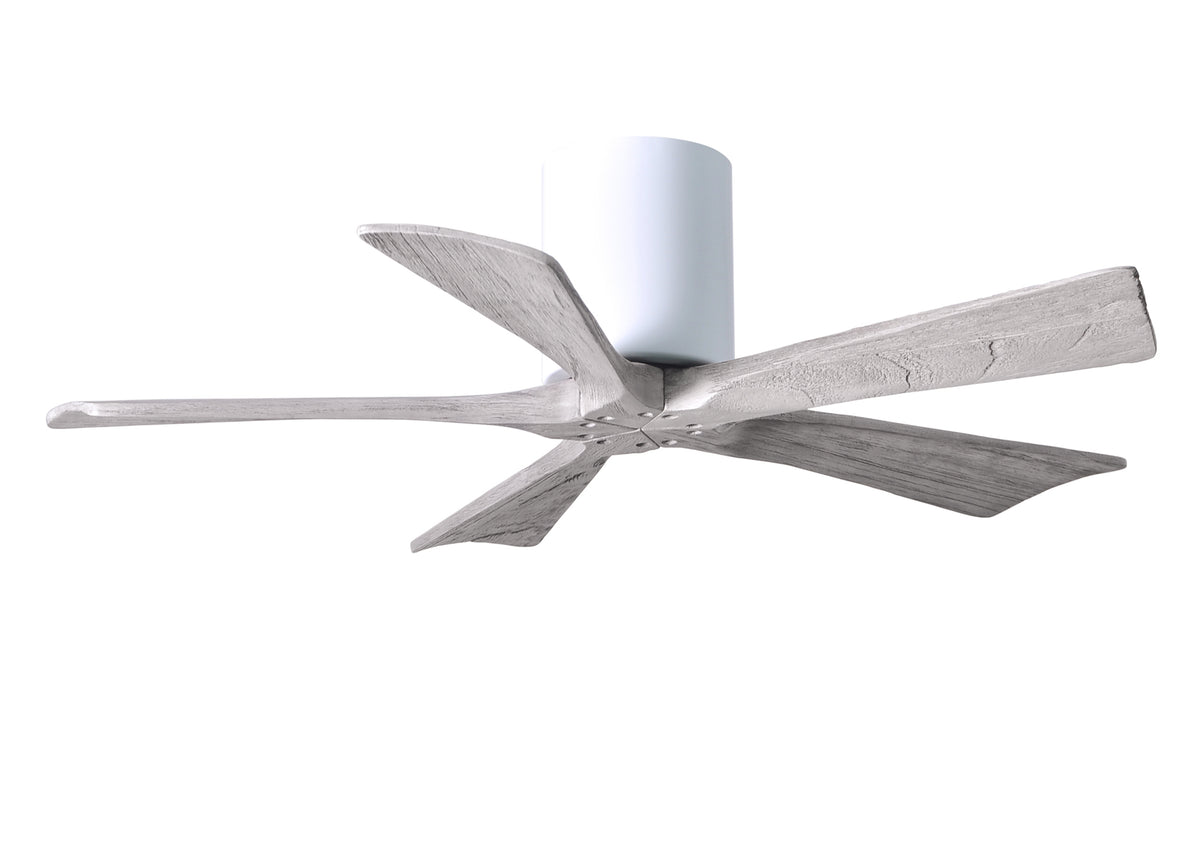

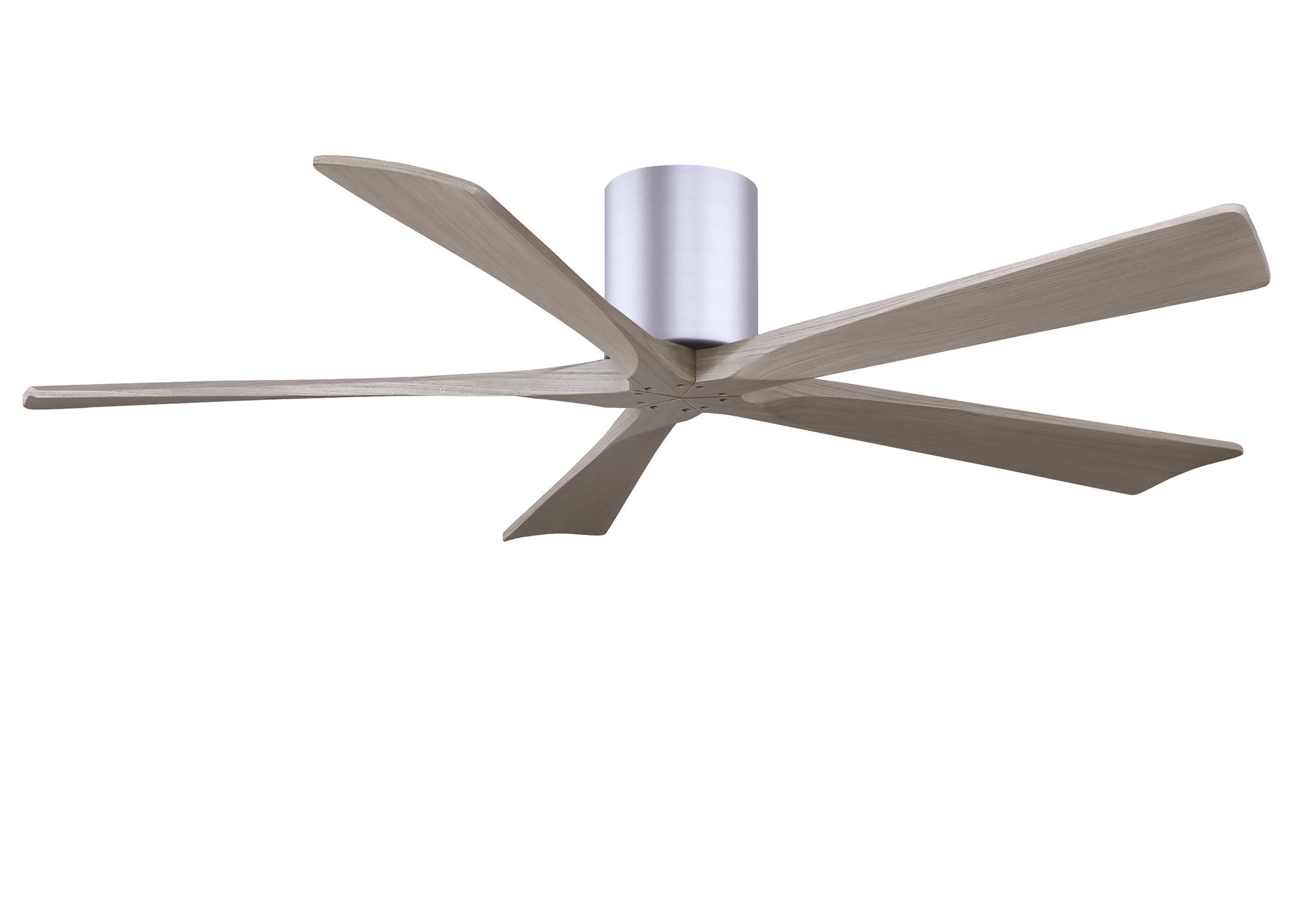

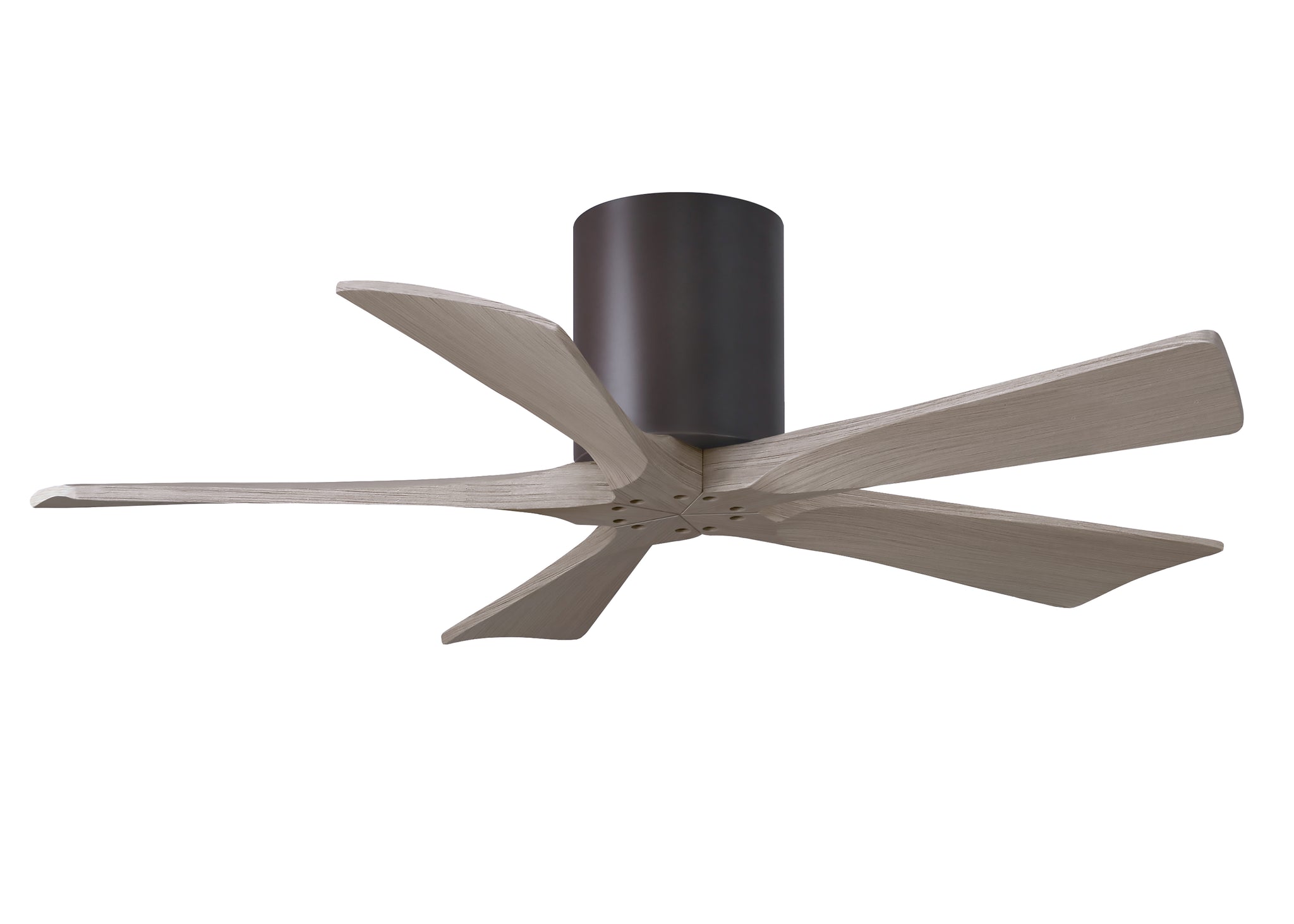

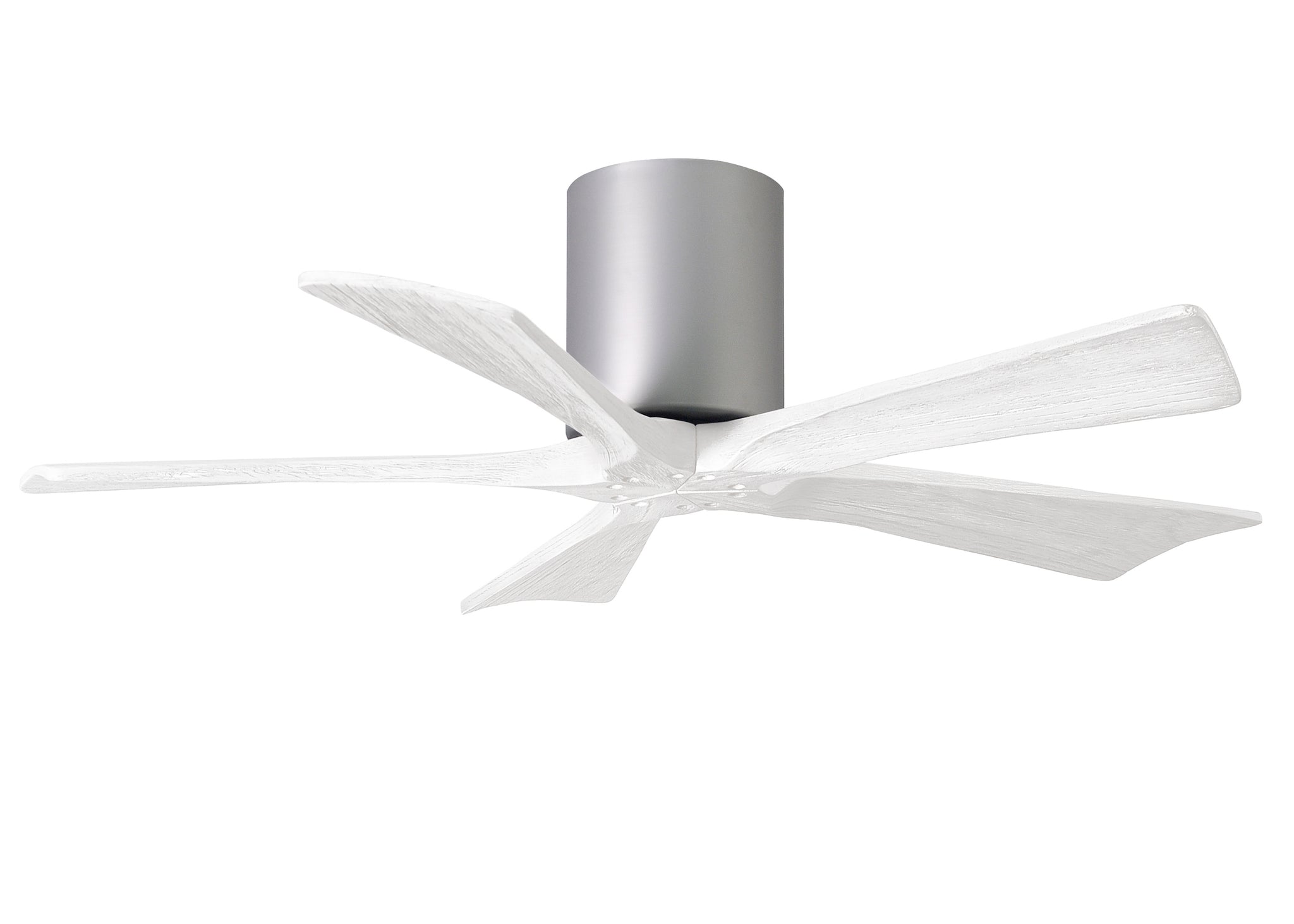

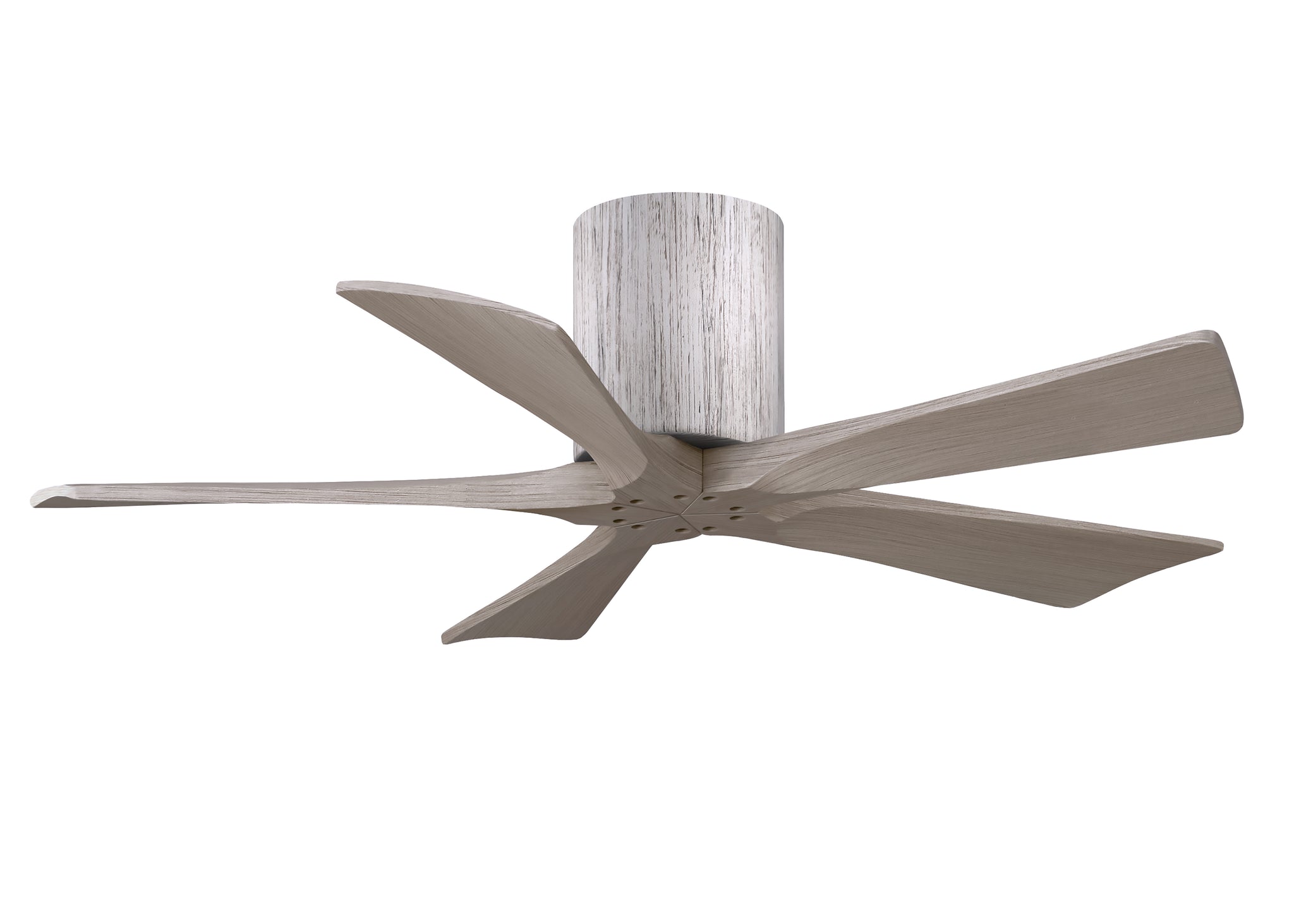

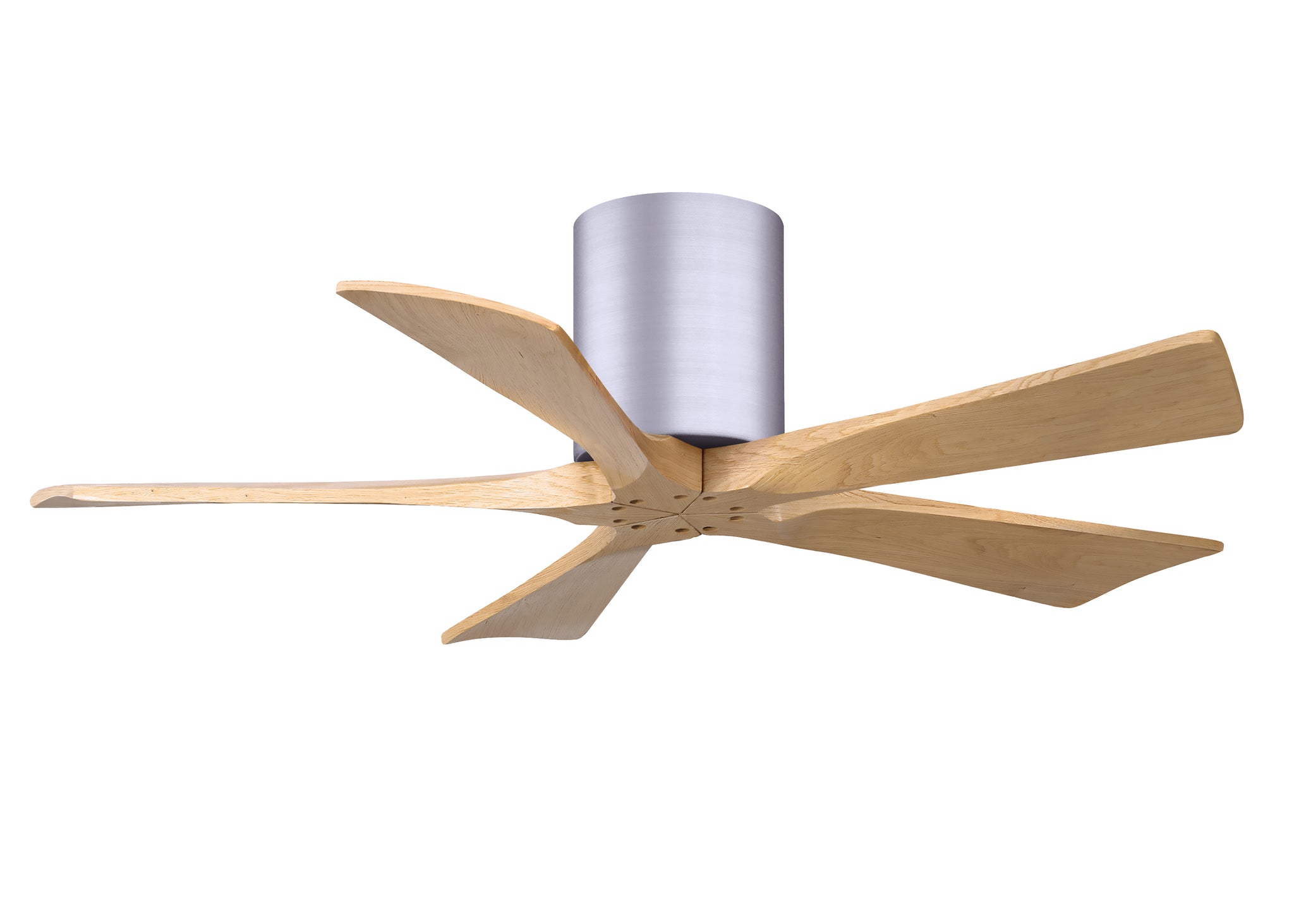

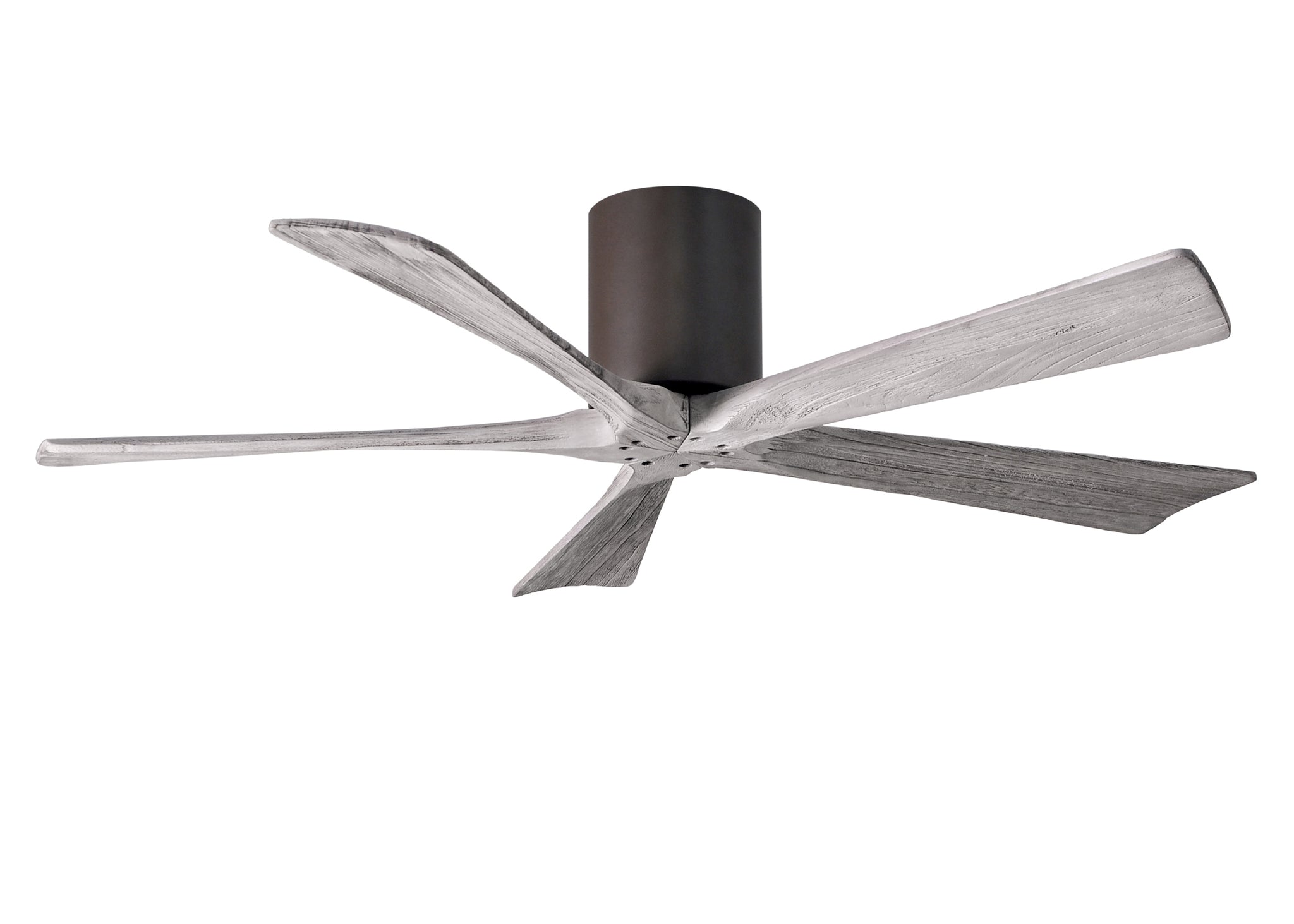

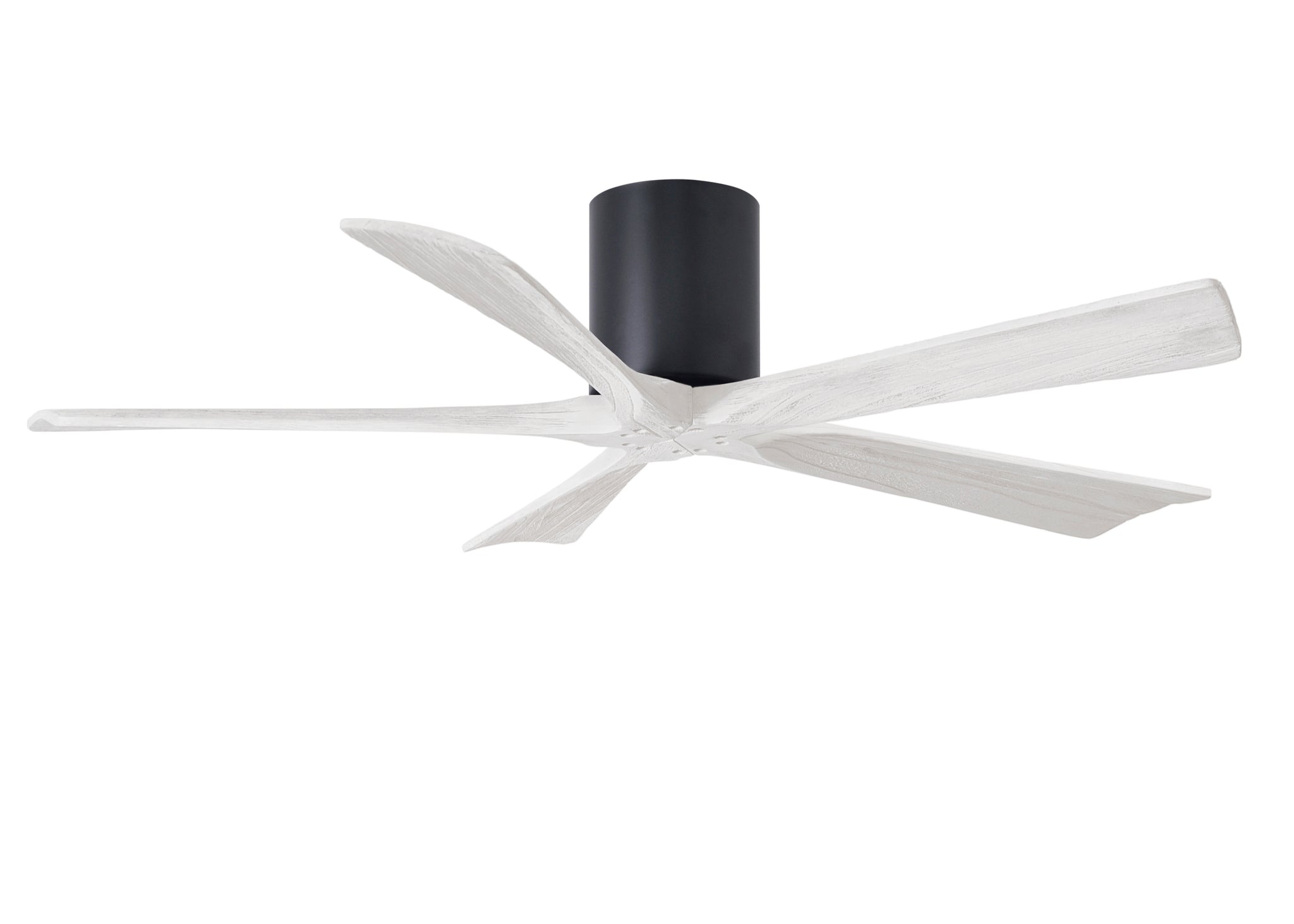

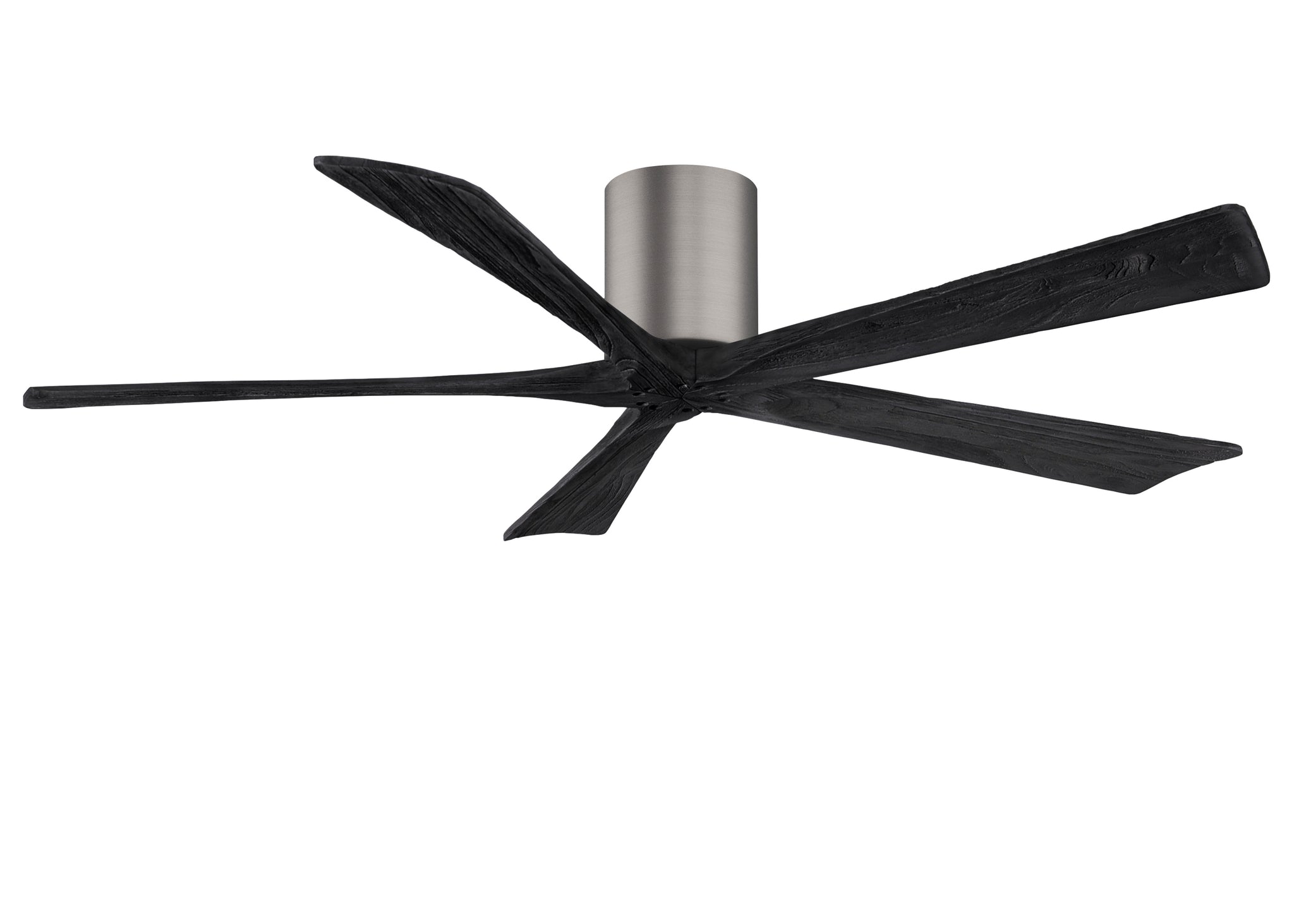

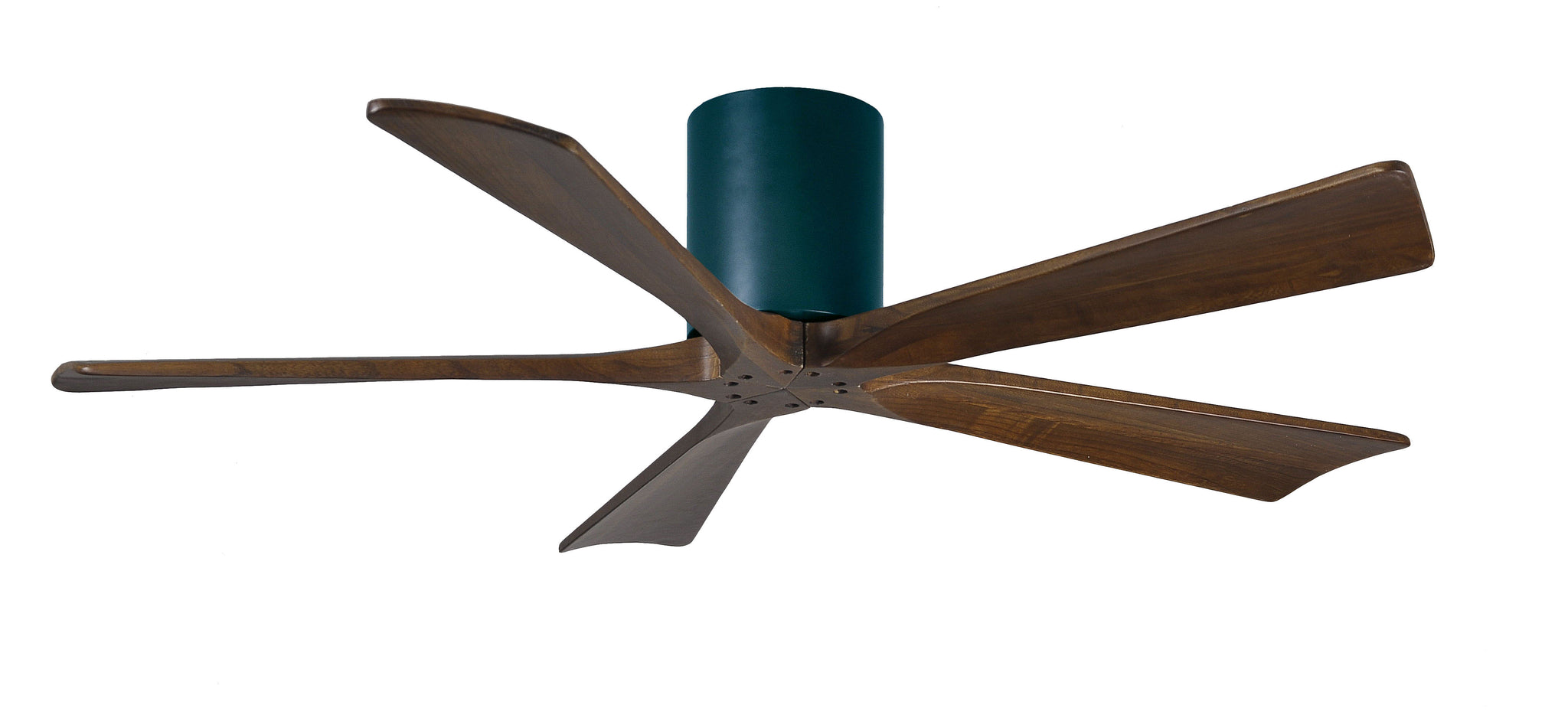

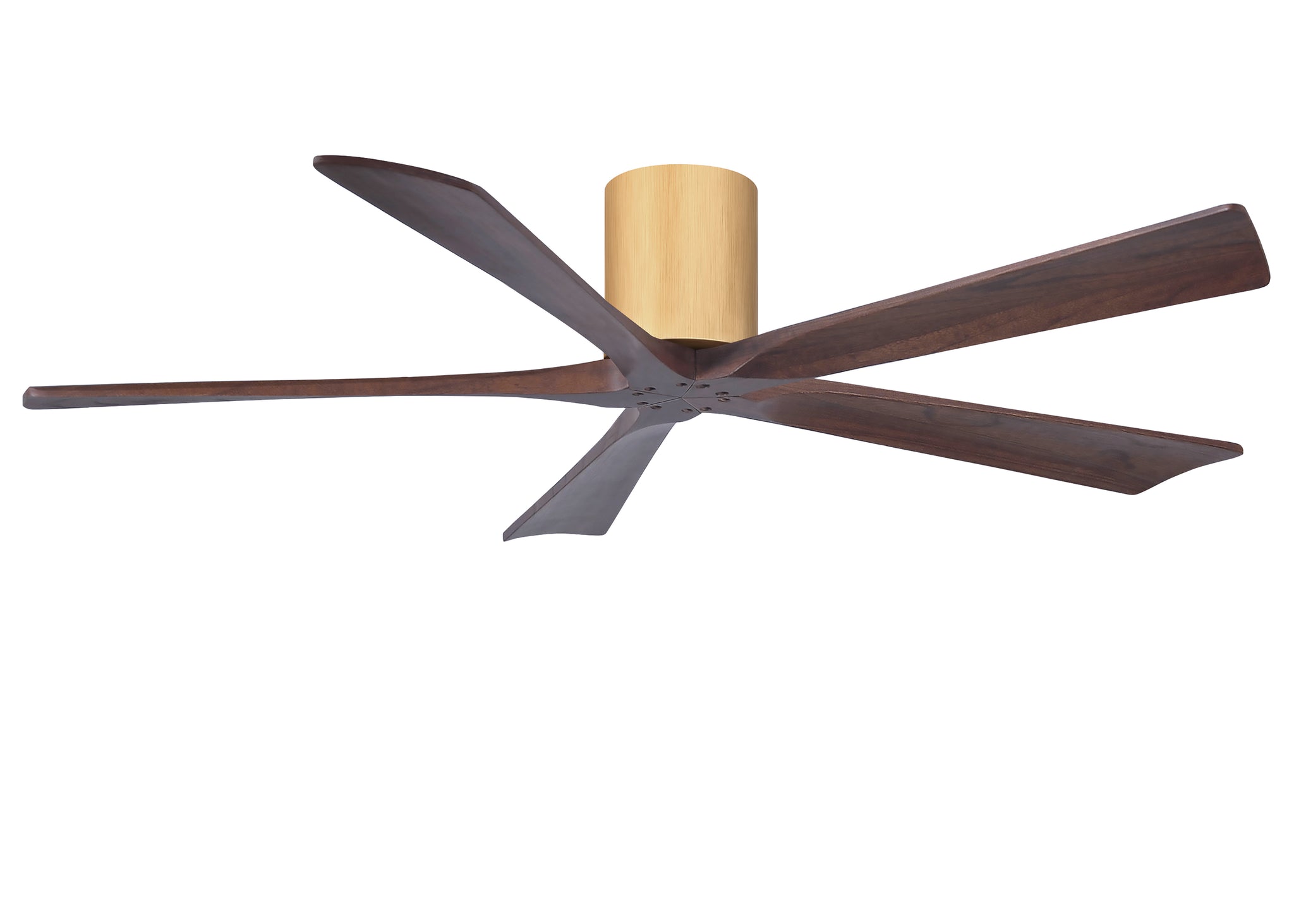

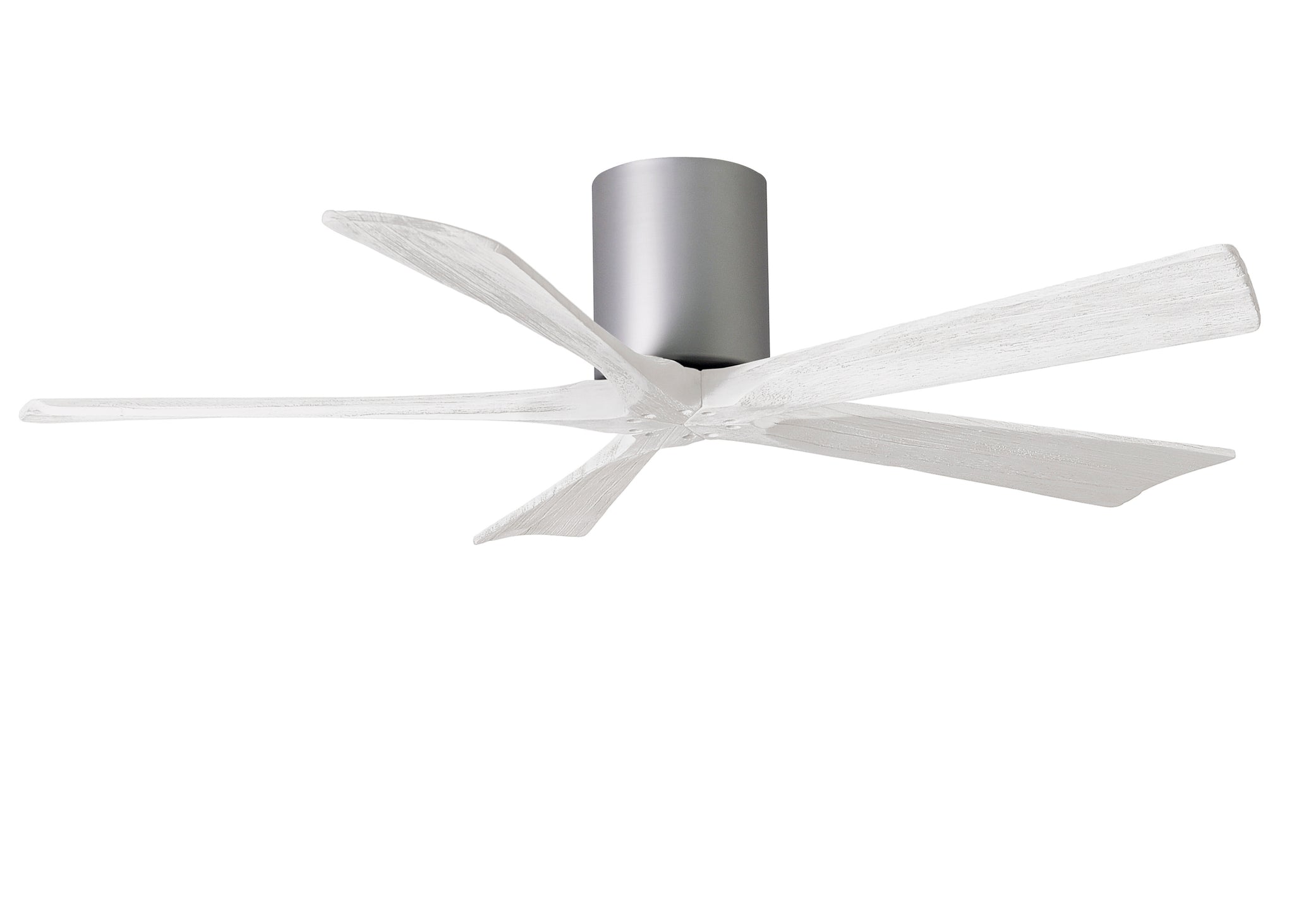

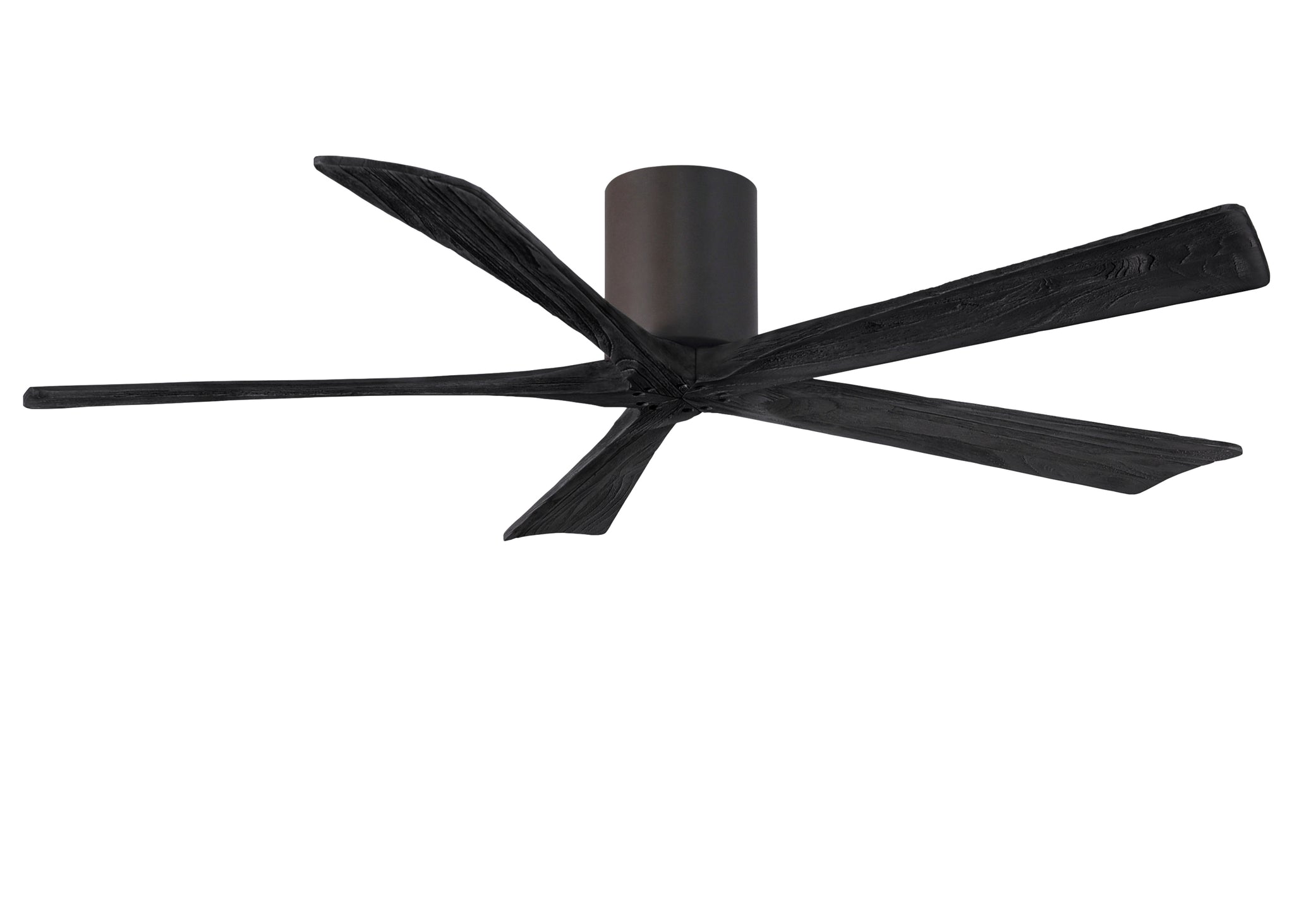

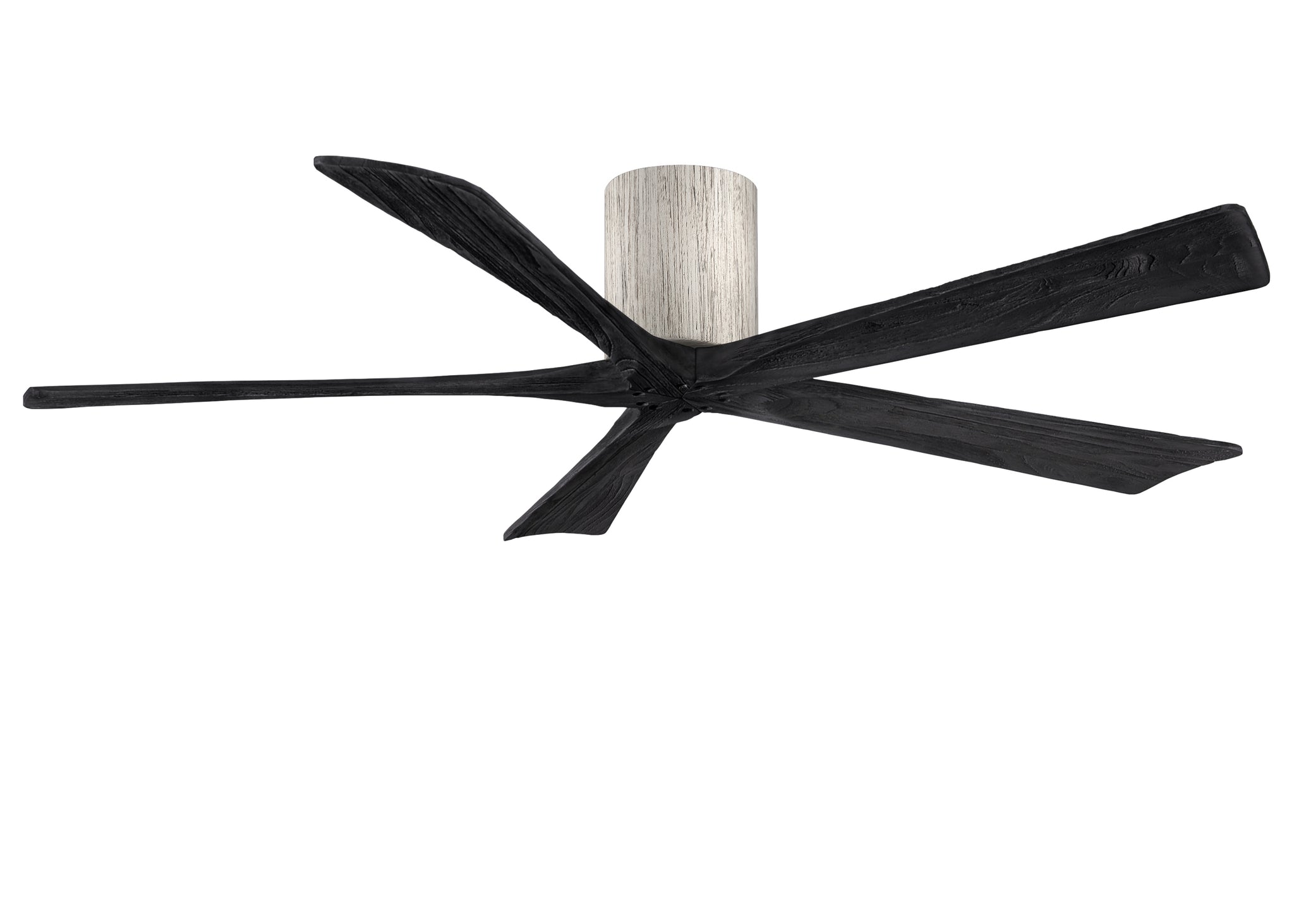

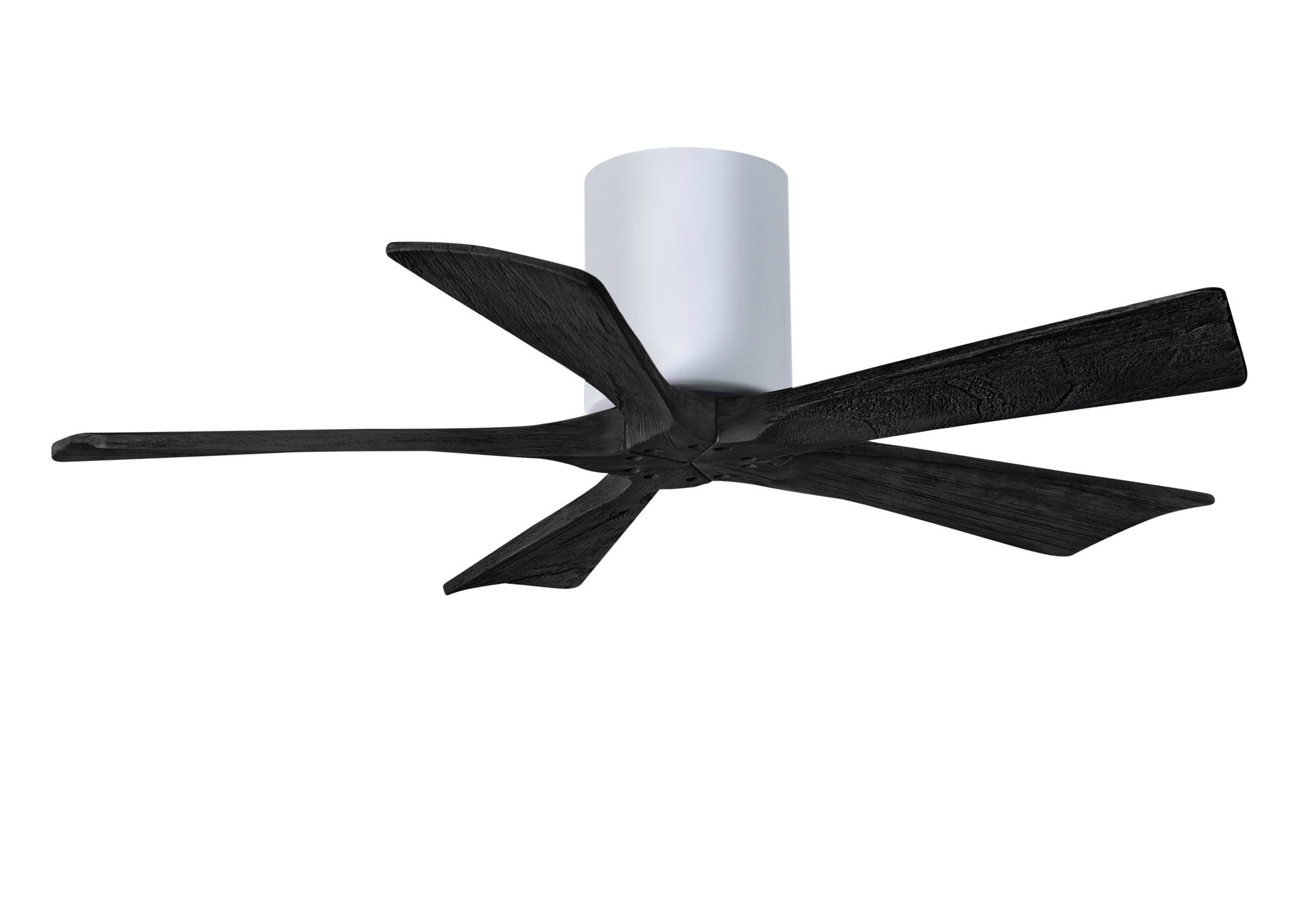

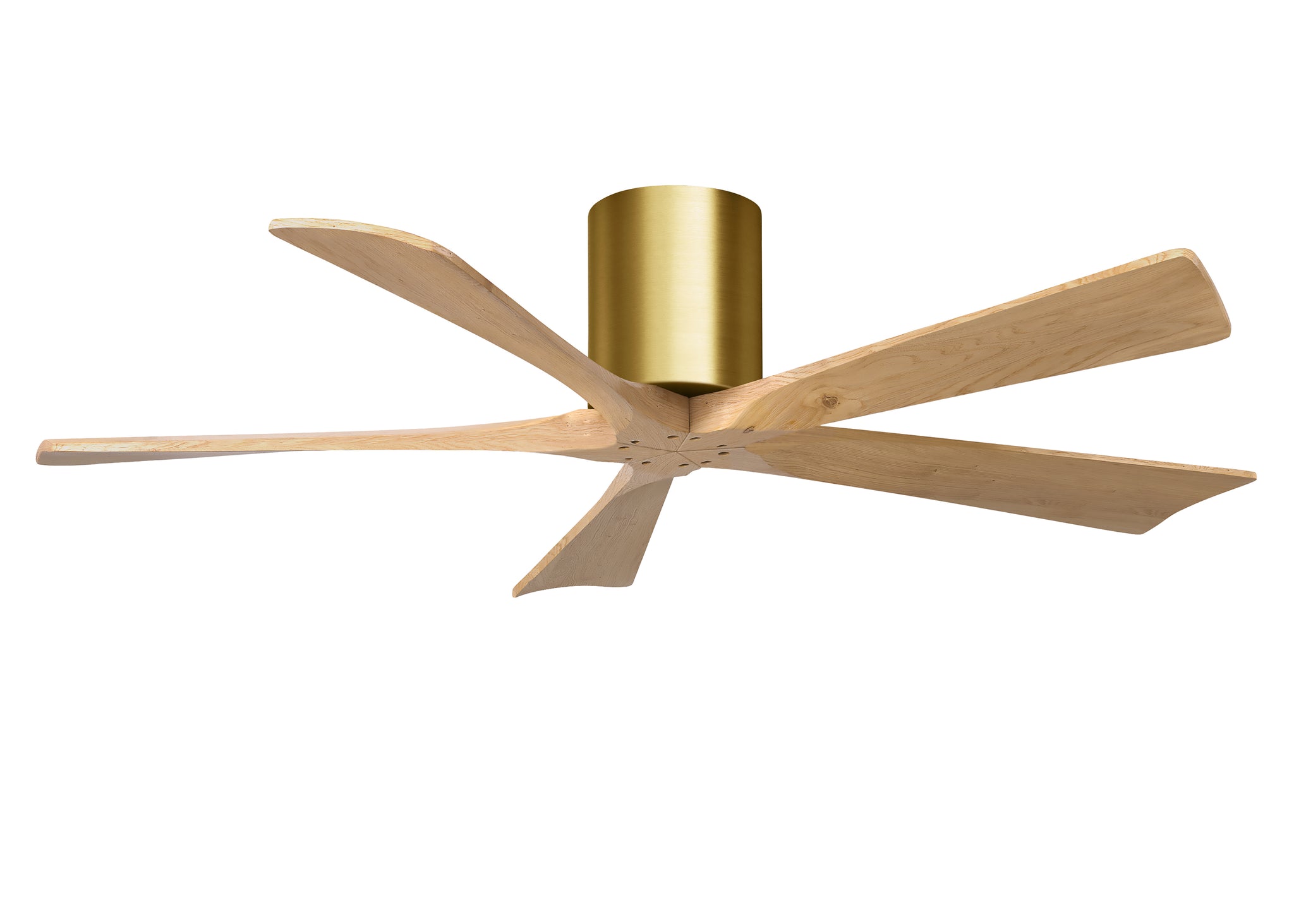

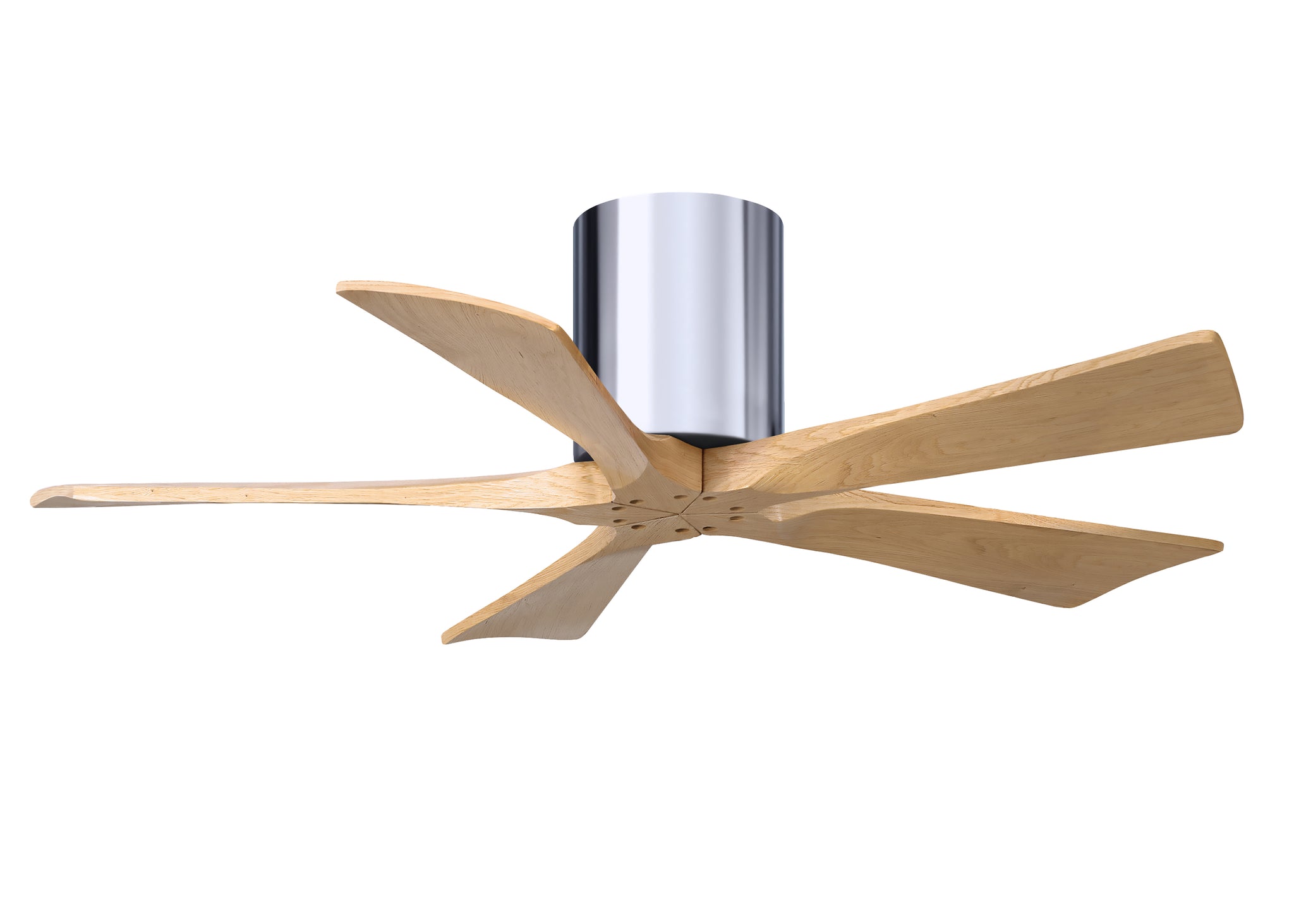

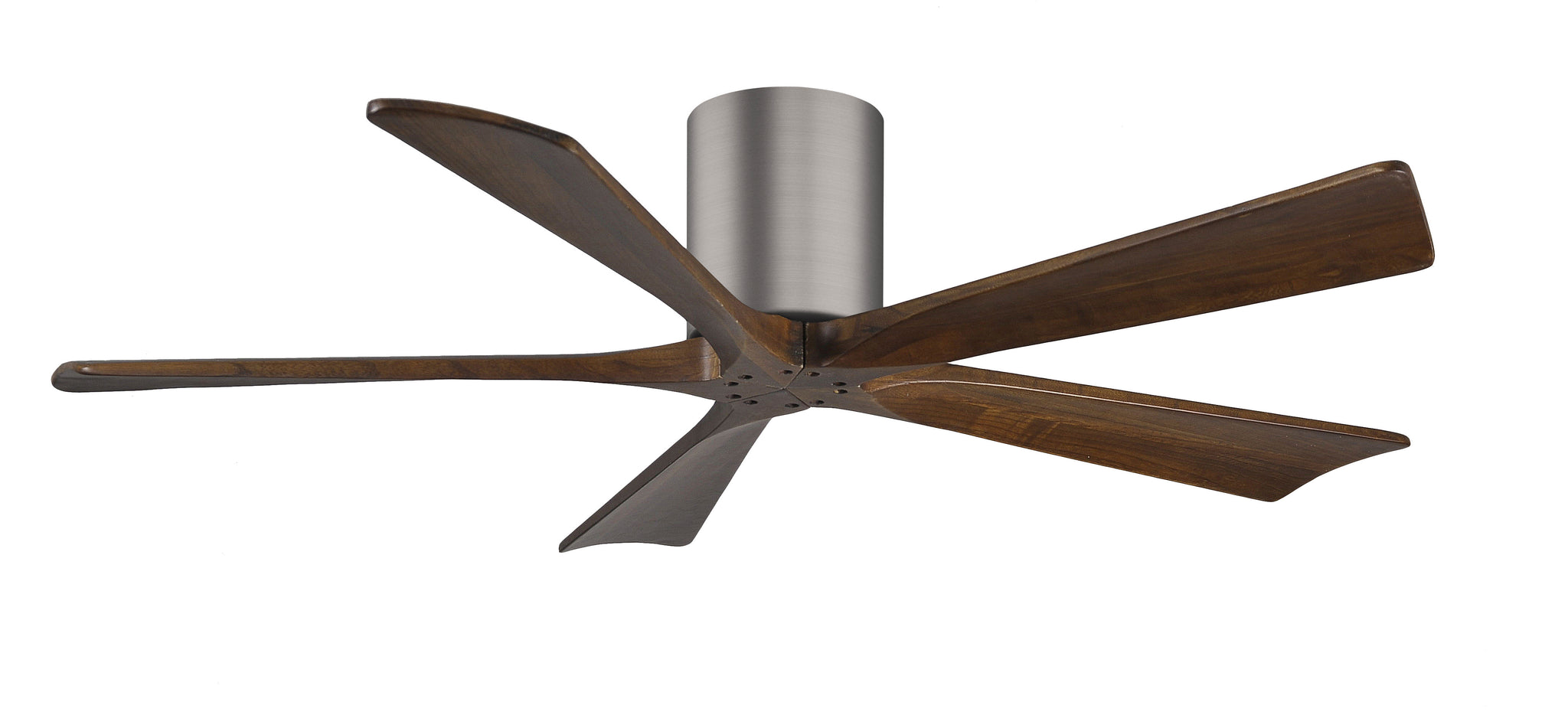

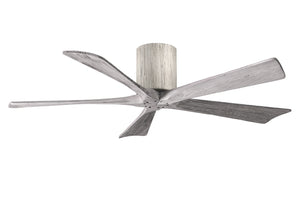

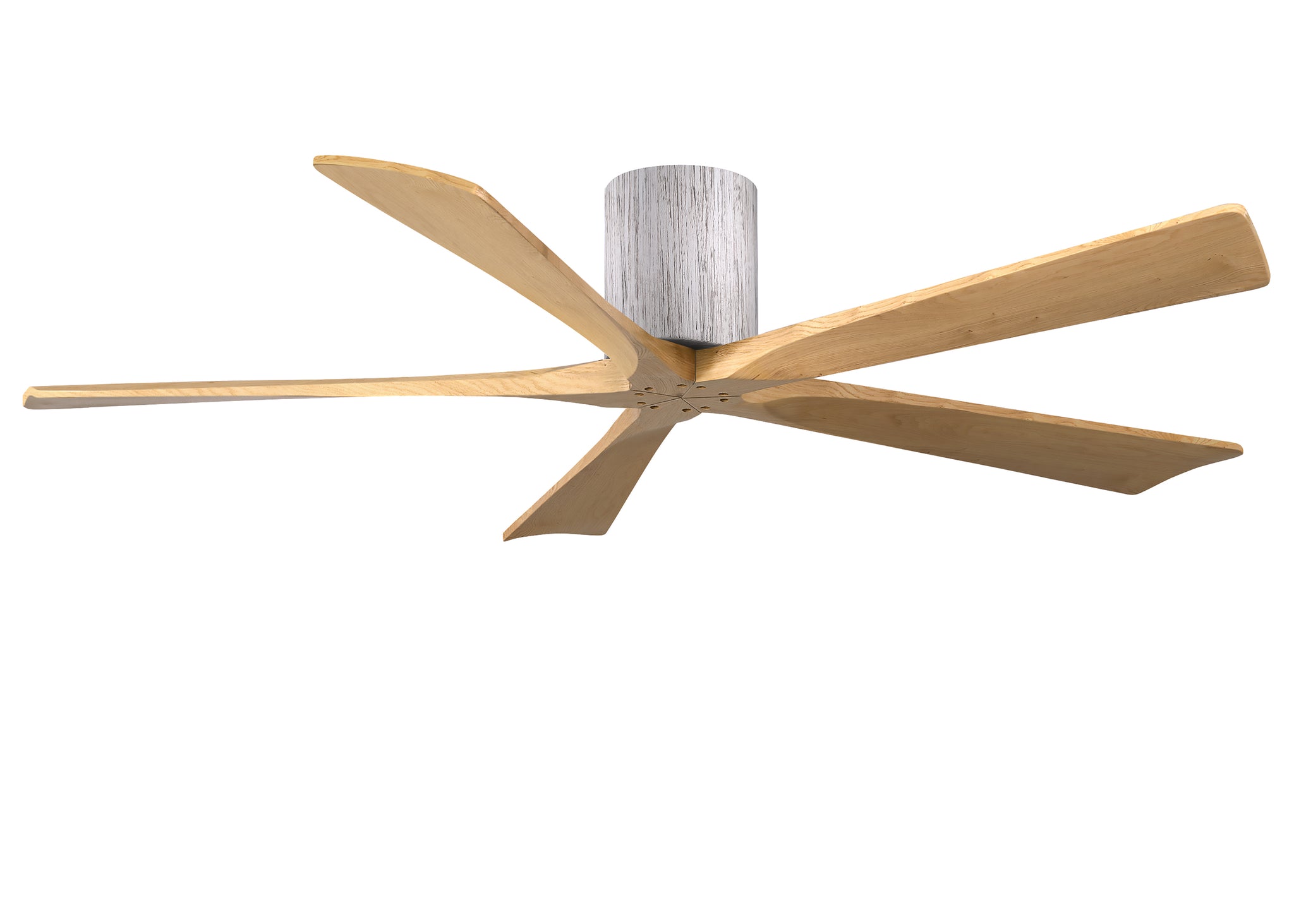

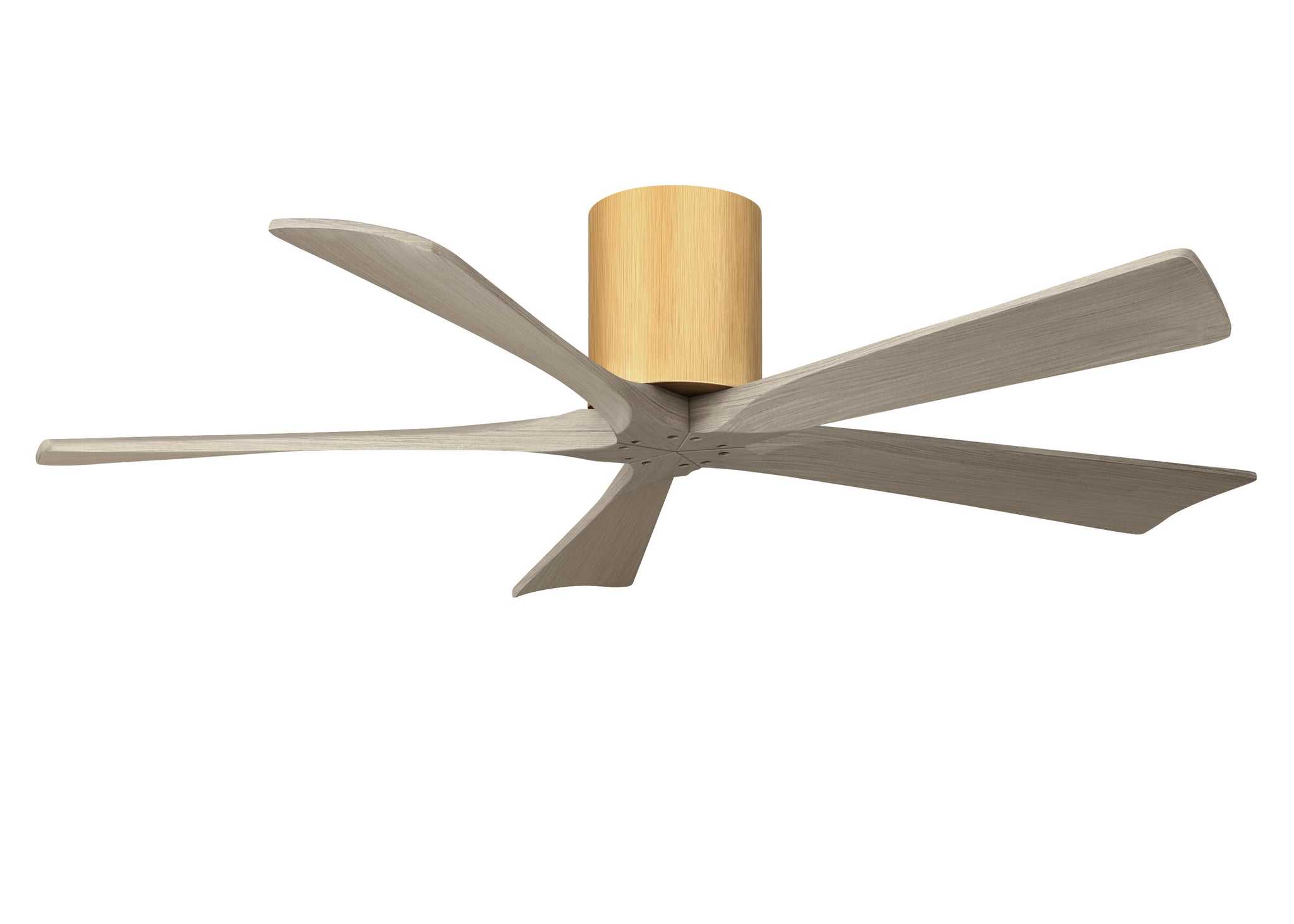

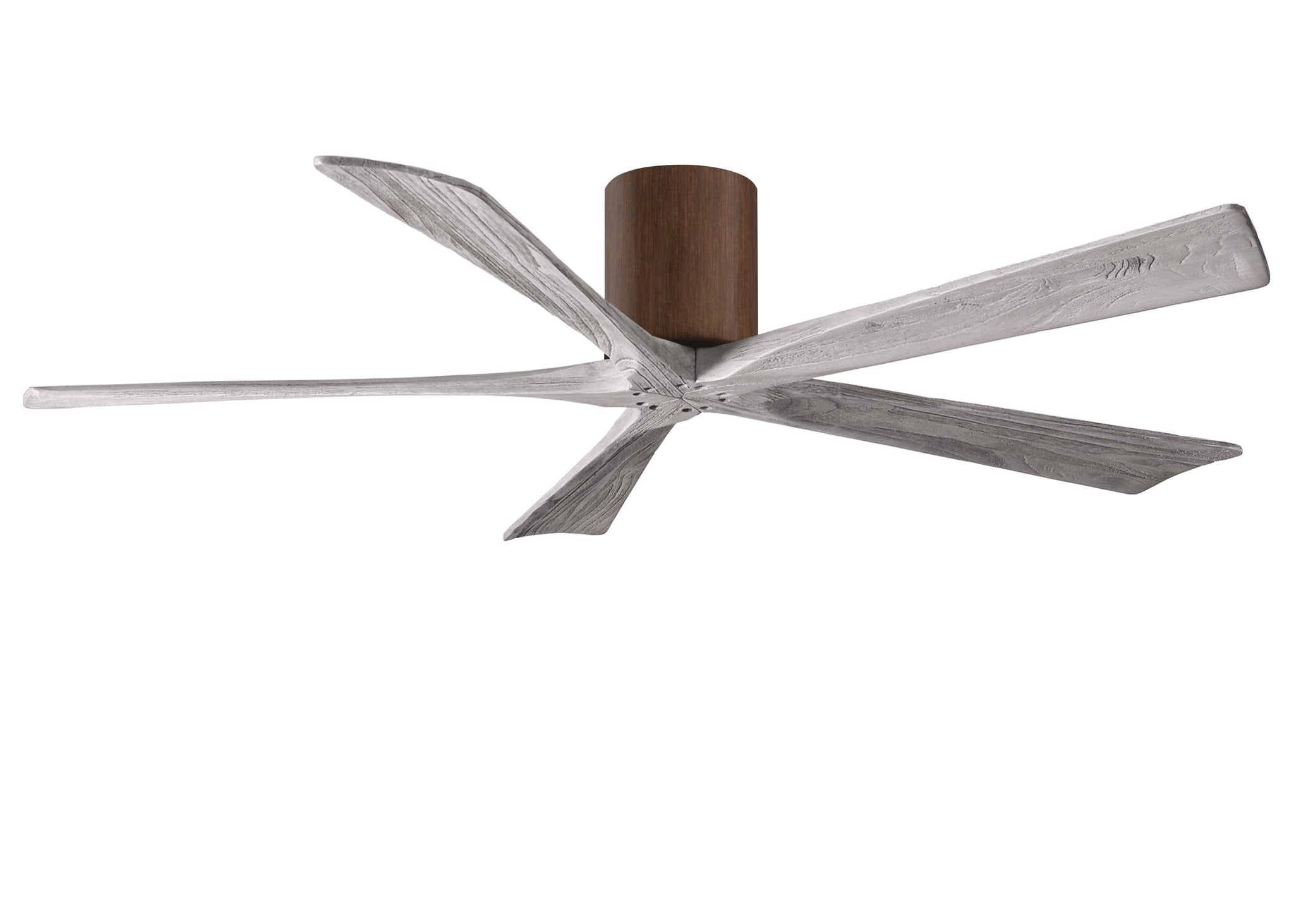

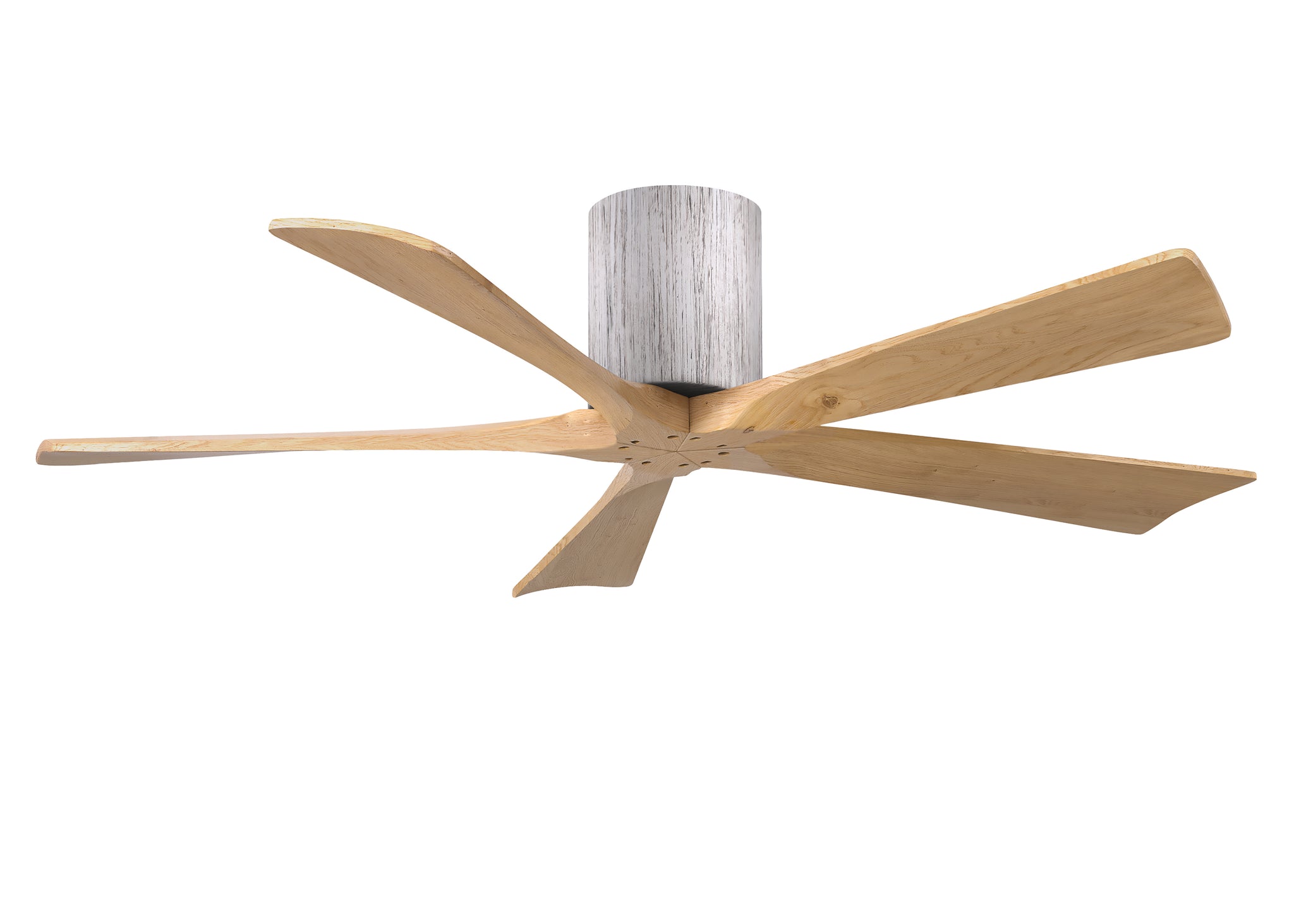

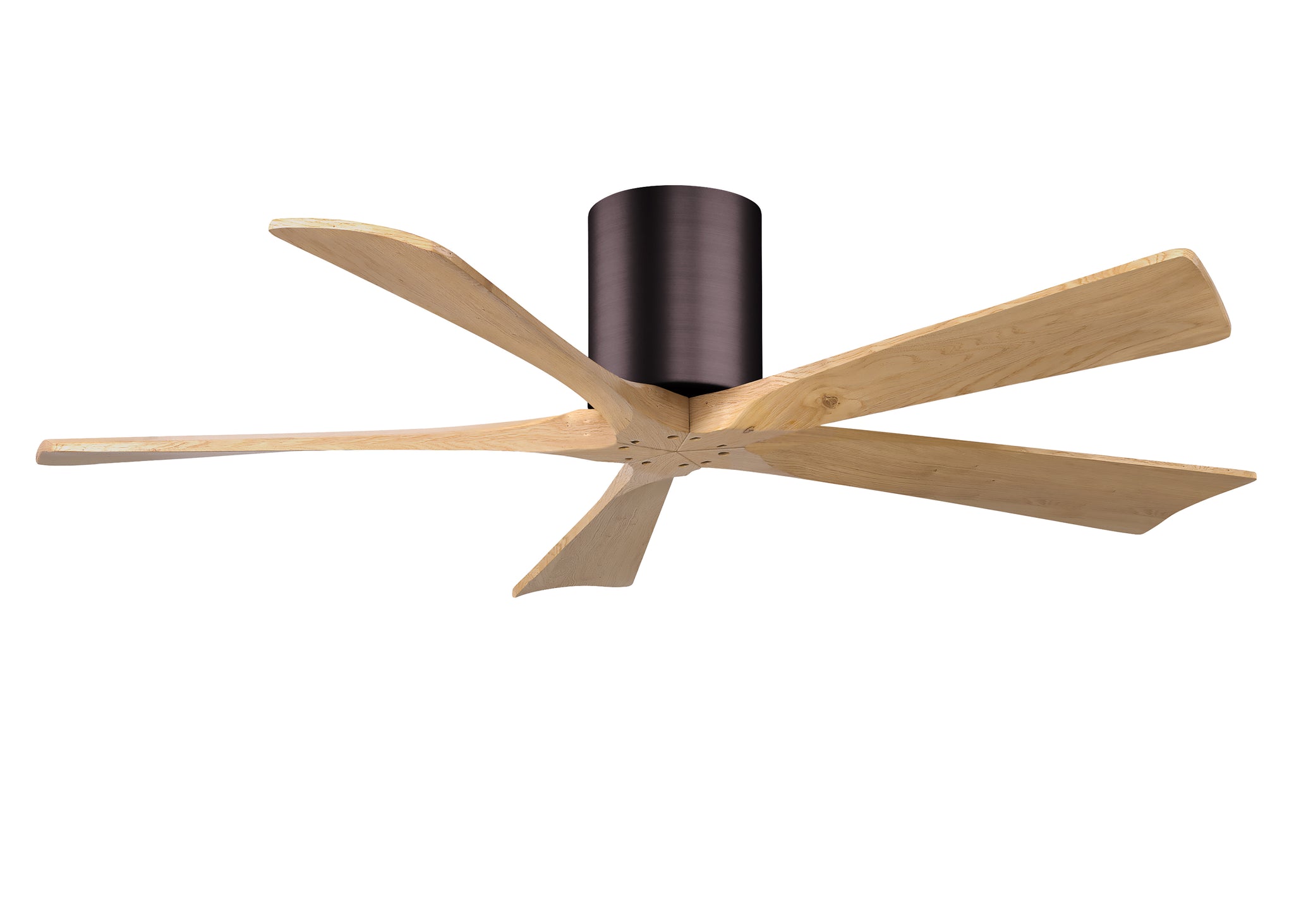

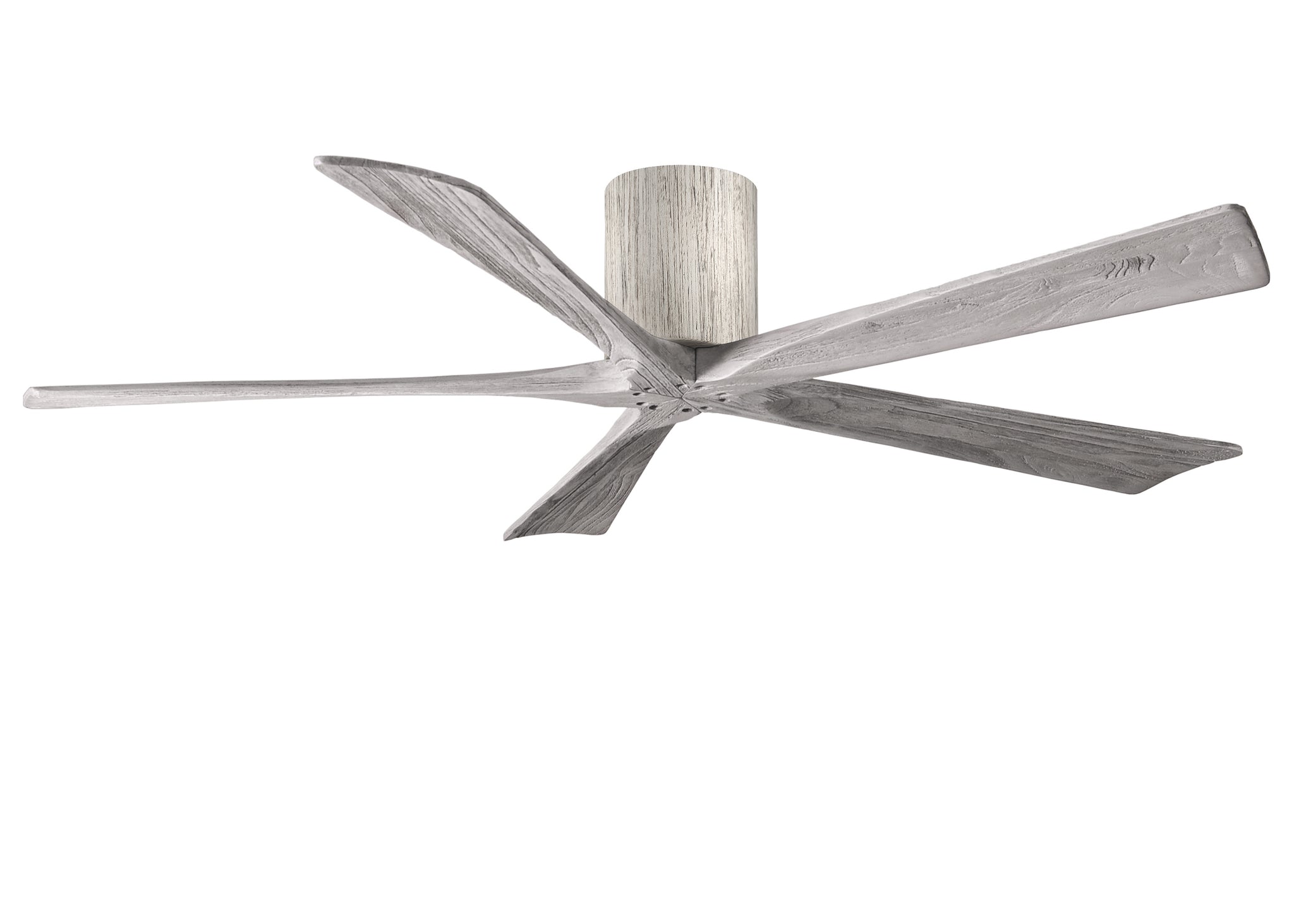

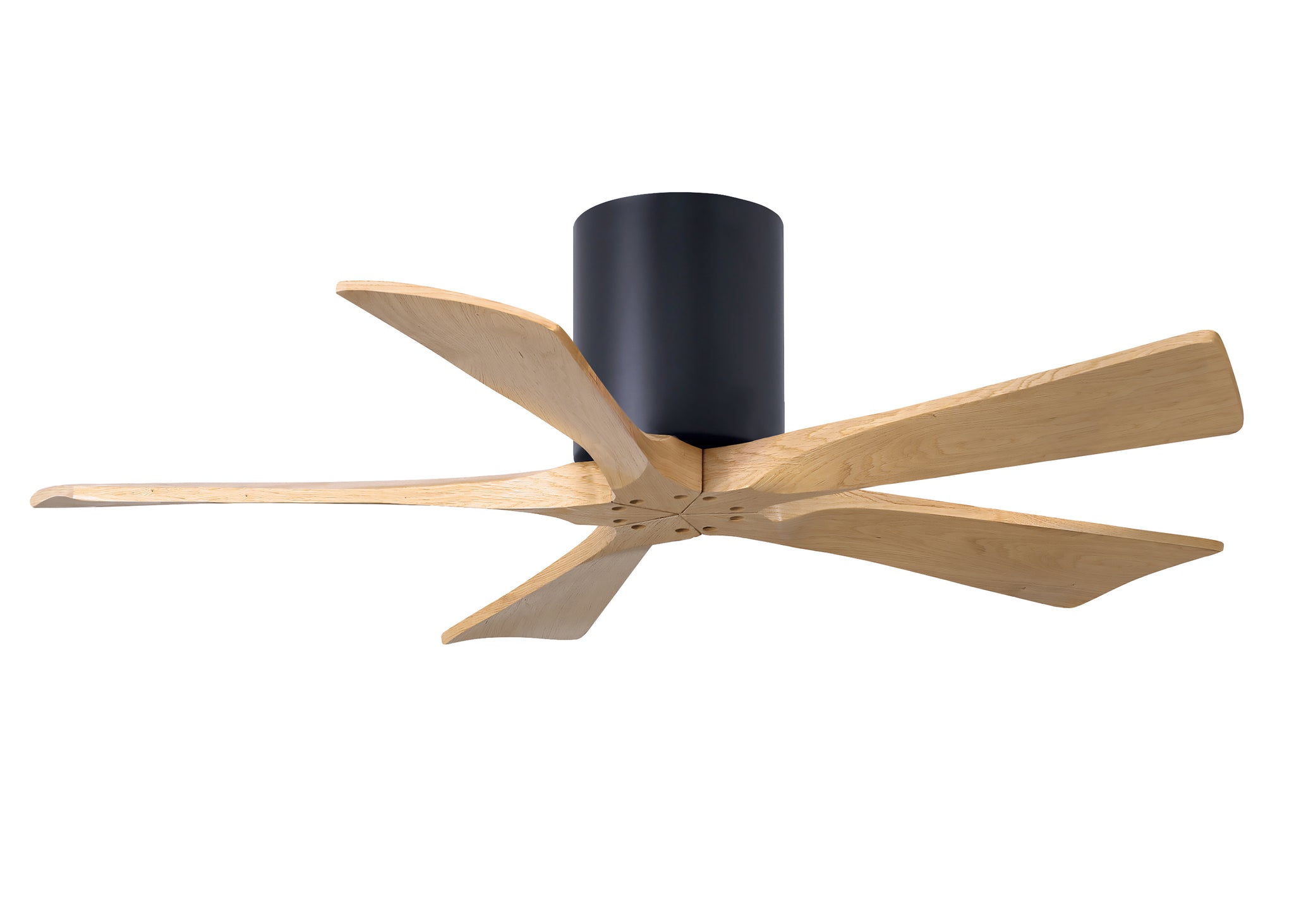

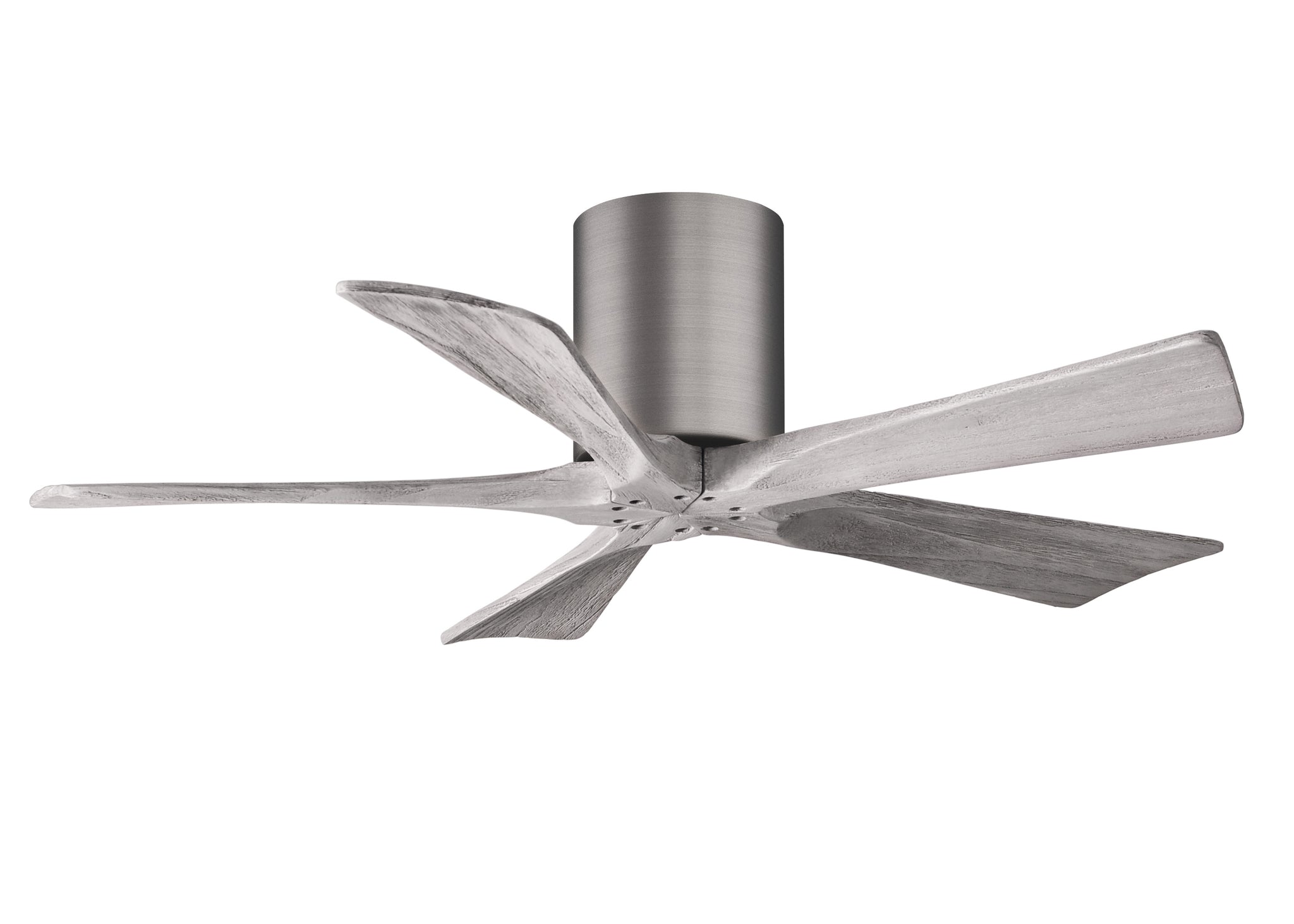

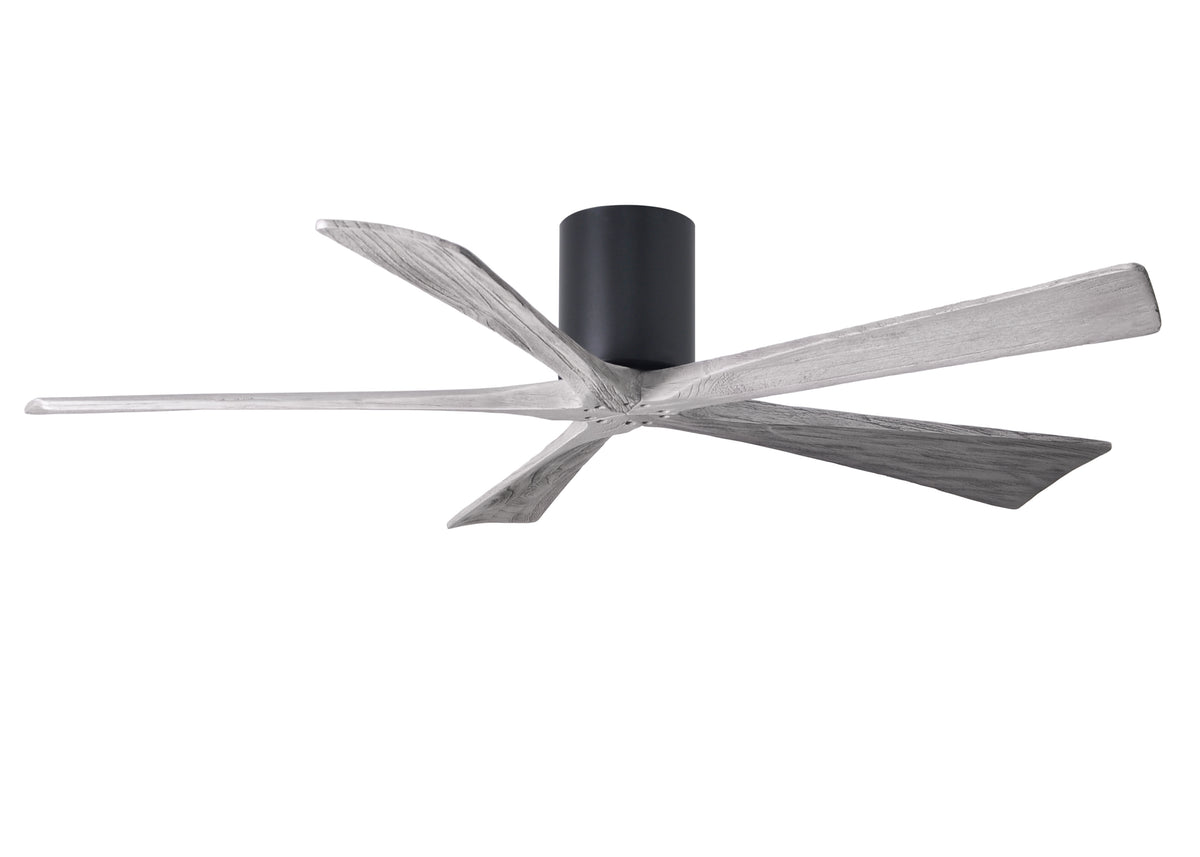

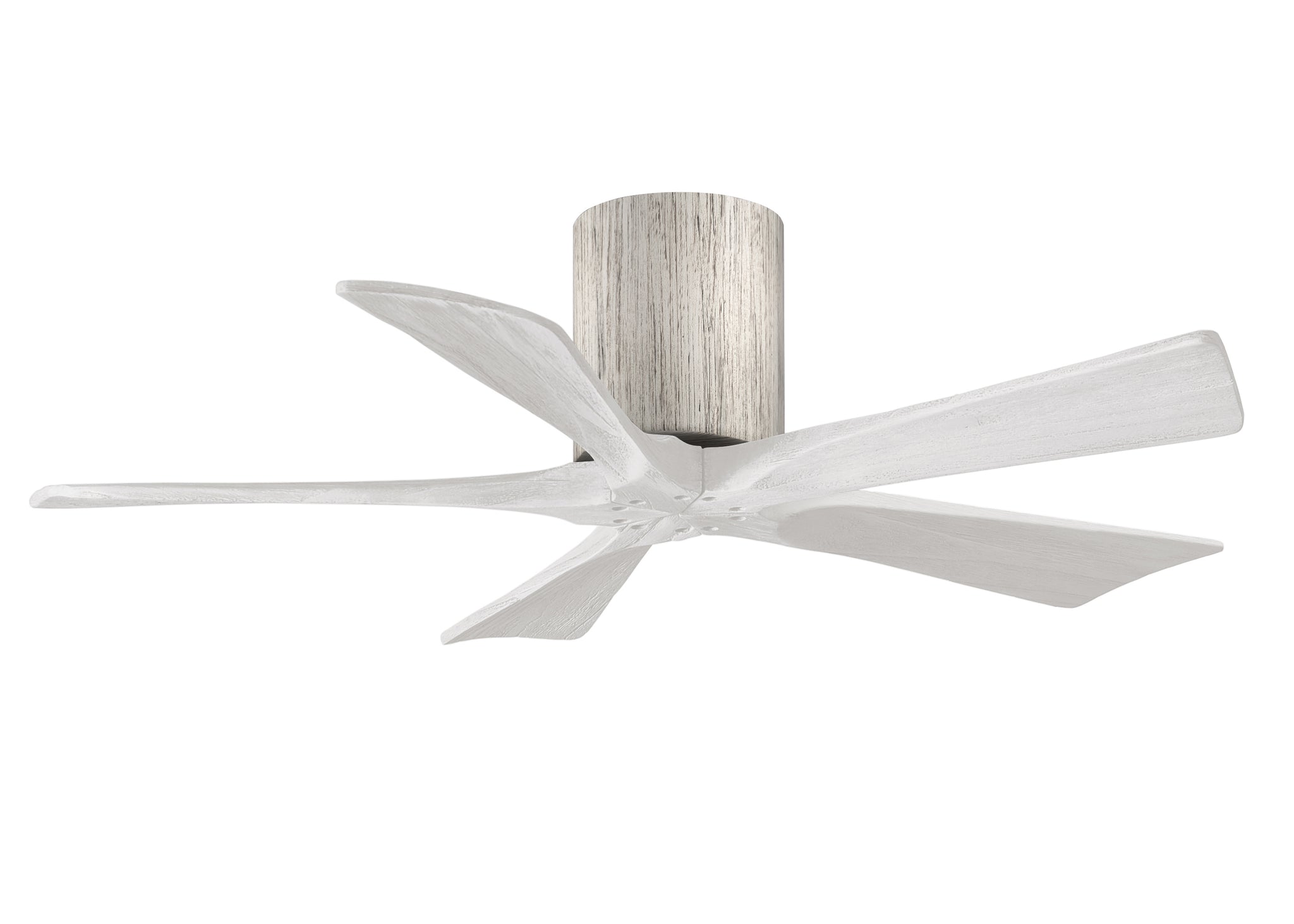

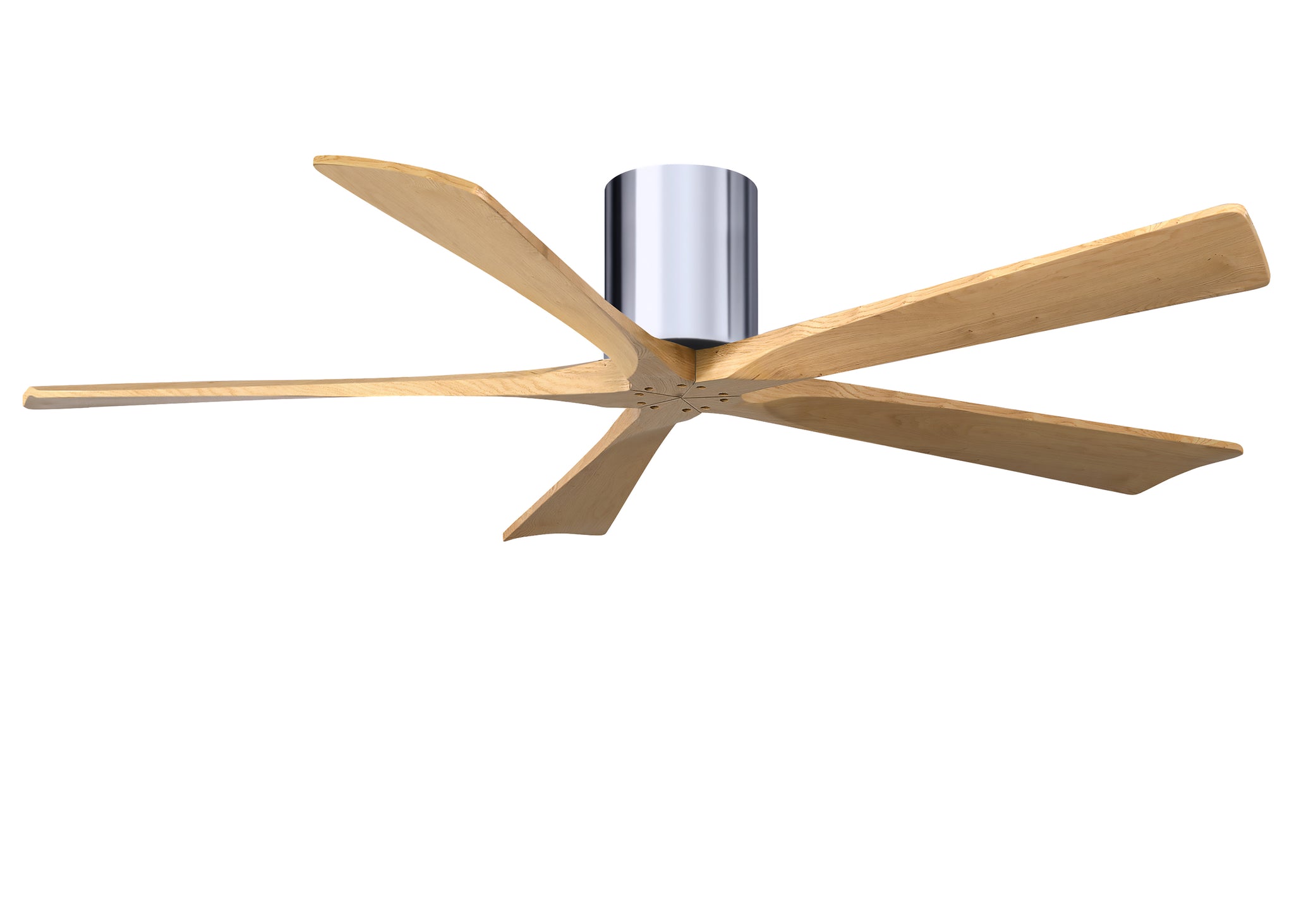

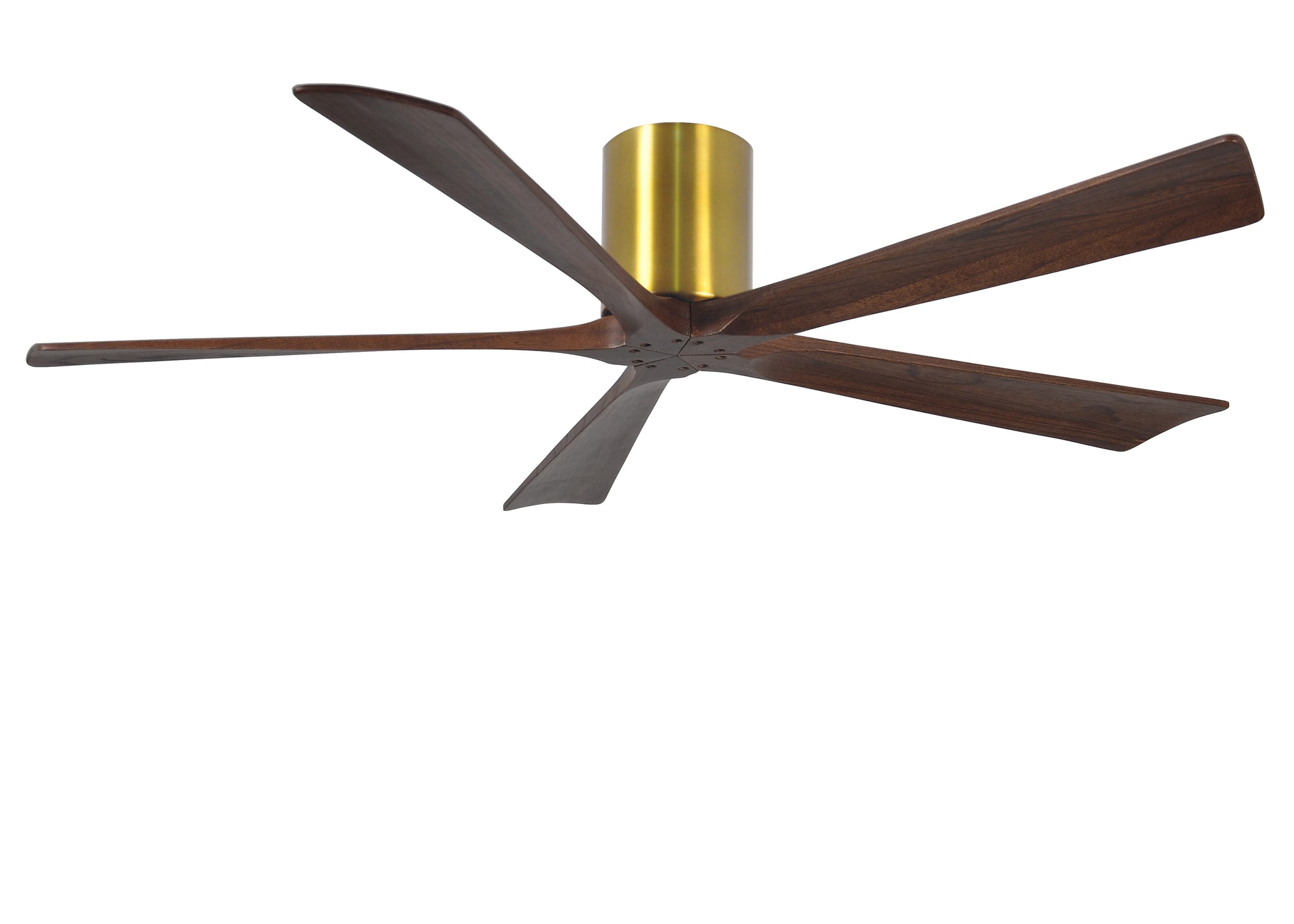

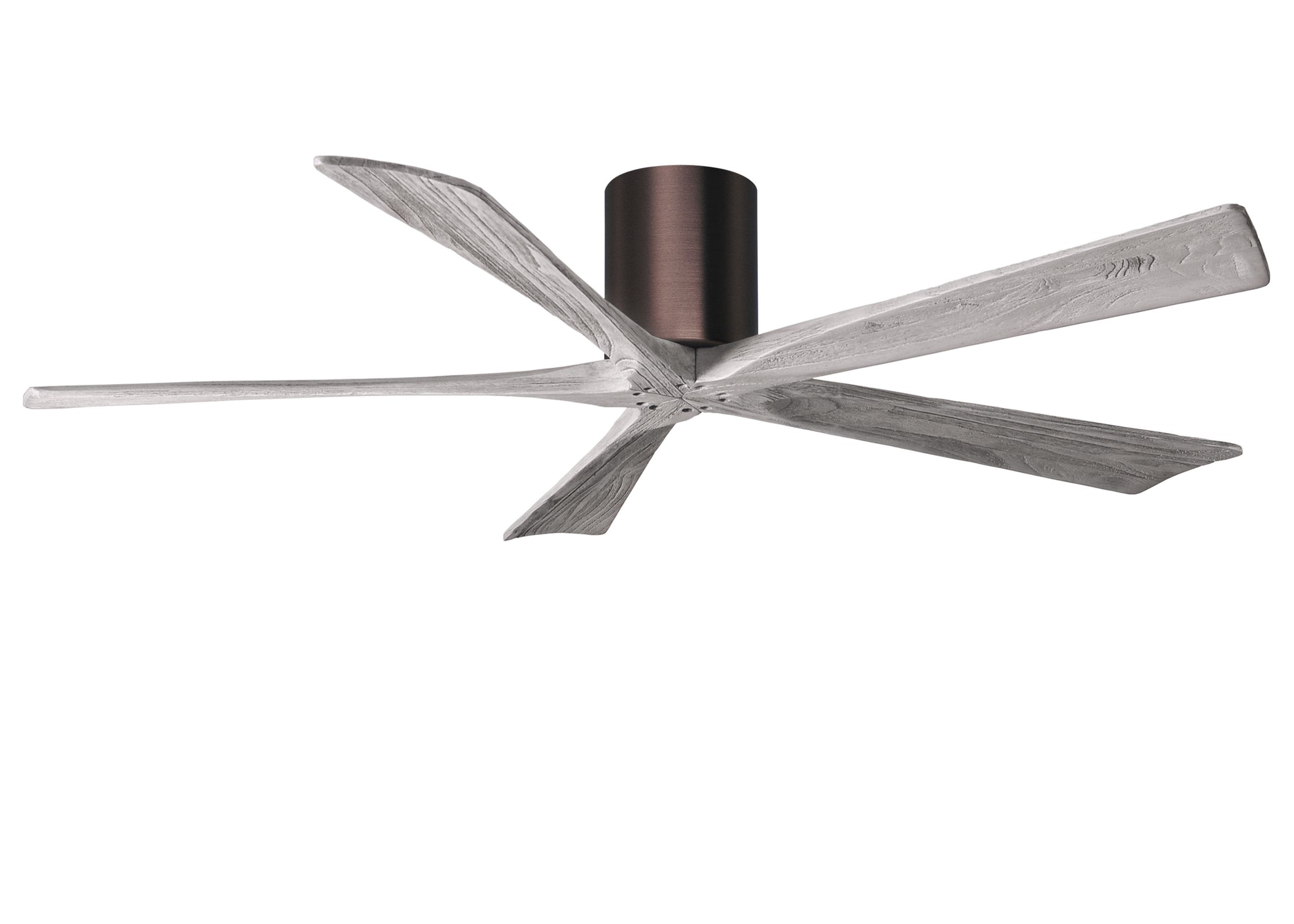

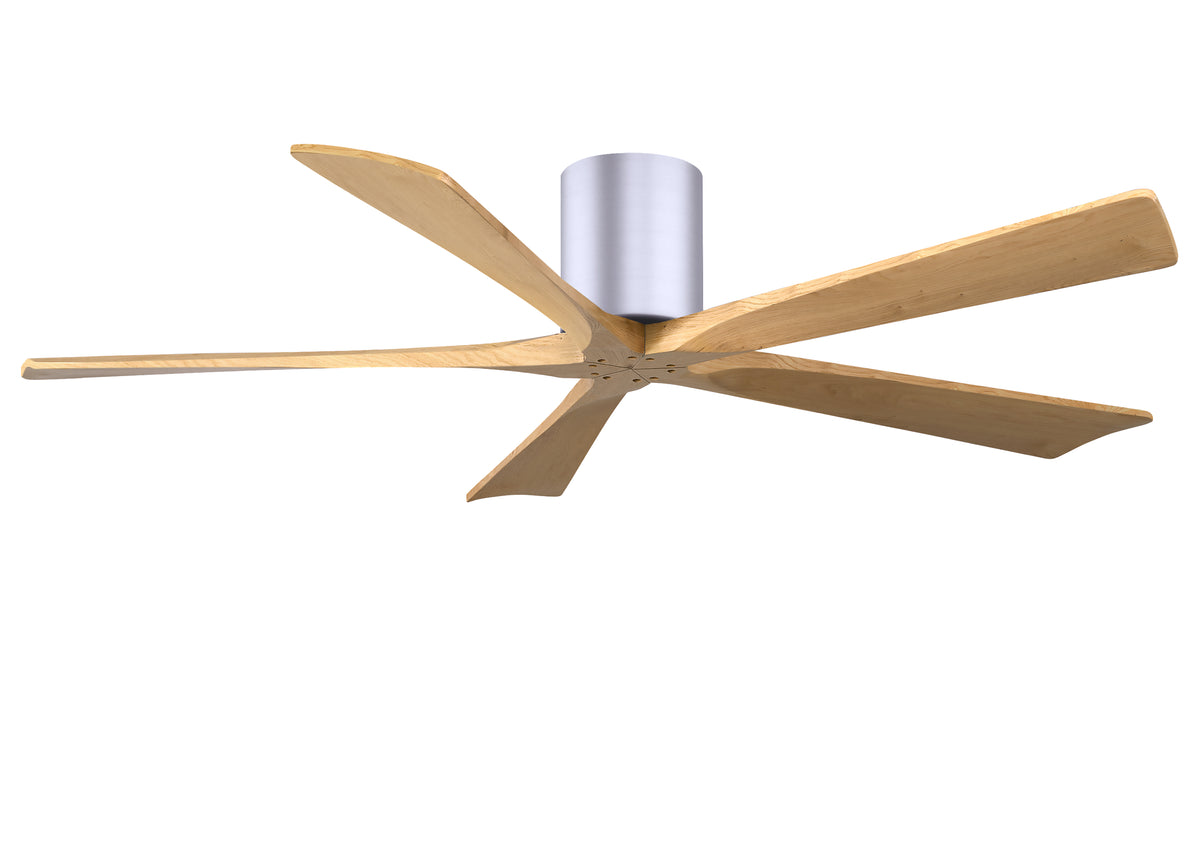

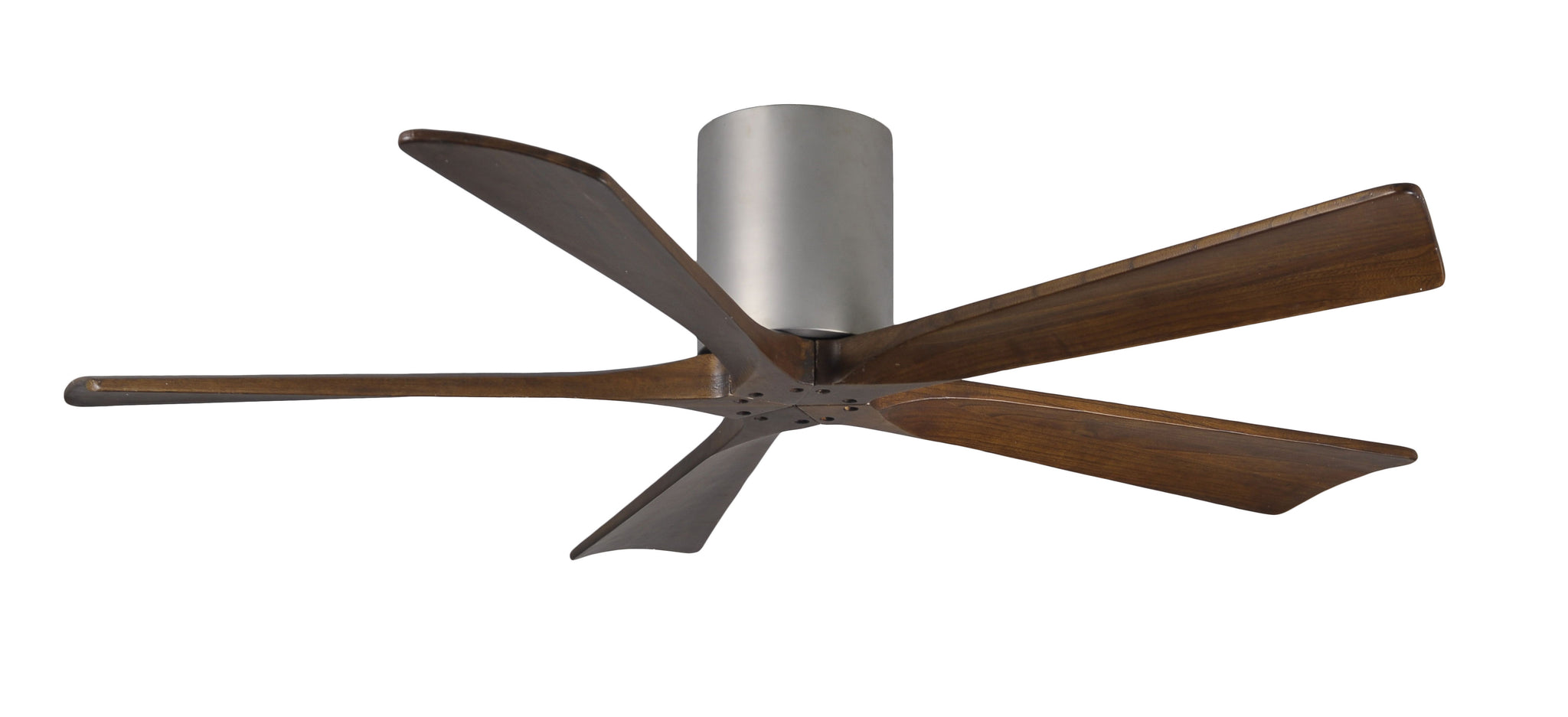

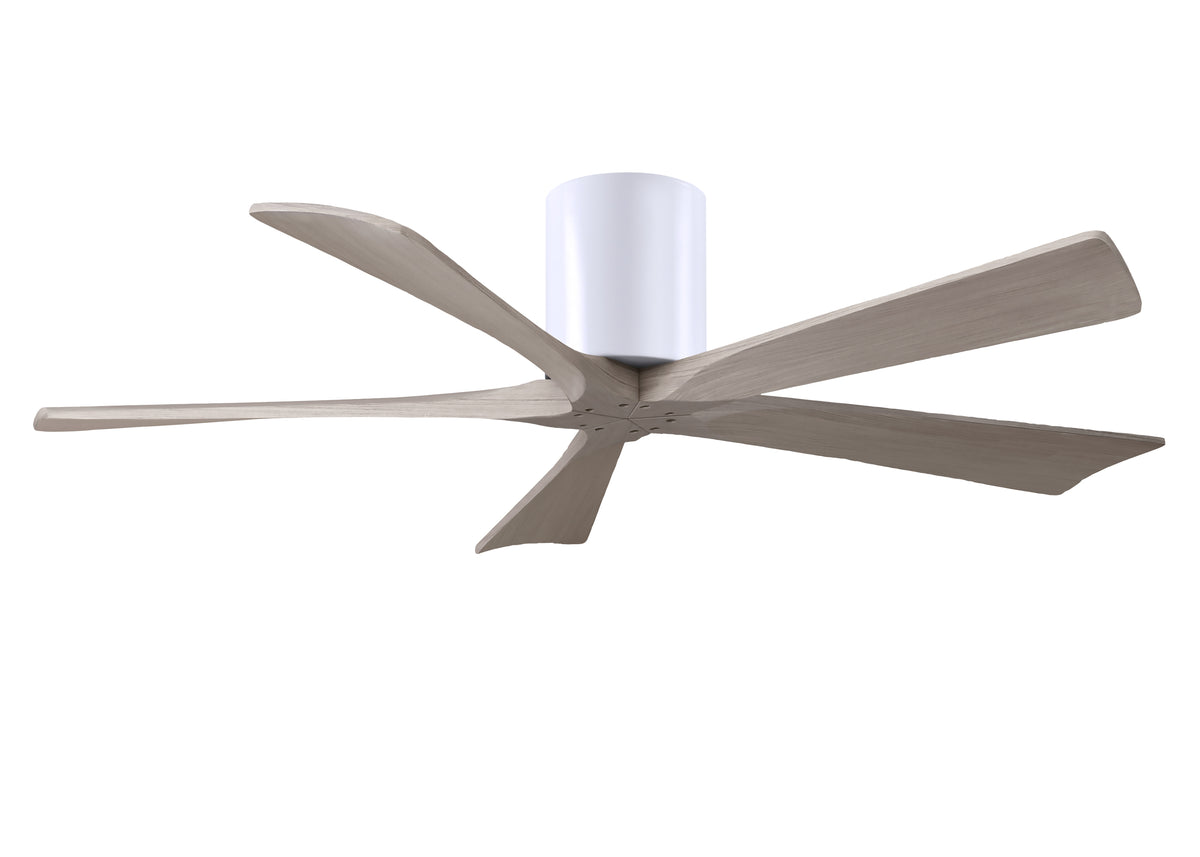

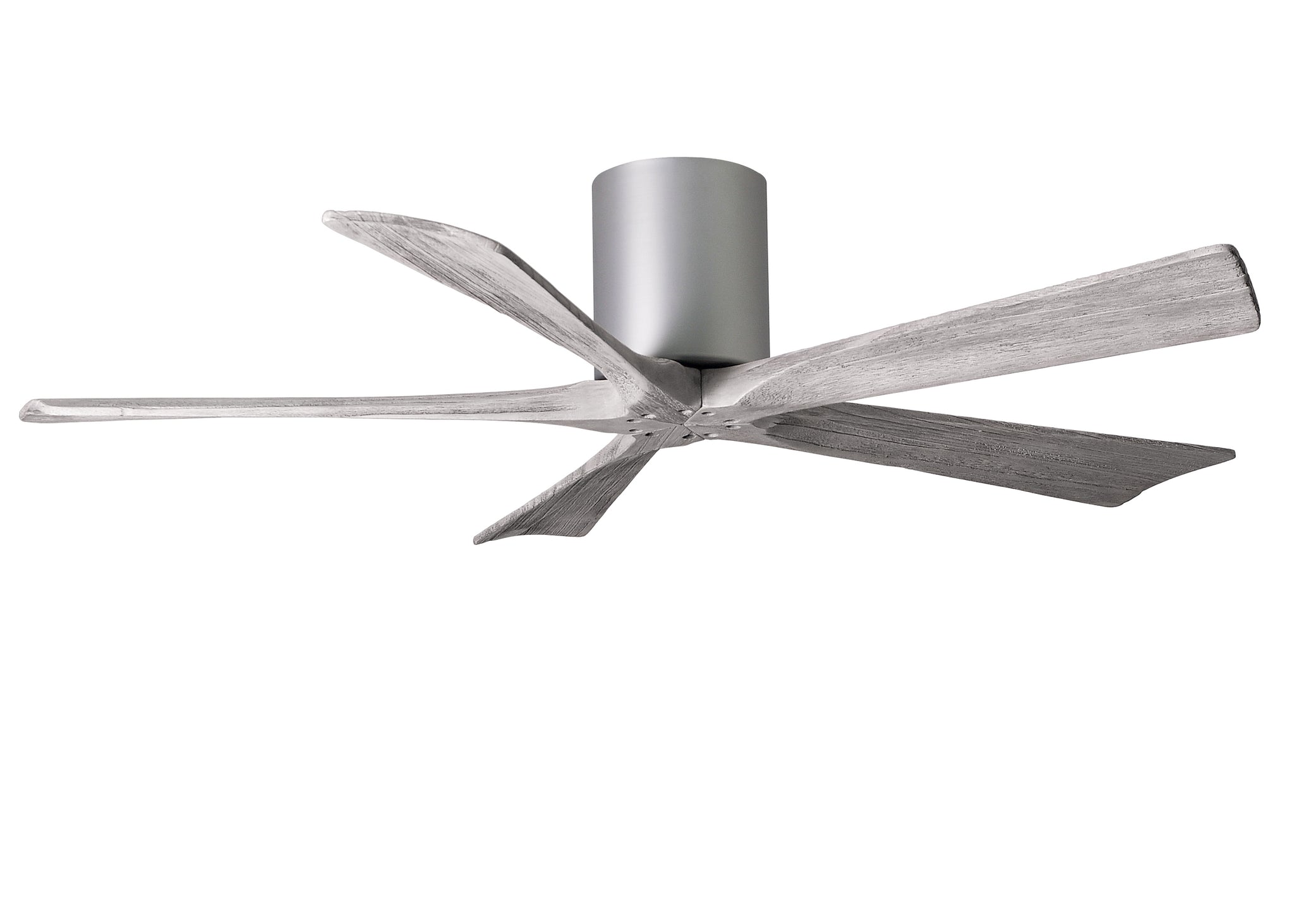

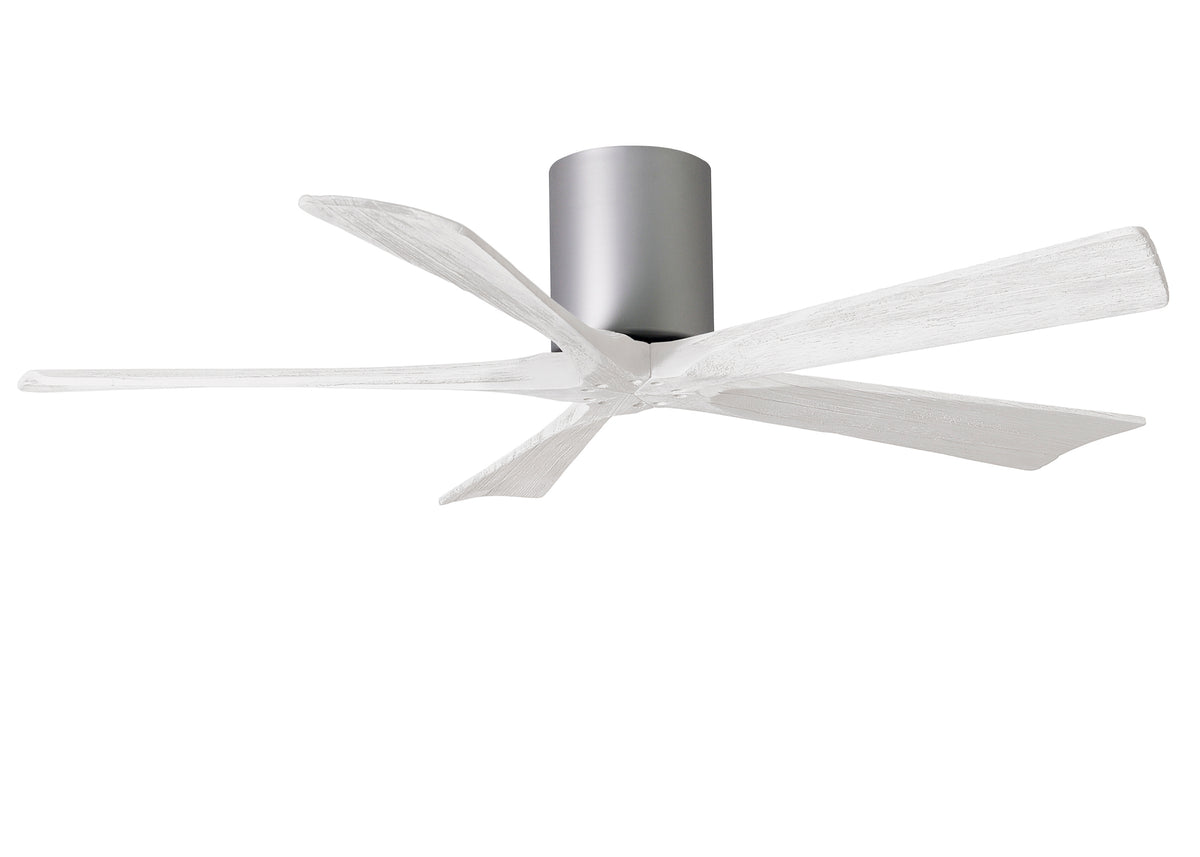

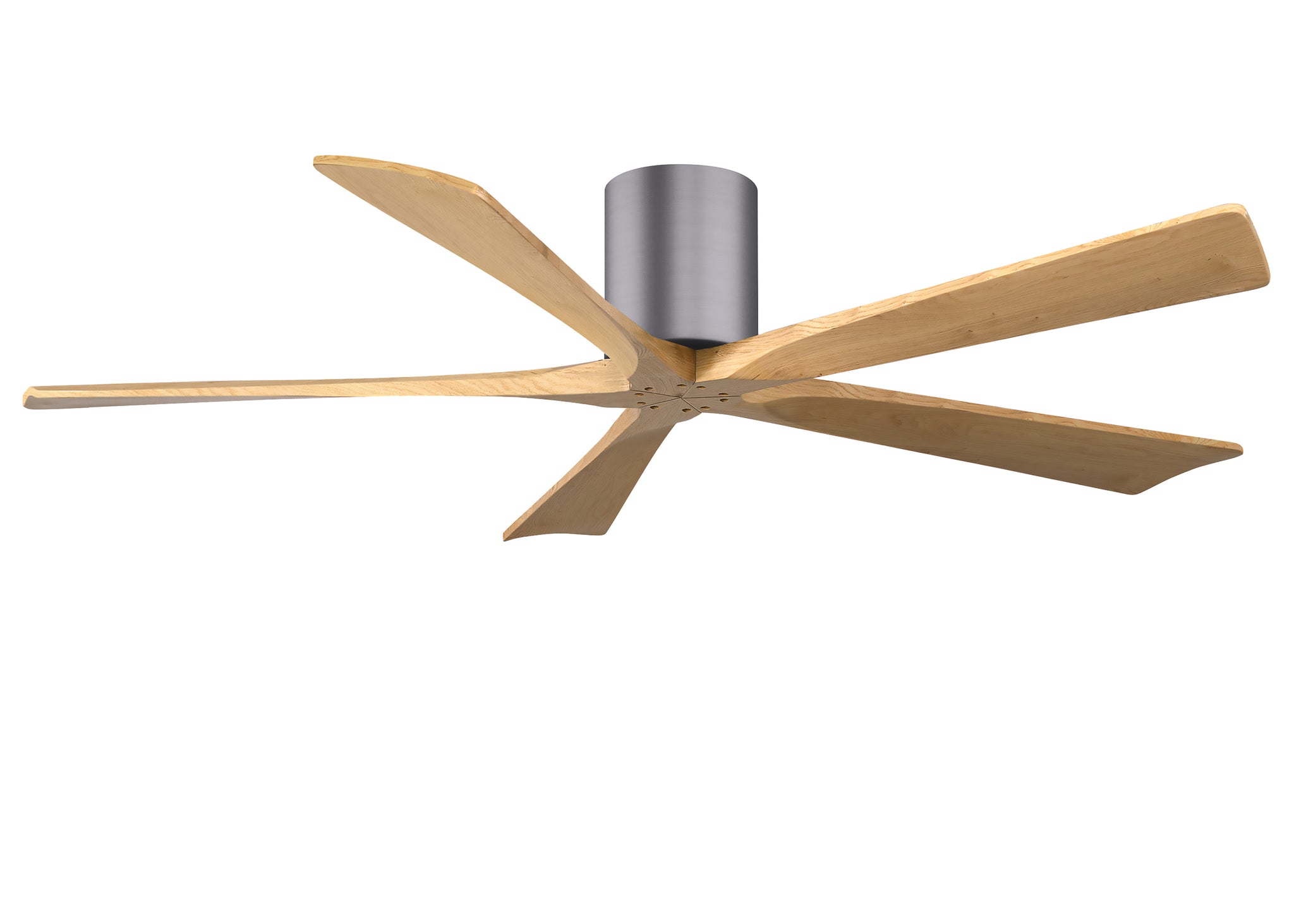

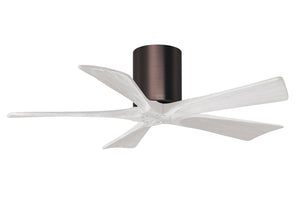

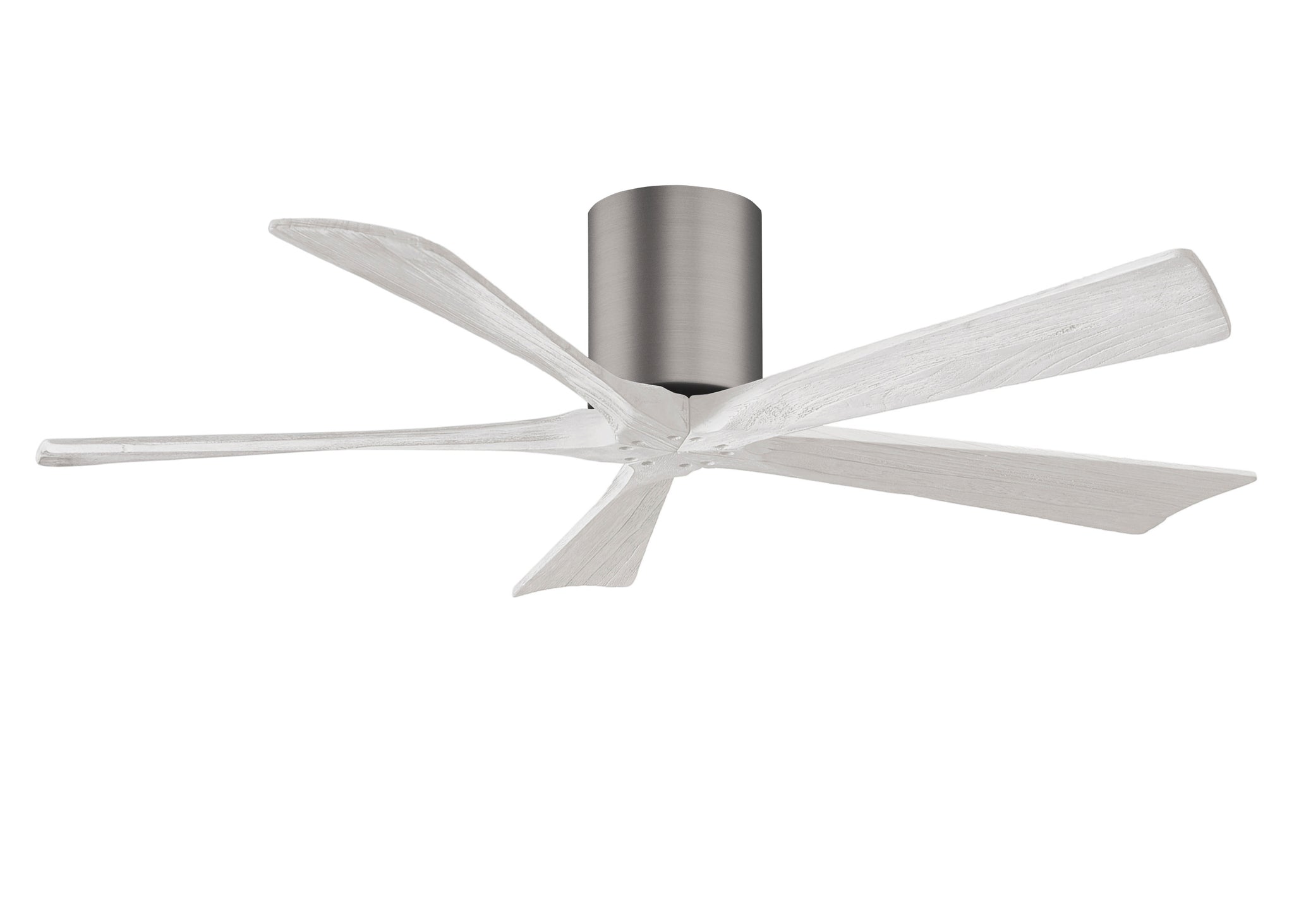

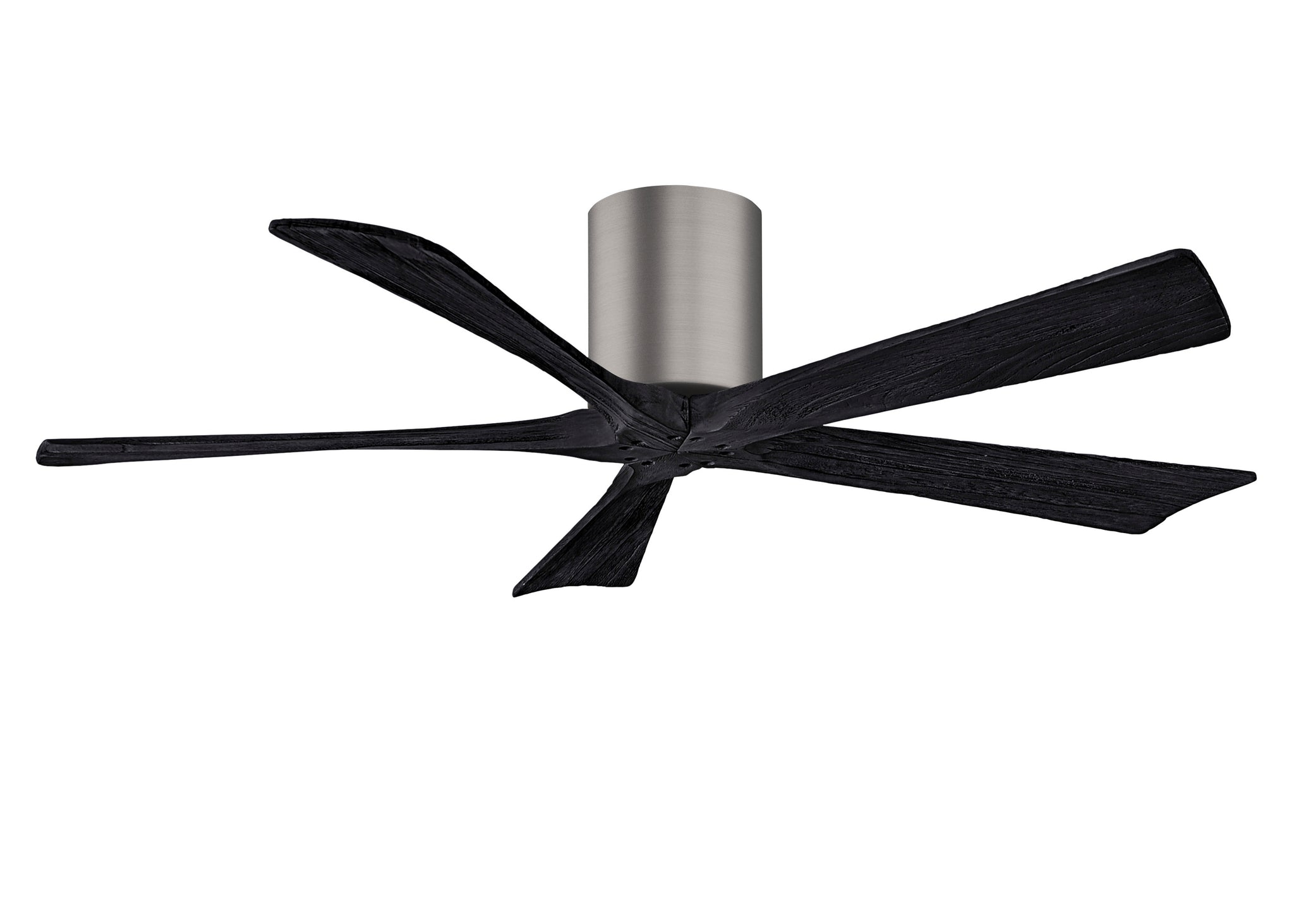

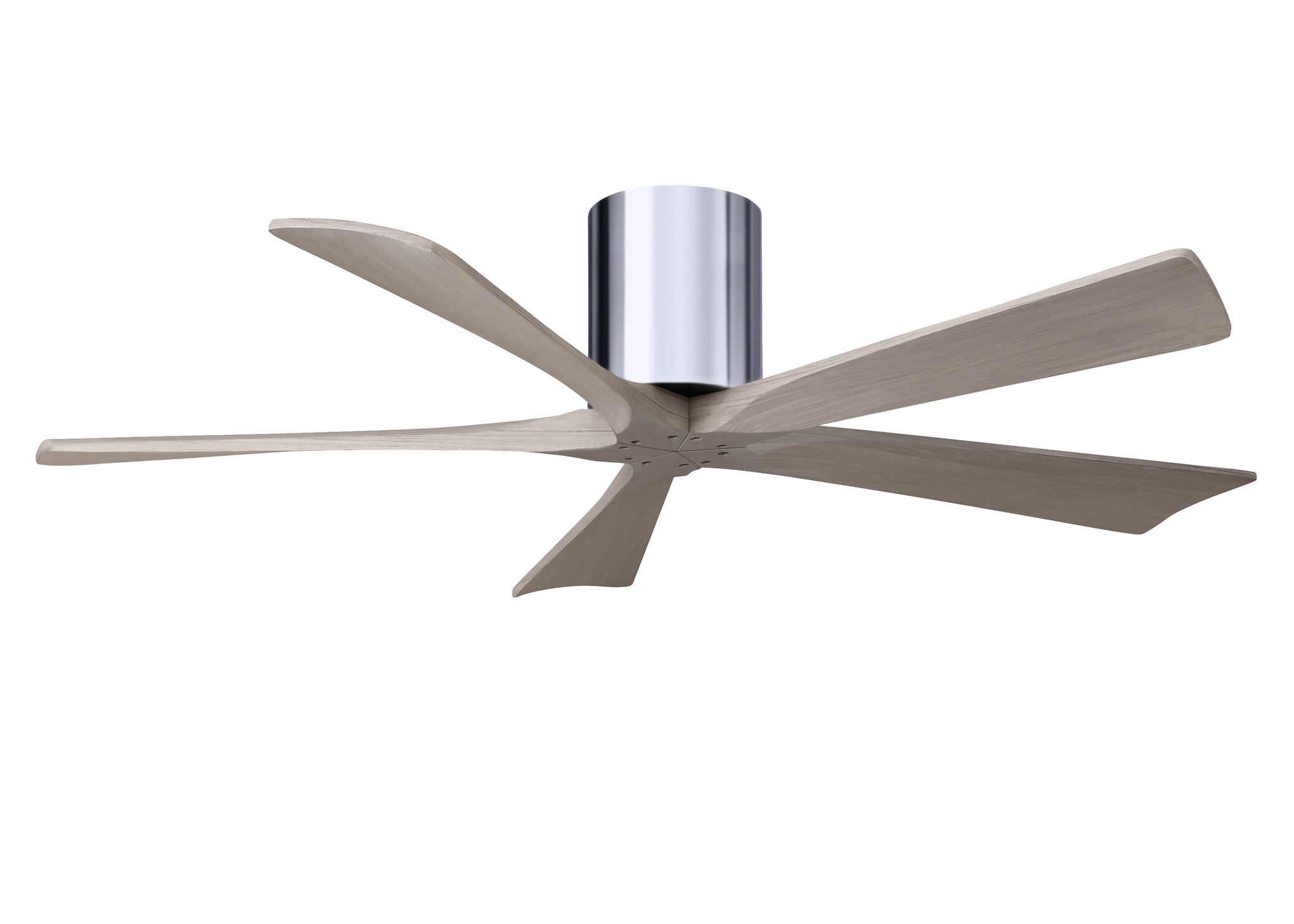

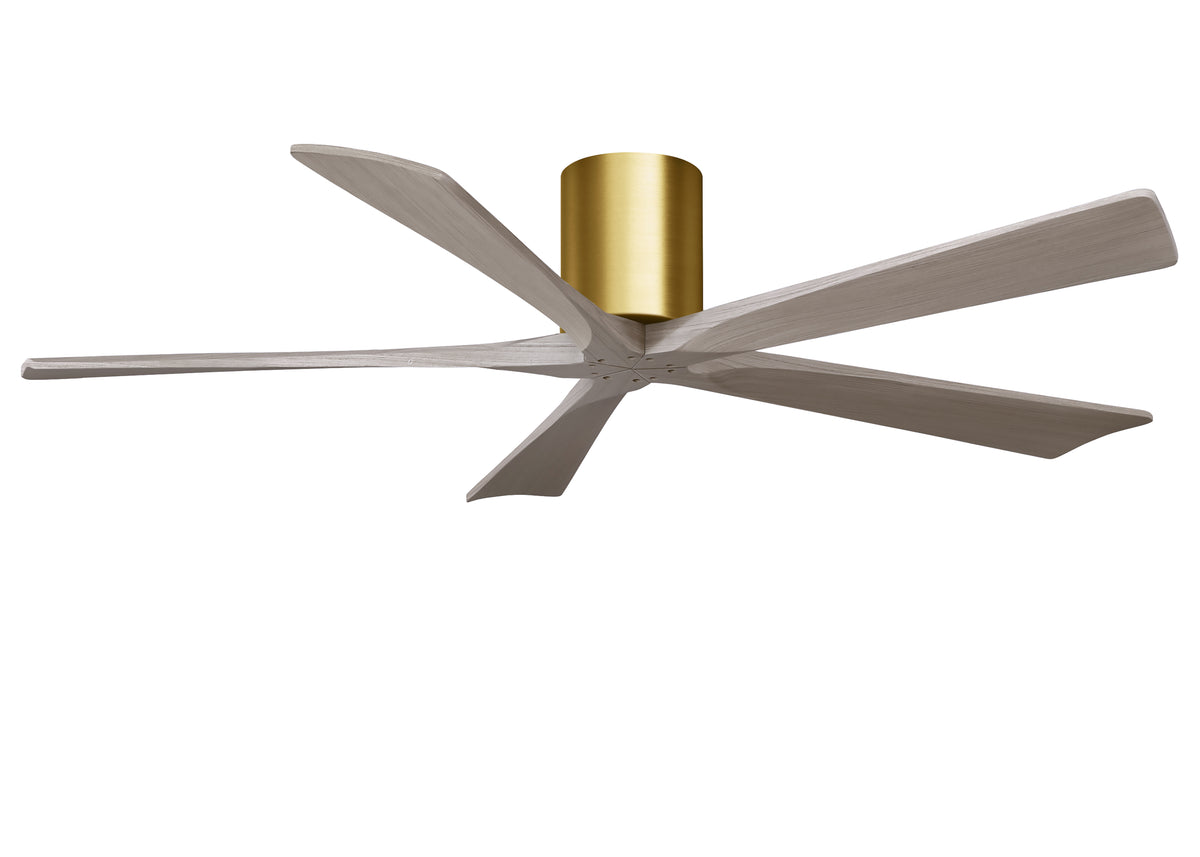

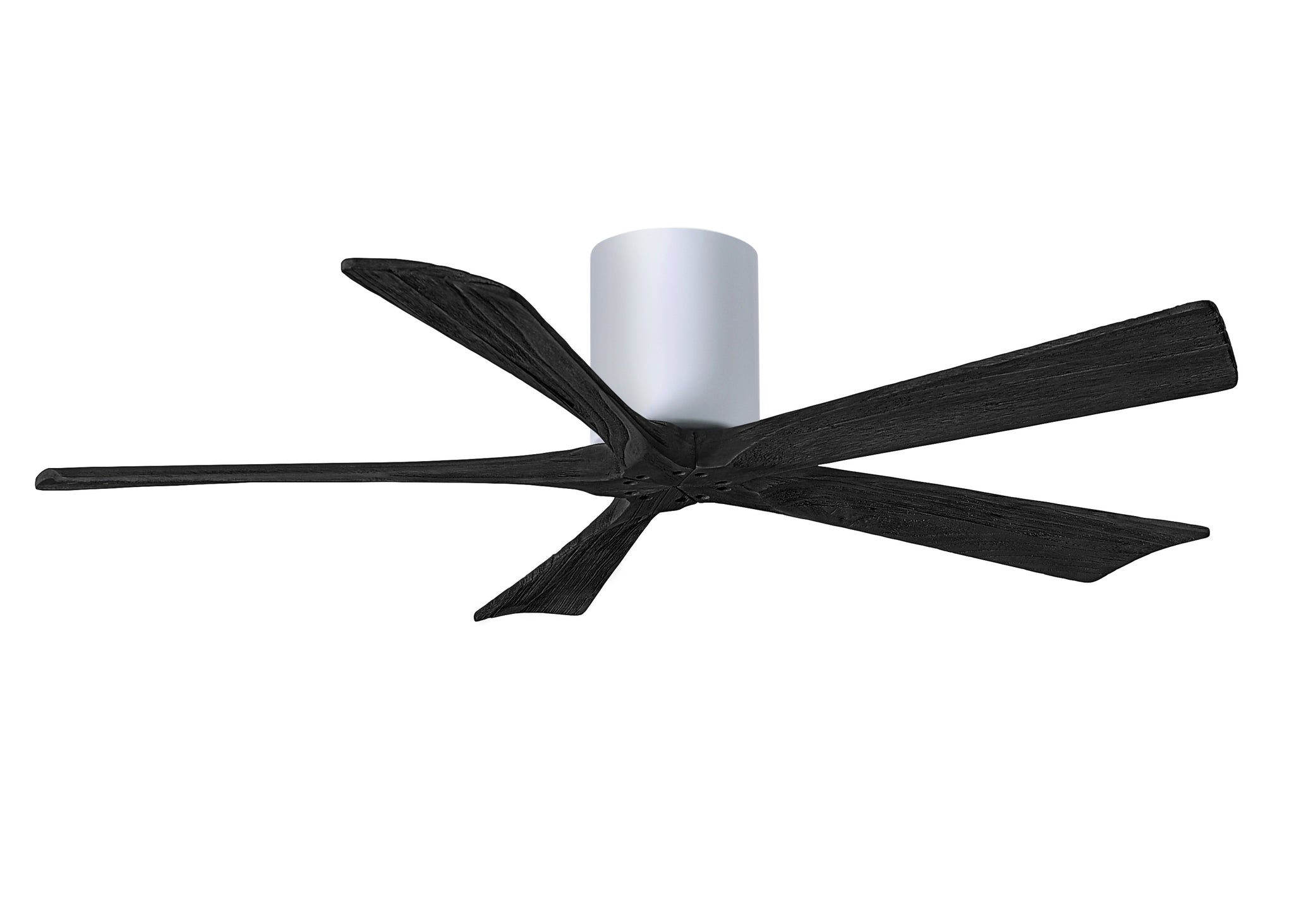

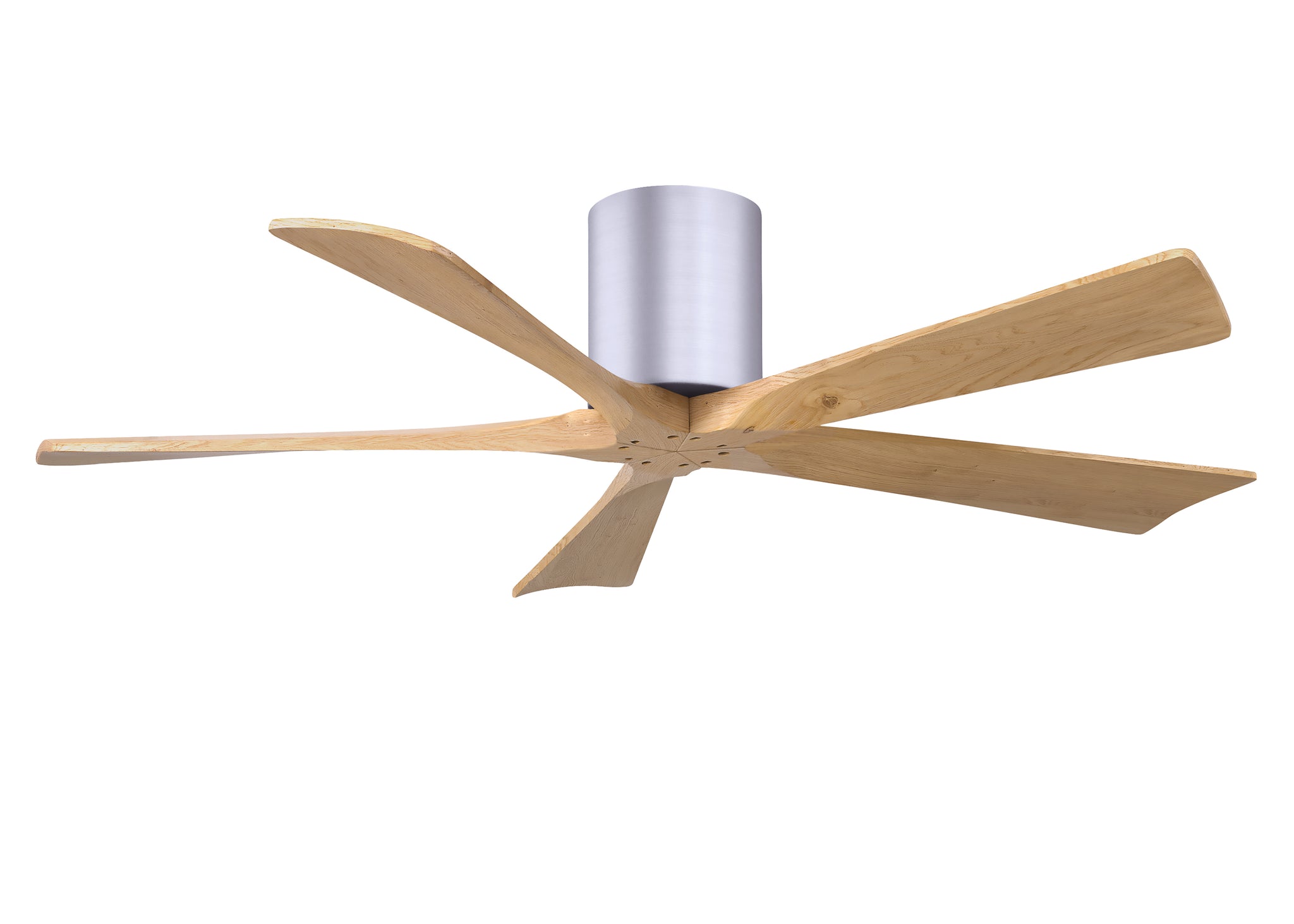

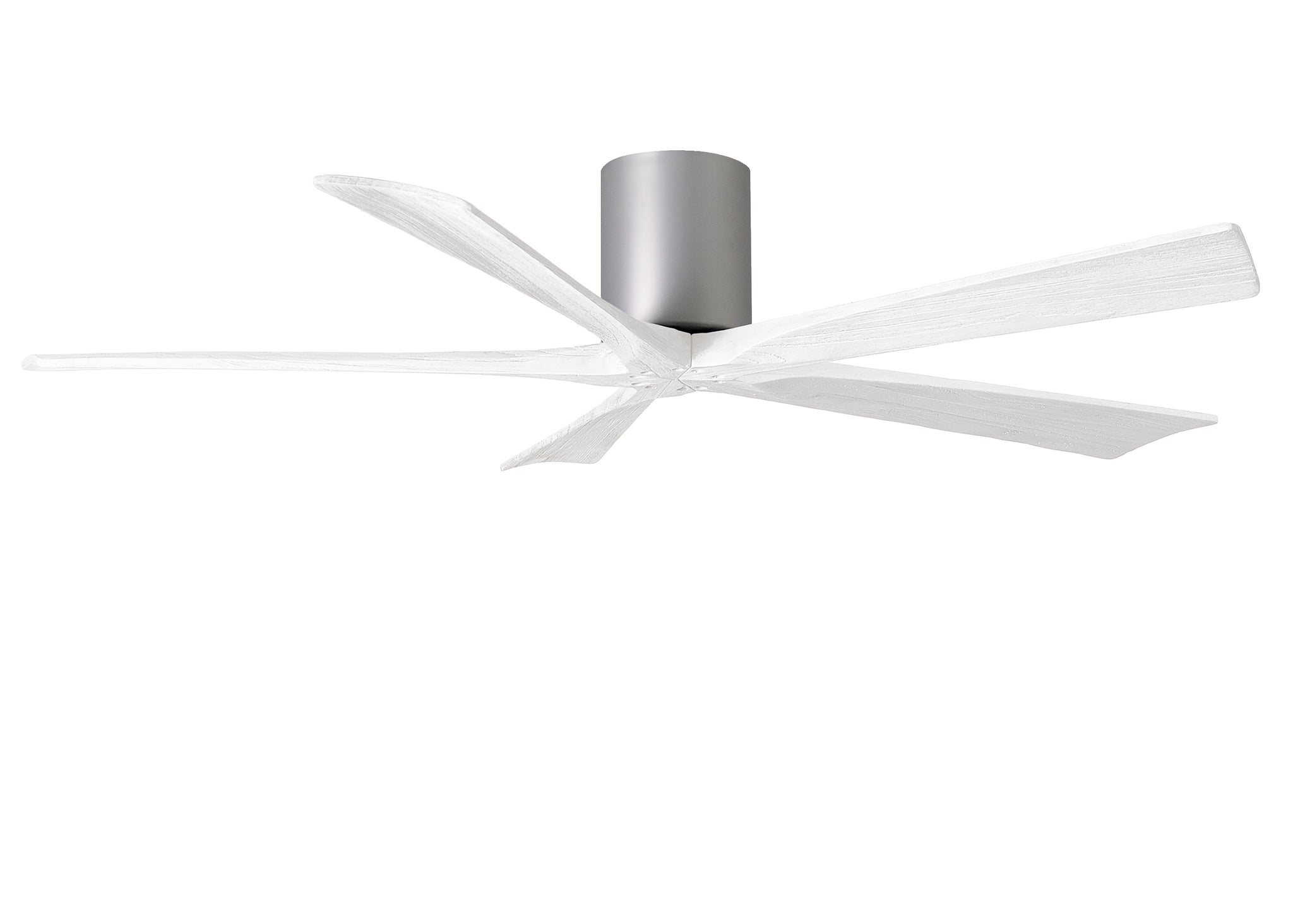

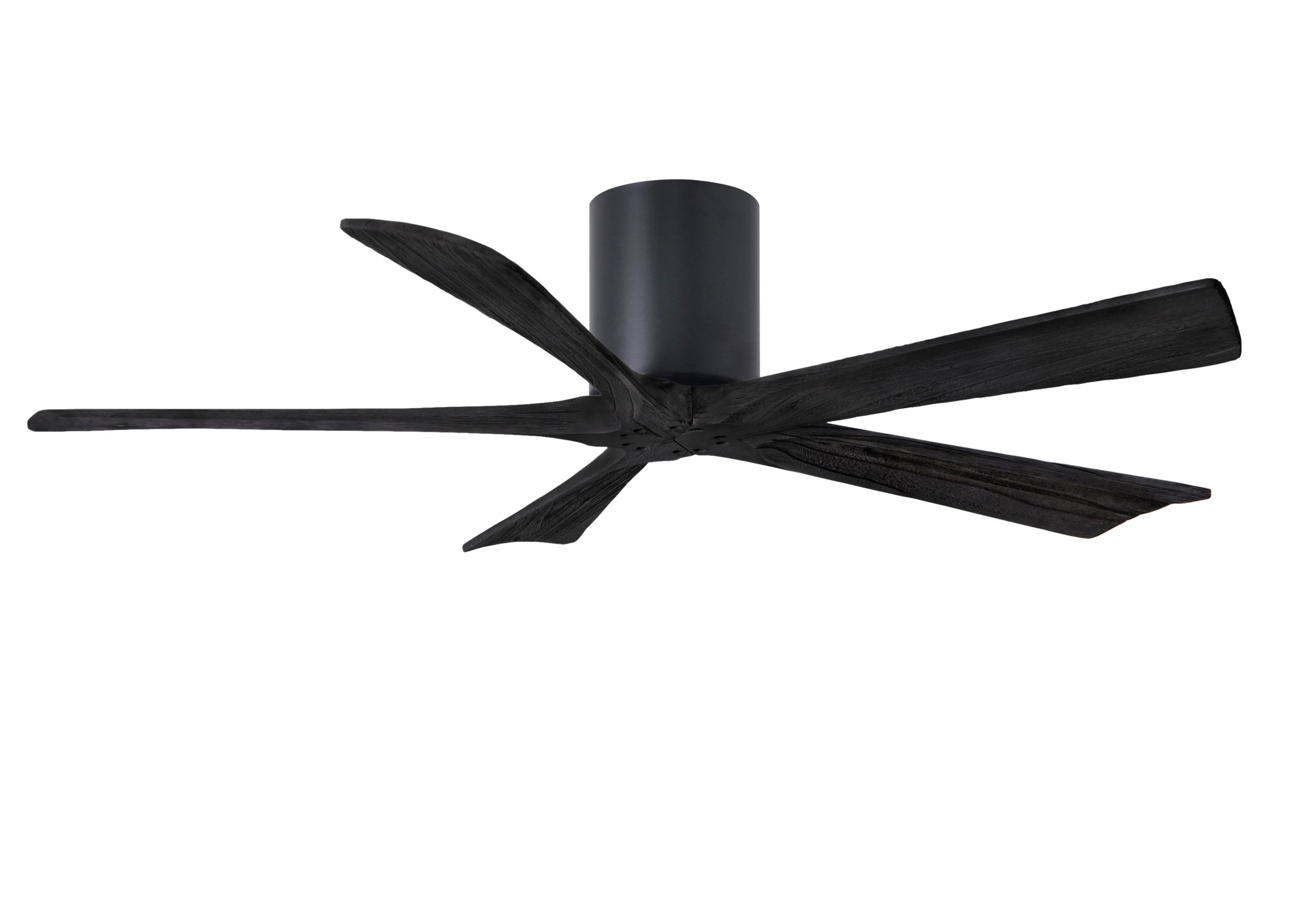

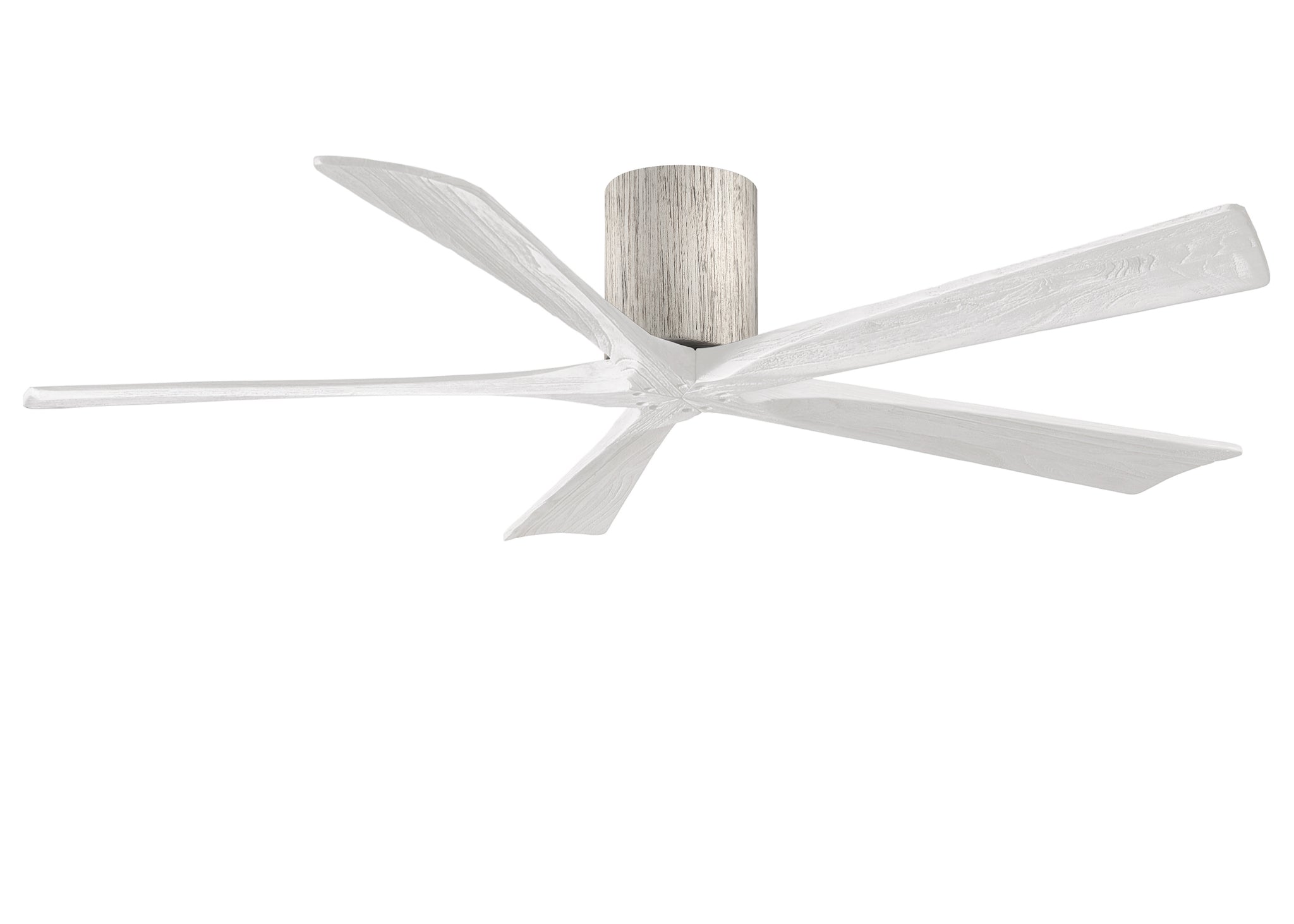

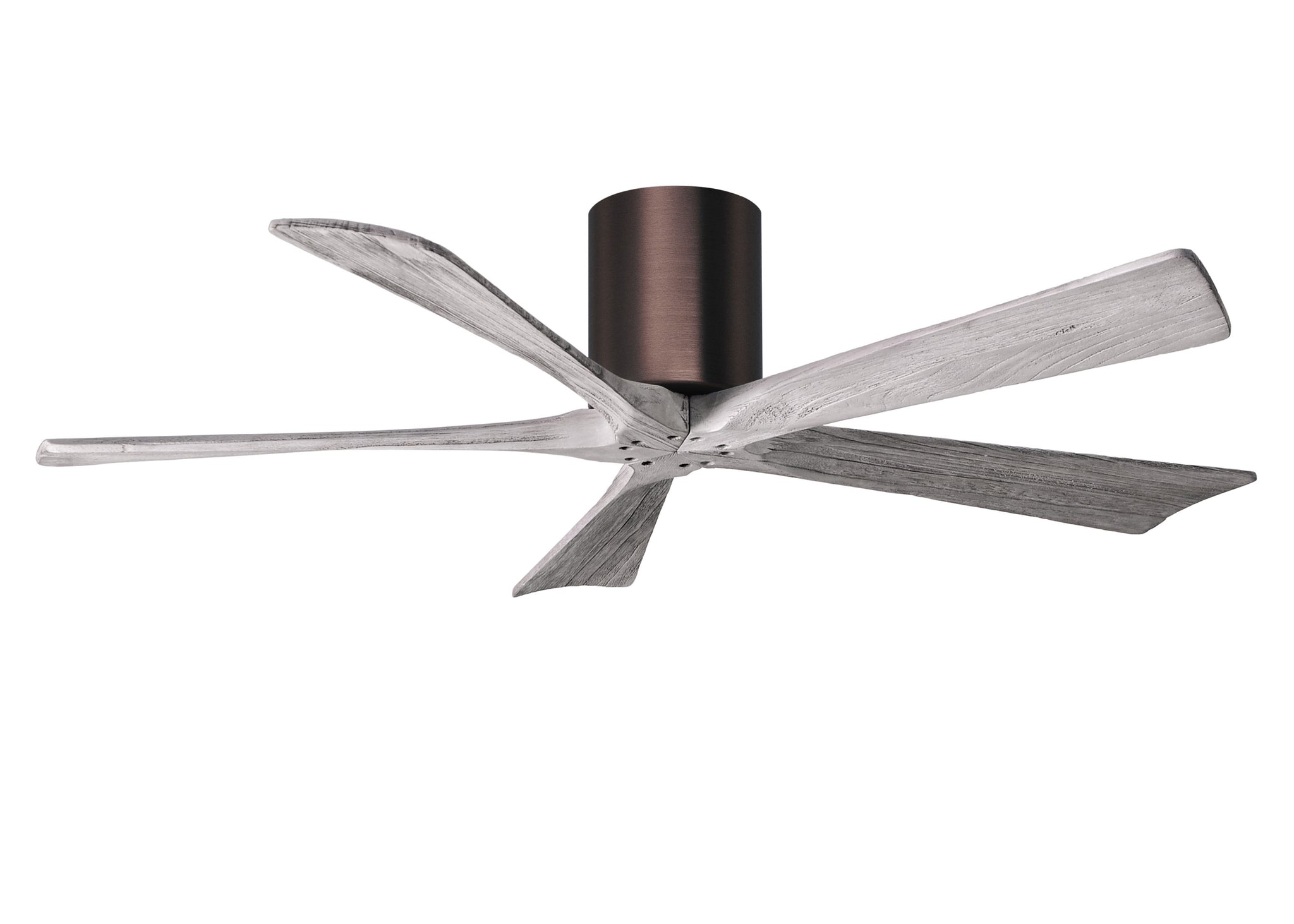

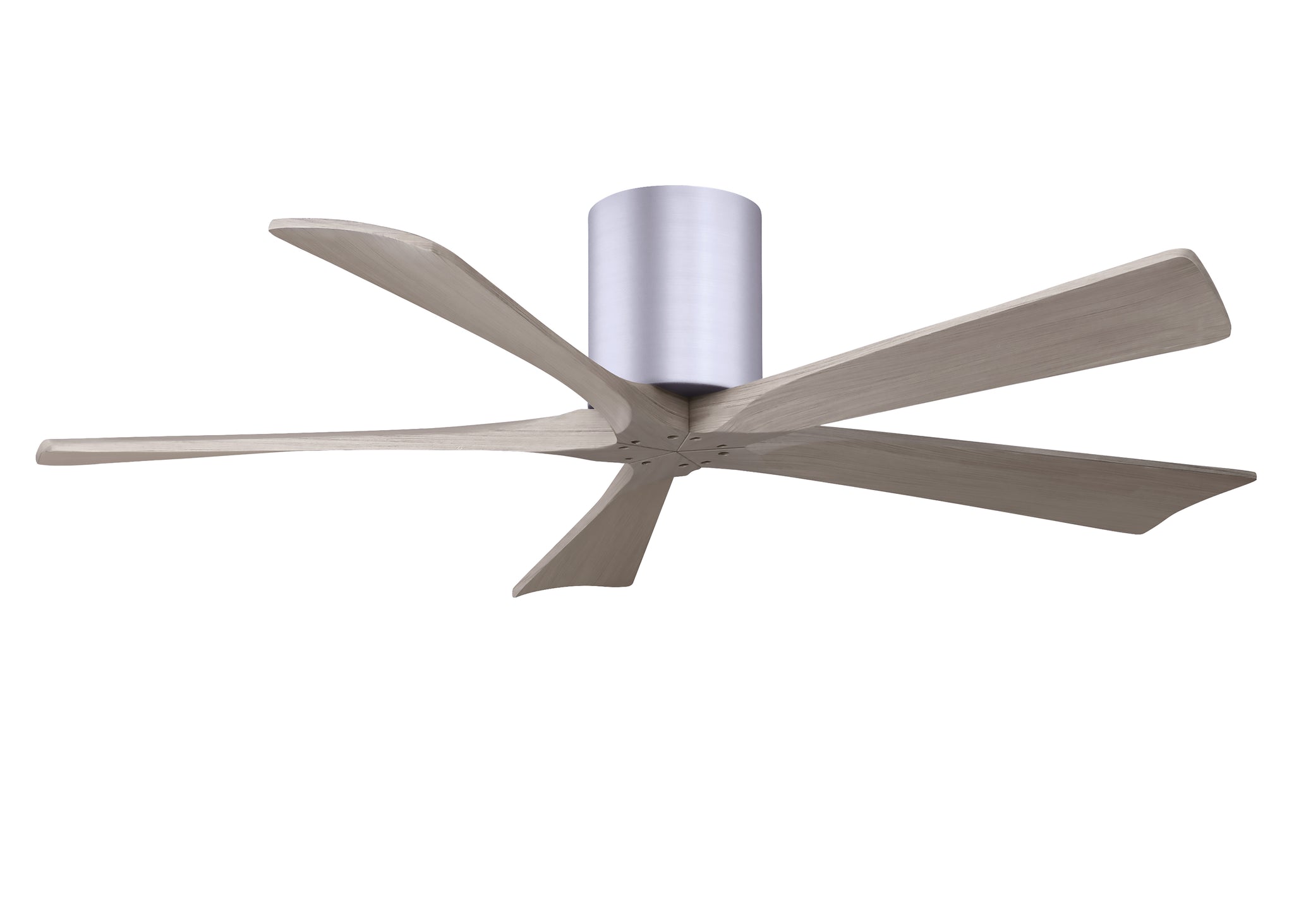

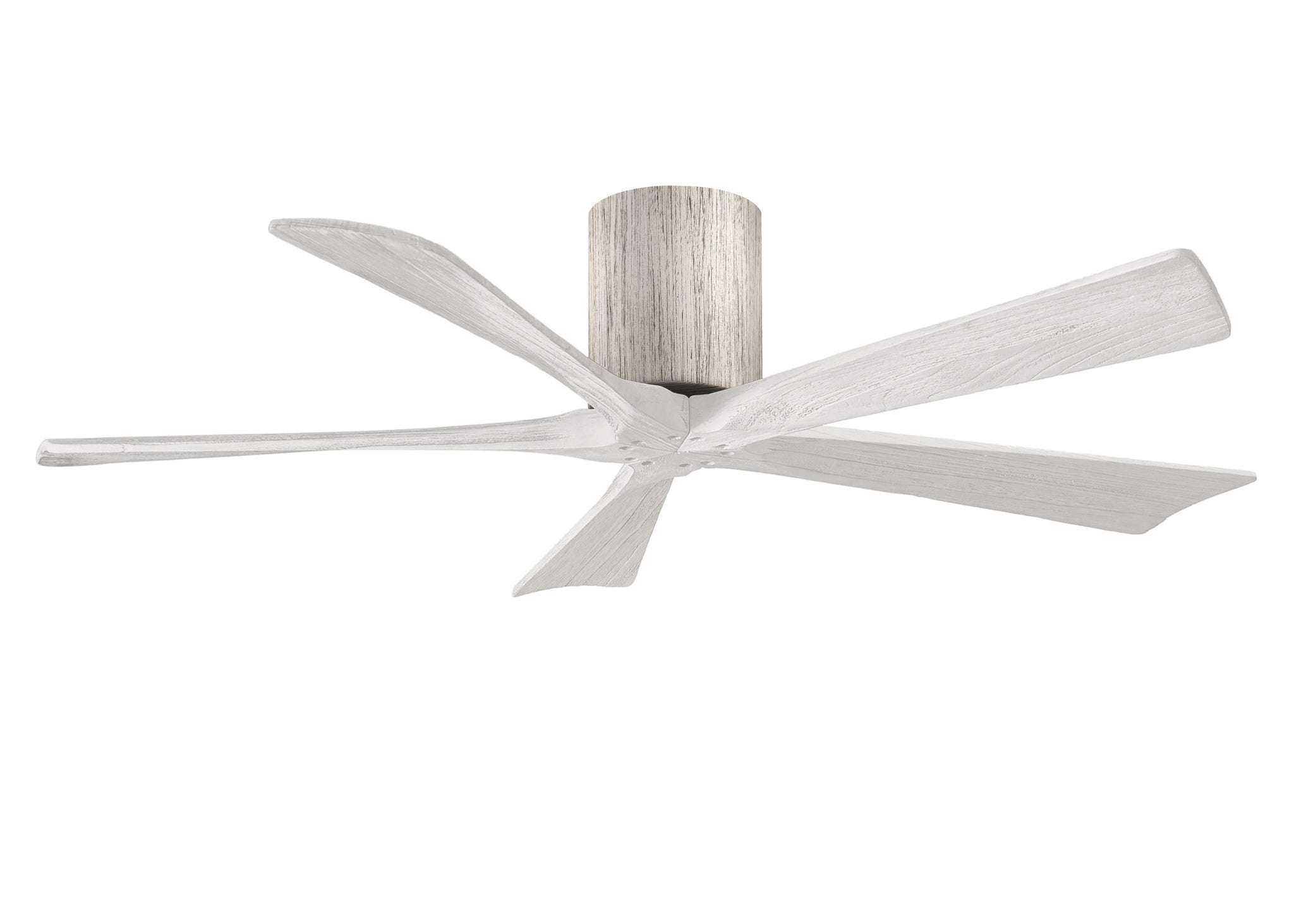

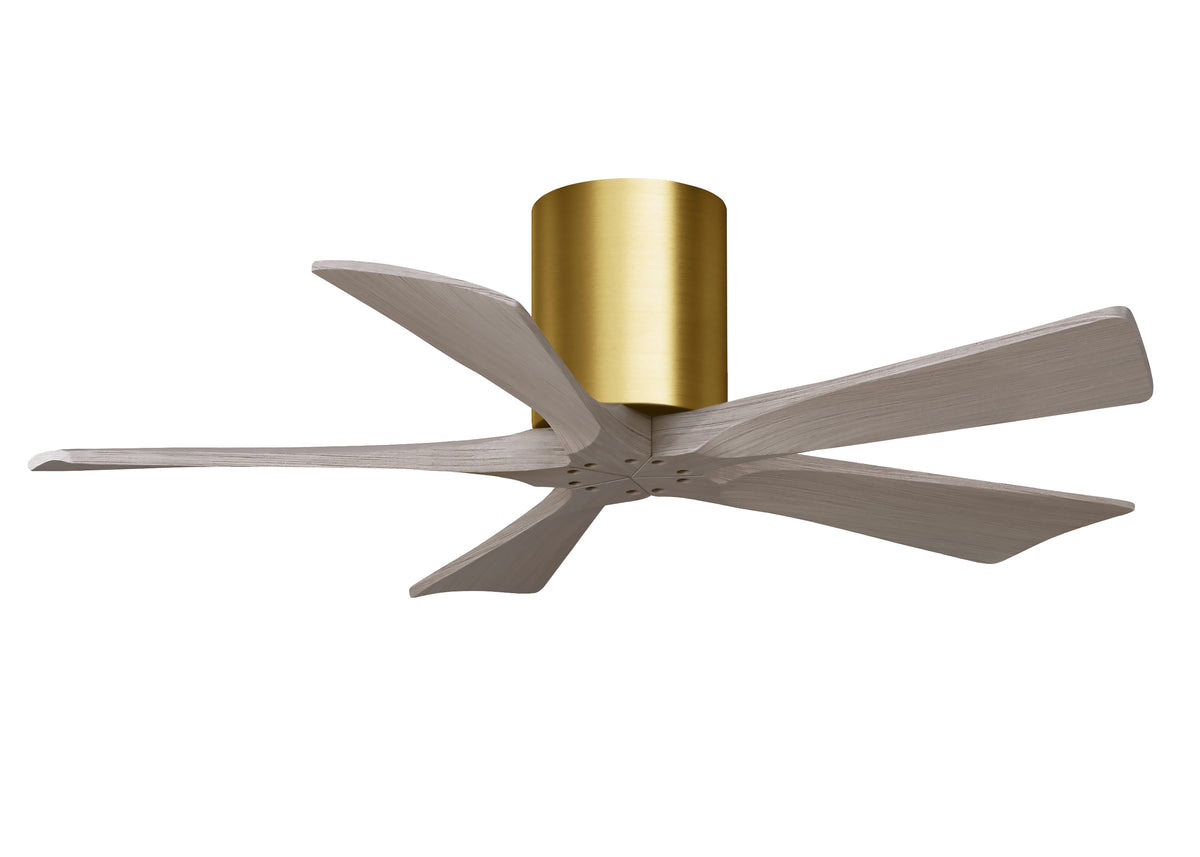

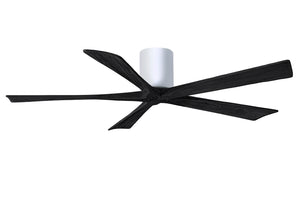

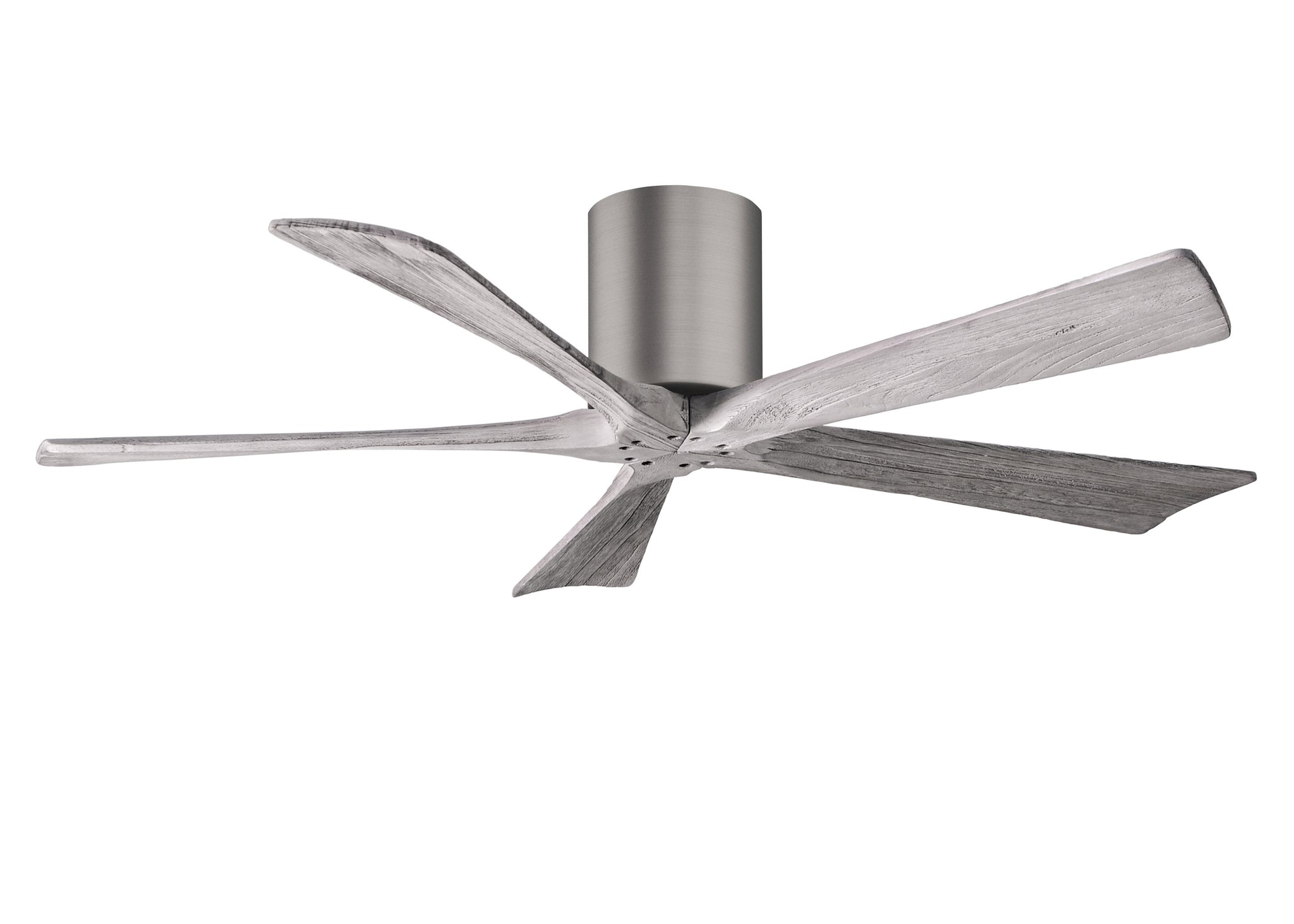

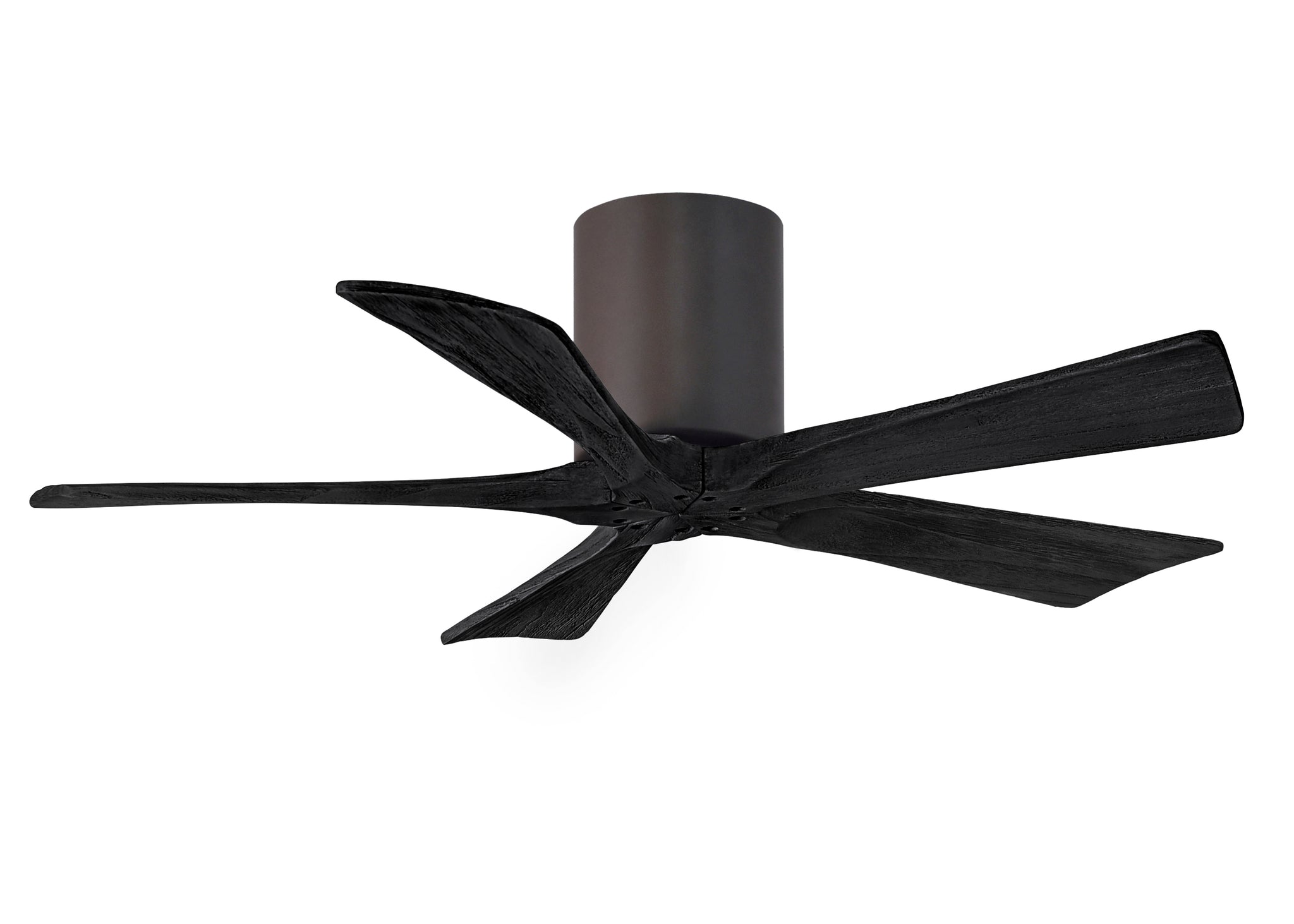

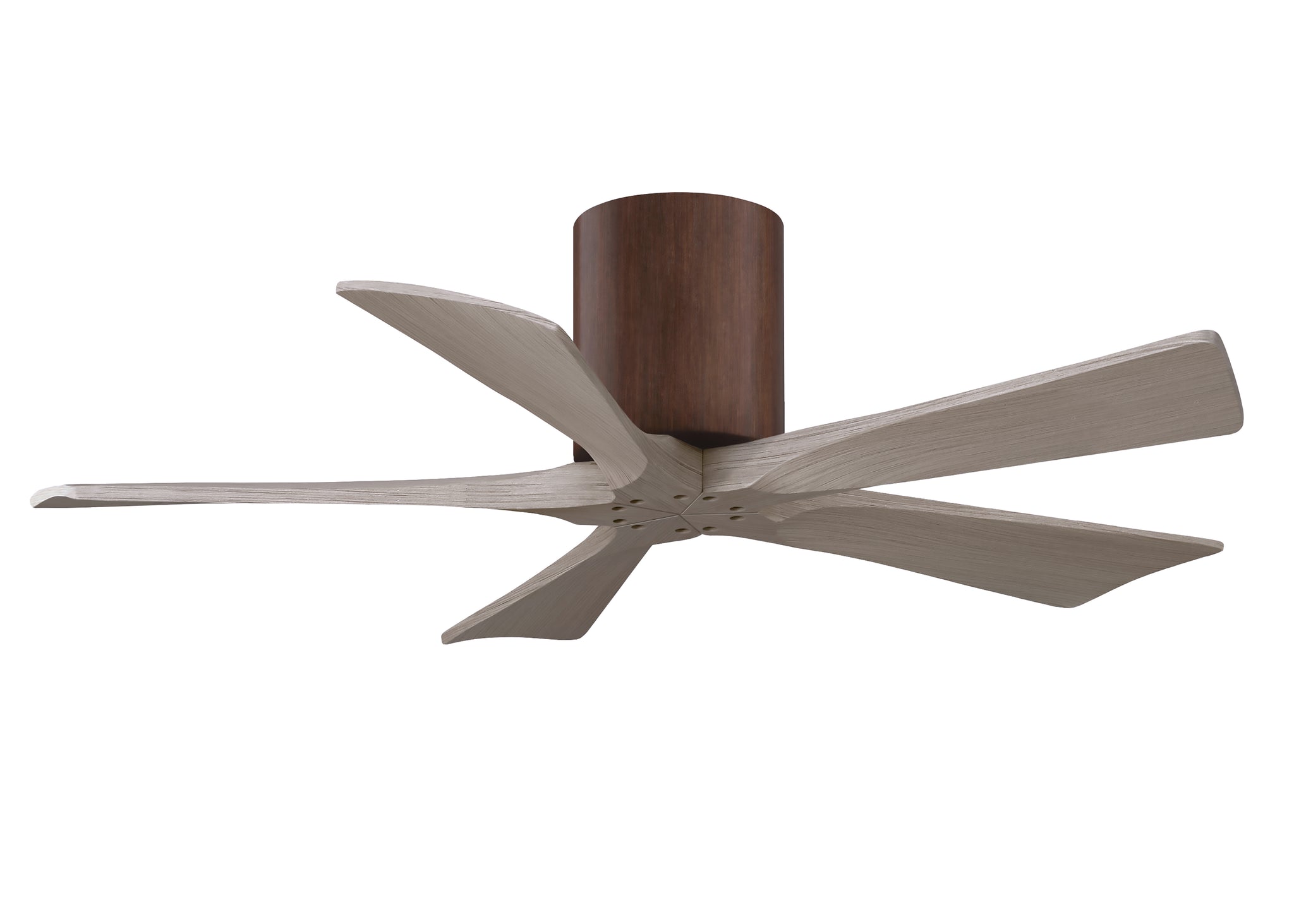

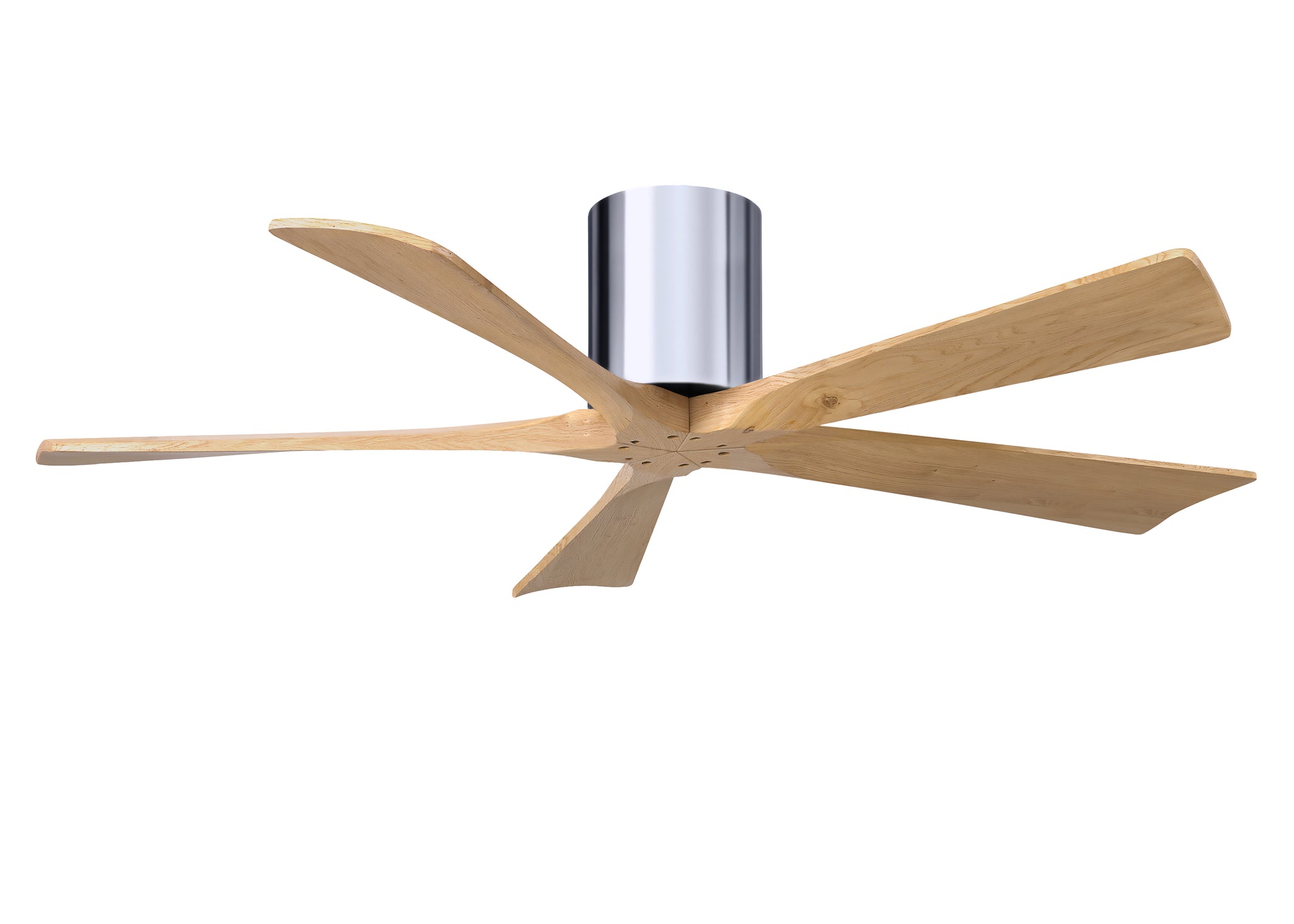

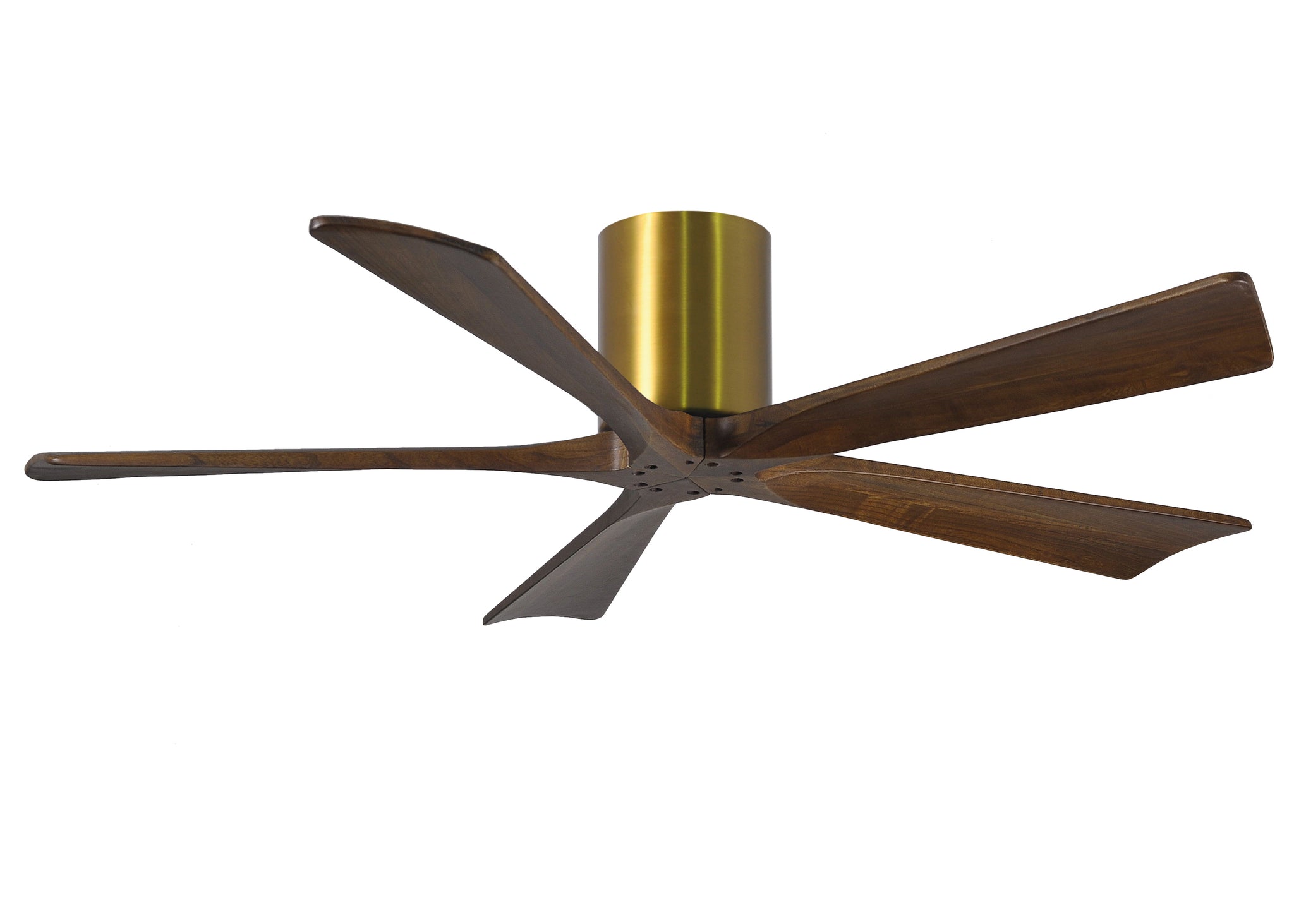

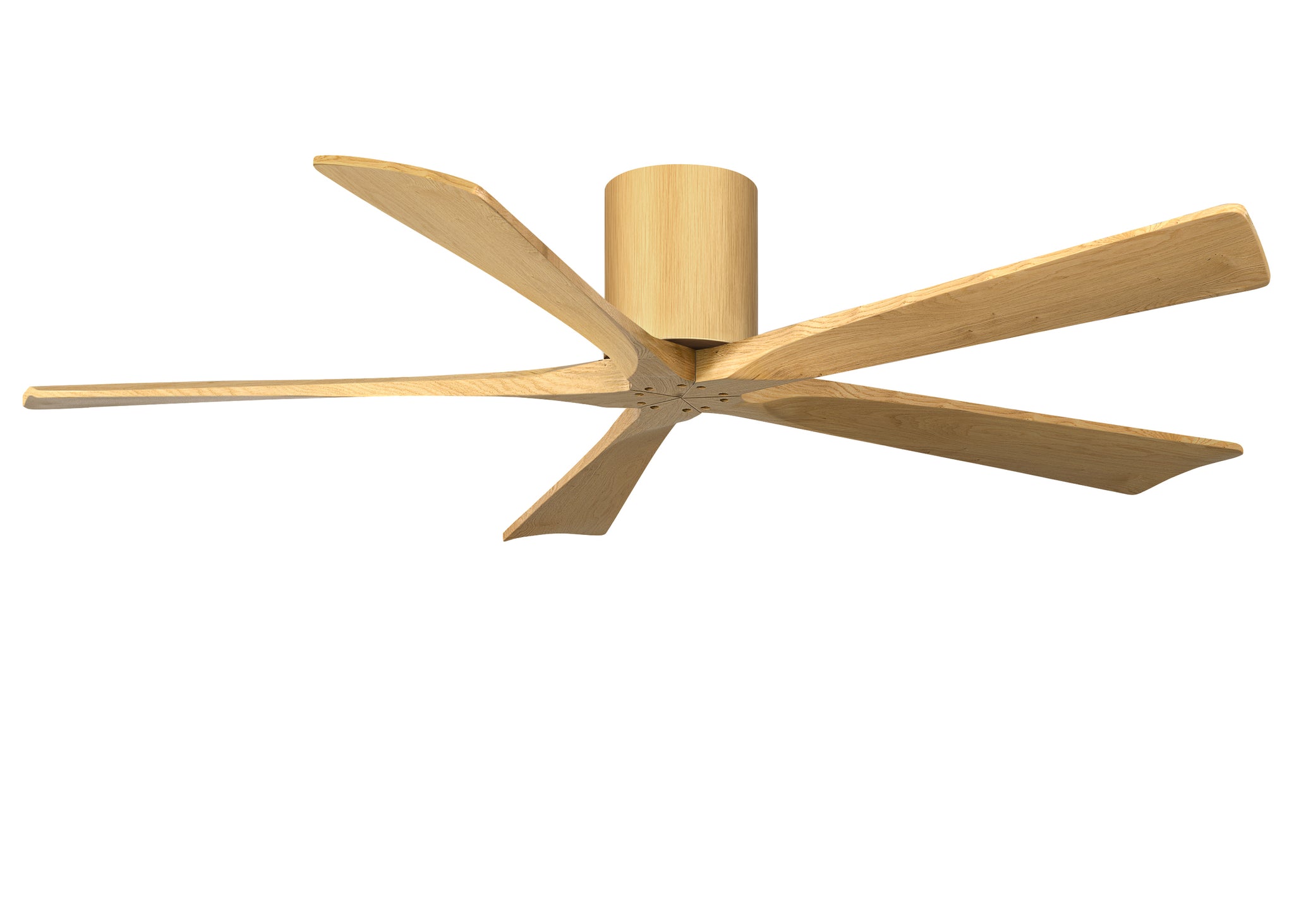

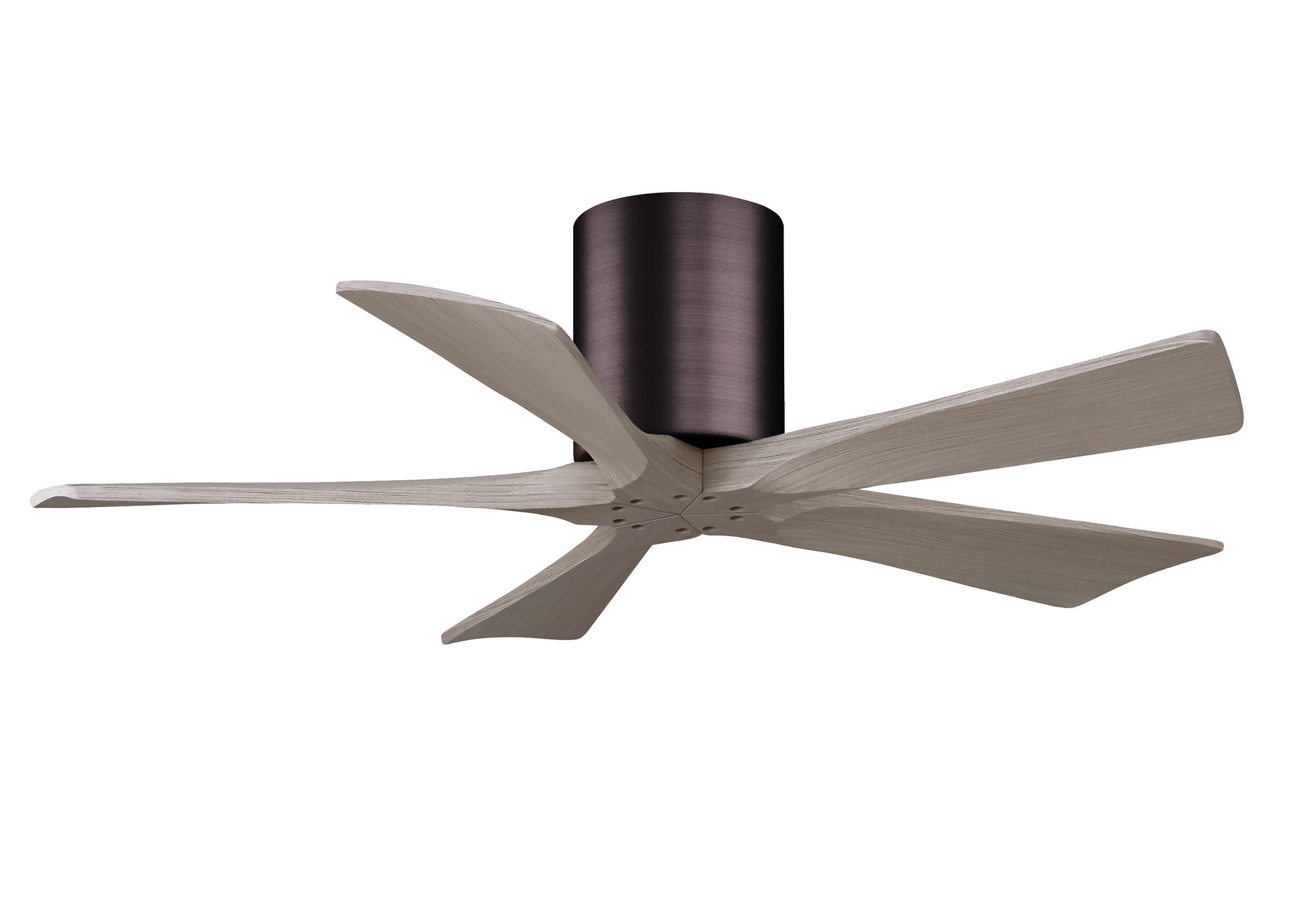

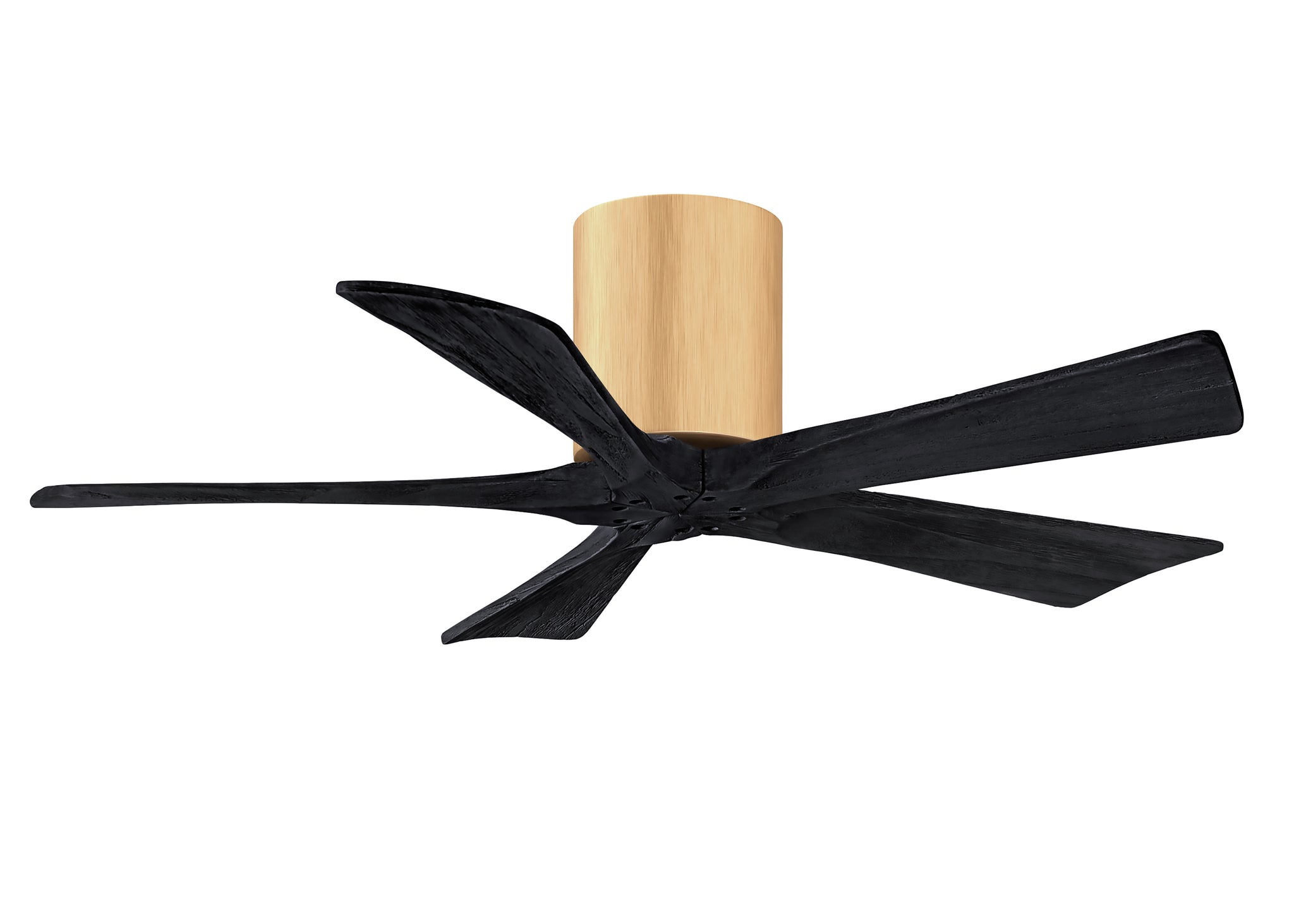

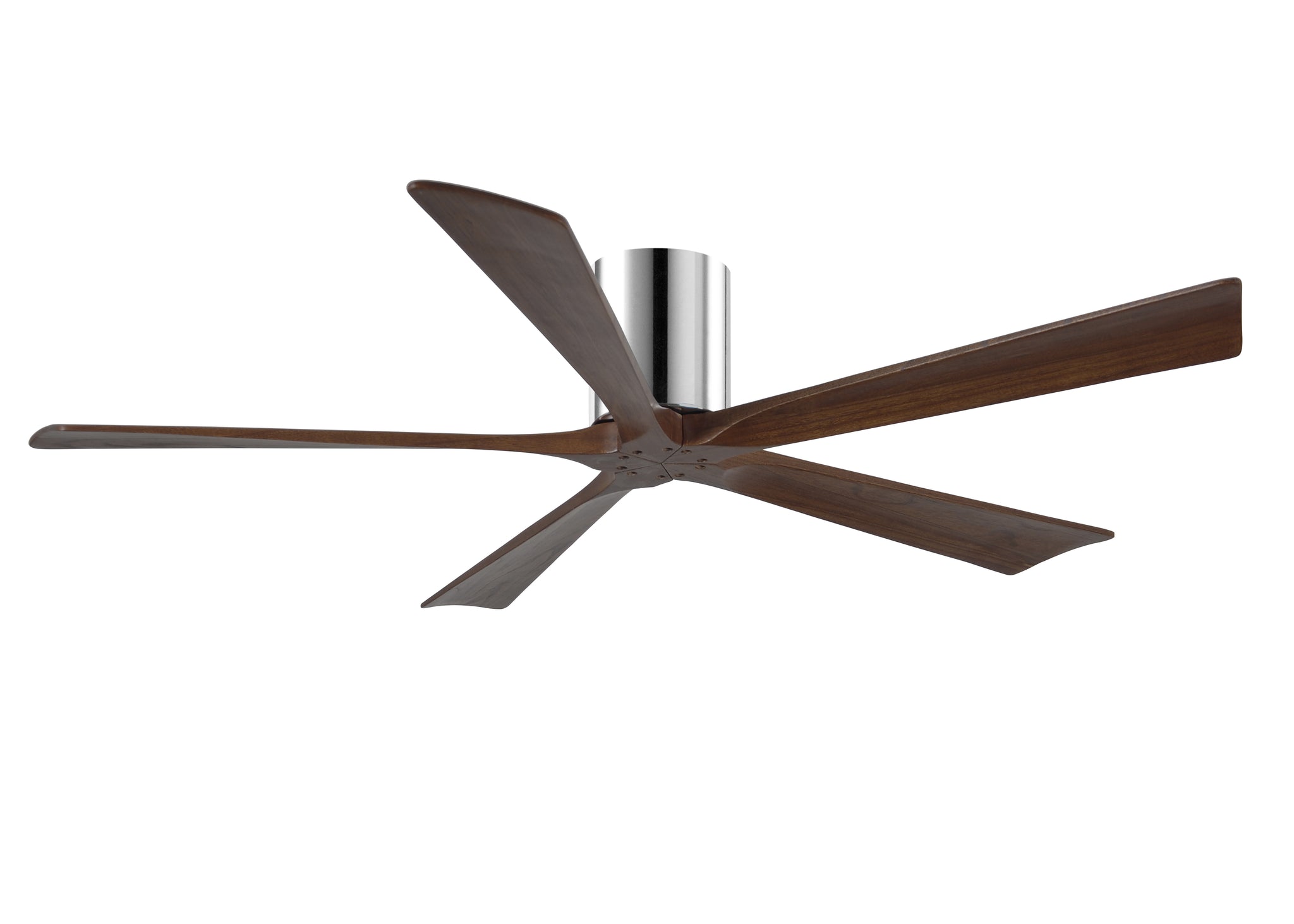

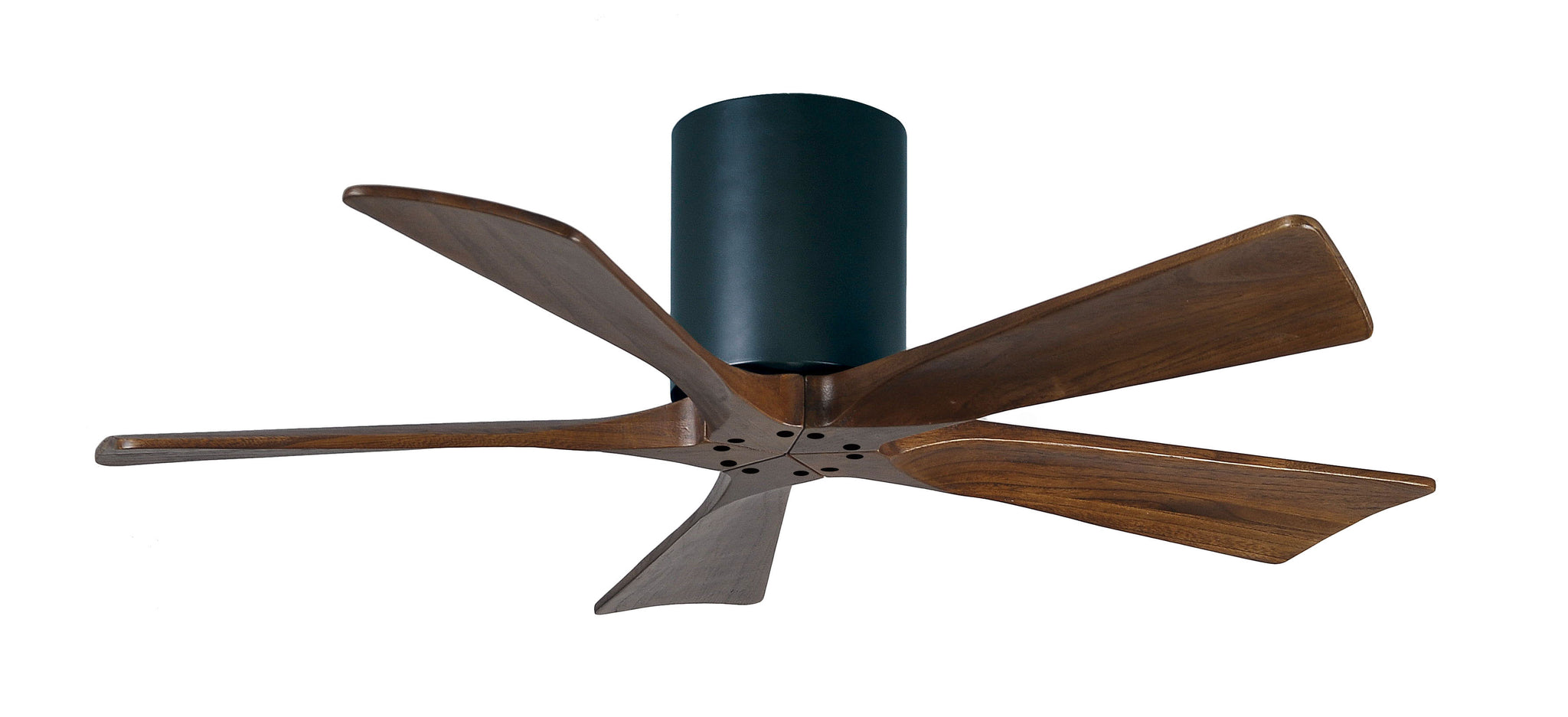

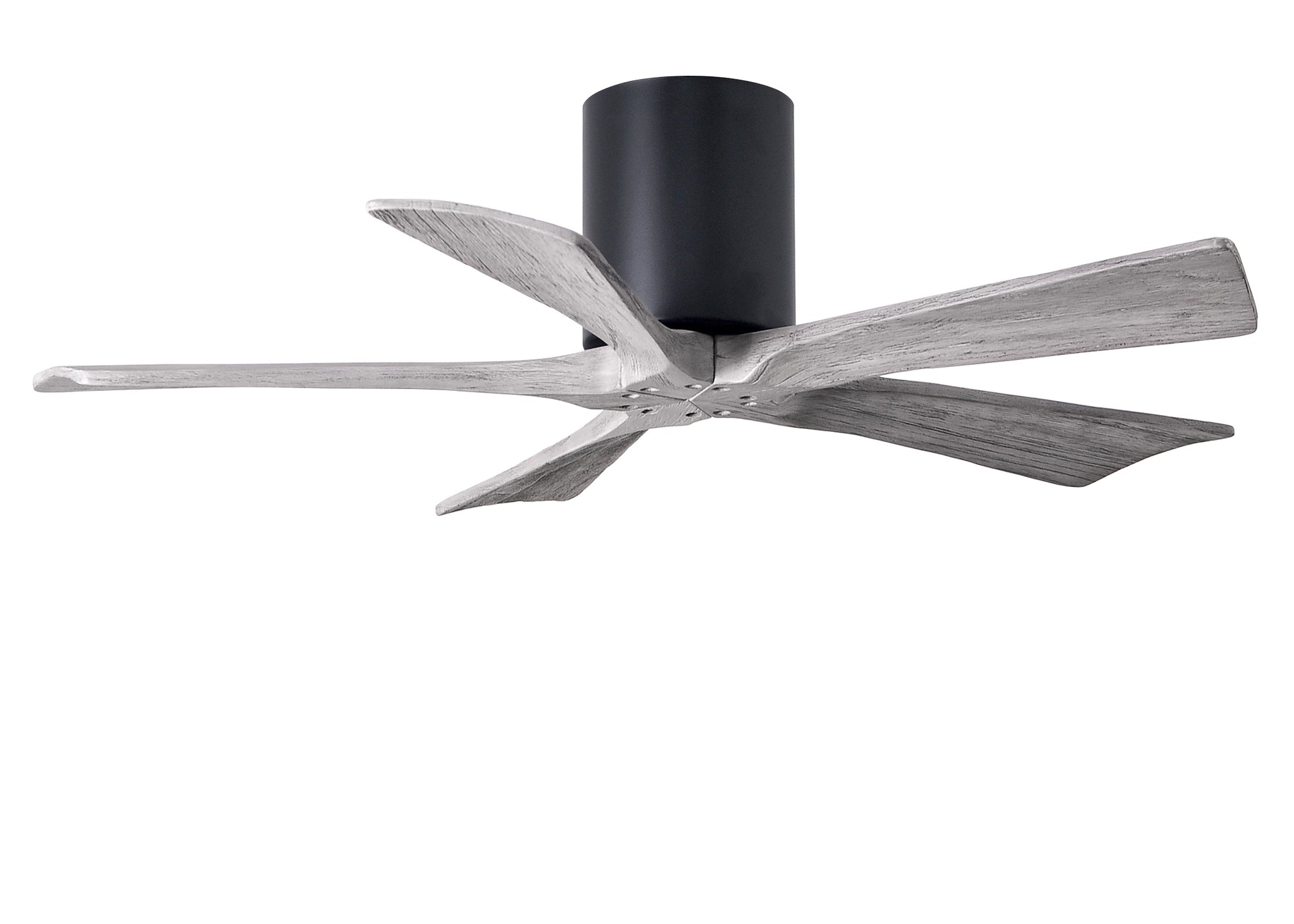

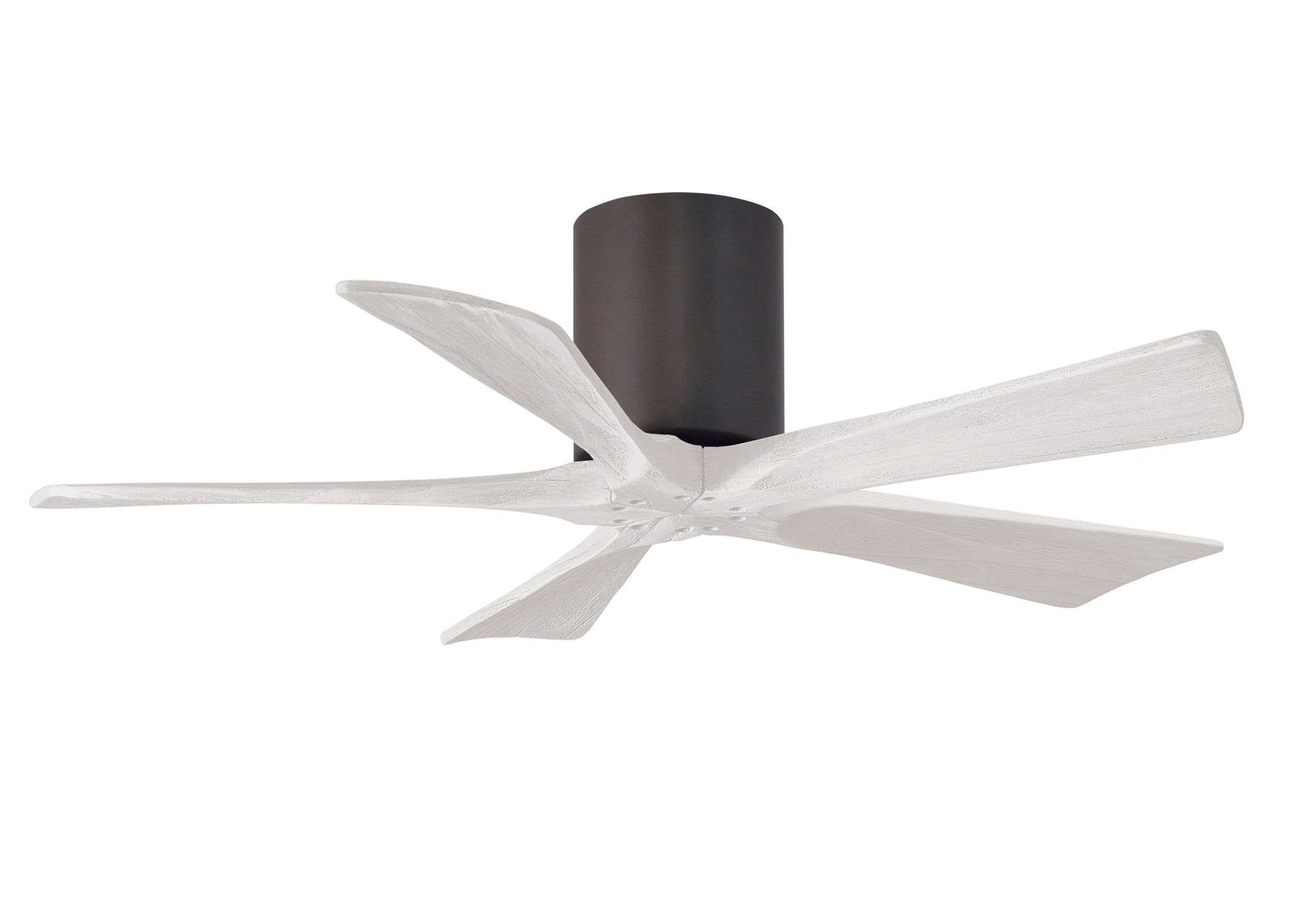

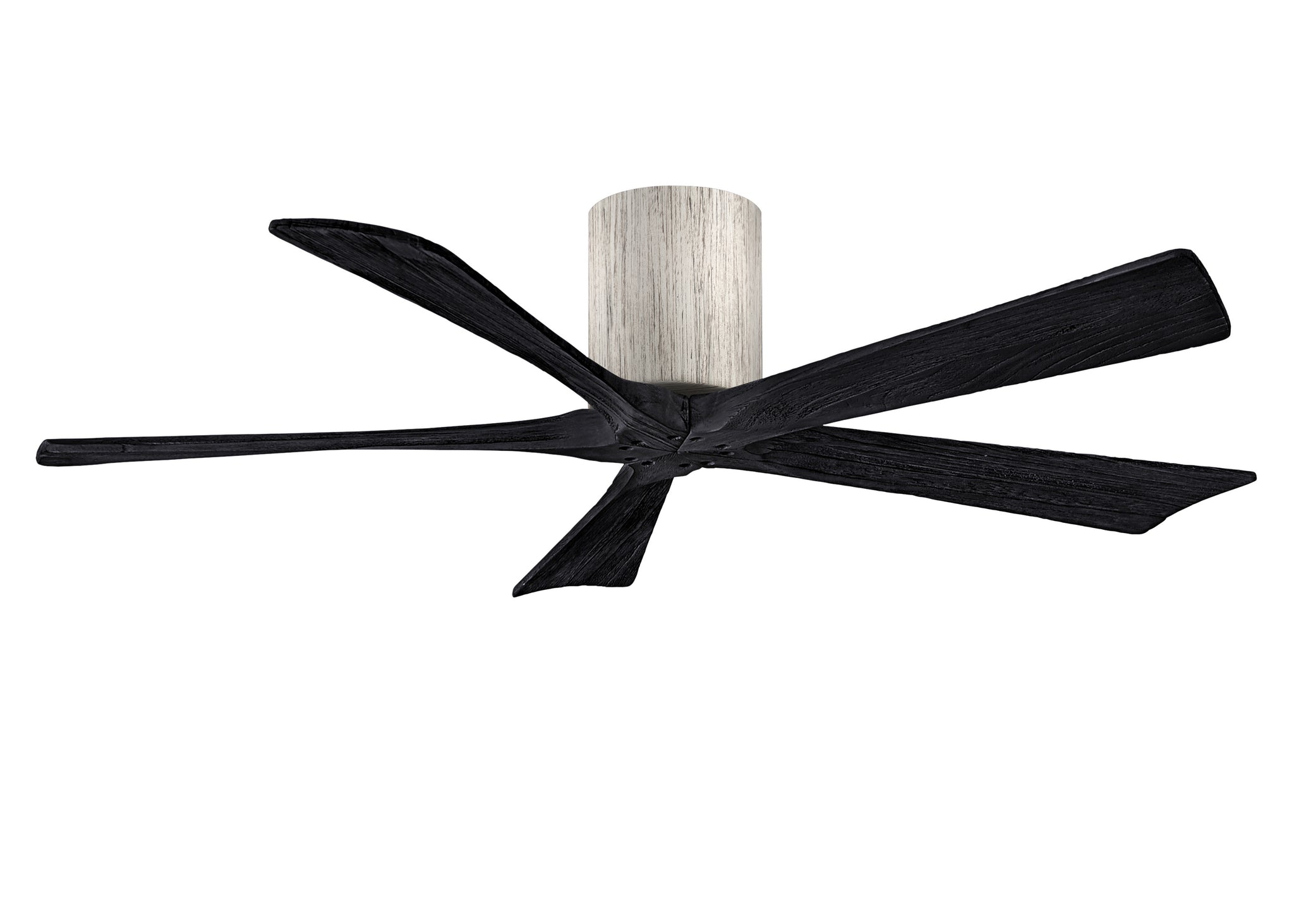

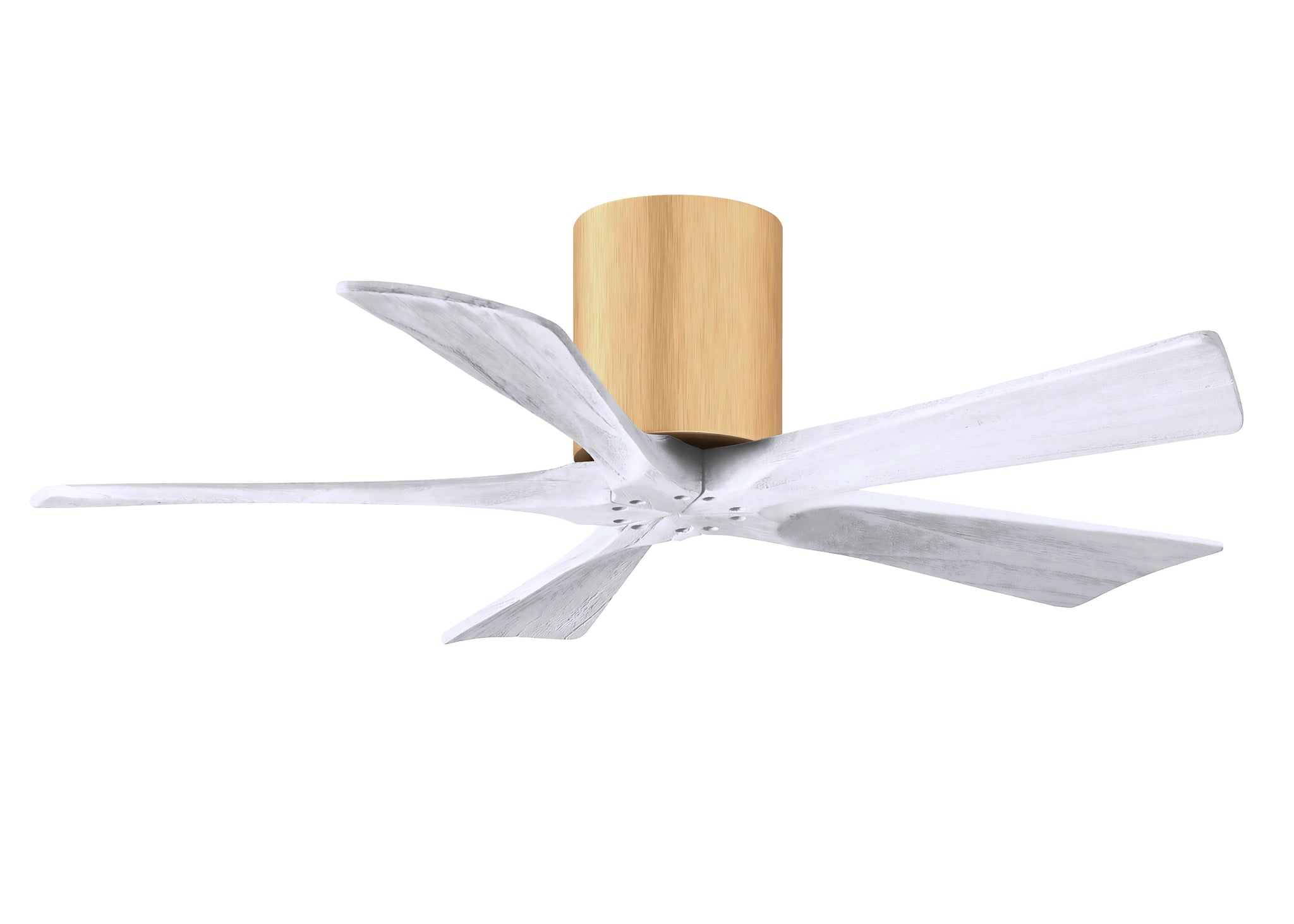

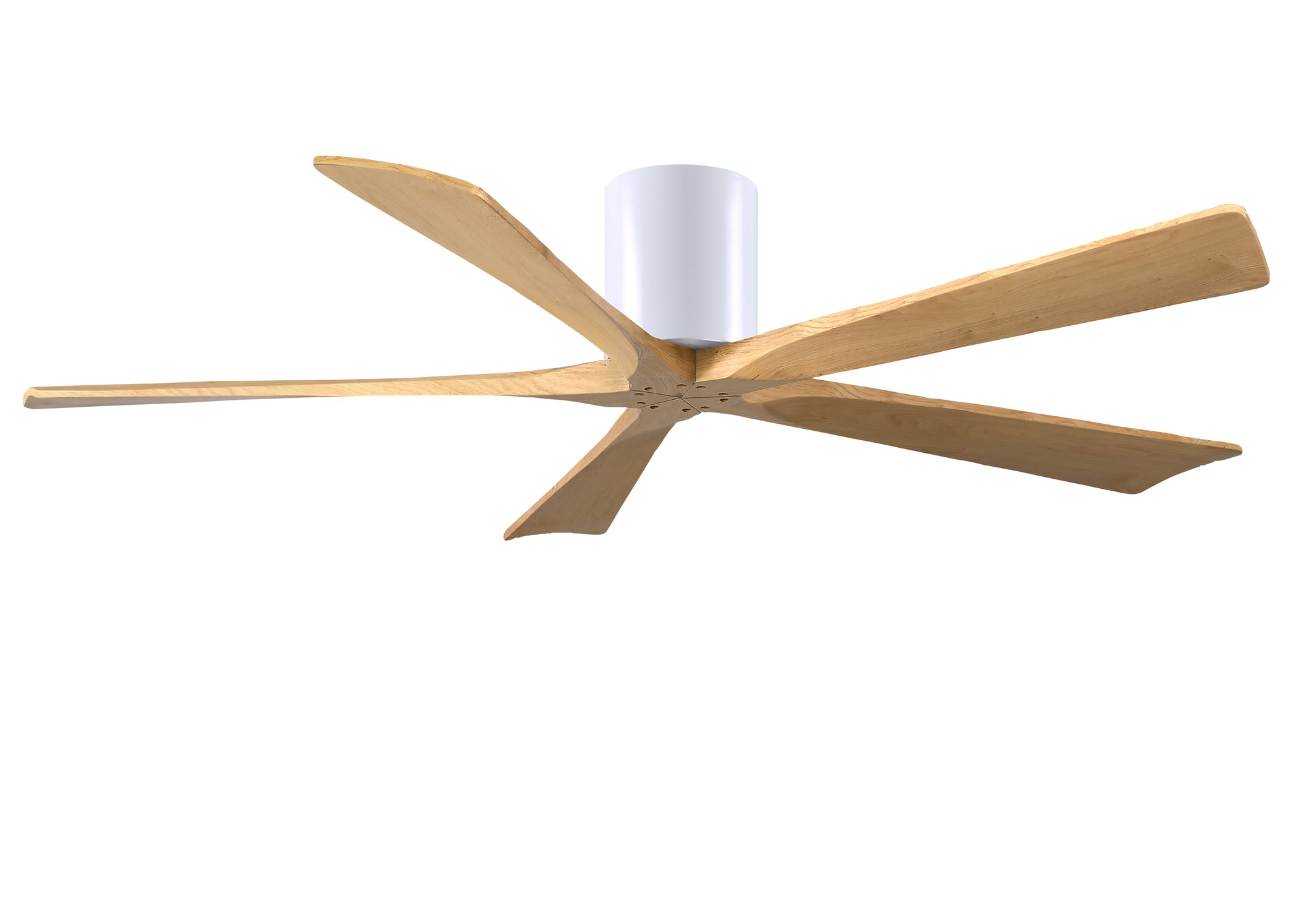

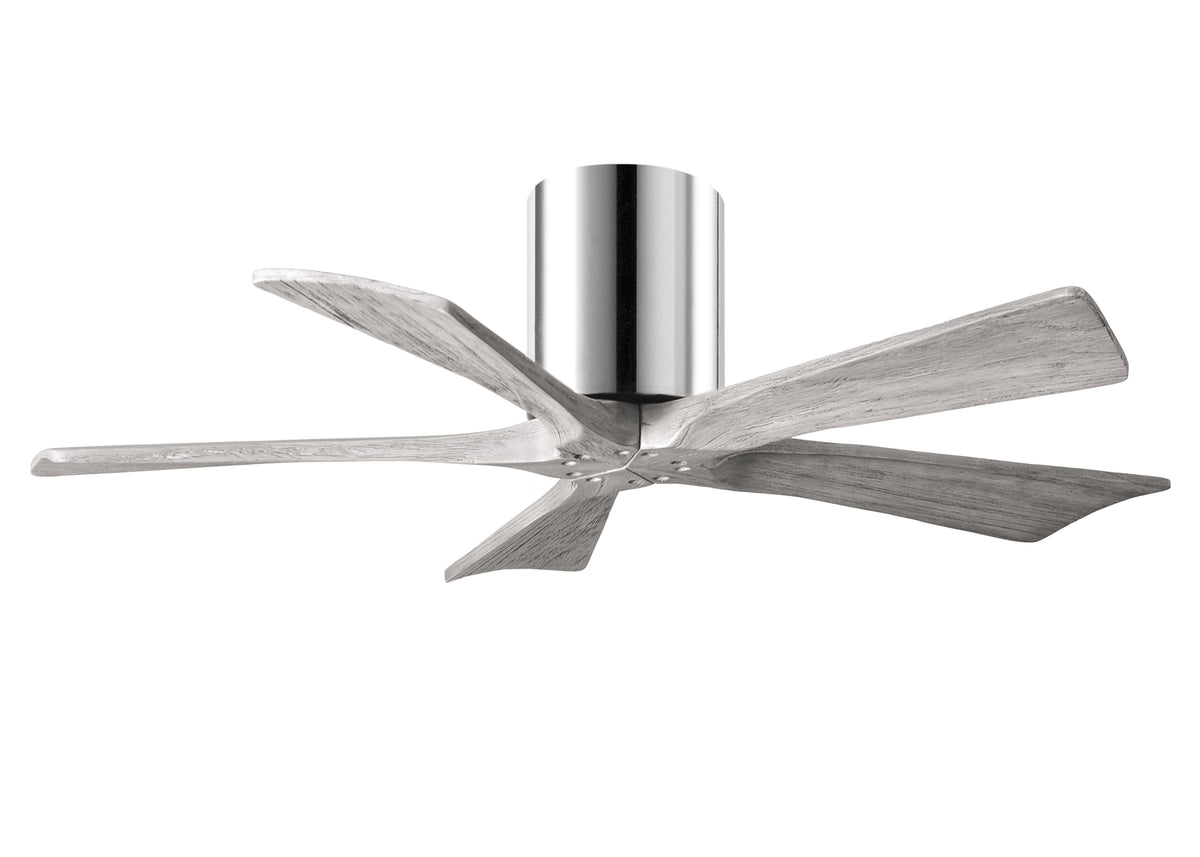

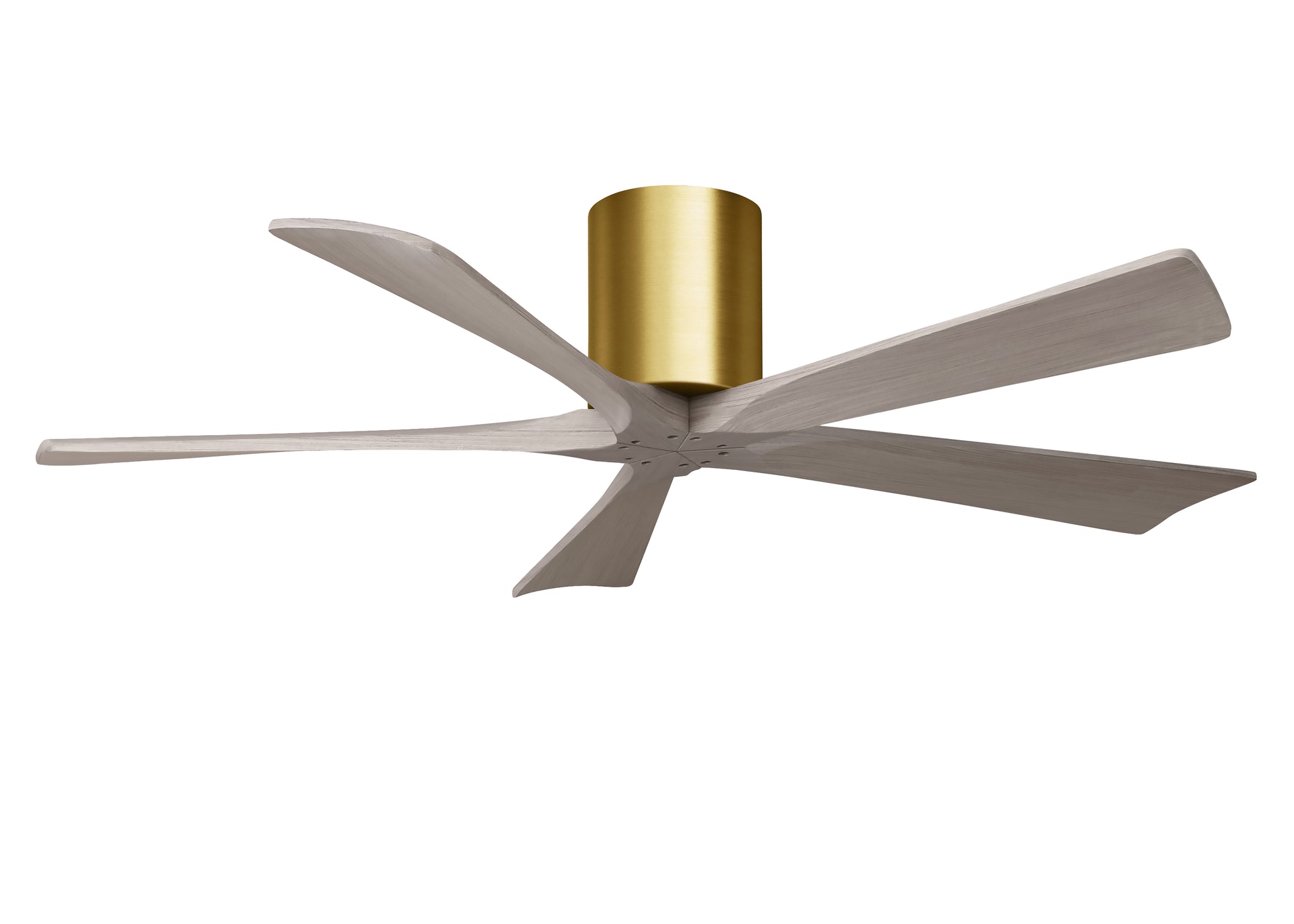

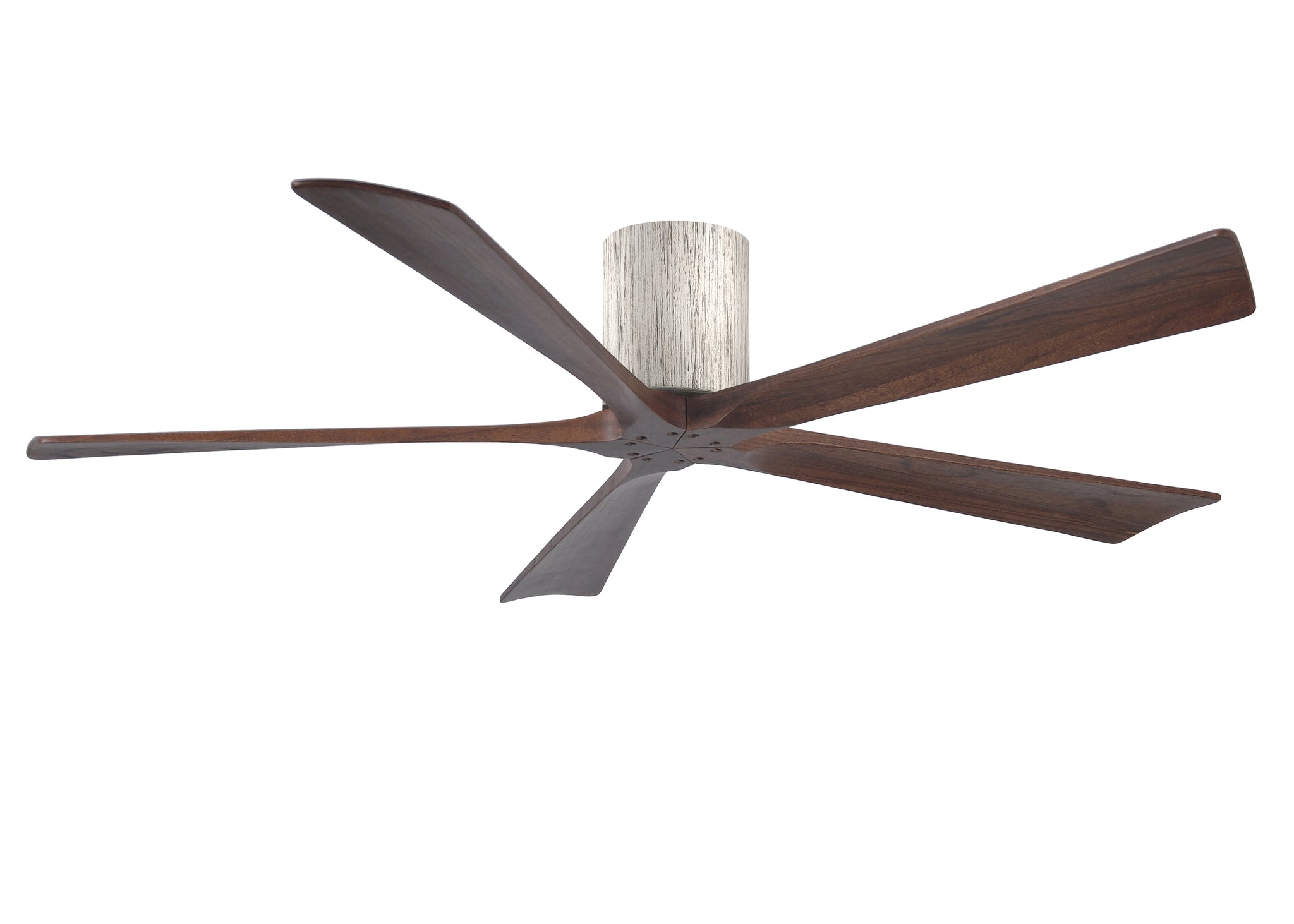

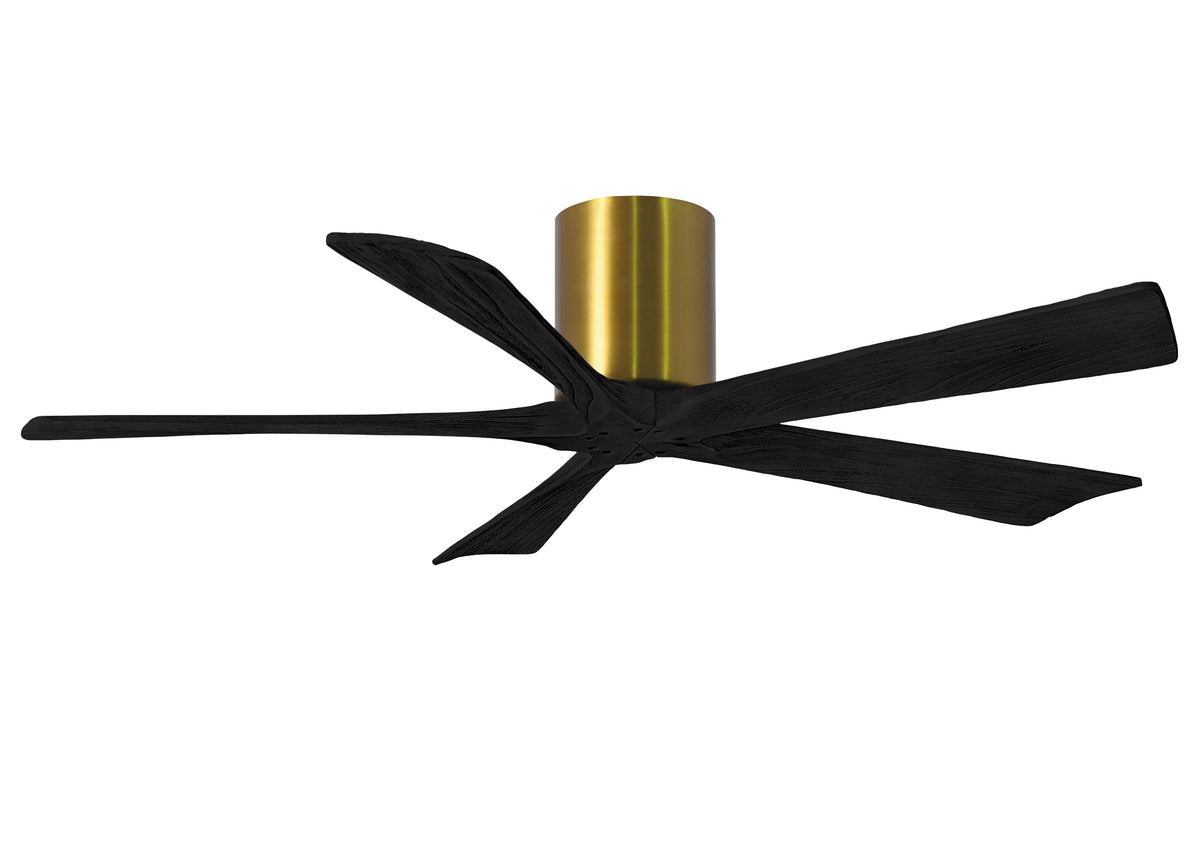

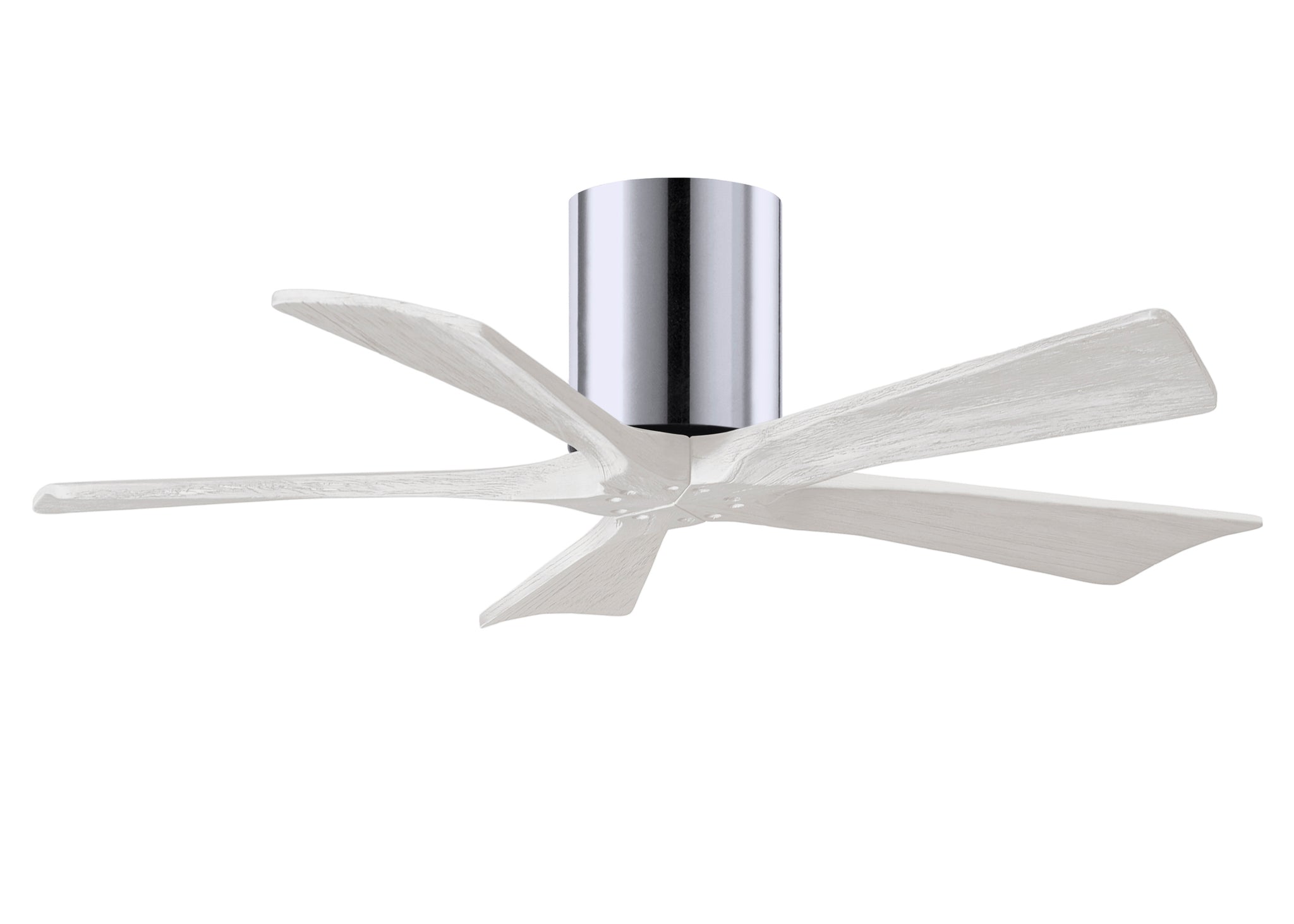

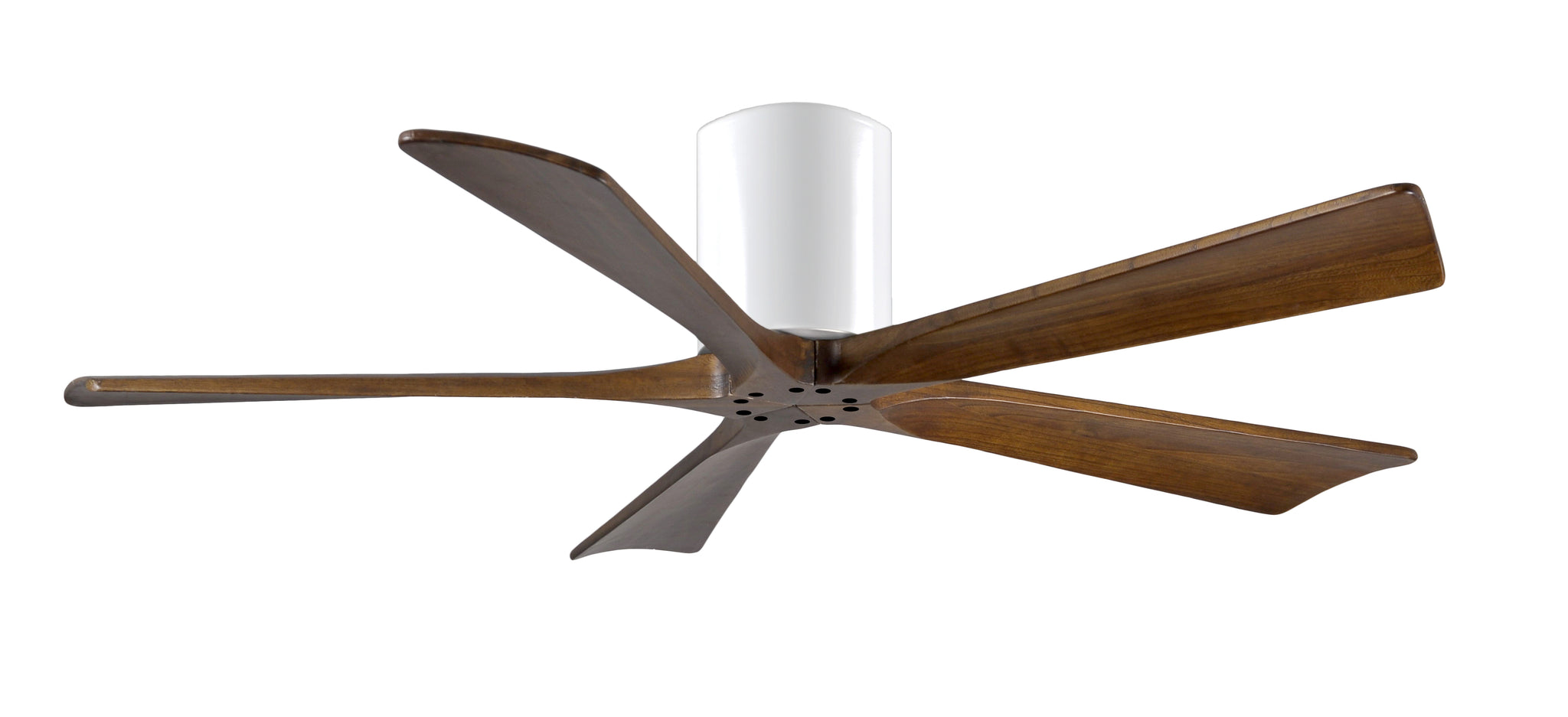

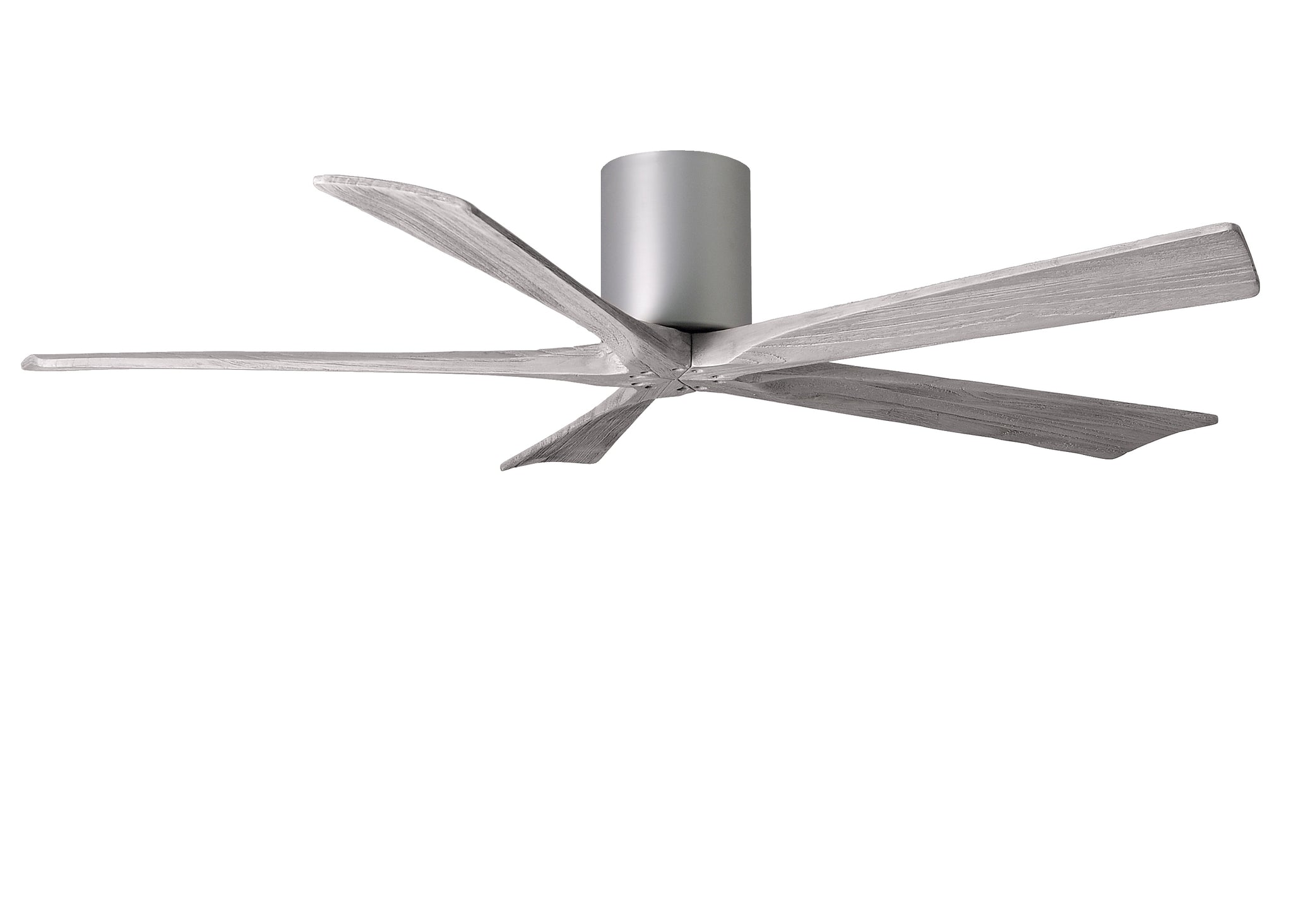

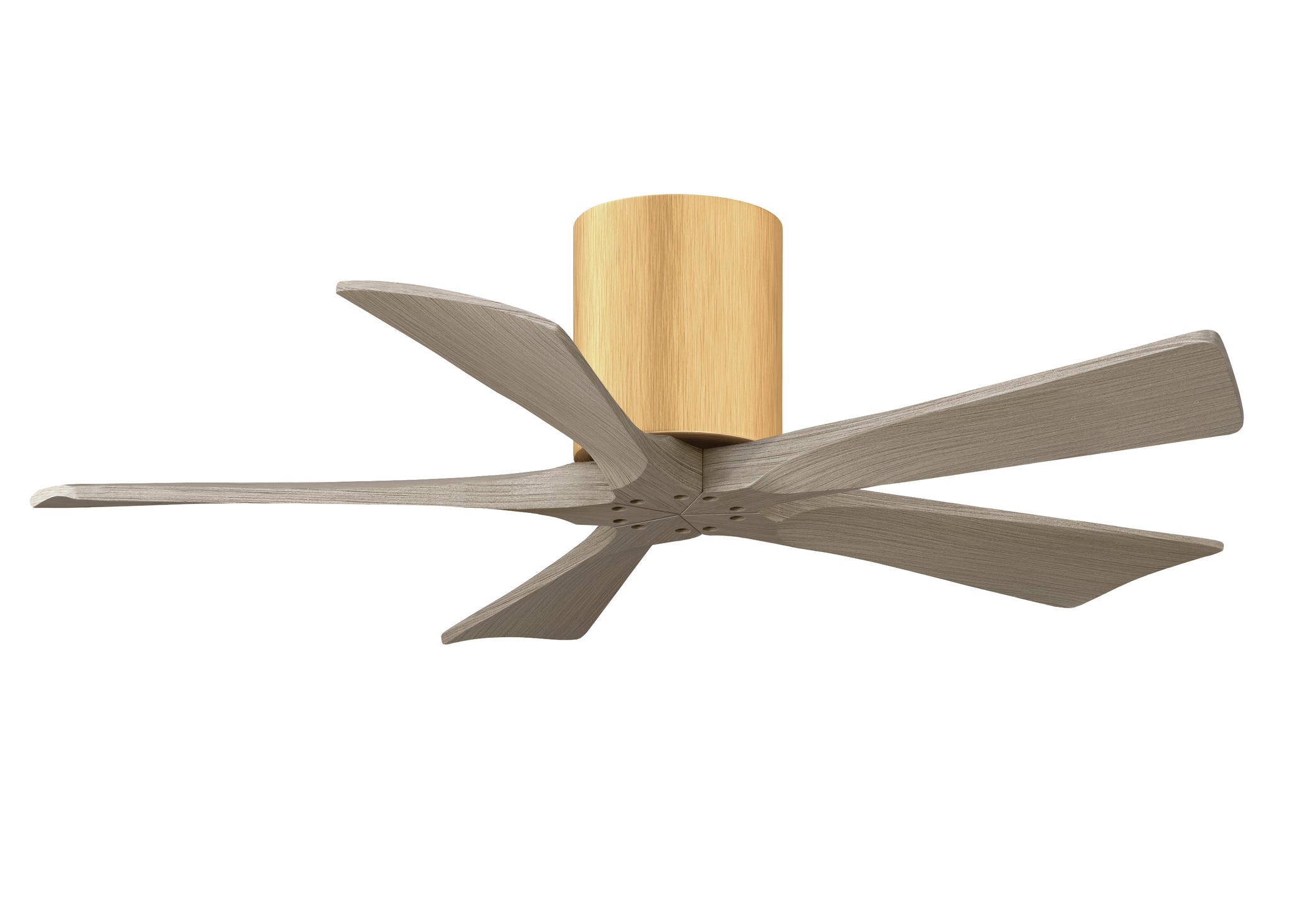

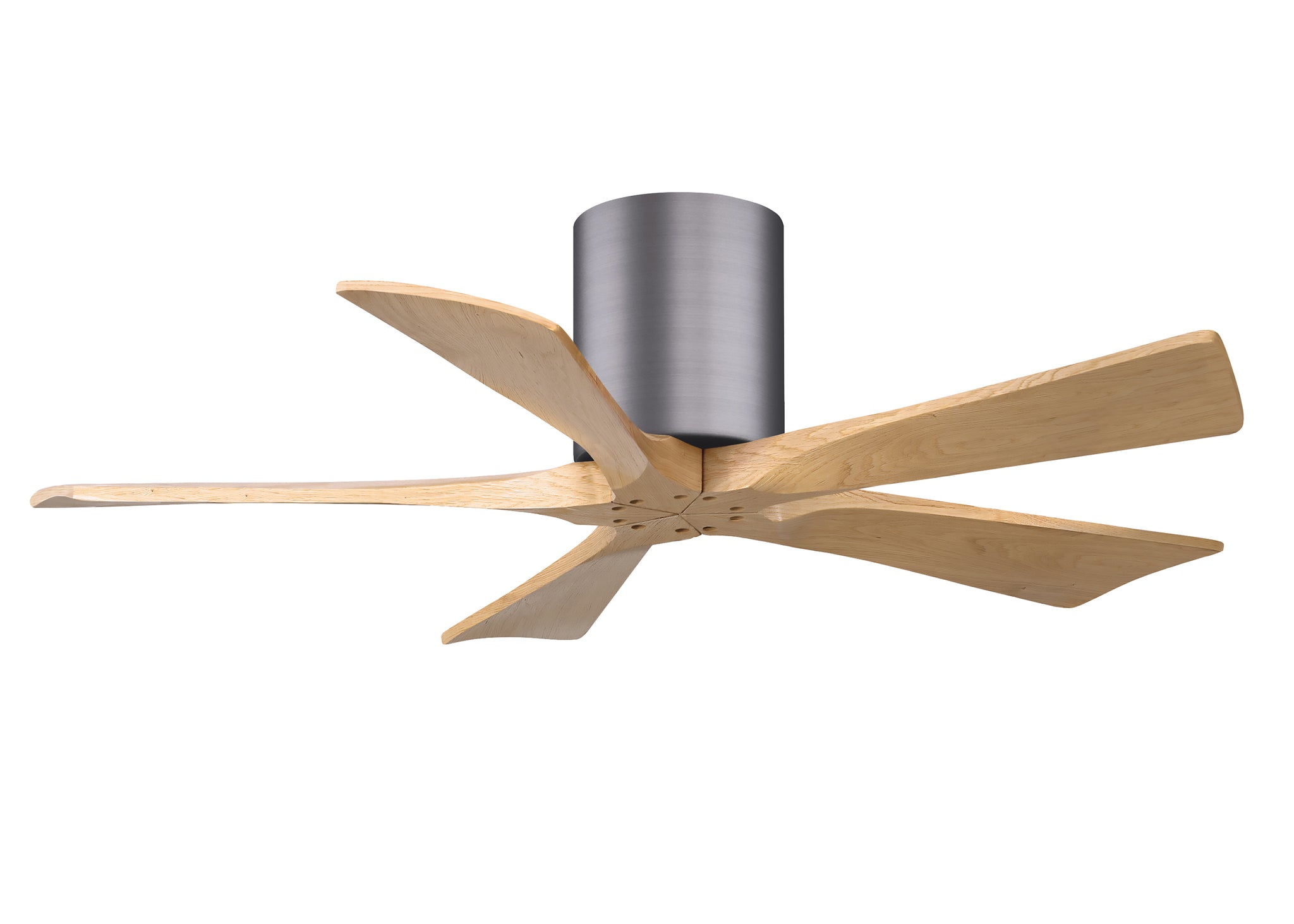

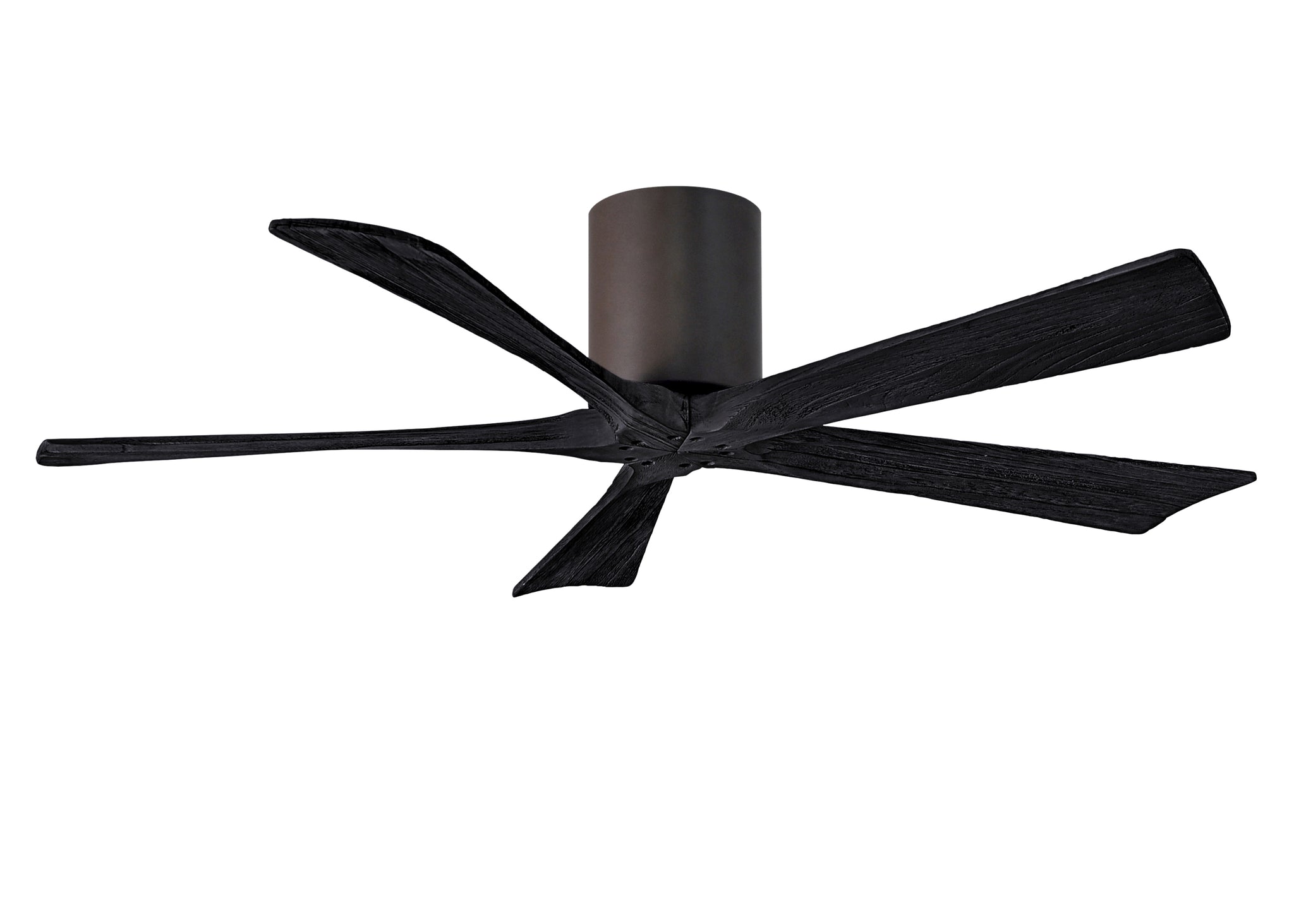

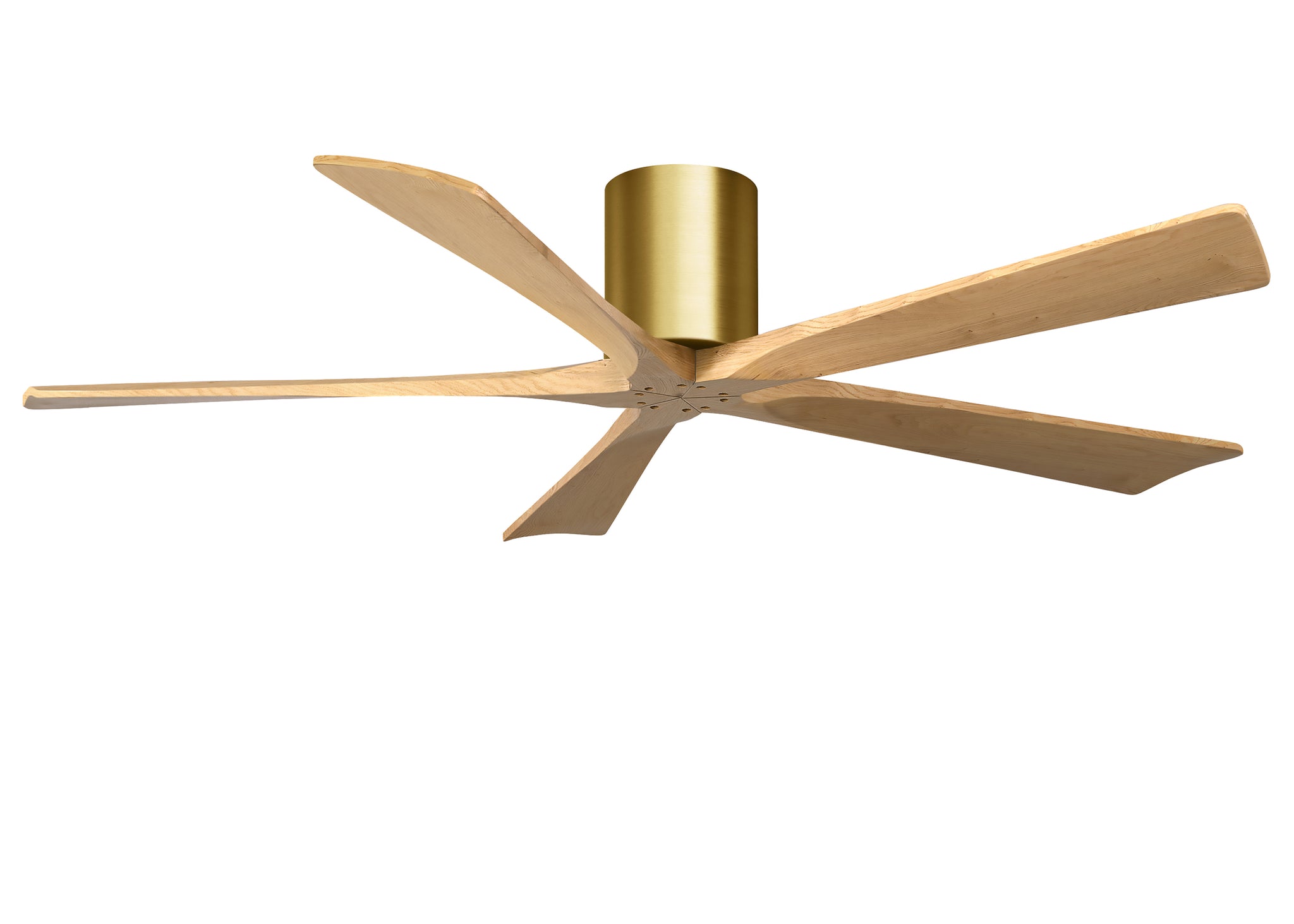

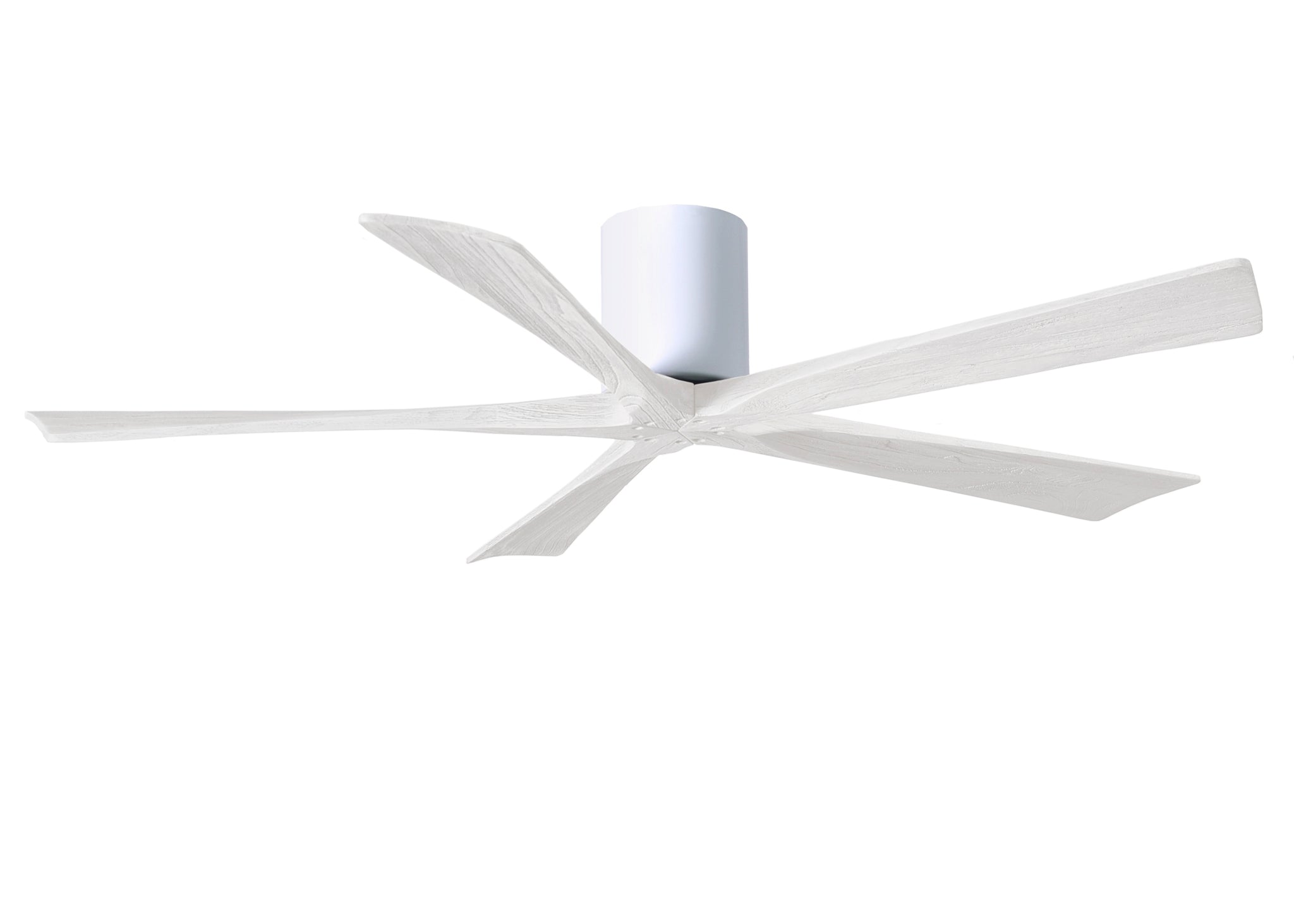

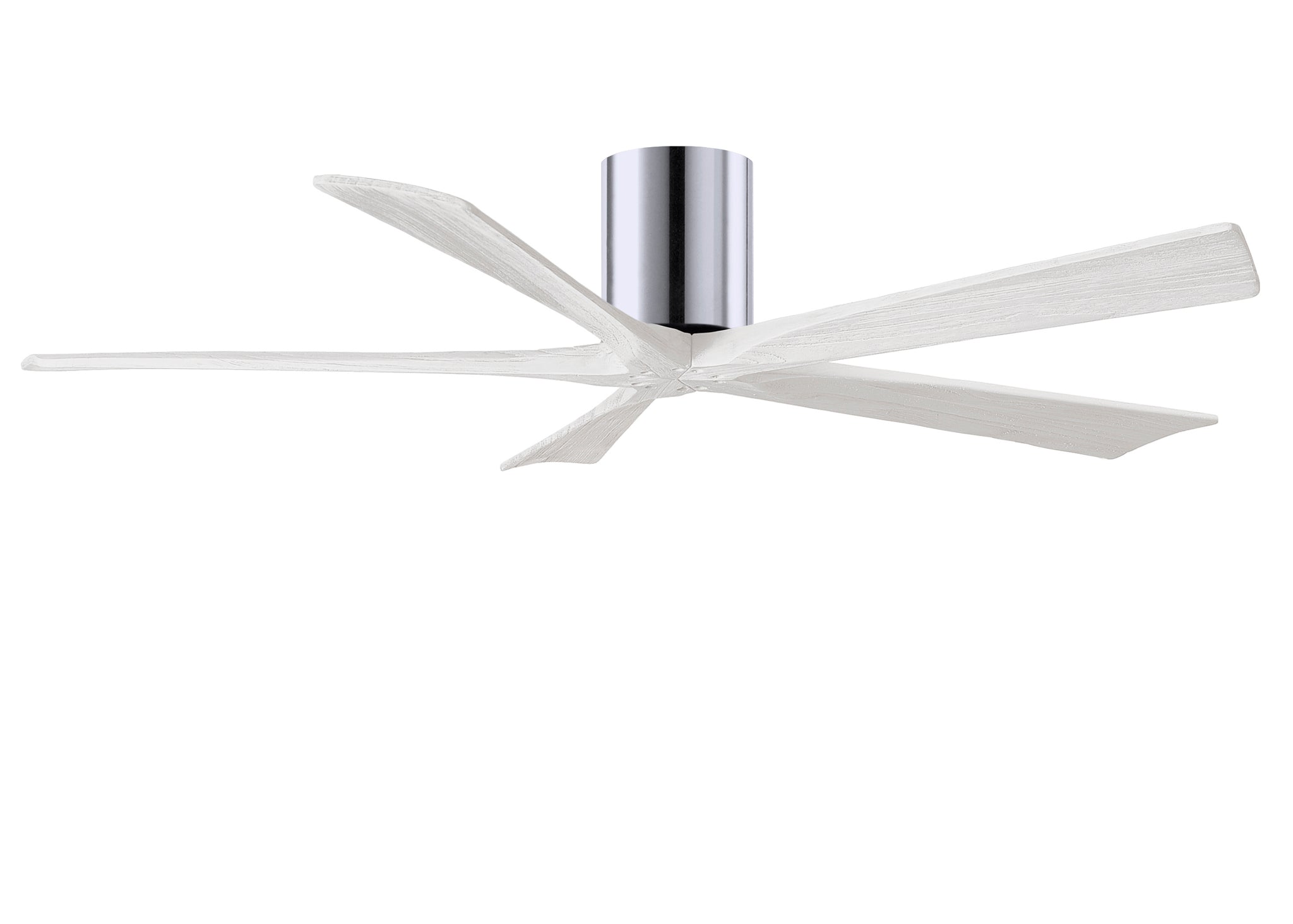

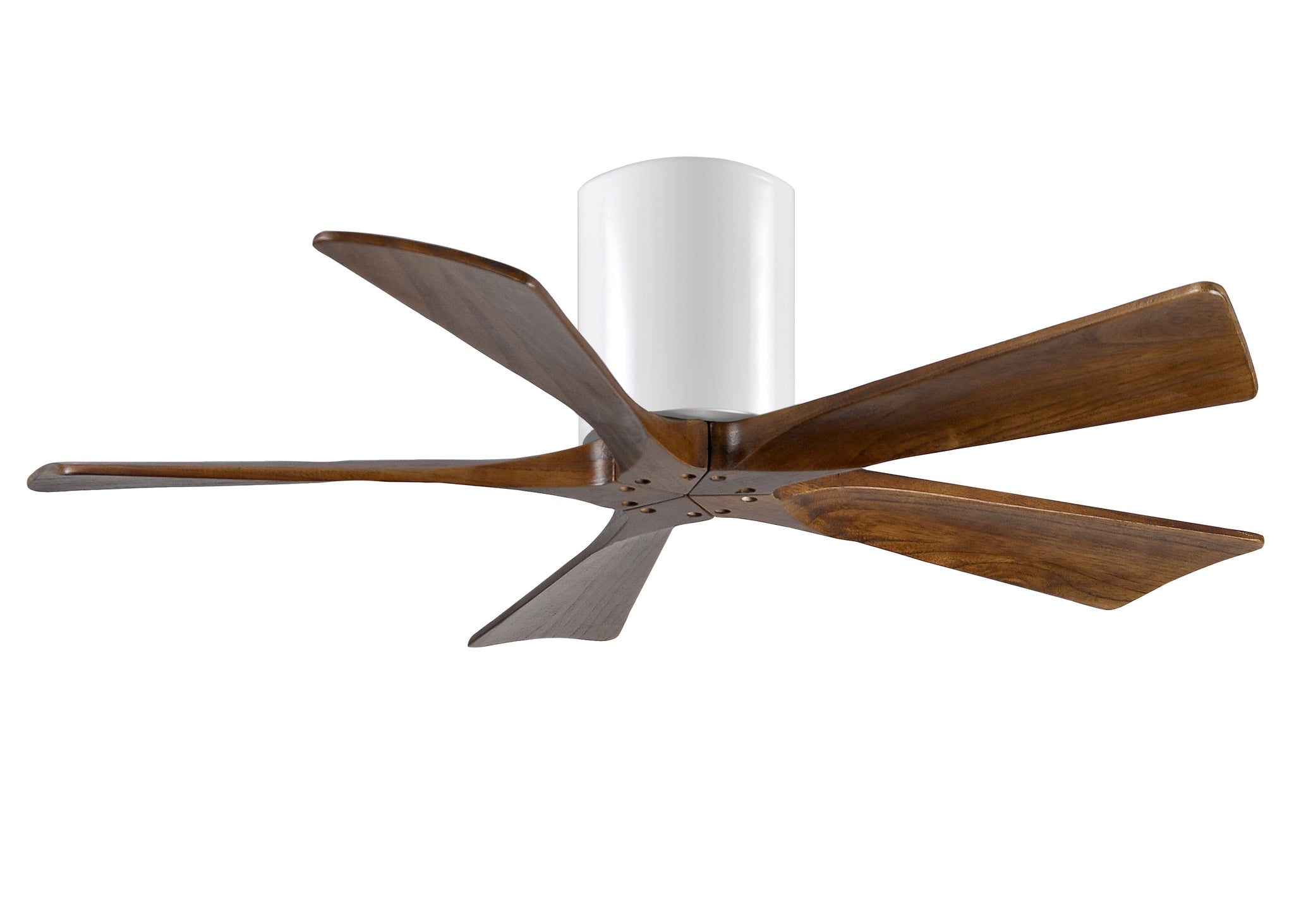

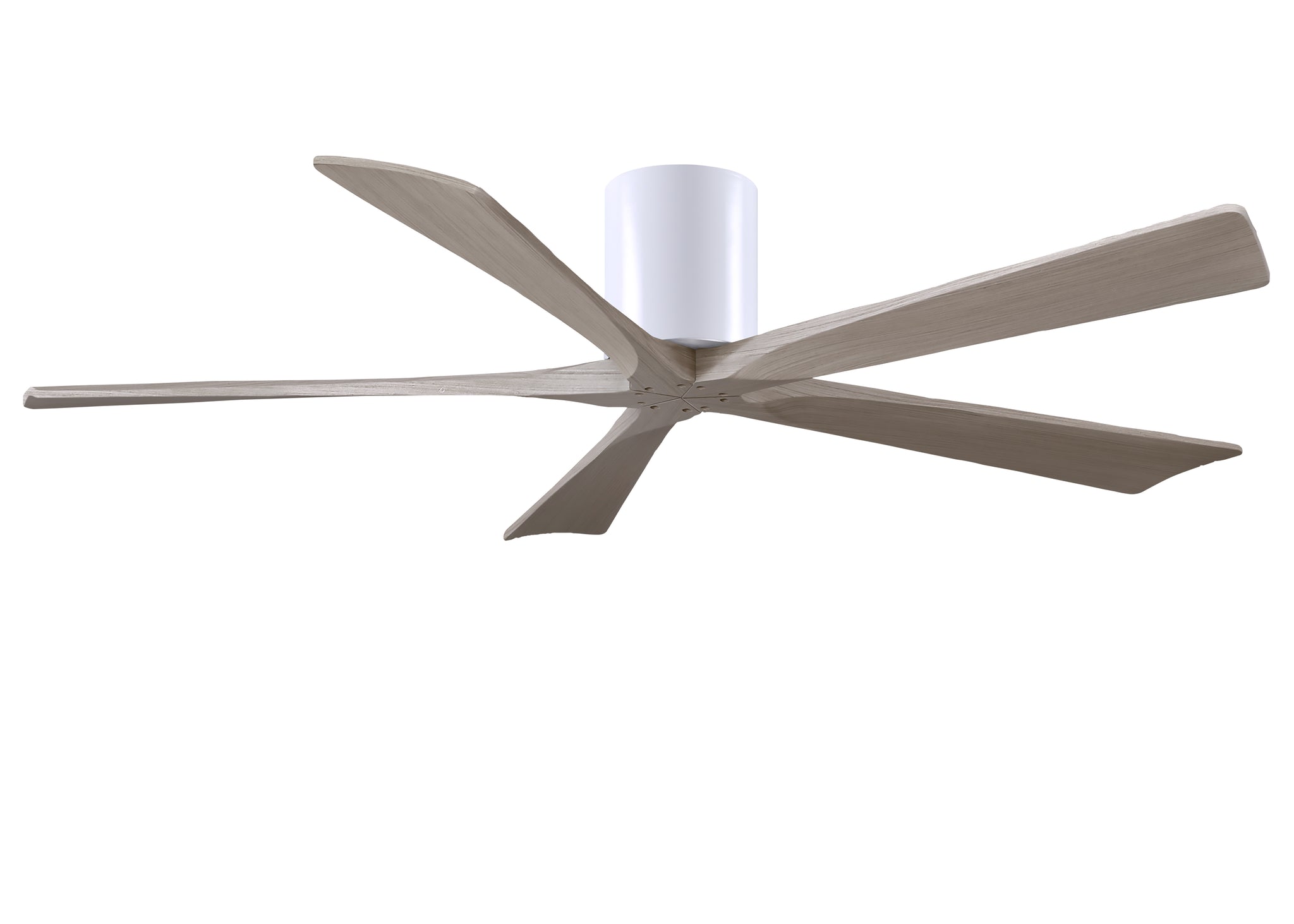

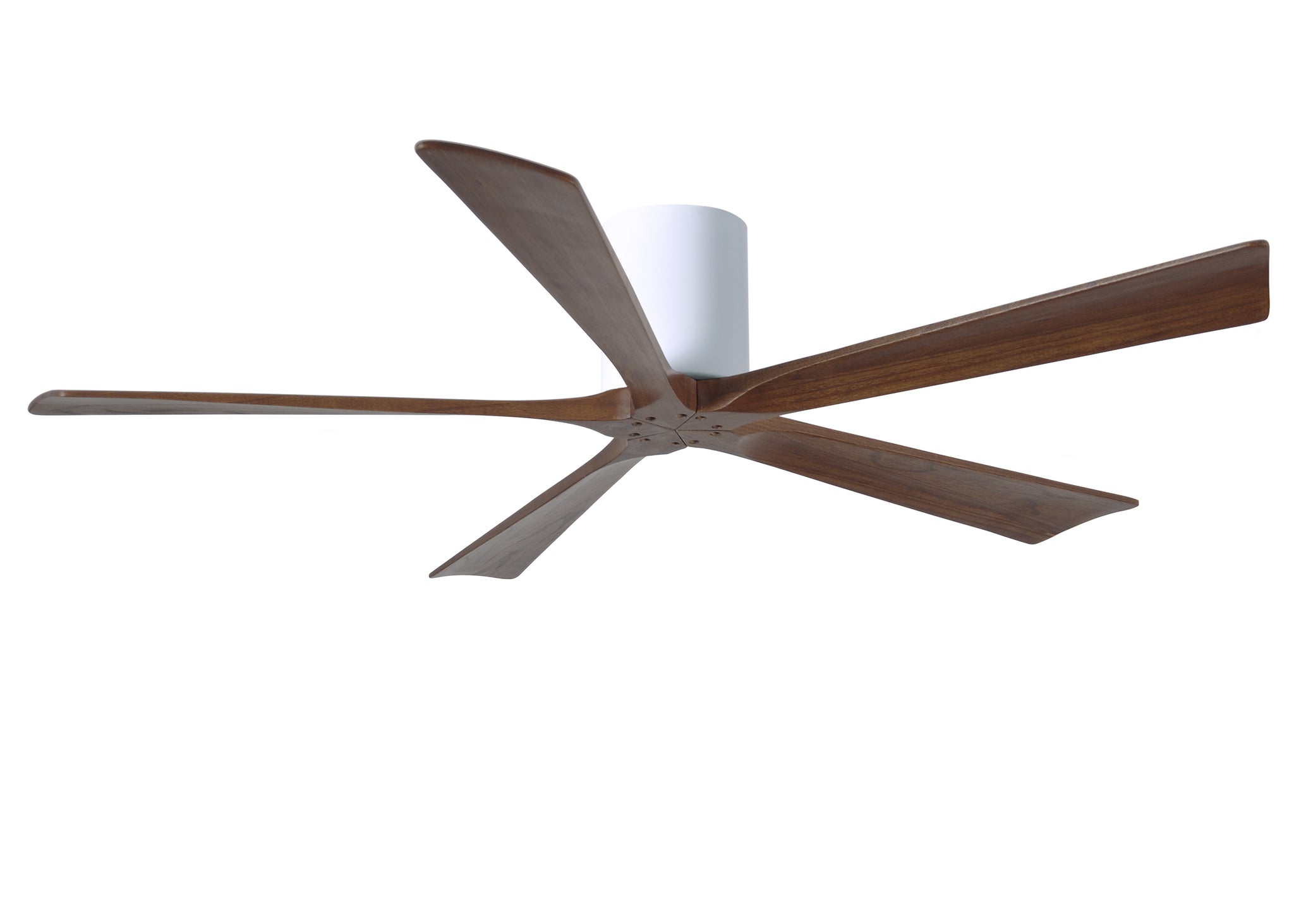

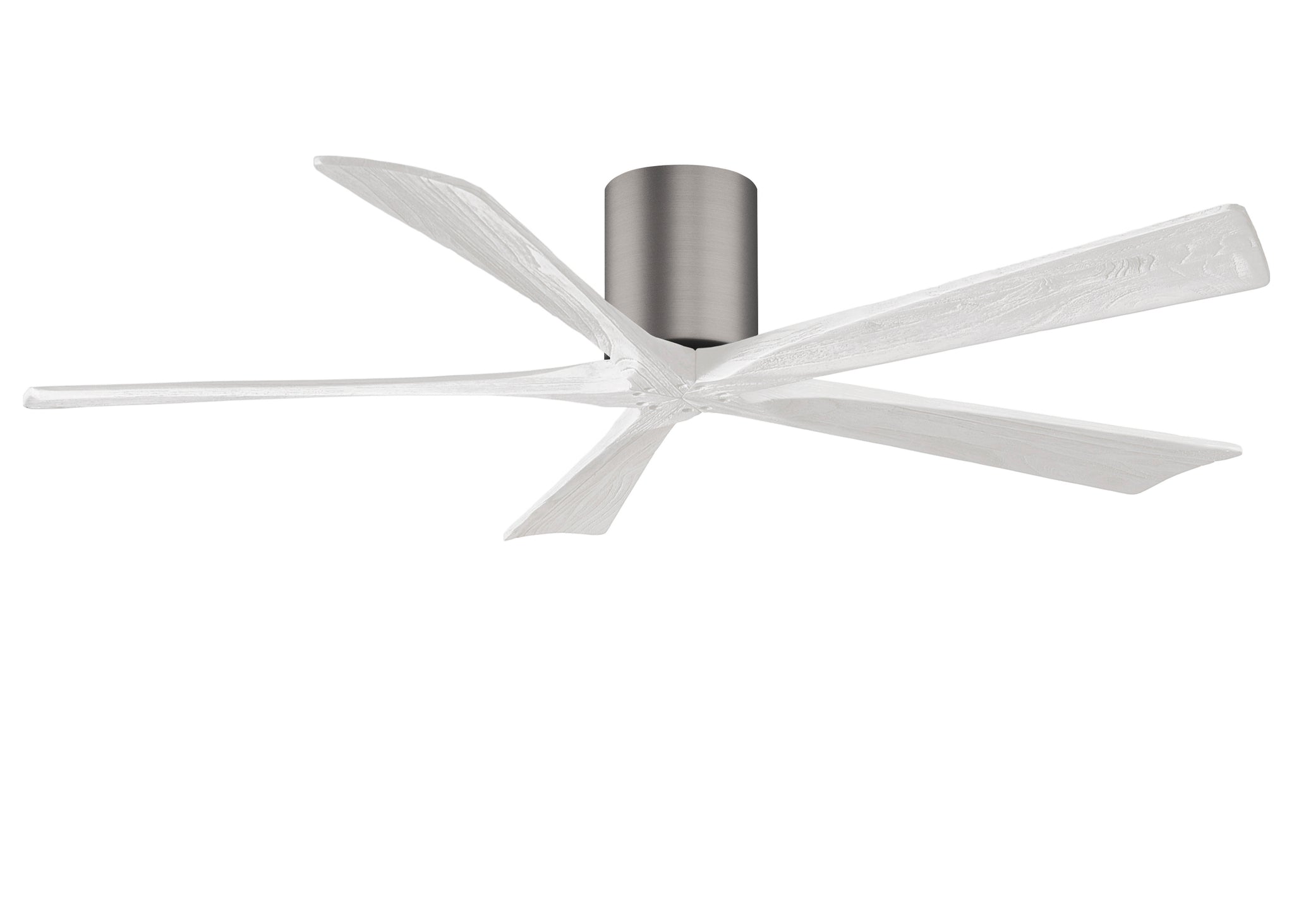

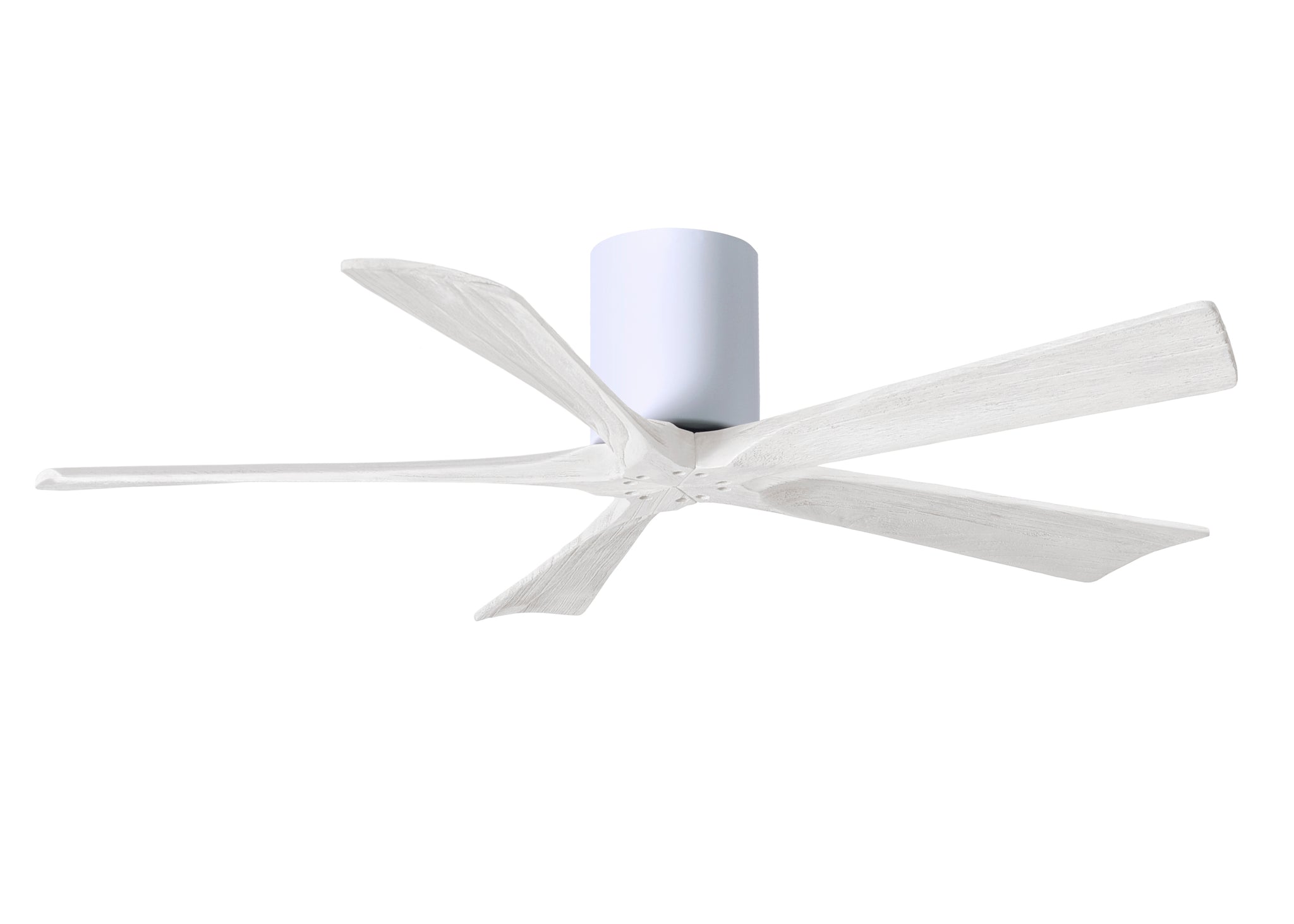

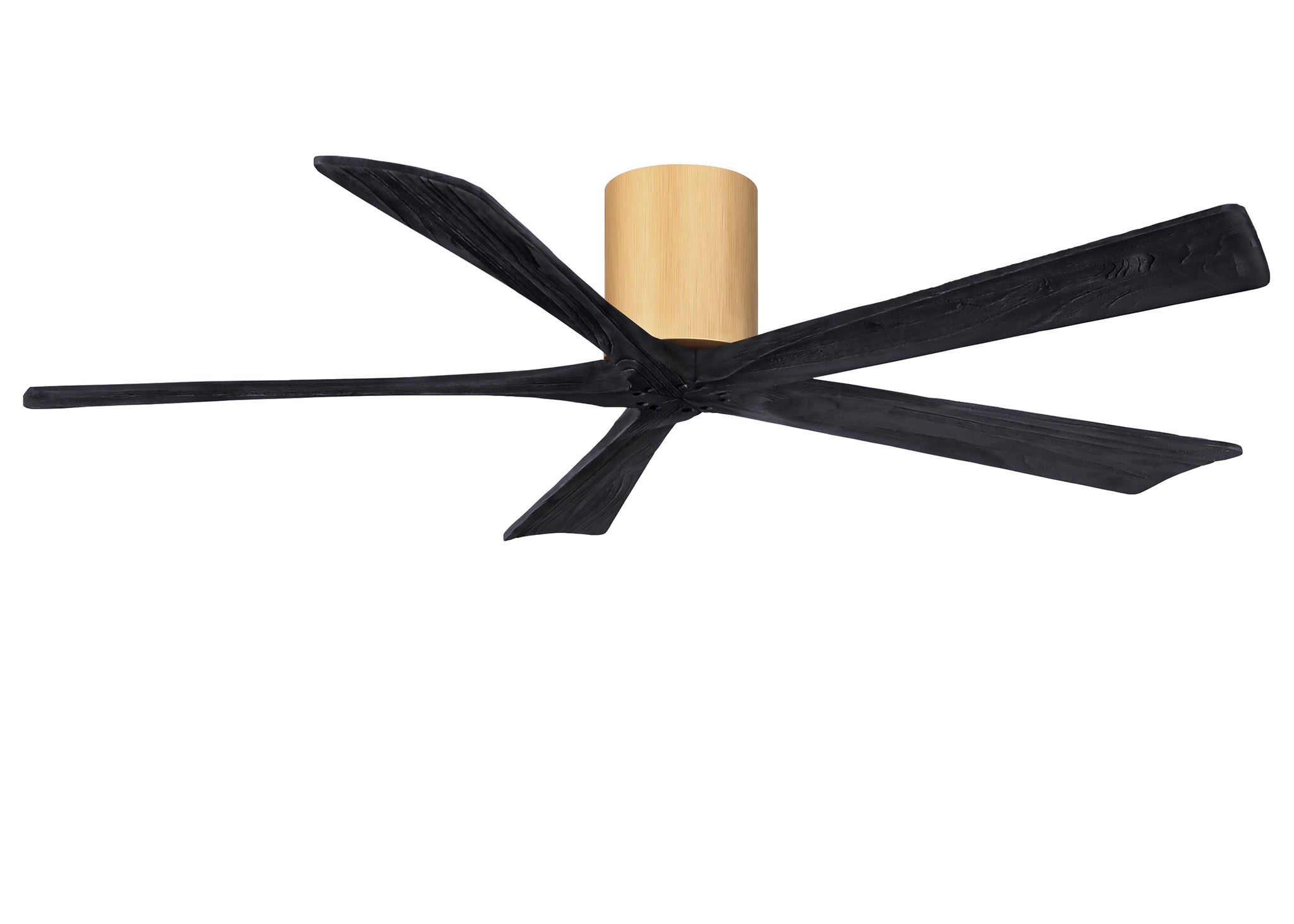

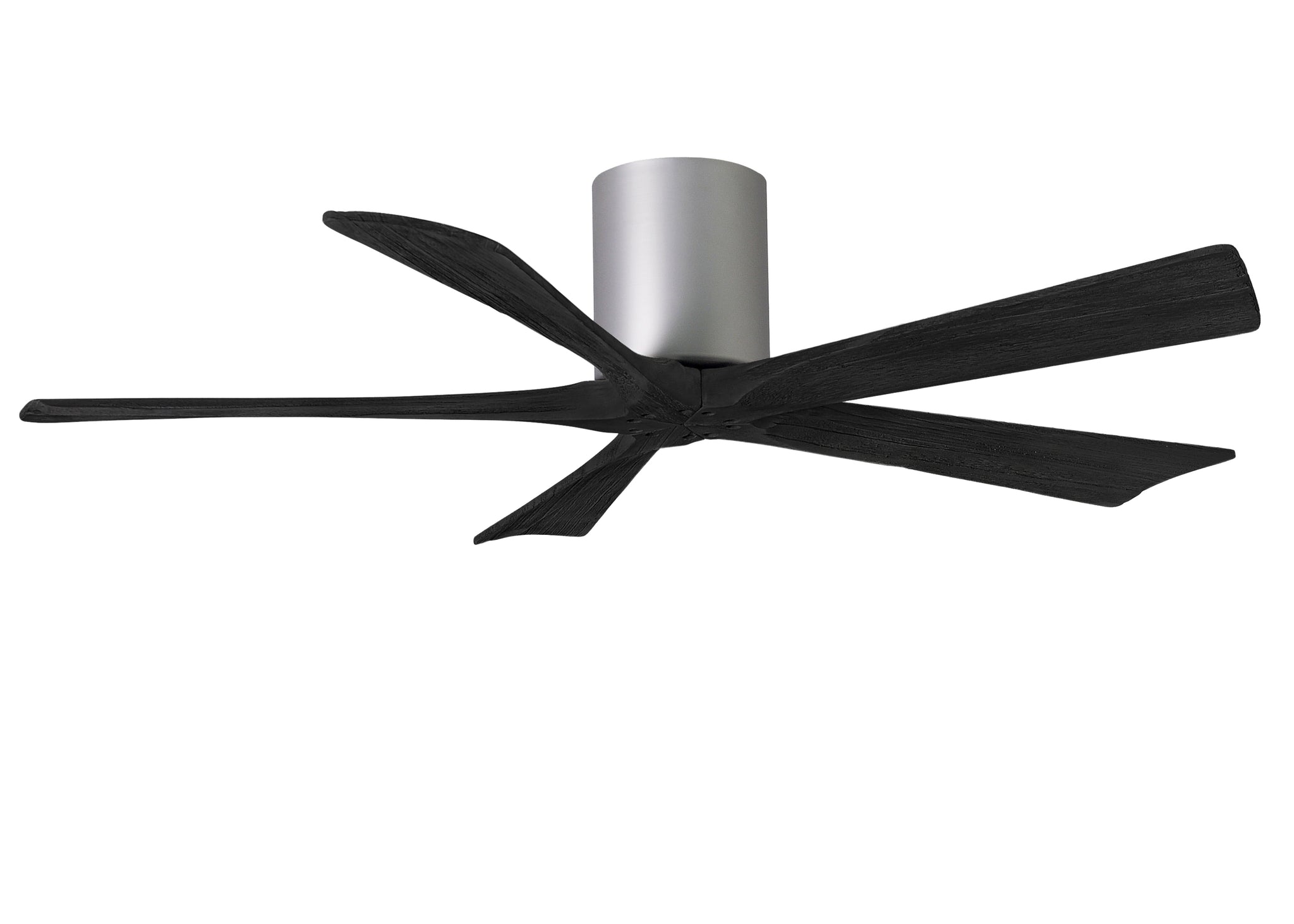

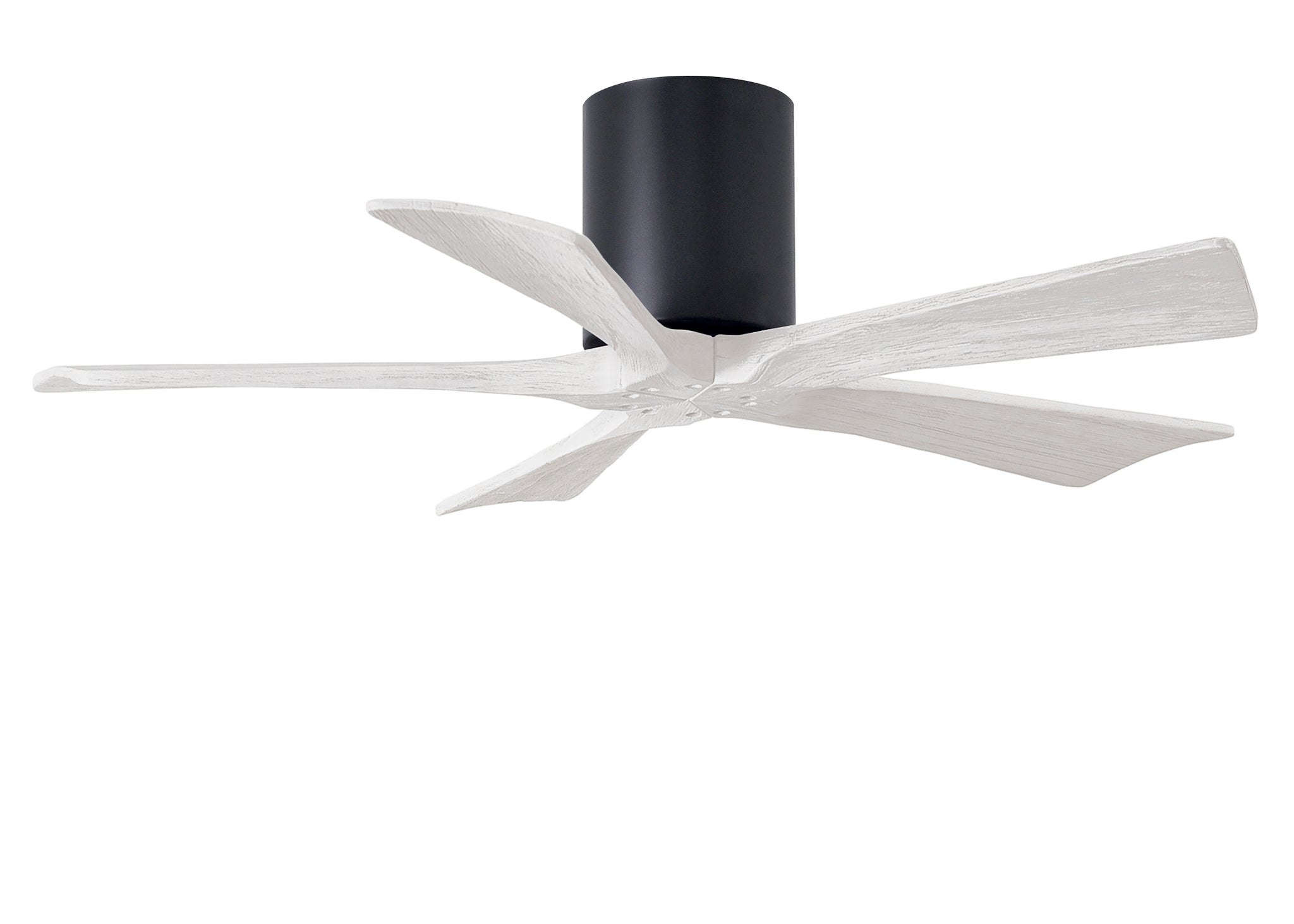

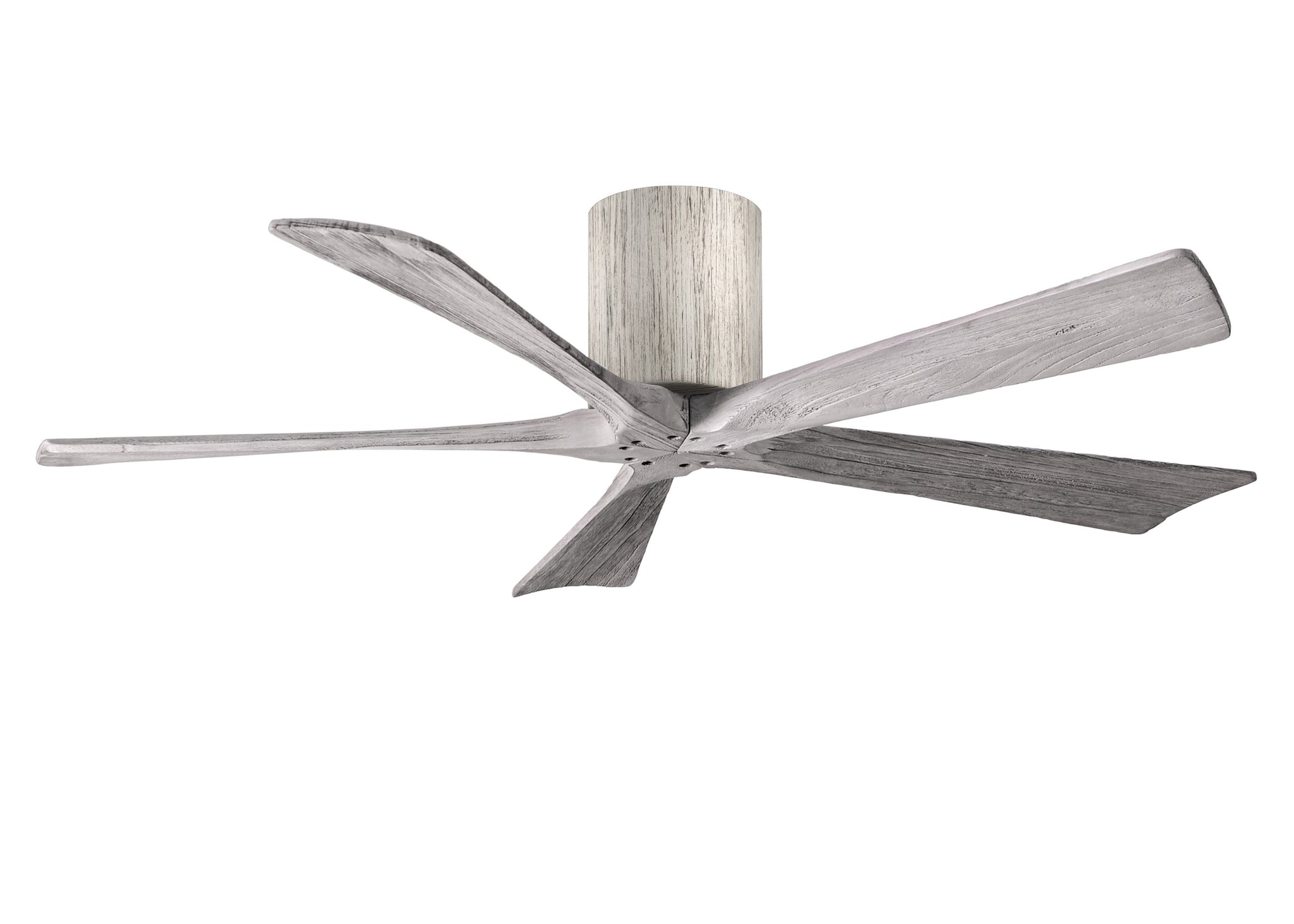

Name: Irene-5H - Ceiling Fan
Brand: Atlas
SKU: IR5H-BB-BK-42
Price: 975.0 USD
Availability: InStock

Cutting a figure like no other, the Irene-5H is rustic, yet strikingly modern design that transforms the look of any space it inhabits. Lauded by designers for how the solid wooden blades are neatly joined, this indoor ceiling fan makes your space feel cooler and more comfortable. The globe-shaped body makes the style more personable, and even helps uphold that signature minimal profile. With a timeless design, the Irene-5H brings a warm and natural feel to any modern home.

Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
Silent operation for cooling without noise
Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
Five solid wood, machine-cut blades
Energy efficient, ultra-quiet, 6-speed, reversible DC motor with new, reliable technology
Constructed of cast aluminum and heavy stamped steel
One 6-speed hand-held and one 6-speed decora style, white wall mounted control. Both controls can reverse direction of fan
Solid wood CNC cut blades

Overview

Fan Diameter inches: 42, 52, or 60

centimeters: 107, 132, or 152

Blade Material CNC Cut Solid Wood

Overall Drop 12 inches / 30 cm

Fan Weight 12 lbs

Voltage 110 or 220

Motor Type DC

Environment Damp location

Ambience Silent

Safety Certification ETL / CETL

Warranty Limited Lifetime

Motor Data

Fan Diameter	42 inch / 107 cm	56 inch / 142 cm	60 inch / 152 cm
RPM (Low / High)	50 / 235	50 / 163	50 / 120
CFM (Low / High)	814 / 4766	1625 / 5532	2391 / 5897
Watt (High)	28.26	30.48	31.57
Blade Pitch	15°	15°	15°
CFM/Watt (High)	159	187	208

Standard Equipment

Included Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

AAA Batteries (included)
Frequency 110V - 304Mhz
Frequency 220V - 434Mhz
6 Speed Control
Reverse
Wall Cradle Included
Dip-less 4,500 Channels

SKU AT-DC-WC-AK

A23 Battery (Included)
Frequency 110V - 304Mhz
Frequency 220V - 434Mhz
6 Speed Control
Reverse
Wireless
3-Way Compatible

Technical Diagram

Irene-5H Spec Sheet

Irene-5H-42

Irene-5H-52

Irene-5H-60
