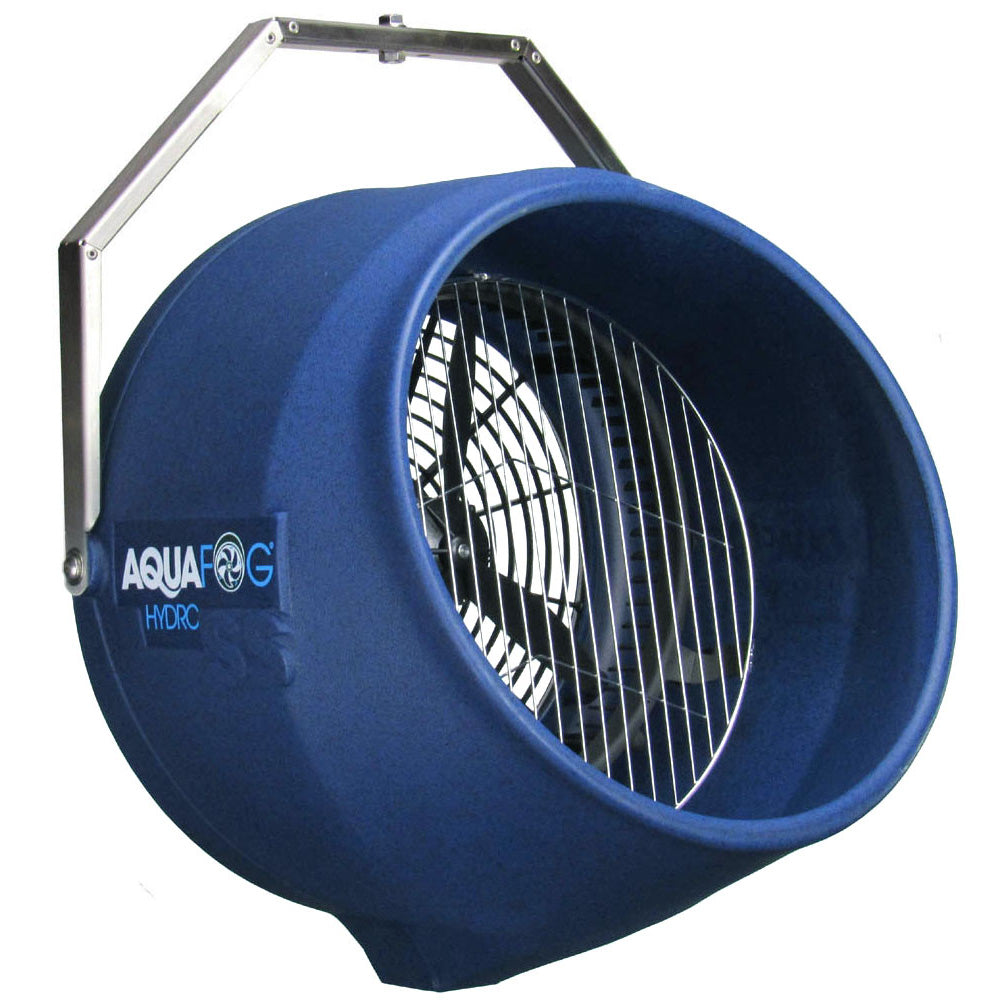

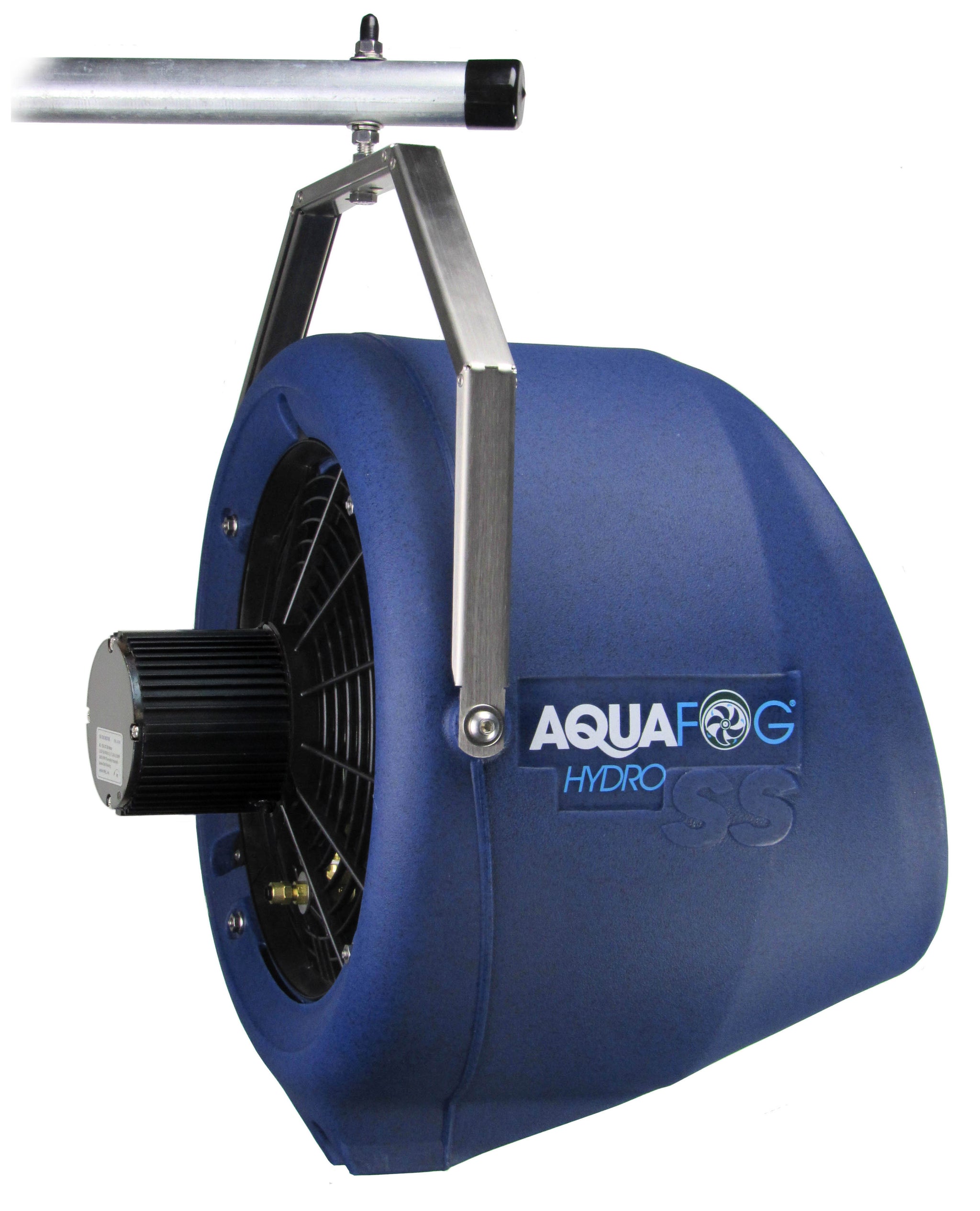

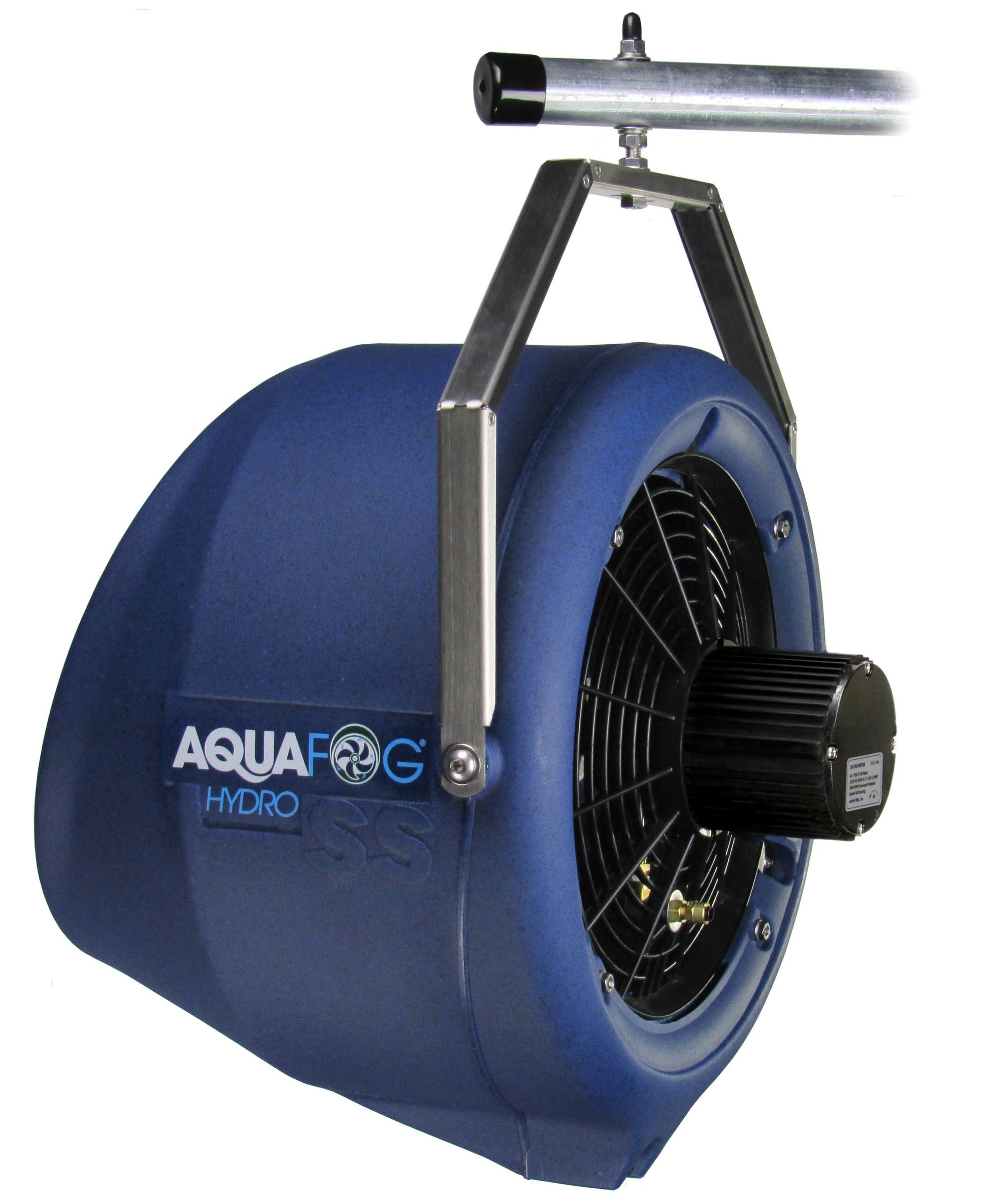

(SS) is our smallest & quietest atomizer. Designed to endure harsh environments in a variety of commercial & residential applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.
SS 700s have good fogging capability, producing tiny particles that evaporate quickly. DF (direct-feed) gets regulated by a visual flowmeter panel and can be operated continuously or automated using a secondary controller.
Indoor/Outdoor applications include: Humidification, Evaporative Cooling and Spot Cooling.
Stainless-steel fabrication and UV stabilized polymers allow for greenhouse and harsh-environment use. DF comes with 20’ of water line, 14’ power and 12’ drainage line.
- SST Flowmeter Panel (5 GPH)
- Net Fogging Output Up to 3.7 GPH
- Low Noise | 12' Fog Propulsion
- OSHA Guard
- 30,000 Btu/h Evaporative Cooling
- Arrives Fully Assembled
Features
SST Flowmeter Panel
SS 700-DF Visual Flowmeter connects to a pressurized water supply. A needle valve regulates flow going to the 700-DF unit. The clear polycarbonate construction allows for visual monitoring of the flow. Requires a pressurized water supply (10-100 PSI).
The scale is in gallons per hour.
- 1 to 5 (feed rate) Gallons Per Hour
- Max. 3.7 GPH (net) Fogging Output
- Needle Valve Flow Control
- In-line Strainer
Unique Atomizer
Our exclusive (atomizing) fan-blade assembly provides performance advantages with nozzle-free reliability.
TEAO Motor - Split Capacitor
Totally Enclosed All Aluminum Case
- Stainless Steel Shaft and Mounting Studs
- Air Over Design with Durable Finish
- Sealed Ball Bearings
Specifications
| Fogging Capability: |
Up to 3.7 gal per hour |
| CFM: |
980 |
| Cooling Capability: |
29,500 Btu/h |
| Motor: |
1/20 HP, 115V, 60Hz |
| Energy Consumption: |
1.5A @ 115V |
| Noise @ 10 ft distance: |
63 dB(A) @ 10 ft |
| Average Particle Size: |
25 microns |
| Weight: |
10 lbs |
| Unit Dimensions: |
Width 16"
Depth 17"
Height 20"
|
| Hardware: |
304 (18/8) stainless steel |
| Environment: |
Endures temperatures from
33° to 160°
Indoors / outdoors
Humidity to 85% RH
UV stabilized & impact resistant
|
| Shipping Weight: |
19 lbs
|
| Box Dimensions: |
19" x 19" x 19"
|
| Country of Origin: |
USA
|
Control Packages and Accessories
Control Packages and Accessories
Owners Manual
Owners Manual
Videos
700-DF
Sound Comparison
Shipping
Shipping is by freight and Free shipping IS NOT included. Call us for a quote.
(916) 308-3856
