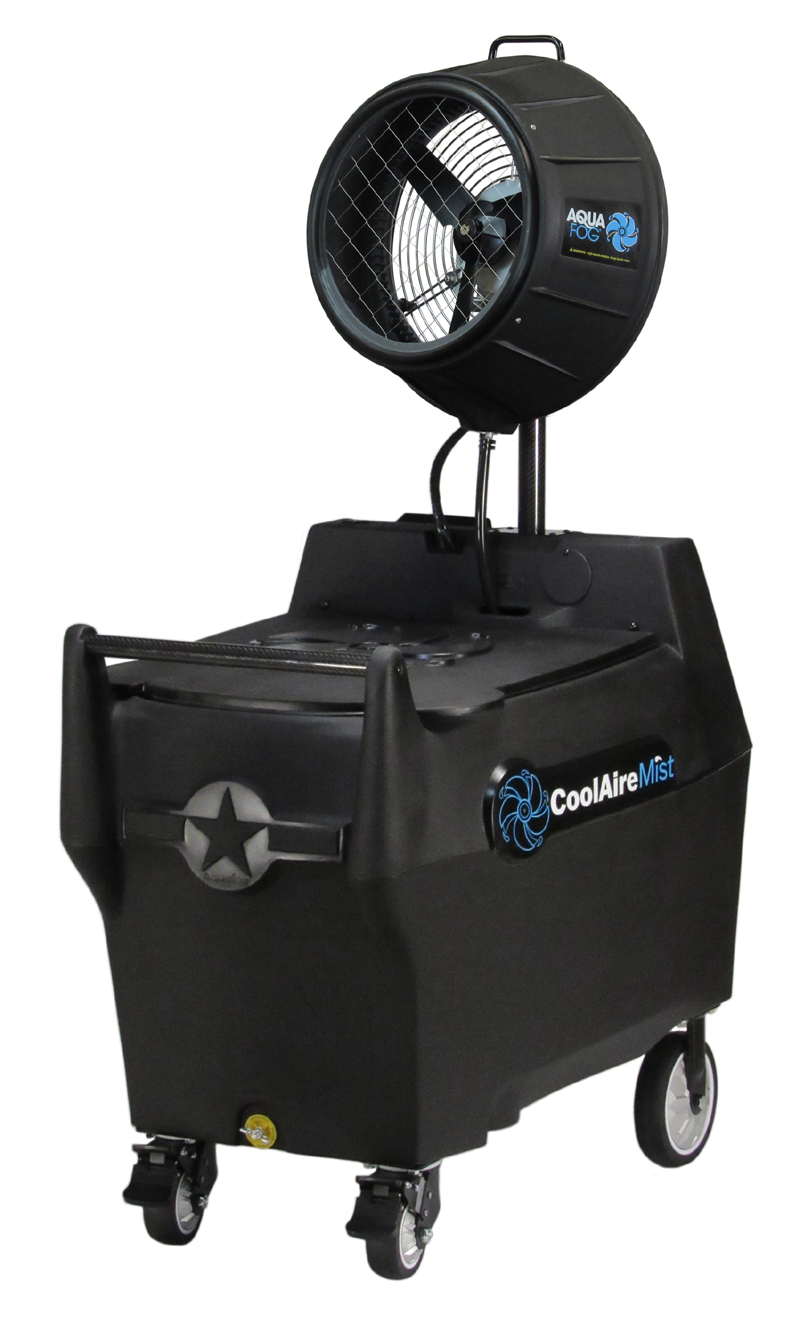

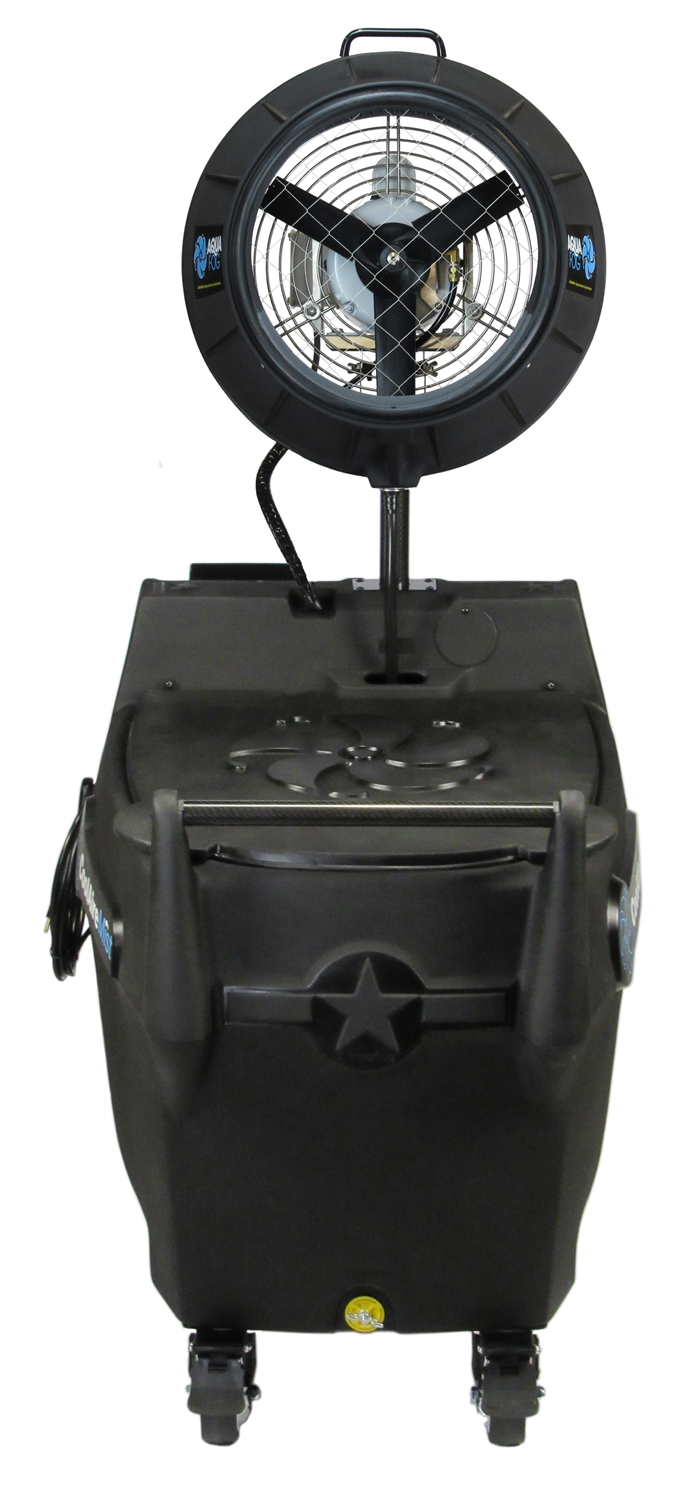

The Hellcat System includes: (XE) atomizer, 4-sweep oscillation, pivoting fogging head, *smart control, a rugged 65-gallon supply tank, hose connect w/float valve, carbon fiber supports, smooth glide wheels, easy access lid plus more. An optional all-stainless-plumbing model (SST) is available for use with highly corrosive chemicals.
(XE) is our most powerful atomizer. Designed to endure harsh environments in a variety of commercial & industrial applications. They connect to ordinary water supplies requiring no high-pressure pumps or nozzles.
Hellcats have enormous fogging capability, producing tiny particles that evaporate quickly. Hellcat gets regulated by a quarter-turn ball valve and can be operated continuously or automated using a secondary controller. Its compact design ensures easy transport and setup, perfect for on-the-go applications.
Indoor/Outdoor applications include: Humidification, Evaporative Cooling and Chemical Fogging.
Stainless-steel fabrication and UV stabilized polymers allow for greenhouse and harsh-environment use. Hellcat has 18’ power cord. The fogging head nestles inside the tank for storage or safe transport.
- Net Fogging Output Up to 13 GPH
- Smart Control | Auto Shut-Off
- Oscillation: 30°, 45°, 60°, 75°
- 103,800 Btu/h Evaporative Cooling
Features
Large 65 Gallon Supply Tank
- Easy Access Front Wheel Locks
Set-up & Break-down
One average-sized adult can set-up or break-down the Hellcat. The weight of the fogging head is around 40lbs.
.
- Fogging Head Nestles Securely into the Tank

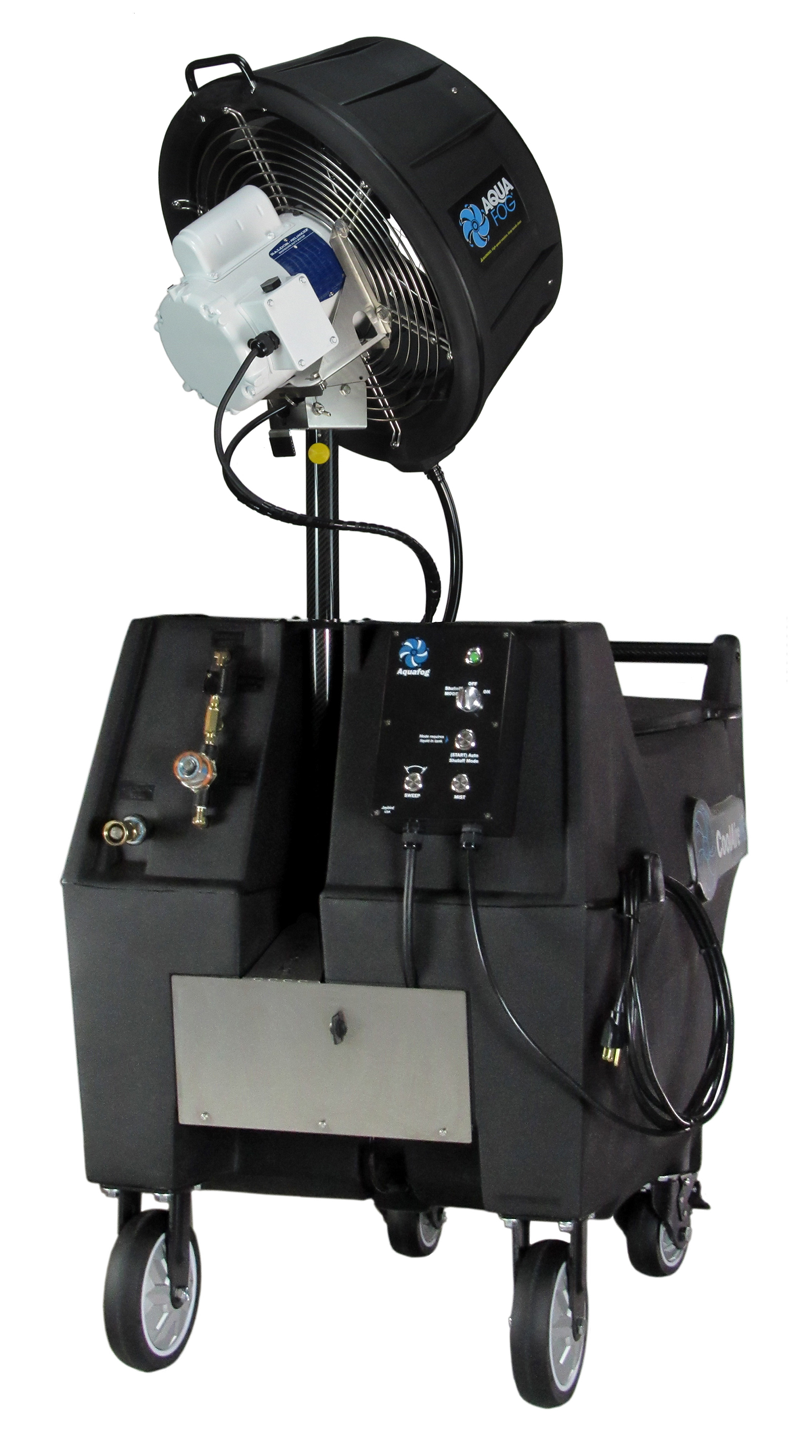

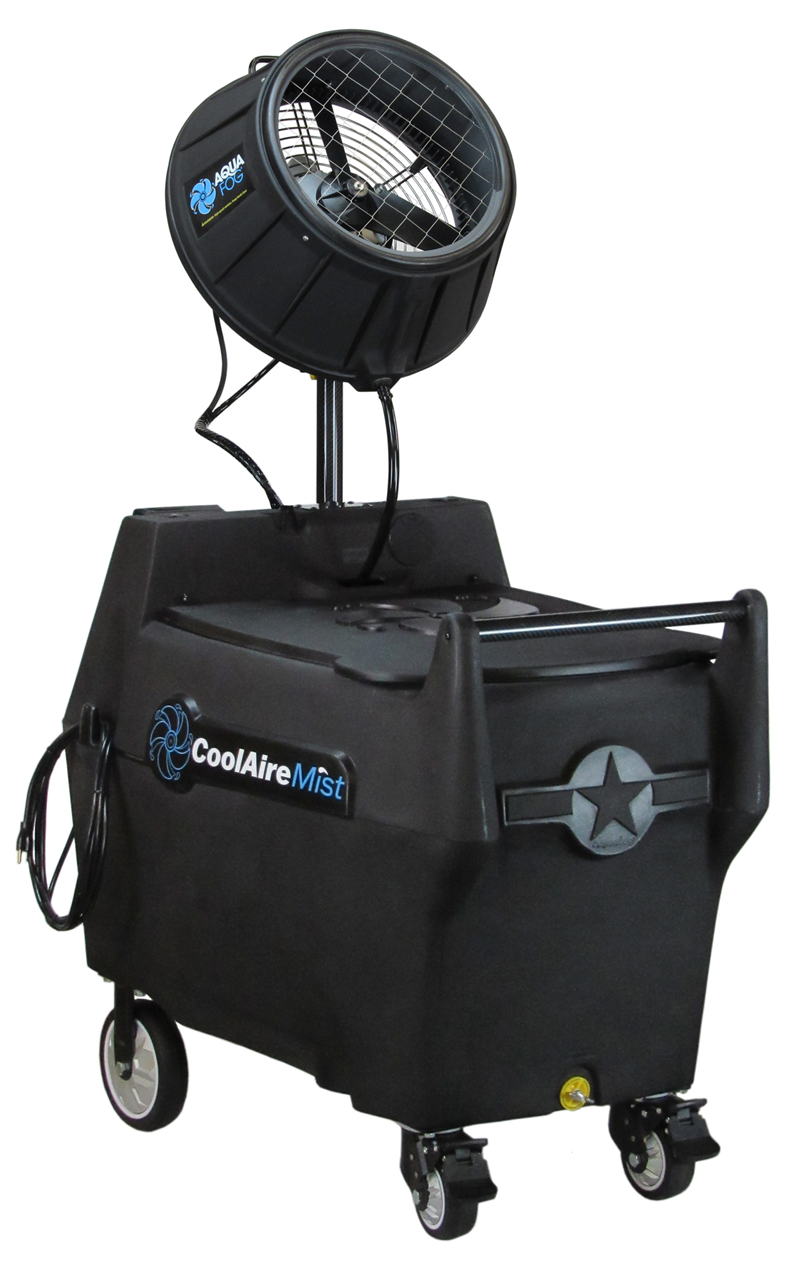

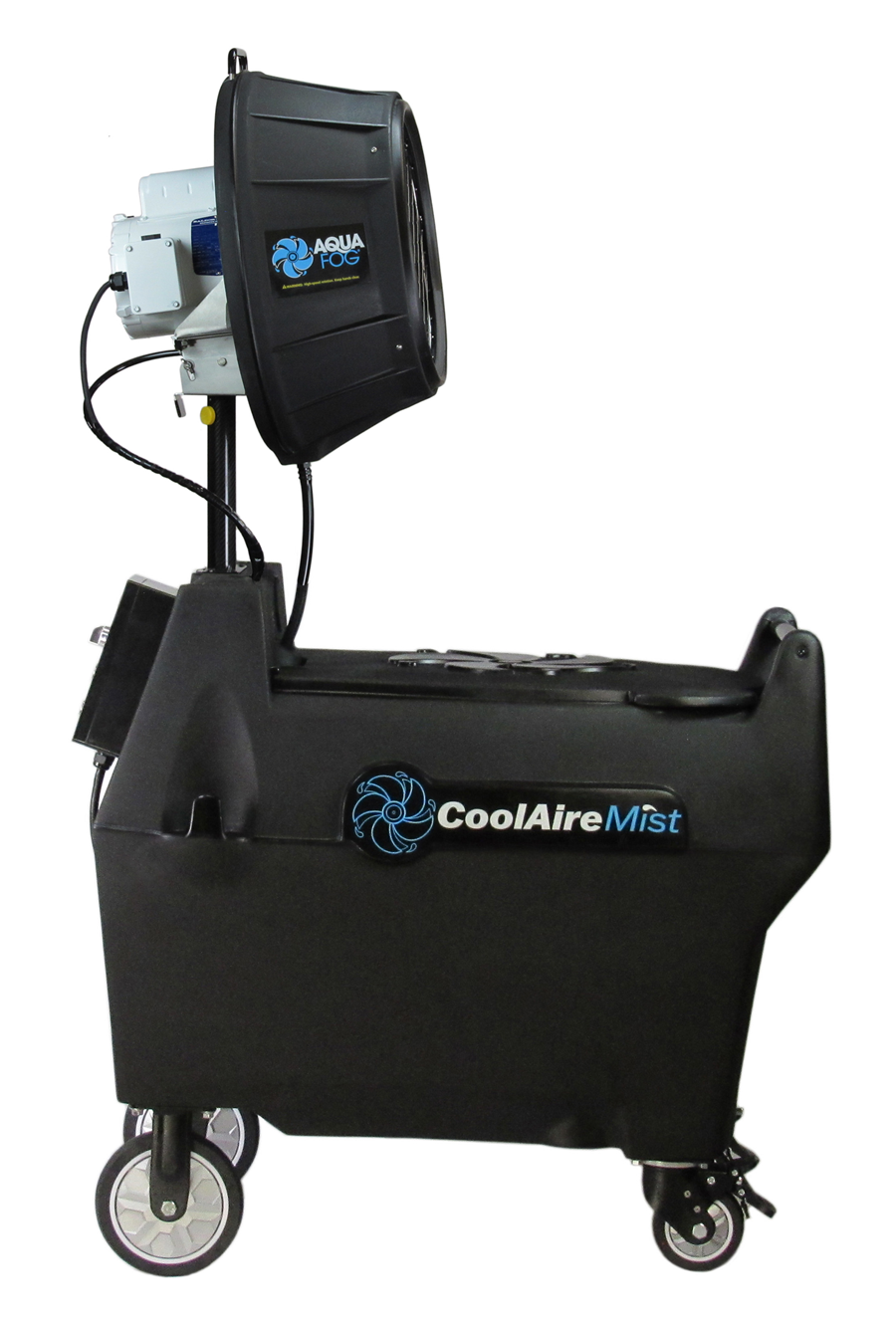

Pivoting Fogging Head
- Thumb Screw Adjustment
- Adjustable from 7.5 to 30° upward angle
- Greatly Enhances Performance
Mist propelled up high has more time to evaporate helping to keep floors and equipment underneath dry.
*Smart Control
Hellcats Power Control Box Provides 2 Operational Modes:
ON mode - for manual or automated operation when used with a secondary controller.
AUTO SHUT-OFF mode - automatically turns the unit off when tank becomes low.
Built-In (4 Sweep) Mechanical Oscillator
Optimize cooling performance by adjusting the sweep angle. Gain up to 50% more time in areas you want to emphasize and eliminate time sweeping negative areas.
- Sweep Angles 30°, 45°, 60° and 75°
- Methodical - 10 second sweep movement
- Adjust in 20 seconds, no tools required
Automatic Fill
Connect to a garden hose to maintain a full tank. An internal float valve controls water flow.
An optional tubing connection replaces the garden hose. For a more durable and secure water supply line.
Unique Atomizer
Our exclusive (atomizing) fan-blade assembly provides performance advantages with nozzle-free reliability.
Wash-Down-Duty Motor
- Industrial Grade (IP 55)
- For Use Around Water Spray
304 Stainless Plumbing Option
Product models indicated by (SST) come equipped with stainless steel plumbing components. Ideal when fogging hightly corrosive liquids.
- Replaces (Standard) Brass Components
- Complete Stainless Plumbing System
- 18-8 (304) Grade Stainless Steel
Heavy-Duty Wheels
Premium Performance
- Smooth Glide
- Front Access Step-on-Brakes
- Double Action Secures Wheel Rotation & Swivel Movement
Quality Materials
All Stainless-Steel (304) Metal Fabrication and Hardware
- UV Stabilized Plastics
- Rain-Tight Construction
- Carbon Fiber Supports
Specifications
| Evaporative Cooling: |
103,800 Btuh
83,100 Btu/h 50Hz
|
| Tank Capacity: |
65 US gal / 246 L
|
| Net Fogging Output: |
Min. 2.75 GPH / 8.2 L
Max. 12.8 GPH / 48.5 L
|
| Run Time (full tank): |
@ min setting - 25.5 hrs.
@ max setting - 5.5 hrs.
|
|
Propulsion Distance:
(interior conditions)
|
air flow @ 10 ft. 12.5 mph
air flow @ 25 ft. 6 mph
air flow @ 50 ft. 2.5 mph
|
|
Housing Diameter:
|
21 in / 53.3 cm
|
|
Blade Diameter:
|
14 in / 35.6 cm
|
|
CFM:
|
3,000 / 2450 50Hz
|
| Oscillation Sweeps: |
30°, 45°, 60°, 75°
|
| Pivot Capability: |
Up to 30°
|
| Noise @ 10 ft: |
72 dB(A) - 60Hz
69 dB(A) - 50Hz
|
| Motor: |
1/2 HP - 7.4A @ 115V 60Hz
1/3 HP - 4.4A @ 240V 50Hz
|
| Environment: |
Indoors / Outdoors
90% RH | NEMA 3 / IP 65
UV Stabilized
|
|
Product Dimensions:
|
W 29 x L 40 x H 65 inches
|
|
Weight:
|
120 lbs / 54.4 kg
|
| Shipping Weight: |
166 lbs / 75.3 kg
|
| Country of Origin: |
USA
|
Manual
Manual
Options
Tube Connection Kit
3/8" OD Tubing
