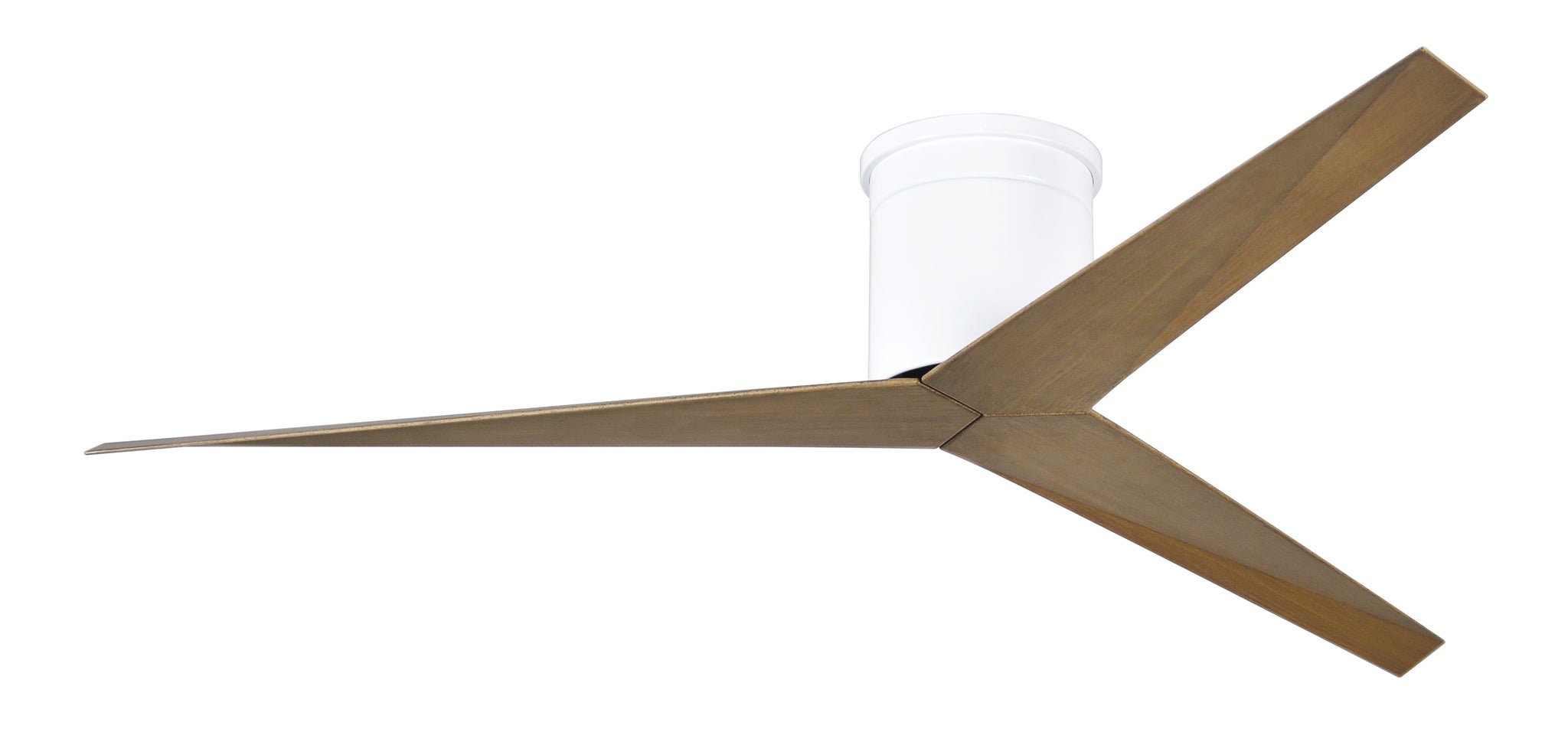

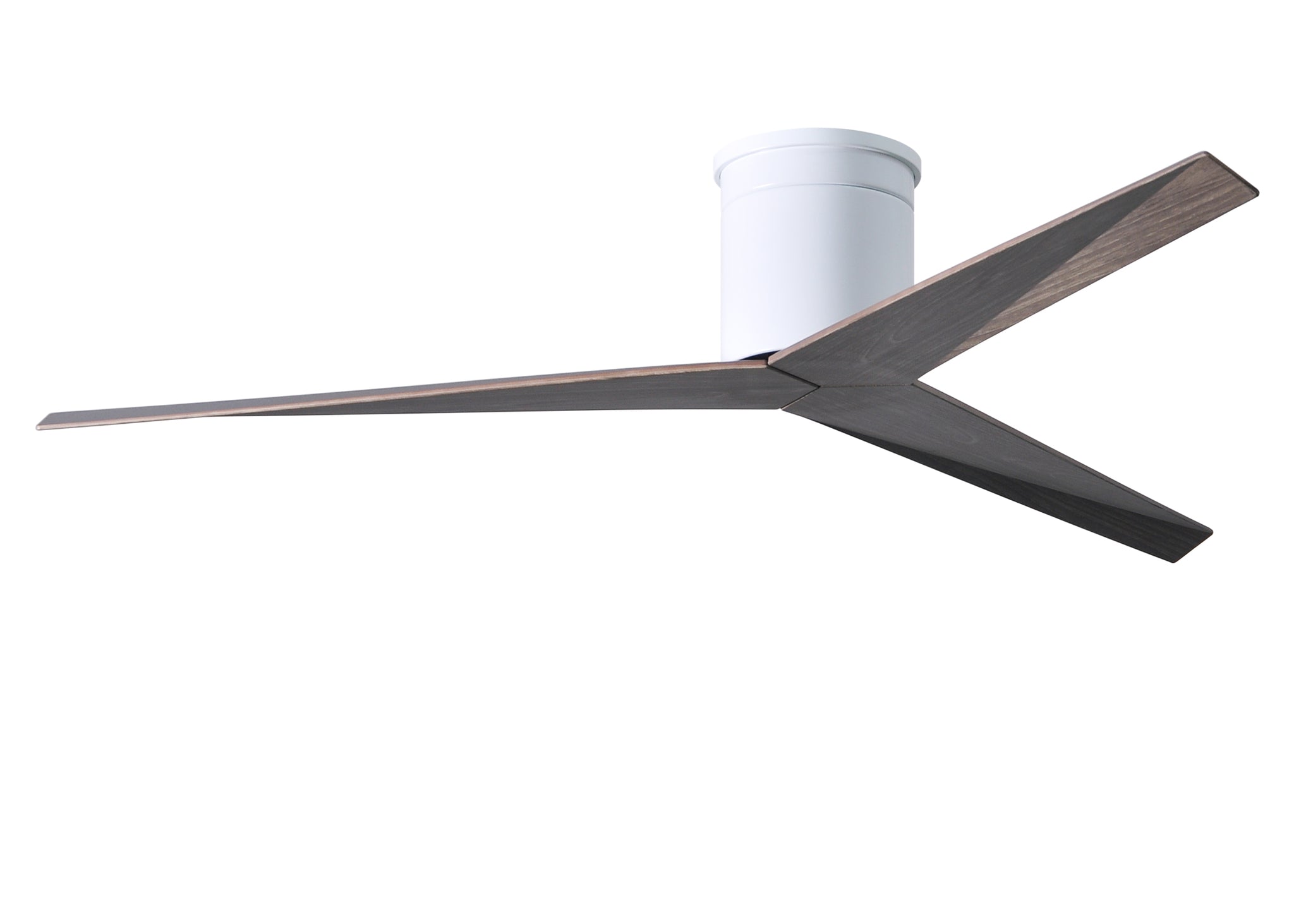

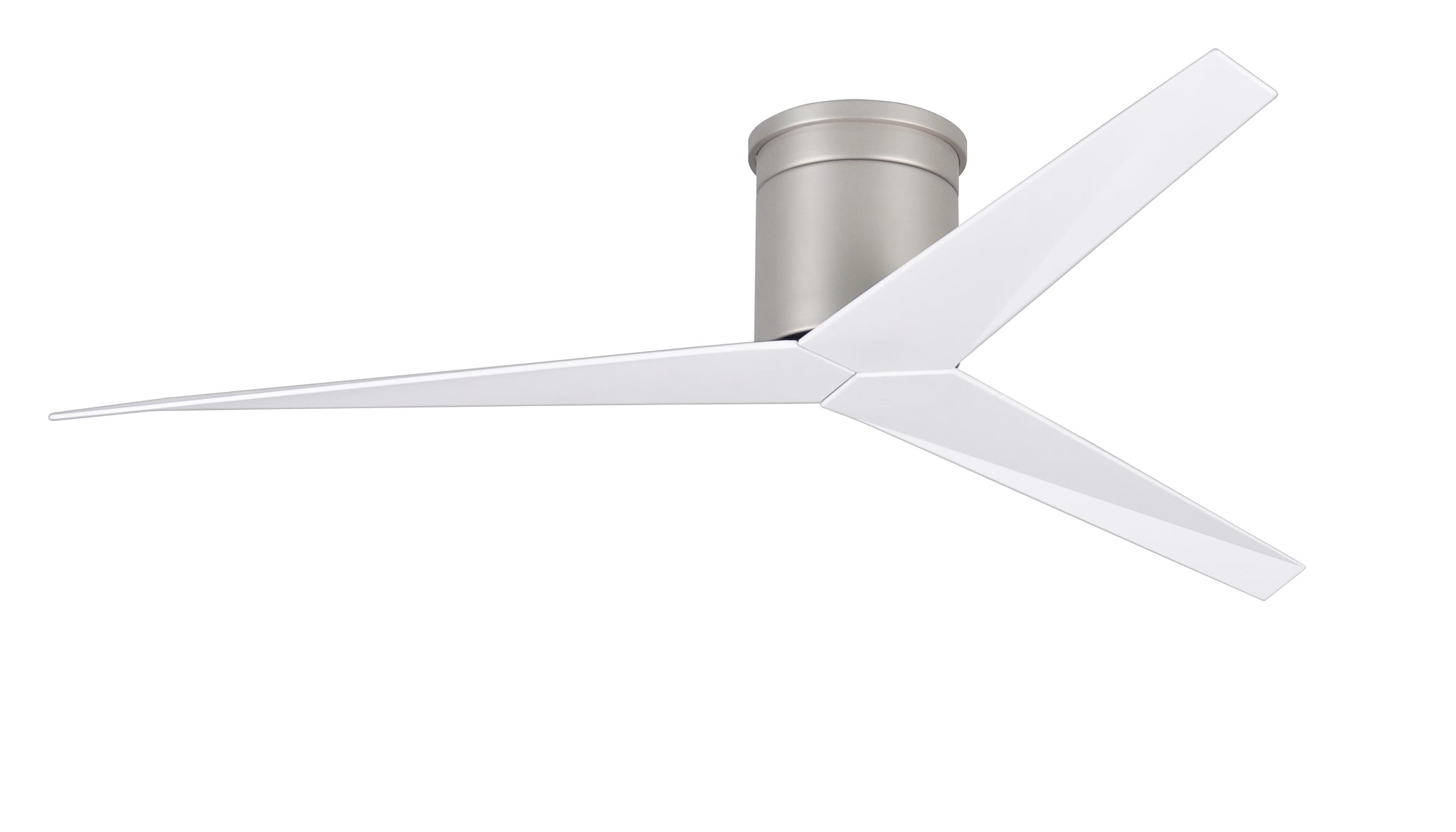

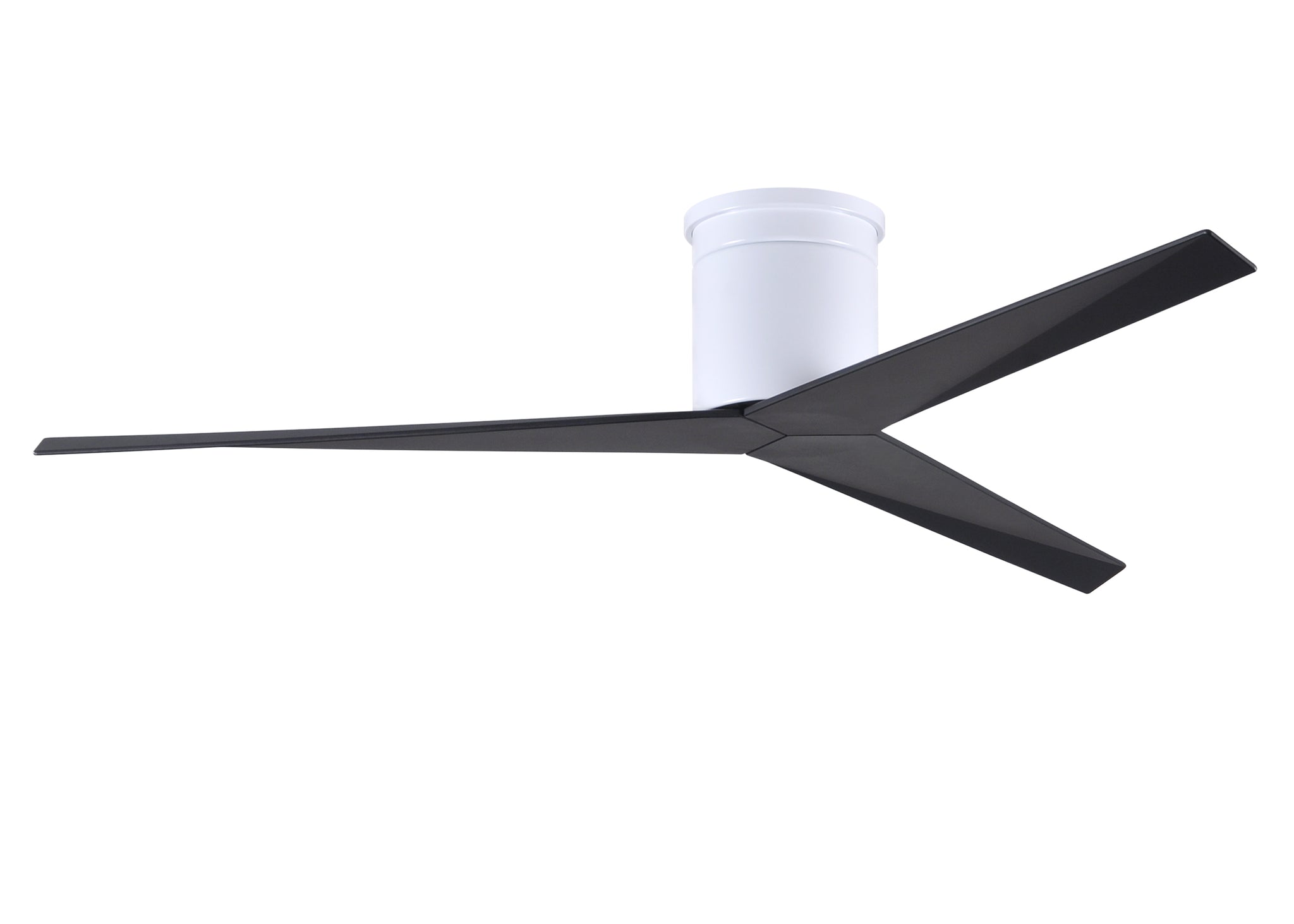

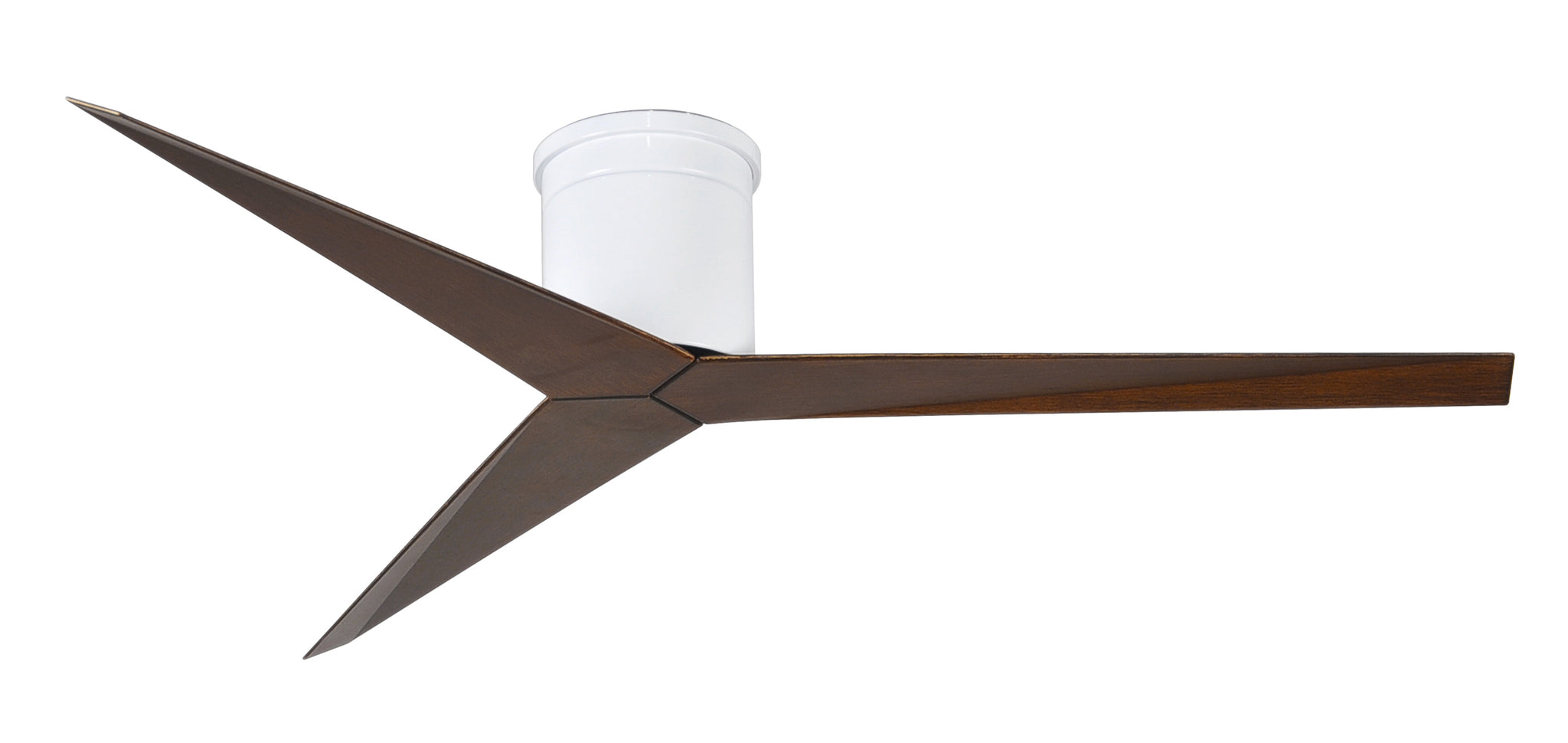

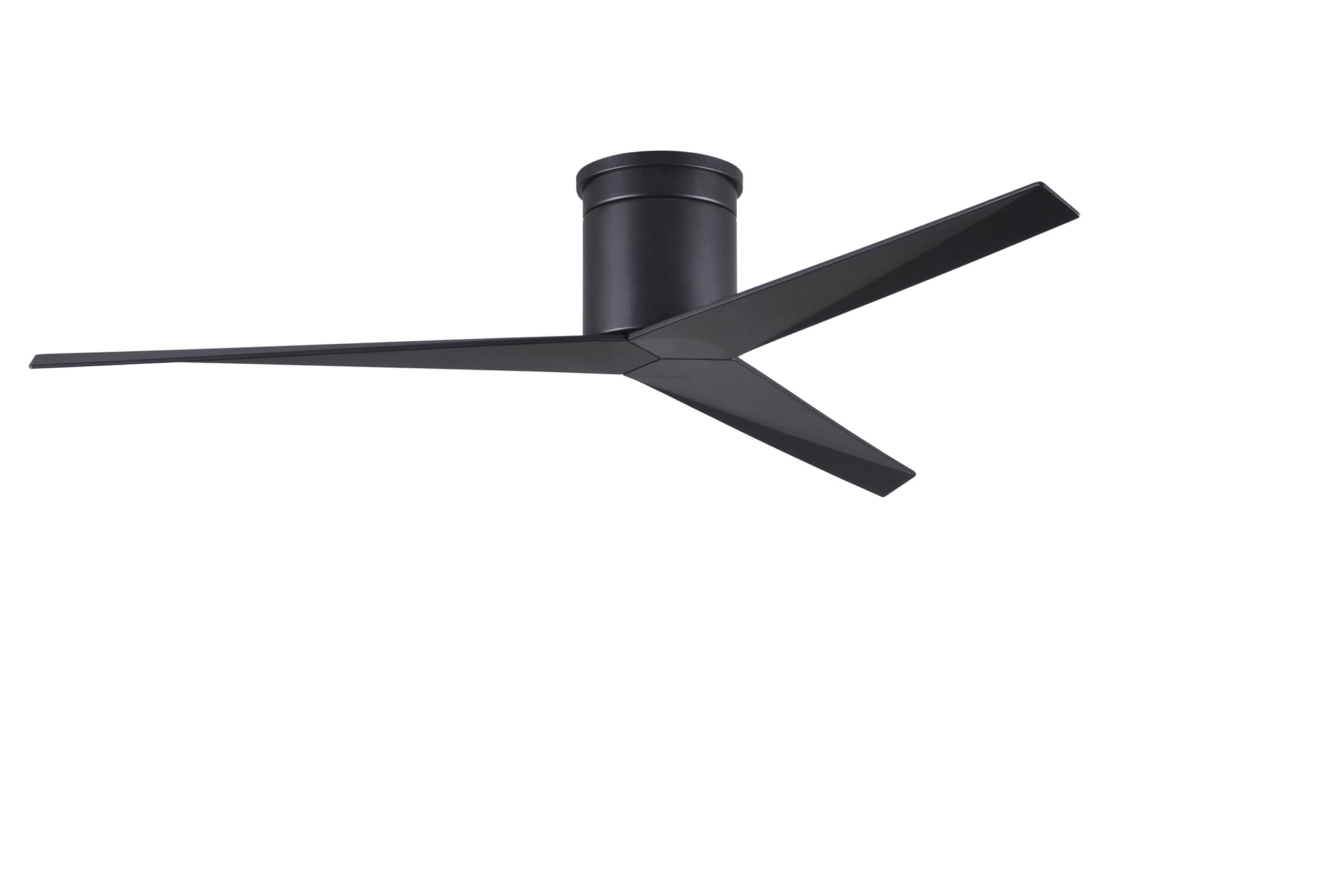

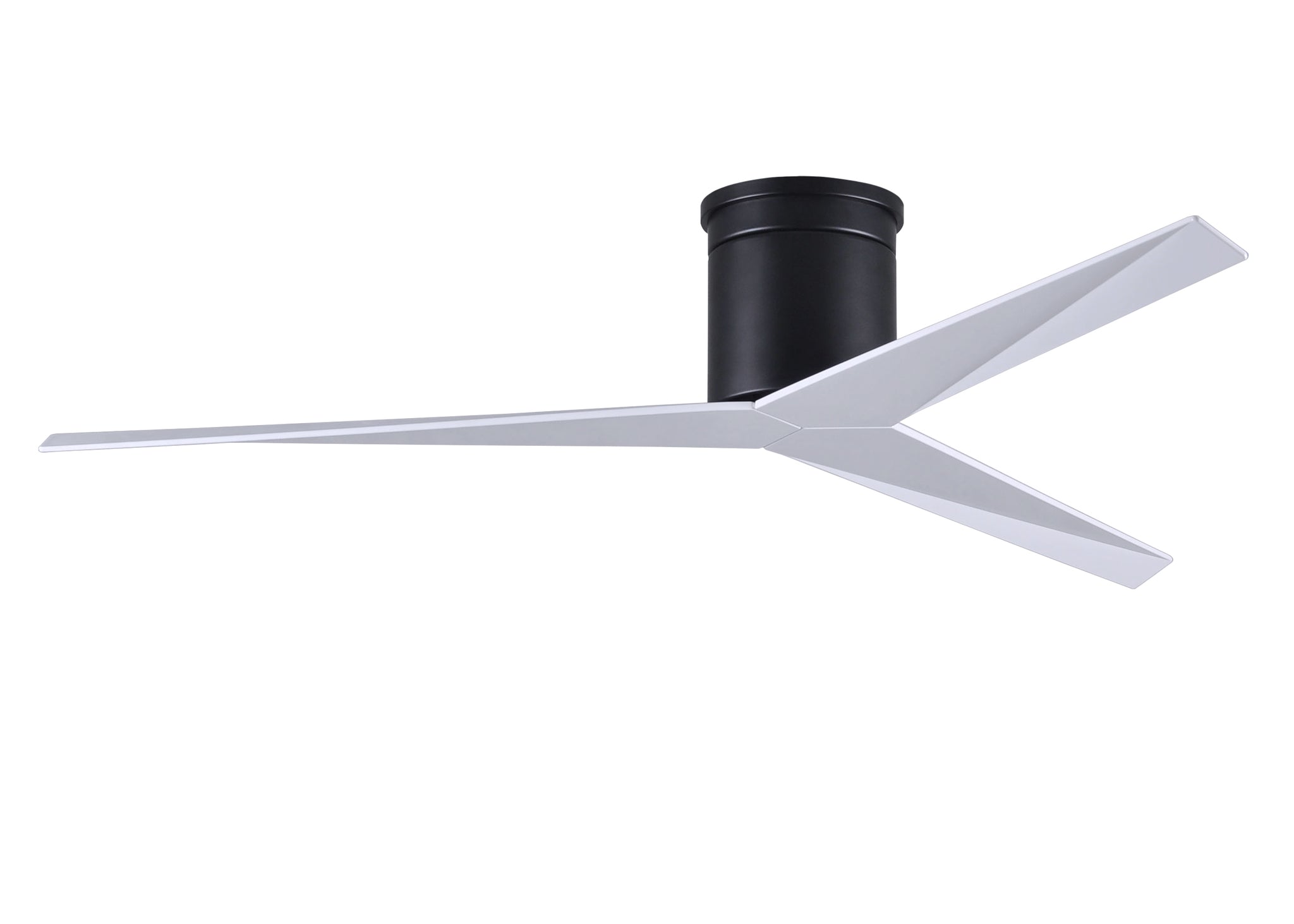

Eliza-H - Ceiling Fan

EKH-BK-BK

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 56"

Designed by Chicago architect Stephen Katz in 2014, the Eliza–H ceiling mount fan blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza Hʼs stationary visual statement which combines modern utility with minimalist geometry.

  • Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
  • Constructed of cast aluminum and heavy stamped steel
  • One 6-speed hand-held and one 6-speed decora style, white wall mounted control. Both controls can reverse direction of fan
  • ABS All weather system protected blade finish
  • Low profile flush mount fan, perfect for rooms with lower ceilings
Overview

Fan Diameter inches: 56 / centimeters: 142

Blade Material ABS

Overall Drop 12in / 30cm + downrod length

Fan Weight 17 lbs

Downrods Lengths. Field cuttable. Non-threaded inches: 5, 10, 18, 24, 36, 48, 60, 72 / centimeters: 13, 25, 46, 61, 92, 122, 153, 183

Downrod Diameter 1 inch

Voltage 110 or 220

Motor Type DC

Environment Wet location. All weather blade system. Neither outdoor coastal, saltwater, nor chlorine compatible.

Ambience Silent

Safety Certification ETL / CETL

Warranty Limited Lifetime

Specifications
Fan Diameter 56in / 142cm
RPM (Low / High) 52 / 153
CFM (Low / High) 1639 / 5308
Watt (High) 33.13
Blade Pitch 27°
CFM/Watt (High) 183
Standard Equipment

Included Remote & Wall Control

Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

  • • AAA Batteries (included)
  • • Frequency 110V - 304Mhz
  • • Frequency 220V - 434Mhz
  • • 6 Speed Control
  • • Reverse
  • • Wall Cradle Included
  • • Dip-less 4,500 Channels
Handheld Remote Image

SKU AT-DC-WC-AK

  • • A23 Battery (Included)
  • • Frequency 110V - 304Mhz
  • • Frequency 220V - 434Mhz
  • • 6 Speed Control
  • • Reverse
  • • Wireless
  • • 3-Way Compatible
Product Info
How Long of a Downrod Do I Need?

Downrod Infographic
