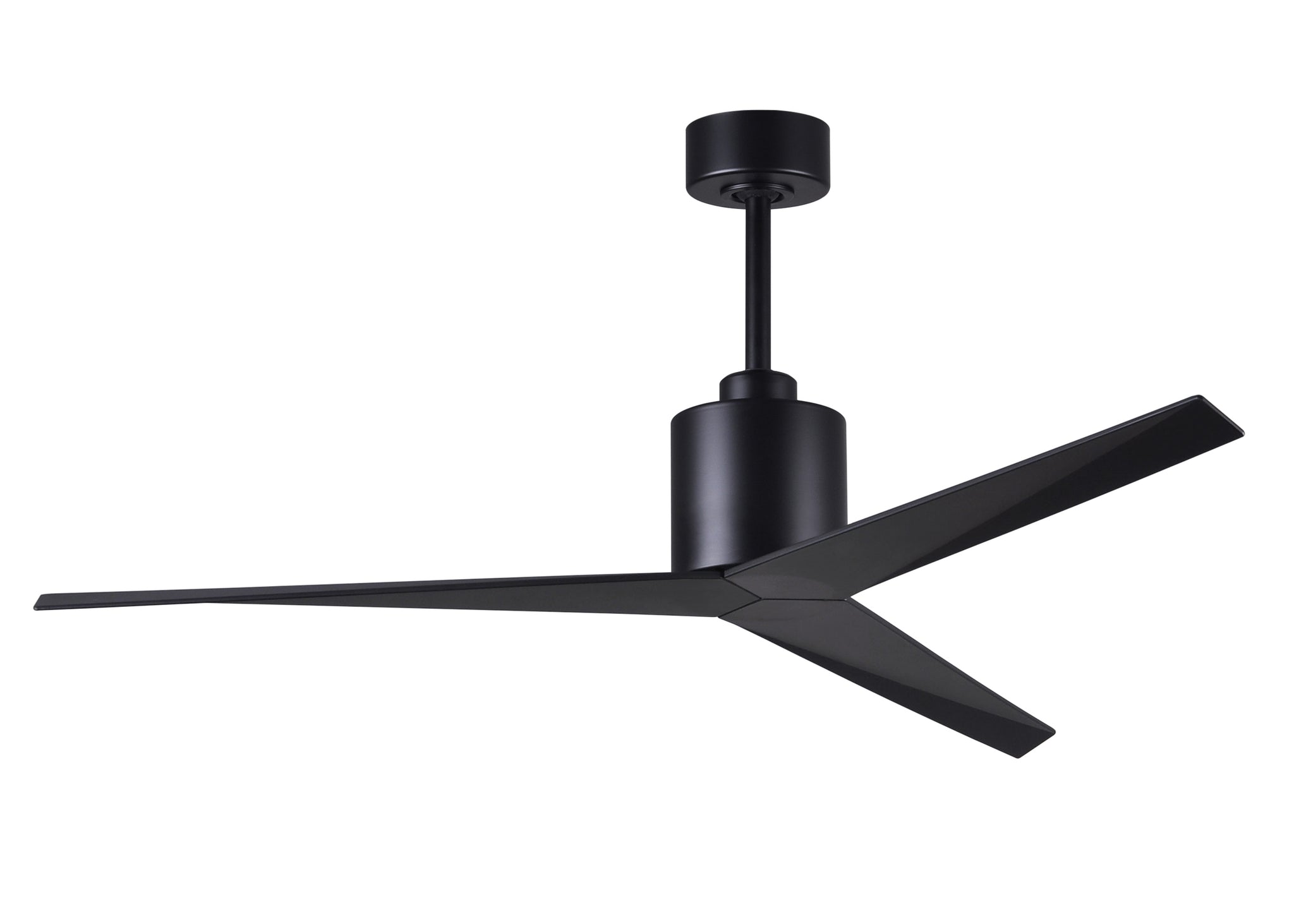

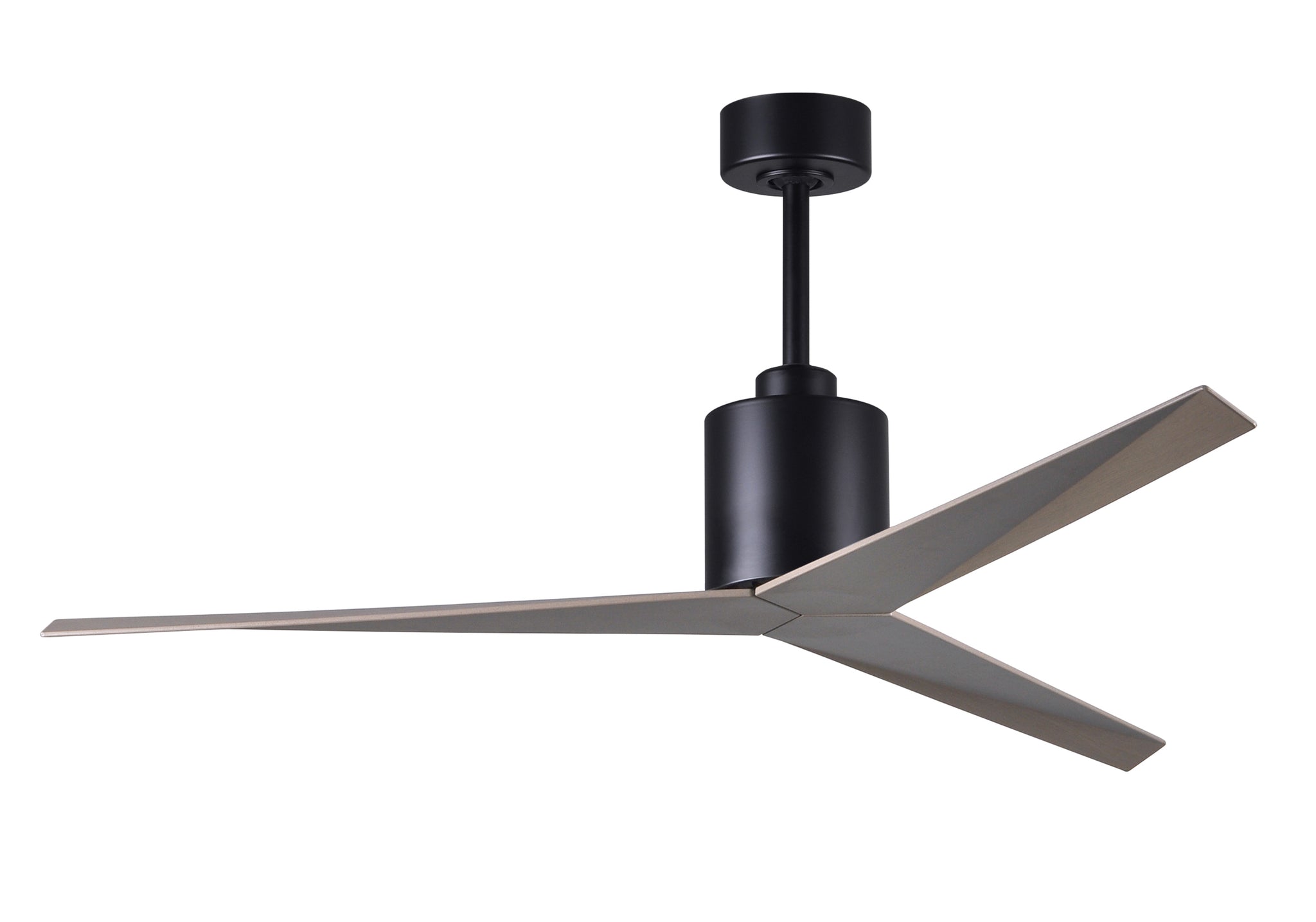

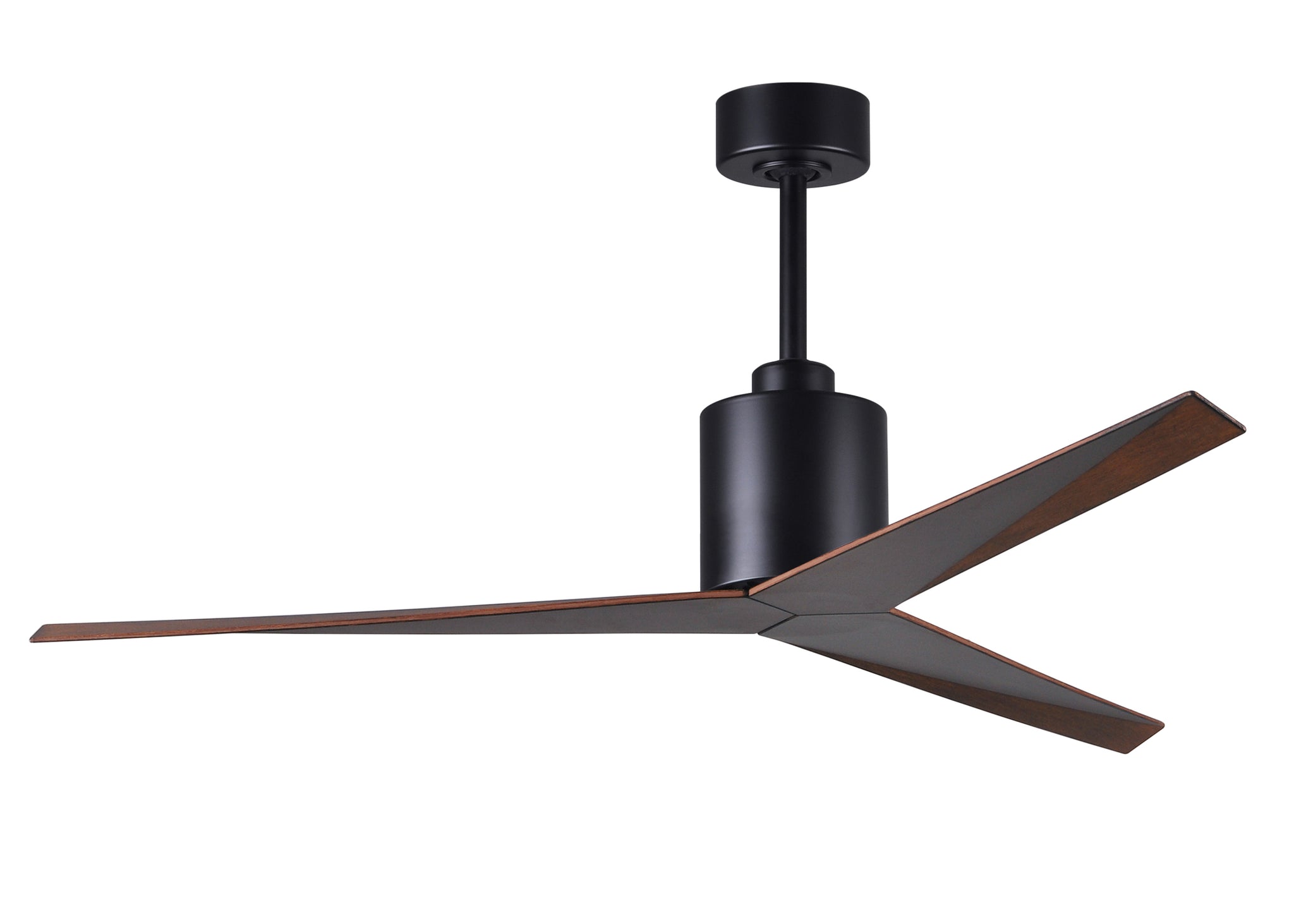

Eliza - Ceiling Fan

EK-BK-BK

Fan Finish: Matte Black
Blade Finish: Matte Black
Size: 56"

Designed by Chicago architect Stephen Katz in 2013, the Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is the Eliza fan’s stationary visual statement which combines modern utility with minimalist geometry. With superior function and movement the unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization.

  • Suitable for fully exposed outdoor areas such as open decks, pergolas, and gazebos and designed to withstand all weather conditions
  • Silent operation for cooling without noise
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
  • Constructed of cast aluminum and heavy stamped steel
  • Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
  • Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
  • One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
Overview

Fan Diameter: 56 inches / 142 cm

Blade Material: ABS

Overall Drop: 12 inches / 30 cm + downrod length

Fan Weight: 17 lbs

Downrods Lengths (Field cuttable. Non-threaded): 5, 10, 18, 24, 36, 48, 60, 72 inches / 13, 25, 46, 61, 92, 122, 153, 183 cm

Downrod Diameter: 1 inch

Voltage: 110 or 220

Motor Type: DC

Environment: Wet location (All weather blade system. Not suitable for outdoor coastal, saltwater, or chlorine exposure)

Ambience: Silent

Safety Certification: ETL / CETL

Warranty: Limited Lifetime

Specifications

Fan Diameter 56in / 142cm
RPM (Low / High) 52 / 153
CFM (Low / High) 1639 / 5308
Watt (High) 33.13
Blade Pitch 27°
CFM/Watt (High) 183

Standard Equipment

Downrods 10in - 25cm

Slant Ceiling Canopy 30°

Included Remote & Wall Control

Remote & Wall Control

SKU AT-RC-DC-NOPM

Handheld Remote

  • • AAA Batteries (included)
  • • Frequency 110V - 304Mhz
  • • Frequency 220V - 434Mhz
  • • 6 Speed Control
  • • Reverse
  • • Wall Cradle Included
  • • Dip-less 4,500 Channels

One 10 inch / 25 cm Downrod

Vaulted ceiling canopy for up to 29°

Handheld Remote Image

SKU AT-DC-WC-AK

  • • A23 Battery (Included)
  • • Frequency 110V - 304Mhz
  • • Frequency 220V - 434Mhz
  • • 6 Speed Control
  • • Reverse
  • • Wireless
  • • 3-Way Compatible
Product Info
