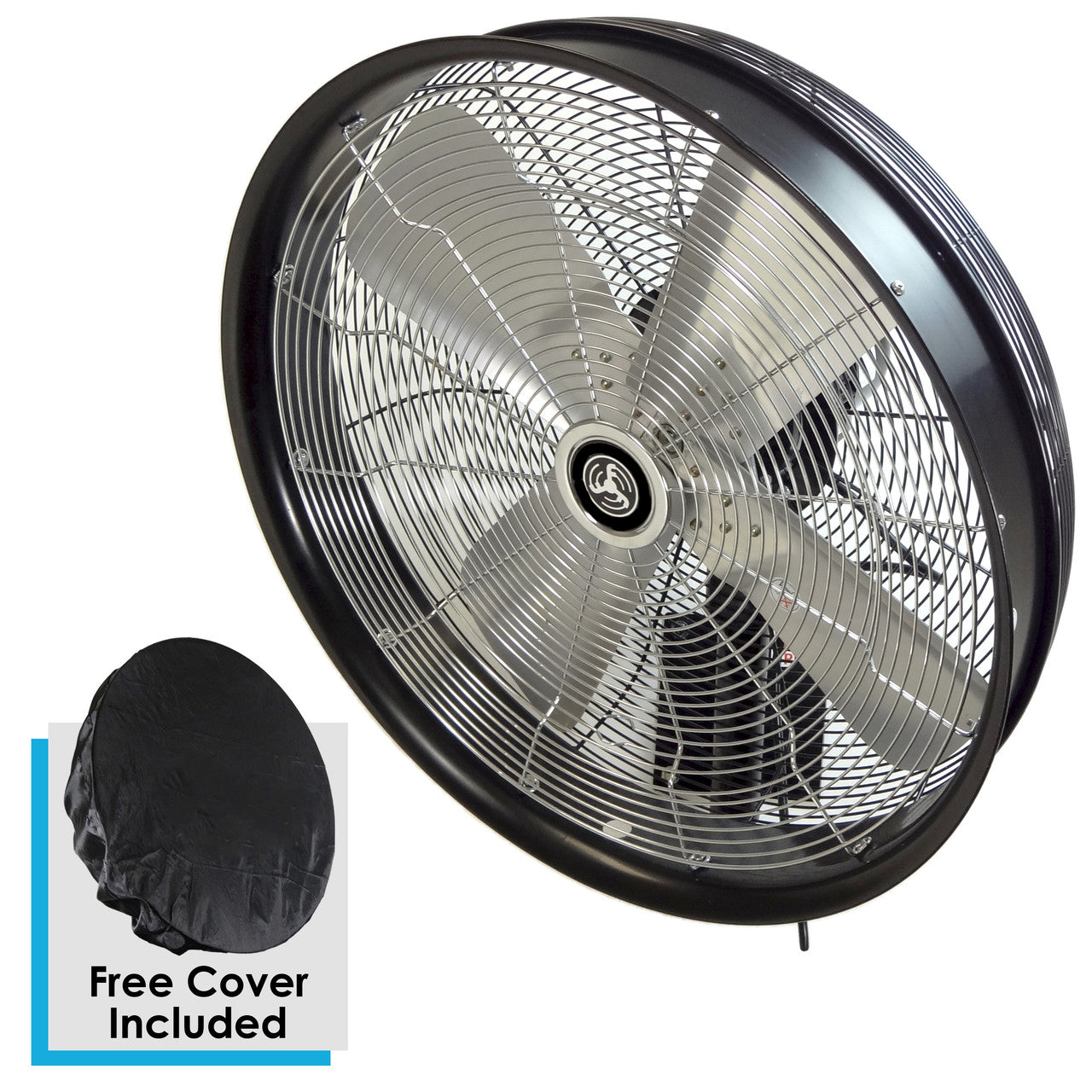

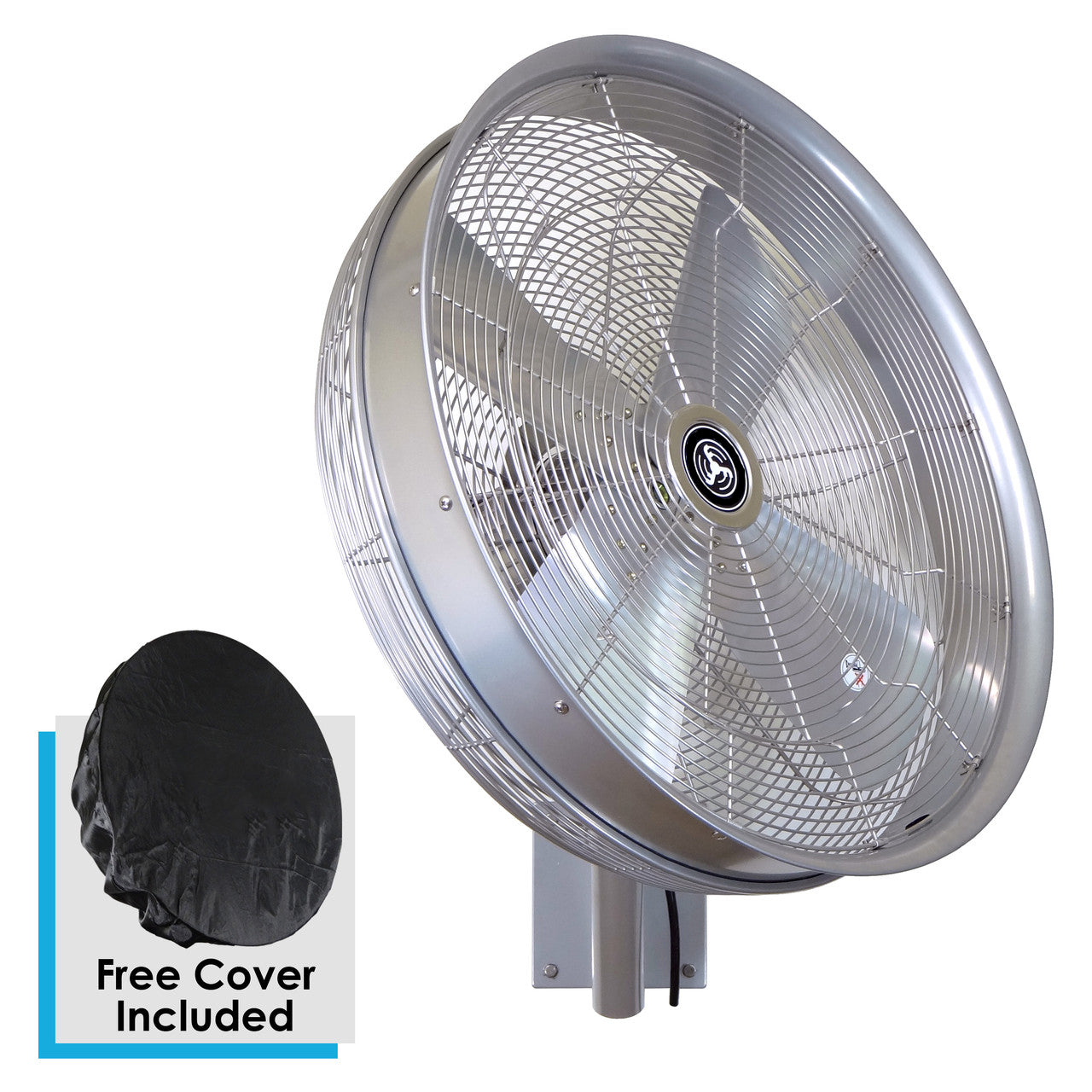

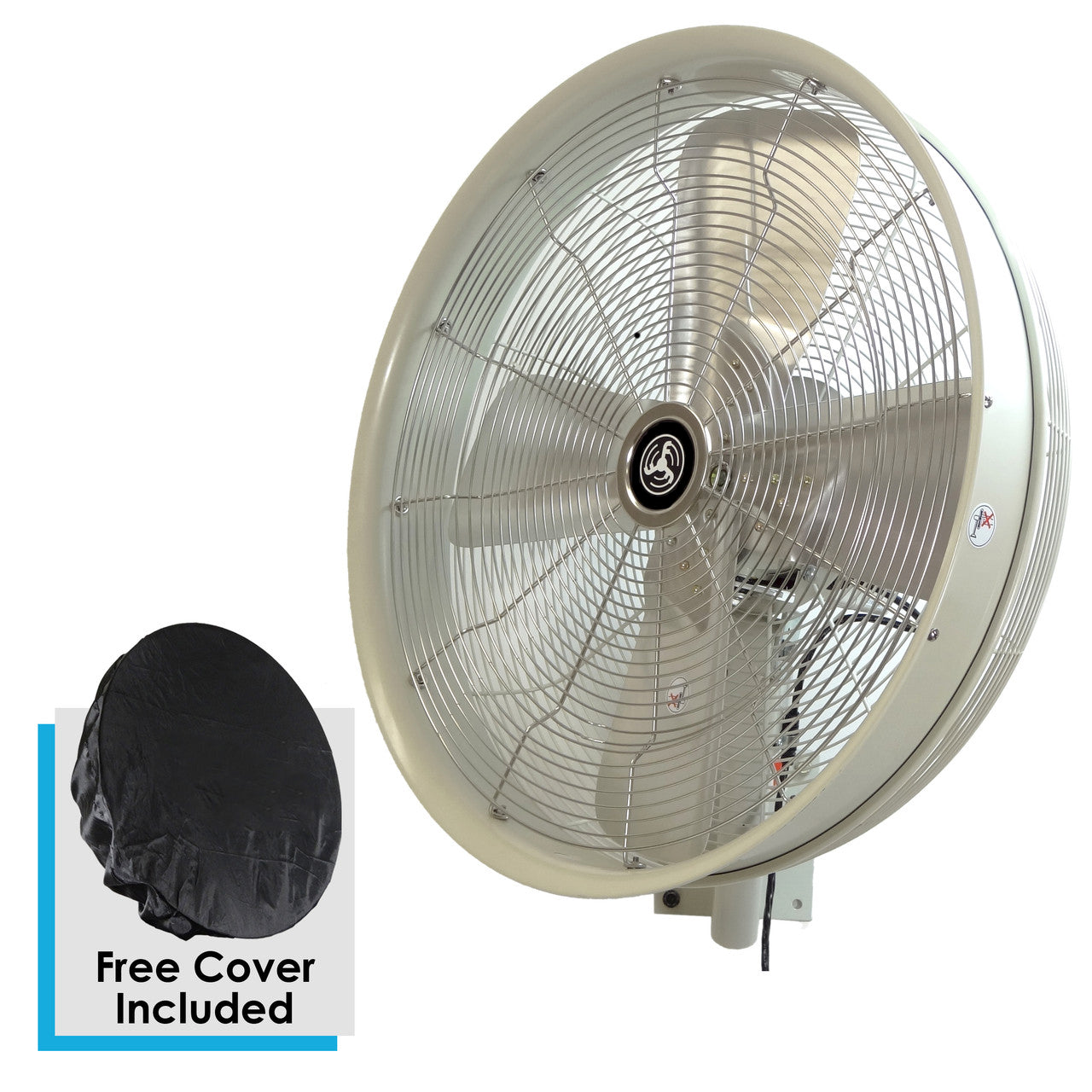

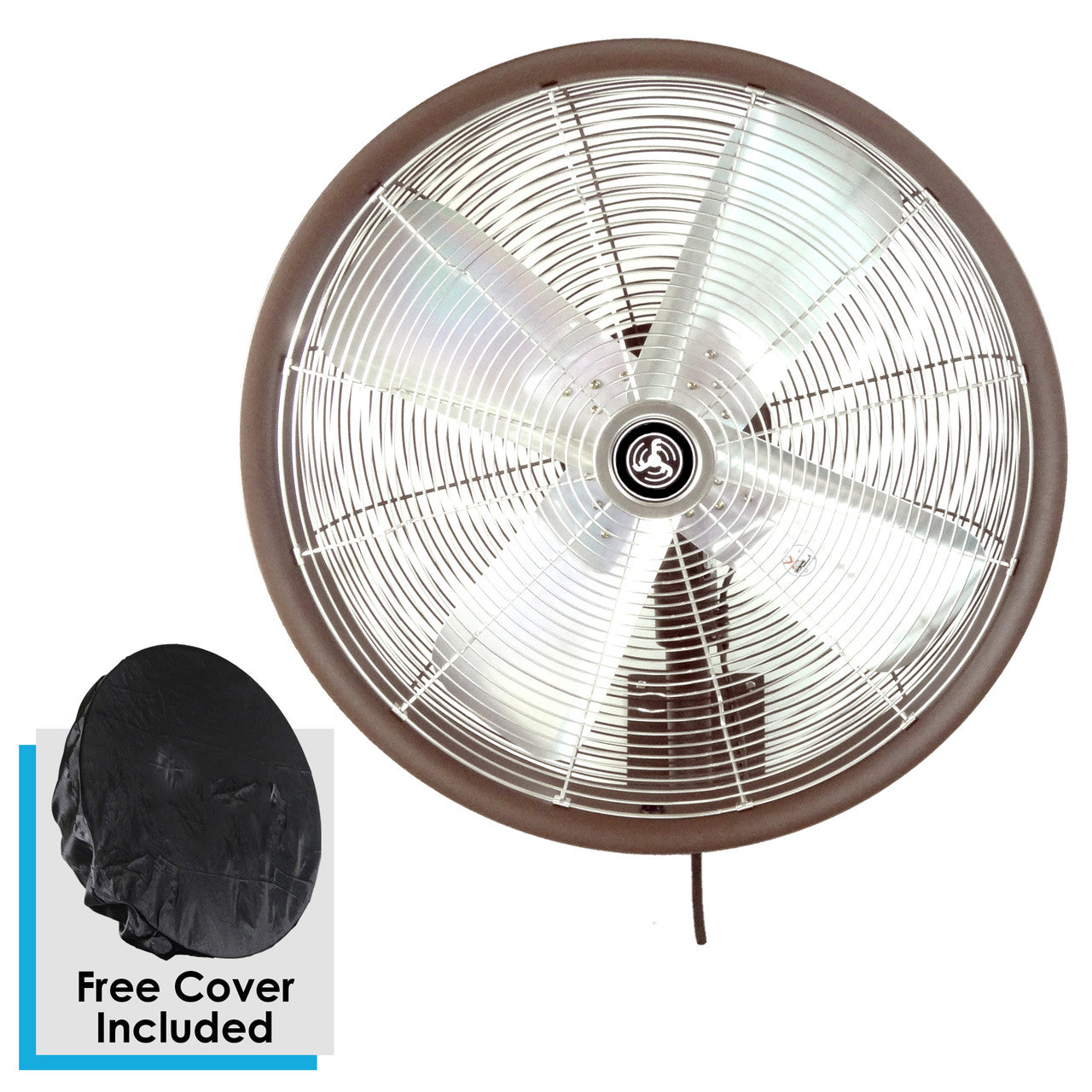

24" Professional Outdoor Waterproof Oscillating Fan

Suitable for Outdoor Wet Locations

Ideal for Residential or Commercial Use

Oscillation: Oscillation covers 30 degrees right/left from center or can be put in a fixed position. If the fan Is mounted in the corner of the space,  it can be pivoted and secured on the bracket to change the oscillation span more to the left or right.

Speed Control: Choose to have the speed control on the cord or on the motor. Length from fan to speed controller: ~ 64 inches, Cord length from speed controller to plug: ~ 96 inches. Total Length of power cord 160 inches. Fan comes fully assembled. Suggested Fan Install Height 8-12 Feet

Very Quiet Running: Quieter than most outdoor fans. The fan shroud creates a white noise which is more soothing then annoying. Db Sound Level Speed 1 62 Db, Speed 2 65 Db, Speed 3 73 Db The integrated Chrome Fan Guard has the capability to be retro-fitted with low or high-pressure misting.

Easy Tilt Ratchet System: Adjust tilt tool-free by simply pushing the fan head up or pulling it down. As the fan clicks vertically, it will lock in position.

Outdoor Rated: Fan head comes fully assembled w/ sealed motor to protect from rain. This fan has premium-quality electrolysis nickel plating. Finish is weather resistant which prevents unsightly weathering. Built in electrical fuse in plug protects motor from power surges (2 extra fuses included)

Fan Blade: The fan blade is rust-free aluminum and spins 3 airspeeds - 7600 CFM, 8300 CFM, and 9100 CFM.

Mounting Bracket Included: A wall mount bracket and anchors for both wood or concrete are included for multiple installation options. Ceiling Mount or floor base also available.

Misting Option: The integrated Chrome Fan Guard can be easily retrofitted for low or high-pressure misting. Mist Ring and Nozzles are NOT included and would have to be purchased separately. A 1000 PSI pump would be needed for high pressure misting;

Cleaning: Fans can be used in a complete open aired environment. Cleaningis also easy; simply hose down to wash with a mild detergent and rinse

The fan also comes with a weather protective black vinyl cover to protect from dust, sun, bugs etc

Features

• 3 Fan Speeds (7600, 8300, 9100 CFM)
• Integrated Chrome Fan Guard (able to be easily retrofitted for misting)
• Rust Free Aluminum fan Blade
• Wall Mount Bracket and Anchors Included
• Weather Resistant Electrolysis Nickel Plating
• Easy Ratchet Fan Head Tilt Mechanism
• Oscillating
• Very quiet Running
• Available in 4 colors
• 0.27 HP
• 1.9 AMPS
• 1 year warranty

Manual

Click Here for PDF Manual

Shipping

PLEASE NOTE: EXPEDITED SHIPPING IS NOT AVAILABLE ON FANS

What Size Fan Do I Need?

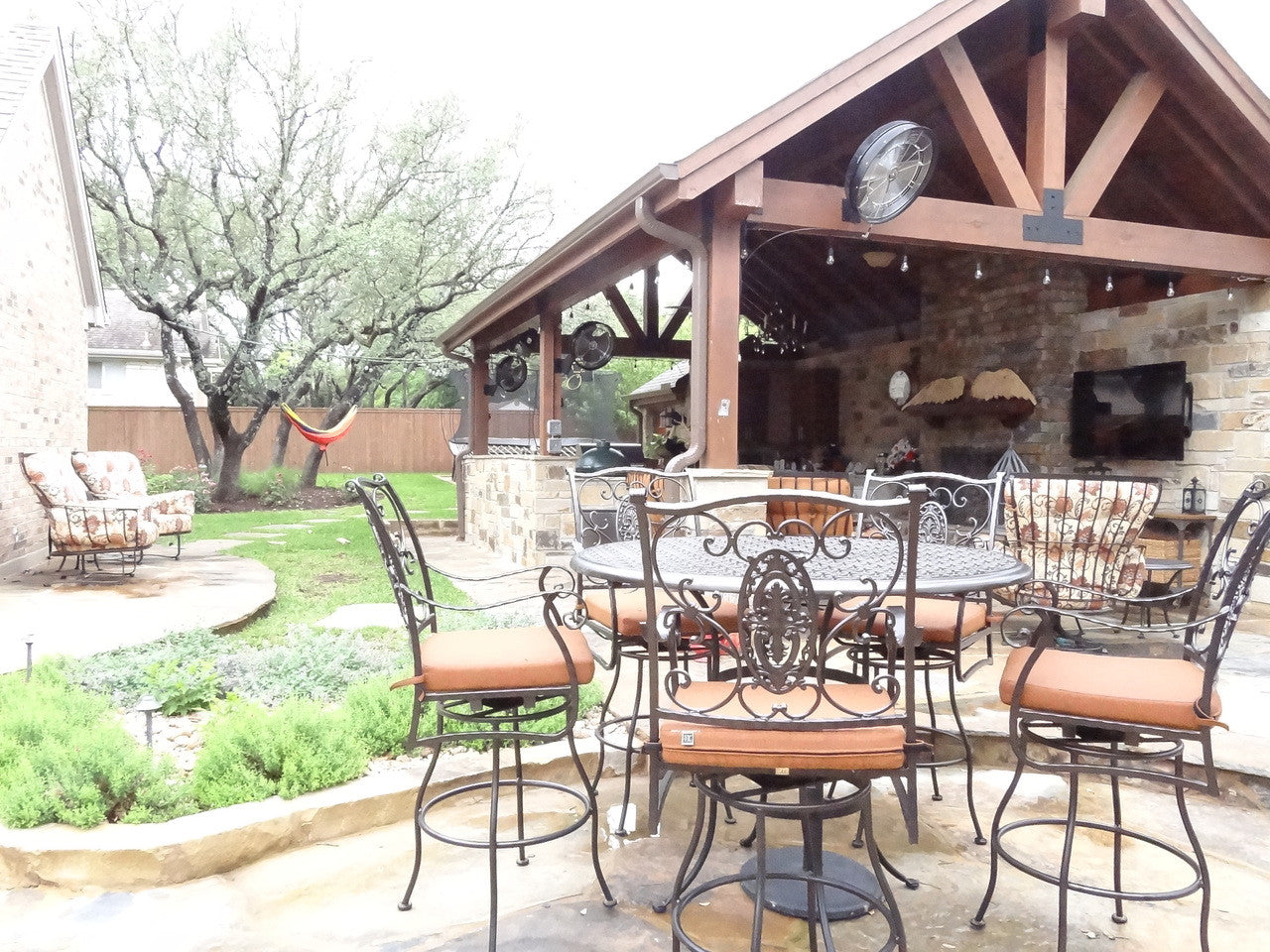

What size fans do I need and how many? A good rule of thumb is that if you are mounting fans above 10 feet with no cover, go with 24inch fans. Anything below 10 feet, 18inch fans are more than sufficient for air flow/mist coverage and also better visually.  6' to 8' height , use 14" or 18" fans. Our fans run quieter than most but our 24- inch fan mounted at 8 ft may be too much noise for smaller outdoor living spaces. Quantity of fans is usually determined by first knowing if there is any wall protection from sun/wind and also if the space is covered. If so, sometimes you can get away with less fans. Spacing fans typically around 15 to 20 ft from each other is recommended in larger open environments. Your fan placement also is considered by power location, mounting locations (pole, wall or ceiling) and again,  aesthetics.
