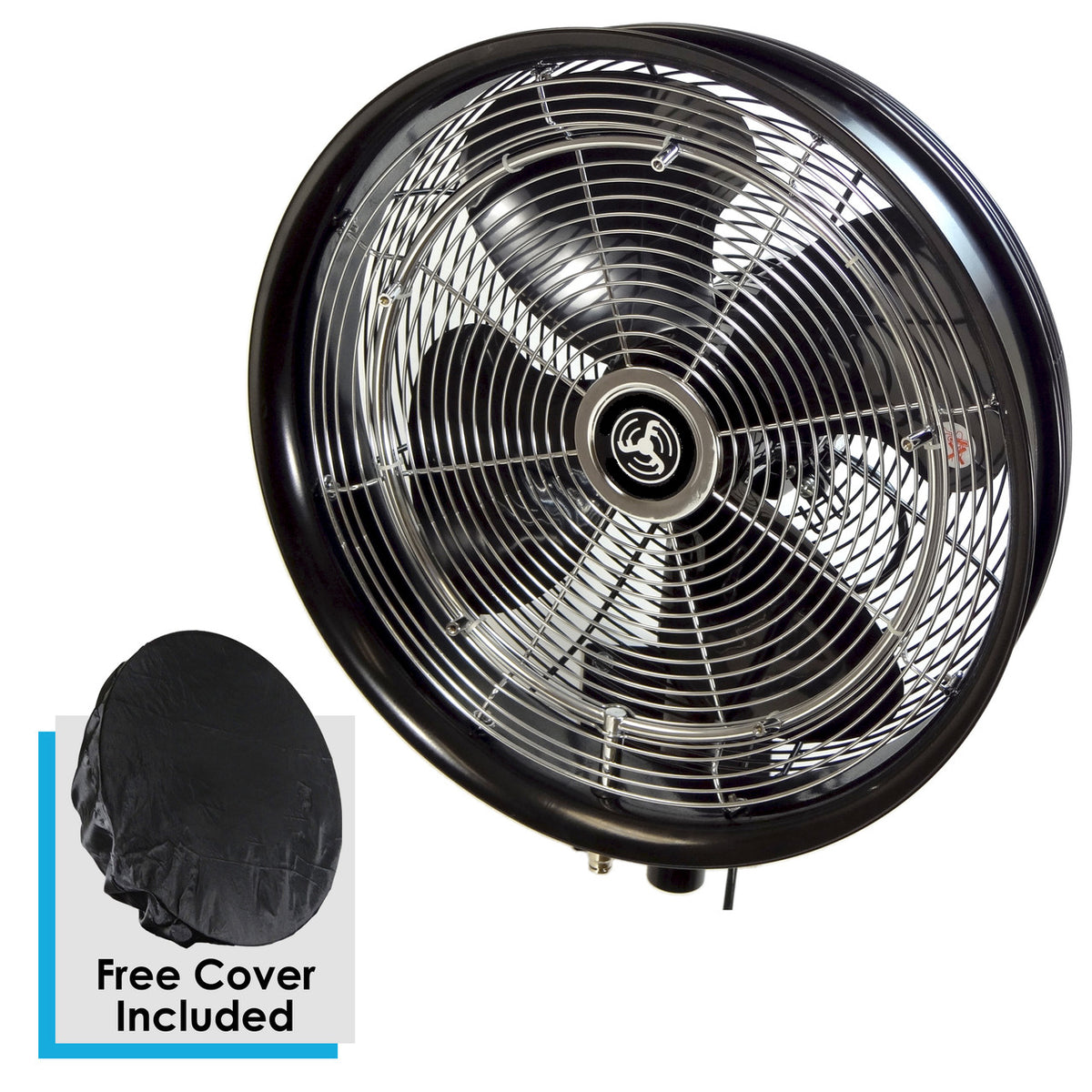

18 " Misting Professional Outdoor Waterproof Fan kit

MFKH-18BC-1-050E

Color: Black
Quantity: 1 ( With SM-050E )
Speed Controller: On Cord


 Ideal for residential or commercial use. Oscillation covers 30 degrees right/left from center or put into a fixed position. If the fan Is mounted in corner of the space,  it can be pivoted and secured on the bracket to change the oscillation span more to the left or right.

3 Speed control on fan motor or cord. Very Quiet Running: Quieter than most outdoor fans. The fan shroud creates a white noise which is more soothing then annoying. Db Sound Level Speed 1 62 Db, Speed 2 64 Db, Speed 3 70 Db

Easy Tilt Ratchet System: Adjust tilt tool-free by simply pushing the fan head up or pulling it down. As the fan clicks vertically, it will lock in position.

Outdoor Rated: Fan head comes fully assembled w/ sealed motor to protect from rain. Fan guard has premium-quality electrolysis nickel plating. Finish is weather resistant which prevents unsightly weathering. Built in electrical fuse in plug protects motor from power surges (2 extra fuses included)

Fan Blade: The fan blade is  constructed of durable, hard mold resistant resin and spins 3 airspeeds -3500 CFM, 4200 CFM, and 5100 CFM.

Mounting Bracket Included: A wall mount bracket and anchors for both wood or concrete are included for multiple installation options. Ceiling Mount or floor base arealso available

Cleaning: Simply hose down to wash with a mild detergent and rinse The fan also comes with a weather protective black vinyl cover to protect from dust, sun, bugs etc.

Pump

PUMP MODEL ( Depends on quantity chosen ). Learn about the difference in our pumps HERE

SM-050E: For 1 fan only

  • 2 piston 700 psi  high pressure enclosed misting pump
  • 3 pre-programmed interval  spray options
  • Wireless key type remote can choose on/off and spray/pause intervals
  • Nearly silent operation
  • Includes 50' High pressure feed tubing, tube mounting clips, misting nozzles and fittings.
  • For 1 fan only

SM-050/050S : For 1-2 fans



  • Premium quality 3 piston 1000psi pump made from aircraft grade aluminum,  fully enclosed with touch panel and remote key control
  • Built in Solenoid valve to prevent dripping
  • Various interval spraying options
  • Electrical short circuit protection
  • Automatic shut off if water supply is cut or lessened.
  • Overheat automatic shut off
  • Water cooled transmission
  • Electronic oil change alert
  • Easy DIY Installation
  • For 1 fan only
  • 050S only: Variable Frequency pump will adjust  motor speed based on nozzle quantity. Can adjust pressure +interval spraying+ on/off from remote

PUMP: SM-100/150/200/300 ( for 3 or more fans )

  • 3 piston pump built from Aircraft grade aluminum and stainless steel pistons. Superior durability.
  • Automatic water shut off
  • Touch panel and App remote control. Fully programmable
  • Fully adjustable interval spraying from the app
  • Automatic maintenance alerts
  • Electrical ,low water, overheat protection
  • Low noise and long life
  • Fully enclosed system
  • Super easy push lock system to connect sections and hoses
  • 110v operation
  • Easy DIY installation
Parts Included
  • 50' ( + 25' per fan ) High Pressure tubing
  • Tube clamps: 10  ( + 5 per fan )
  • Tee Fittings ( 1 per fan for 2 or more fans )
  • Filtration. *

* If you have hard water ( calcium ) you will need to treat the water to avoid clogged nozzles and pump damage. See our Phosphate filters HERE

What Size Fan Do I Need?

What size fans do I need and how many? A good rule of thumb is that if you are mounting fans above 10 feet with no cover, go with 24inch fans. Anything below 10 feet, 18inch fans are more than sufficient for air flow/mist coverage and also better visually.  6' to 8' height , use 14" or 18" fans. Our fans run quieter than most but our 24- inch fan mounted at 8 ft may be too much noise for smaller outdoor living spaces. Quantity of fans is usually determined by first knowing if there is any wall protection from sun/wind and also if the space is covered. If so, sometimes you can get away with less fans. Spacing fans typically around 15 to 20 ft from each other is recommended in larger open environments. Your fan placement also is considered by power location, mounting locations (pole, wall or ceiling) and again,  aesthetics.

Need Help?

Need Help?

Our dedicated team are here to help?

Call Us

Call Us

Talk to our team 24/7 about your needs.

Location We Serve

Location We Serve

Los Angeles | Scottsdale | Phoenix | Dallas | Austin | Houston | Orlando | Miami | Tampa | Sacramento | Las Vegas

Frequently Asked Questions

Feel Free To Ask Anything!

What makes Smart Mist USA nozzles unique?

Smart Mist USA nozzles feature a patented no‑drip design that produces an ultra‑fine, consistent mist without leaking or dripping. Unlike standard misting nozzles that can create large droplets or leave surfaces wet, our precision‑engineered nozzles deliver a dry, refreshing mist that cools efficiently without mess. This ensures a more comfortable outdoor experience, greater cooling performance, and long‑lasting reliability in both residential and commercial settings.

How does the Smart Mist system work?

The Smart Mist USA system utilizes high‑pressure technology to create a fine mist that cools the surrounding air without causing any mess. The system operates at 1000 psi, providing a finer mist than low or mid‑pressure systems, which results in more efficient cooling. The mist is dispersed through nozzles that are designed to be drip‑free, ensuring that the air remains cool and dry. Additionally, the system is easily controlled via a smartphone app, allowing users to adjust the misting levels based on their needs. This high‑pressure technology ensures optimal comfort, whether you’re cooling a patio, restaurant, or outdoor area.

Is the Smart Mist system easy to install?

Yes, the Smart Mist USA system is designed for DIY installation and is very user‑friendly. All components are engineered to fit together easily, with clear instructions so you can set up your misting lines, nozzles, and pump without needing professional help. Whether you’re cooling a patio, greenhouse, or outdoor living space, the straightforward installation puts you in control from start to finish.

Can I control the misting system from my phone?

Yes, Smart Mist USA’s high‑pressure misting systems include app‑based control, which lets you:

  • Turn the misting system on and off remotely
  • Adjust misting levels and intervals
  • Set schedules for when and how long the mist runs

You can easily manage your outdoor cooling right from your smartphone, giving you total convenience and customized comfort without needing to be right next to the system.

Where can I use the Smart Mist system?

The Smart Mist USA system is versatile and perfect for cooling a wide range of outdoor and covered environments, including:

  • Patios & decks
  • Outdoor dining areas
  • Restaurants, bars & cafes
  • Poolside spaces
  • Greenhouses & gardening areas
  • Event venues
  • Commercial patios & lounges
  • Residential backyards

Whether you’re cooling a small home patio or a large outdoor venue, the Smart Mist system delivers refreshing, fine‑tuned misting that enhances comfort without wet surfaces or drips.

Is the installation of the Smart Mist USA system easy?

Yes, the system is designed for simple DIY installation with step-by-step instructions. Most users can set it up in just a few hours without any professional help.

Can I control the misting system remotely?

Absolutely! The system comes with remote control functionality, allowing you to adjust settings, control mist intensity, and set intervals with ease.

Is the misting system water-efficient?

Yes, the high-pressure system creates ultra-fine mist that cools effectively while using minimal water. It’s designed to maximize cooling performance without wasting water.
