NEW ! Control Circuit Board ( 4 Types )

CB150-S

Type: Stock App Control

Replacement circuit boards for SM 100-300 and 400-700 CSX pumps.  We have 4 types of boards depending on how you would like to control your pump.

Board Types

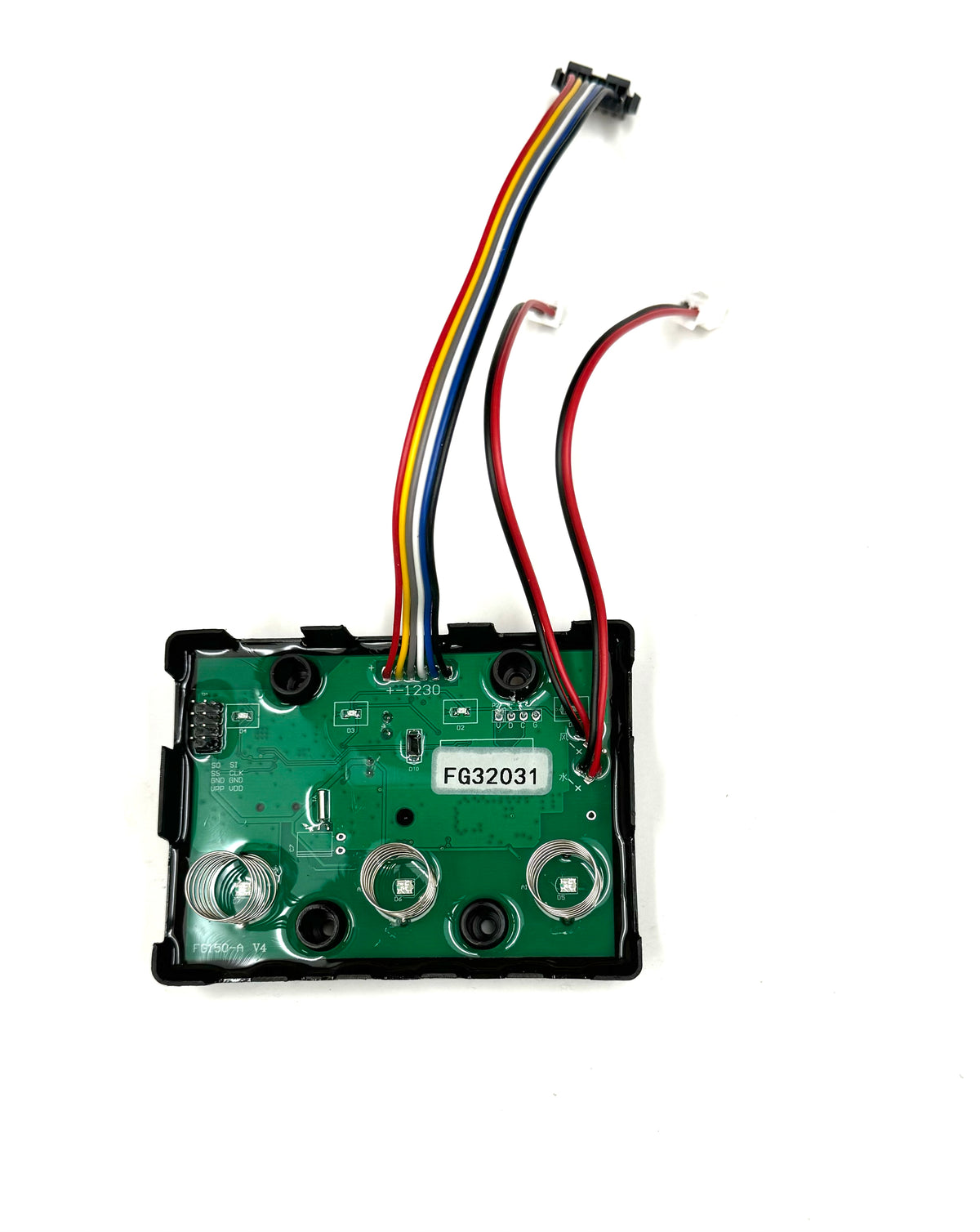

  • Stock board: App and touch panel control. Pump goes into standby mode when power is applied to the cord.
  • Auto On Board :Same as the stock board except that when power is applied to the cord, the pump will turn on ( after a short boot up sequence). This board is useful to use with remote or wi-fi enabled outlets or home automation to control the on/off function of the pump remotely.  Note that interval spraying and scheduling settings still need to be made from the app.

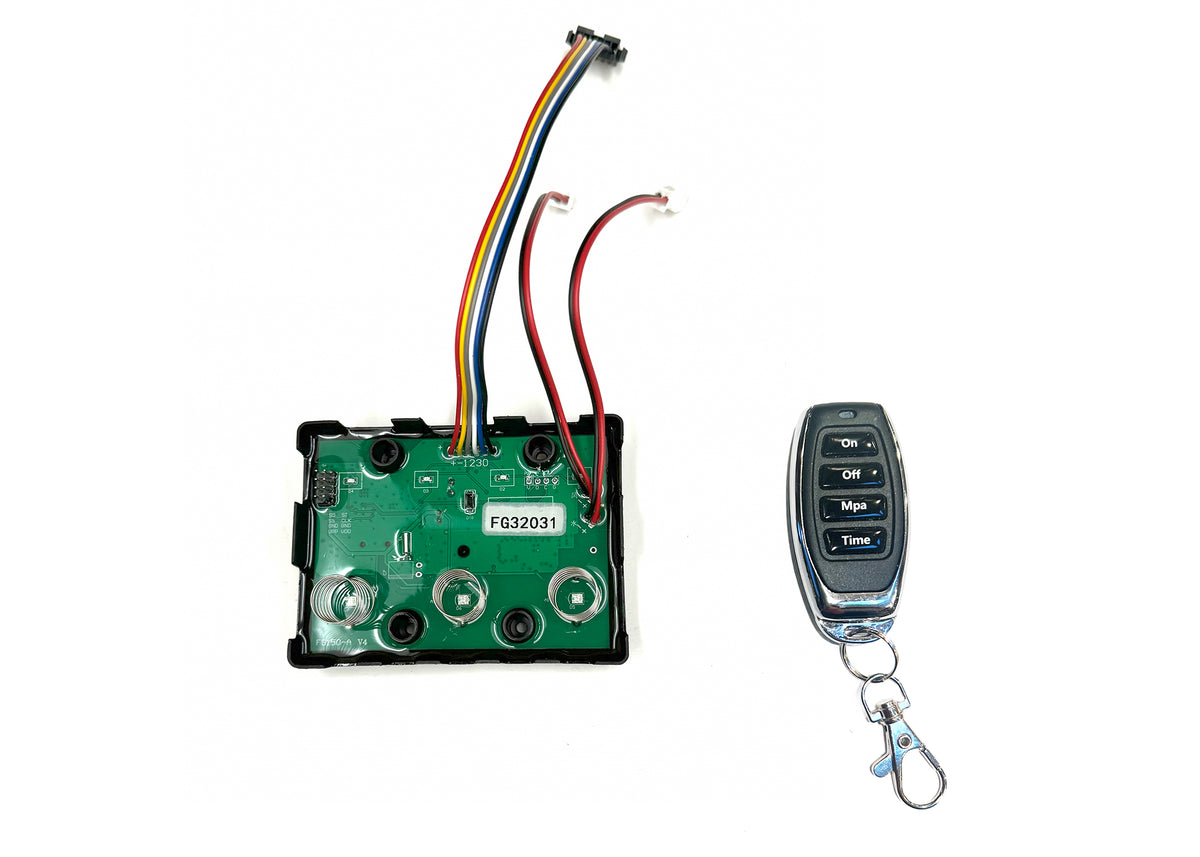

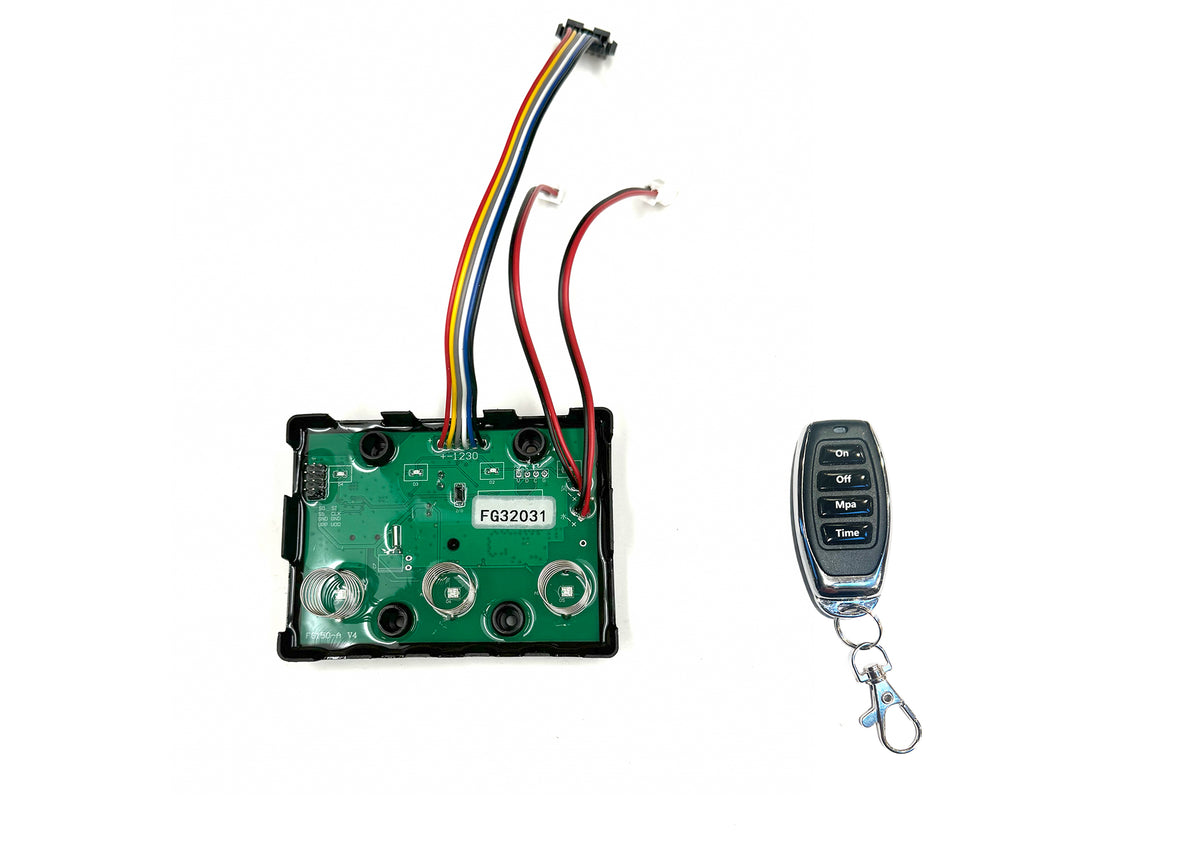

  • Remote Key Fab/ App Board :Same as the stock board with built in RF remote for on/off ( key fab ).  Remote will only control on/off function
  • Remote Sensor Or Switch Board :Same as the stock board with a two conductor lead to be used to turn on/off the pump. Use this board to turn on the pump via a dry contact  temperature or humidity sensor/switch.. Additionally, a dry contact  wifi or RF switch can be used to turn on/off the pump. Note that interval spraying and scheduling settings still need to be made from the app. IMPORTANT!. Any external switch must be a " DRY CONTACT" Switch. This means the relay terminals connecting to the pump's circuit board MUST NOT carry any voltage.  Any voltage will destroy the circuit board. The switch should only complete the circuit between the two leads coming from the circuit board.  Please check with a volt meter prior to using.
Installation

Circuit Boards are easy to install or you can send in your pump and have us do it.  They sit right under the touch panel . There is no soldering required, only a couple of connecters.   Each board will come with a  (replacement log) sticker to be placed inside of the cover. This will document the date and the hours on the pump when the board is replaced. This is important as the new circuit board will re-set the hour meter on the app to 0 Hrs.  We strongly recommend that you change the pump oil at this time as well.  This will sync the oil change alert on the pump with the new circuit board
