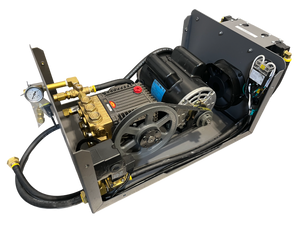

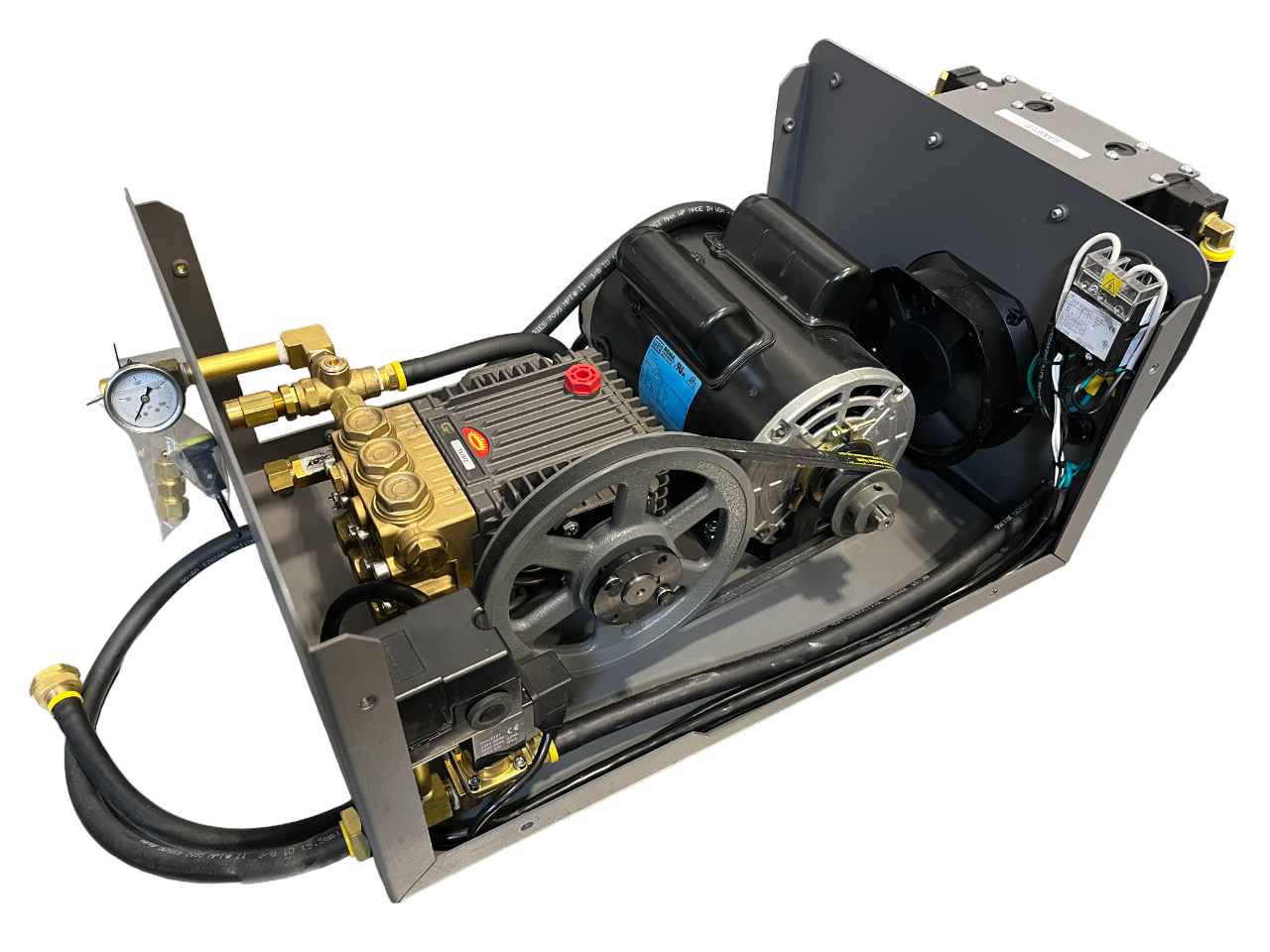

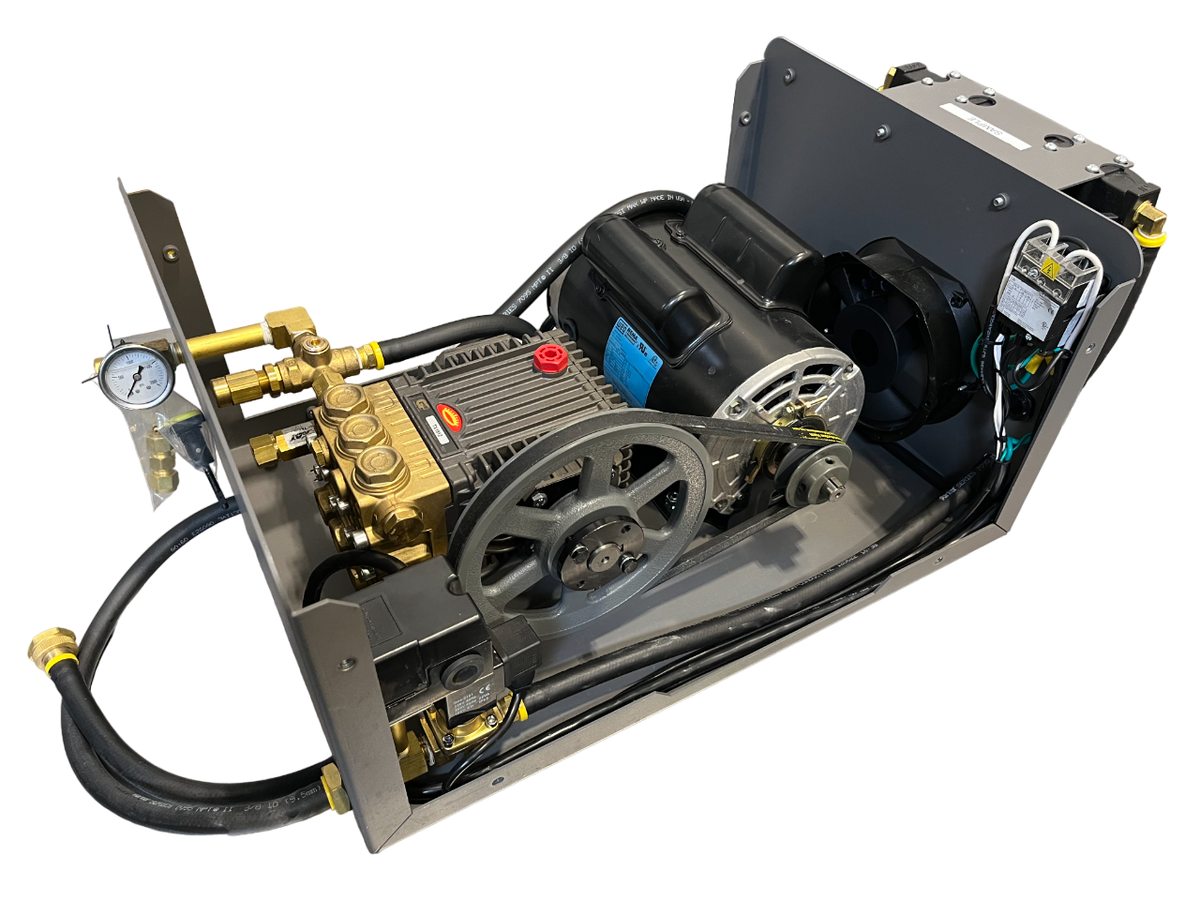

Featuring a superior GP Pump, 120V power ( 220V available on request ), and a pulley driven system, this pump guarantees exceptional quality. It comes with automatic overload protection, an inlet solenoid valve, and a liquid-filled pressure gauge for optimal functionality. NEW THIS YEAR ! :  Previously optional features are now all standard including:

•  Low pressure safety shut off valve, ( Protects pump in case of water loss )
• Dual filtration with Scale X filtration for maximum protection from calcium and sediment
• Thermal bypass protects the pump from overheating
• Drain valve release excess line pressure

Pulley Driven Pumps operate at much lower RPM than direct drive pumps resulting in much lower sound level, cooler operation and greatly increased pump life.

Crafted to last, this pump is adorned with a resilient powder coat finish and an easy-to-use on/off switch. It effortlessly connects with a  standard power cord.  Rest easy with an industry leading 3-year warranty that guarantees your satisfaction.

Elevate your space with our Pulley Driven Misting Pump – the premium solution for rejuvenating mist. Don’t wait, order now and experience unparalleled performance and superb quality.

Pulley Drive Specs and Manual

VFD ( Variable Frequency Drive ) Pump

Our VFD ( Variable Frequency Drive ) Pump is the most advanced commercial misting pump on the market.  Whereas a typical commercial pump has a rather narrow range within which it can operate ( Nozzle size and quantity ), our VFD pumps have a  considerably wider range . This is because the system will sense the demand from the nozzles and slow down or speed up the pump accordingly.

 A VFD pump can operate with considerably fewer nozzles than the standard pump with no adverse effect on the pump.  Standard pumps typically cannot operate at less than 50% of their capacity. VFD pumps on the other hand can safely operate at only 25% of their capacity.  This is extremely useful for the following applications:

• Misting multiple zones independently or together. Example: 2 patios and a gazebo
• Providing the ability to change out the nozzles to various sizes to adapt to changing seasonal conditions



Neither of these scenarios are possible with a standard commercial pump.

Features of this pump include:



• VFD operation will adjust to demand from the nozzles
• Multiple zone capability. Zones can be controlled manually or electronically
• Quiet operation
• Low pressure safety shut off valve, ( Protects pump in case of water loss )
• Dual filtration with Scale X filtration for maximum protection from calcium and sediment
• Thermal bypass protects the pump from overheating
• Drain valve release excess line pressure
• Automatic motor overload protection
• Inlet solenoid valve
• Liquid filled pressure gauge

Parts List
